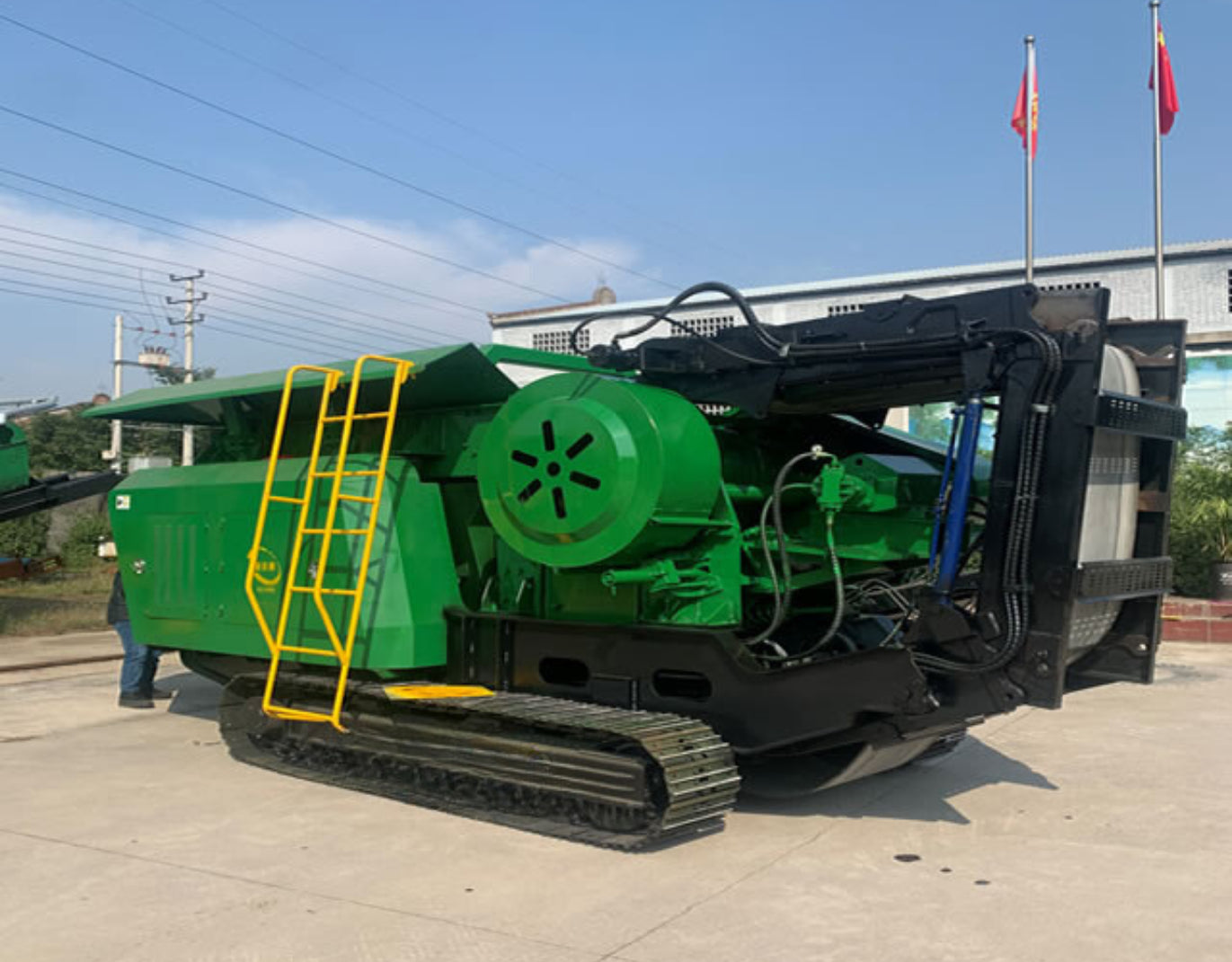

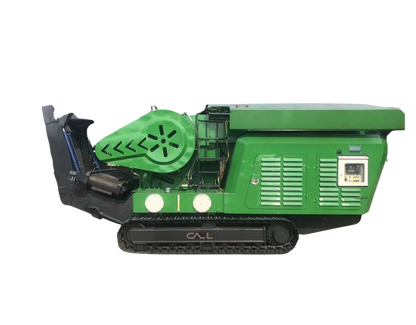

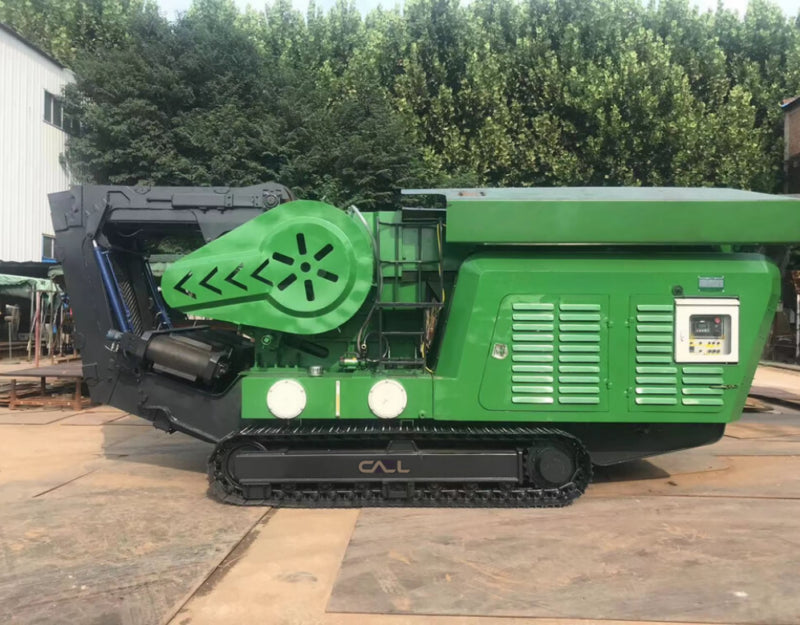

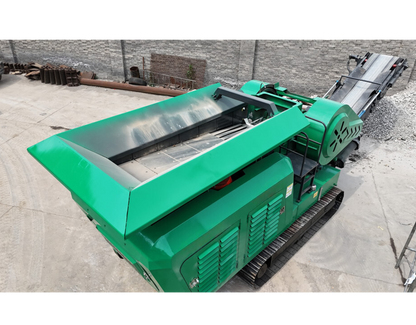

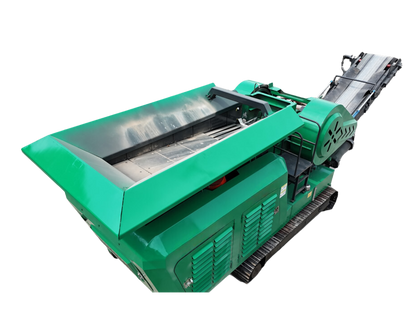

Unleash the power of the CAEL Yanmar Engine Mobile Jaw Crusher, engineered for superior performance in construction sites, quarries, and demolition projects. Built to handle demanding daily operations, this advanced crusher operates smoothly and efficiently while delivering exceptional output. Its fully integrated systems ensure outstanding performance for both primary and secondary crushing applications.

Prices

Contact us for the latest pricing and exclusive offers.

Product Specifications

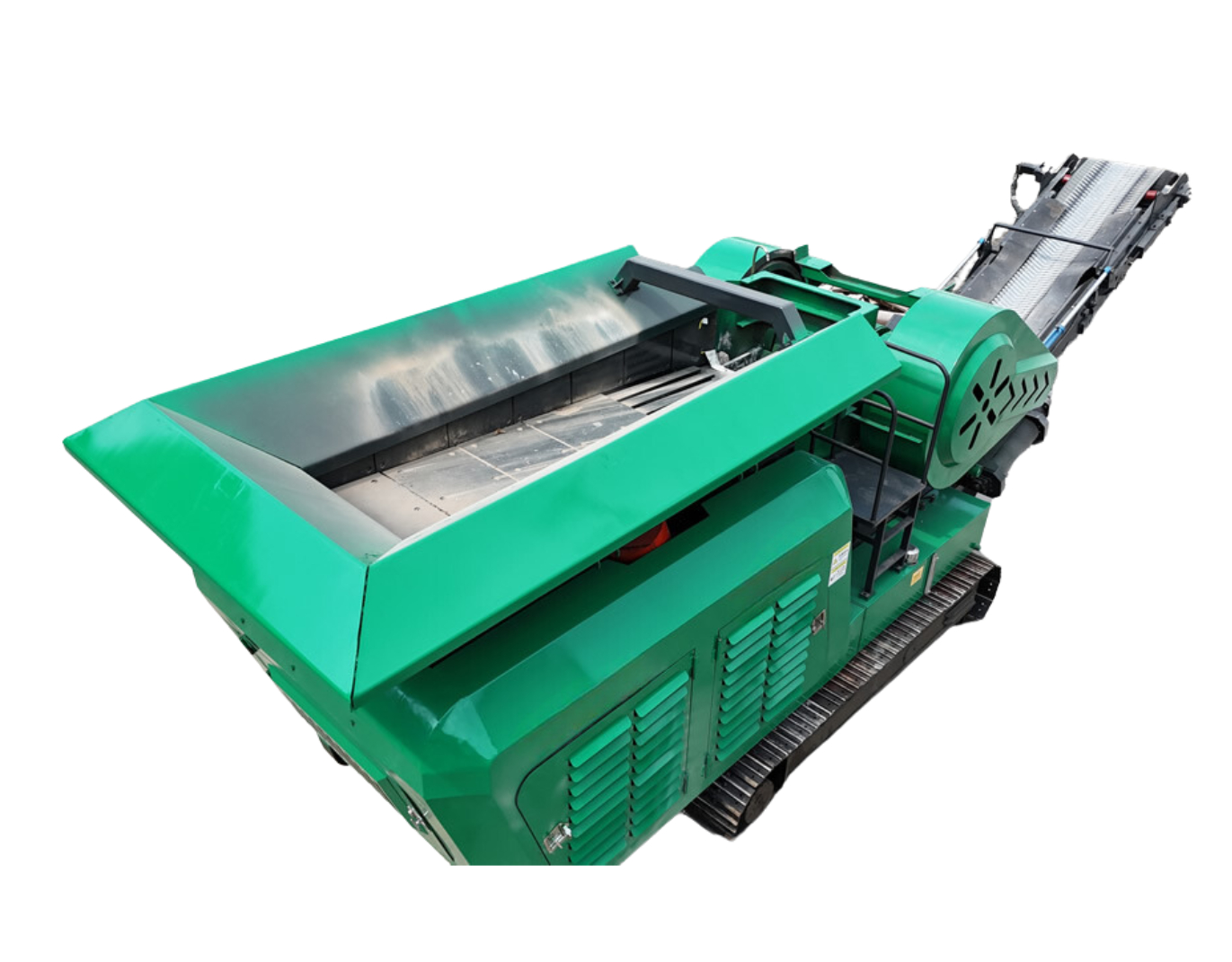

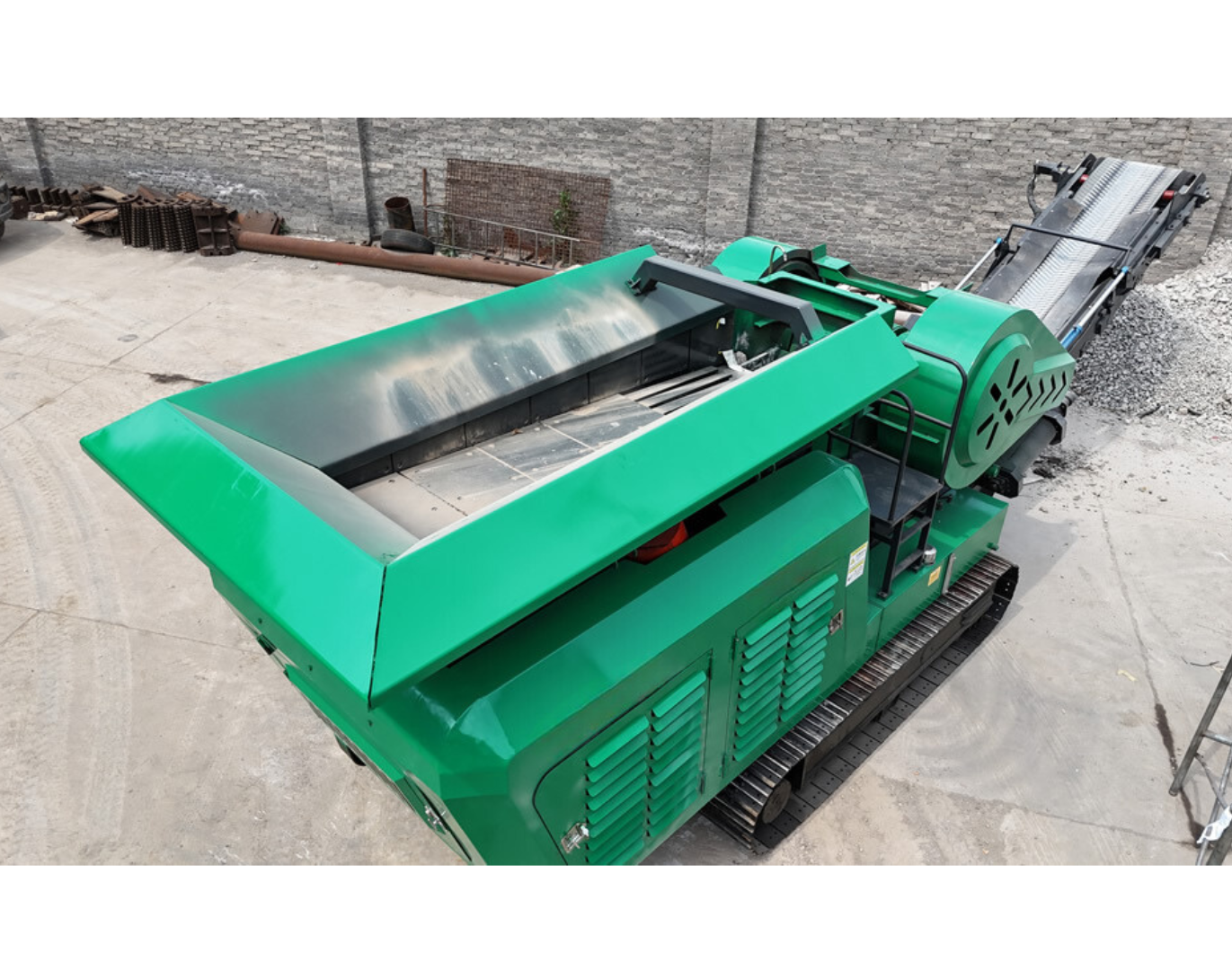

Feeding System

• Stock Bin Volume: 3 m³
• Hopper Size: 2200 × 3000 mm (86.61 × 118.11 in)
• Vibrating Feeder: GZD0625

Crushing Equipment

• Feed Port Size: 680 × 430 mm (26.77 × 16.93 in)
• Maximum Feeding Size: 350 mm (13.78 in)
• Production Capacity: 30–80 t/h (33–88 US tons per hour)
• CSS Range: 20–80 mm (0.79–3.15 in)

Driving System

• Stage IIIA: 66 kW (89 HP) Cummins Engine
• Tier 4 Final: 54 kW (74 HP) Yanmar Engine
• Stage V: 54 kW (74 HP) Yanmar Engine
• Warranty: Manufacturer-backed engine warranty included.

Auxiliary Equipment

• Belt Conveyor: B650 × 6500 mm (25.59 × 255.91 in)
• Stacking Height: 2.1 m / 2100 mm (82.68 in)
• Belt-Type Iron Separator: RCY0515

Basic Parameters

Key Features

✔ High-Efficiency Crushing – Ideal for processing stone, concrete, aggregates, and demolition materials.
✔ Large-Capacity Feeding System – Ensures continuous and efficient operation.
✔ Advanced Vibrating Feeder – Provides uniform material flow and maximizes productivity.
✔ Powerful Engine Options – Choose between Cummins and Yanmar for reliable, fuel-efficient performance.
✔ Adjustable Output Settings – Flexible CSS range for varied project requirements.
✔ Integrated Iron Separator – Removes metal contaminants to protect equipment.
✔ Low Maintenance & High Durability – Built with premium components for long-term reliability.
✔ Superior Mobility & Easy Setup – Designed for rapid deployment across job sites.
✔ Eco-Friendly Operation – Complies with global emission standards.
✔ One-Year Warranty – Covers parts for added peace of mind.
