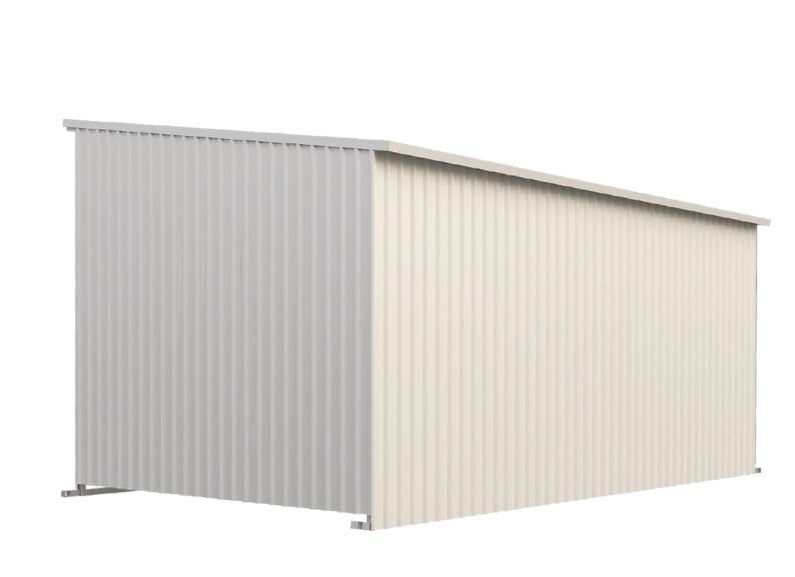

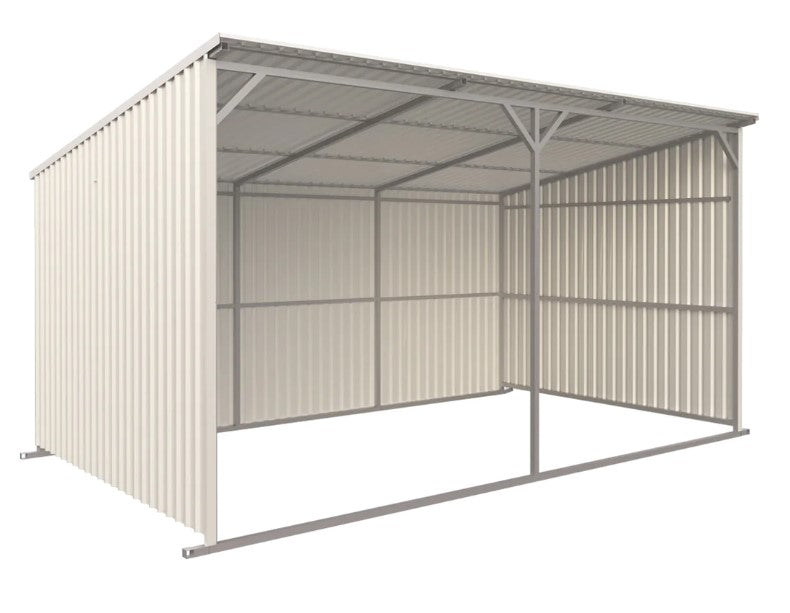

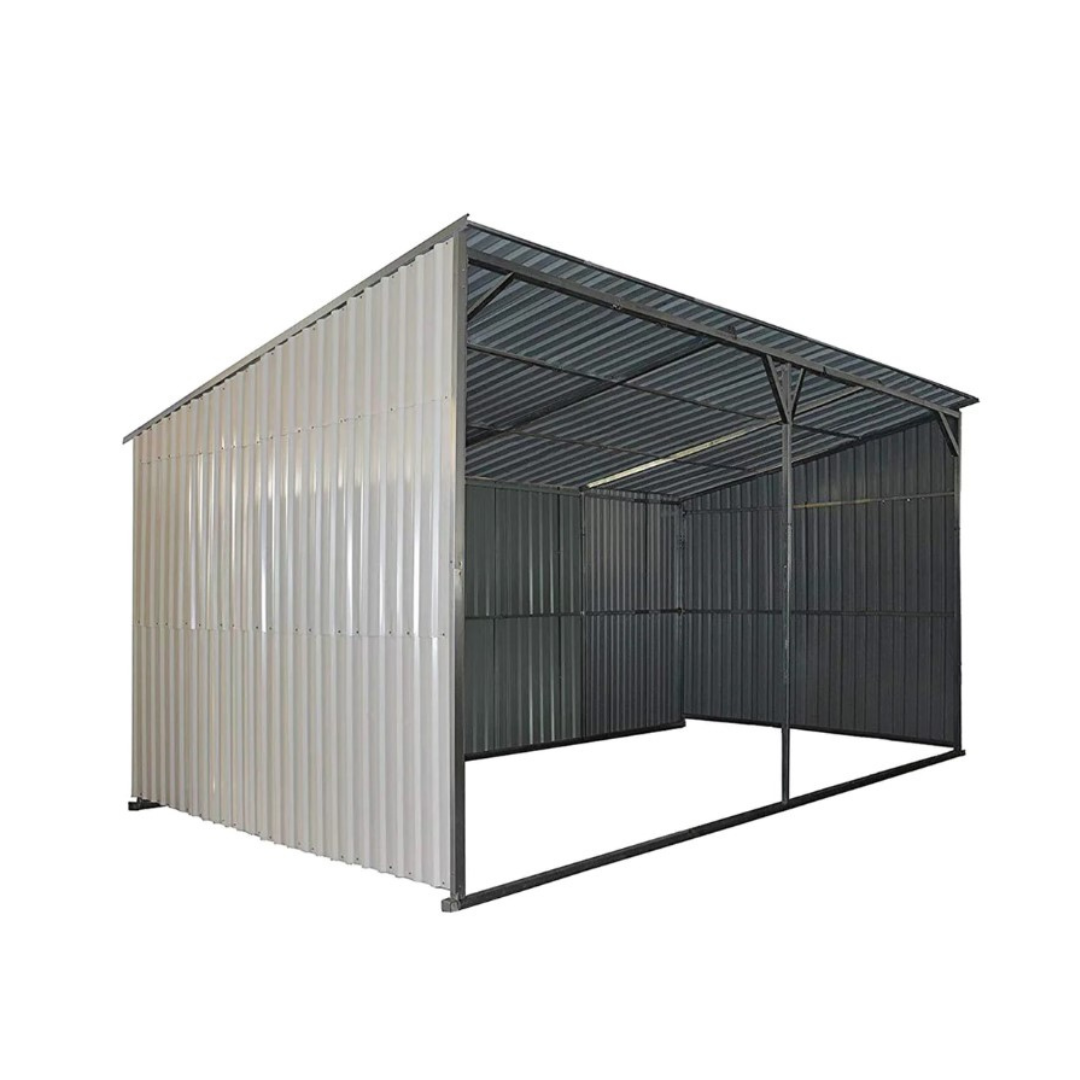

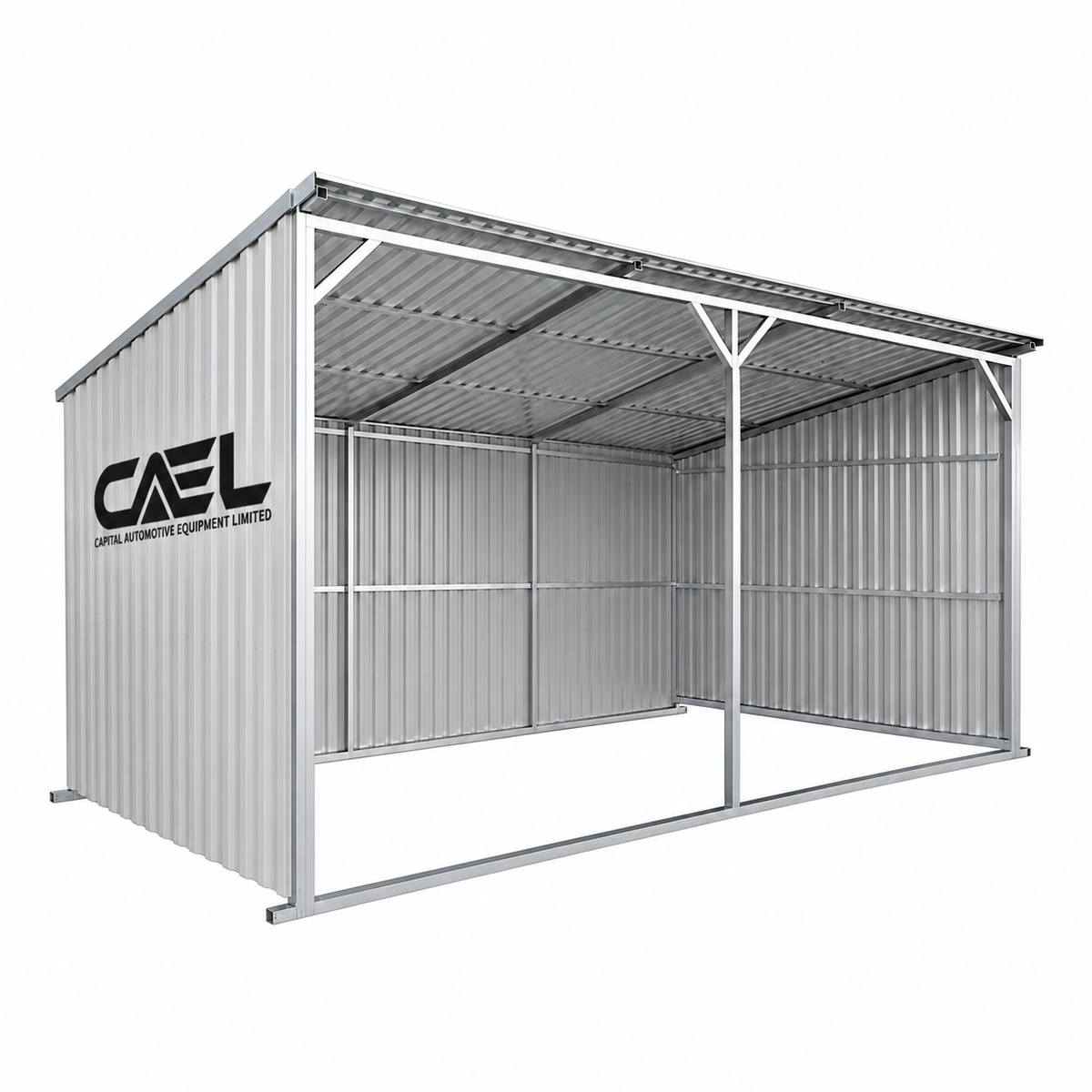

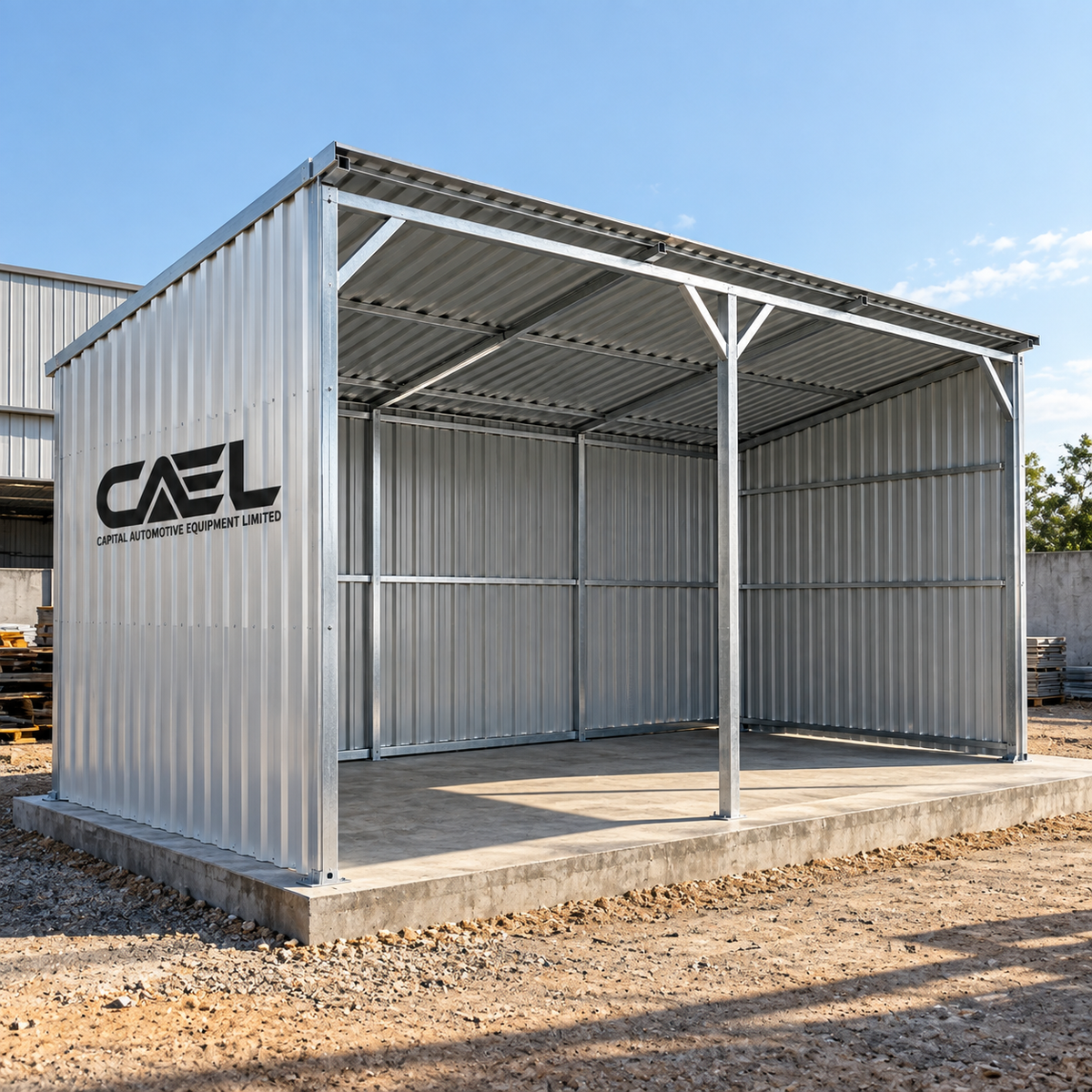

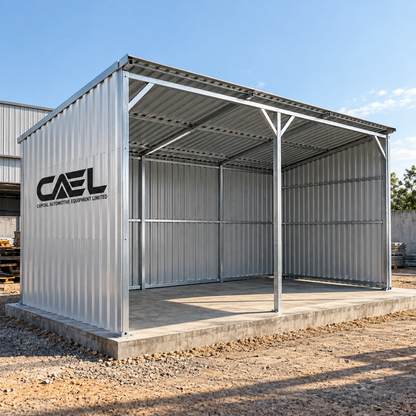

The CAEL Galvanized Metal Livestock Shed is a practical and durable shelter solution designed for hobby farms, acreages, ranches, and agricultural operations. Built with reinforced galvanized steel tubing and corrosion-resistant corrugated metal panels, this shelter provides reliable year-round protection for livestock, feed, and equipment.

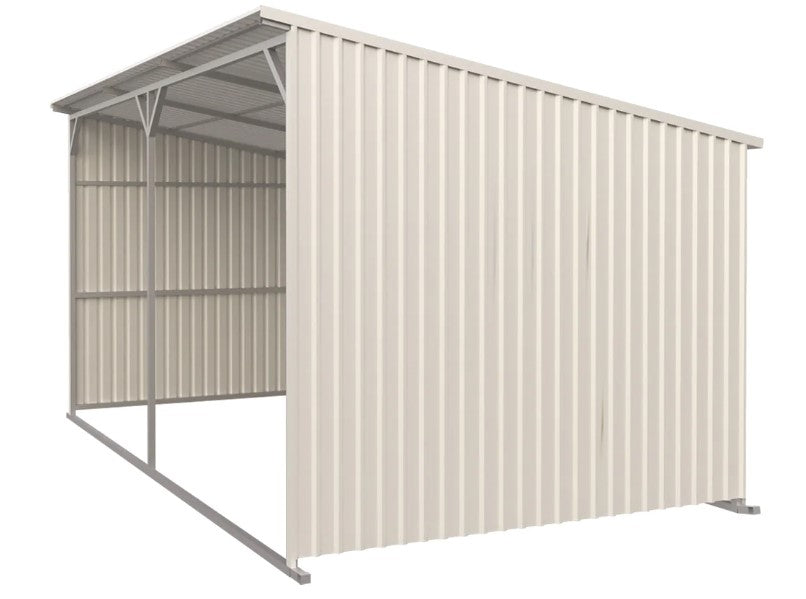

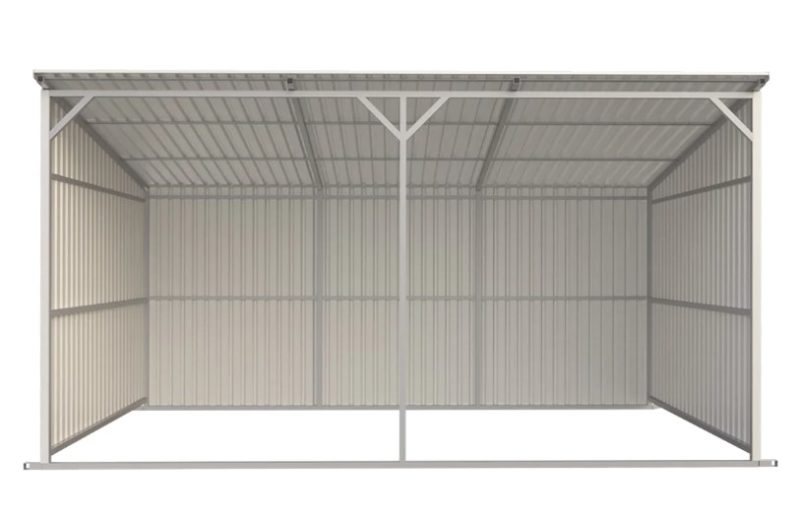

Its open-front design allows easy animal access and fast inspections, while the sloped roof system directs rain, snow, and moisture away from the structure to keep animals dry and comfortable.
Perfect for cattle, goats, sheep, horses, alpacas, and roaming livestock of all types.

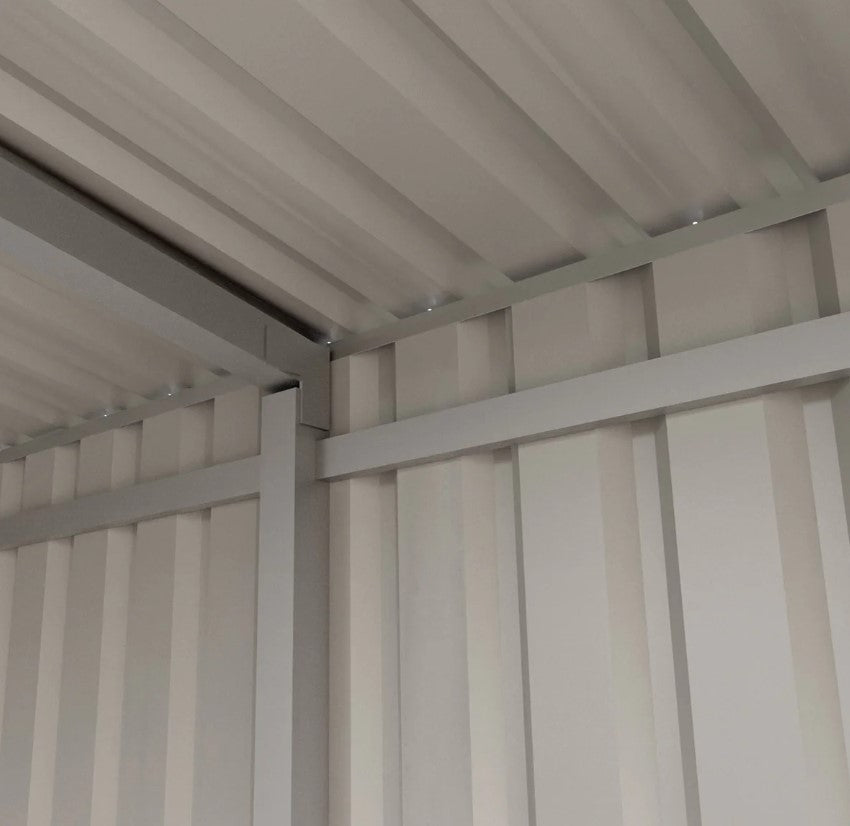

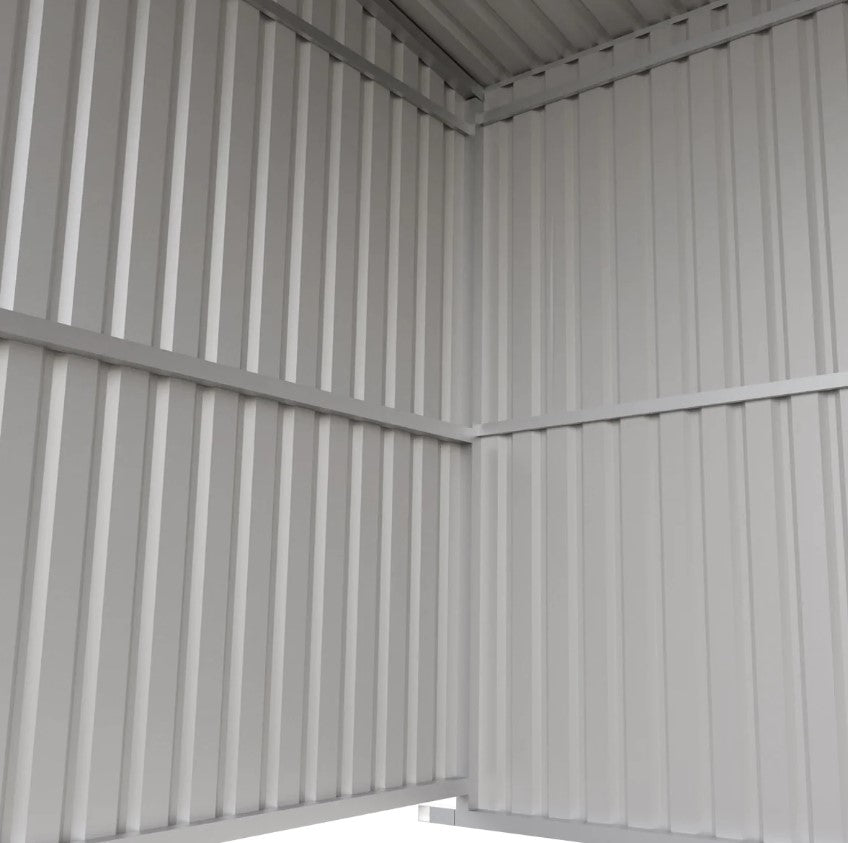

Constructed with galvanized corrugated metal panels and steel tubing for long service life in outdoor environments.

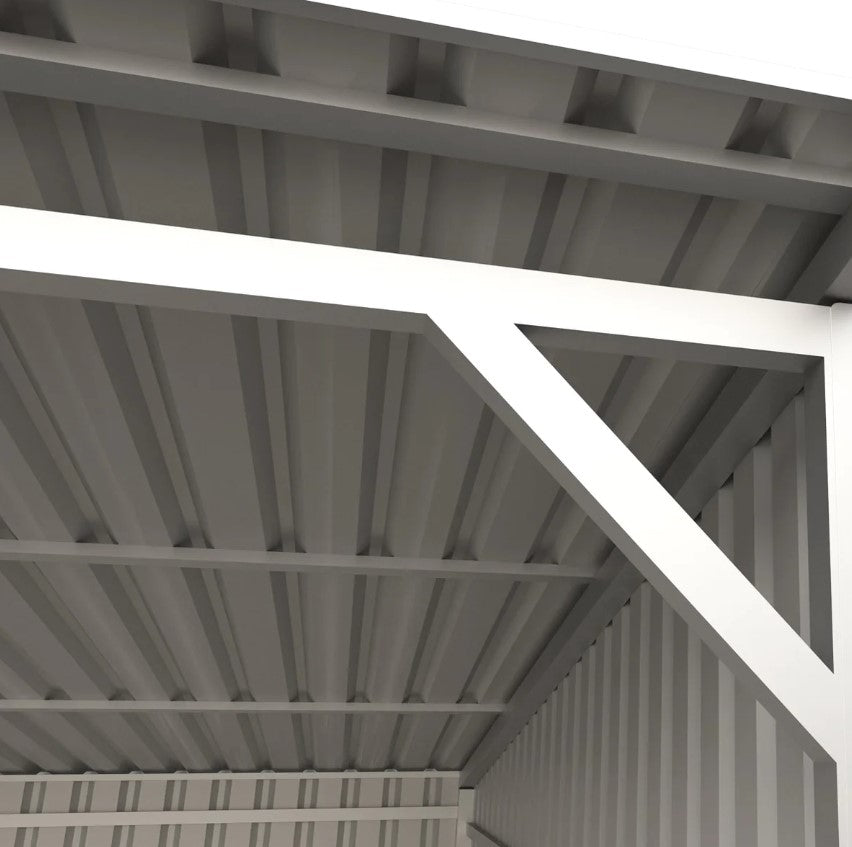

Helps direct water, snow, and moisture away from the shelter.
Great for:

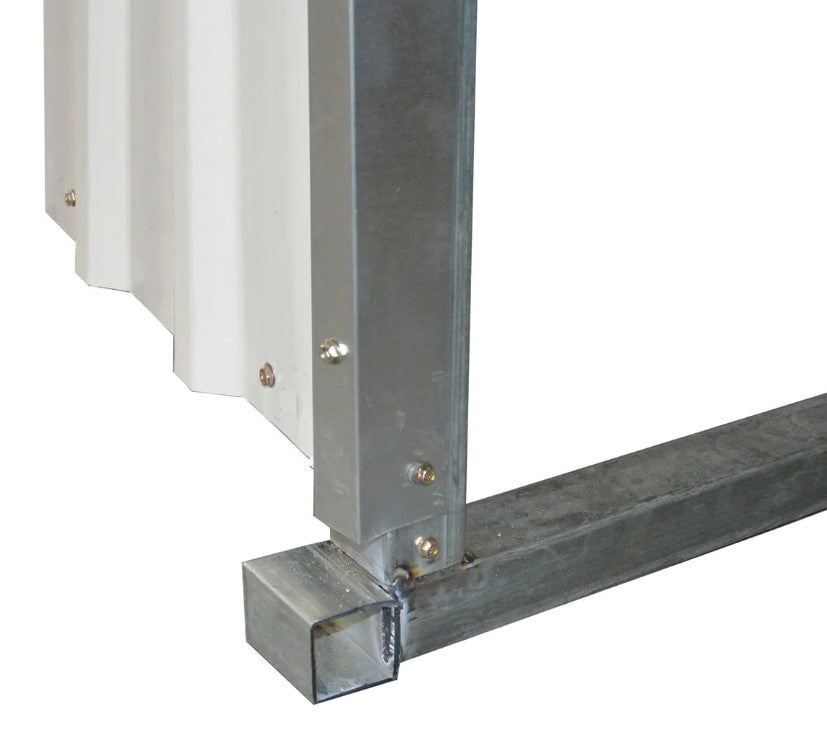

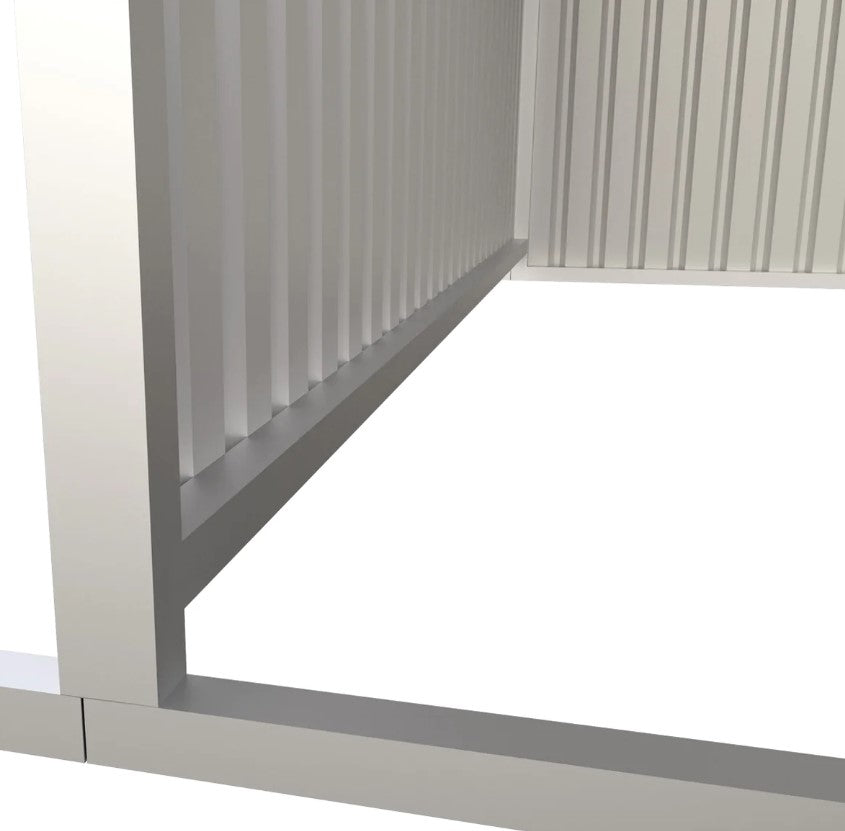

Square tube skid base with center support bar improves stability and mobility.
Welding joints and adding plywood lining further increases rigidity and durability.
| Feature | Specification |
|---|---|

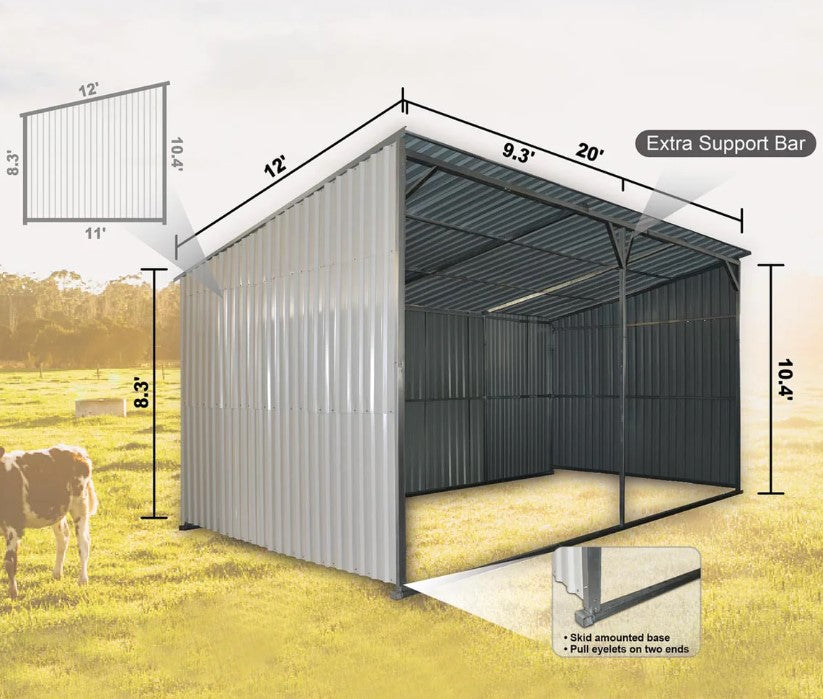

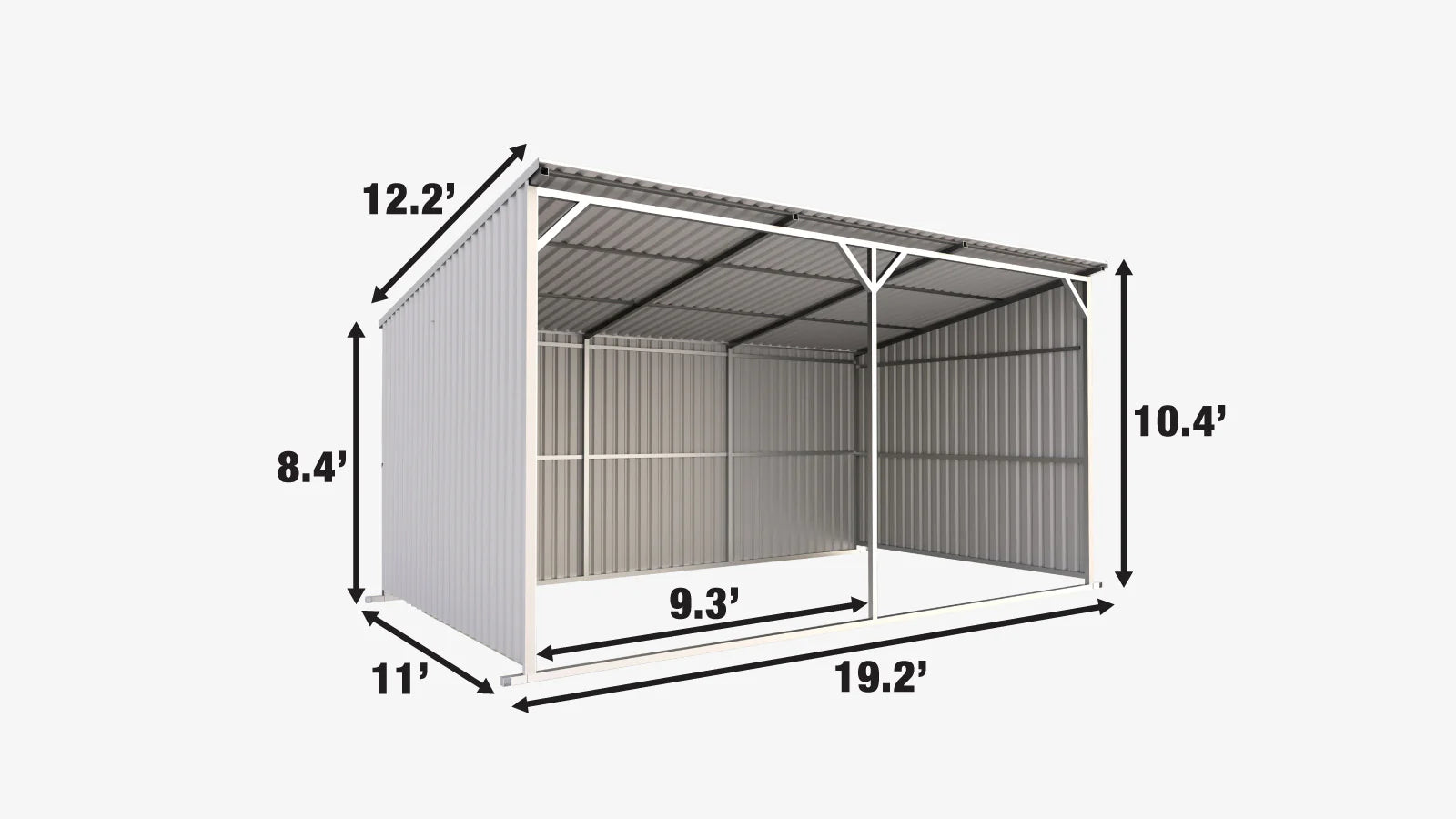

| Overall Size (L × W × H) | 19′ × 12′ × 10′ |
| Metric Size | 5791 × 3658 × 3048 mm |
| Primary Frame | 2″ × 2″, 16 Gauge |
| Secondary Frame | 1″ × 1-3/4″, 18 Gauge |
| Metal Sheet Thickness | 27 Gauge |
| Steel Pipe Frame | 50 × 50 × 1.5 mm |
| Secondary Pipe Frame | 20 × 40 × 1.2 mm |
| Color Boards Thickness | 0.32 mm |
| Item | Details |
|---|---|
| Welding Required | Approx. 4 Hours |
| Setup Time | 8–10 Hours (2 People) |
| Instructions Included | Yes |
| Assembly Hardware Included | Yes |
| Pull Eyelets Included | Both Ends |
| Plywood Lining Recommended | Yes |
| Feature | Specification |
|---|---|
| Packaging Type | Wooden Crate Shipping Box |
| Shipping Dimensions | 82″ × 41″ × 15″ |
| Package Weight | 965 lbs (438 kg approx.) |
Orders ship from our Canadian warehouses.
