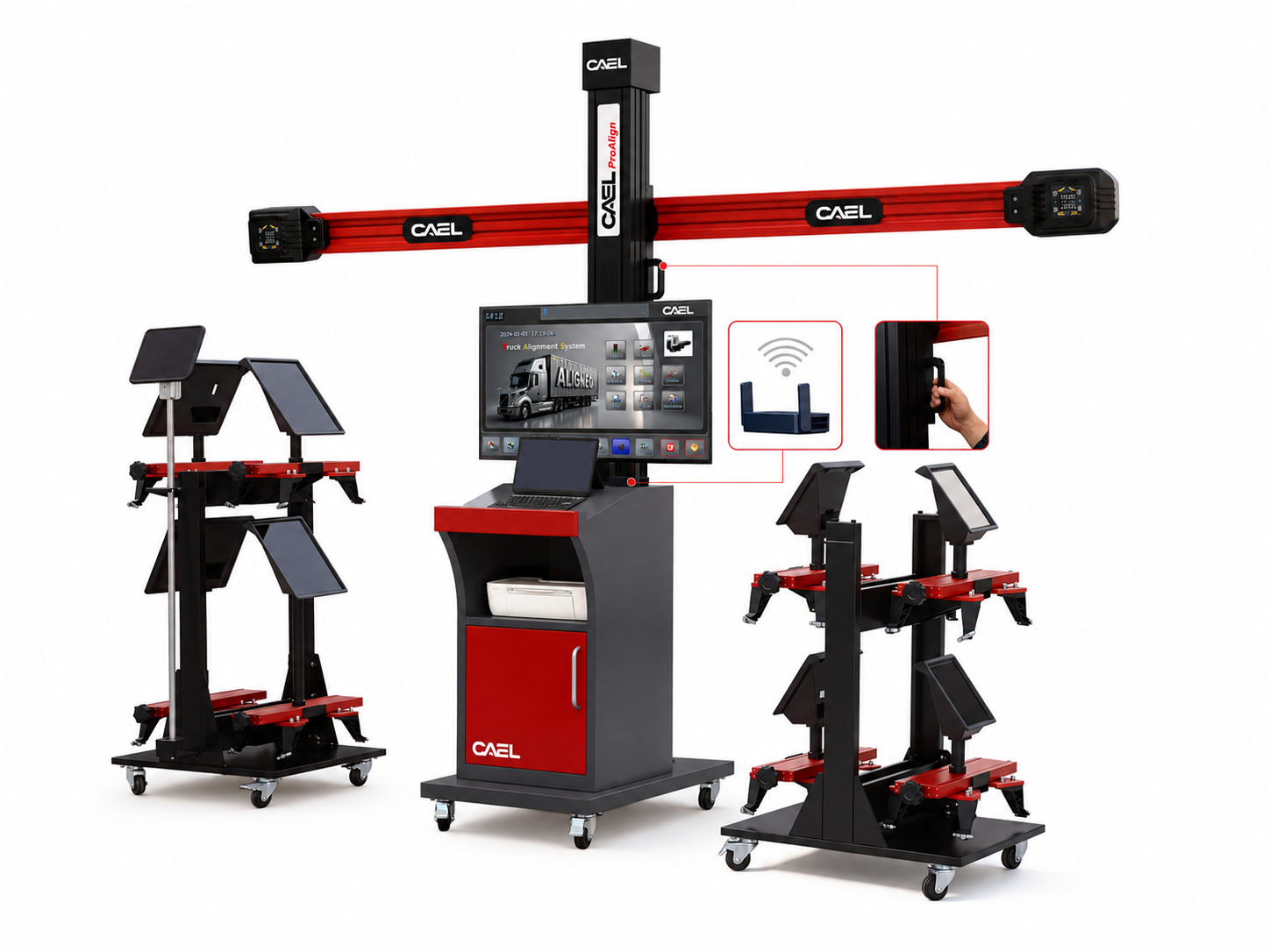

Upgrade your shop’s commercial alignment capabilities with the CAEL ProAlign T1, a premium portable truck wheel alignment system designed for high precision, speed, and ultimate shop versatility. Featuring a high-resolution 5G USB 3.0 camera system with up to 17 meters of tracking distance, the T1 easily captures real-time measurements across trucks, buses, trailers, and construction vehicles.

Built on a heavy-duty moveable cabinet with integrated clamp storage carts, the T1 gives you the flexibility to move the machine seamlessly across different bays—or even outdoors using its specialized Sunlight Mode—maximizing your workshop space and bay utilization.

Key Features & Capabilities

• High-Resolution Vision System: High-resolution 5G USB 3.0 cameras (5MPX) with long-distance tracking up to 17 meters.

• Versatility: Detects all major commercial vehicle types: trucks, buses, construction vehicles, and trailers.

• Axle Support: Measures up to 4 axles simultaneously.

• Operating Modes: Features a dedicated Sunlight Mode that easily switches from normal mode for outdoor operation under direct light.

• Dual Display Support: Supports dual-screen configuration (optional secondary screen required).

• Chassis Measurement: Supports standard measurement procedures (toe, camber, caster, kingpin inclination, thrust angle, scrub angle with rear axle, and chassis alignment).

Product Specifications

General & Electrical Specifications

Measurement Parameters & Accuracy

Standard Configuration & Packing List

• Overall Mobile Cabinet (1 set)

• Aluminum Beam with 5G HD Cameras (USB 3.0) (1 set)

• Aluminum Post (1 unit)

• 3D-Specific Industrial PC (1 unit)

• Laptop with Windows 10 (1 unit)

• 43-inch Display TV (1 unit)

• Standard A4 Printer (1 unit)

• Shield Targets (33 dots) (8 pcs)

• Wheel Clamps (13"–26") (8 pcs)

• Clamp Storage Carts (2 pcs)

• Truck Turntables (2 pcs)

• Probe Target for Trailer Measurement (1 unit)

• Steering Wheel Holder (1 set)

• Brake Pedal Holder (1 set)

• Rubber Boarding Boards (2 pcs)

• Rubber Stoppers (1 set)

• Rear Clamp Extension (1 set)

• Keyboard / Mouse / Wi-Fi Adapter (1 set)

Packaging & Shipping Details

All components are packed in protective wooden boxes with metal edge shielding for safe transport:
