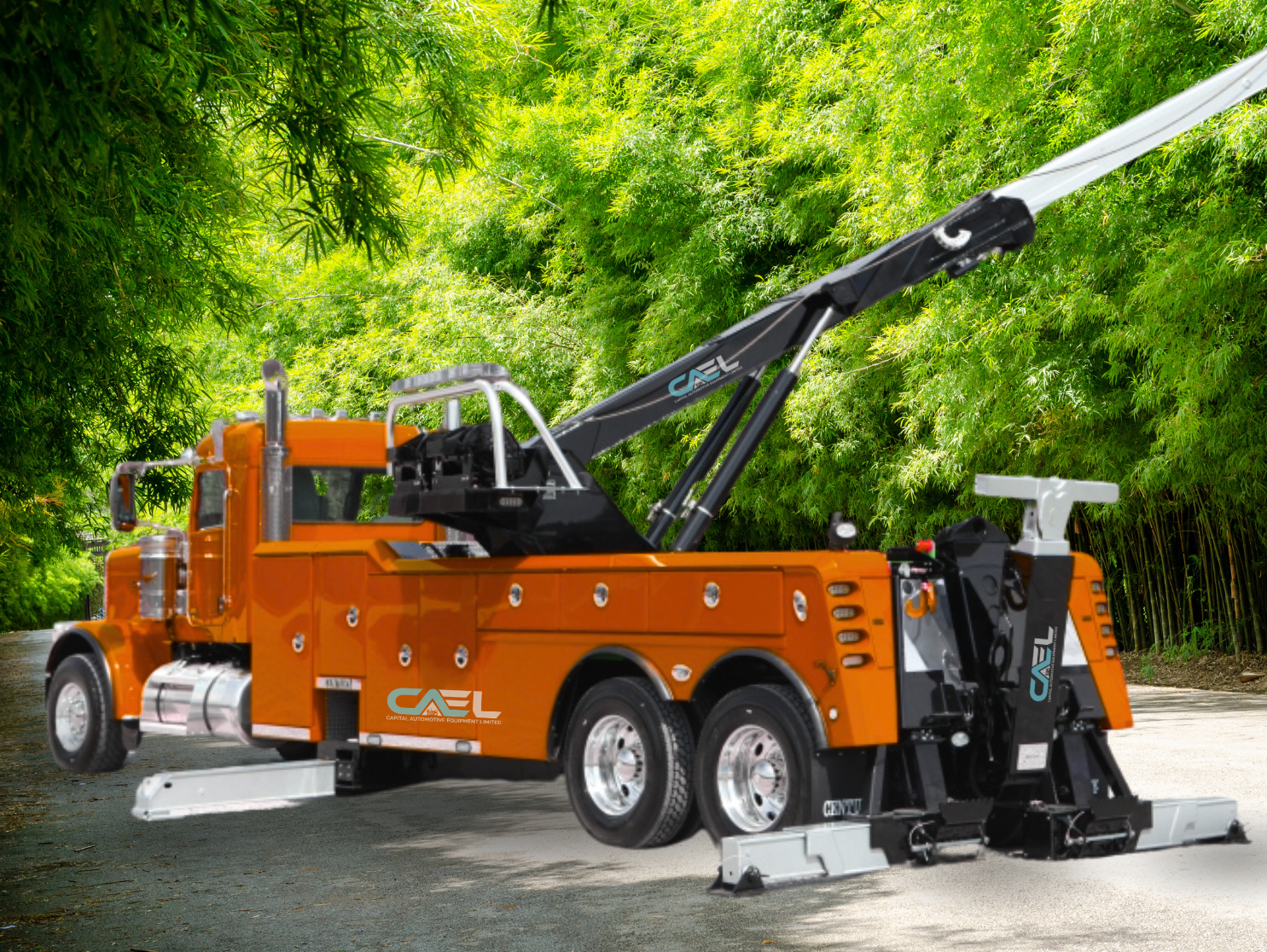

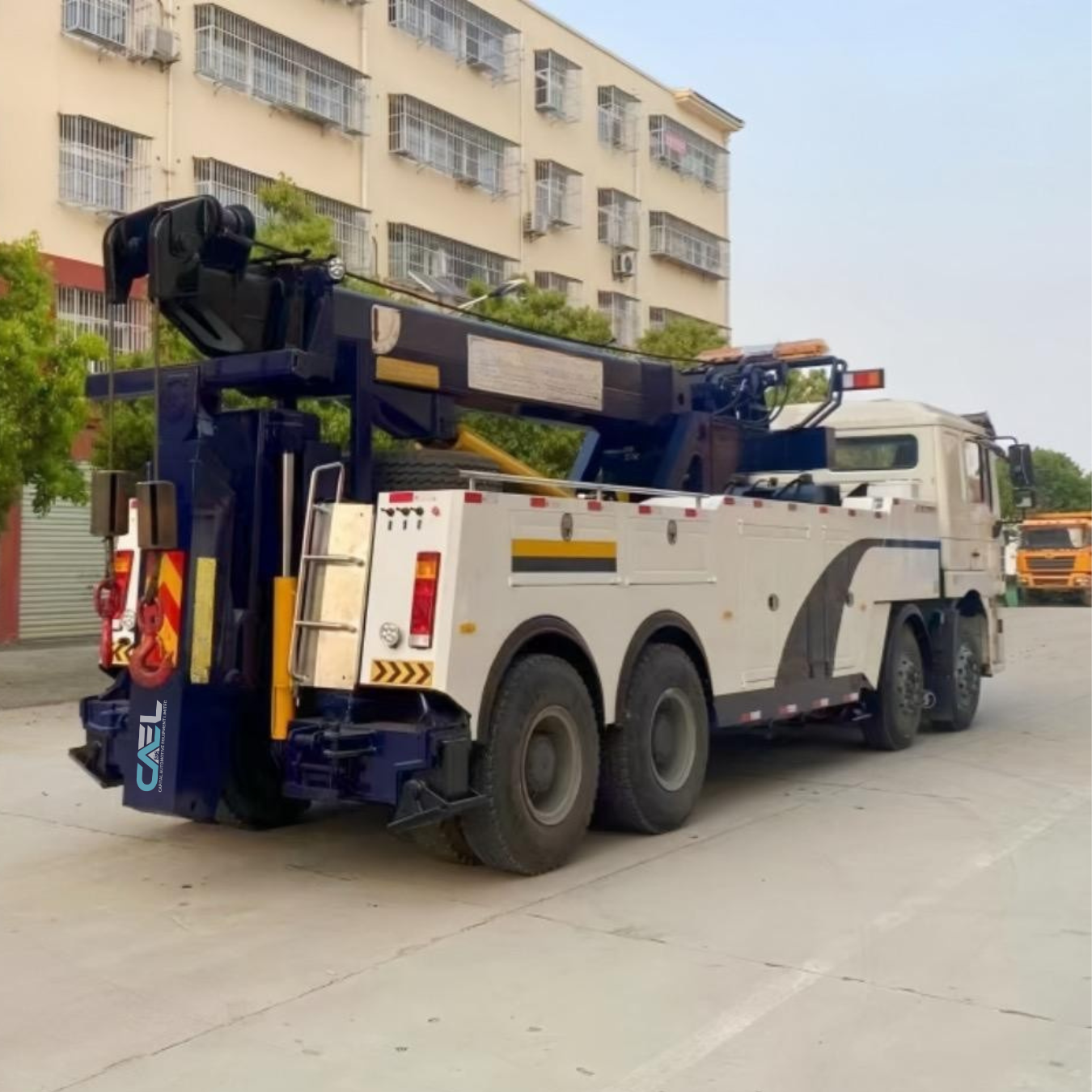

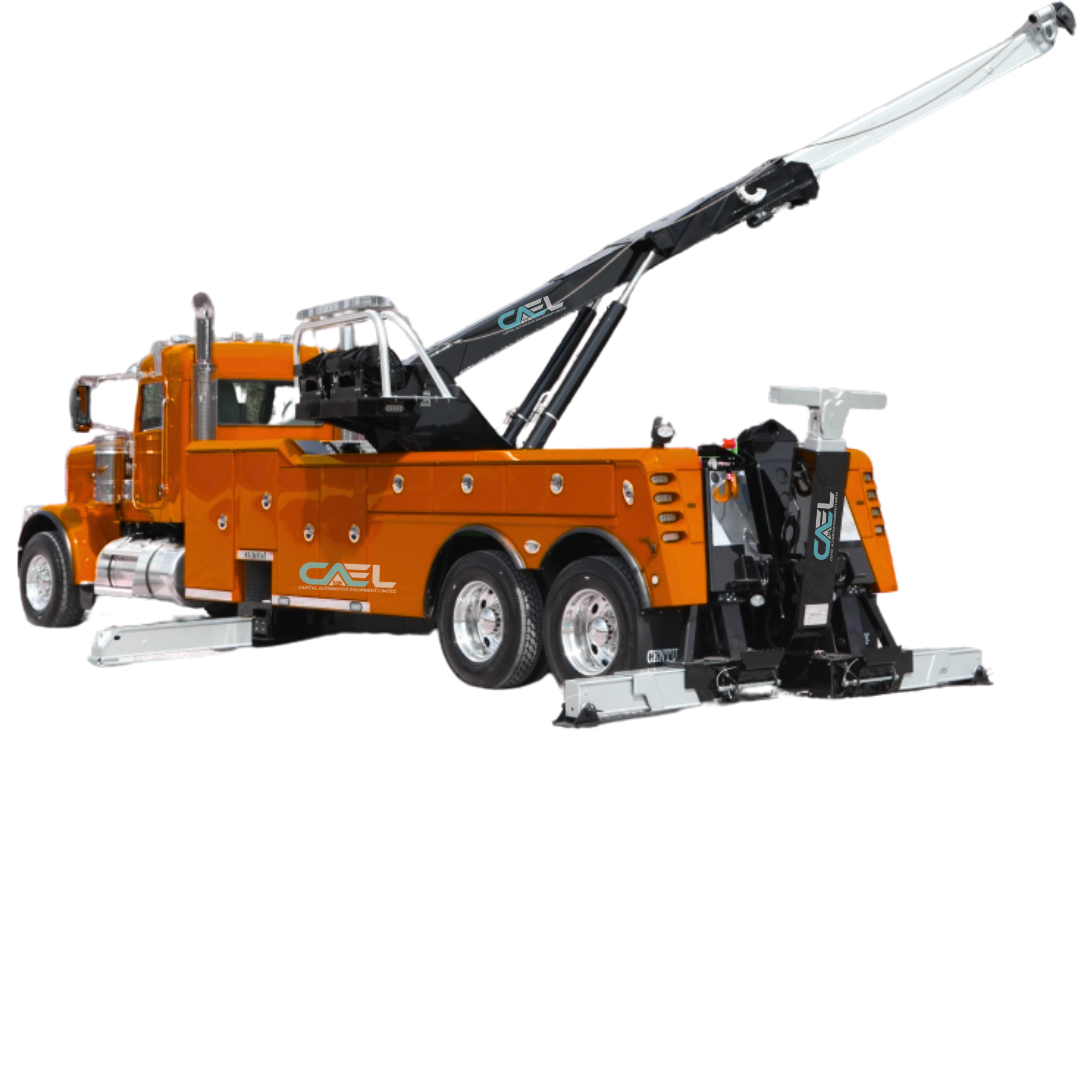

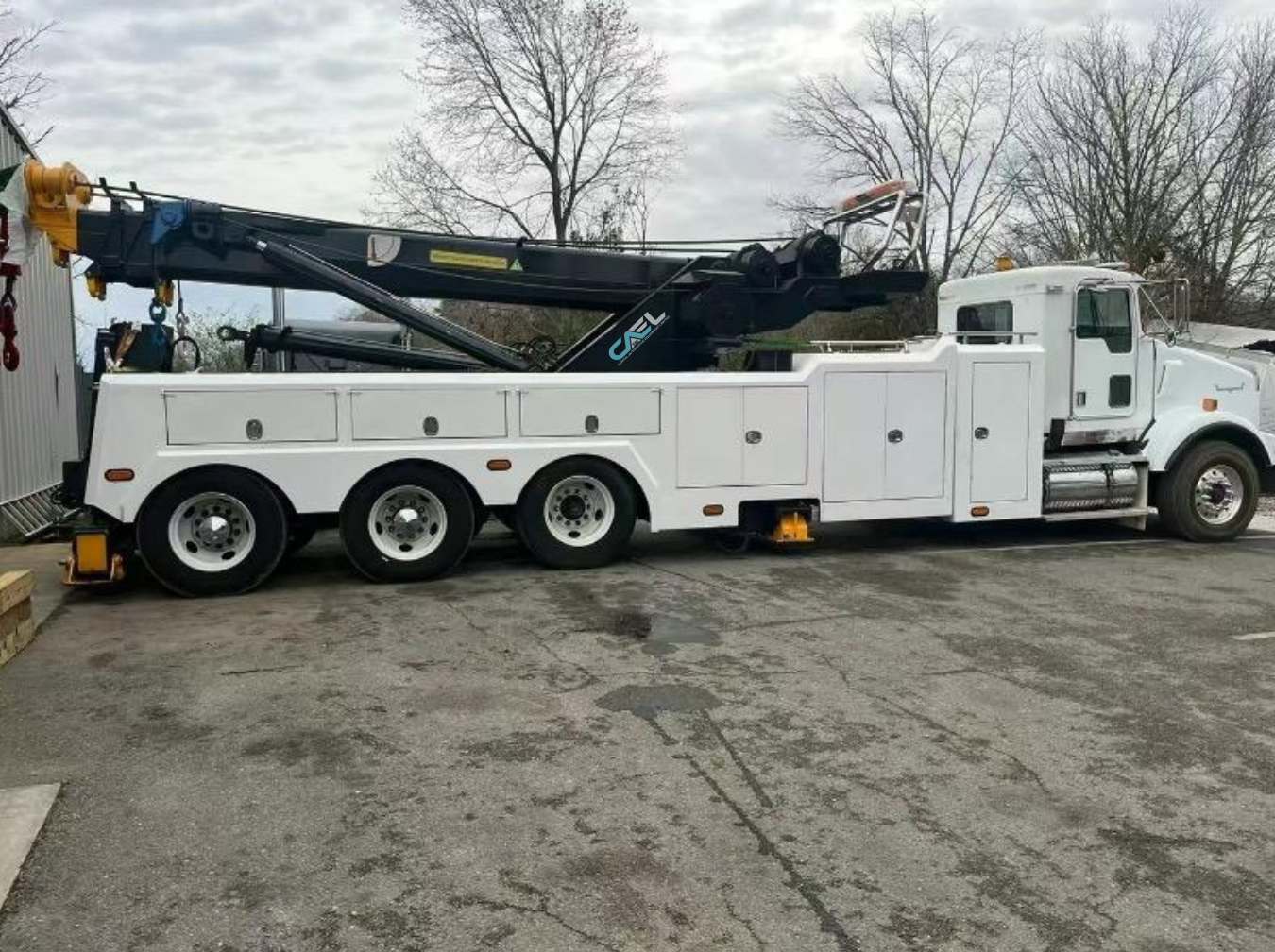

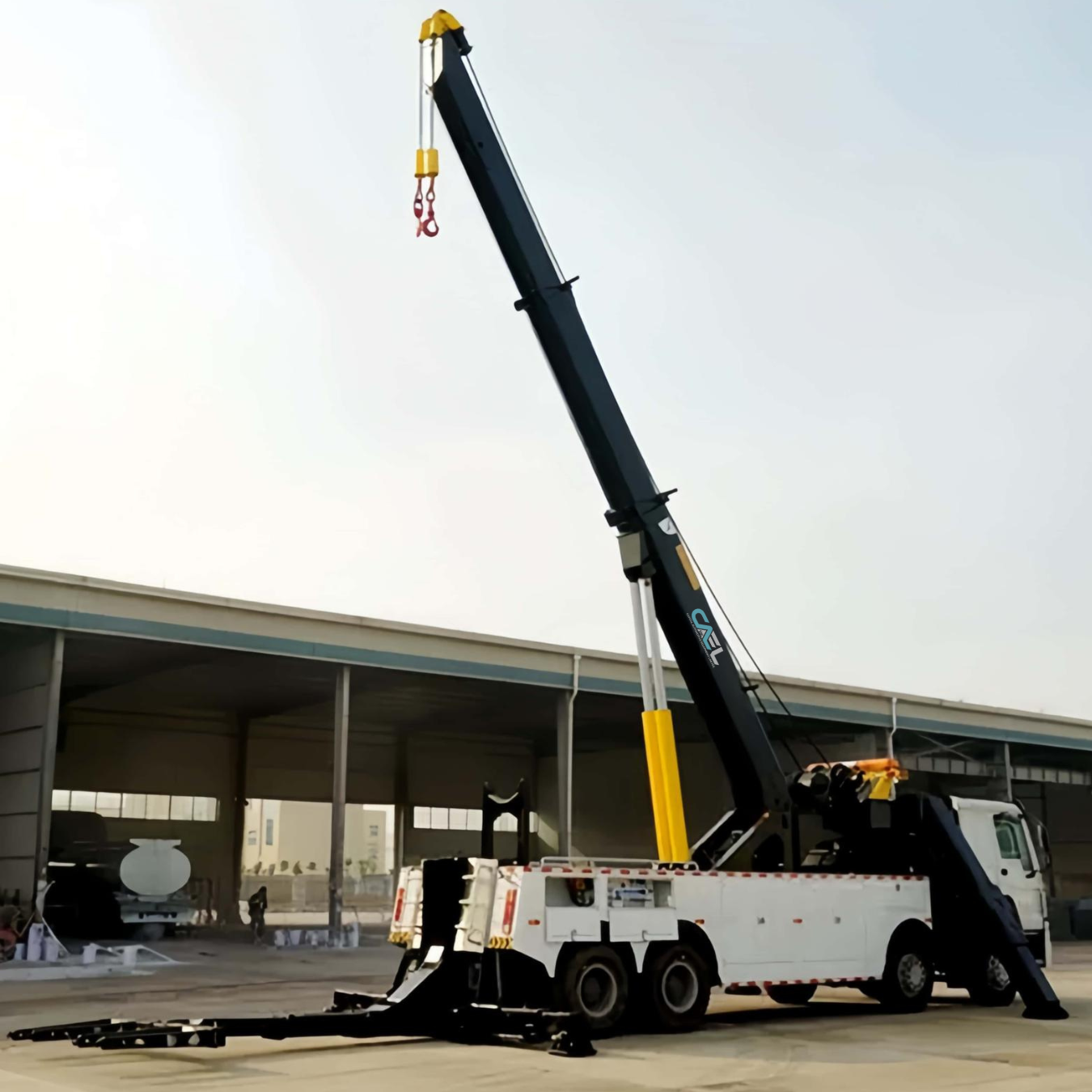

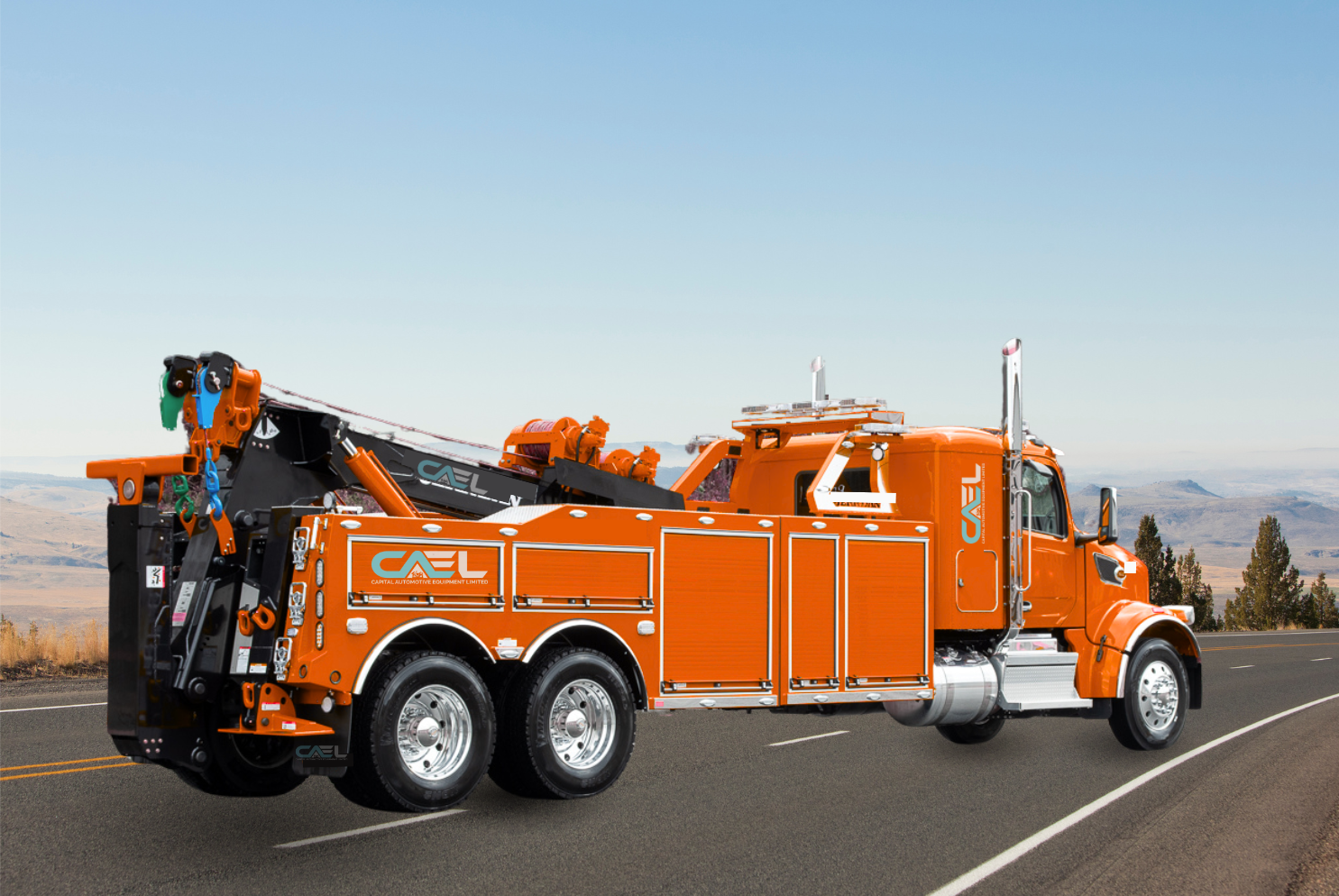

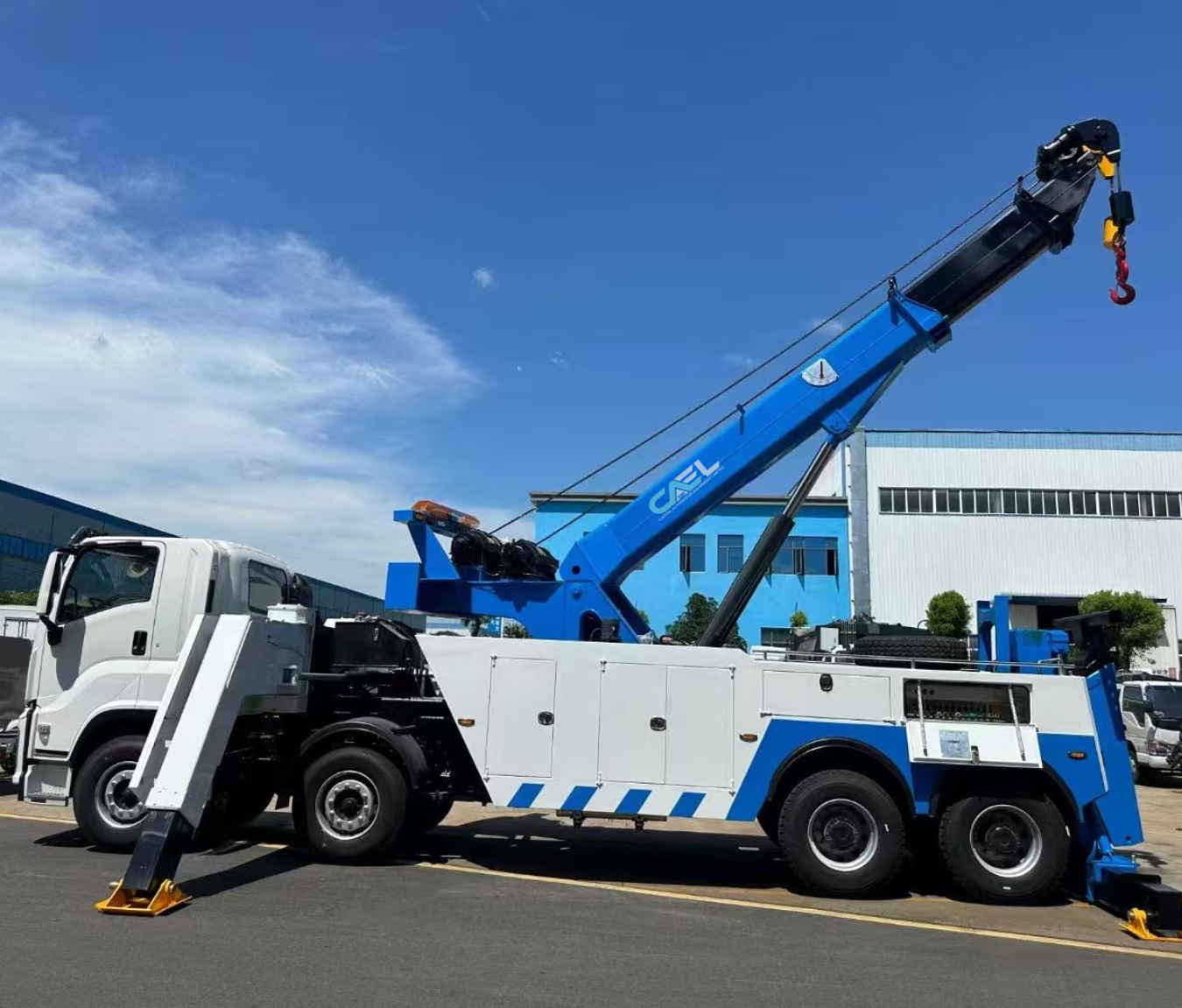

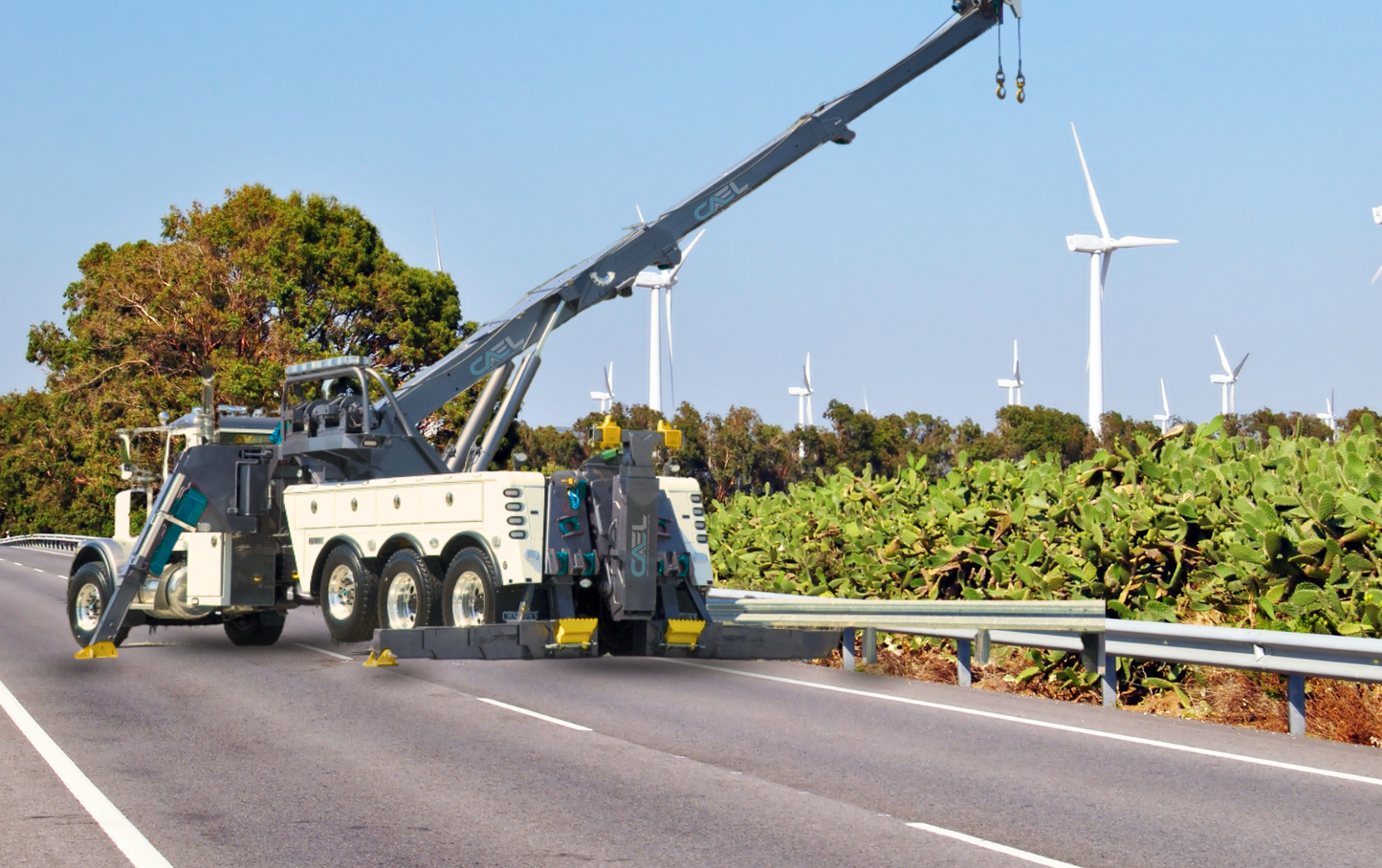

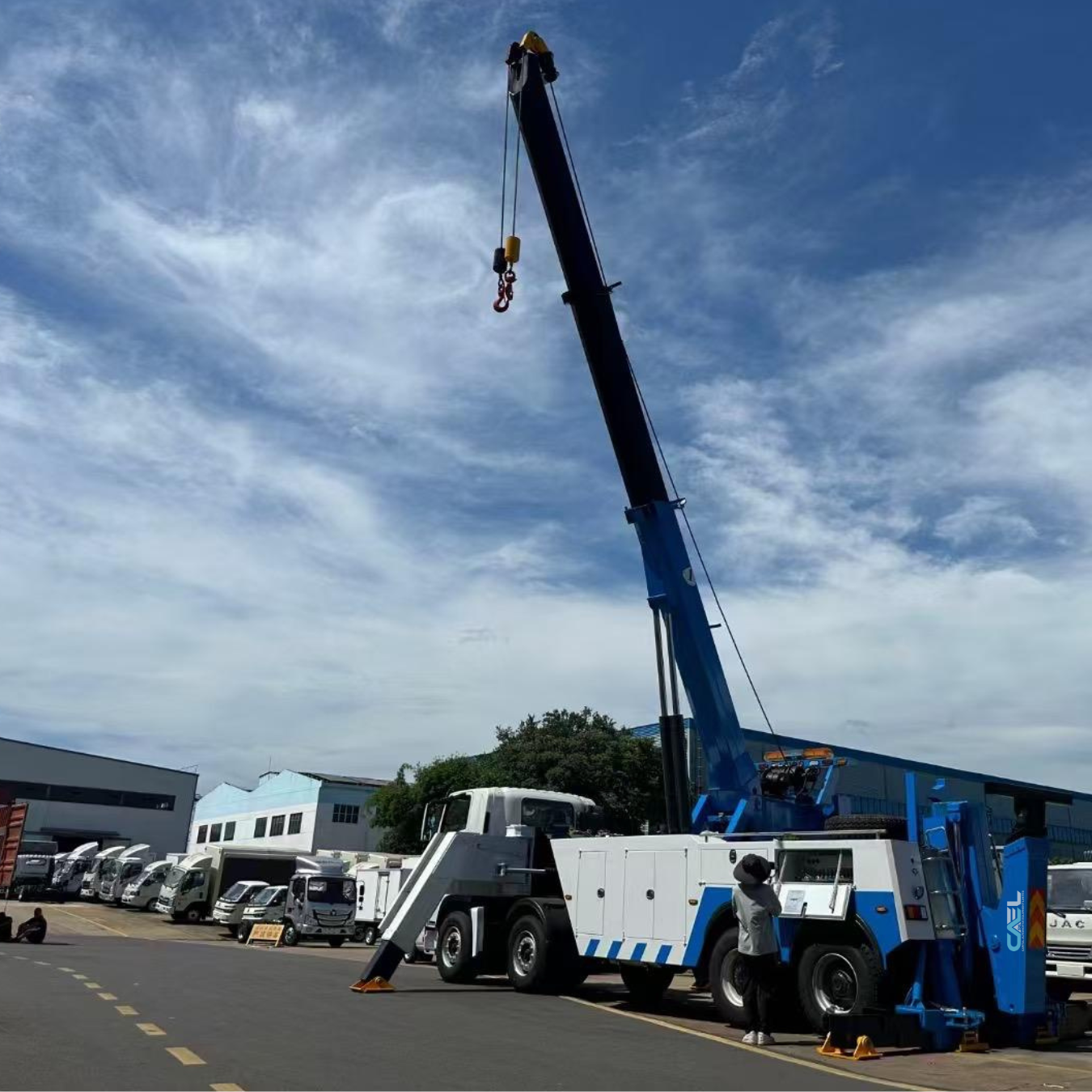

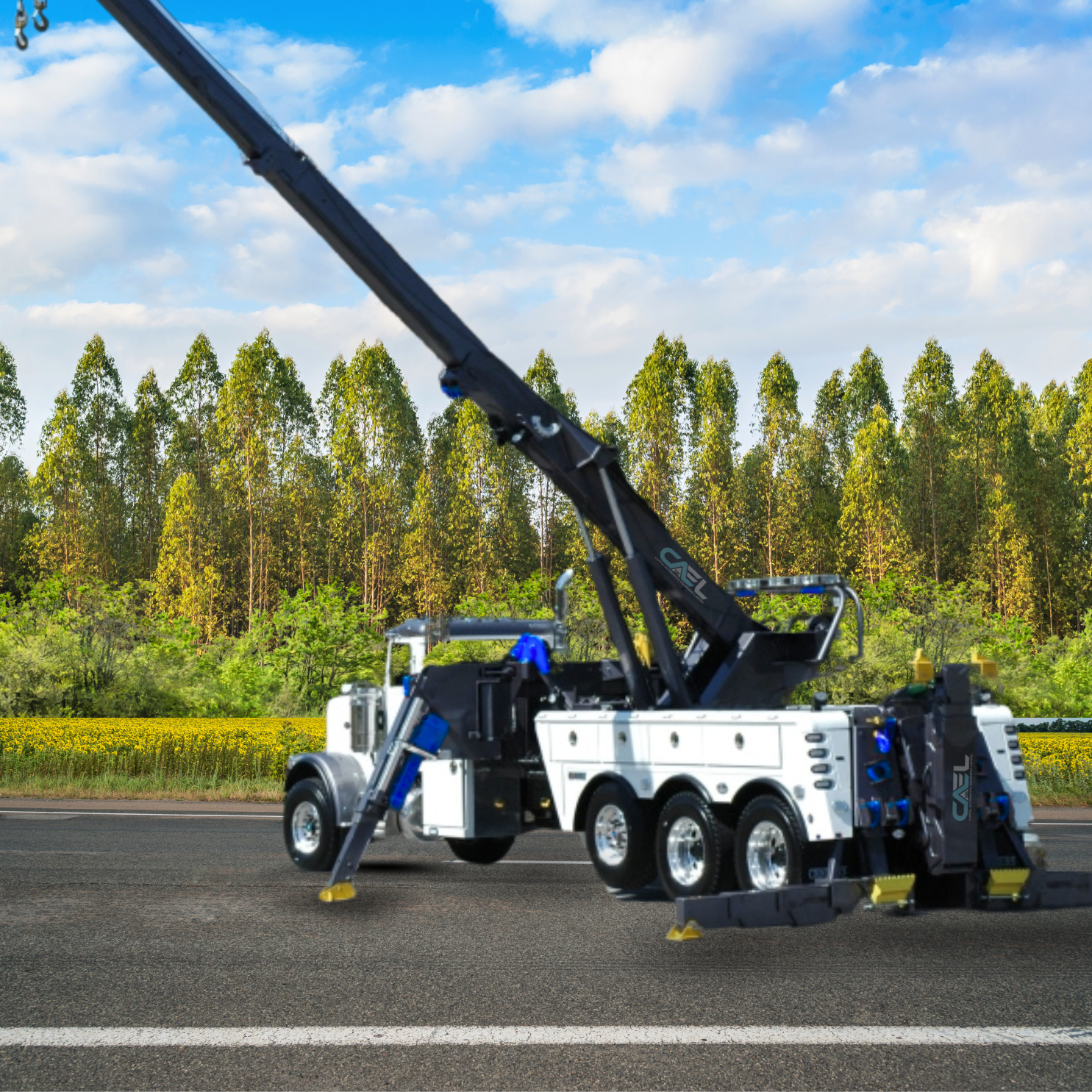

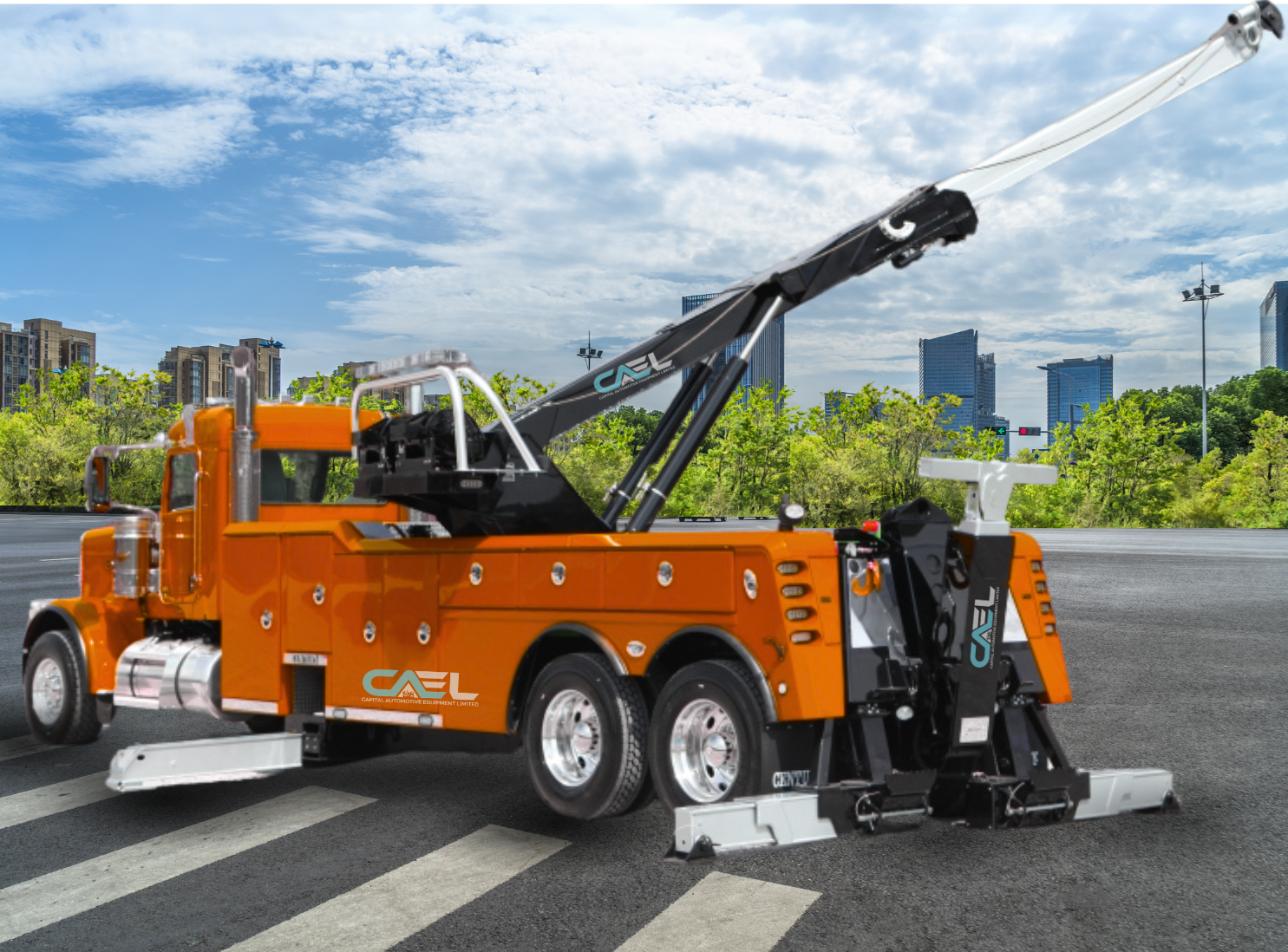

The CAEL Heavy Duty 35 Ton Tow Truck Wrecker is engineered for the toughest commercial towing, accident recovery, heavy transport rescue, fleet towing, industrial recovery, and municipal operations.
Built for extreme-duty service, this premium recovery unit combines a 35 ton boom capacity, 36 ton tow rating, dual 20 ton planetary winches, heavy-duty underlift system, and professional recovery accessories.
Designed for operators who demand serious lifting power, extended reach, and dependable performance.
Heavy-duty lifting for trucks, trailers, buses, and equipment.
Tow heavy commercial vehicles safely and efficiently.
✔ Frame fork holders
✔ 4 sets of frame forks
✔ Safety chains
✔ Fork & chain racks
Ready for commercial towing applications.
Premium professional finish.
Traditional durable wrecker design.
Tailored builds available for fleet needs.
| Feature | Details |
|---|---|
| Body Length | 4572 mm (180") |
| Cab to Centre of Tandem | Standard Steel Body |
| Winches | 2 Units |
| Winch Capacity | 20 Ton Each |
| Optional Winch | 10 Ton |
| Feature | Details |
|---|---|
| Type | Planetary |
| Pulling Force | 20 Ton (44,000 lbs) each |
| Cable Size | 19 mm (3/4") |
| Cable Length | 60 m (200 ft) |
| Feature | Details |
|---|---|
| Retracted Capacity @ 65° | 35 Ton (77,000 lbs) |
| Extended Capacity @ 65° | 8.5 Ton (17,000 lbs) |
| Maximum Lift Angle | 65° |
| Maximum Hook Height | 13,529 mm (533") |
| Reach Past Tailboard | 5,219 mm (205") |
| Feature | Details |
|---|---|
| Retracted Capacity on Forks | 15.8 Ton (35,000 lbs) |
| Retracted Reach | 1,746 mm (69") |
| Extended Capacity on Forks | 6.8 Ton (15,000 lbs) |
| Extended Reach | 3,492 mm (137") |
| Euro Option Reach | 3,657 mm (144") |
| Negative Tilt Angle | -10° |
| Tow Rating | 36 Ton (80,000 lbs) |
| Feature | Details |
|---|---|
| Front Axle Minimum | 9 Ton (20,000 lbs) |
| Rear Axles Minimum | 2 × 10.4 Ton (23,000 lbs) |
| Tire Size | R24.5 |
| Clear CA | 4,353 mm (171") |
✔ Heavy truck recovery
✔ Semi trailer towing
✔ Bus & coach towing
✔ Accident recovery
✔ Construction equipment transport
✔ Municipal heavy recovery
✔ Fleet towing operations
Ratings are based on structural and design factors only. Final capacity depends on selected chassis, axle setup, and installed equipment.
Higher chassis specifications may be required.
Heavy equipment built for real commercial work.
Tailored solutions for your towing fleet.
Reliable nationwide shipping available.
✔ 35 ton boom capacity
✔ 36 ton tow rating
✔ Dual 20 ton winches
✔ 533" hook height
✔ Heavy-duty underlift system
✔ Fully customizable
✔ Fleet-ready performance
Contact us today for pricing, custom specifications, financing options, and delivery across Canada.
