Description
The CAEL Tree Shear Attachment. Shear hardwoods like oak, mesquite, hedge, and locust with ease using its standard shear arms. Compatible with universal skid steer quick attach, making it effortless to use. Quickly and reliably clear trees and vegetation from your land. An essential tool for efficient land clearing.

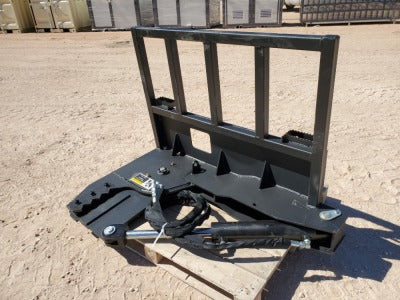

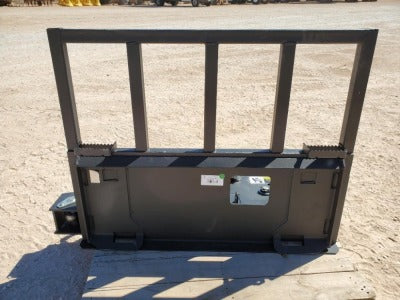

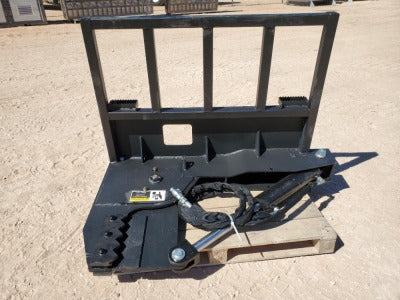

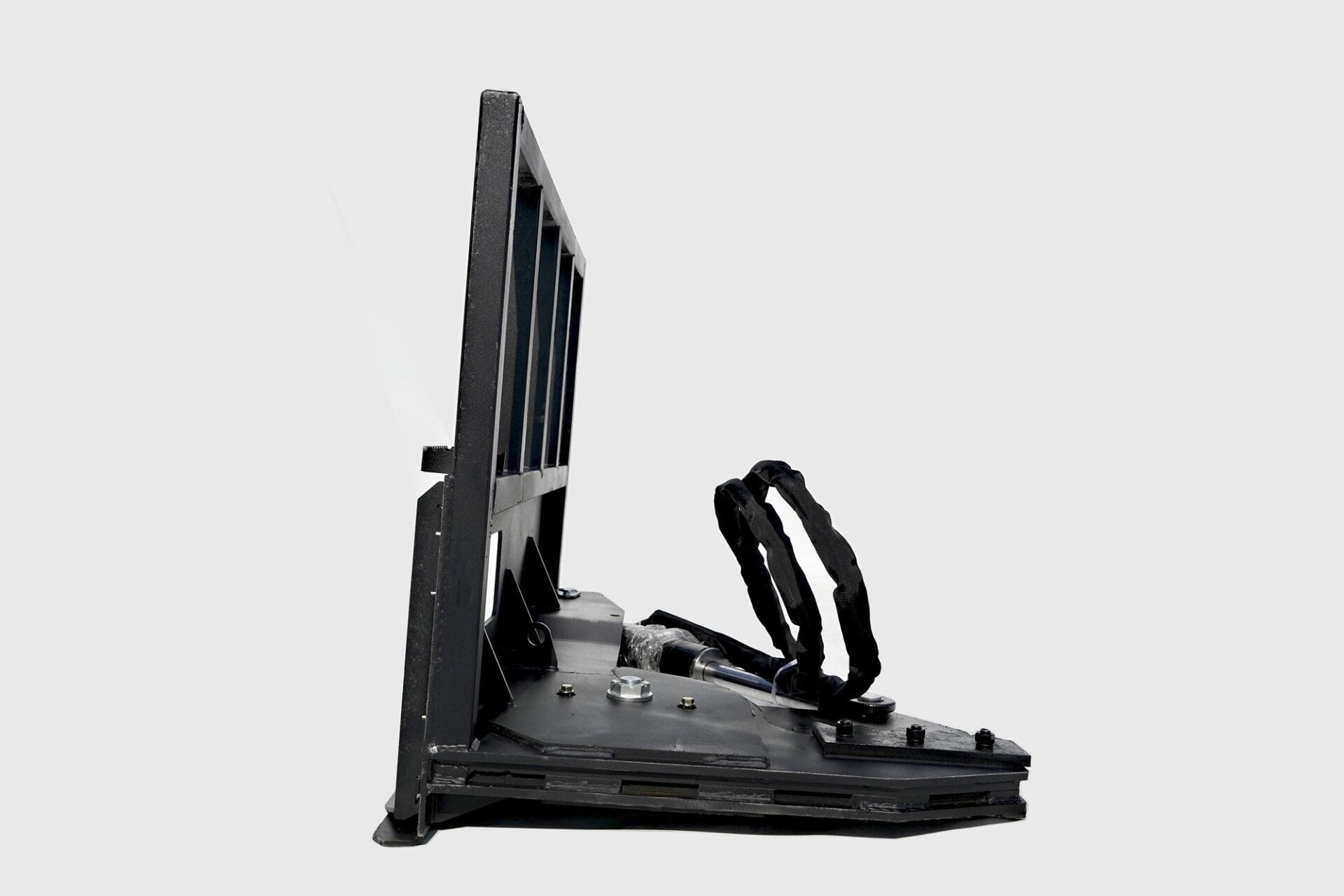

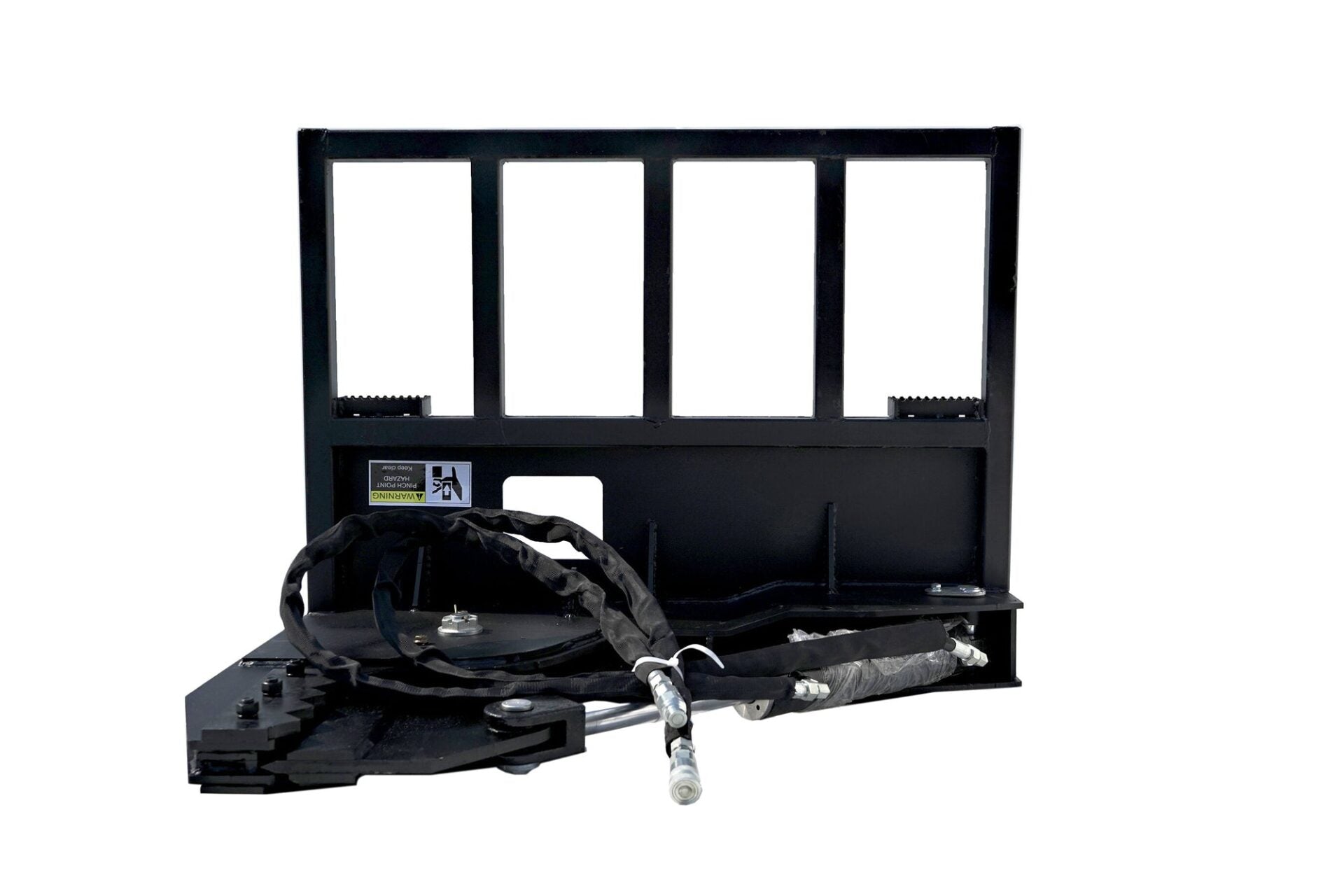

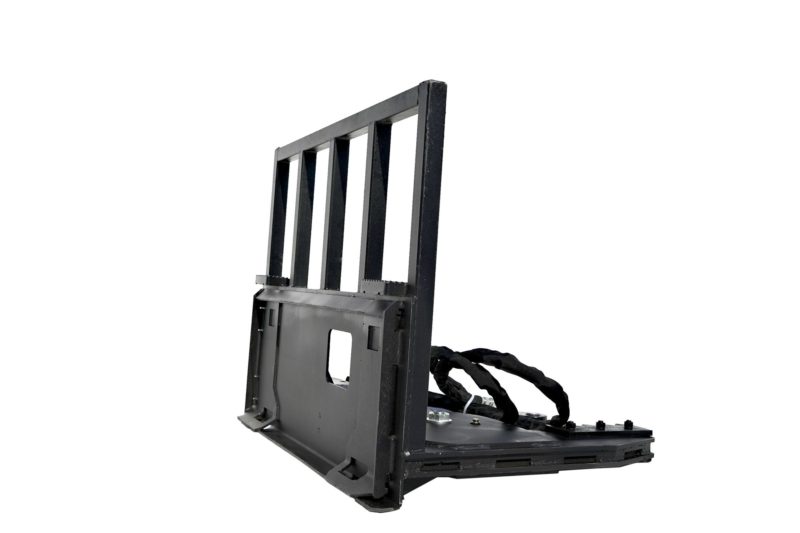

CAEL Skid Steer Tree Shear
Specifications:
| Product Dimension |
875mm*1250mm*988mm/2.87’*4.1’*3.24′ |
| Product Weight |
295kg/649lbs |
| Product Material |
Q345 Steel |
| Hydraulic Motor Flow |
50L per min |
| Hydraulic Motor Pressure |
20MPa |
| Surface Treatment Technology |
Plastic Powder Coating |
| Working Width |
1250mm/49.21″ |
| Cutter Material |
NM400 Steel |
| Max Cutting Size |
200mm/8″ |
| Max Cutting Force |
8000kg |
| Cylinder Diameter |
80mm/3.15″ |
| Cylinder Mounting Distance |
630mm/24.8″ |
| Cylinder Travel |
300mm/11.81″ |
Feature

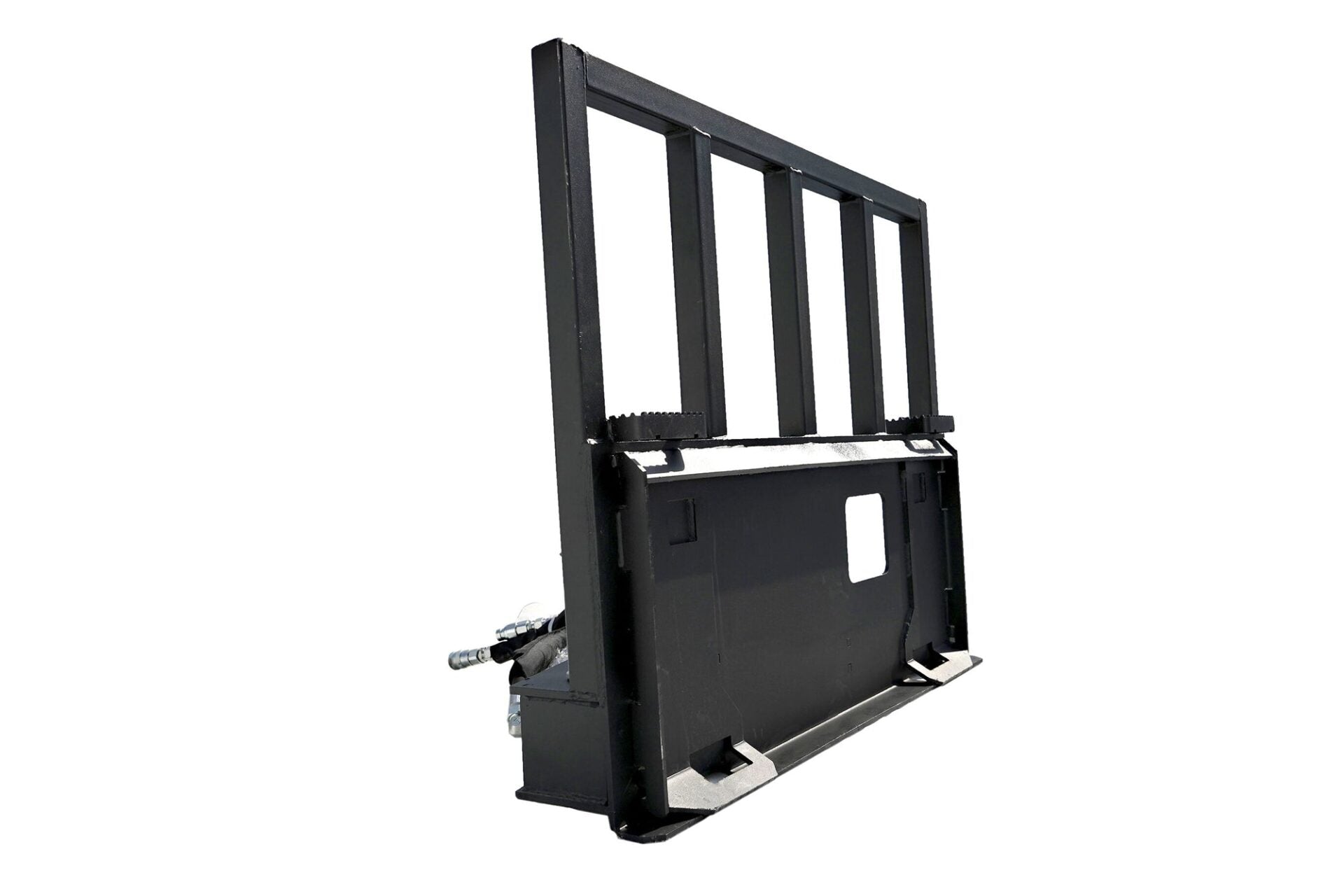

Universal skid steer quick attach
FAQ

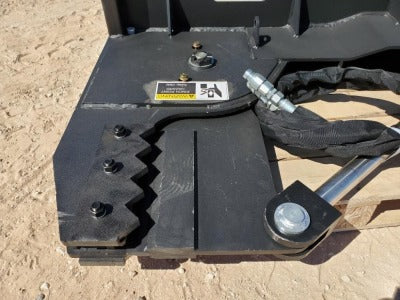

Do I need to remove 2 bolts before I use it? – No need to remove these 2 bolts. The upper and lower limit discs clamp the scissors, which are pressed by bolts to ensure the position of the scissors and the clearance between them. The manufacturer already adjusted it during assembly.
Shipping Dimension:
| Package Size |
Package Weight |
| 1.26m*1.1m*1.49m/49.61″*43.31″*58.66″ |
355kg/782lbs |
