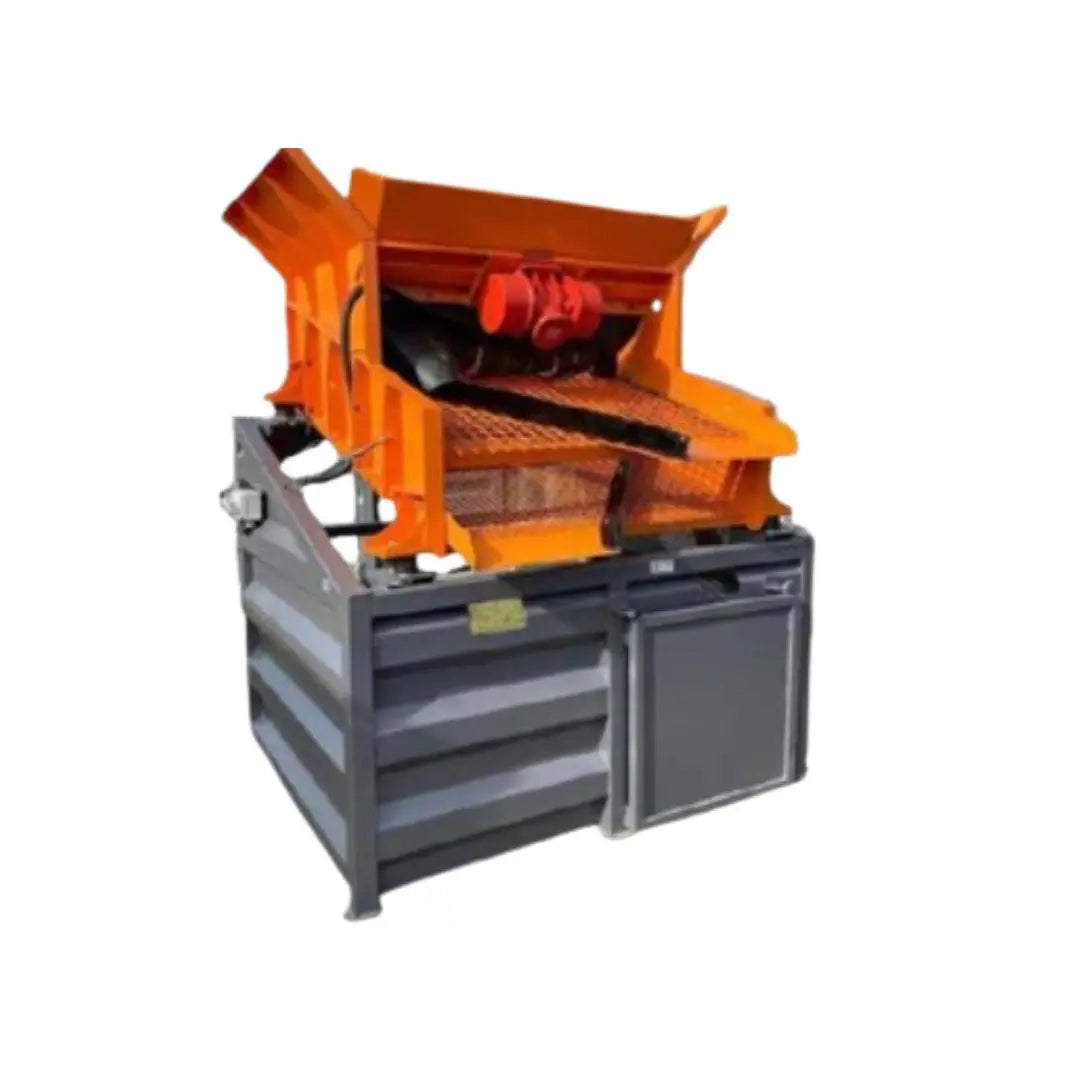

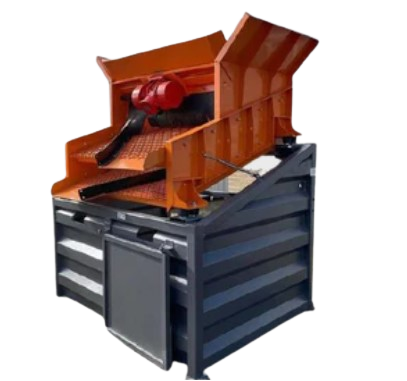

CAEL Skid Steer Vibratory Screening

CAEL Skid Steer Vibratory Screening

$7,999.00 CAD
$7,999.00 CAD $7,999.00 CAD
1% Deposit Sold out
Shipping calculated at checkout.

Pay just 1% now as a deposit. The remaining balance will be due later.
View full details

Description

CAEL Vibratory Screening is the ultimate choice for all your construction or mineral processing needs. Its substantial 53” x 36” hopper effortlessly handles heavy input materials, sorting them into various grades of coarse and fine materials. Constructed from robust industrial-grade metal and finished in a vibrant orange color, this vibratory screening unit is not only durable but also highly visible. It’s user-friendly and capable of managing large volumes of input materials with ease. Invest in the CAEL Vibratory Screening for swift and efficient project completion.

Key Features:

Eye-catching bright orange color and industrial-grade metal construction

Effortless material separation

Exceptional high-load input capacity

SPECIFICATIONS

Model MV1700/15
Input Hopper 53″x36″
Voltage 460v
Current 2.09A
Exciting Force KN17
Excitation Power 0.75 kW
Speed 1800 rpm, 60Hz
Insulation Class F
Protection Class IP65



Package Size Package Weight
1.85m*2.12m*2.48m/72.83″*83.46″*97.64″ 840kg/1848lbs


Download Manual - CLICK HERE
