High-Efficiency Paint Booth for Collision Repair, Refinishing & Commercial Use

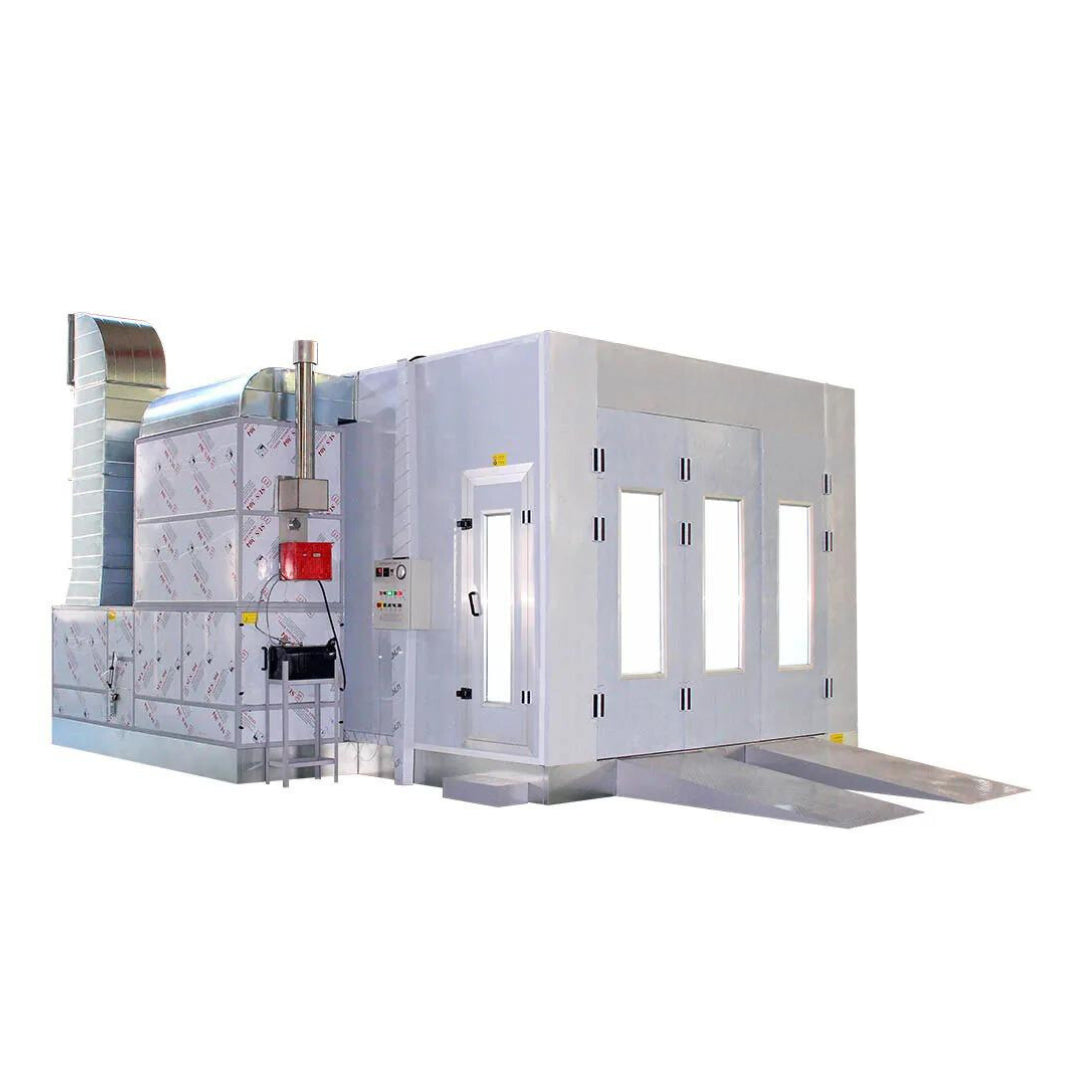

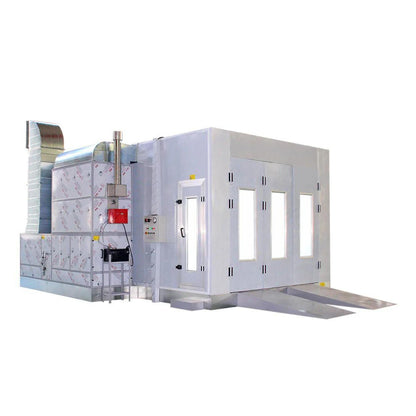

The CAEL Professional Automotive Spray Booth – Riello Burner Edition is a premium enclosed paint booth engineered for auto body repair shops, collision centers, vehicle refinishing, truck painting, and industrial coating applications. Designed to provide clean airflow, fast heating performance, bright LED lighting, and advanced filtration, this booth helps produce professional paint finishes while improving workflow and productivity.

Equipped with an Italy Riello G20 oil burner, stainless steel heat exchanger, and commercial-grade ventilation system, this booth is ideal for businesses requiring dependable daily performance and consistent results.

---

Booth Dimensions

External Size

• 275.59 in × 210.62 in × 133.85 in
• 7000 × 5350 × 3400 mm
• 22 ft 11 in × 17 ft 7 in × 11 ft 2 in

Internal Size

• 271.65 in × 153.54 in × 104.33 in
• 6900 × 3900 × 2650 mm
• 22 ft 8 in × 12 ft 9 in × 8 ft 8 in

---

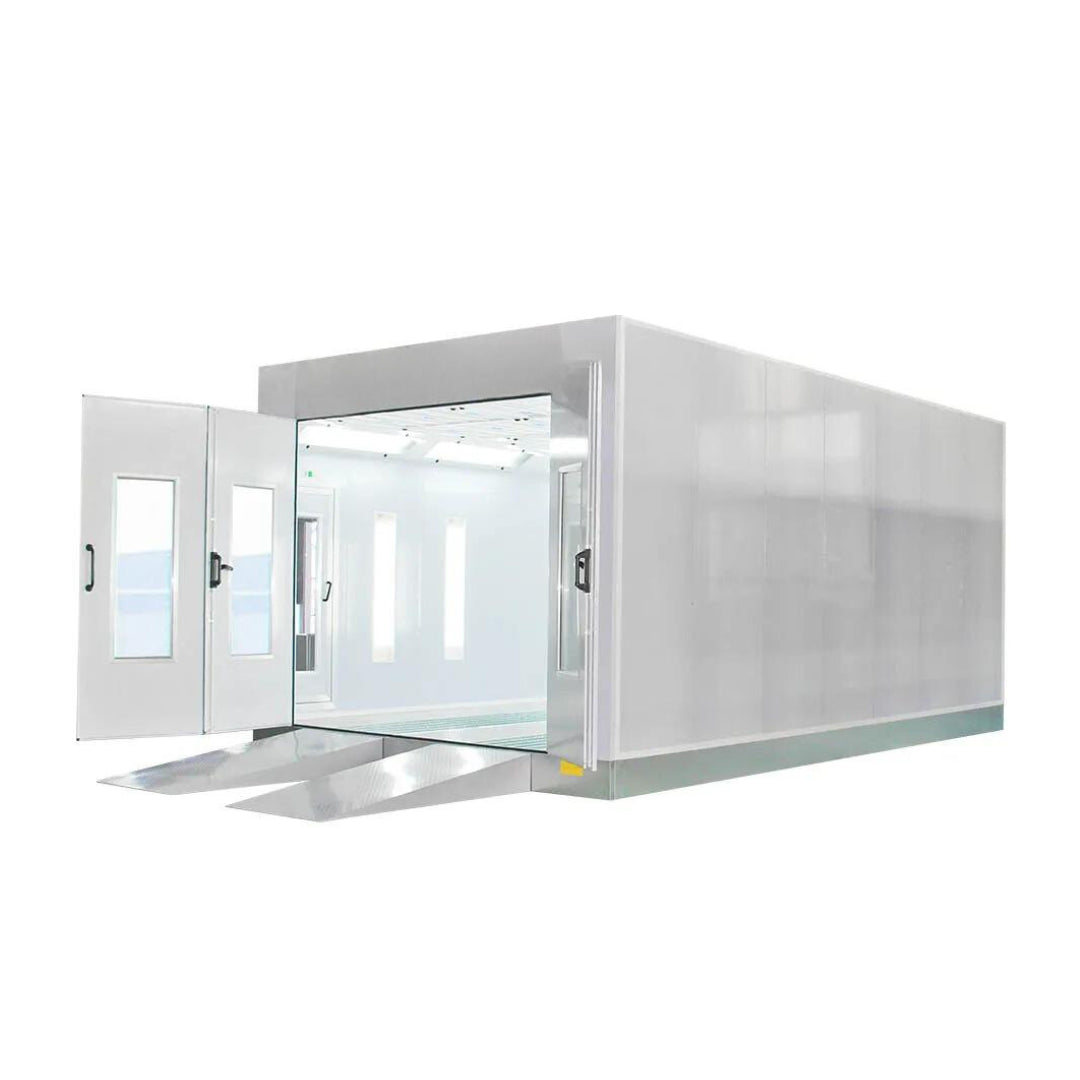

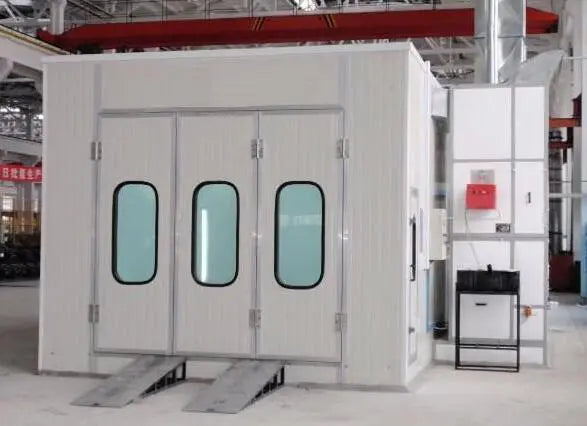

Door System

Main Entrance Door

• 3-Fold Front Door
• 118.11 in × 98.42 in
• 3000 × 2500 mm

Heavy-duty bending steel construction without covered frame.

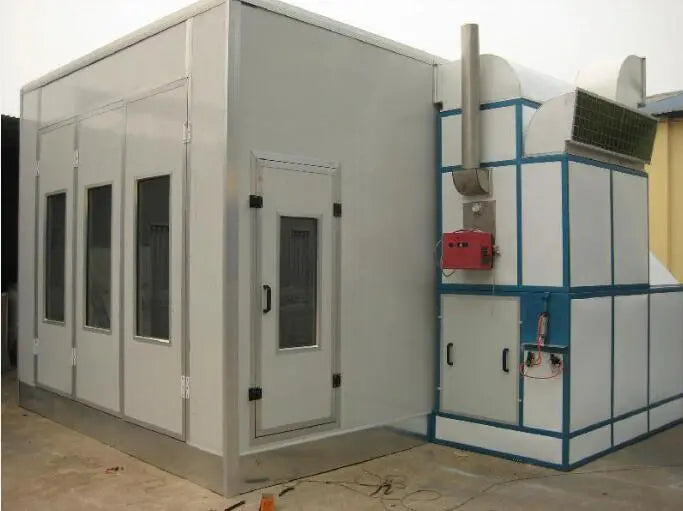

Emergency Door Options

• 1 Fold Door: 25.5 in × 70 in (W × H)
• 1 Fold Door: 23 in × 78 in (W × H)

Includes:

• Handle
• Safety emergency access

---

Cabin Construction System

Wall Panels

• Double construction insulated wall panels
• 2 in EPS insulation core
• 0.426 mm steel skin
• Fireproof and heat-insulated
• Galvanized steel roof panels

Basement & Floor

• Full galvanized steel assembled base
• Full metal foundation
• 11 in height

Includes:

• 2 rows flat galvanized steel grilles
• 3 rows wave plate floor sections

Drive-On Ramps

• 2 Diamond Plate Steel Ramps
• Each ramp size: 25 in × 78 in

---

Ventilation System

Inlet Fans

• 2 × 3 kW YDW Double-Intake Centrifugal Fans
• Total Air Capacity: 12,500 m³/h

Outlet Fan

• 1 × 5.5 kW YDW Double-Intake Centrifugal Fan
• Total Air Capacity: 27,000 m³/h

Air Supply Cabinet

• Upper side air intake design
• Powder-coated square steel frame
• Strong and durable construction

Includes:

• 2 × Air Ducts (2 m each)
• 1 × 90° Elbow

Performance

• Airflow Speed: 0.35 m/s
• Ventilation Rate: 280 air changes/hour

---

Heating System

Burner

• Italy Riello G20 Oil Burner
• Heating Capacity: 100,000 kcal/h
• BELIMO 10N Electric Damper

Heat Exchanger

• 1.2 mm SUS 304 Stainless Steel

Heating Performance

• Reaches 20°C to 60°C in approximately 8–10 minutes under baking mode
• Maximum Baking Temperature: 80°C

Cabinet

• Rock-wool insulated heating cabinet

---

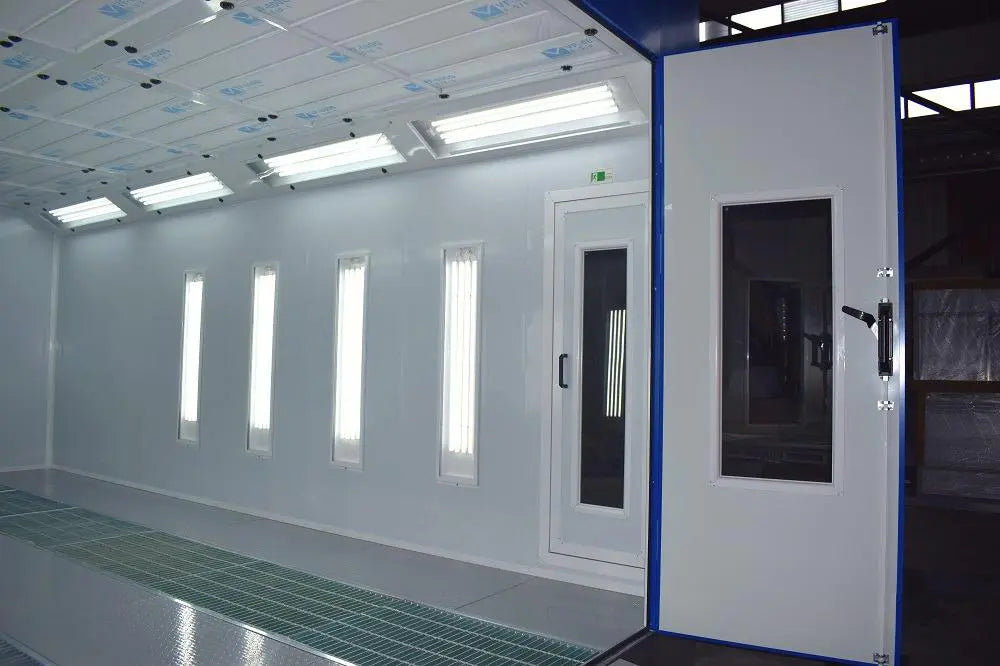

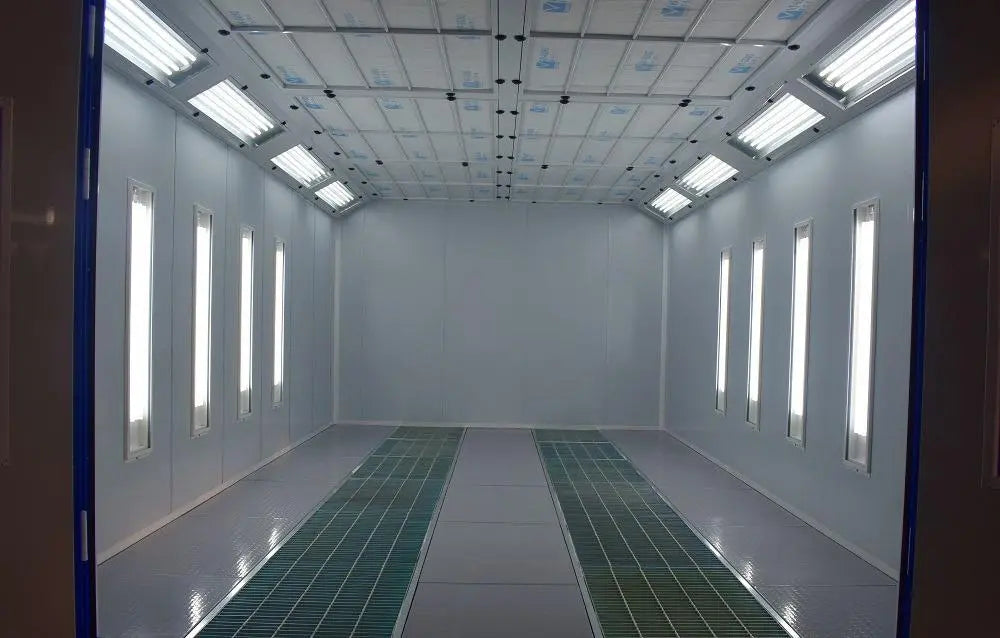

Lighting System

Ceiling Lighting

• 32 LED Lights
• (8 Units × 4 Lights)
• 16W each

Provides bright, shadow-reducing lighting for precision paint work.

Side Lights

• Optional

---

Filtration System

Primary Filter

• Captures particles larger than 10 μm
• Efficiency: >83%

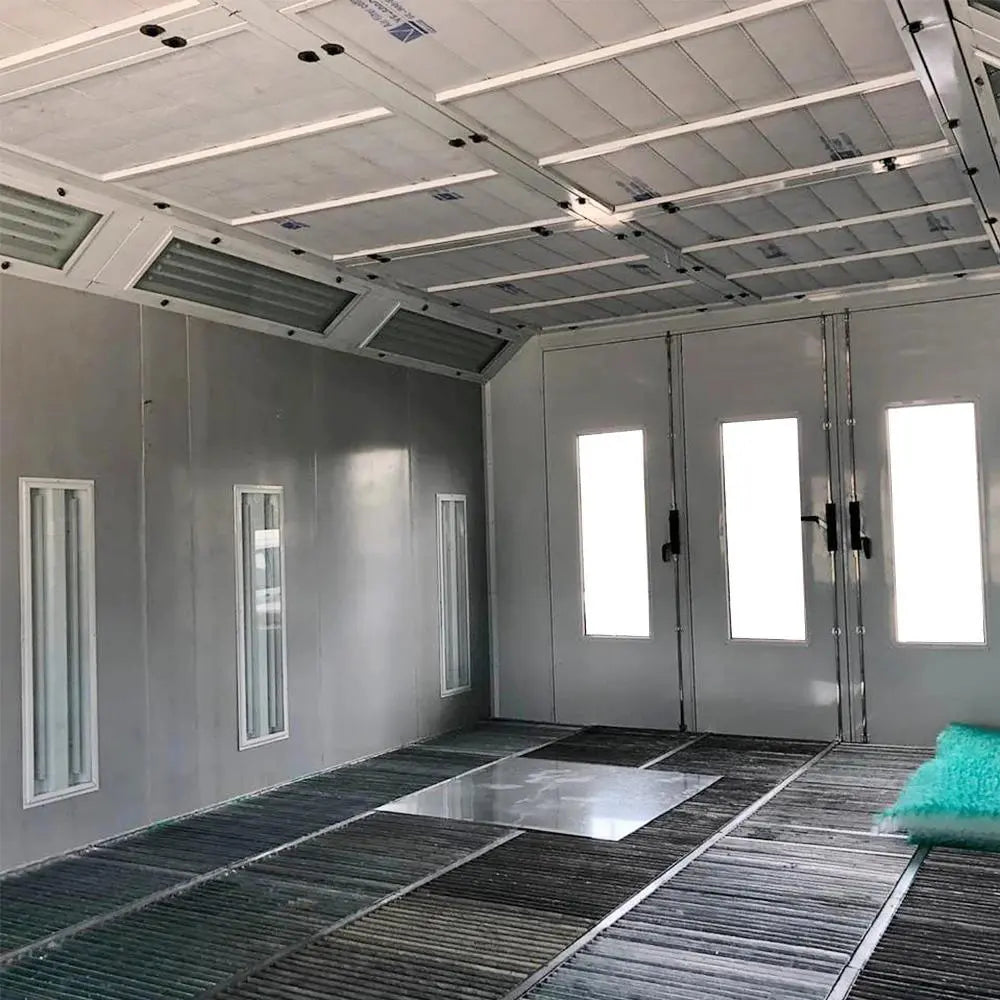

Ceiling Filter

• Captures particles larger than 4 μm
• Efficiency: >98%

Multi-Layer Fiberglass Filter

• Efficiency: >70%

Ensures cleaner air and improved finish quality.

---

Control System

Integrated control panel includes:

• Lighting Switch
• Spraying Mode
• Heat Spraying Mode
• Baking Mode
• Temperature Controller
• Time Setting
• Emergency Stop

---

Electrical Specifications

• Voltage: 380V
• Frequency: 50Hz
• Phase: 3 Phase
• Total Power: 10 kW

---

Ideal Applications

✔ Collision repair centers
✔ Auto body shops
✔ Vehicle refinishing facilities
✔ Truck painting shops
✔ Dealership service centers
✔ Industrial coating businesses

---

Why Choose the CAEL Riello Spray Booth?

The CAEL Professional Spray Booth combines premium airflow technology, trusted Riello heating performance, efficient LED lighting, and advanced filtration to help businesses achieve professional paint results with faster turnaround times.

---

Request a Quote

Contact us today for pricing, stock availability, customization options, shipping, and installation support tailored to your facility.
