High-Performance Paint Booth for Auto Refinishing, Collision Repair & Commercial Coating

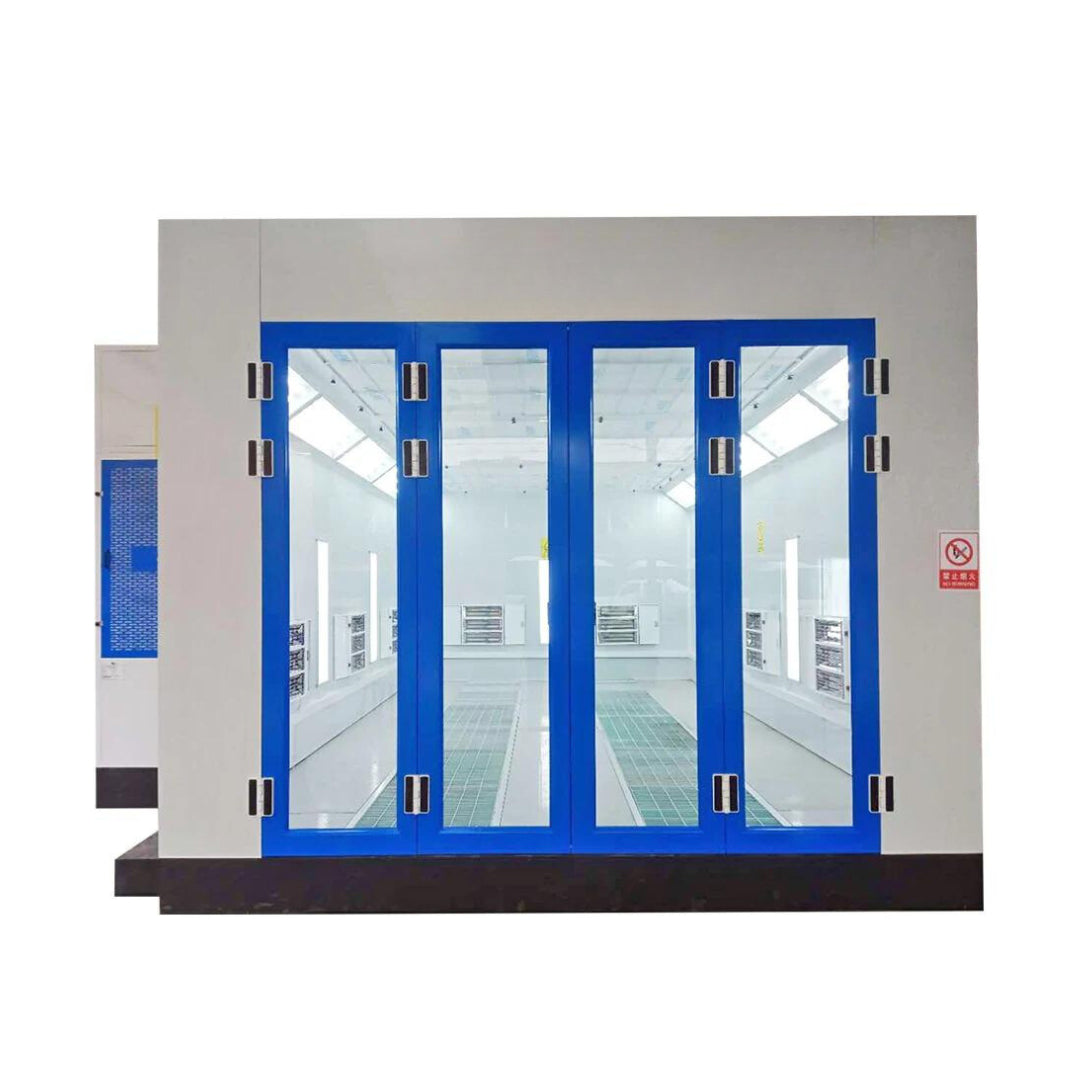

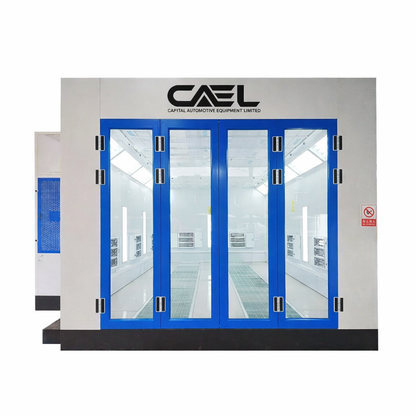

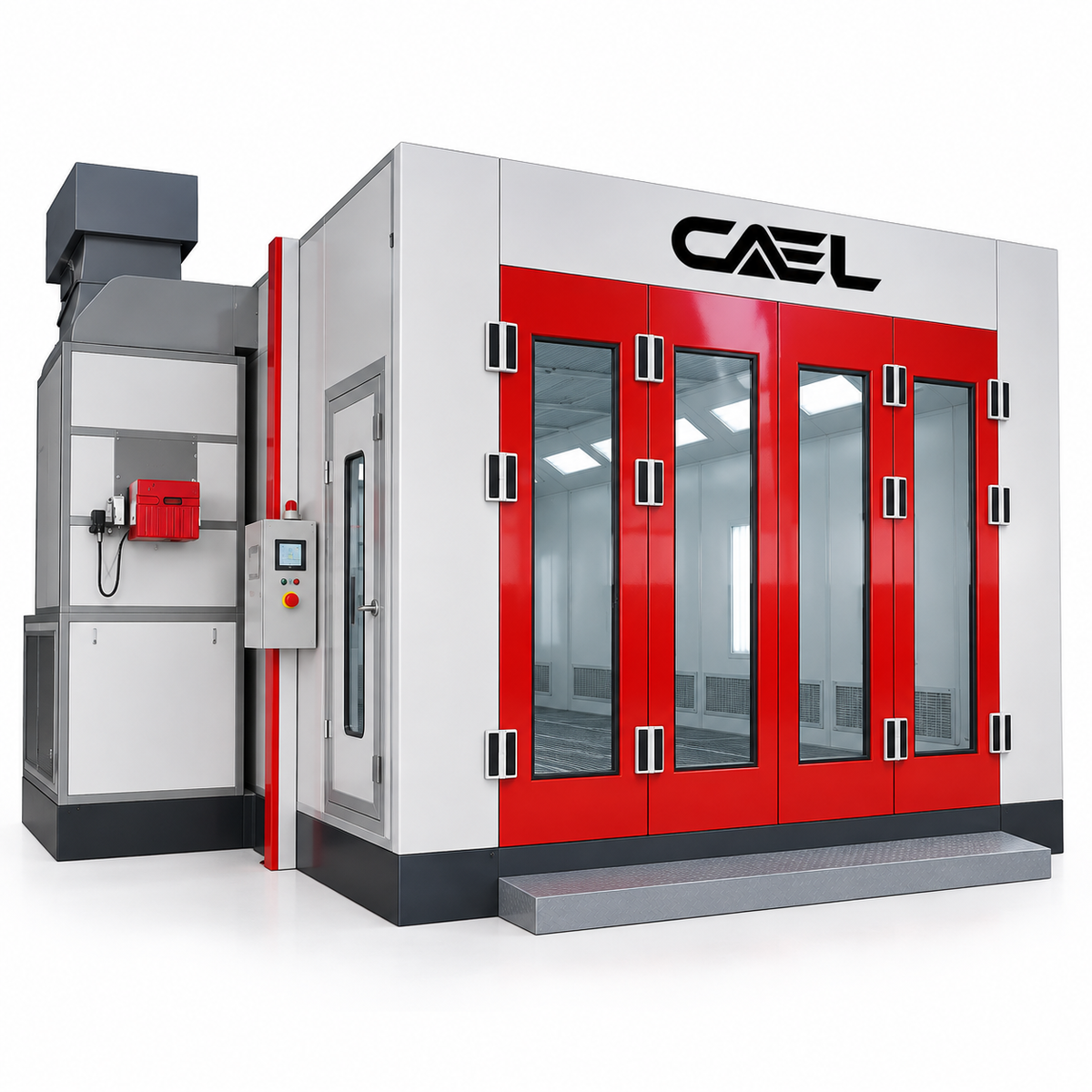

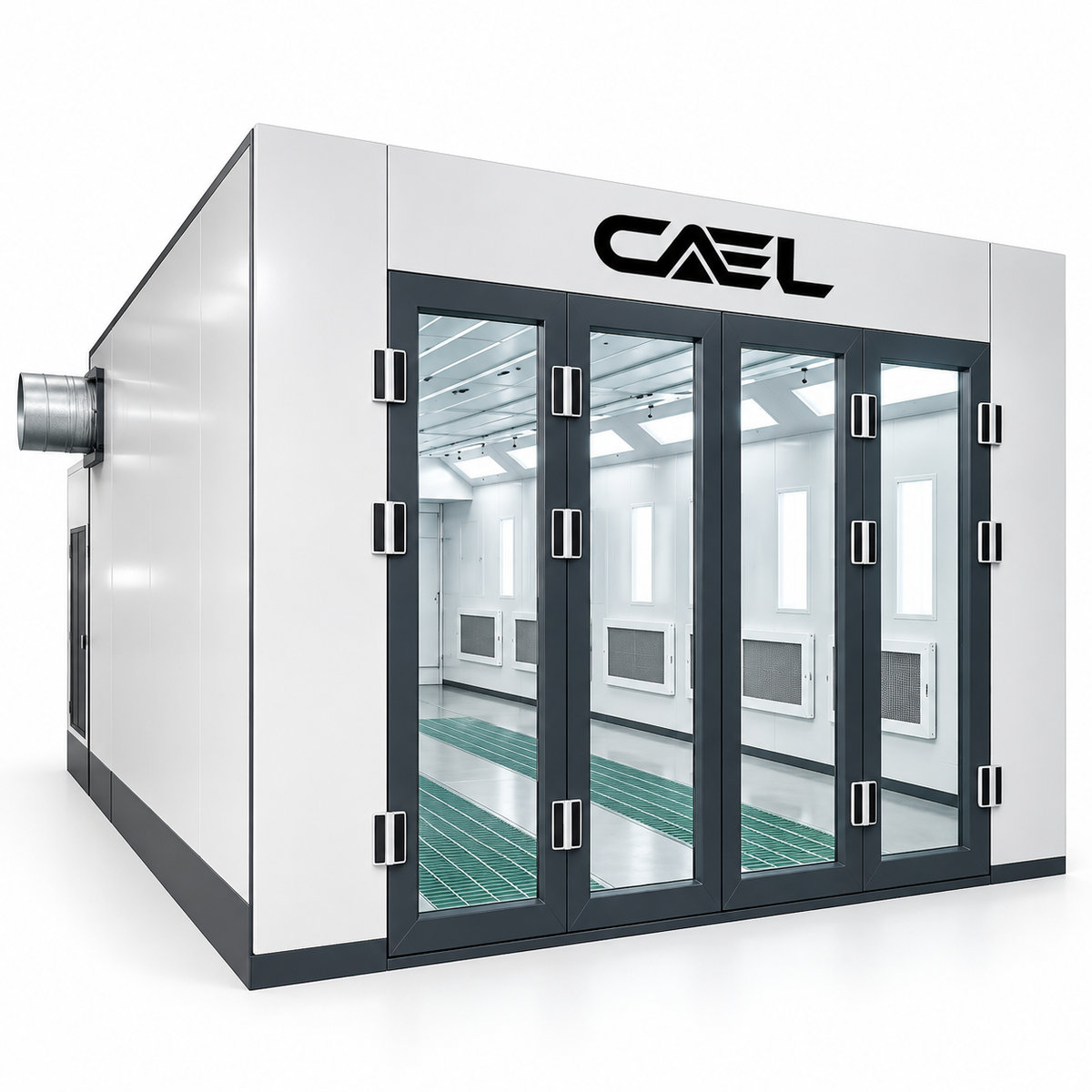

The CAEL Professional Automotive Spray Booth – Premium Full LED Edition is a high-efficiency enclosed paint booth engineered for vehicle refinishing, auto body repair, truck painting, industrial coating, and commercial paint operations. Designed for clean airflow, powerful heating, advanced filtration, and bright full LED lighting, this booth helps deliver premium paint finishes while improving productivity and operating efficiency.

Equipped with an Italy Riello G20 oil burner, stainless steel heat exchanger, full side and ceiling LED lighting, and commercial ventilation technology, this booth is ideal for professional facilities seeking dependable daily performance.

---

Booth Dimensions

External Size

• 275.59 in × 210.62 in × 133.85 in
• 7000 × 5350 × 3400 mm
• 22 ft 11 in × 17 ft 7 in × 11 ft 2 in

Internal Size

• 271.65 in × 153.54 in × 104.33 in
• 6900 × 3900 × 2650 mm
• 22 ft 8 in × 12 ft 9 in × 8 ft 8 in

---

Door System

Main Entrance Door

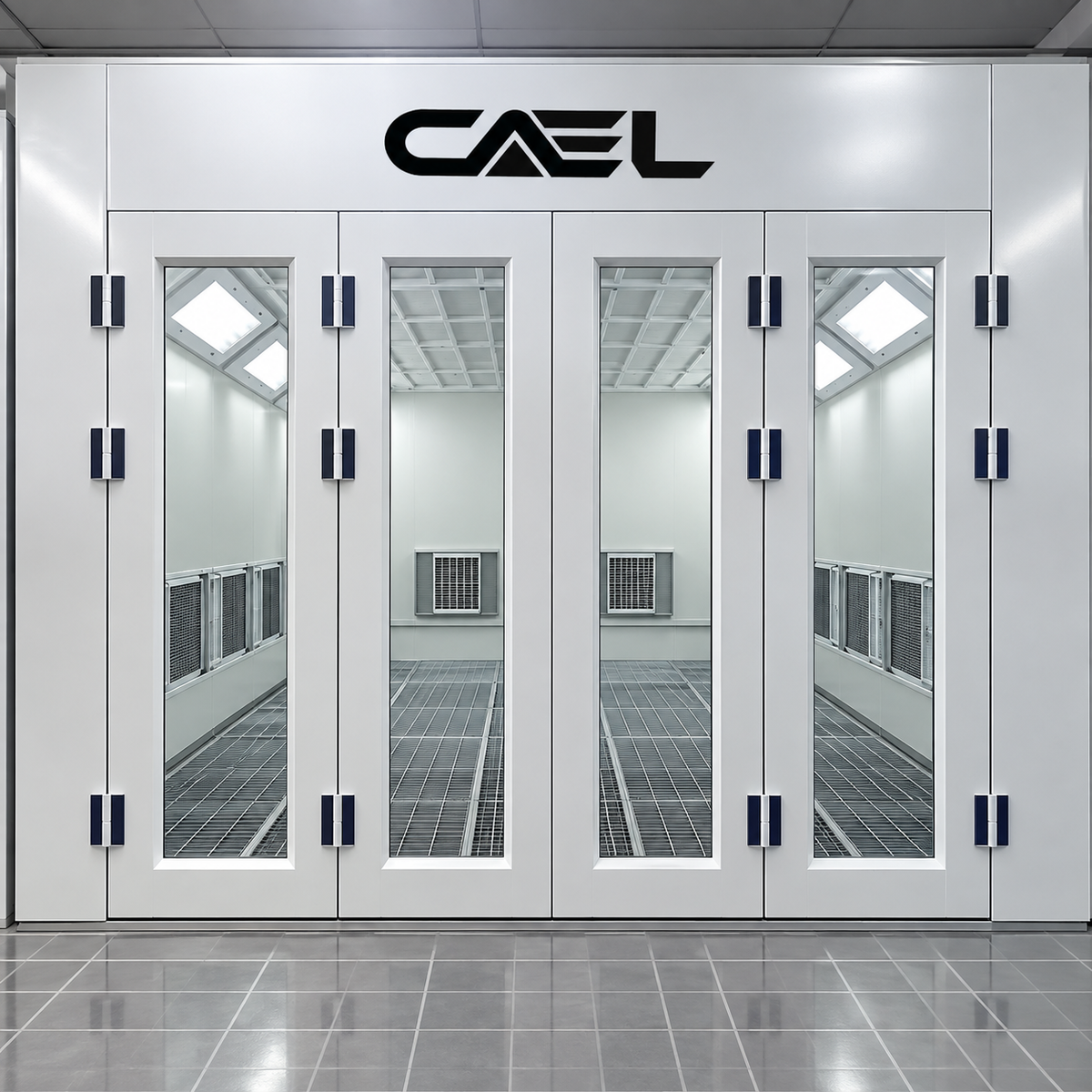

• 3-Fold Front Door
• 118.11 in × 102.36 in
• 3000 × 2600 mm

Heavy-duty bending steel construction without covered frame.

Emergency Door

• 1 Fold Door
• 25.5 in × 70 in
• 648 × 1780 mm

Includes:

• Handle
• Anti-Explosion Safety Lock

---

Cabin Construction System

Wall Panels

• Double construction insulated wall panels
• 2 in EPS insulation core
• 0.426 mm steel skin
• Fireproof and heat-insulated design
• Galvanized steel roof panels

Basement & Floor

• Full galvanized steel assembled base
• Full metal foundation
• 11 in height

Includes:

• 2 rows flat galvanized steel grilles
• 3 rows wave plate floor sections

Drive-On Ramps

• 2 Diamond Plate Steel Ramps
• Each ramp size: 35 in × 78 in

---

Ventilation System

Inlet Fans

• 2 × 3 kW YDW Double-Intake Centrifugal Fans
• Total Air Capacity: 12,500 m³/h

Outlet Fan

• 1 × 5.5 kW YDW Double-Intake Centrifugal Fan
• Total Air Capacity: 27,000 m³/h

Air Supply Cabinet

• Upper side intake design
• Powder-coated square steel frame
• Strong and attractive construction

Includes:

• 2 × Air Ducts (2 m each)
• 1 × 90° Elbow

Performance

• Airflow Speed: 0.35 m/s
• Ventilation Rate: 280 air changes/hour

---

Heating System

Burner

• Italy Riello G20 Oil Burner
• Heating Capacity: 200,000 kcal/h
• BELIMO 10N Electric Damper

Heat Exchanger

• 1.2 mm SUS 304 Stainless Steel

Heating Cabinet

• Rock-wool insulated cabinet

Provides fast heating and dependable baking performance.

---

Lighting System

Ceiling Lights

• 32 LED Lights
• (8 Units × 4 Lights)
• 16W each

Side Lights

• 16 LED Lights
• (4 Units × 4 Lights)
• 16W each

Creates bright, shadow-free illumination for accurate paint application and detailing.

---

Filtration System

Primary Filter

• Captures particles larger than 10 μm
• Efficiency: >83%

Ceiling Filter

• Captures particles larger than 4 μm
• Efficiency: >98%

Multi-Layer Fiberglass Filter

• Efficiency: >70%

Provides cleaner airflow for higher finish quality.

---

Control System

Integrated control panel includes:

• Lighting Switch
• Spraying Mode
• Heat Spraying Mode
• Baking Mode
• Temperature Controller
• Time Setting
• Emergency Stop

---

Electrical Specifications

• Voltage: 220V
• Frequency: 50Hz
• Phase: 3 Phase
• Total Power: 12 kW

---

Ideal Applications

✔ Auto body repair shops
✔ Collision centers
✔ Car dealerships
✔ Truck paint shops
✔ Industrial coating facilities
✔ Commercial refinishing businesses

---

Why Choose the CAEL Premium Spray Booth?

The CAEL Premium Full LED Spray Booth combines high airflow efficiency, powerful Riello heating, bright full LED lighting, and advanced filtration to help businesses achieve superior finishes with improved productivity.

---

Request a Quote

Contact us today for pricing, stock availability, customization options, shipping, and installation support tailored to your facility.
