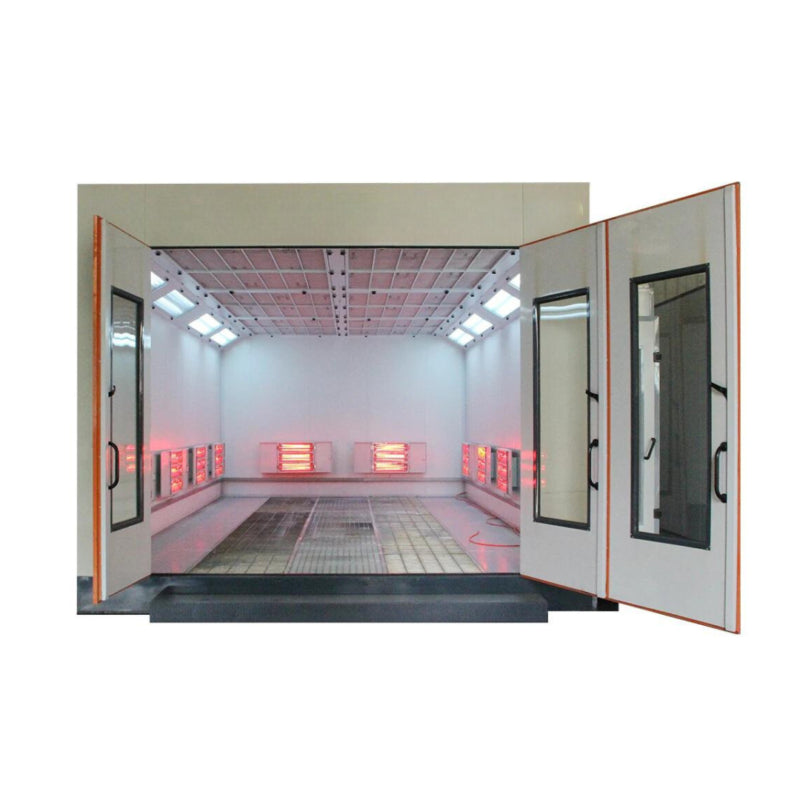

Premium Paint Booth for Collision Repair, Auto Refinishing & Industrial Coating

The CAEL Professional Automotive Spray Booth is a high-performance enclosed paint booth engineered for vehicle refinishing, collision repair, commercial body shops, industrial coating, and professional painting operations. Designed to deliver clean airflow, efficient heating, superior lighting, and controlled spray environments, this booth helps achieve professional paint finishes with improved productivity and safety.

Built with insulated steel panel construction, advanced filtration, powerful ventilation, and Riello burner heating technology, this spray booth is ideal for modern automotive repair centers and commercial paint facilities.

Booth Dimensions

External Size

• 275.59 in × 210.62 in × 133.85 in
• 7000 × 5350 × 3400 mm
• 22 ft 11 in × 17 ft 7 in × 11 ft 2 in

Internal Size

• 271.65 in × 153.54 in × 104.33 in
• 6900 × 3900 × 2650 mm
• 22 ft 8 in × 12 ft 9 in × 8 ft 8 in

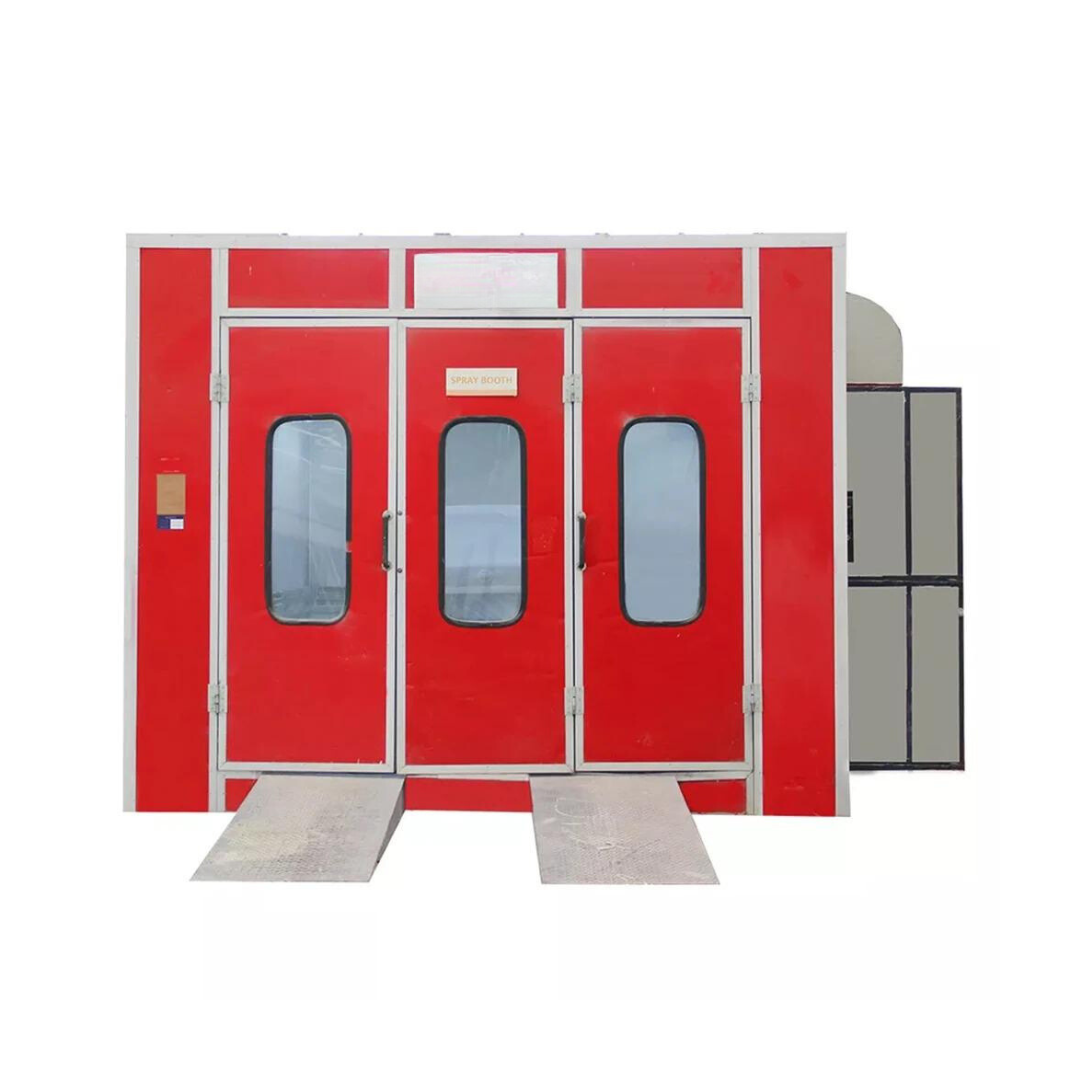

Door System

Main Entrance Door

• 3-Fold Front Door
• 118.11 in × 98.42 in
• 3000 × 2500 mm

Heavy-duty bending steel construction without covered frame.

Emergency Door

• 1-Fold Side Door
• 23 in × 78 in
• 585 × 1980 mm

Includes:

• Handle
• Anti-Explosion Safety Lock

Cabin Construction System

Wall Panels

• Double construction insulated wall panels
• 2 in EPS insulation core
• 0.426 mm steel skin
• Fireproof & heat-insulated design
• Galvanized steel roof panels

Basement & Floor

• Full galvanized steel assembled base
• Full metal foundation
• 11 in height
• 2 rows flat galvanized steel grilles
• 3 rows wave plate floor sections

Drive-On Ramps

• 2 Ramps Included
• Each ramp size: 24 in × 78 in
• Diamond plate steel construction

Ventilation System

Inlet Fans

• 2 × 3 kW YDW Double-Intake Centrifugal Fans
• Total Air Capacity: 12,500 m³/h

Outlet Fan

• 1 × 5.5 kW YDW Double-Intake Centrifugal Fan
• Total Air Capacity: 27,000 m³/h

Air Supply Cabinet

• Upper side air intake design
• Powder-coated square steel frame
• Strong and durable structure
• Includes:
  • 2 Air Ducts (2 m each)
  • 1 × 90° Elbow

Airflow Performance

• Airflow Speed: 0.35 m/s
• Ventilation Rate: 280 times/hour

Heating System

Burner

• Italy RIELLO G20 Oil Burner
• Heating Capacity: 200,000 kcal/h
• BELIMO 10N Electric Damper

Heat Exchanger

• 1.2 mm SUS 304 Stainless Steel

Heating Cabinet

• Rock-wool insulated cabinet

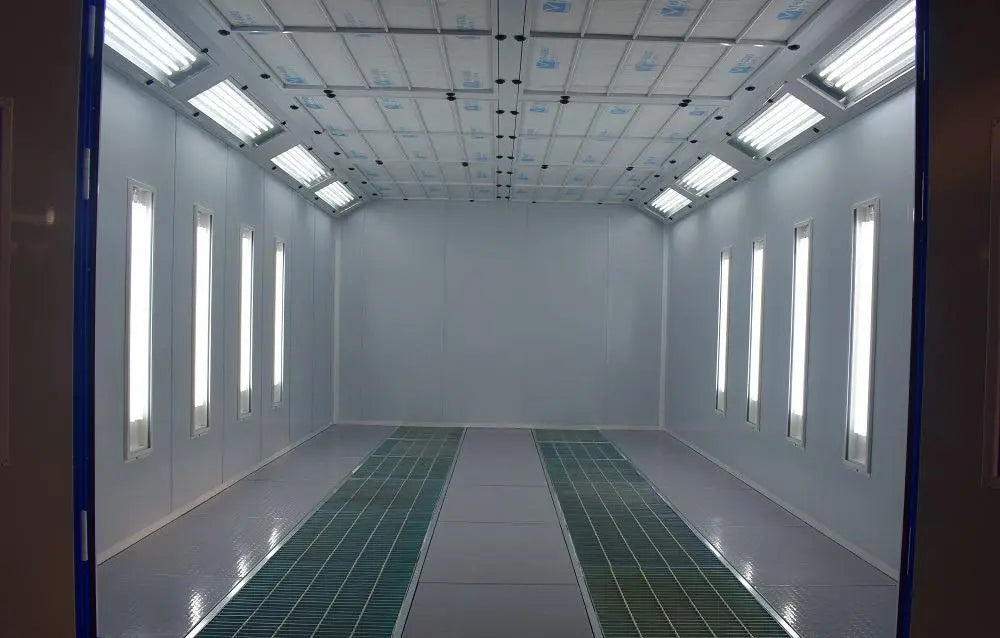

Lighting System

Ceiling Lighting

• 24 LED Lights
• 16W each
• Bright, shadow-reducing illumination for precision paint work

Side Lights

• Optional

Filtration System

Primary Filter

• Captures particles larger than 10 μm
• Filtering Rate: >83%

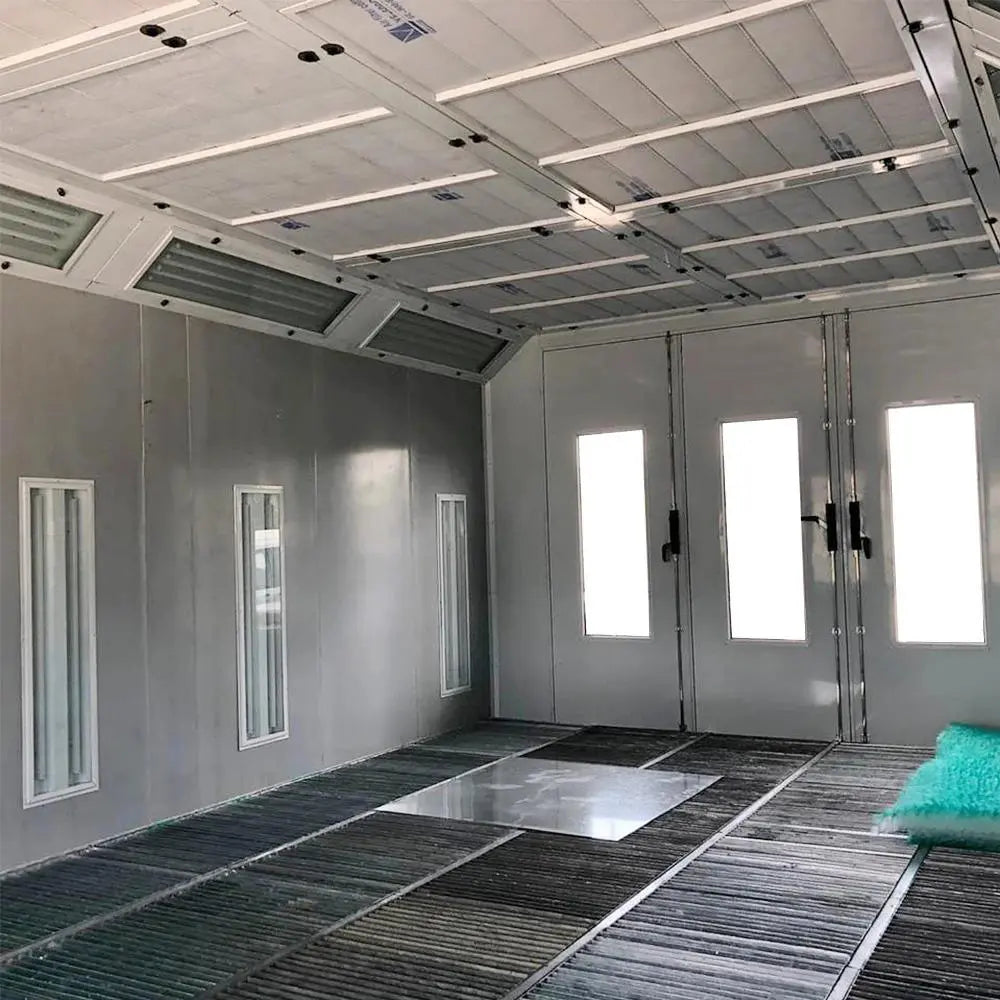

Ceiling Filter

• Captures particles larger than 4 μm
• Filtering Rate: >98%

Provides a cleaner paint environment and improved finish quality.

Control System

Integrated control panel includes:

• Lighting Switch
• Spraying Mode
• Heat Spraying Mode
• Baking Mode
• Temperature Controller
• Timer Setting
• Emergency Stop

Electrical Specifications

• Voltage: 380V
• Frequency: 50Hz
• Phase: 3 Phase
• Total Power Consumption: 33 kW

Ideal Applications

✔ Auto body repair shops
✔ Collision centers
✔ Car dealerships
✔ Industrial painting facilities
✔ Commercial refinishing shops
✔ Truck & fleet paint operations

Why Choose the CAEL Spray Booth?

The CAEL Professional Spray Booth combines clean airflow technology, strong heating performance, bright LED lighting, and advanced filtration to help deliver premium paint finishes while improving productivity and operator safety.
