Specifications
Outside Size: 275.59″ x 210.62″ x 133.85″
Inner Size: 271.65″ x 153.54″ x 104.33″

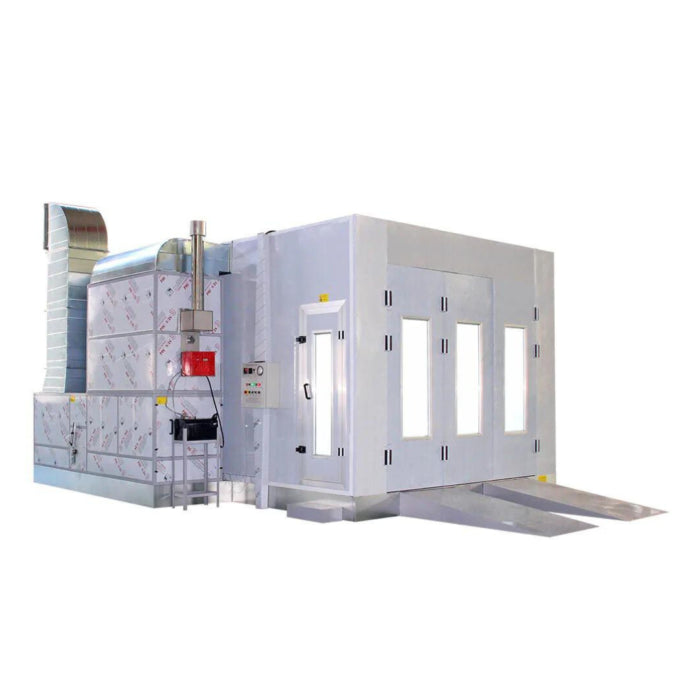

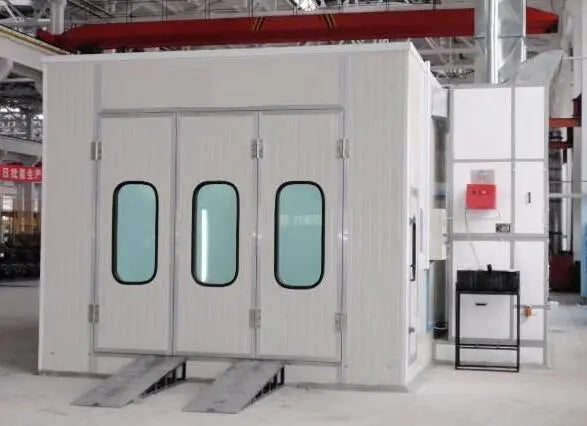

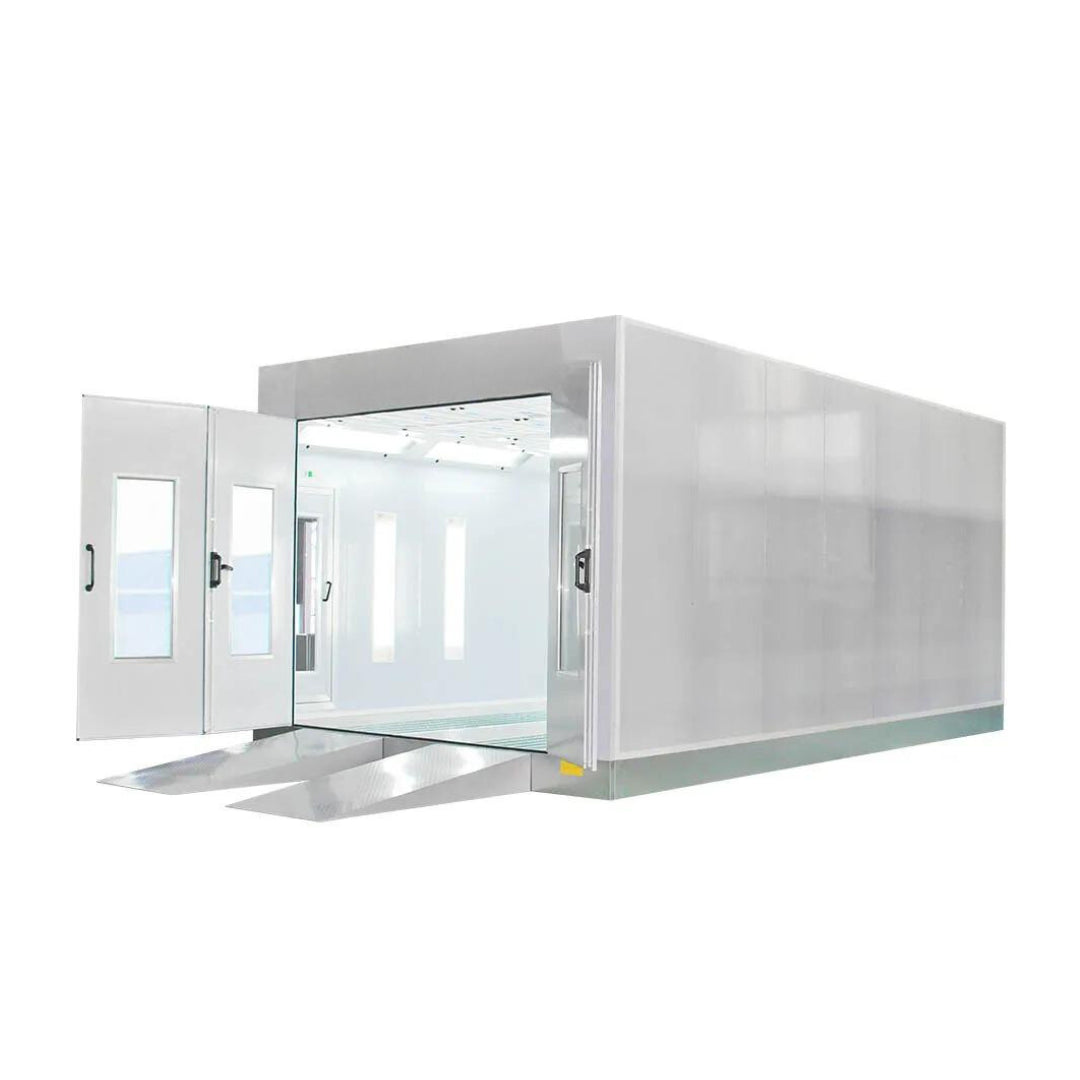

Entrance door: 3 folds, 118.11″ x 102.36″, bending steel without covered frame.
Emergency door: 1 fold, 25.5″ x 70″. Equipped with Handle & Anti-Explosion Lock.
Cabin System
Wall Panel – High quality double construction insulation 2″ EPS panel, 0.426mm thick steel, fire proof and heat-insulation. And, galvanized steel roof panel.

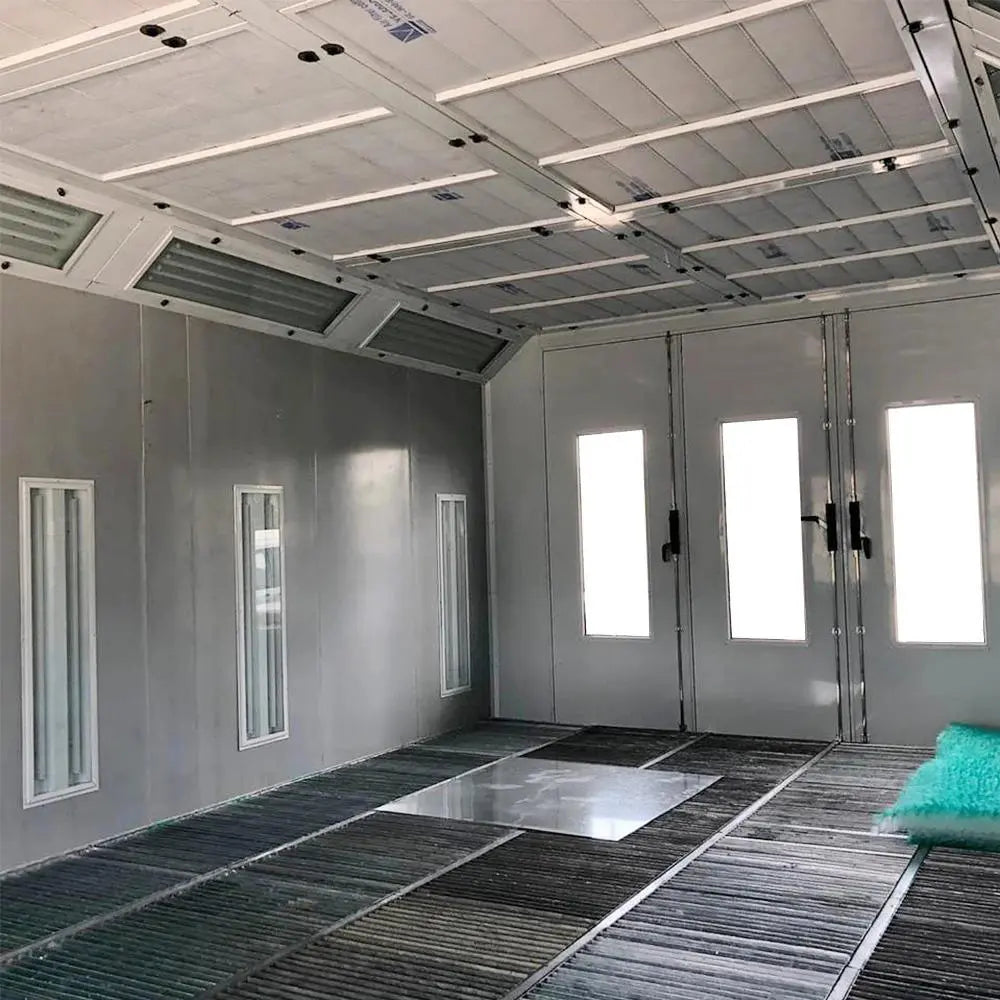

Basement and Floor – Galvanized steel assemble, full metal foundation, height is 11″. 2 rows flat steel grilles (galvanized) and 3 rows wave plate. 2 pieces of Ramps, each size 29″ x 275″ (WxL), diamond plate construction.
Ventilation System
Inlet fan – 2 x 3 KW YDW double-intake centrifugal fans, total air capacity: 12500m3/h
Outlet fan – 1 x 5.5 KW YDW double-intake centrifugal fans, total air capacity: 27000m3/h
Cabinet setting type – Intake air from side upper, adopt powder quadrate steel frame, strong and beautiful. Air duct 2M long 2unit. Elbow – 90 degrees x 1 unit.
Airflow Speed: 0.35 m/s
Ventilation rate 280 times/h
Heating System

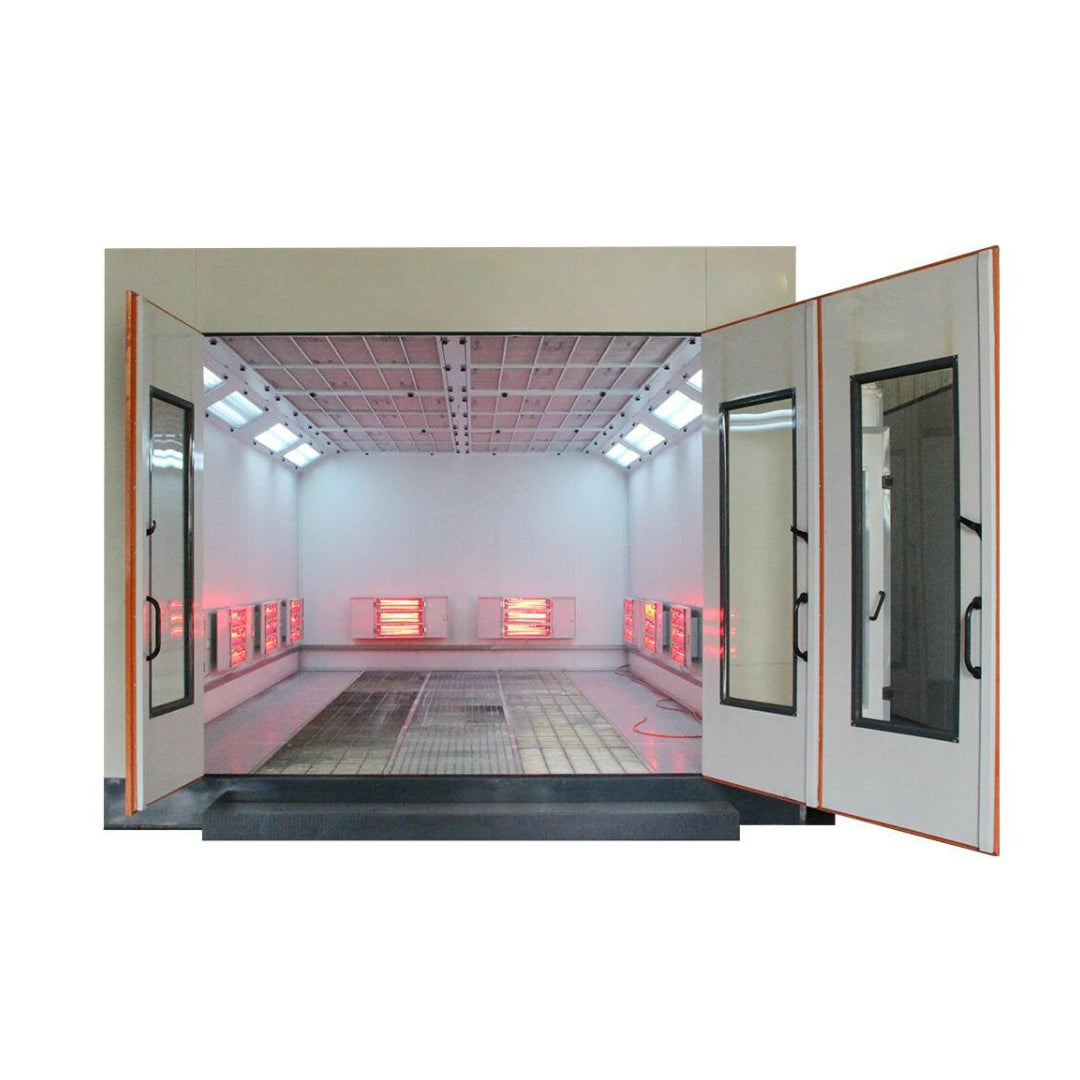

10 units high infrared curing lamps for heating, 3 lamps/units each lamp 1KW.
Total power: 30KW
15-20 minutes (from20 to 80 degree celsius) under baking status, max baking temperature is 80 degree celsius.
Lightening System

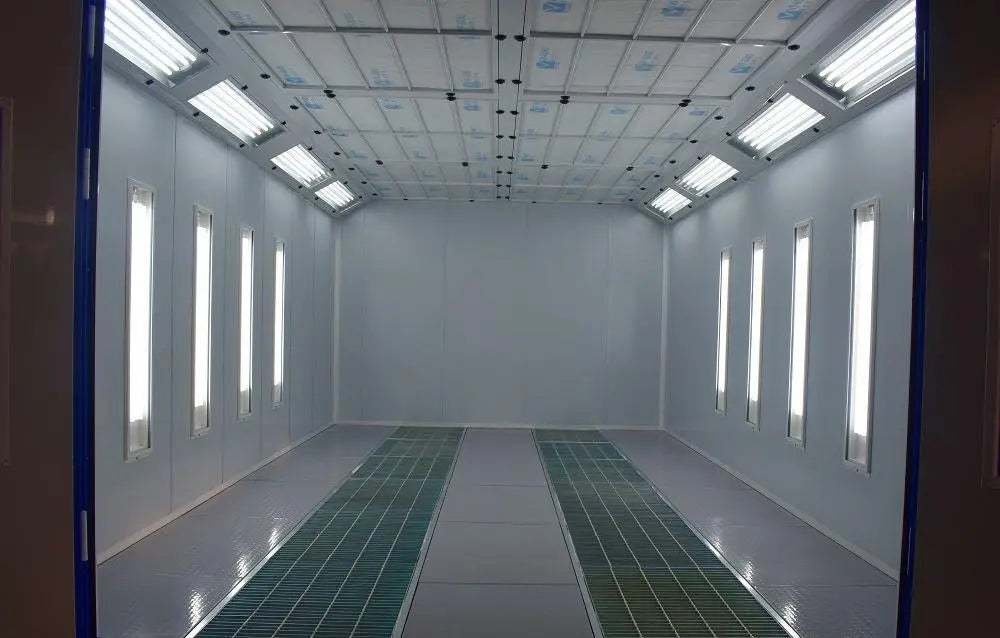

Ceiling lights – LED 8 units x 3 pieces = 24 pieces x 16 W
Side lights – LED 4 units x 4 pieces = 16 pieces x 16 W
Filtering System
The primary filter can capture granules larger than 10 um, filtering rate > 83%
Ceiling filter can capture granules bigger than 4um, filtering rate > 98%
Multi-layer fiberglass filter, filtering rate > 70%
Control System
Lighting switch, spraying, heat spraying, baking, temperature controller, time-setting, emergency stop.
Voltage 380V, 50HZ, 3 Phase
Total Power 45KW
