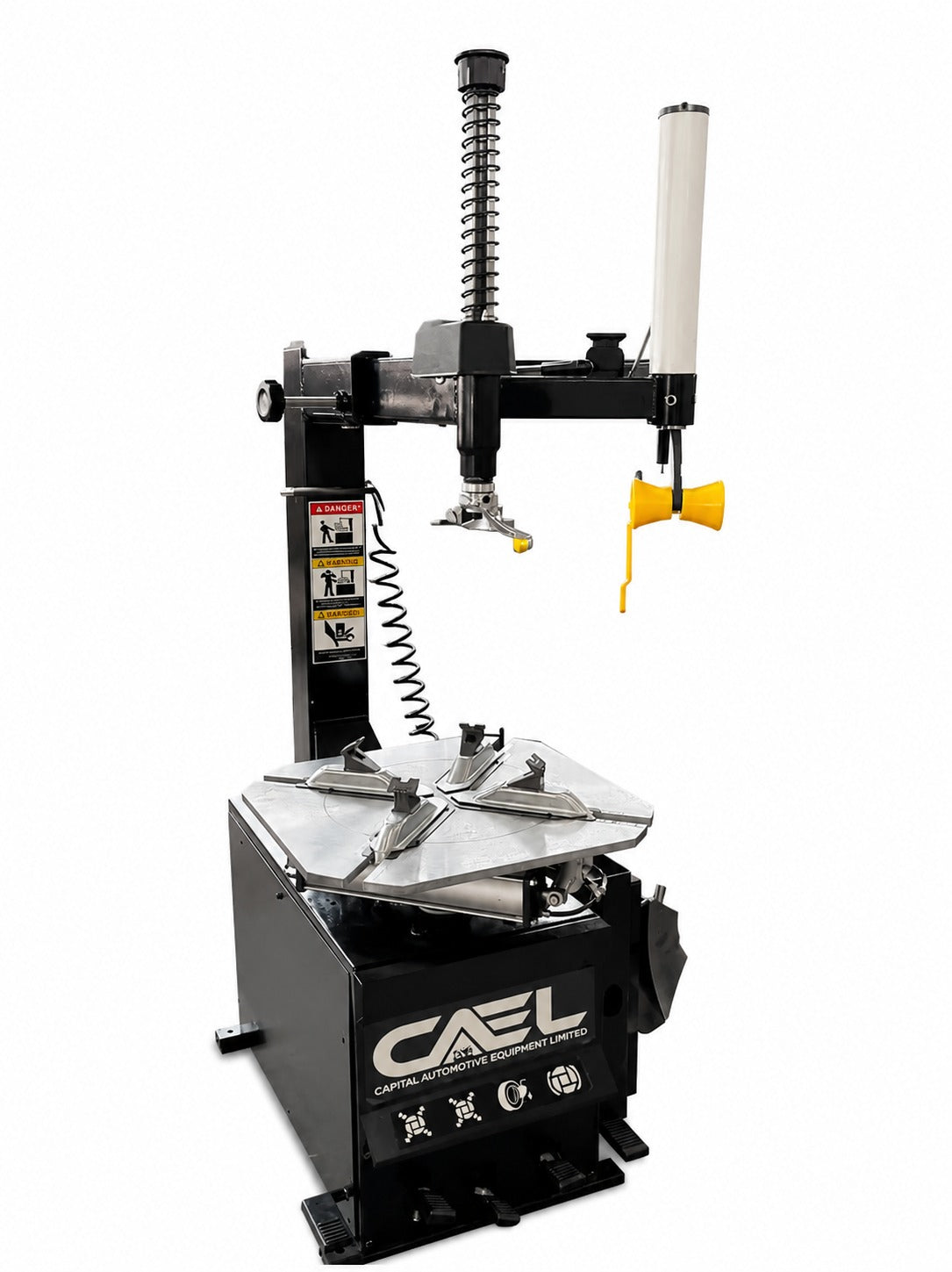

TC150 Tire Changing Machine with Assist Arm

The TC150 Tire Changing Machine with Assist Arm is engineered for tire shops, garages, and automotive service centers that demand reliability, precision, and daily performance. Manufactured under strict quality standards, the TC150 is designed for efficient mounting and demounting of tires with minimal effort and maximum safety.

Equipped with a heavy-duty assist arm, the TC150 makes servicing low-profile, run-flat, and performance tires easier by providing extra support during mounting and demounting. It helps reduce operator effort while improving efficiency and protecting wheels and tires.

Built to handle a wide range of passenger and light commercial vehicle tires, the TC150 delivers powerful bead-breaking performance while operating smoothly and quietly. Its compact footprint, durable construction, and easy-to-use controls make it an excellent long-term investment for professional workshops.

Key Features & Benefits

Heavy-duty assist arm for low-profile and run-flat tires
Fast and efficient tire mounting and demounting
Supports both inner and outer rim clamping
Powerful bead-breaking performance
Quiet and smooth operation
Heavy-duty construction for daily commercial use
Compact design for small and medium-sized workshops

Technical Specifications

Outside Rim Capacity: 10” – 22”
Inside Rim Capacity: 12” – 24”
Maximum Tire Diameter: 1040 mm (41”)
Maximum Tire Width: 380 mm (15”)
Bead Breaking Force: 2500 kg (at 10 bar)
Operating Air Pressure: 8–10 bar (116–145 psi)
Maximum Inflation Pressure: 3.5 bar (50 psi)
Power Supply: 110 V AC
Motor Power: 1.1 kW / 0.75 kW
Overall Dimensions: 968 × 992 × 1800 mm (38.1 × 39.1 × 70.9 in)
Net Weight: 190 kg (418.9 lb)
Noise Level: Less than 70 dB(A)

Ideal For

Auto repair shops
Tire service centers
Dealership workshops
Fleet maintenance facilities
