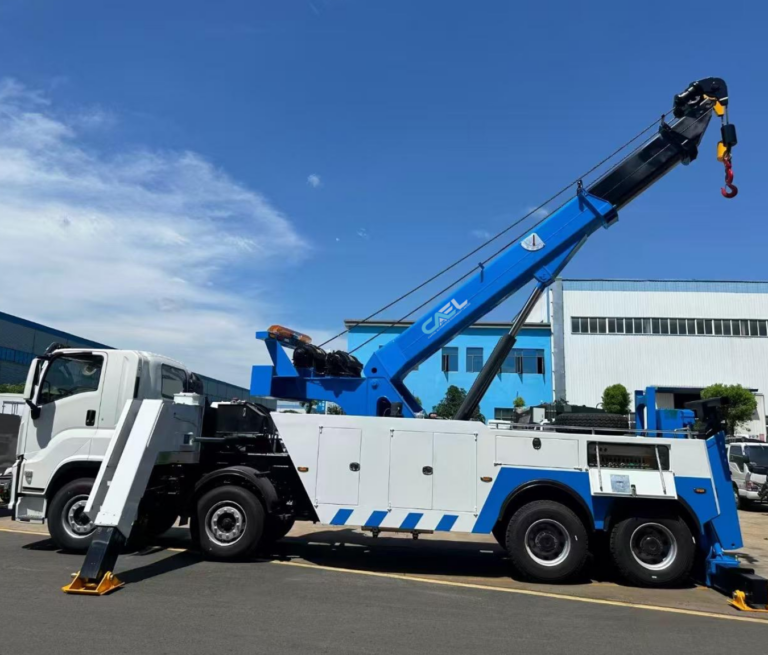

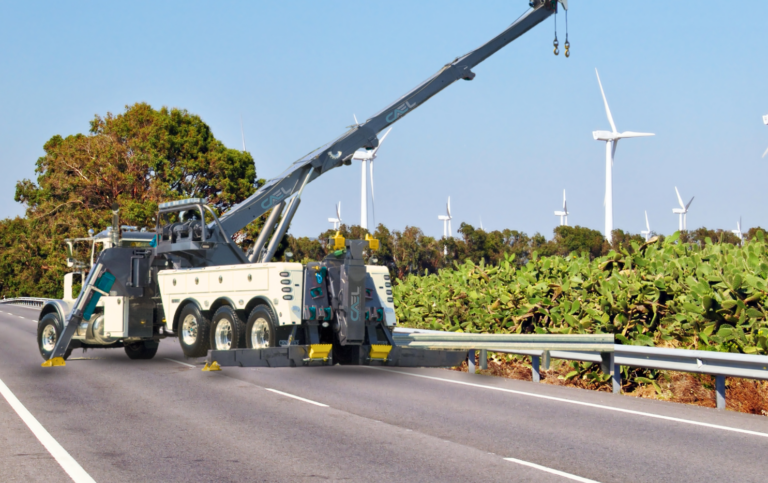

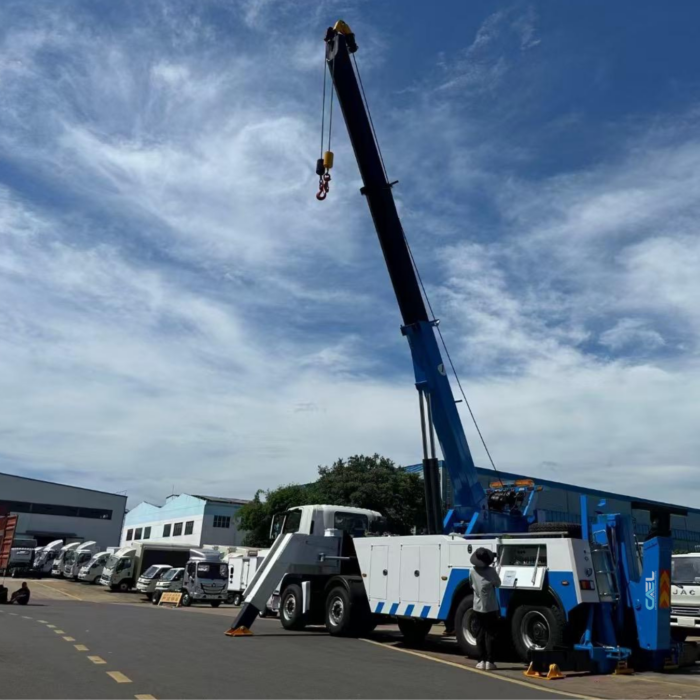

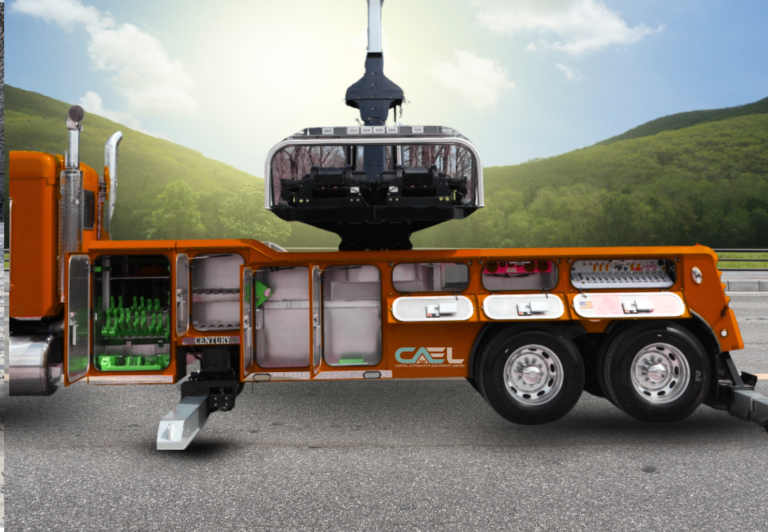

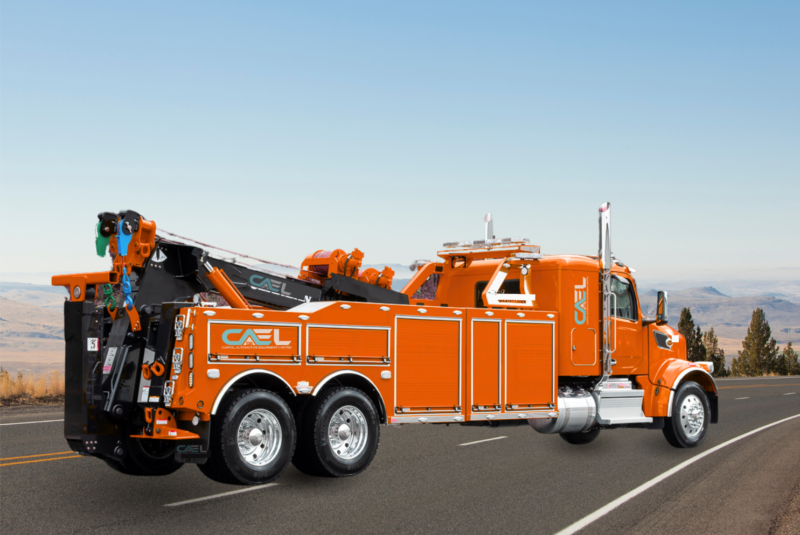

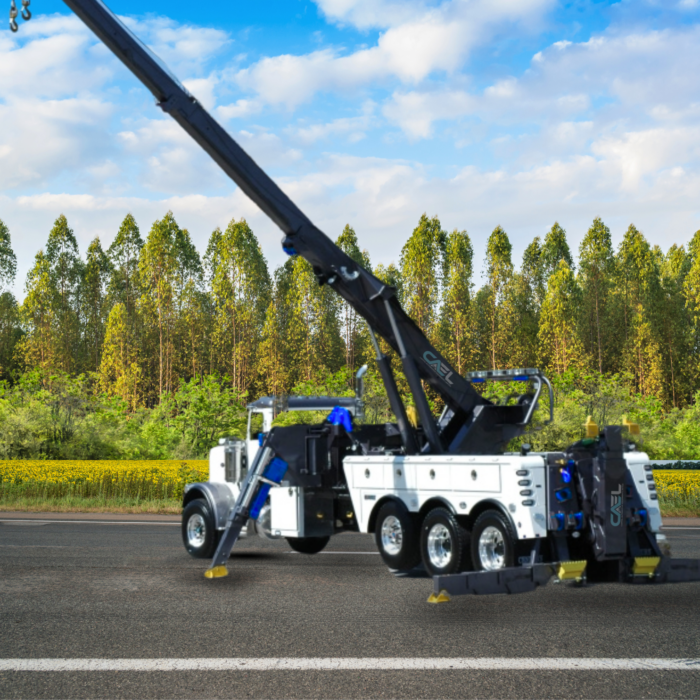

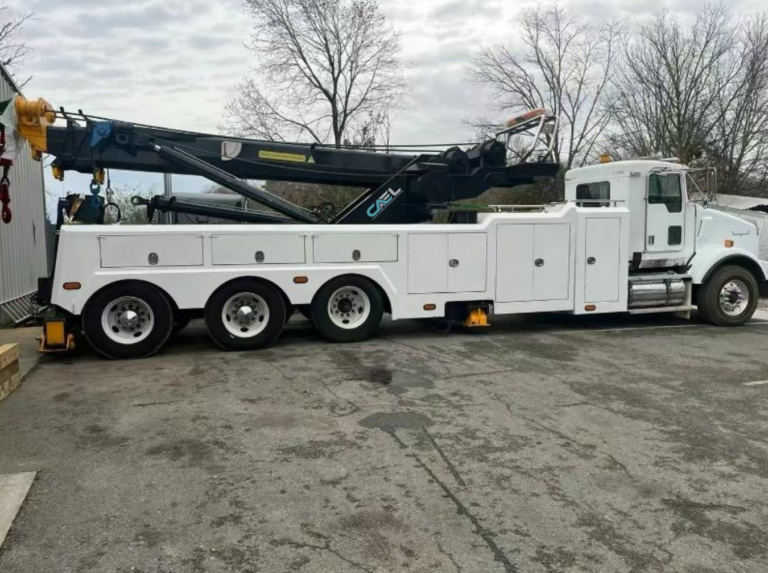

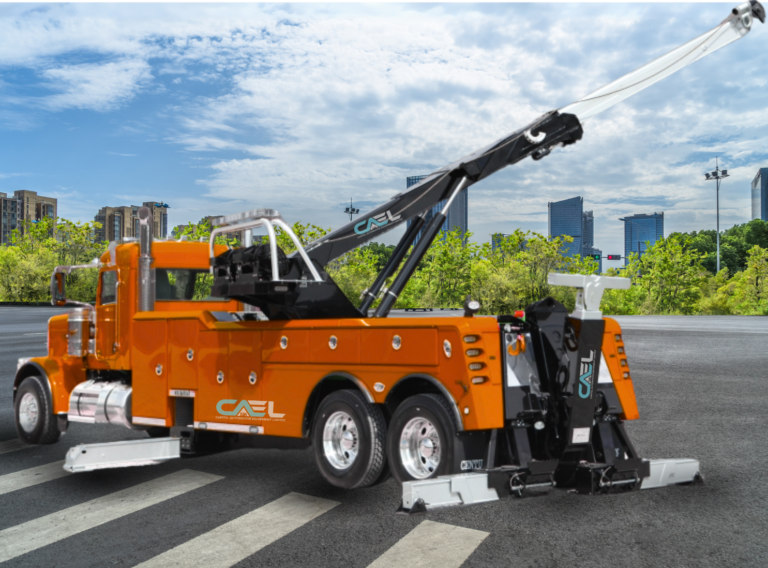

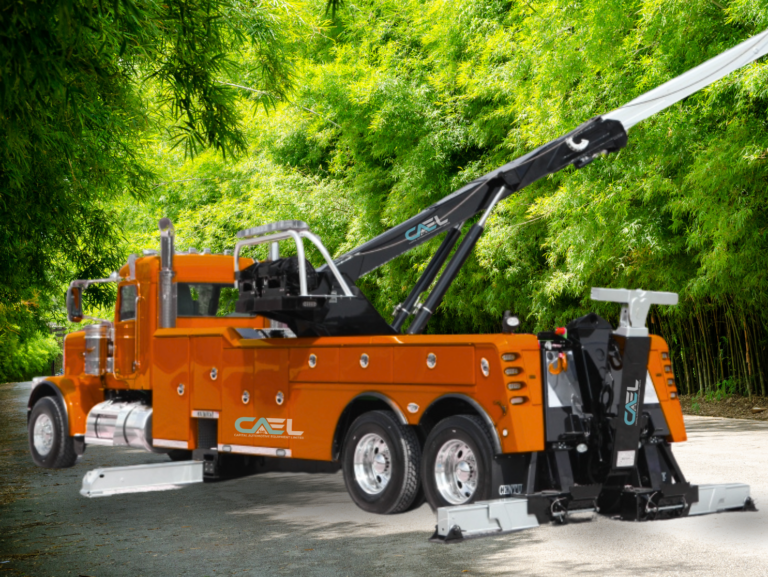

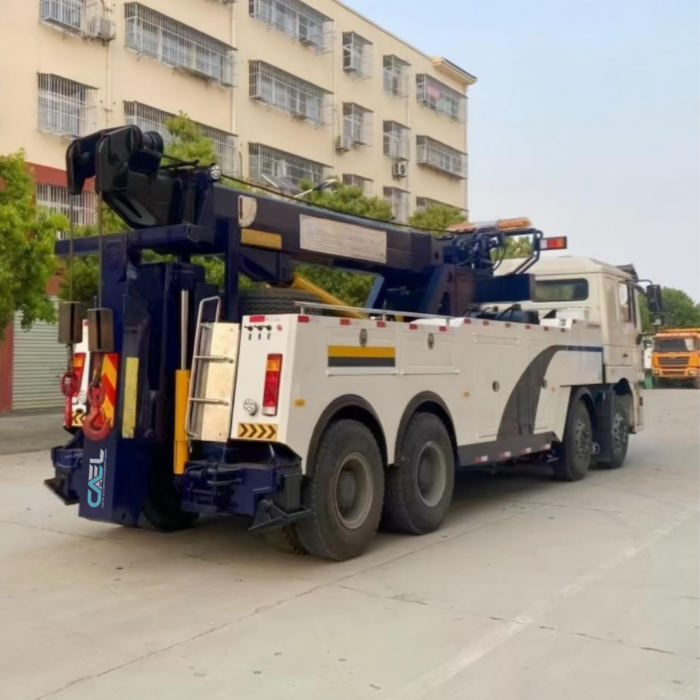

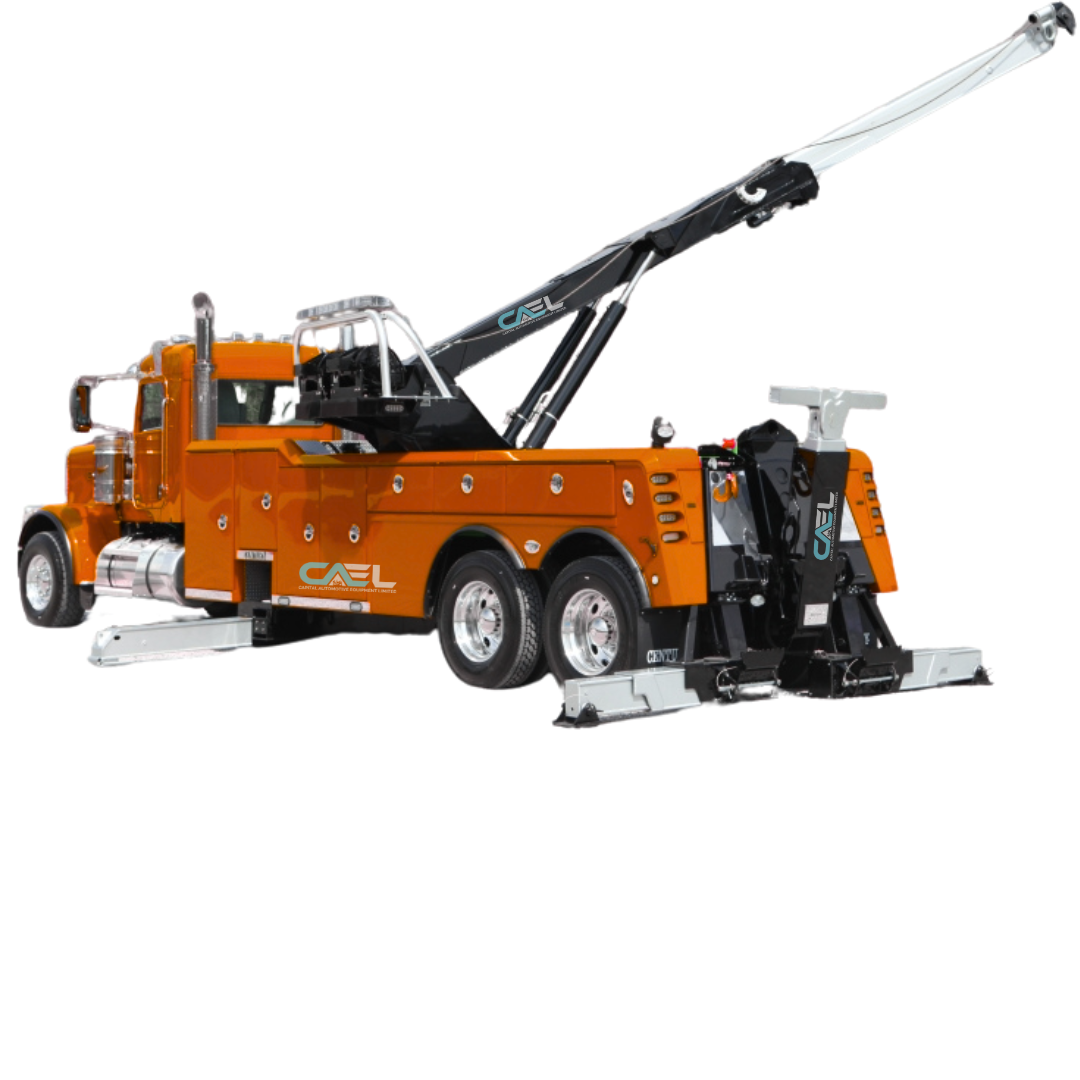

CAEL Heavy Duty 35 Ton Tow Truck Wrecker

Maximum Recovery Power • Twin 20 Ton Winches • Professional Rotator-Class Performance

The CAEL Heavy Duty 35 Ton Tow Truck Wrecker is built for the most demanding commercial towing, accident recovery, heavy transport rescue, fleet towing, industrial recovery, and municipal operations.

Engineered for extreme-duty service, this unit features a 35 ton boom capacity, 36 ton tow rating, dual 20 ton planetary winches, heavy underlift system, and professional recovery accessories.

Designed for operators who need serious power, reach, and reliability.

Key Features & Benefits

Massive 35 Ton Boom Capacity

Heavy-duty lifting for trucks, trailers, buses, and equipment

Dual 20 Ton Winches

2 × 20 ton (44,000 lb) planetary winches
Maximum recovery pulling force

Strong Underlift System

Tow heavy commercial vehicles safely

Professional Recovery Package

Includes:

✔ Frame fork holders
✔ 4 sets of frame forks
✔ Safety chains
✔ Fork & chain racks

Air + 12V / 24V Outputs

Ready for commercial towing needs

Chrome Door Handles

Premium professional finish

Non Slide Configuration

Durable traditional wrecker setup

Customizable Build Options

Configure to your fleet requirements

Main Specifications

Feature	Details
Body Length	4572 mm (180")
Cab to Centre of Tandem	Standard Steel Body
Winches	2 Units
Winch Capacity	20 Ton Each
Optional Winch	10 Ton

Winch Specifications

Feature	Details
Type	Planetary
Pulling Force	20 Ton (44,000 lbs) each
Cable Size	19 mm (3/4")
Cable Length	60 m (200 ft)

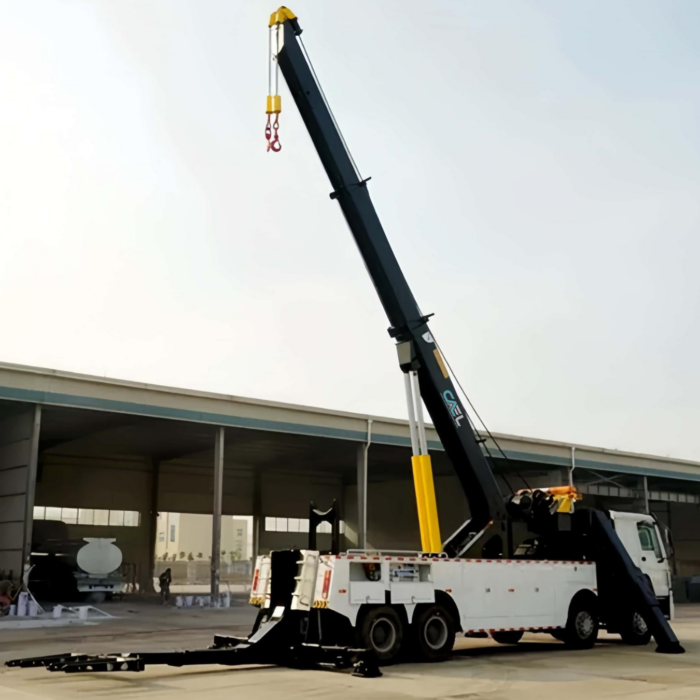

Boom Specifications

Feature	Details
Retracted Capacity @ 65°	35 Ton (77,000 lbs)
Extended Capacity @ 65°	8.5 Ton (17,000 lbs)
Maximum Lift Angle	65°
Maximum Hook Height	13,529 mm (533")
Reach Past Tailboard	5,219 mm (205")

Underlift Specifications

Feature	Details
Retracted Capacity on Forks	15.8 Ton (35,000 lbs)
Retracted Reach	1,746 mm (69")
Extended Capacity on Forks	6.8 Ton (15,000 lbs)
Extended Reach	3,492 mm (137")
Euro Option Reach	3,657 mm (144")
Negative Tilt Angle	-10°
Tow Rating	36 Ton (80,000 lbs)

Vehicle Recommendations

Feature	Details
Front Axle Minimum	9 Ton (20,000 lbs)
Rear Axles Minimum	2 × 10.4 Ton (23,000 lbs)
Tire Size	R24.5
Clear CA	4,353 mm (171")

Ideal Applications

✔ Heavy truck recovery
✔ Semi trailer towing
✔ Bus & coach towing
✔ Accident recovery
✔ Construction equipment transport
✔ Municipal heavy recovery
✔ Fleet towing operations

Important Note

Ratings are based on structural and design factors only. Final capacity depends on selected chassis, axle setup, and installed equipment.

Higher chassis specifications may be required.

Why Choose CAEL?

Trusted Canadian Brand

Heavy equipment built for real commercial work.

Custom Builds Available

Tailored solutions for your towing fleet.

Canada-Wide Delivery

Reliable nationwide shipping available.

Core Advantages

✔ 35 ton boom
✔ 36 ton tow rating
✔ Dual 20 ton winches
✔ 533" hook height
✔ Heavy underlift system
✔ Fully customizable
✔ Commercial fleet ready
