CAEL Mobile LED Display Trailer
Product Overview
The CAEL Mobile LED Display Trailer is a versatile, high-visibility digital advertising solution designed for outdoor promotions, public announcements, live events, and mobile marketing campaigns. Featuring a full-matrix LED display mounted on a durable, trailer-based platform, it enables businesses and organizations to deliver dynamic messages wherever their audience is located.
Built for mobility, durability, and ease of operation, the CAEL Mobile LED Display Trailer is suitable for advertising agencies, event organizers, educational institutions, government departments, and commercial establishments.
Key Features
-
High-Quality LED Display: Full-matrix LED screen for clear, eye-catching visual communication.
-
360° Rotating Display: Adjustable screen rotation for improved viewing and audience engagement.
-
Mobile Trailer Design: Towable platform for convenient transportation between locations.
-
Flexible Content Management: Supports programmable messages, advertisements, and promotional content.
-
Remote Content Updates: Compatible with supported software and remote content-management functions.
-
GPS Tracking: Supports location tracking when the relevant GPS hardware and service are configured.
-
Durable Construction: Robust trailer structure designed for outdoor applications.
-
Multiple Power Options: DC power system with solar charging and battery support.
-
User-Friendly Operation: Designed for convenient display control and content programming.
Applications
-
Outdoor advertising and brand promotions
-
Political campaigns and public awareness drives
-
School, college, and educational announcements
-
Road safety and traffic awareness campaigns
-
Sporting events, exhibitions, and festivals
-
Product launches and promotional events
-
Government announcements and emergency messaging
-
Retail promotions, real estate marketing, and commercial advertising
Technical Specifications
1. LED Display
| Parameter | Specification |
|---|---|
| Display Type | LED Full Matrix |
| Display Size | 2070 mm × 1390 mm |
| Display Viewing Area | 1980 mm × 1300 mm |
| Pixel Configuration | 48 × 28, 3-in-1 SMD LED |
| Screen Resolution | 48 × 28 pixels |
| Display Control | Compatible LED display controller |
| Content | Programmable text and supported media |
2. Trailer
| Parameter | Specification |
|---|---|
| Overall Dimensions | Approx. 3300 × 1800 × 2400 mm |
| Operating Height | 3500 mm |
| Display Rotation | 360° |
| Drawbar Length | Approx. 1800 mm |
| Trailer Structure | Heavy-duty trailer frame |
| Tyres | 4-inch tyres, subject to final configuration |

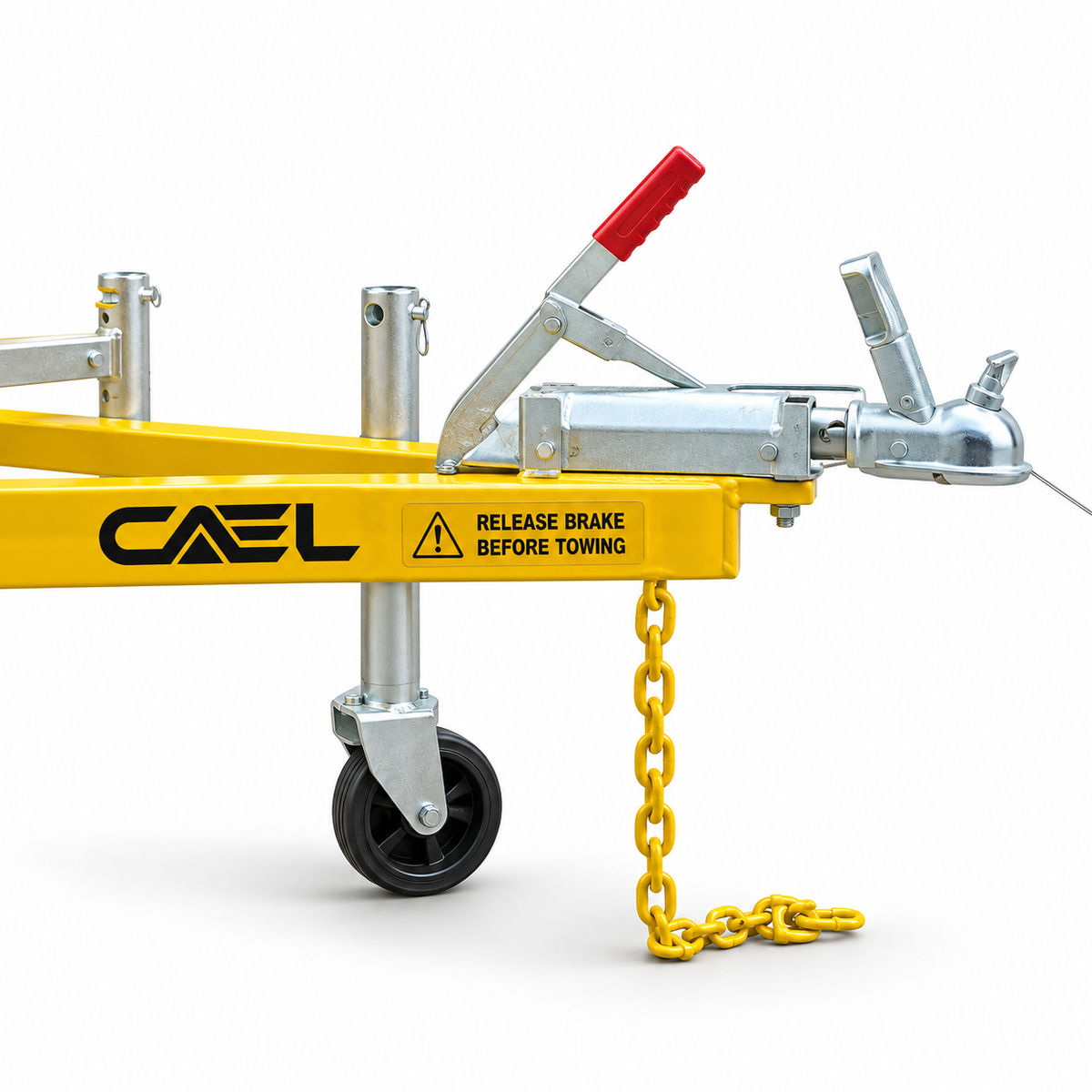

| Coupler | 3000 lb, 50 mm ball |
| Wheel Support | Heavy-duty trailer jack/stand |

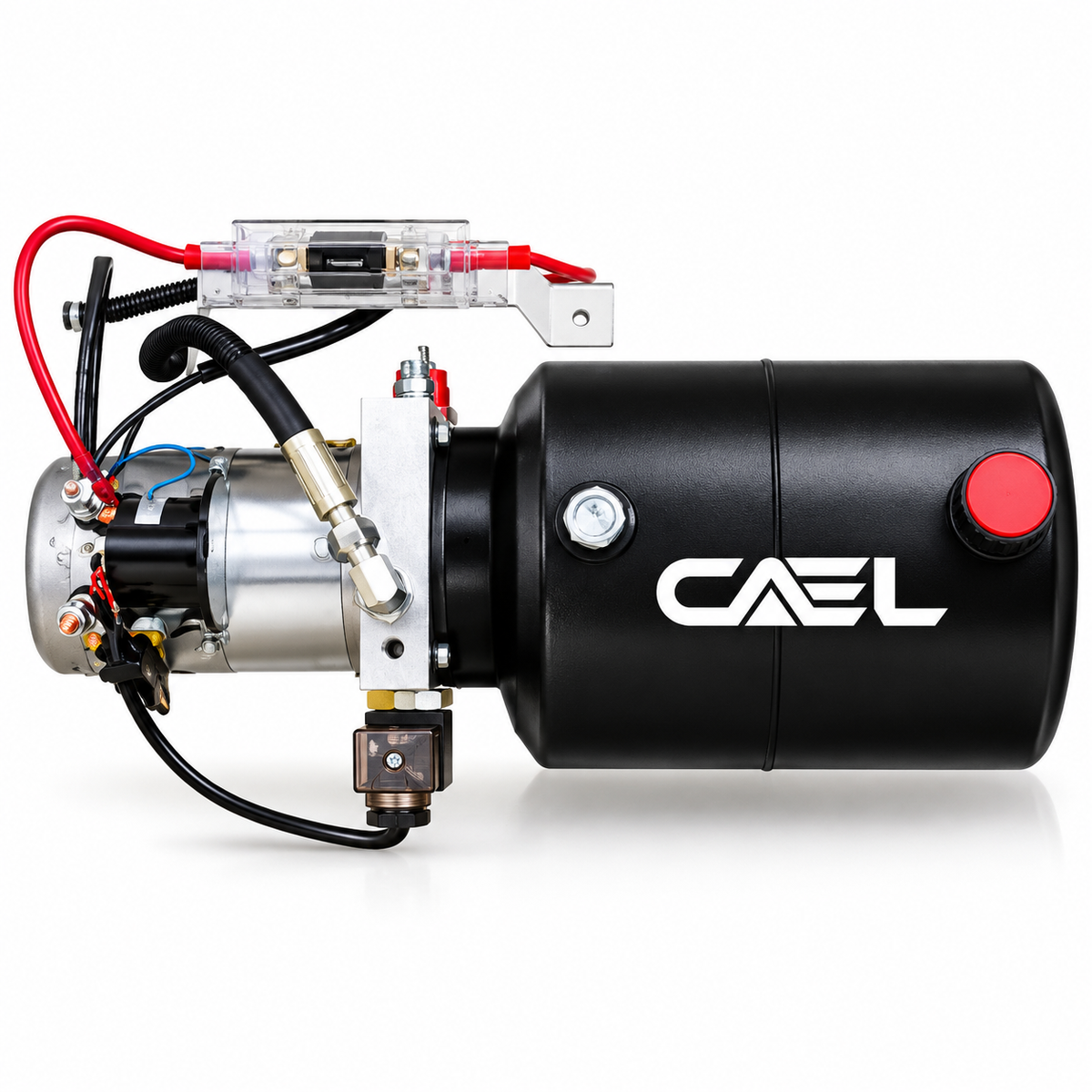

| Hydraulic System | Hydraulic lift mechanism for display panel |
| Manual Operation | Manual hydraulic backup |

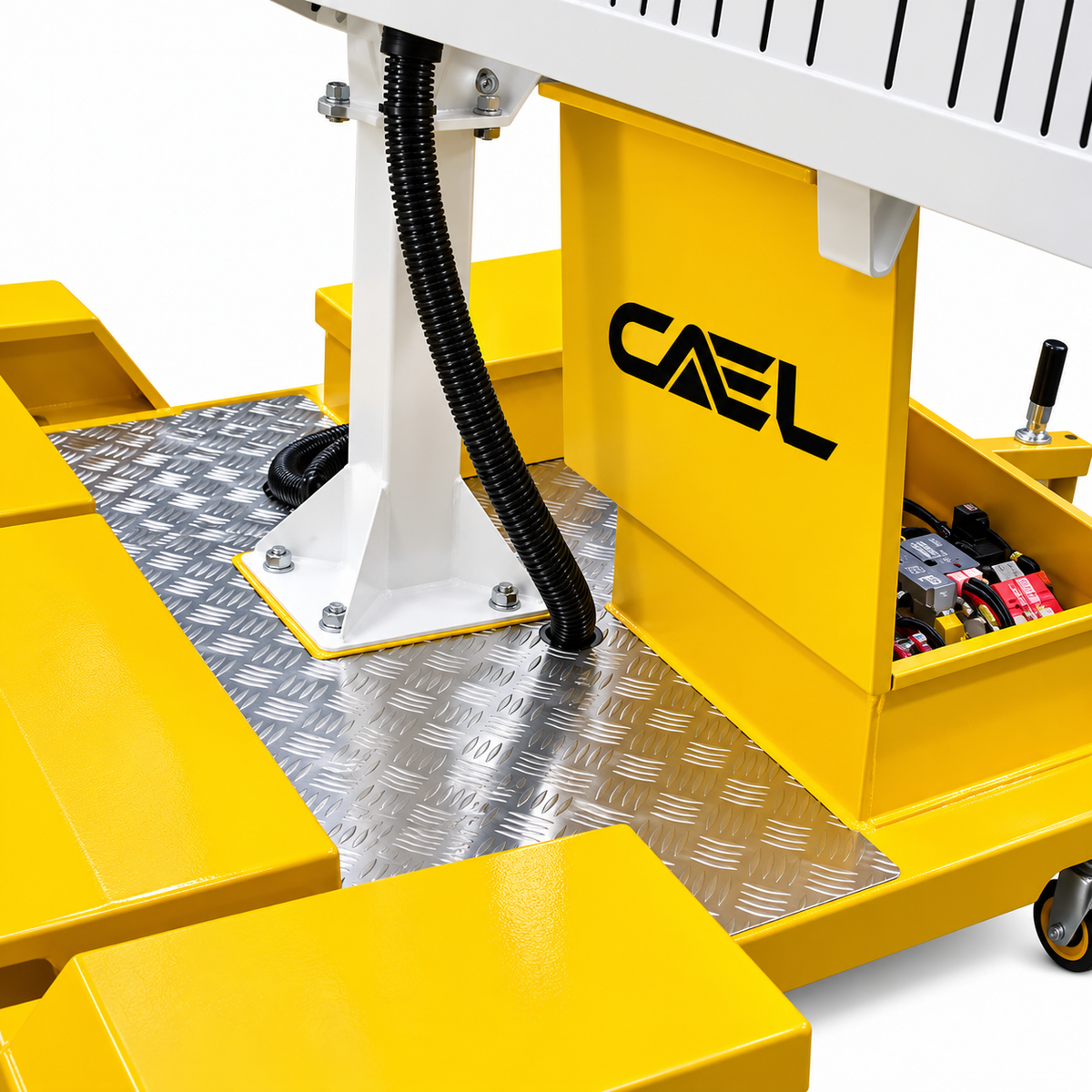

| Deck | 3 mm steel chequer plate |
3. Power System
| Parameter | Specification |
|---|---|
| Operating Voltage | DC 12V |
| Solar Panel | 3 × 140W |
| Battery | 3 × 12V, 200Ah deep-cycle batteries (optional configuration) |
| Solar Charge Controller | 30A MPPT |
| Power Operation | Solar-assisted battery power, subject to configuration |
4. Controller and Programming
| Parameter | Specification |
|---|---|
| Programming Interface | USB / RS232 serial connection, as configured |
| Display Management | Compatible LED display management software |
| Software Updates | Windows-compatible software support, subject to controller |
| Content Scheduling | Programmable message scheduling |
| Remote Management | Supported remote content-management features |
| Data Logging | Supported logging functions, depending on configuration |
| Message Storage | Capacity for up to 100 individual messages, as specified |
Why Choose CAEL?
CAEL focuses on practical, durable, and innovative display solutions for modern advertising and communication requirements. The mobile LED display trailer combines digital visibility with convenient transportation, helping customers reach audiences across multiple locations using a single mobile advertising platform.
CAEL – Powering Visibility. Delivering Impact.
Note: Final specifications, software compatibility, GPS functionality, solar capacity, load ratings, and available features should be confirmed against the actual CAEL product configuration before publication.
