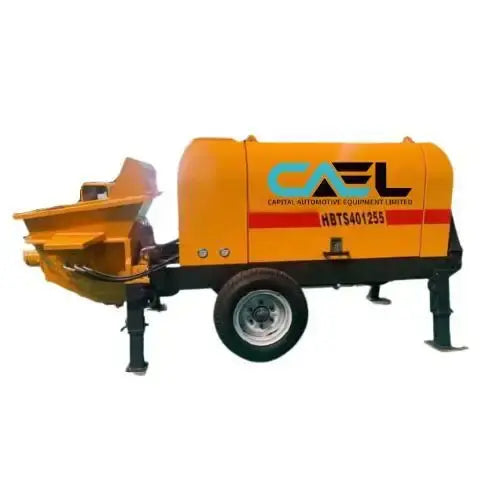

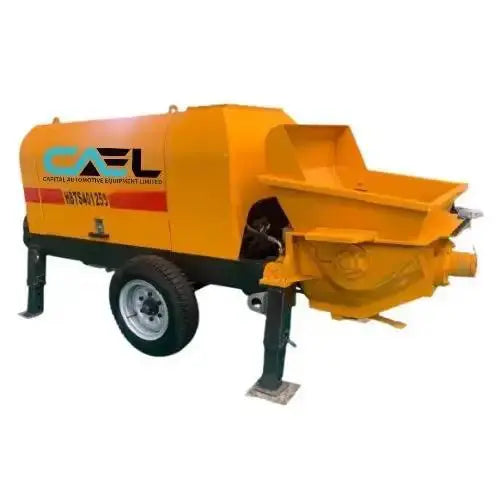

Concrete Pump Parameter

Motor Power(KW) cummins: 55kw
Dimensions (m): 4.4*1.8*1.8
Machine weight(Kg): 2700
≤15mm horizontal distance: 450m
≤15mm vertical height: 200m
≤20mm horizontal distance: 150-160m
≤20mm vertical height: 50-60m
≤30mm horizontal distance
≤30mm vertical height
Delivery capacity(m3/h): 20-25
outlet pipe type: DN125(148mm)
Hydraulic Working Pressure(MPA): 28
Cylinder pressure(MPA): 10-11
Electrical Chint Delixi electrical solutions
Pump Model Kawasaki: 112
Accumulator model: 10L
Lubrication pump type Hydraulic synchronous lubrication pump
Hydraulic cylinder model: 100*850
Conveying cylinder type: 160*850
Transmission of aggregate: ≤20mm
Hydraulic oil model 46# antiwear hydraulic oil
Hyarulic Oil Tank: 240
Type of cable: 35 mm/sq
pendulum cylinder Double pendulum cylinder
Fan model of the air cooling system: 450
Cylinder model: 70
Tires 650 forklift grade tires
outlet pressure(MPA): 12

OPTIONAL ACCESOIRES
Steel pipe / Buckle / Hose / Metal elbow
