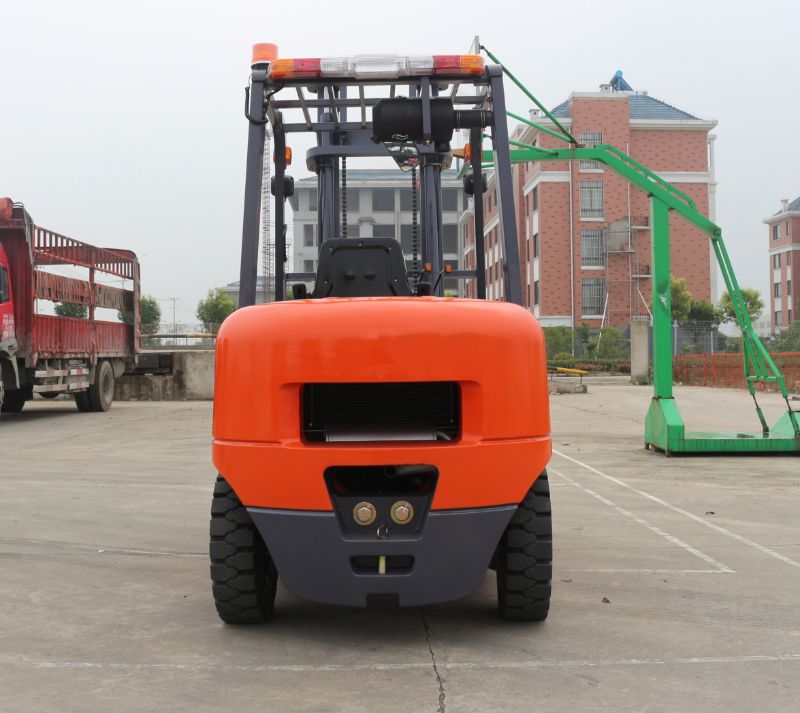

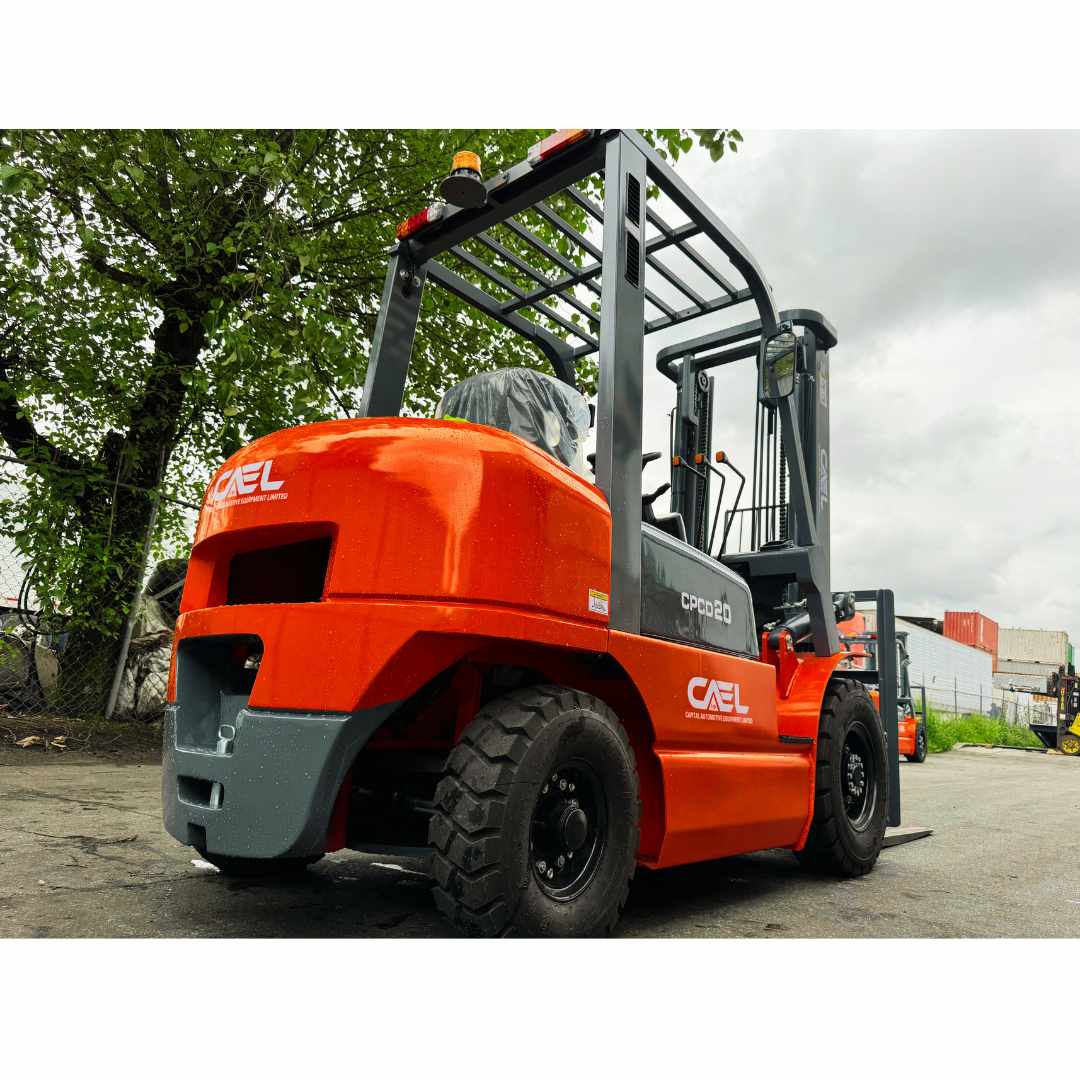

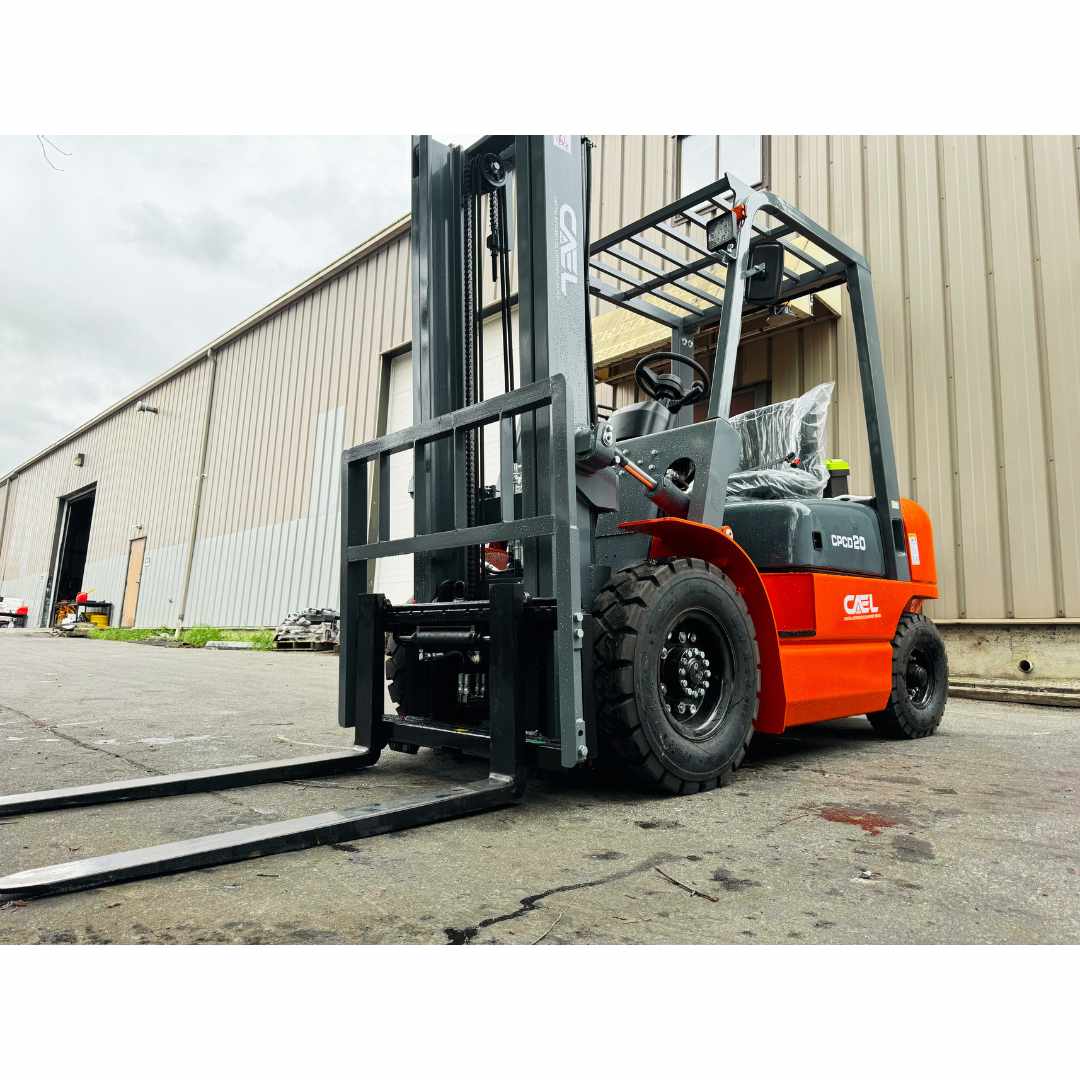

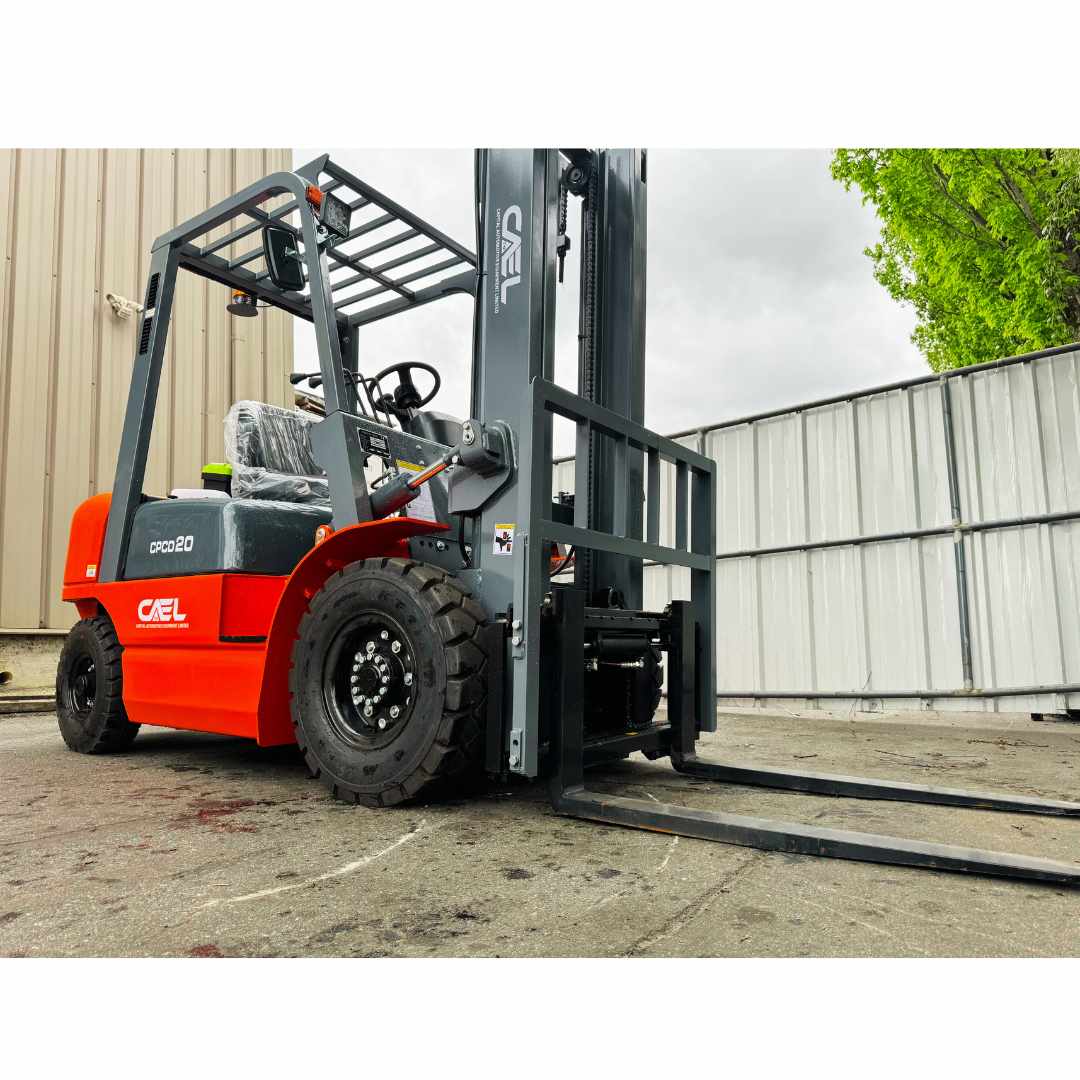

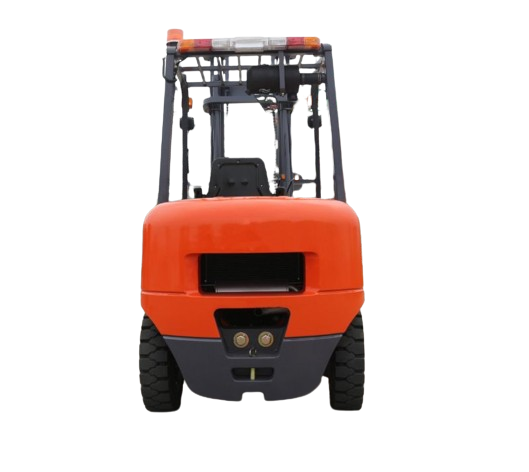

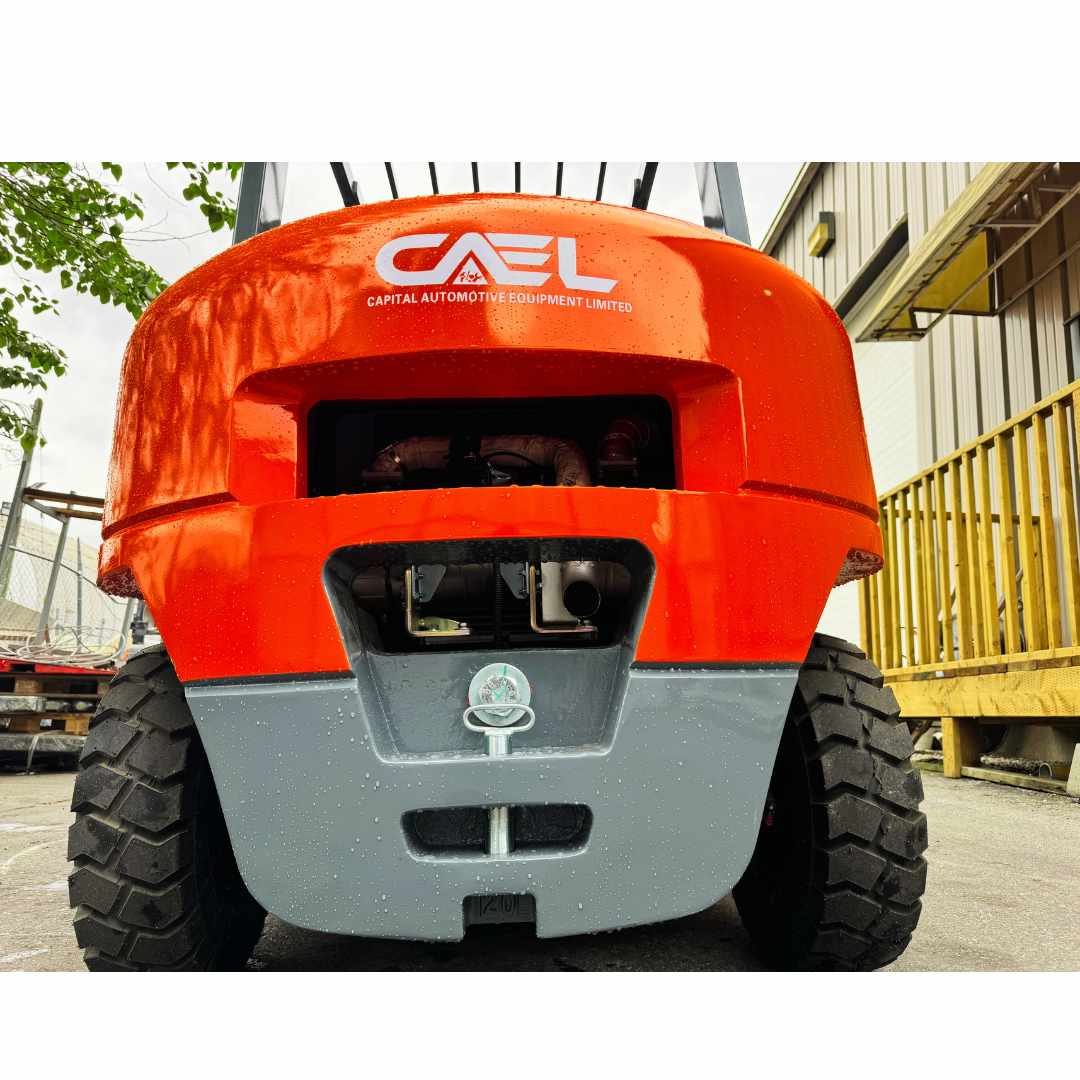

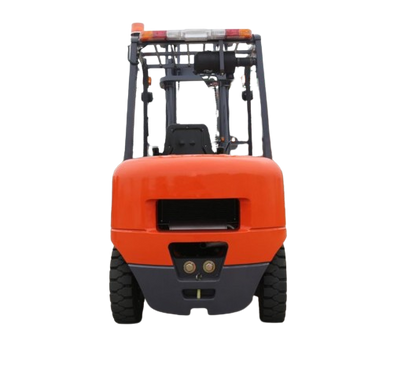

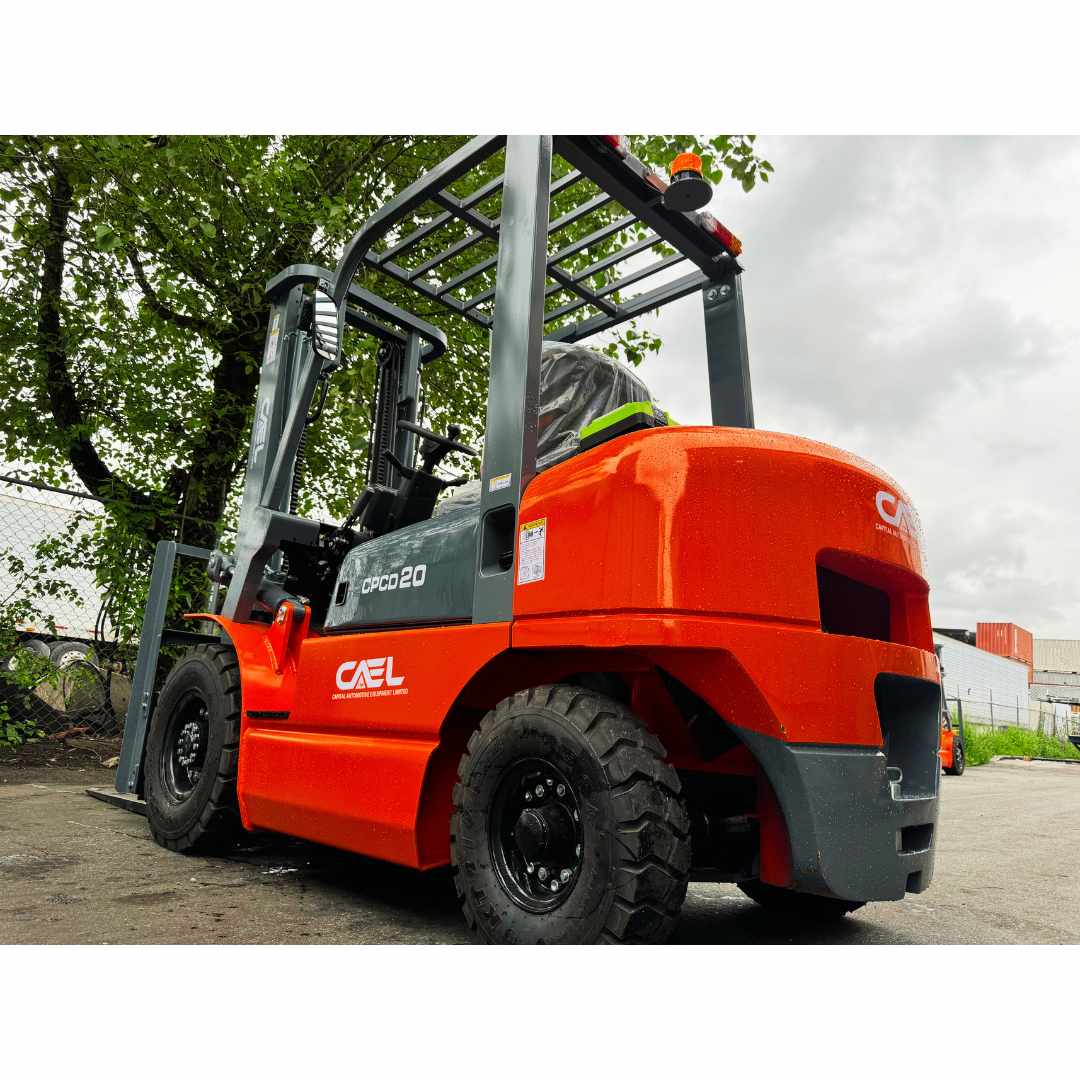

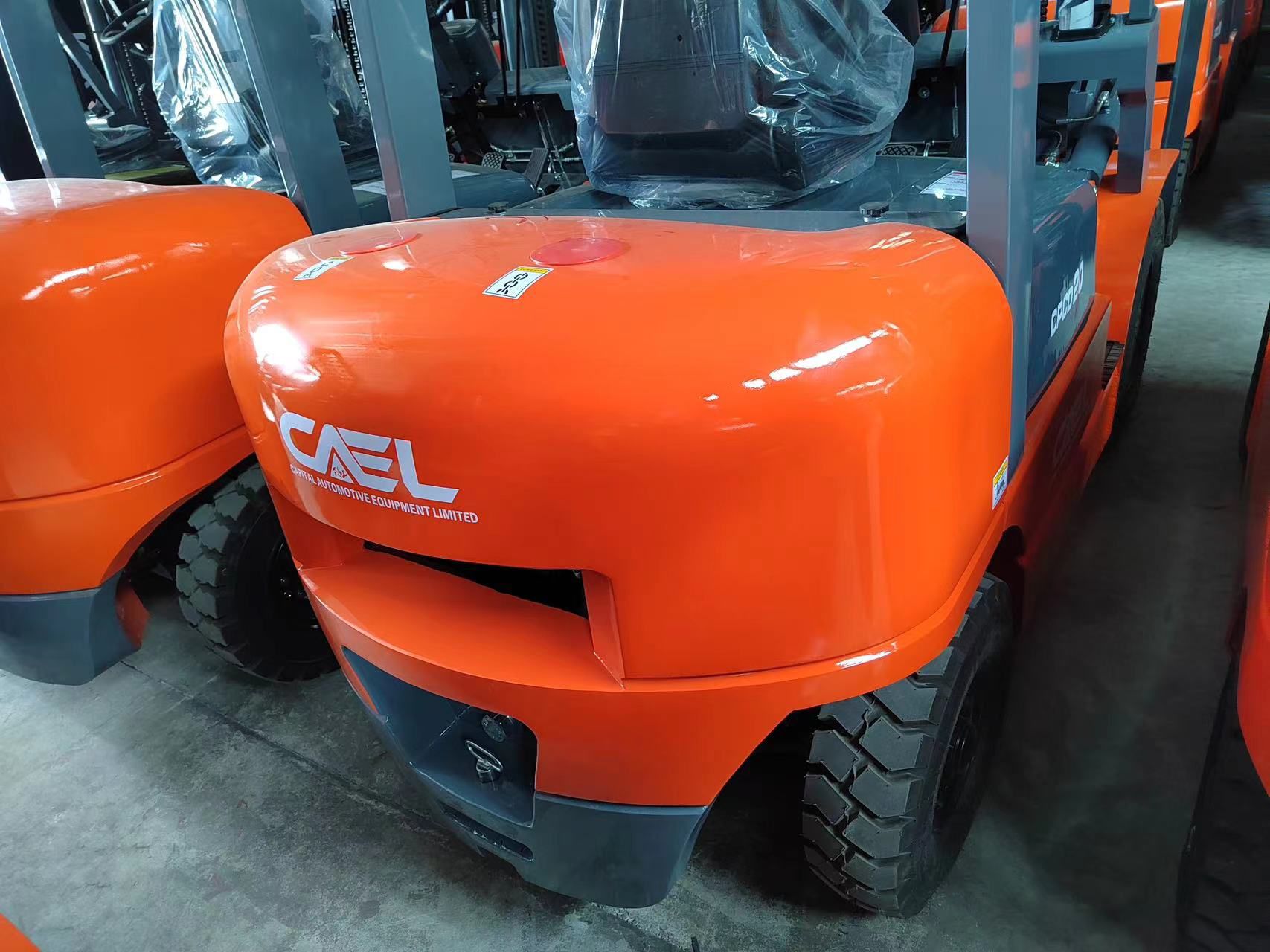

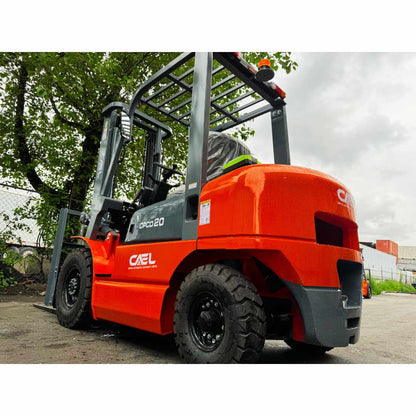

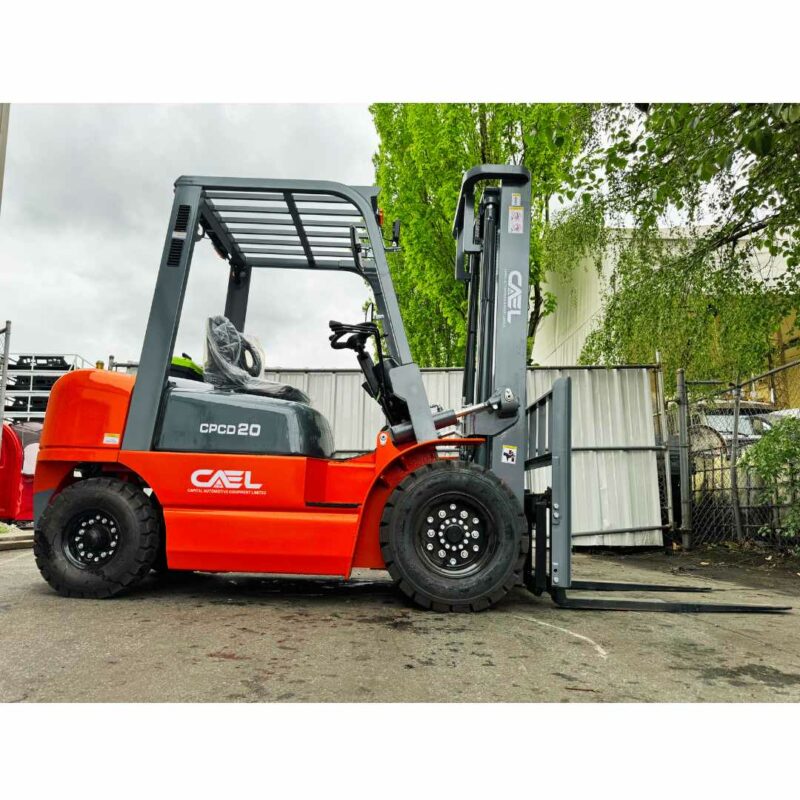

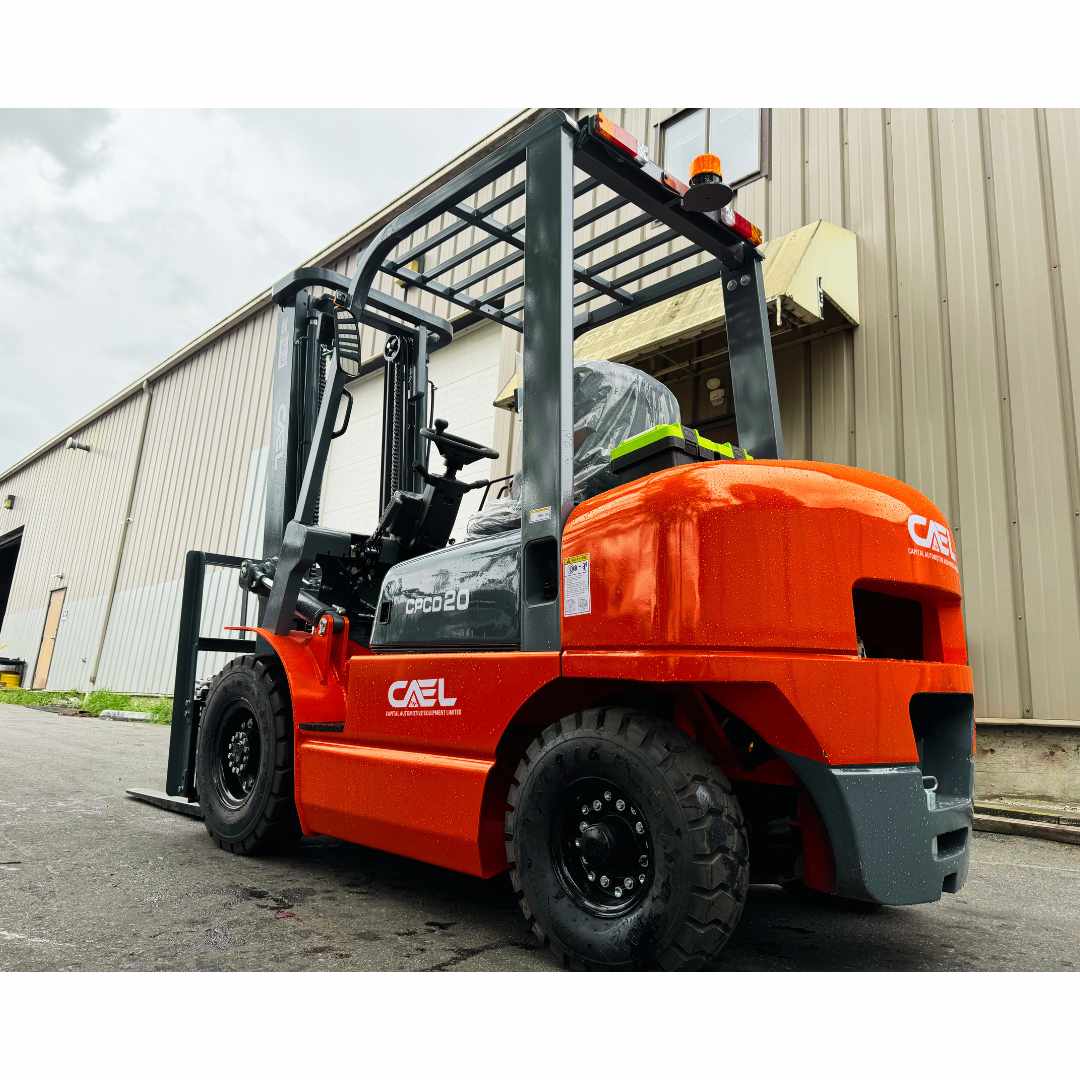

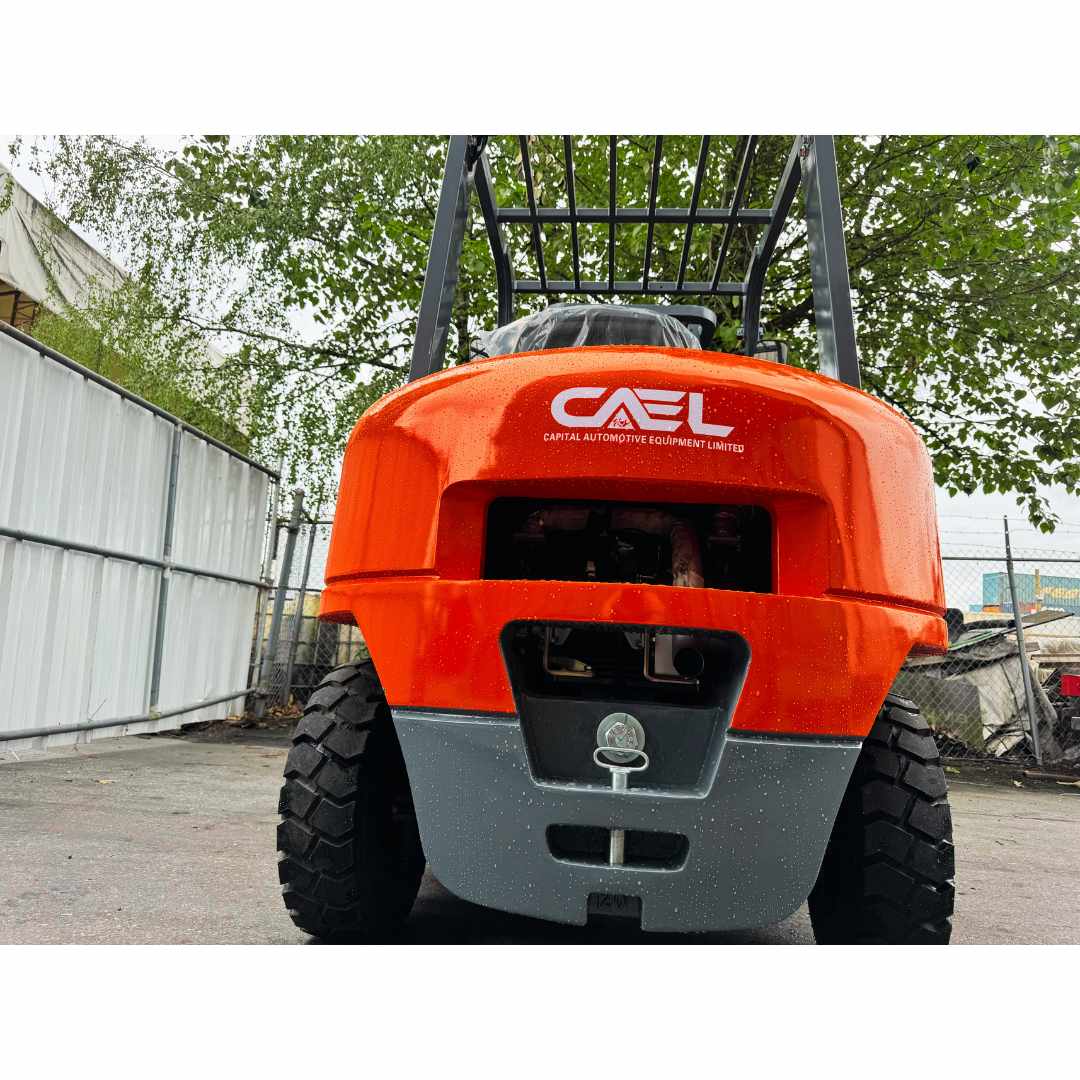

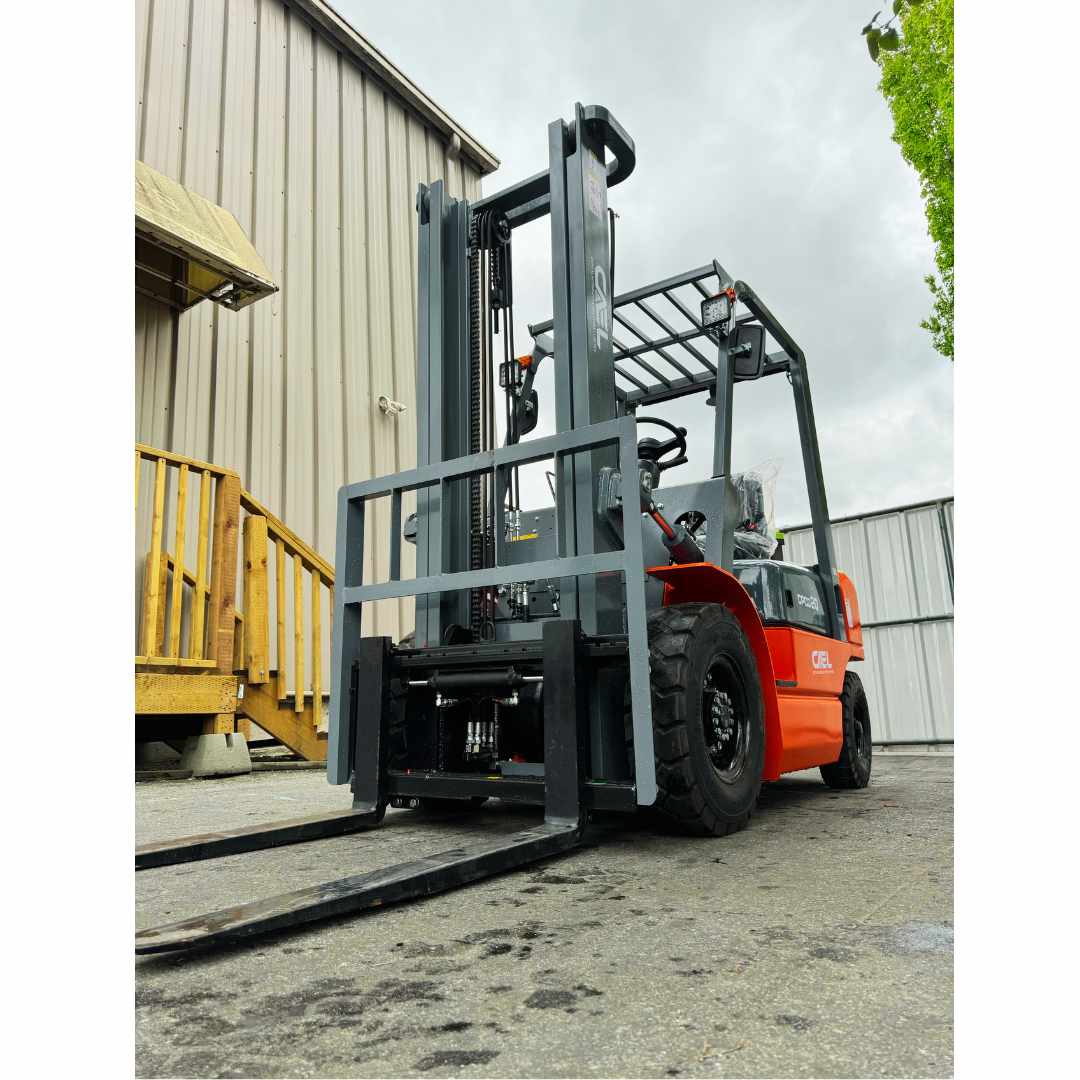

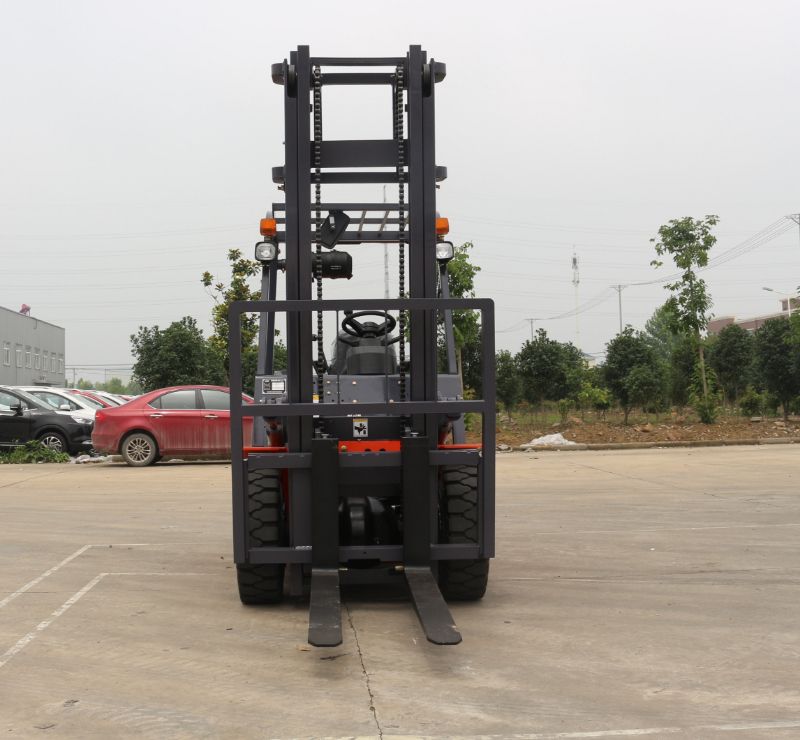

The CAEL 2T Diesel Forklift is a reliable and versatile material handling solution designed for warehouses, manufacturing facilities, logistics centres, construction sites, and industrial operations. With a rated load capacity of 2,000 kg (4,409 lbs), this forklift is built to handle palletized goods, equipment, and heavy materials with efficiency and precision.

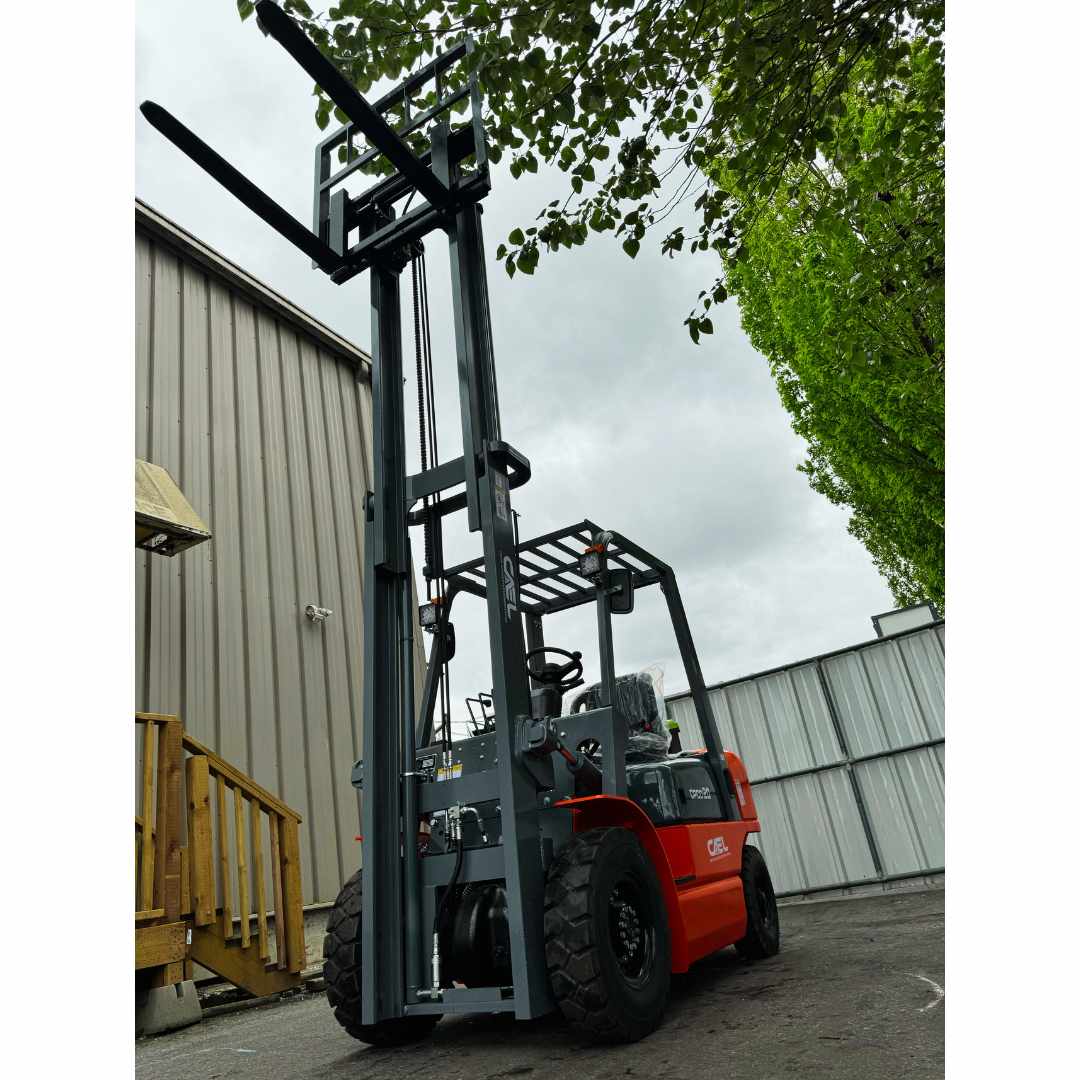

Powered by a Kubota V2607 diesel engine, the CAEL 2T Diesel Forklift delivers dependable power for demanding material handling tasks. Its automatic power shift transmission supports smooth operation, while the 2-stage mast provides a lifting height of 3,500 mm (137.8 inches), making it suitable for stacking, loading, unloading, and transporting materials.
The integrated side shifter allows operators to adjust fork positioning for more accurate load placement, helping improve handling efficiency and reduce unnecessary repositioning. With a compact turning radius, durable construction, and a choice of pneumatic or solid tyres, this forklift offers flexibility for a variety of industrial working environments.
Key Features and Benefits
- 2,000 kg Load Capacity: Handles palletized goods, equipment, and industrial materials.
- Kubota V2607 Diesel Engine: Provides reliable power for routine material handling operations.
- Automatic Power Shift Transmission: Supports smooth forward and reverse operation.
- 3,500 mm Lifting Height: Enables efficient stacking and material placement.
- 2-Stage Mast: Provides practical lifting capability for warehouse and industrial applications.
- Side Shifter Attachment: Allows lateral fork adjustment for accurate load positioning.
- Compact Turning Radius: A 2,170 mm outside turning radius supports maneuverability in confined working areas.
- Pneumatic or Solid Tyres: Offers tyre options for different operating surfaces.
- Durable Industrial Construction: Designed for regular material handling and demanding work environments.

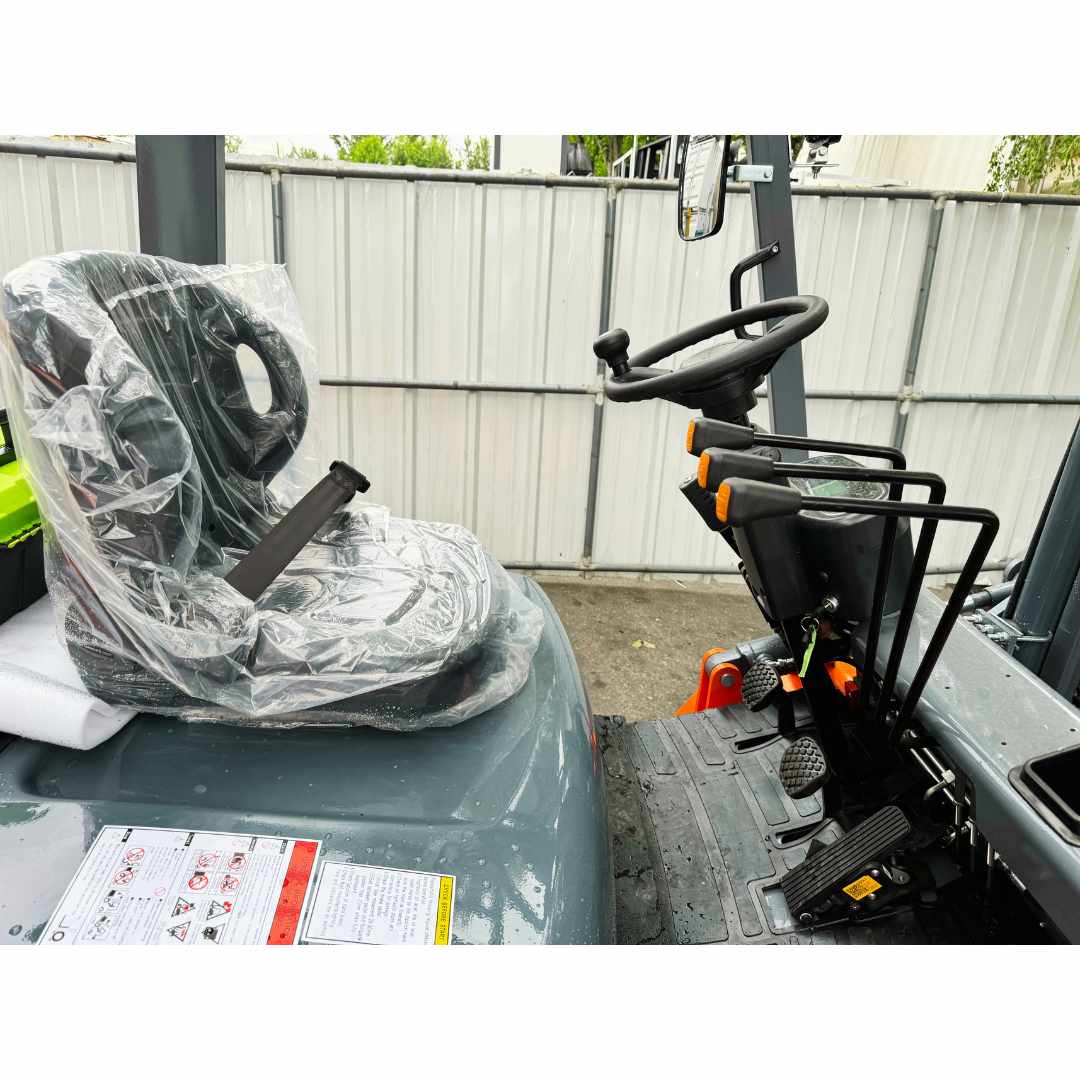

- Overhead Guard Protection: Helps protect the operator from falling objects.
- Versatile Applications: Suitable for warehouses, distribution centres, manufacturing facilities, and construction sites.
Technical Specifications
General Information
| Specification | Details |
|---|---|
| Brand | CAEL |
| Forklift Type | Diesel Forklift |
| Power Type | Diesel |
| Transmission Operation | Automatic |
| Rated Load Capacity | 2,000 kg (4,409 lbs) |
| Load Centre | 500 mm (19.6 in) |
| Mast Type | 2-Stage Mast |
| Lifting Height | 3,500 mm (137.8 in) |
| Attachment | Side Shifter |
| Fork Dimensions (L × W × T) | 1,070 × 100 × 40 mm (42.1 × 3.9 × 1.6 in) |
| Mast Tilt Angle (Forward / Backward) | 6° / 12° |
| Front Overhang | 477 mm (18.8 in) |
| Ground Clearance (Bottom of Mast) | 110 mm (4.3 in) |
Dimensions and Weight
| Specification | Measurement |
|---|---|
| Length to Face of Fork (Without Fork) | 2,502 mm (98.5 in) |
| Overall Width | 1,170 mm (46.1 in) |
| Mast Height (Lowered) | 2,245 mm (88.4 in) |
| Mast Height (Extended, with Backrest) | 4,530 mm (178.3 in) |
| Overhead Guard Height | 2,070 mm (81.5 in) |
| Outside Turning Radius | 2,170 mm (85.4 in) |
| Minimum Intersecting Aisle Width | 2,200 mm (86.6 in) |
| Wheelbase | 1,600 mm (63 in) |
| Service Weight | 3,420 kg (7,541 lbs) |

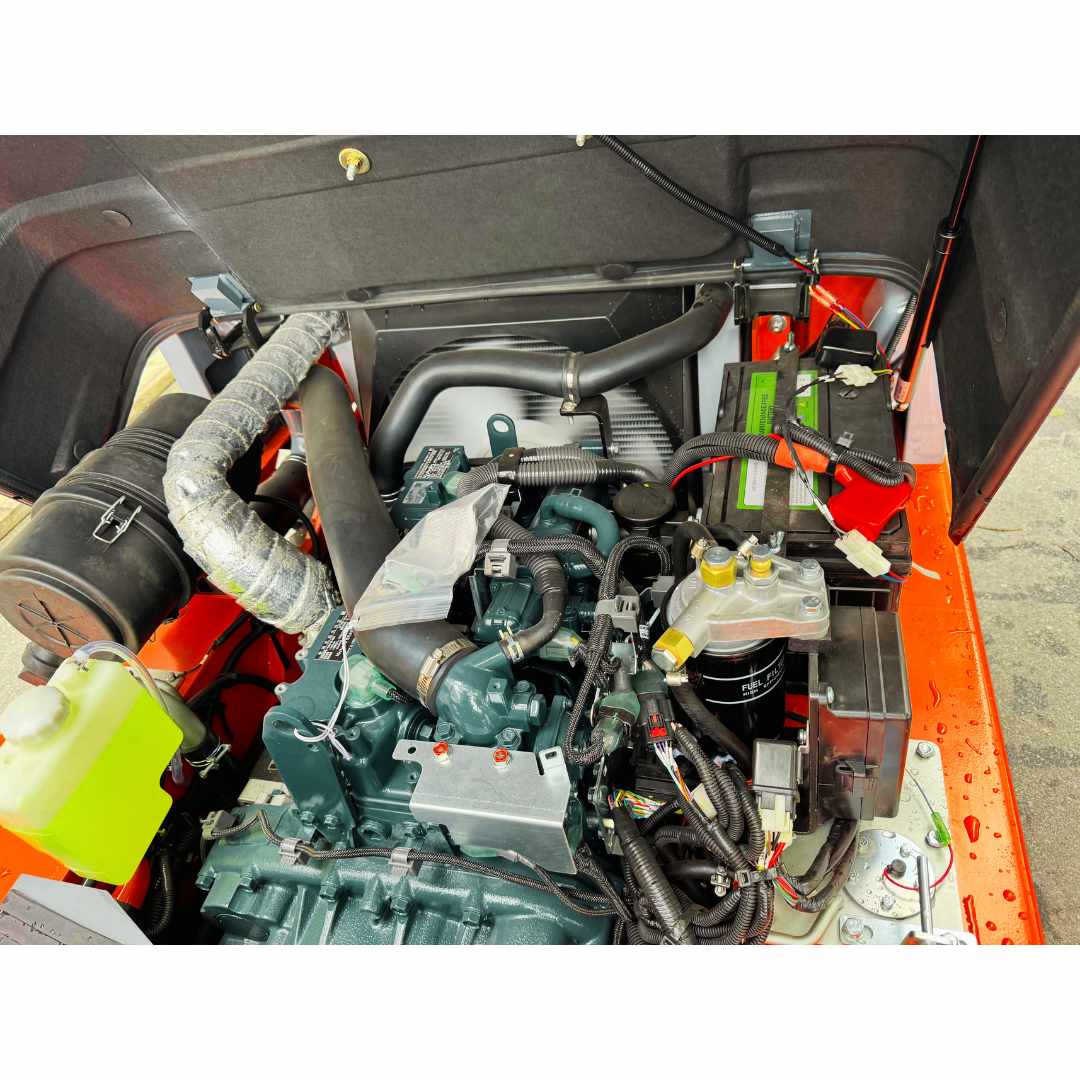

Engine Specifications
| Specification | Details |
|---|---|
| Engine Brand | Kubota |
| Engine Model | V2607 |
| Rated Output | 37.4 kW @ 2,400 rpm |
| Rated Torque | 174 Nm @ 1,600 rpm |
| Number of Cylinders | 4 |
| Bore × Stroke | 87 × 110 mm |
| Engine Displacement | 2.615 L |
| Fuel Tank Capacity | 60 L (15.8 US gal) |
Performance
| Parameter | Measurement |
|---|---|
| Travel Speed (Unloaded) | 19 km/h |
| Lifting Speed (Full Load) | 530 mm/s |
| Maximum Gradeability | 20% |
Tyre Specifications
| Specification | Details |
|---|---|

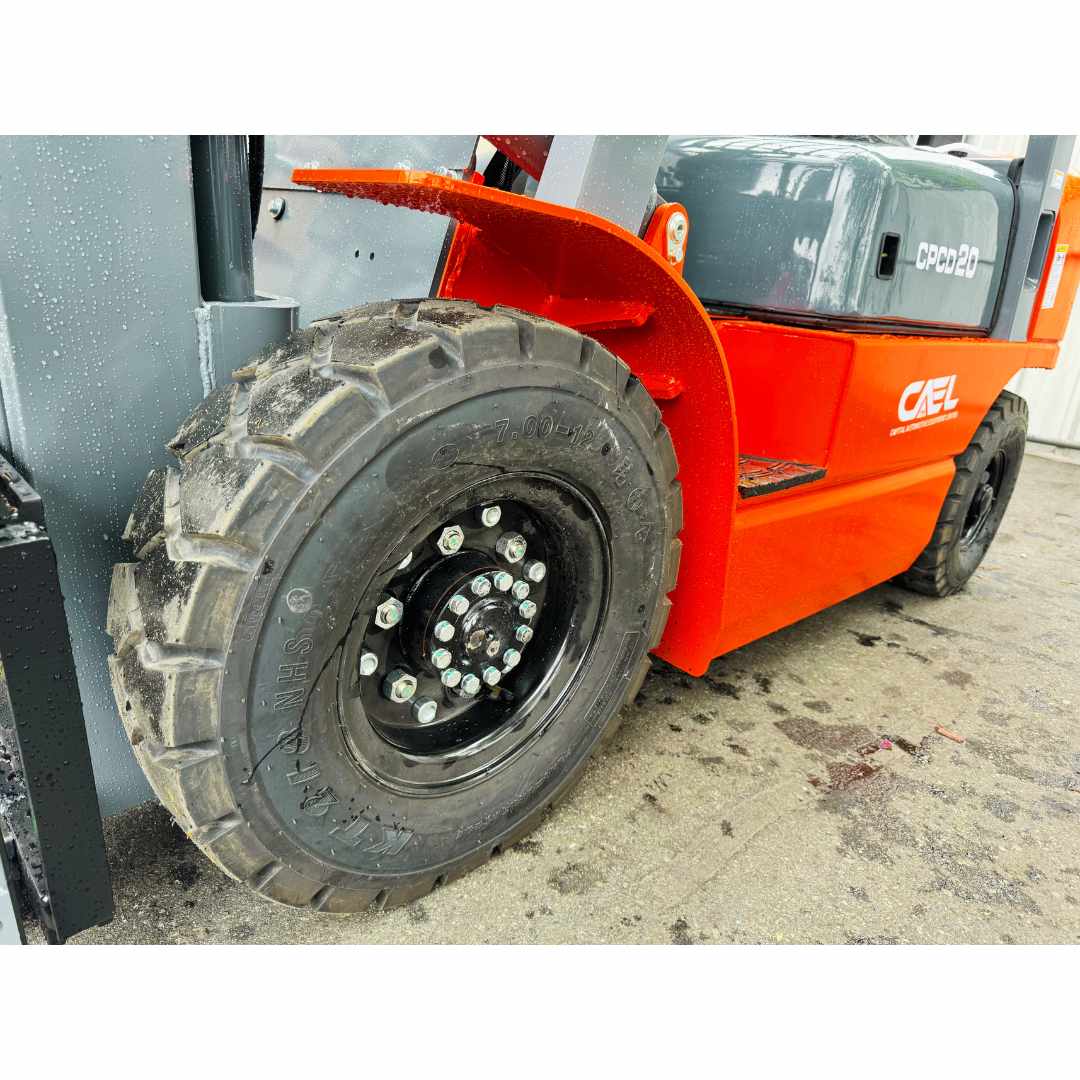

| Front Tyres | 7.00-12-12PR |
| Rear Tyres | 6.00-9-10PR |
| Available Tyre Types | Pneumatic or Solid |
Electrical System
| Specification | Details |
|---|---|
| Battery Voltage / Capacity | 12V / 80Ah |
Transmission and Hydraulic System
| Specification | Details |
|---|---|
| Transmission Type | Power Shift Transmission |
| Forward / Reverse Gear Stages | 1 / 1 |
| Attachment Operating Pressure | 14 MPa |
Recommended Applications
The CAEL 2T Diesel Forklift is suitable for a range of material handling operations, including:
- Warehousing: Moving, stacking, and organizing palletized inventory.
- Manufacturing: Transporting raw materials, components, and finished products.
- Logistics and Distribution: Supporting loading, unloading, and goods movement.
- Construction Sites: Handling building supplies and industrial materials on suitable surfaces.
- Industrial Storage: Moving equipment, packaged goods, and heavy supplies.
- Commercial Facilities: Supporting daily material handling and inventory operations.
Why Choose the CAEL 2T Diesel Forklift?
Designed for businesses that need dependable lifting performance and operational flexibility, the CAEL 2T Diesel Forklift combines a 2,000 kg load capacity with a Kubota V2607 engine, automatic power shift transmission, and side shifter attachment.
Its 2-stage mast supports efficient stacking, while the compact dimensions help operators maneuver in suitable confined work areas. Pneumatic and solid tyre options provide additional flexibility when selecting a configuration for the intended working environment.
Whether you are moving inventory in a warehouse or handling materials at an industrial facility, the CAEL 2T Diesel Forklift offers a practical solution for everyday material handling requirements.
Request a Quote
Looking for a dependable 2-tonne diesel forklift for your business? Contact Capital Automotive Equipment for pricing, availability, tyre options, and purchasing assistance.
Choose the CAEL 2T Diesel Forklift for reliable material handling performance and everyday industrial productivity.
