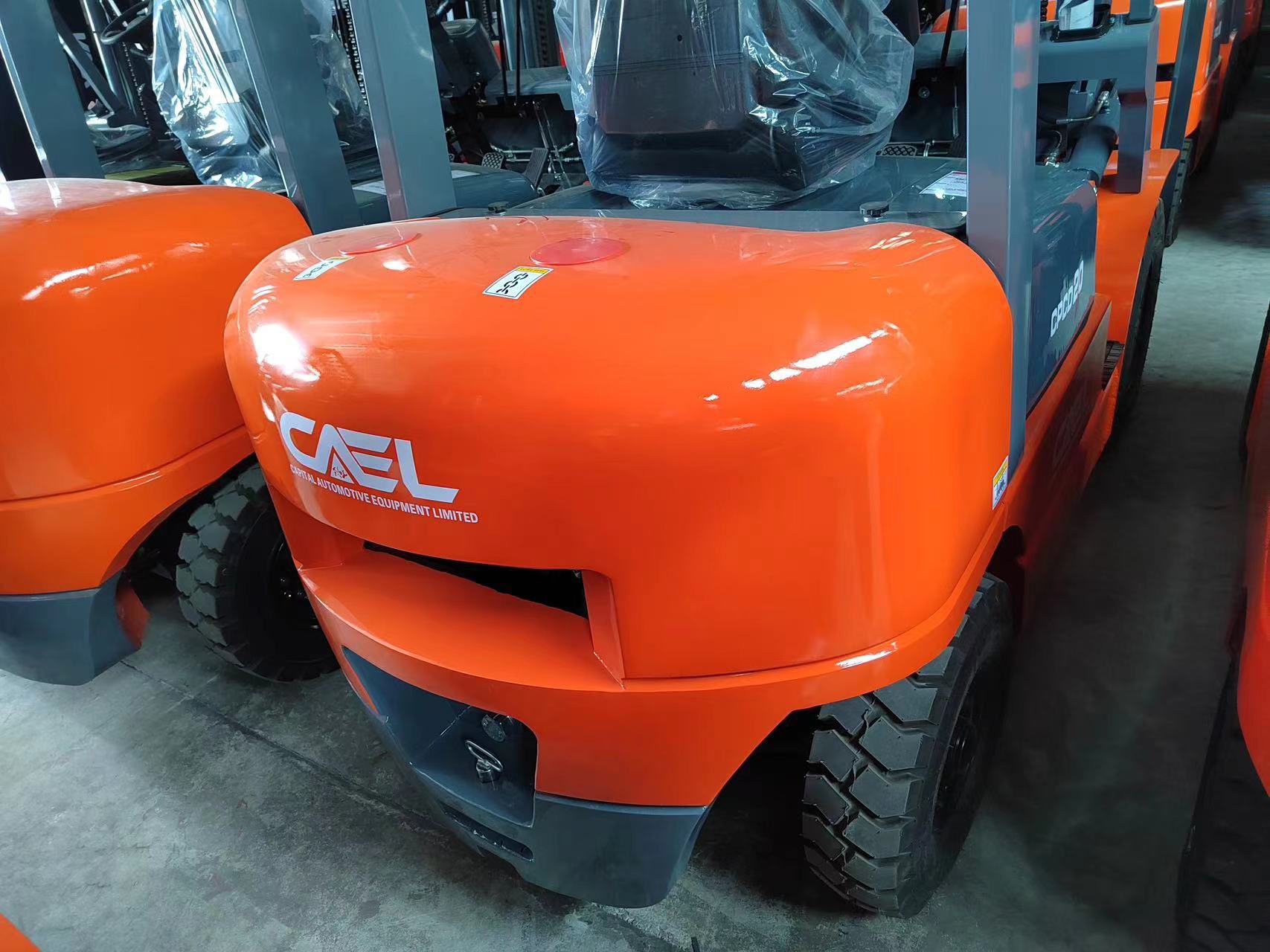

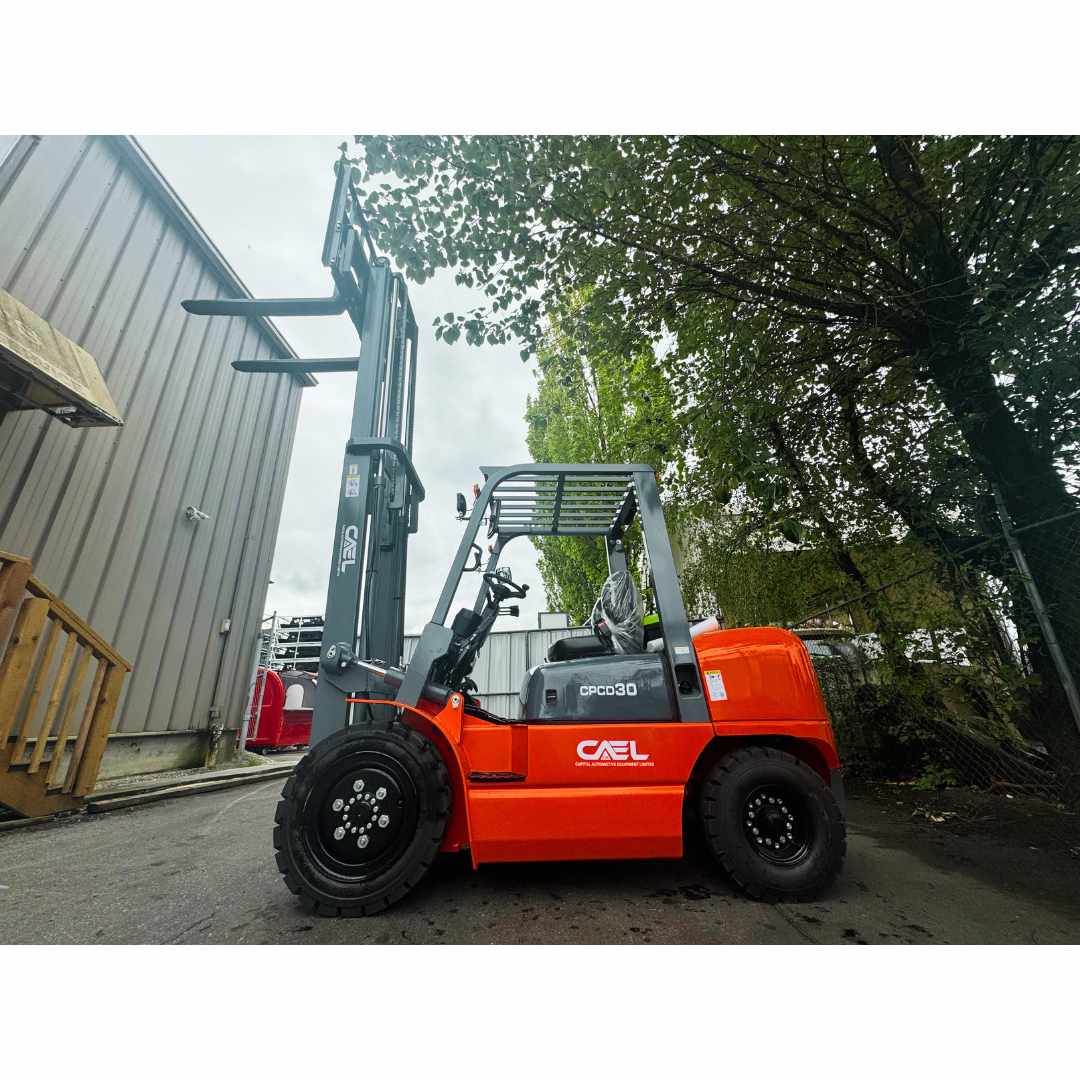

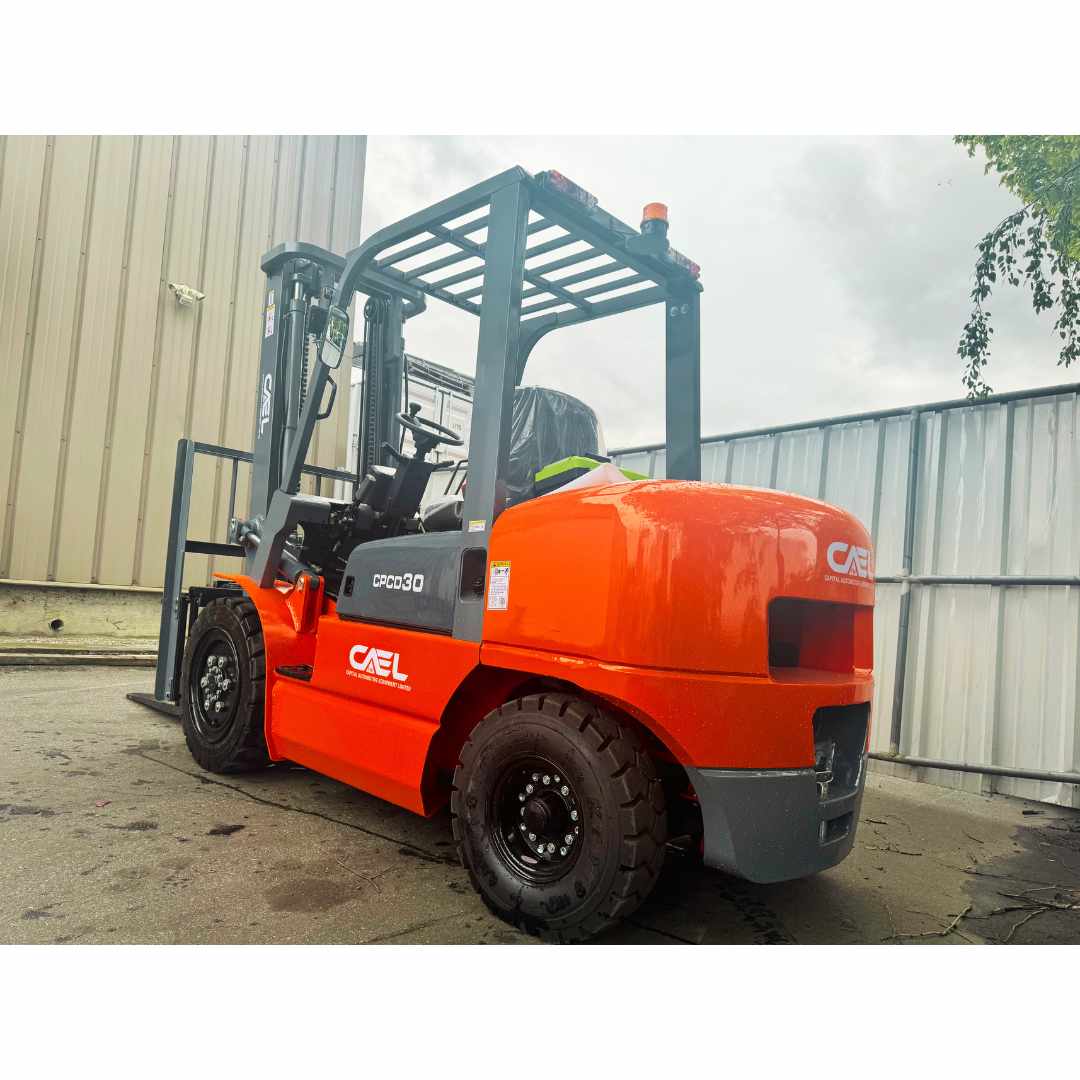

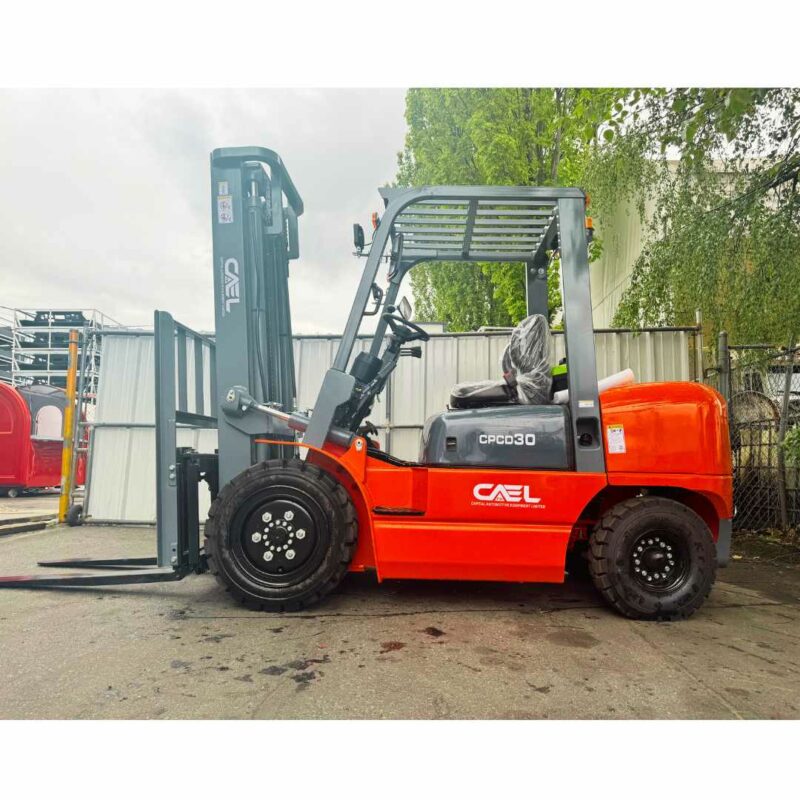

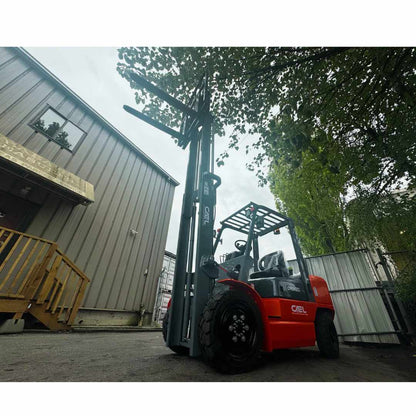

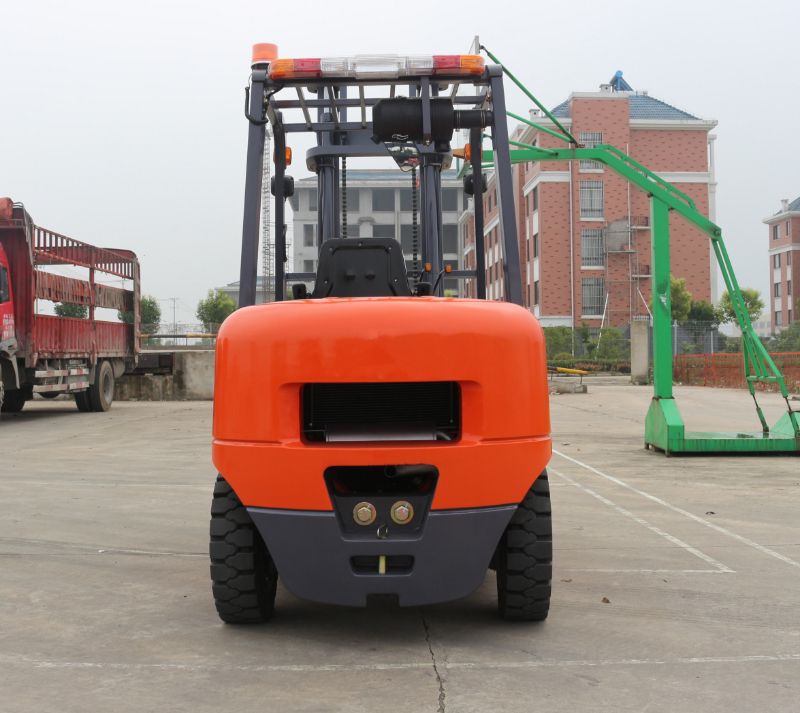

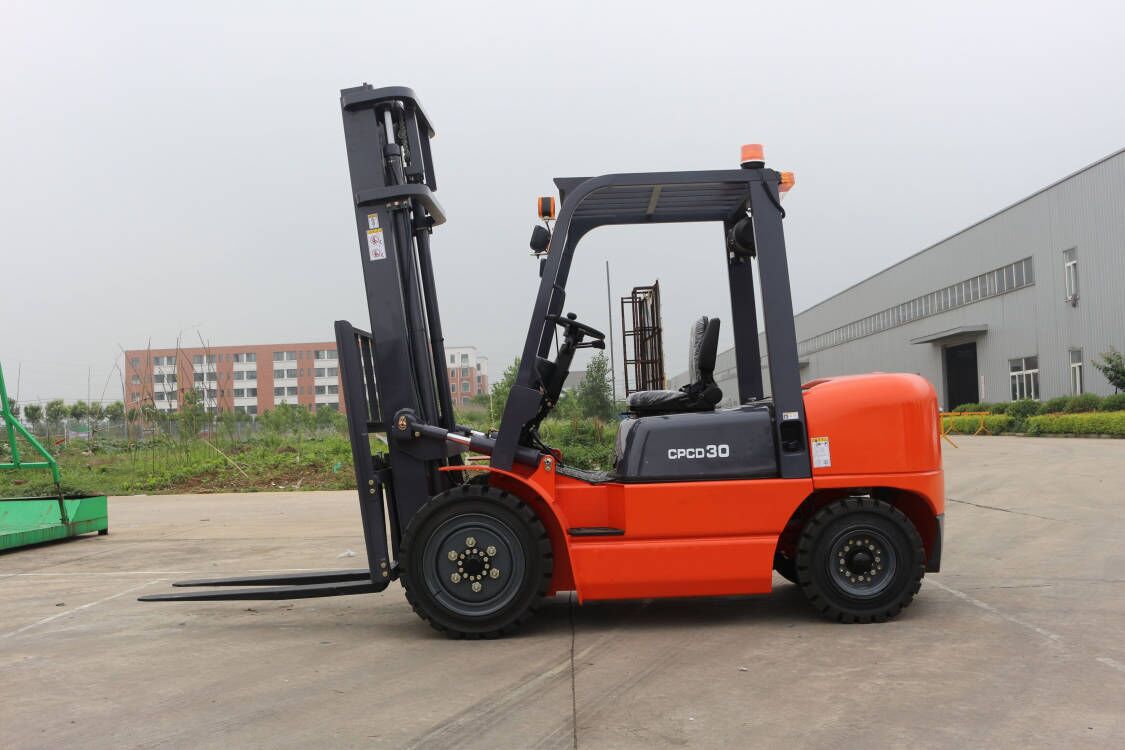

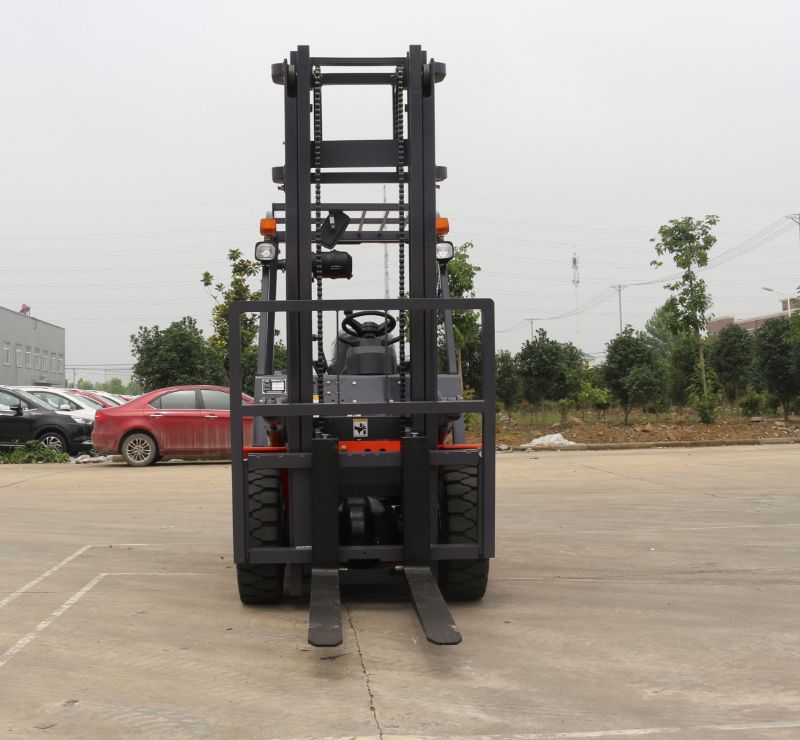

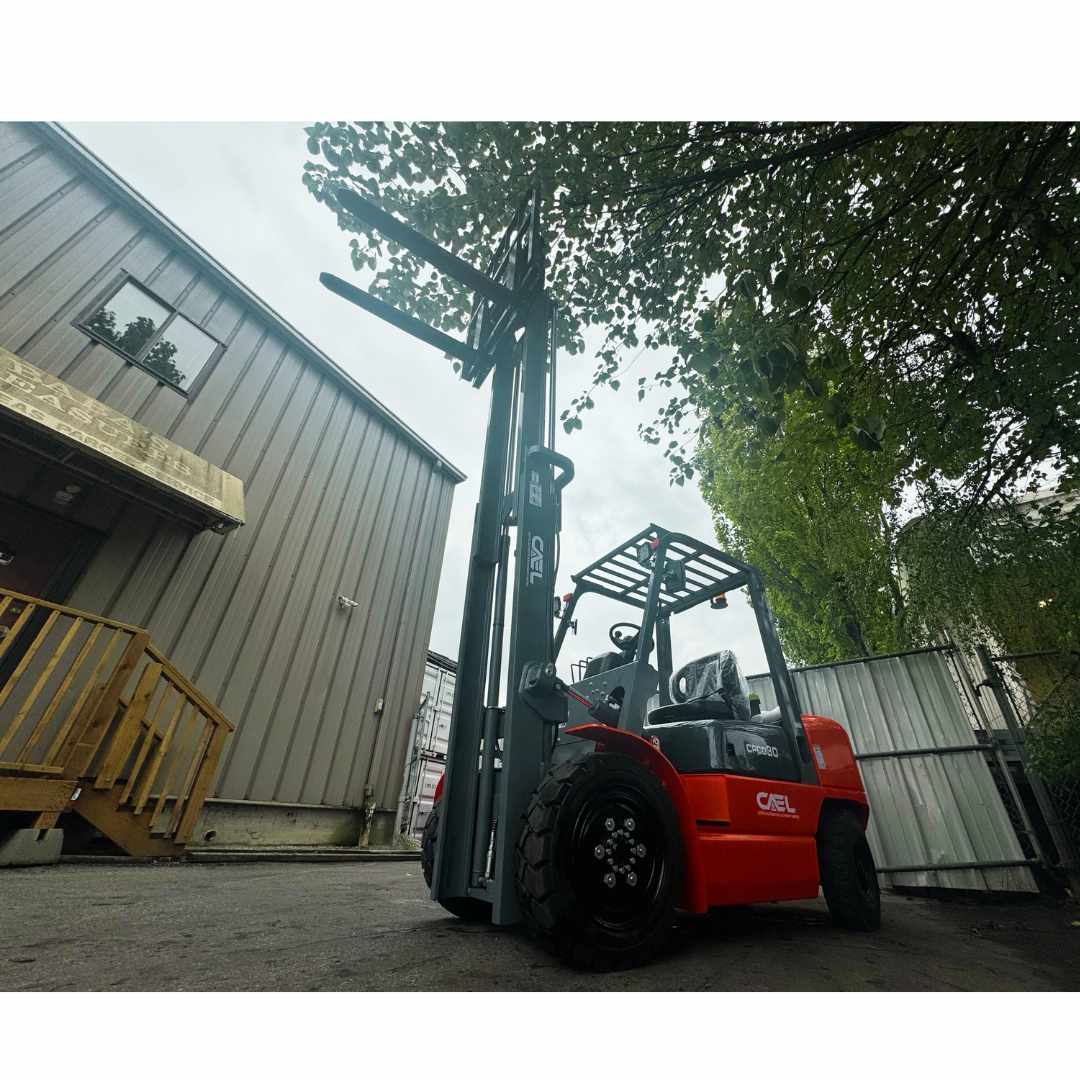

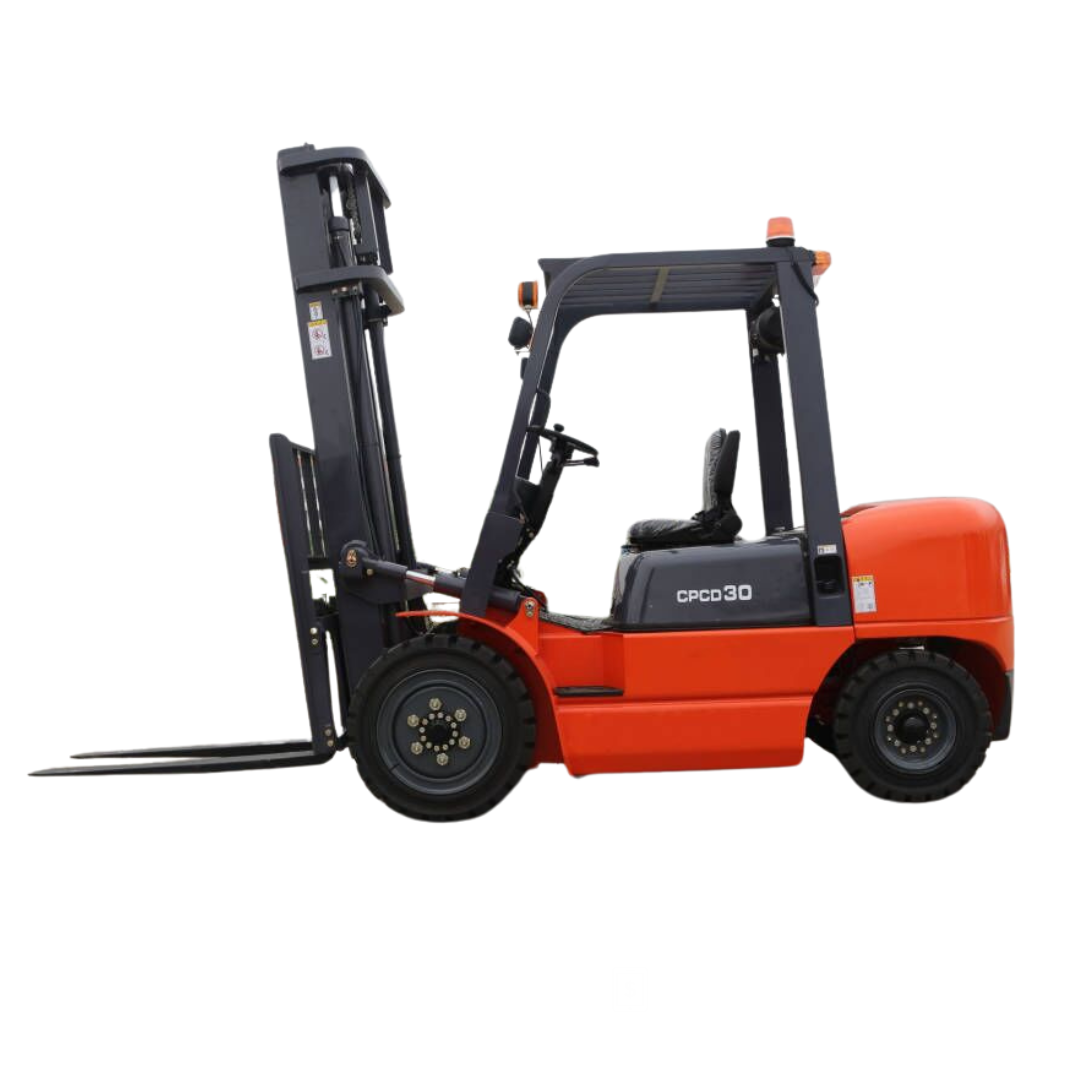

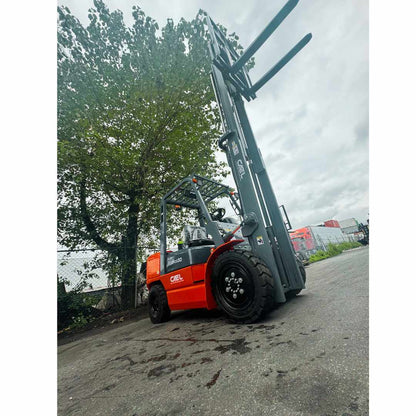

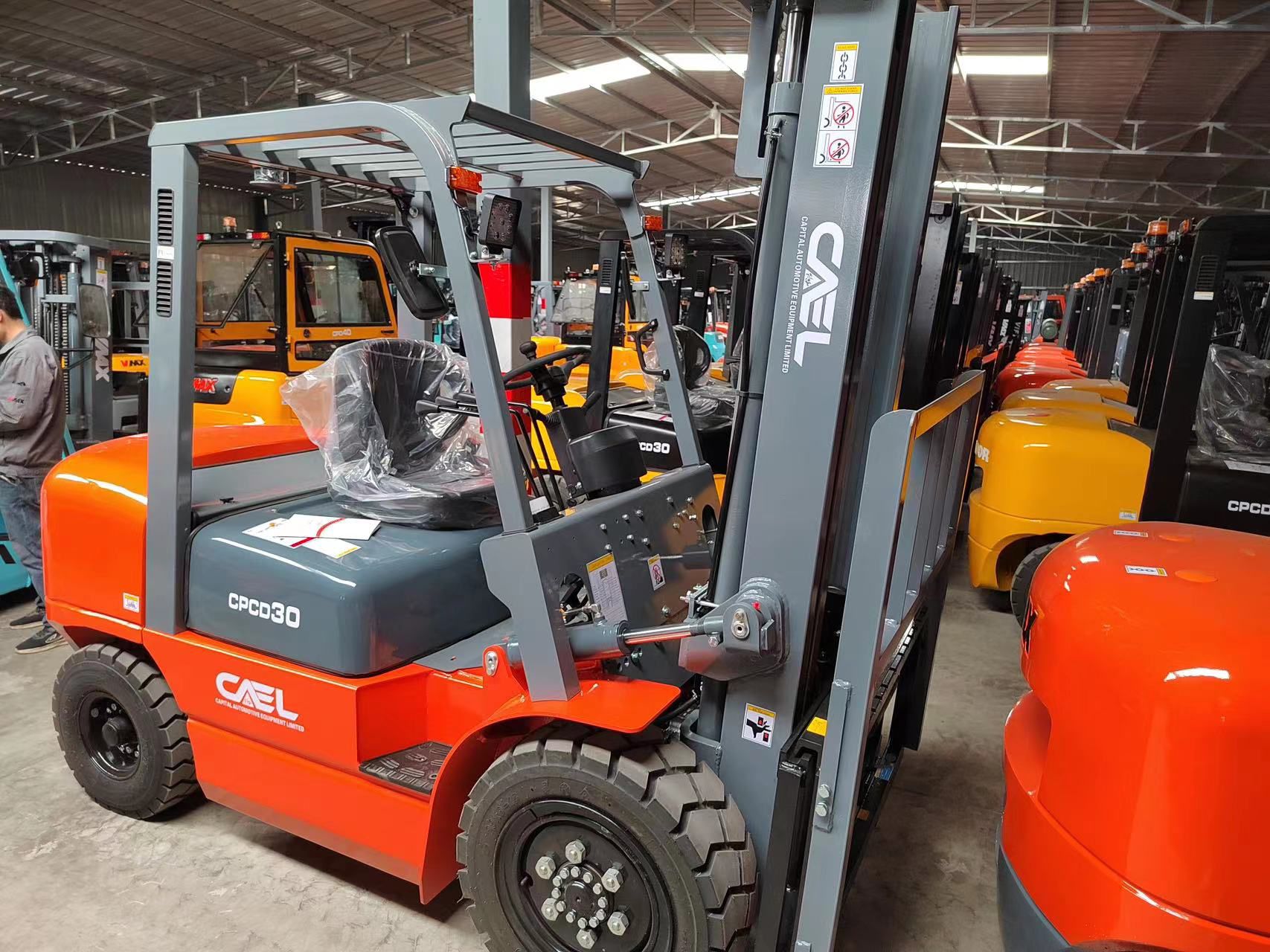

The CAEL 3T Diesel Forklift is a powerful and reliable material handling solution designed for demanding industrial, commercial, and construction environments. With a rated lifting capacity of 3,000 kg (6,613 lbs), this heavy-duty forklift is built to handle palletized goods, industrial materials, equipment, and other heavy loads with efficiency and precision.

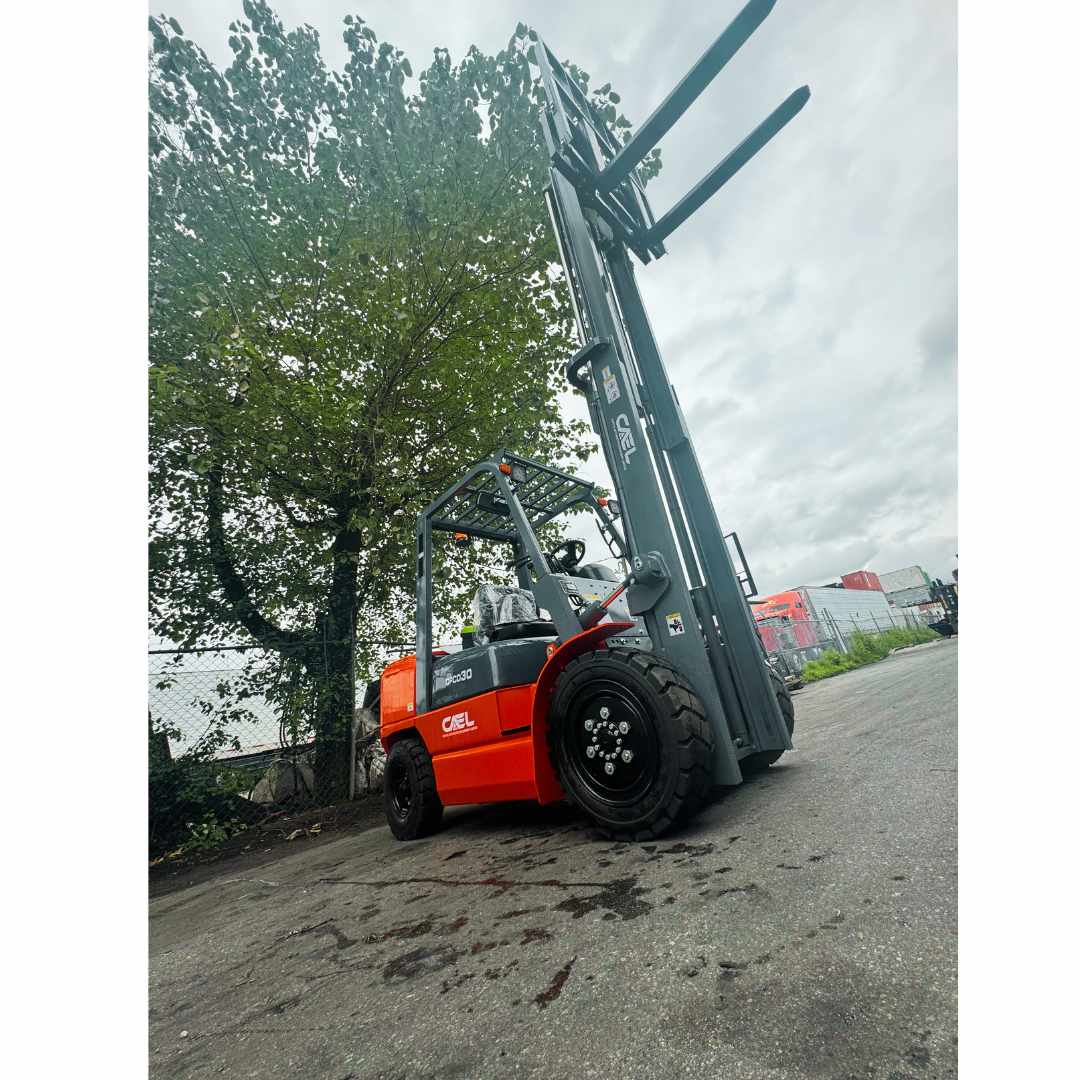

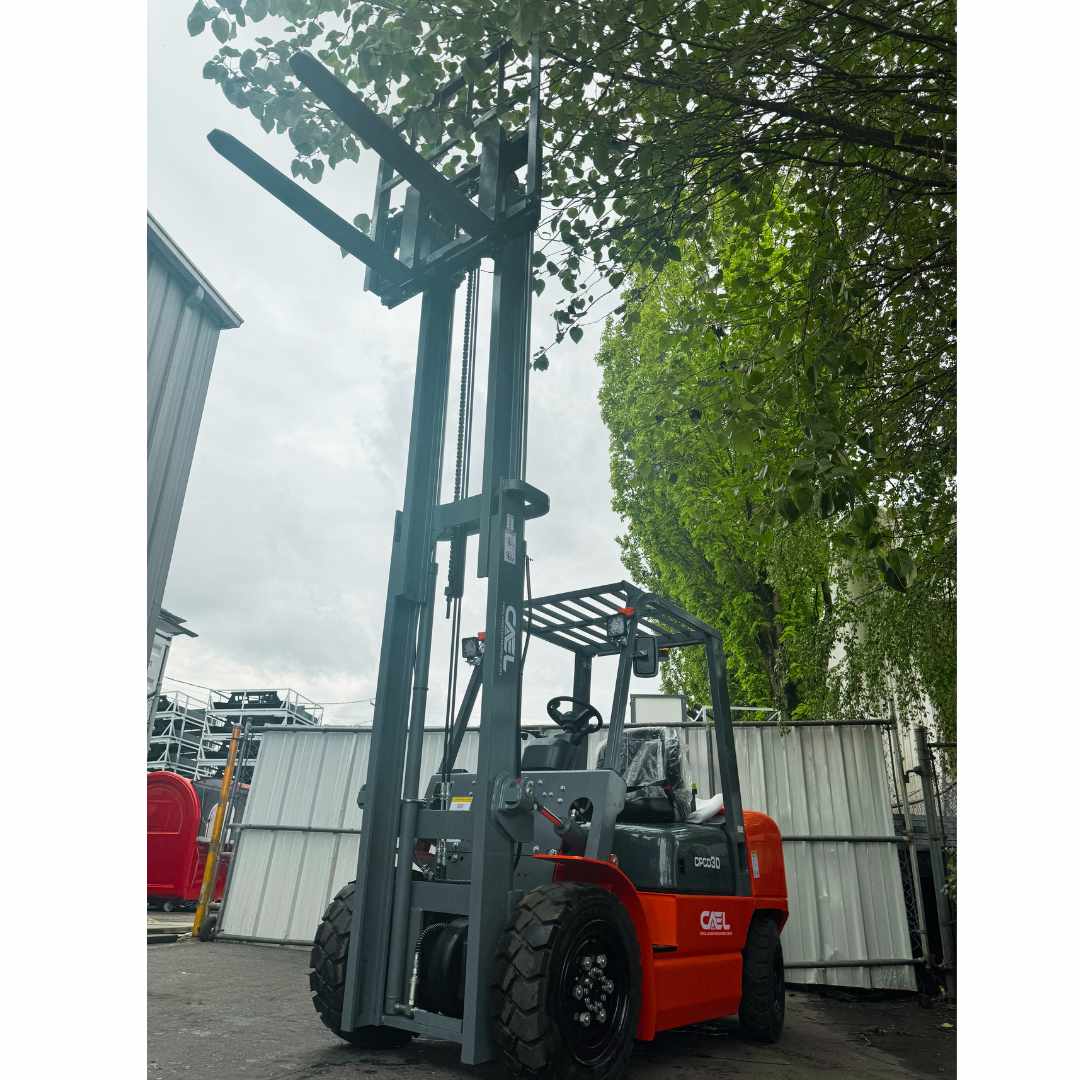

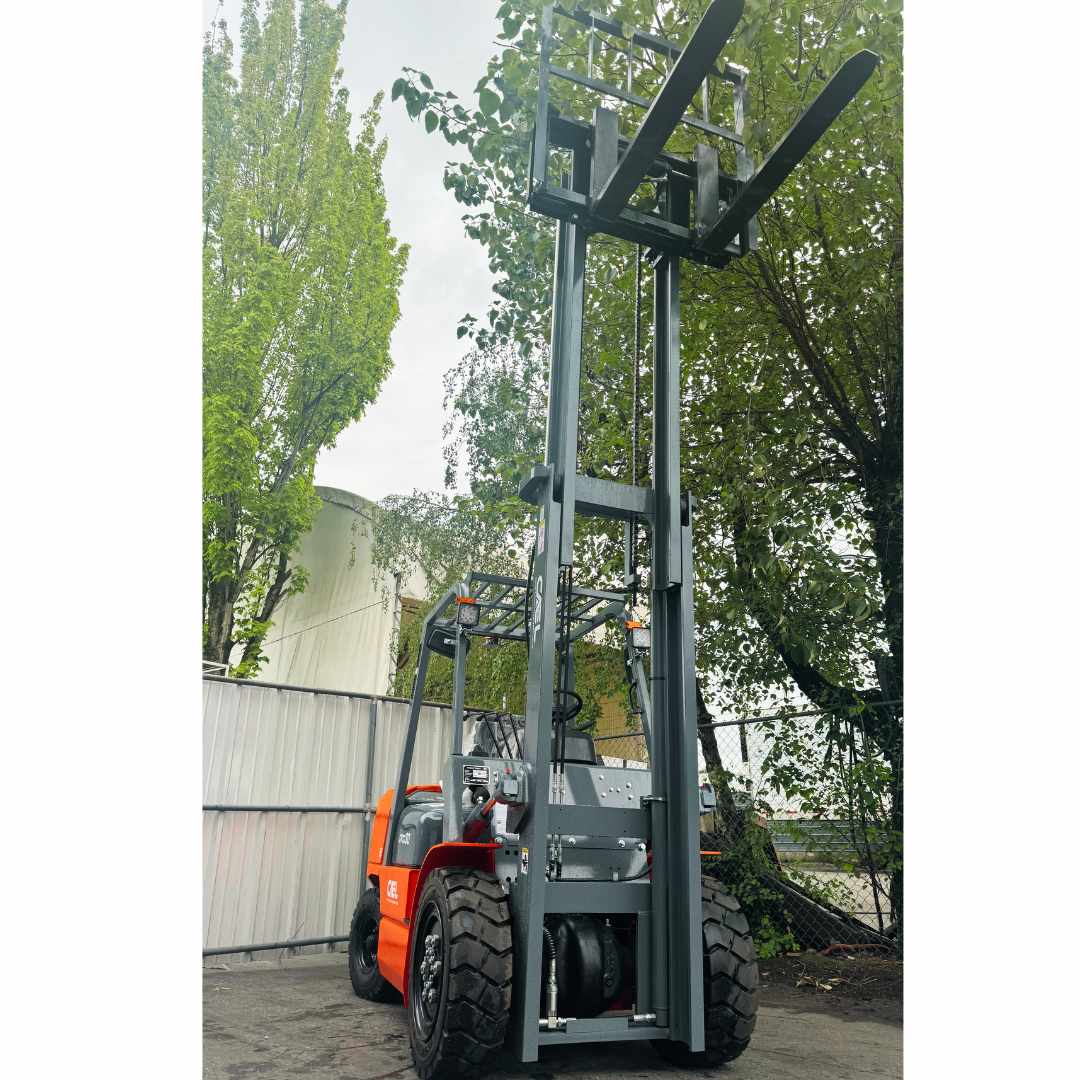

Powered by a dependable Kubota V2607 diesel engine, this forklift delivers strong performance for daily material handling operations. Its automatic power shift transmission supports smooth driving and maneuverability, while the 2-stage mast provides a lifting height of 3,500 mm (137.8 inches) for stacking and transporting materials.
Equipped with a side shifter, the CAEL 3T Diesel Forklift allows operators to adjust fork positioning for more accurate load placement. Its durable construction, practical operator protection, and versatile tyre options make it suitable for warehouses, manufacturing facilities, logistics centres, shipping yards, and outdoor industrial applications.
Key Features and Benefits
- 3,000 kg Load Capacity: Handles heavy palletized goods and industrial materials efficiently.
- Kubota V2607 Diesel Engine: Provides dependable power for demanding material handling tasks.
- Automatic Power Shift Transmission: Supports smooth forward and reverse operation.
- 3,500 mm Lifting Height: Enables efficient stacking and material movement at height.
- 2-Stage Mast: Provides practical lifting capability for everyday industrial applications.

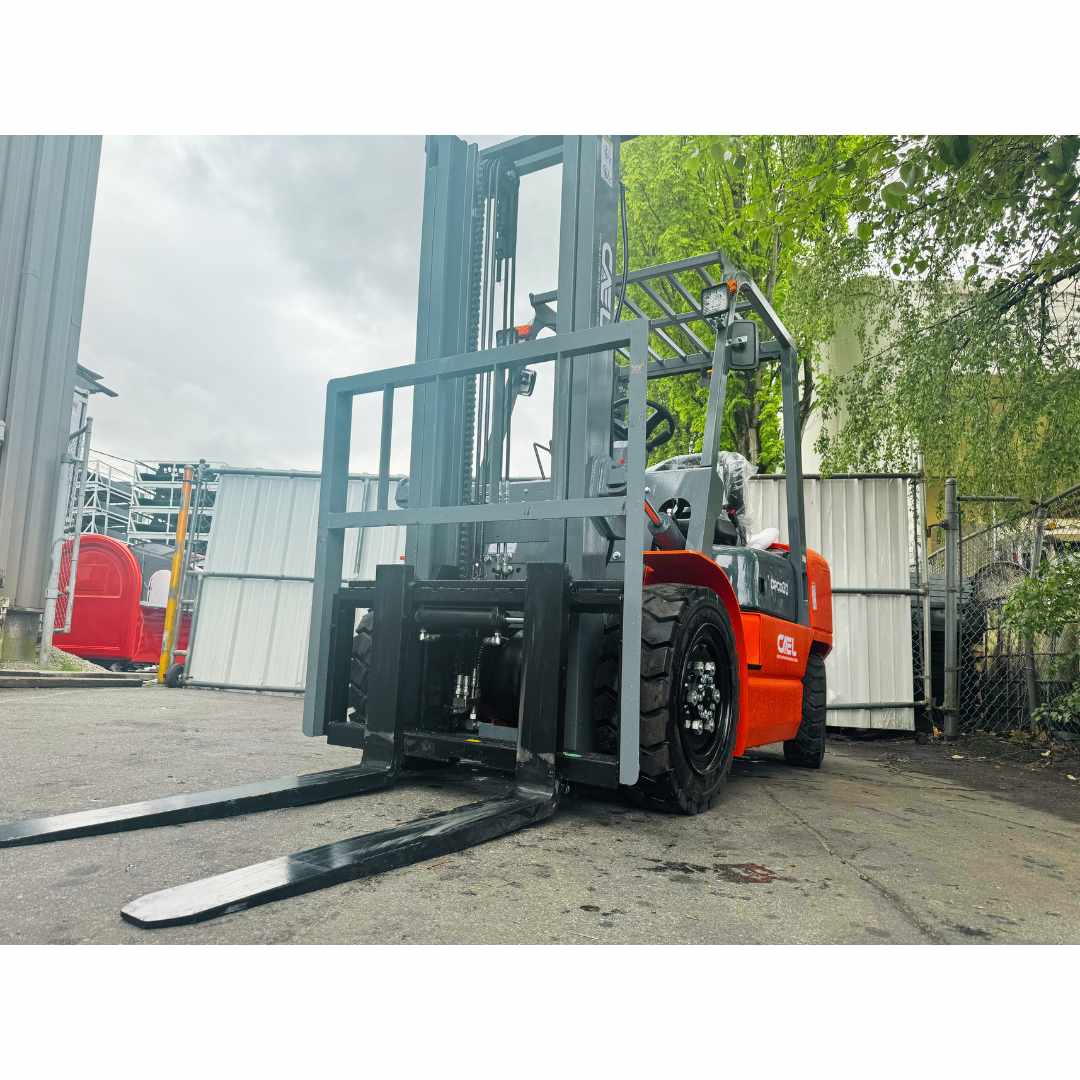

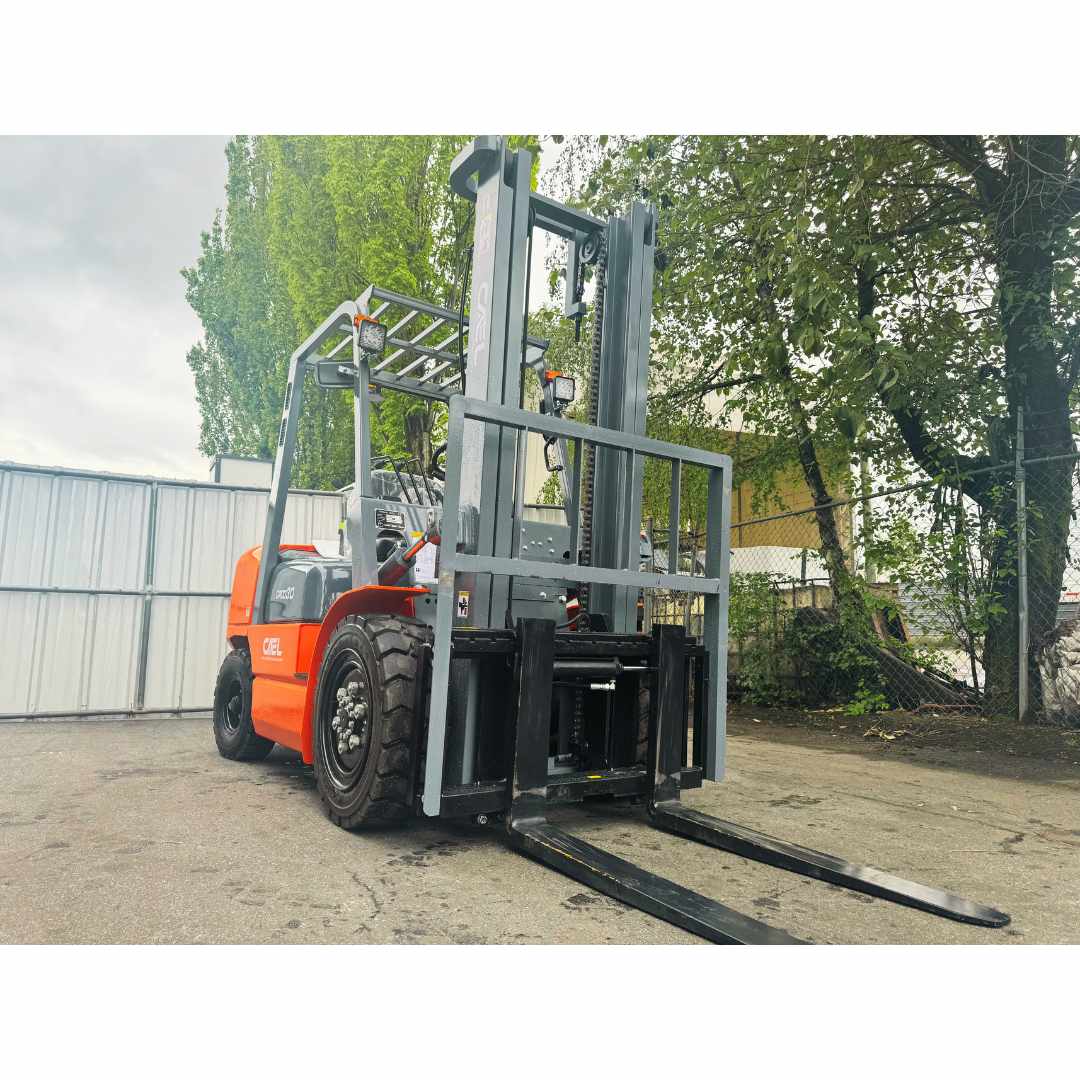

- Side Shifter Attachment: Allows lateral fork adjustment for accurate load positioning.
- Strong Gradeability: Rated maximum gradeability of 20%, subject to operating conditions and load.
- Maneuverable Design: Features an outside turning radius of 2,400 mm.
- Pneumatic or Solid Tyre Options: Allows configuration according to the intended operating surface.
- Durable Industrial Construction: Designed for regular material handling and heavy-duty applications.

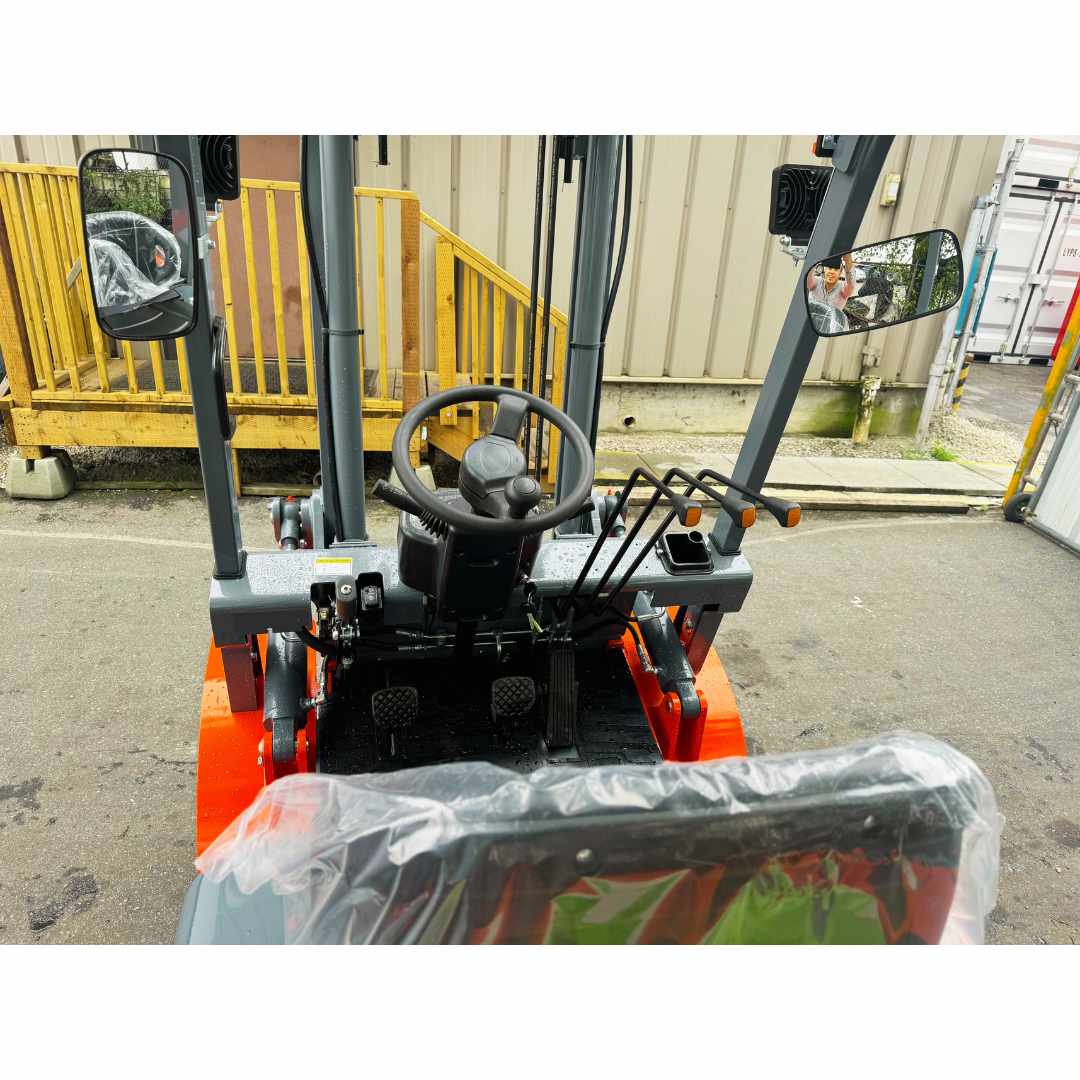

- Operator Protection: Includes an overhead guard to help protect the operator from falling objects.
- Versatile Applications: Suitable for indoor and outdoor material handling, depending on the selected tyre configuration and site conditions.
Technical Specifications
General Information
| Specification | Details |
|---|---|
| Brand | CAEL |
| Forklift Type | Diesel Forklift |
| Power Type | Diesel |
| Transmission Operation | Automatic |
| Rated Load Capacity | 3,000 kg (6,613 lbs) |
| Load Centre | 500 mm (19.6 in) |
| Mast Type | 2-Stage Mast |
| Lifting Height | 3,500 mm (137.8 in) |
| Attachment | Side Shifter |
| Fork Dimensions (L × W × T) | 1,070 × 125 × 45 mm (42 × 4.9 × 1.7 in) |
| Mast Tilt Angle (Forward / Backward) | 6° / 12° |
| Front Overhang | 479 mm (18.8 in) |
| Ground Clearance (Bottom of Mast) | 135 mm (5.3 in) |
Dimensions and Weight
| Specification | Measurement |
|---|---|
| Length to Face of Fork (Without Fork) | 2,682 mm (105.6 in) |
| Overall Width | 1,225 mm (48.2 in) |
| Mast Height (Lowered) | 2,315 mm (91.34 in) |
| Mast Height (Extended, with Backrest) | 4,762 mm (187.48 in) |
| Overhead Guard Height | 2,090 mm (82.28 in) |
| Outside Turning Radius | 2,400 mm (94.49 in) |
| Minimum Intersecting Aisle Width | 2,380 mm (93.70 in) |
| Wheelbase | 1,700 mm (66.93 in) |
| Service Weight | 4,392 kg (9,683 lbs) |

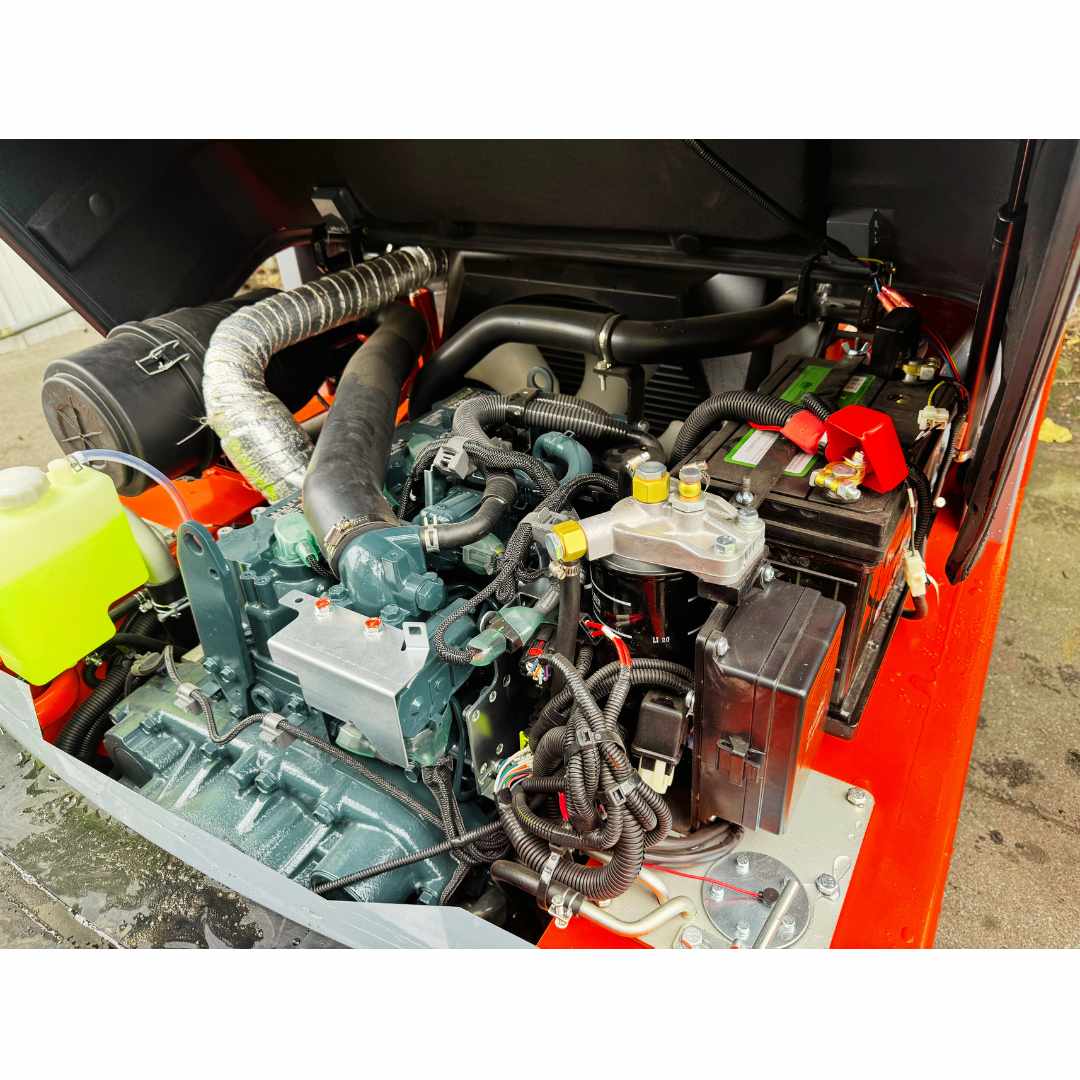

Engine Specifications
| Specification | Details |
|---|---|

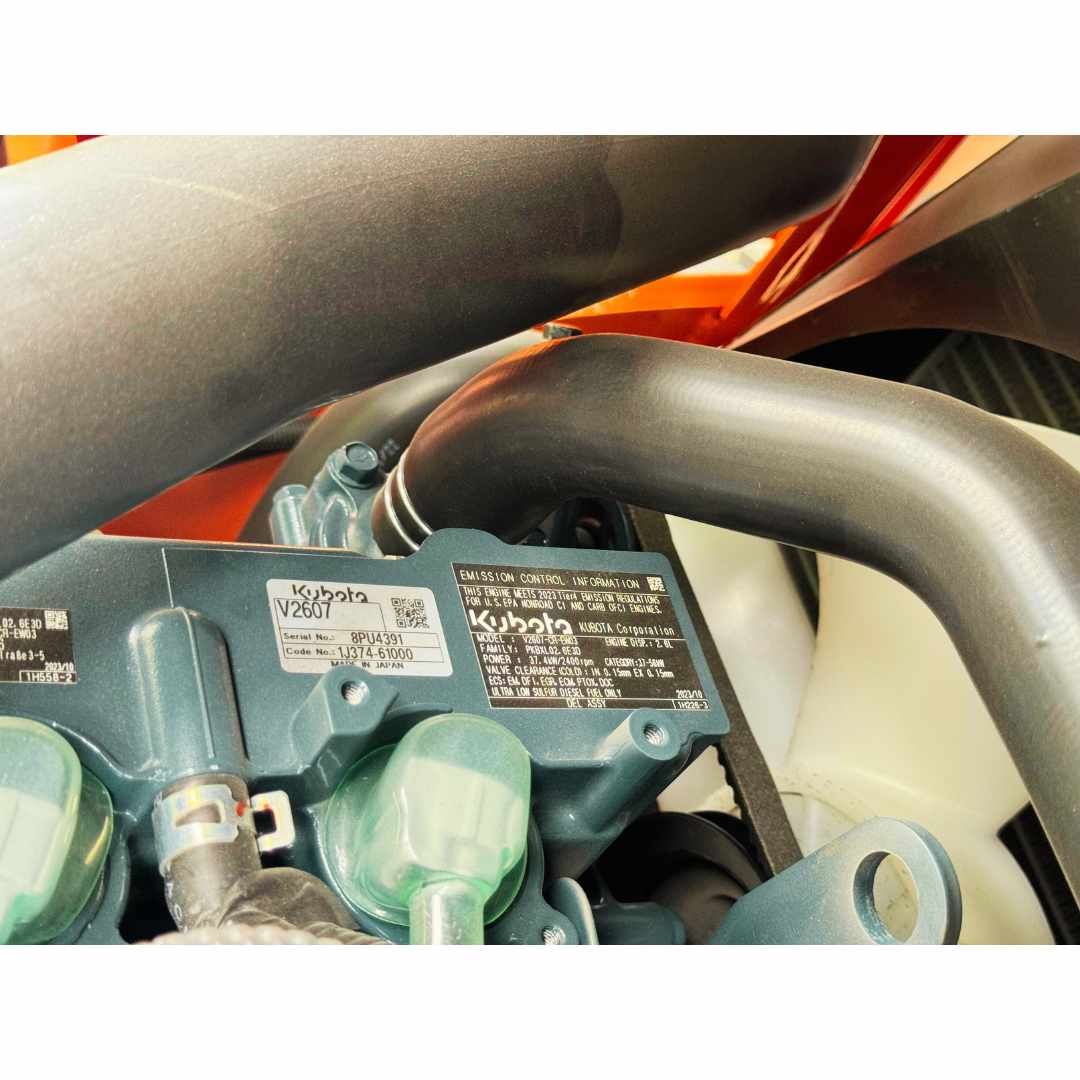

| Engine Brand | Kubota |
| Engine Model | V2607 |
| Rated Output | 37.4 kW @ 2,400 rpm |
| Rated Torque | 174 Nm @ 1,600 rpm |
| Number of Cylinders | 4 |
| Bore × Stroke | 87 × 110 mm (3.43 × 4.33 in) |
| Engine Displacement | 2.615 L |
| Fuel Tank Capacity | 60 L (15.85 US gal) |
Performance
| Parameter | Measurement |
|---|---|
| Travel Speed (Unloaded) | 19 km/h |
| Lifting Speed (Full Load) | 440 mm/s (17.32 in/s) |
| Maximum Gradeability | 20% |
Tyre Specifications
| Specification | Details |
|---|---|
| Front Tyres | 28 × 9–15–12PR |
| Rear Tyres | 6.00–10–10PR |
| Available Tyre Types | Pneumatic or Solid |
Electrical System
| Specification | Details |
|---|---|
| Battery | 12V / 80Ah |
Transmission and Hydraulic System
| Specification | Details |
|---|---|
| Transmission Type | Power Shift Transmission |
| Forward / Reverse Gear Stages | 1 / 1 |
| Attachment Operating Pressure | 14 MPa |
Recommended Applications
The CAEL 3T Diesel Forklift is designed to support material handling operations across a variety of industries, including:
- Warehousing and Distribution: Moving, stacking, and organizing palletized inventory.
- Manufacturing Facilities: Transporting raw materials, components, and finished goods.
- Construction Sites: Handling building materials and industrial supplies on suitable surfaces.
- Shipping and Logistics: Supporting cargo handling and goods movement in yards and loading areas.
- Industrial Storage: Moving heavy equipment, supplies, and packaged materials.
- Commercial Operations: Supporting loading and unloading activities in industrial and commercial facilities.
Why Choose the CAEL 3T Diesel Forklift?
Combining a 3-tonne rated load capacity with a Kubota diesel engine and automatic power shift transmission, the CAEL 3T Diesel Forklift is designed for businesses that require dependable lifting performance and practical operating features.
The side shifter supports more accurate load positioning, while the 2-stage mast provides useful lifting capability for stacking and storage. With pneumatic or solid tyre configurations available, businesses can select an option suited to their working environment.
For industrial operations that require a durable forklift for regular heavy material handling, the CAEL 3T Diesel Forklift offers a versatile solution.
