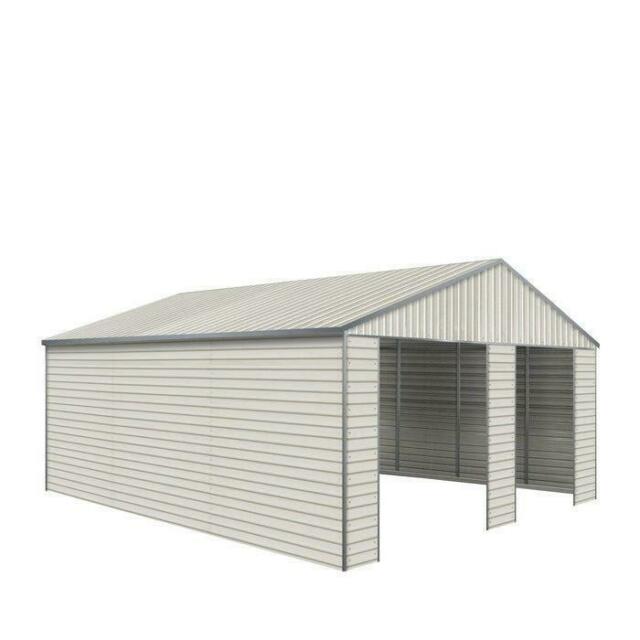

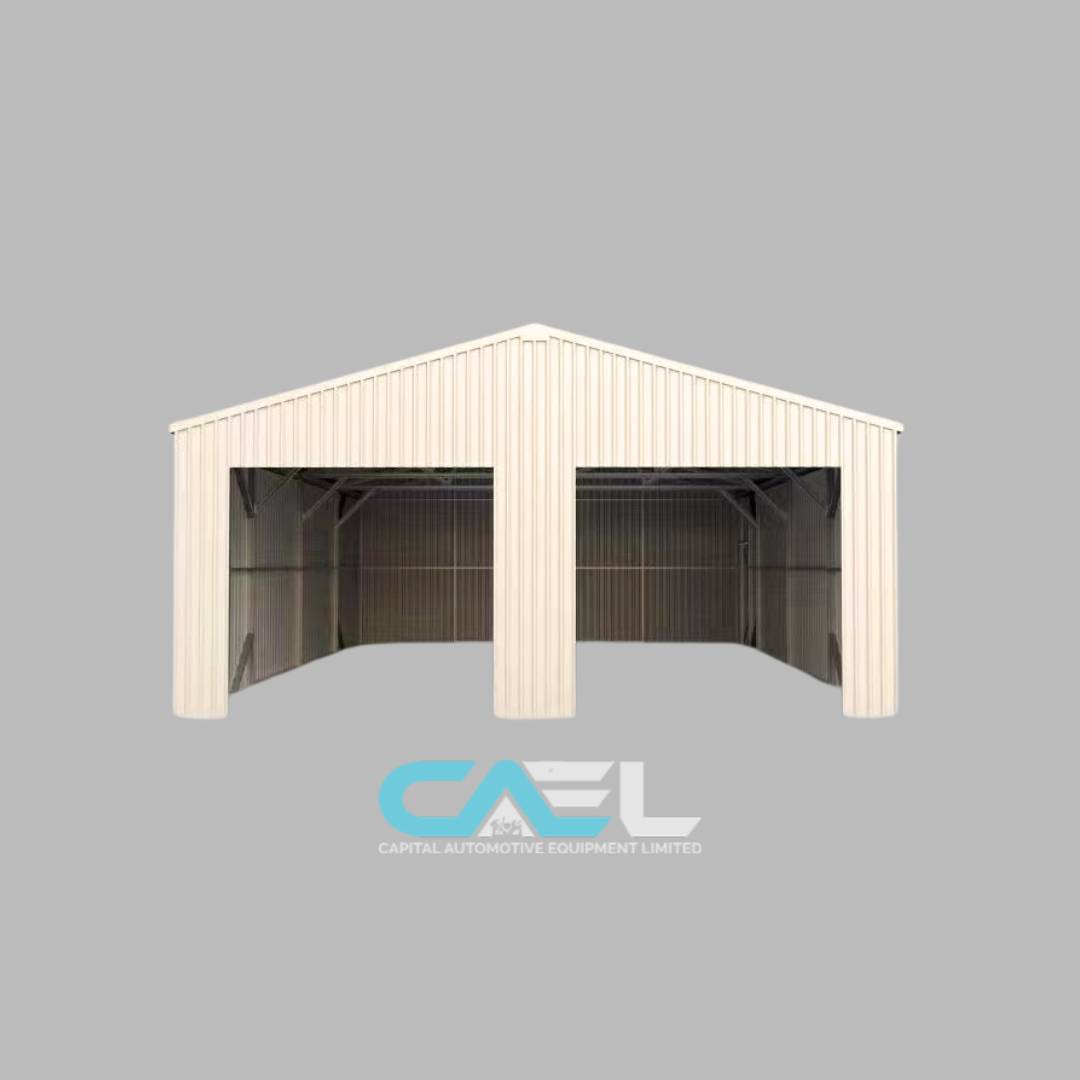

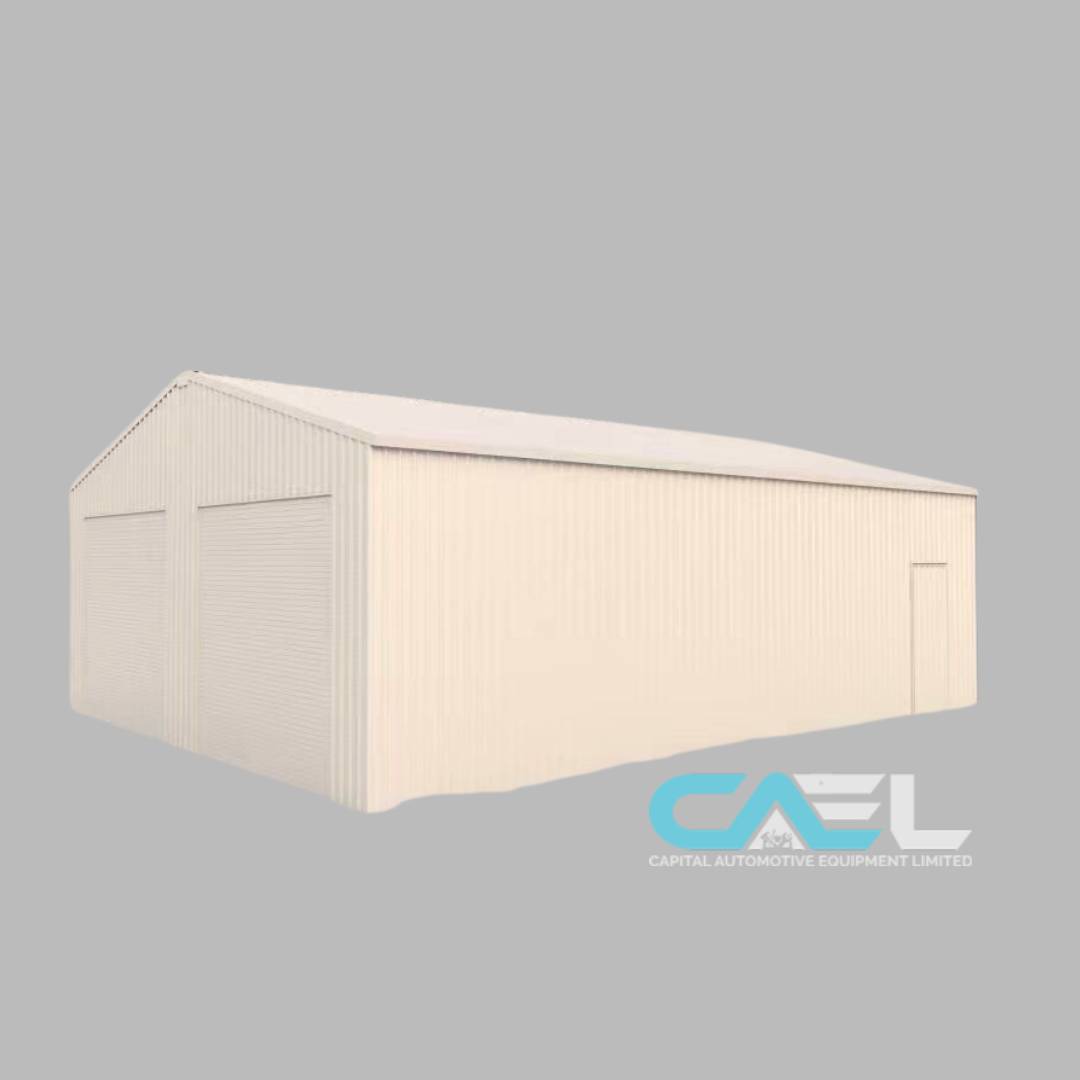

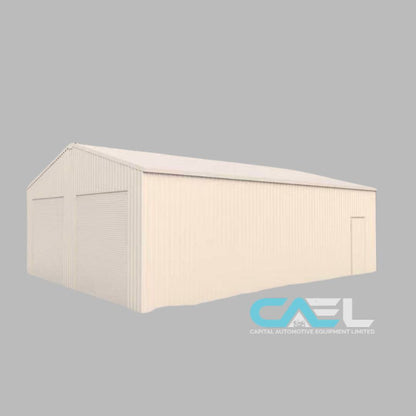

A compact yet heavy-duty solution, the CAEL Single Garage Metal Shed is designed for residential garages, small workshops, and storage applications. Built with a reinforced 16-gauge steel frame and 29-gauge galvanized panels, it ensures durability, stability, and reliable protection against the elements.

Specifications

Overall Dimensions

• Width: 21 ft (6401 mm)
• Length: 19 ft (5791 mm)
• Height: 13 ft (3960 mm approx.)

Exact Floor Footprint

• 20.6 ft (6279 mm) W × 19 ft (5791 mm) L

Floor Area

• Approx. 400 sq. ft. (≈37 sq. meters)

Heights

• Peak Height: 12.5 ft (3810 mm)
• Eave Height: 8.2 ft (2500 mm approx.)

Doors

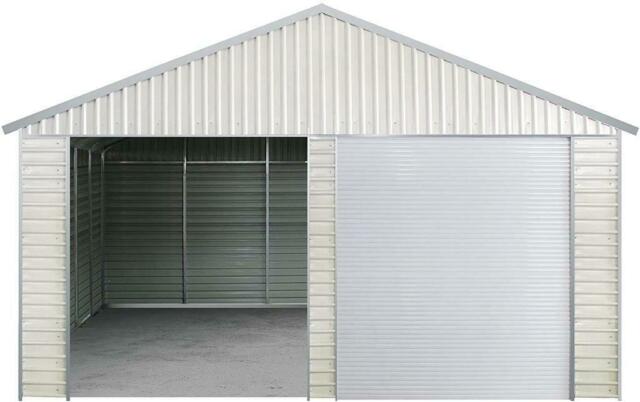

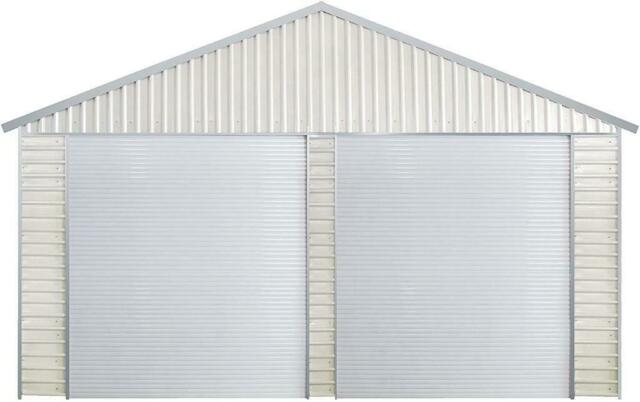

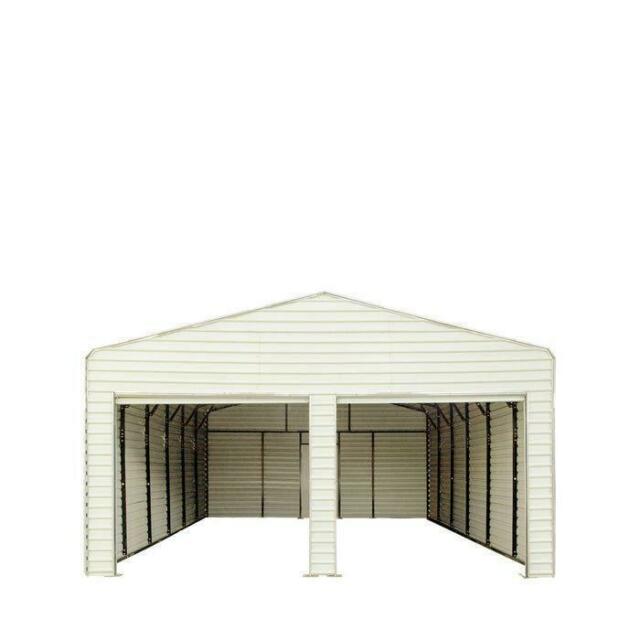

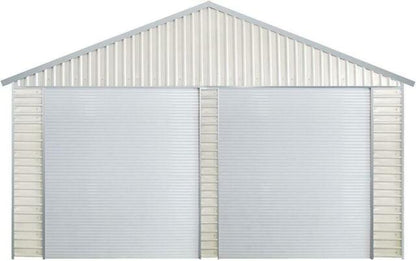

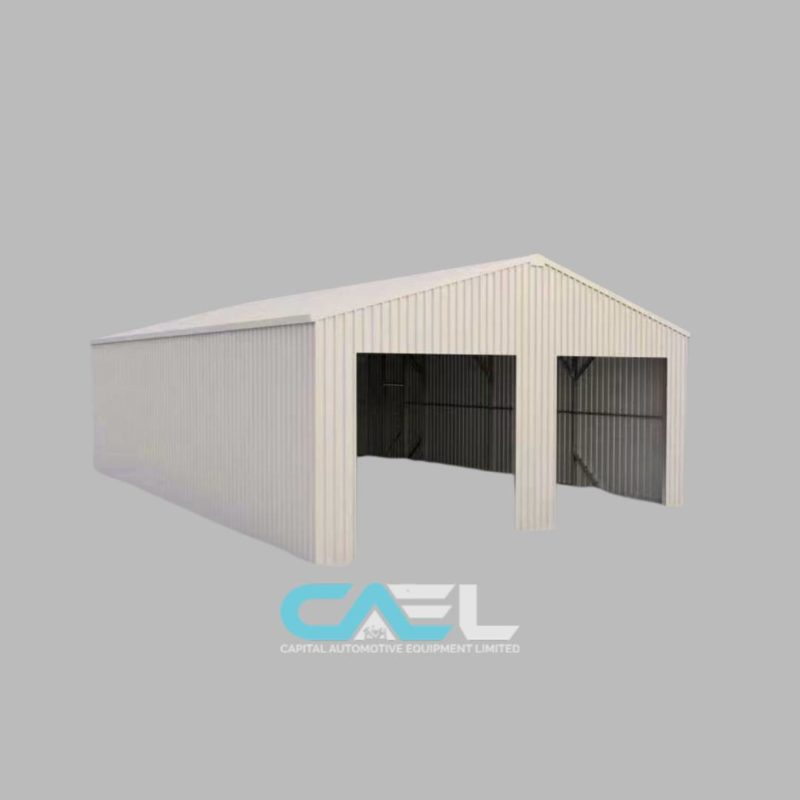

• Garage Door Opening (Each):
  100 in (2540 mm) W × 88 in (2235 mm) H

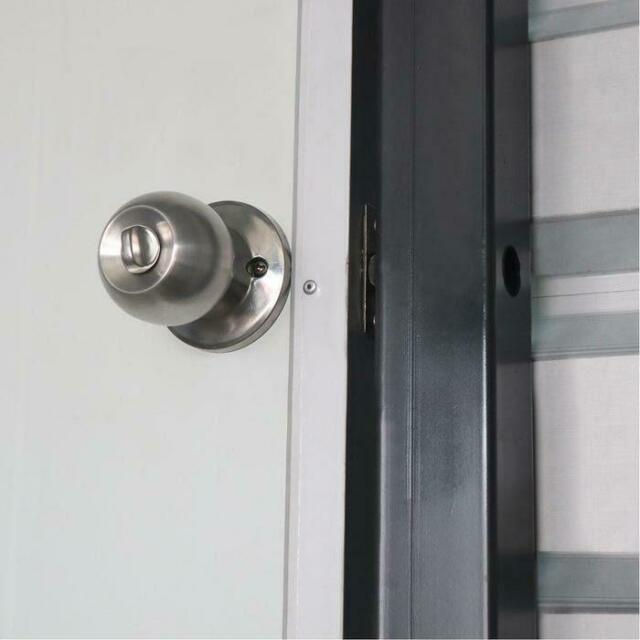

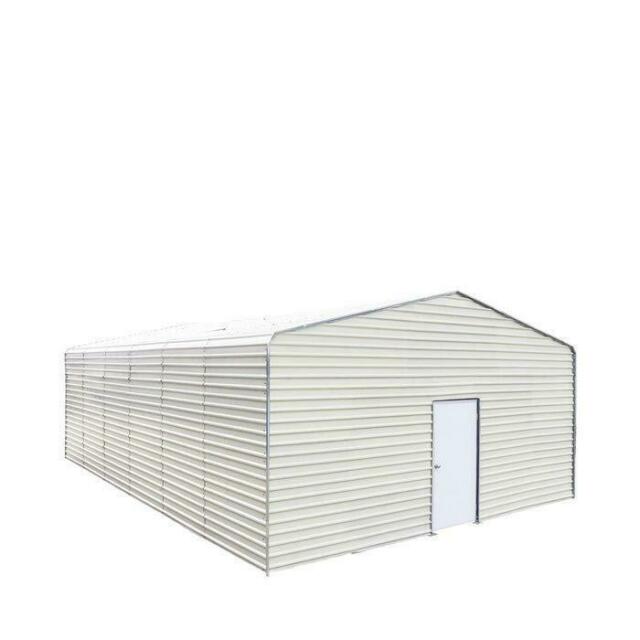

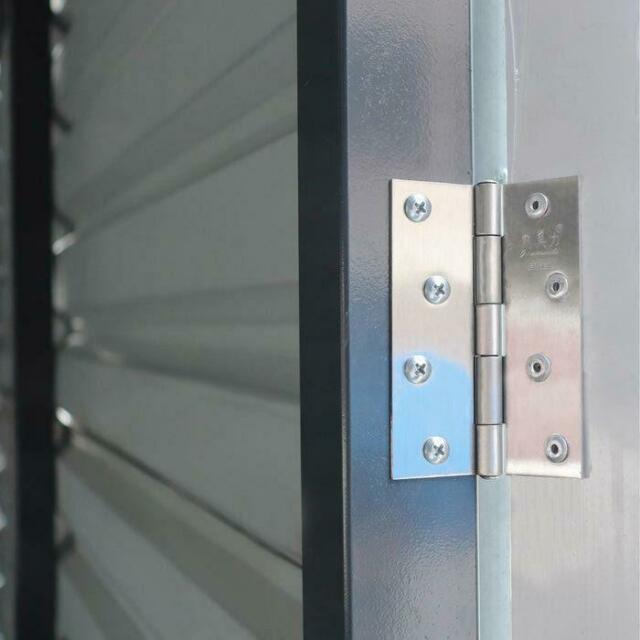

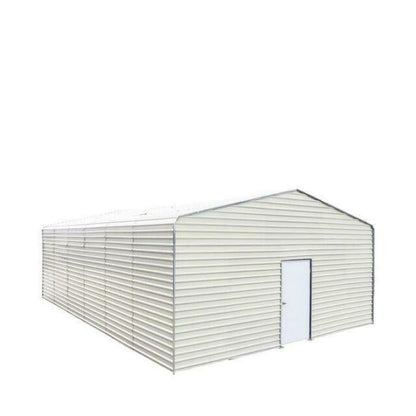

• Side Entry Door:
  3 ft (914 mm) W × 6.5 ft (1981 mm) H

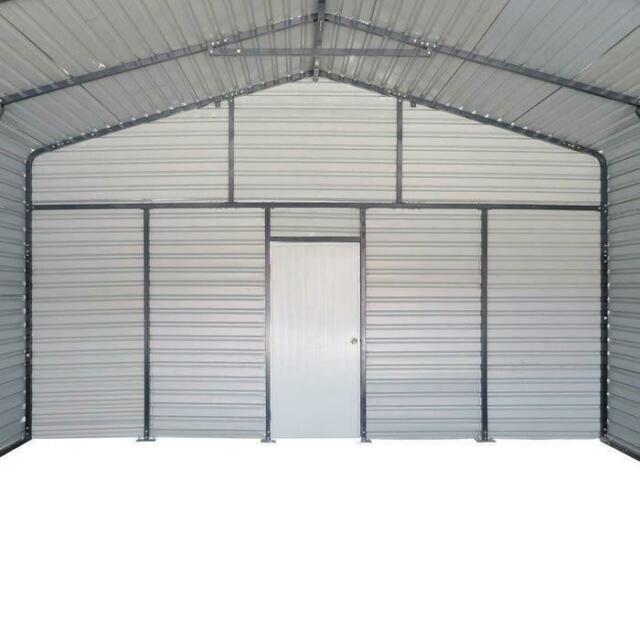

Construction Details

• Steel Frame: 16-gauge (≈1.5 mm)
• Metal Panels: 29-gauge galvanized steel (≈0.36 mm)

Performance Ratings

• Snow Load: Up to 30 PSF (≈1.44 kN/m²) (reference only)
• Wind Load: Up to 75 MPH (≈120 km/h) (reference only)

Weight

• 1630 lbs (≈739 kg)

Price

$5,499 + applicable taxes
