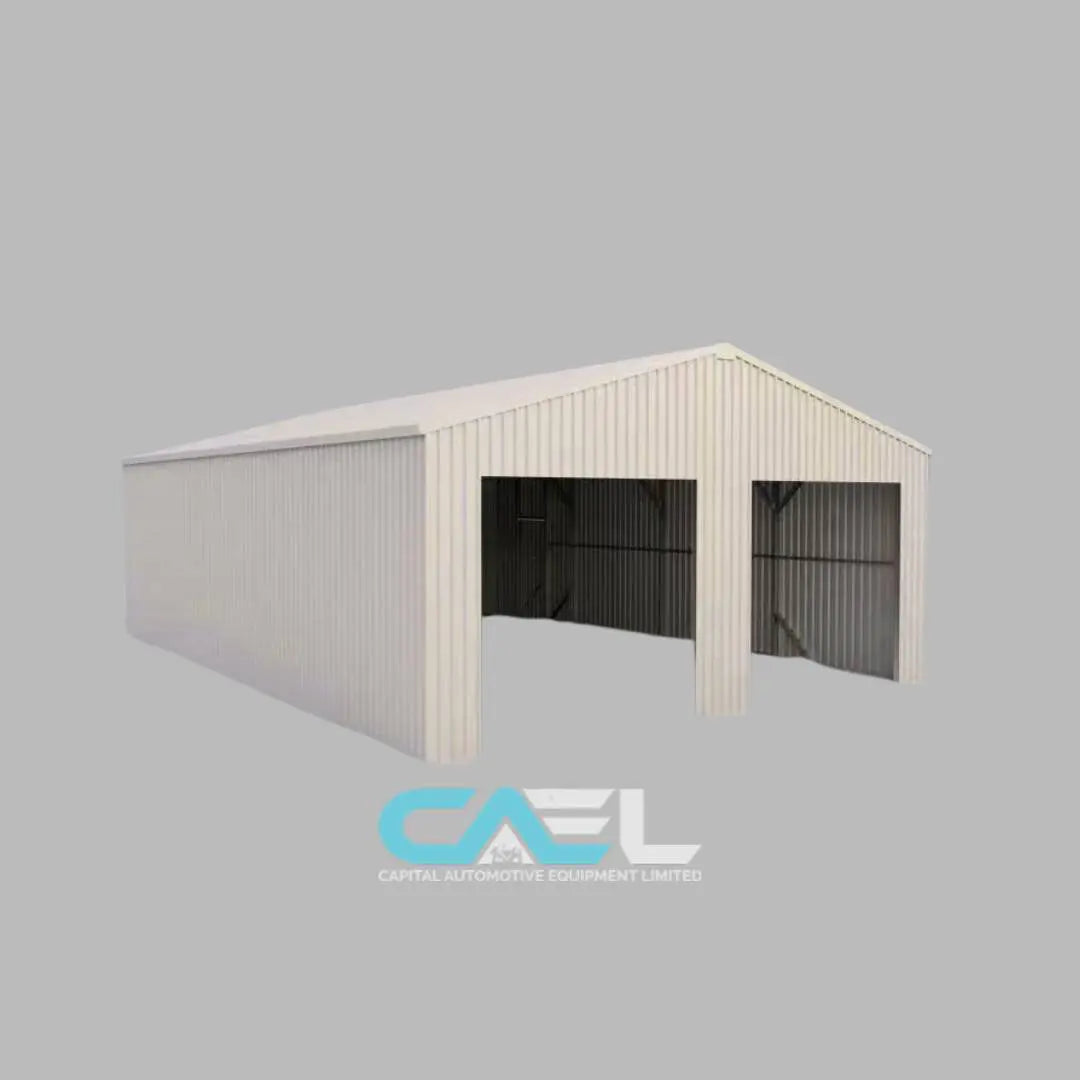

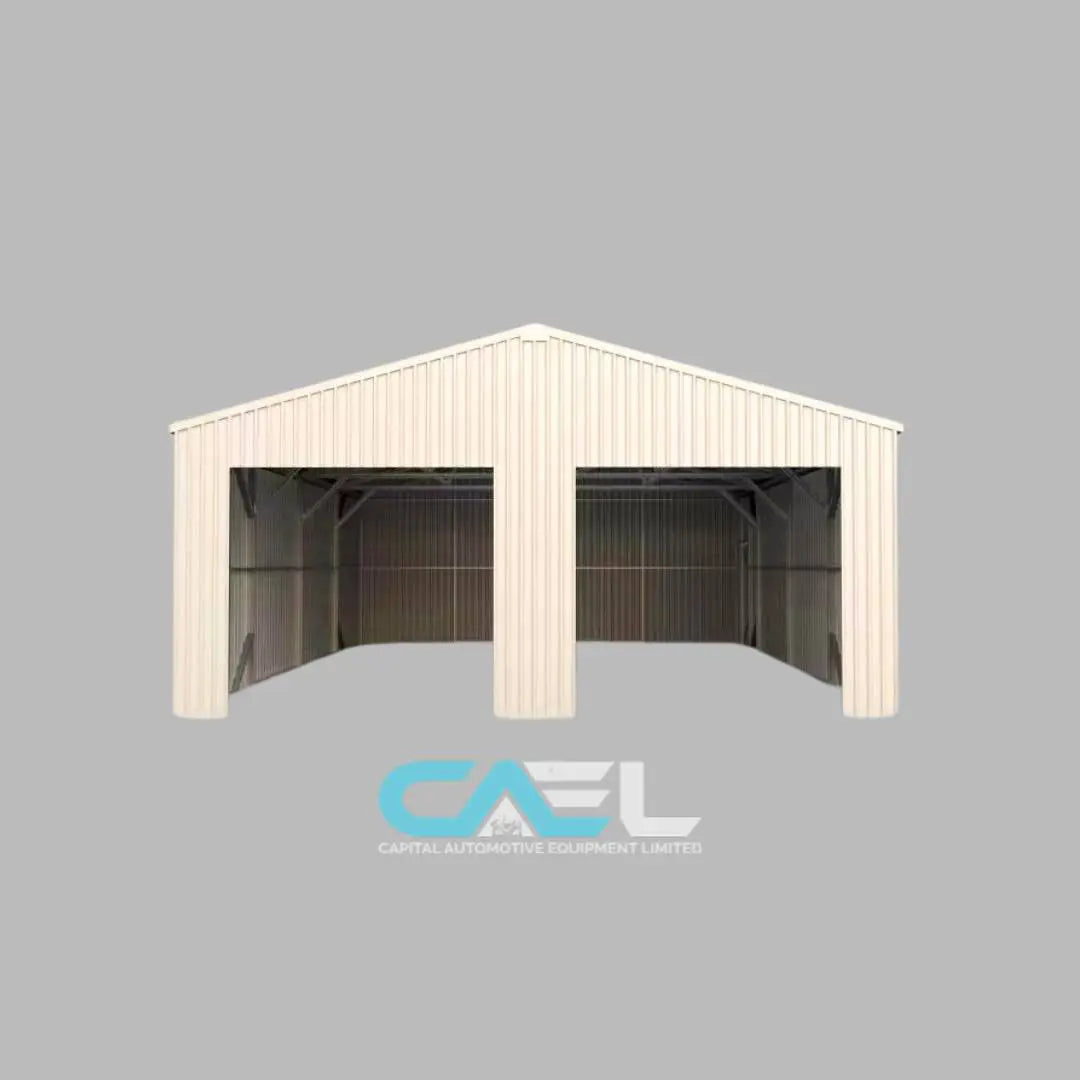

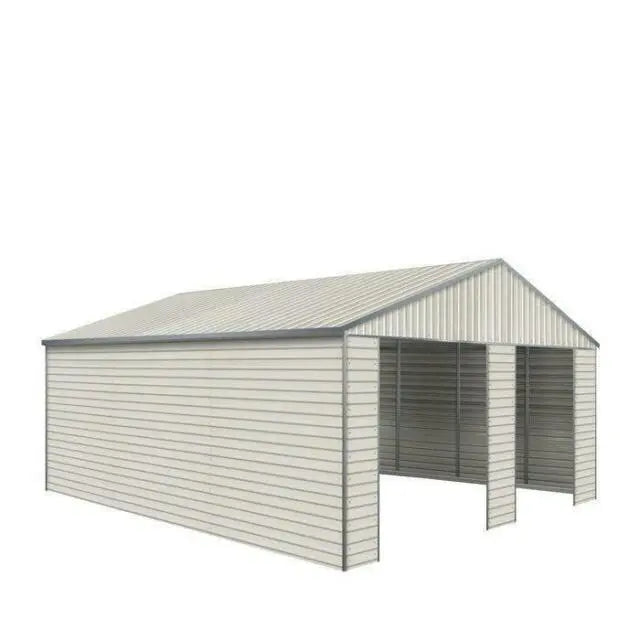

The CAEL Double Garage Metal Shed is a durable and versatile structure designed for garage use, workshops, and high-capacity storage applications. Constructed with a heavy-duty 16-gauge steel frame and 29-gauge fully galvanized metal panels, it delivers outstanding strength, corrosion resistance, and long-term performance in all weather conditions.

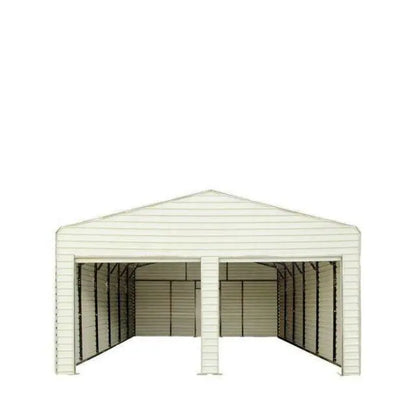

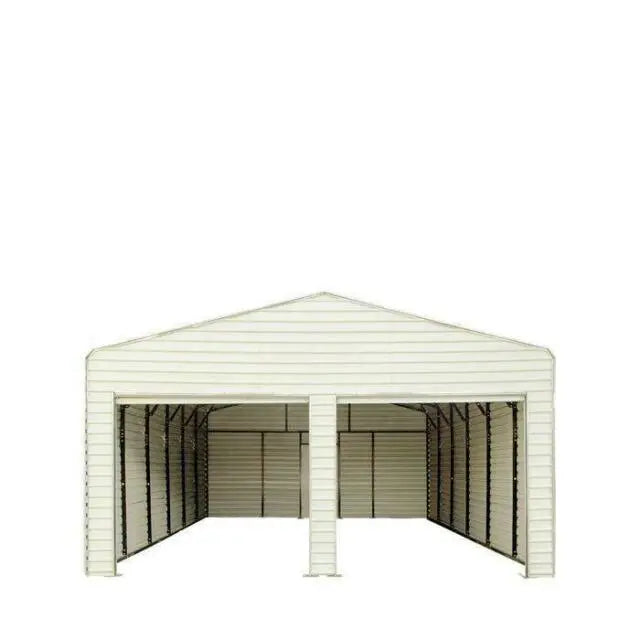

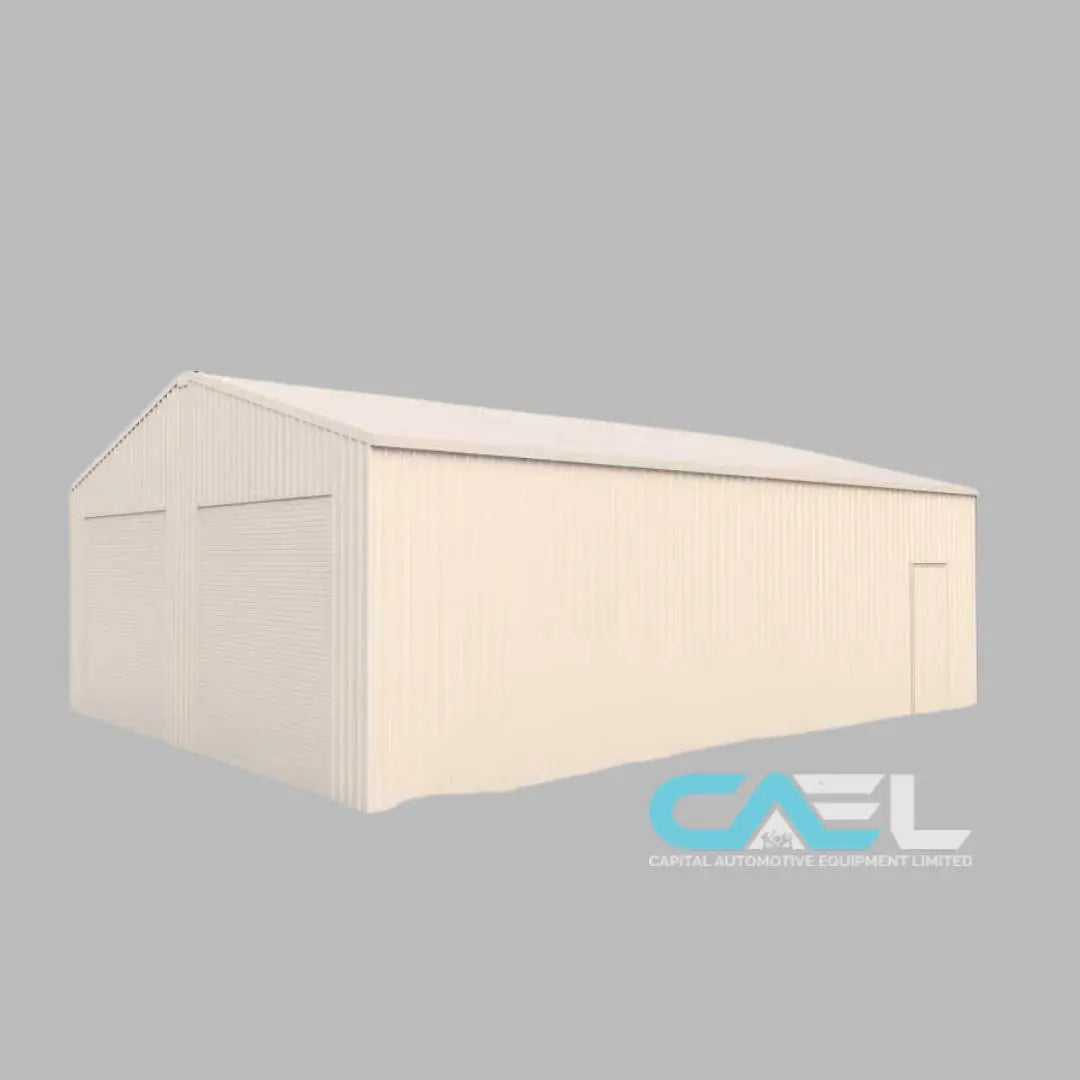

Featuring a side entry door and two automatic roll-up front doors, this shed ensures convenient access for vehicles, motorcycles, and equipment. The gable roof design promotes efficient drainage, preventing water and snow accumulation for year-round reliability.
Key Features
Heavy-Duty Frame: 16-gauge steel structure (≈1.5 mm) for superior strength and stability
Galvanized Metal Panels: 29-gauge corrugated sheets (≈0.36 mm) for enhanced weather and corrosion resistance
Gable Roof Design: 4/12 roof pitch to prevent water and snow build-up
Reinforced Construction: Roof supports, wall bracing, and anchoring system for added durability
Easy Access:

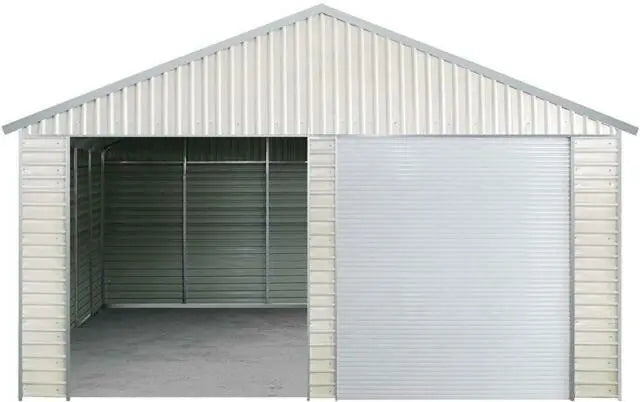

Two automatic roll-up garage doors

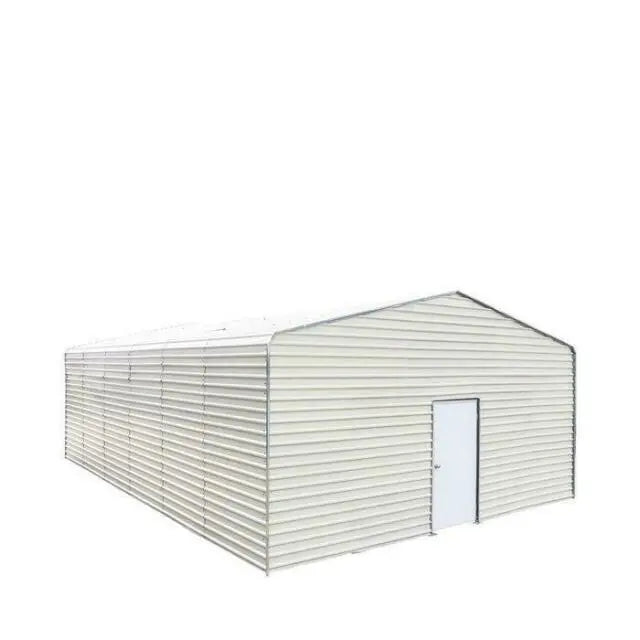

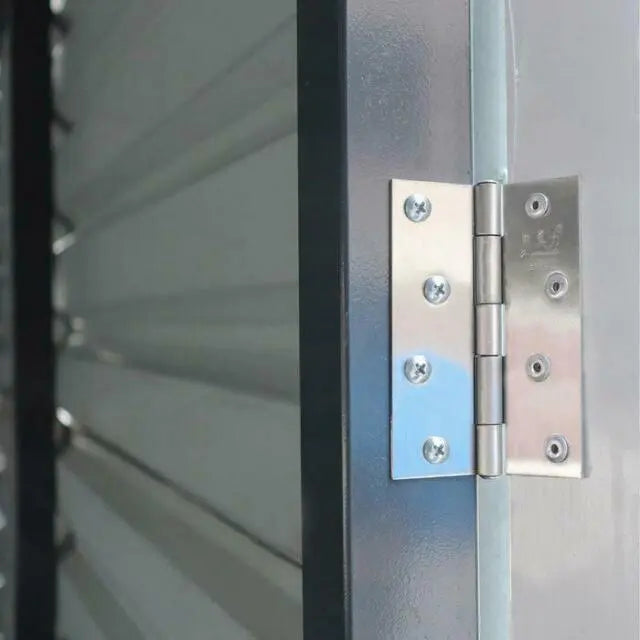

One side entry door, installable on either side
Secure Installation: L-shaped brackets with sleeve anchor bolts included
Simple Assembly: Self-tapping screw-together system
Installation Requirement: 2 skilled persons recommended (2–3 days assembly time)
Specifications
Overall Dimensions
Width: 25 ft (7620 mm)
Length: 41.3 ft (12,588 mm approx.)
Height: 13 ft (3960 mm approx.)
Floor Area
Approx. 1025 sq. ft. (≈95 sq. meters)
Heights
Peak Ridge Height: 13.5 ft (4115 mm)
Eave Height: 9.7 ft (2950 mm approx.)
Indoor Clearance Height: 9.5 ft (2895 mm approx.)
Doors

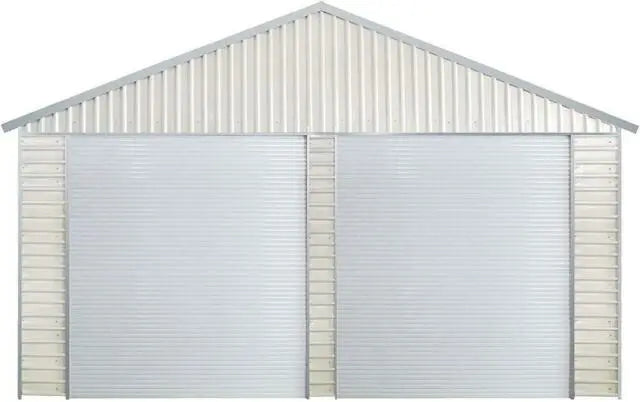

Garage Door Opening (Each): 103.5 in (2629 mm) W × 102.4 in (2601 mm) H

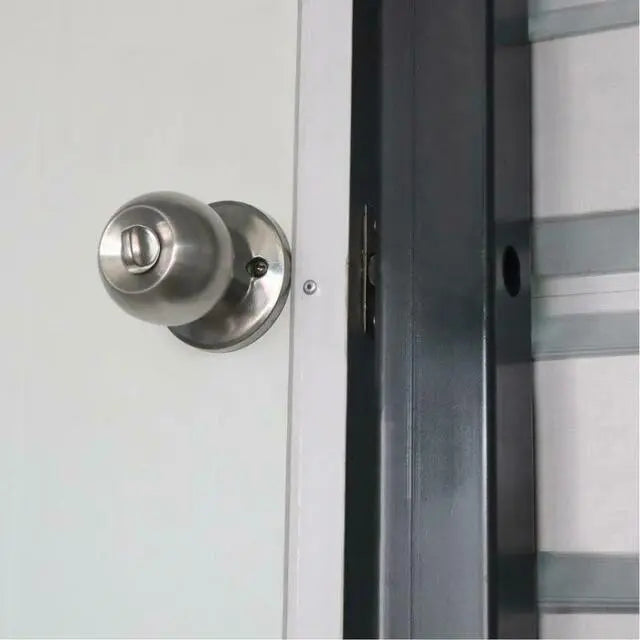

Side Entry Door: 3 ft (914 mm) W × 6.5 ft (1981 mm) H
Structural Details
Roof Pitch: 4/12
Snow Load Rating: Up to 30 PSF (≈1.44 kN/m²)
Wind Rating: Up to 75 MPH (≈120 km/h)
Installation Requirements
Foundation: Concrete slab or equivalent required
Anchoring System: Included (L-brackets + sleeve anchor bolts)
