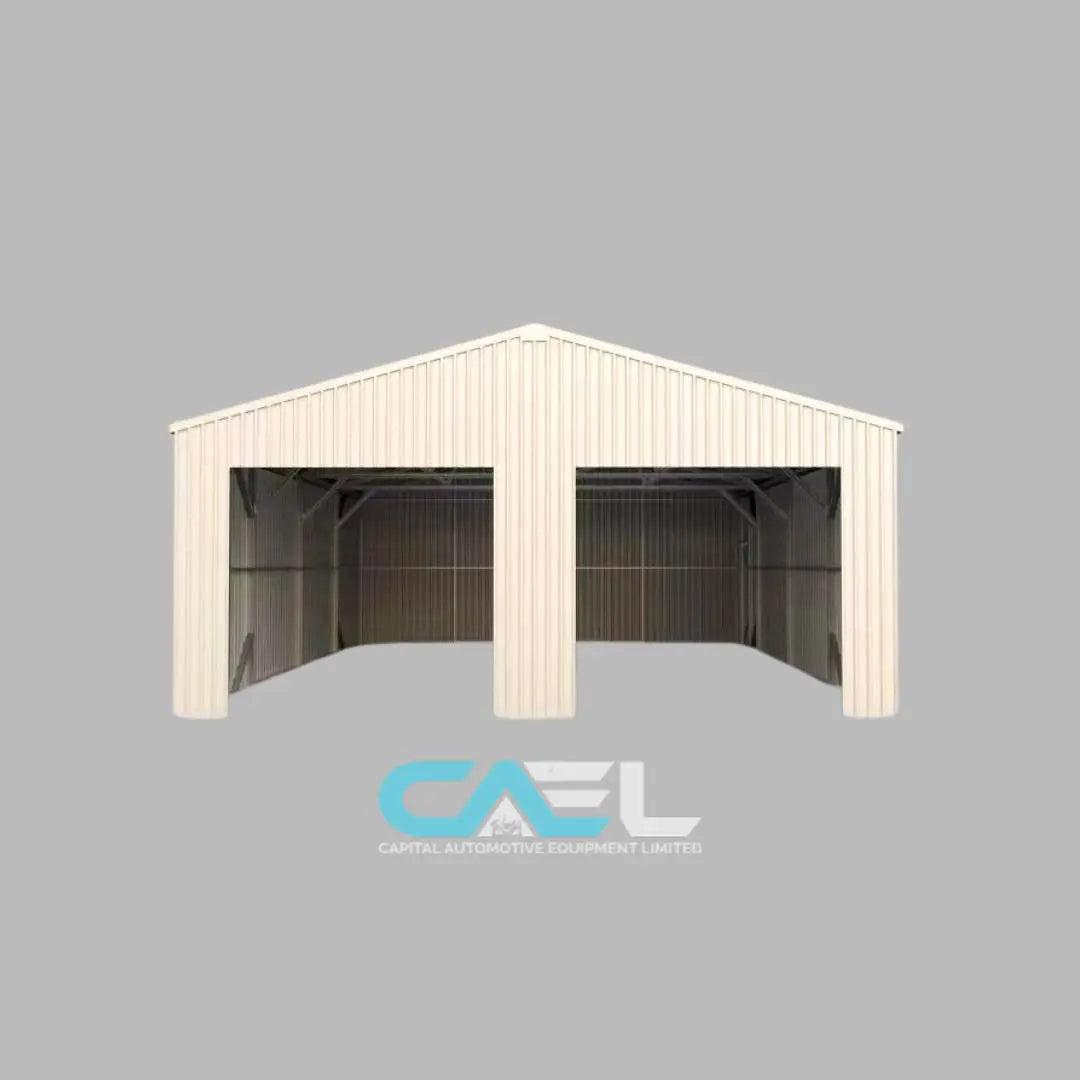

The CAEL Double Garage Metal Shed is a premium-grade, heavy-duty structure engineered for secure vehicle storage, workshop applications, and large-scale storage needs. Built with a robust 16-gauge steel frame and fully galvanized 29-gauge metal panels, this shed delivers exceptional durability, weather resistance, and long-term performance in demanding environments.

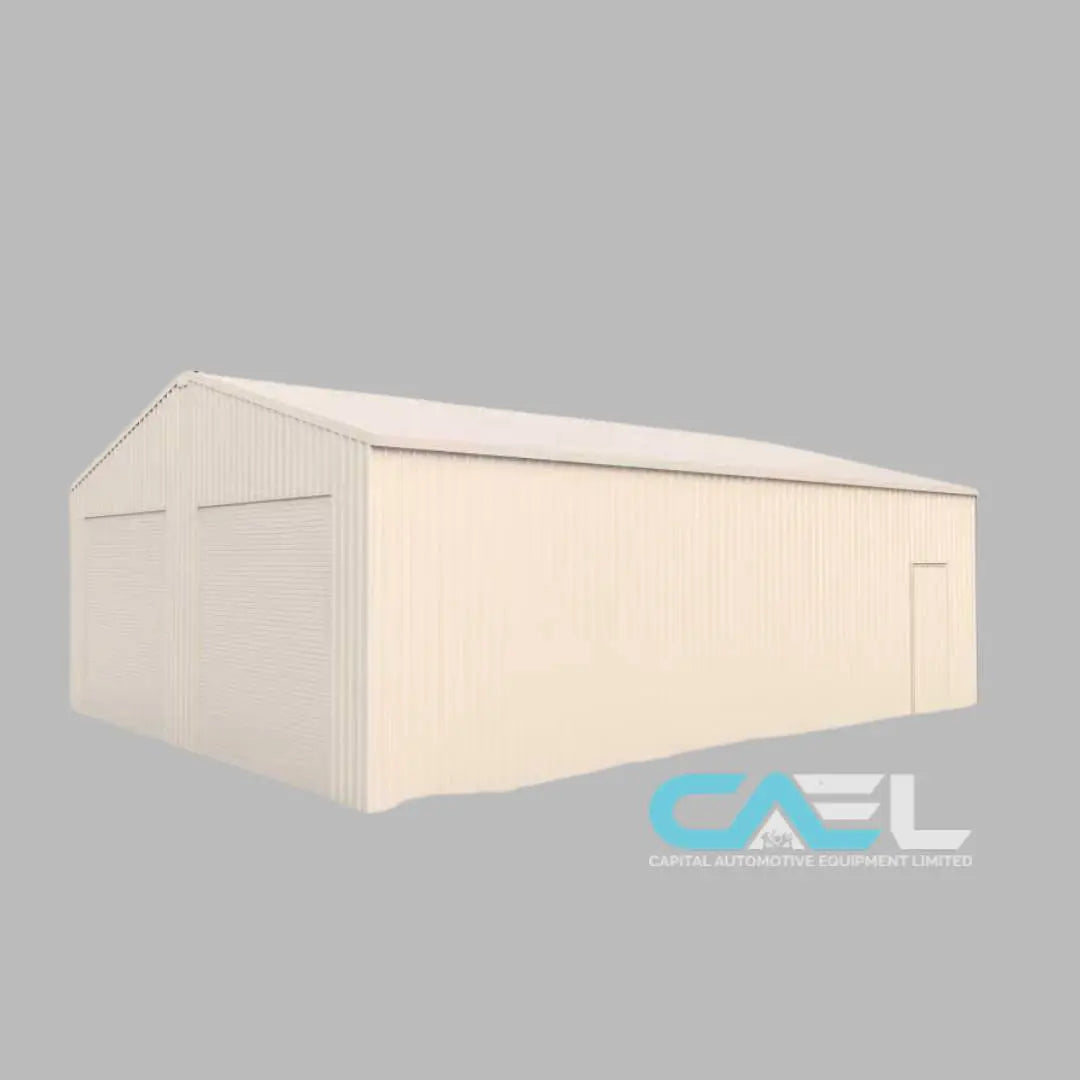

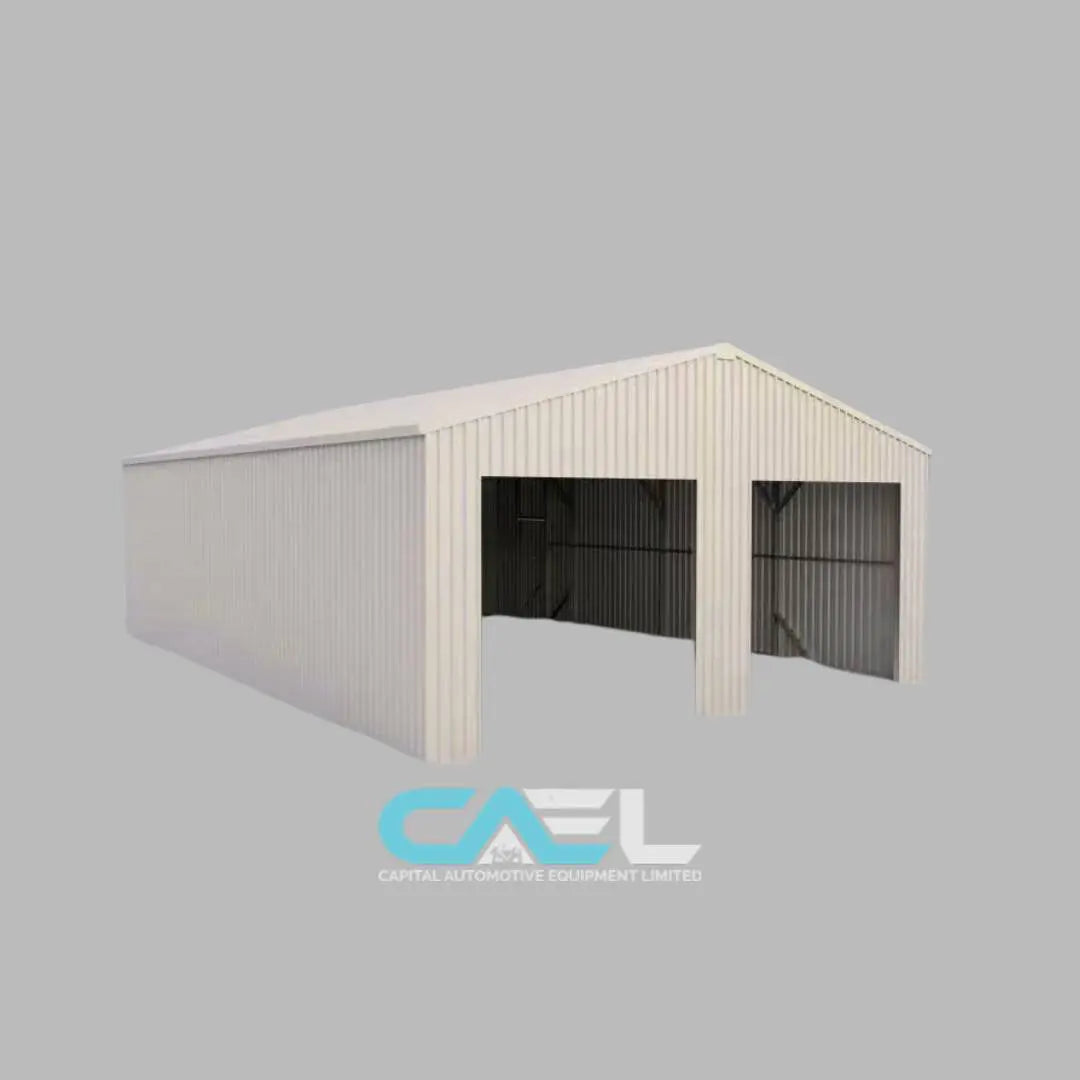

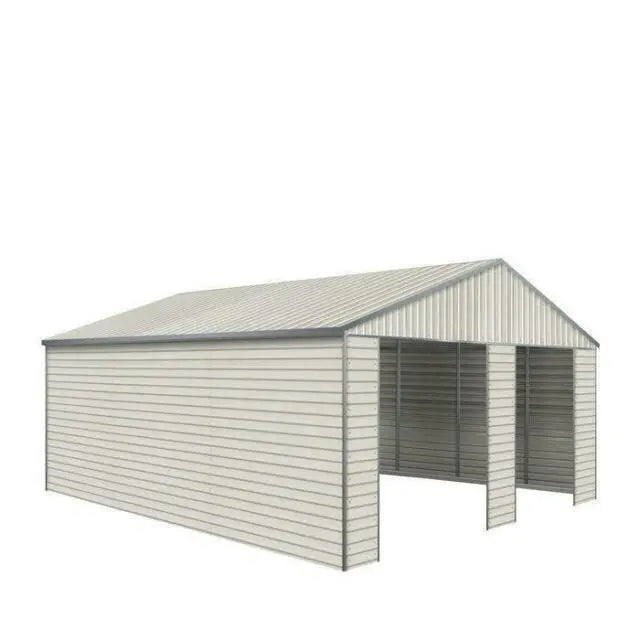

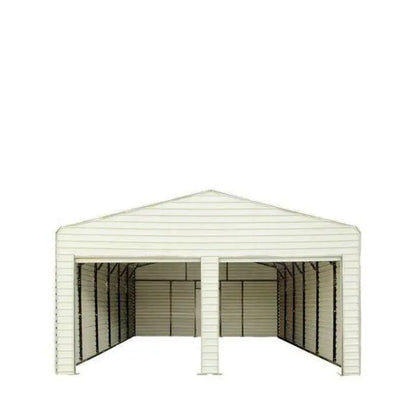

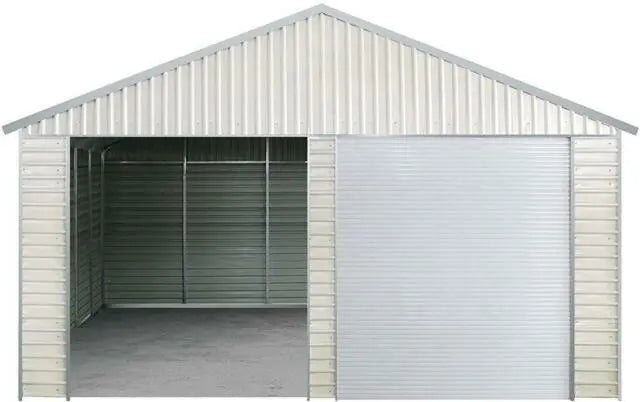

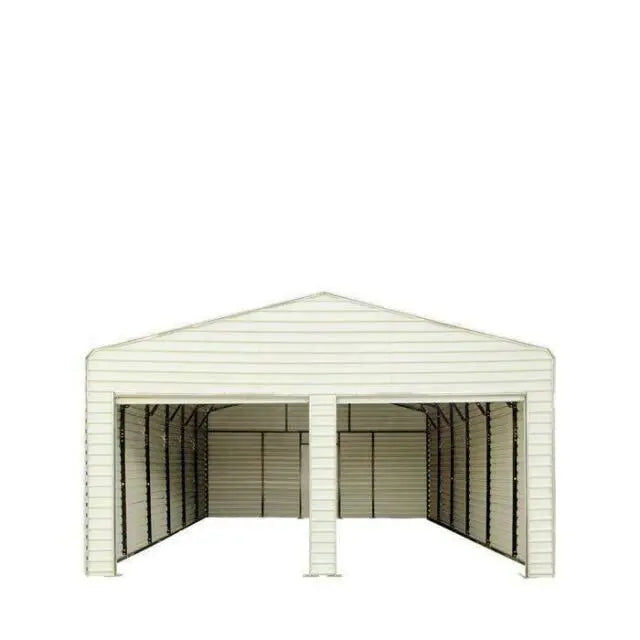

Designed for convenience and functionality, it features a side entry door and two large automatic roll-up front doors, providing effortless access for cars, motorcycles, equipment, and more. Its gable roof design ensures efficient drainage, preventing snow and water accumulation.

Key Features

• Heavy-Duty Construction:
  16-gauge (≈1.5 mm) primary steel frame for superior strength and stability
• Weather-Resistant Panels:
  29-gauge (≈0.36 mm) galvanized corrugated steel sheets for corrosion resistance
• Efficient Roof Design:
  Sloped gable roof (4/12 pitch) minimizes snow and water build-up
• Reinforced Structure:
  Enhanced roof supports, wall bracing, and anchoring system for added durability
• Convenient Access:

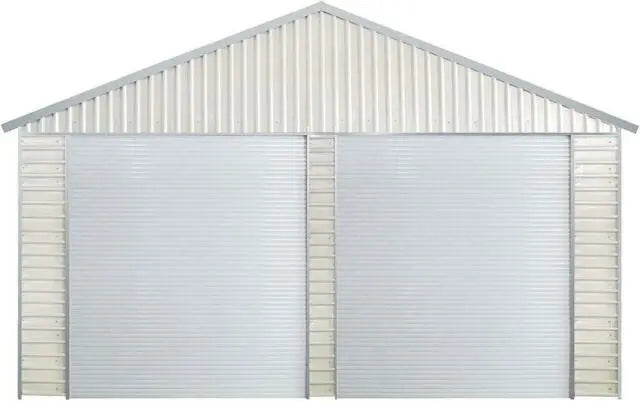

  • Two automatic roll-up garage doors for easy vehicle entry

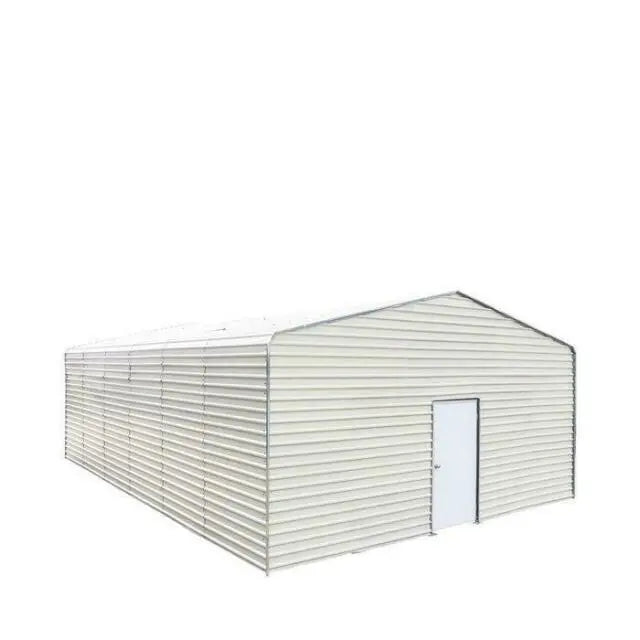

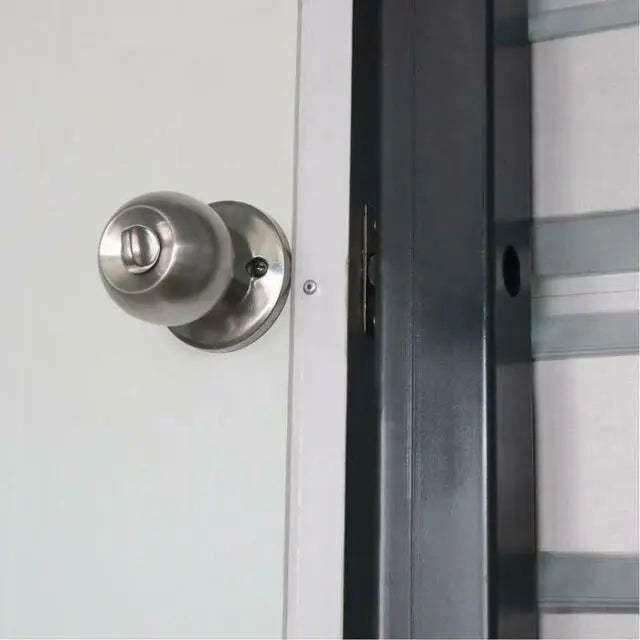

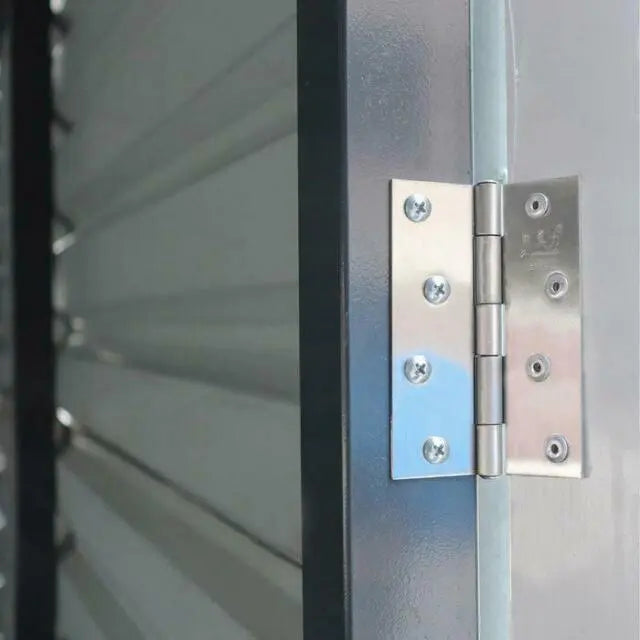

  • One side entry door, configurable on either side
• Secure Installation:
  L-shaped installation brackets with sleeve anchor bolts for strong foundation fixing
• DIY Assembly:
  Self-tapping screw system for simplified installation
• Recommended Setup:
  Installation by 2 skilled persons within 2–3 days
• Color Finish:
  Cream

Specifications

Overall Dimensions

• Width: 25 ft (7620 mm)
• Length: 65.41 ft (19,940 mm approx.)
• Height: 13 ft (3960 mm approx.)

Floor Area

• Approx. 1625 sq. ft. (≈151 sq. meters)

Heights

• Peak Ridge Height: 13.5 ft (4115 mm)
• Eave Height: 9.7 ft (2950 mm approx.)
• Indoor Clearance Height: 9.5 ft (2895 mm approx.)

Doors

• Garage Door Opening (Each):
  103.5 in (2629 mm) W × 102.4 in (2601 mm) H
• Side Entry Door:
  3 ft (914 mm) W × 6.5 ft (1981 mm) H

Structural Details

• Roof Pitch: 4/12
• Snow Load Rating: Up to 30 PSF (≈1.44 kN/m²)
• Wind Rating: Up to 75 MPH (≈120 km/h)

Installation Requirements

• Foundation: Concrete slab or equivalent base required
• Anchoring System: Included (L-brackets + sleeve anchor bolts)

Price

$16,999 + applicable taxes

CLICK TO SEE MANUAL

Installation Video:
