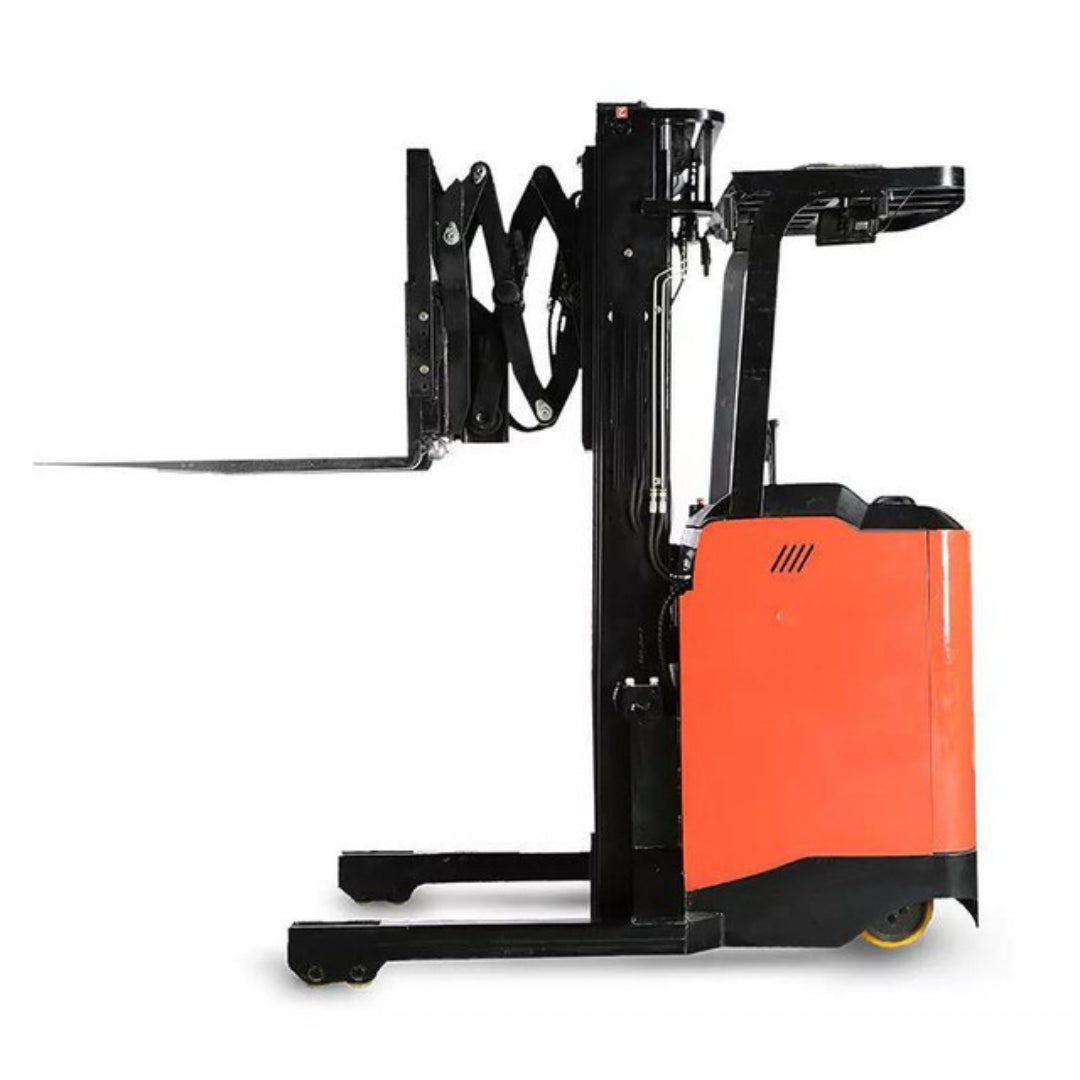

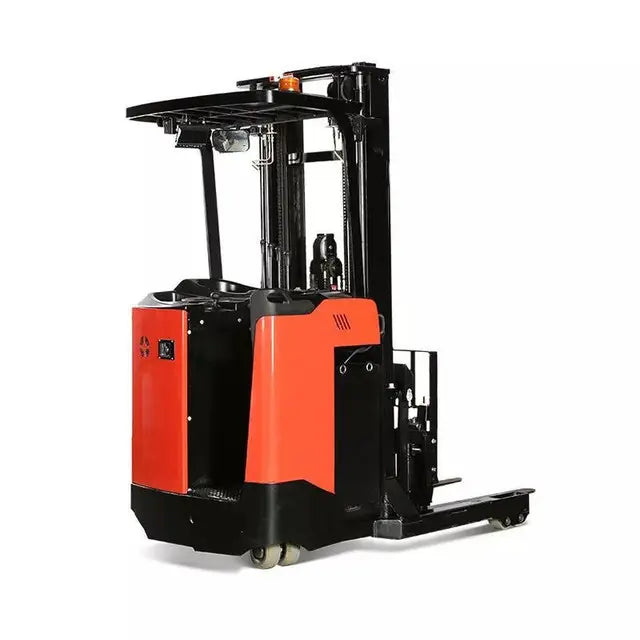

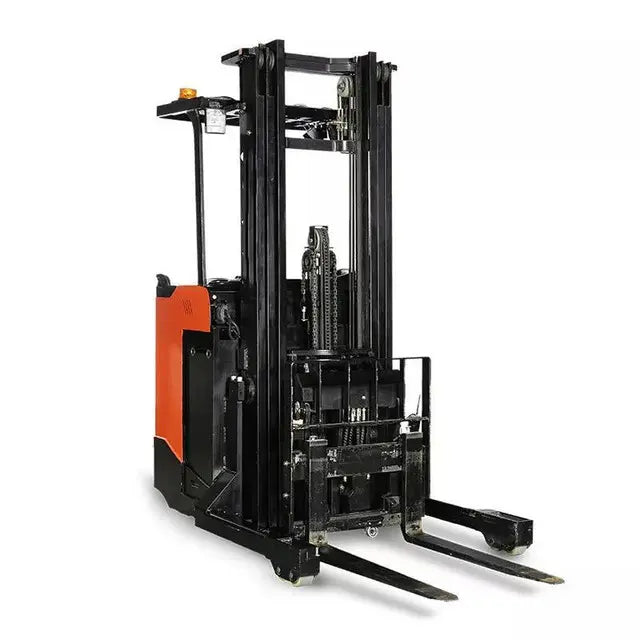

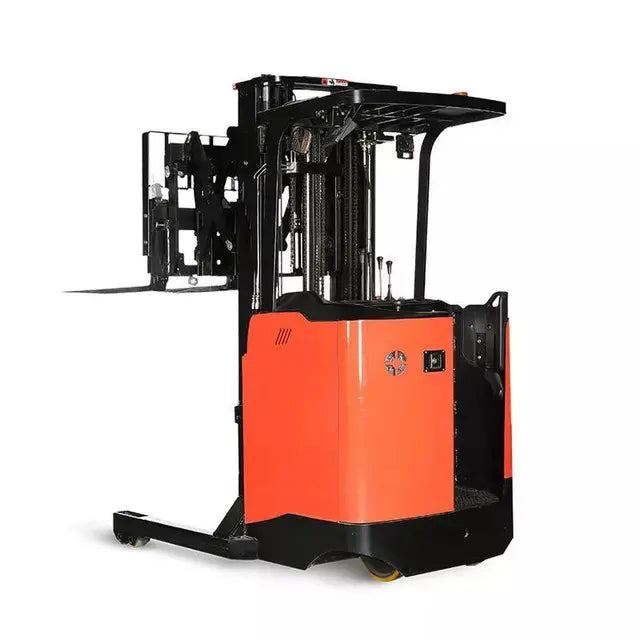

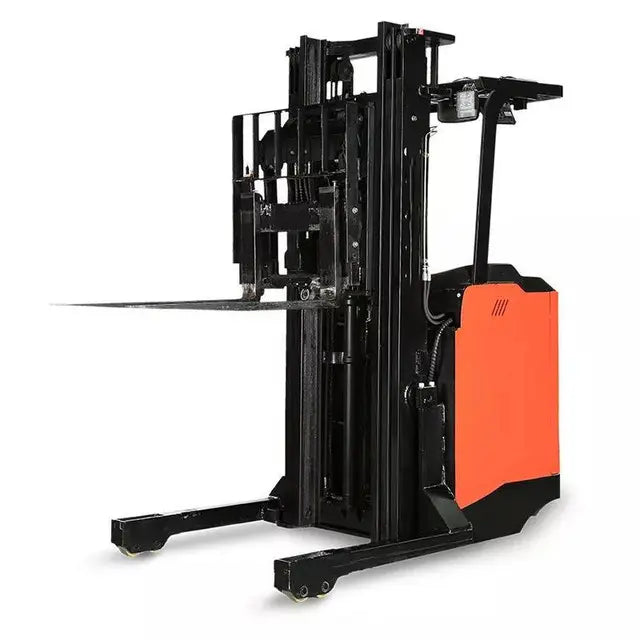

CAEL 1.5 Ton Electric Reach Truck – Double Scissor

Seated or Stand-On Reach Forklift

Powerful • Compact • High-Reach Warehouse Solution

The CAEL 1.5 Ton Electric Reach Truck is a professional warehouse forklift designed for narrow aisles, pallet racking, logistics centers, factories, and high-density storage operations.

Available in seated or stand-on configuration, this reach truck features a double scissor reach mechanism for extended pallet access and precision placement in racking systems.

With a 1500 kg (3300 lbs) lifting capacity, AC drive control, premium ZAPI controller, and heavy-duty battery system, this unit is ideal for demanding indoor warehouse environments.

Key Features & Benefits

Strong Load Capacity

• Handles up to 1500 kg / 3300 lbs
• Suitable for palletized goods, inventory, cartons, and industrial products

Double Scissor Reach Mechanism

• Improved forward reach into racks
• Excellent pallet retrieval and storage performance

Seated or Stand-On Design

• Choose operator style based on workflow preference

AC Control System

• Smooth acceleration, efficient operation, and lower maintenance

ZAPI Controller

• Premium electronic control system for reliable performance

Compact Turning Radius

• Excellent maneuverability in tight warehouse aisles

Low Fork Height

• Easy pallet entry and exit

Technical Specifications

• Type: Electric Reach Truck
• Style: Seated or Stand-On
• Reach System: Double Scissor

Capacity

• 1500 kg / 3300 lbs

Load Center

• 500 mm / 19.6 in

Lift Height

• 3 m / 9.8 ft

Free Lifting Reach Distance

• 665 mm / 26 in

Weight (With Battery)

• 3030 kg / 6680 lbs

Dimensions

Overall Length (Mast No Reach)

• 2609 mm / 102.7 in

Overall Width

• 1380 mm / 54 in

Overhead Guard Height

• 2246 mm / 88.4 in

Fork Length

• 1070 mm / 42 in

Fork Width

• 100 mm / 3.9 in

Fork Lowered Height

• 35 mm / 1.3 in

Turning Radius

• 1718 mm / 67.6 in

Minimum Intersecting Aisle Width

• 3056 mm / 120 in

Battery & Power

• 24V / 420Ah Lead-Acid Battery
• Charger Included

Controller

• ZAPI Controller

Ideal Applications

✔ Warehouses
✔ Distribution centers
✔ Narrow aisle racking
✔ Retail storage operations
✔ Manufacturing facilities
✔ Logistics centers
✔ High-bay pallet storage

Why Choose CAEL Reach Truck?

The CAEL 1.5 Ton Electric Reach Truck combines reach capability, maneuverability, and dependable electric performance for professional warehouse operations.

Perfect for businesses maximizing vertical storage and productivity.

Core Advantages

✔ 3300 lb capacity
✔ Double scissor reach system
✔ Seated or stand-on options
✔ Compact turning radius
✔ ZAPI controller
✔ Heavy-duty battery included
✔ Ideal for narrow aisles

Request a Quote

Contact us today for pricing, stock availability, delivery options, and additional forklift/reach truck models tailored to your warehouse needs.
