Description
Scissor Type : Electric Reach Truck seated or stand on

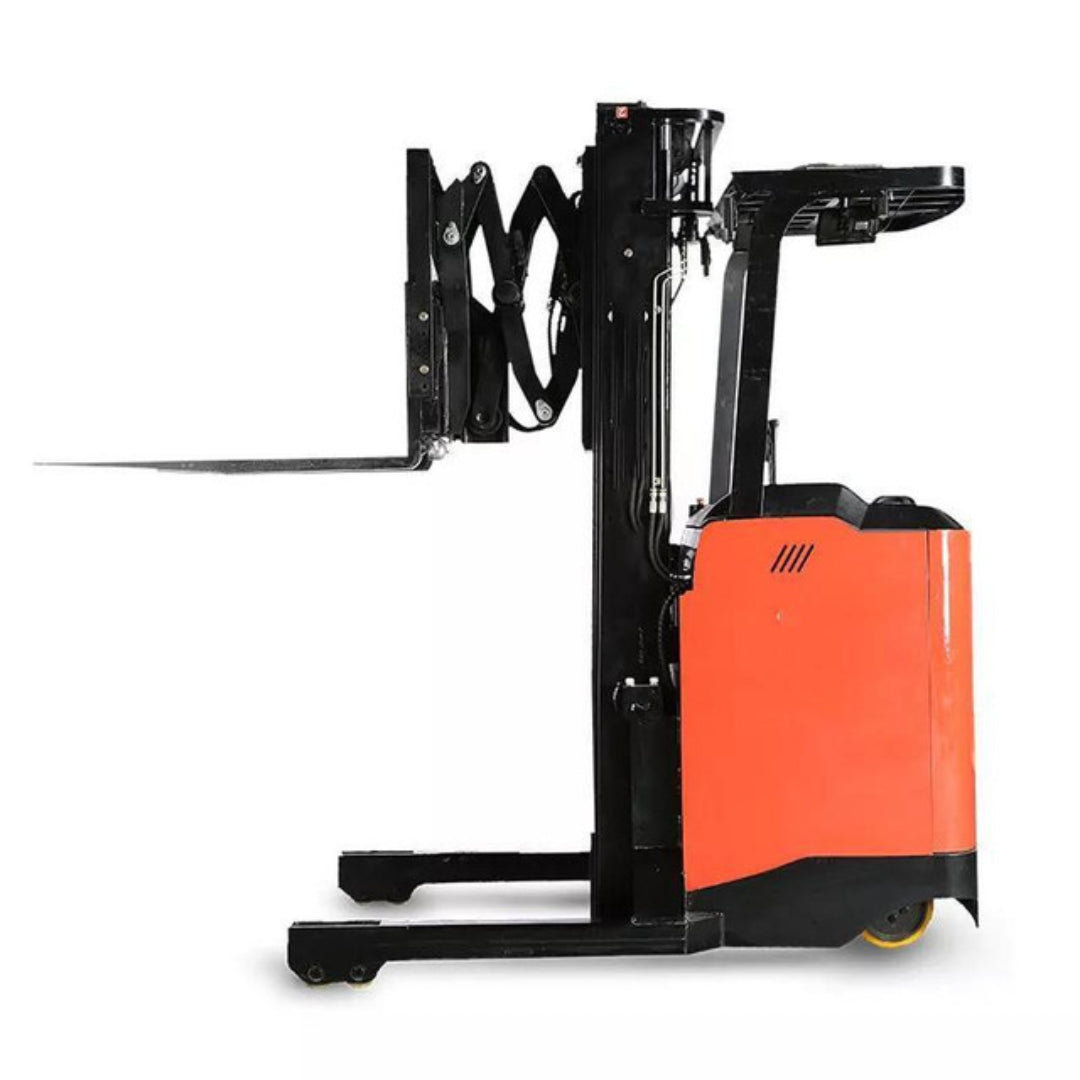

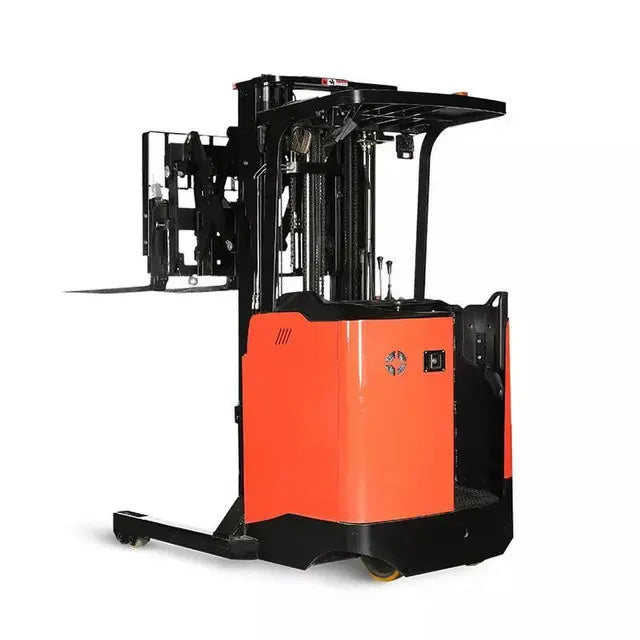

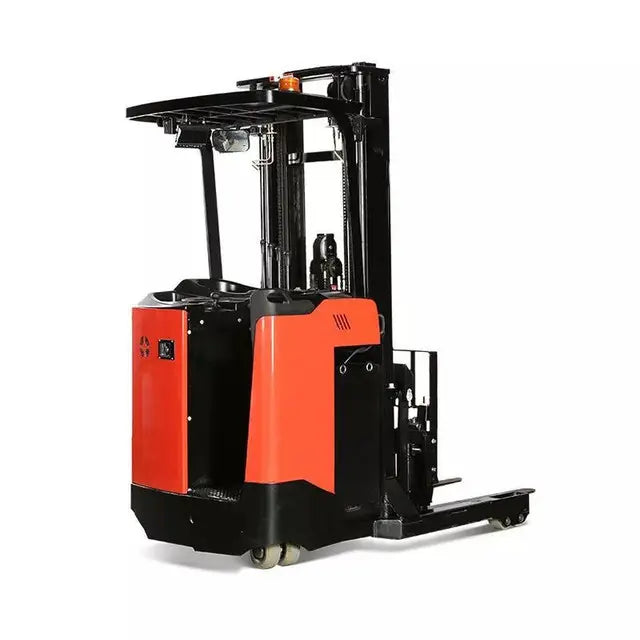

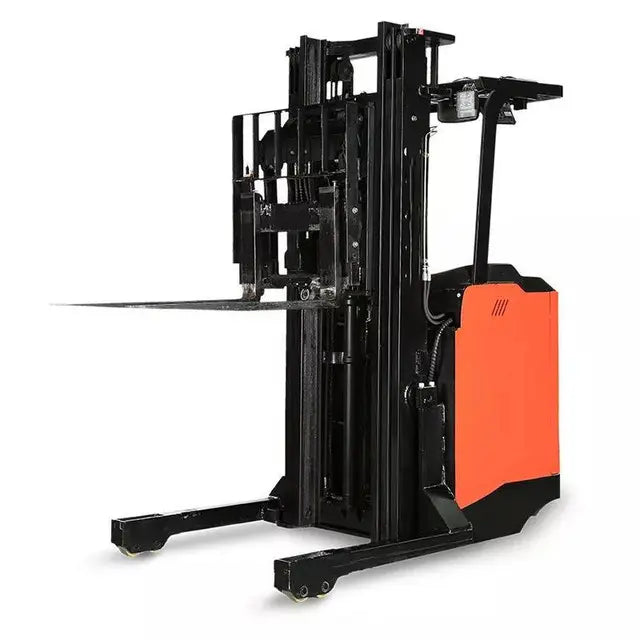

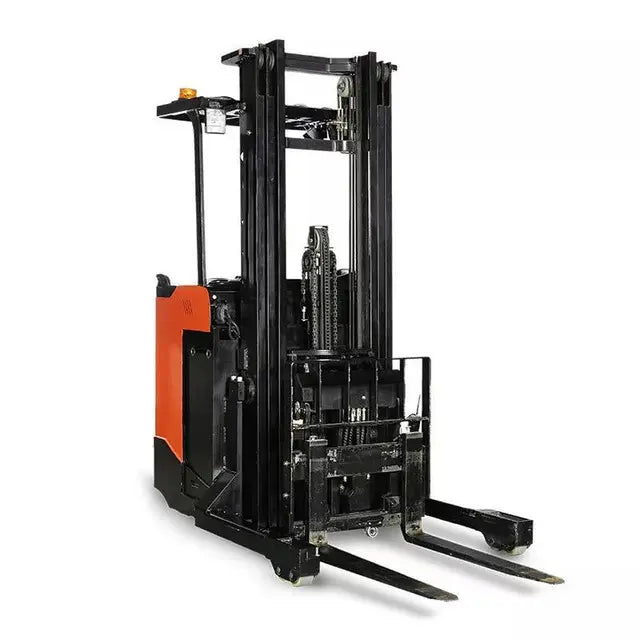

1.5ton 3.5M/1 11.4ft Electric Fork Reach Truck
– Double Scissor
– Maximum load capacity:1500KG/ 3300 LBS
– Load center:500 mm/ 19.6 in AC control
– Maximum lifting height :3m/ 9.8ft
– free lifting Reach Distance:665mm/ 26 in
– Weight (with battery): 3030kg/ 6680 LBS
– Overall length (mast no reach):2609mm/ 103 in
– Overall width of frame:1380mm/ 54 in
– Overhead guard height:2246mm/ 88.4 in
– Fork length:1070mm/ 42 in
– Fork width:100mm/ 3.9 in
– Fork lowered height:35mm/ 1.3 in
– Turning radius:1718mm/ 67.6 in Min intersecting aisle
– width:3056mm/ 120 in
– Battery :24V/420AH lead-acid battery
With charger ZAPI Controller
