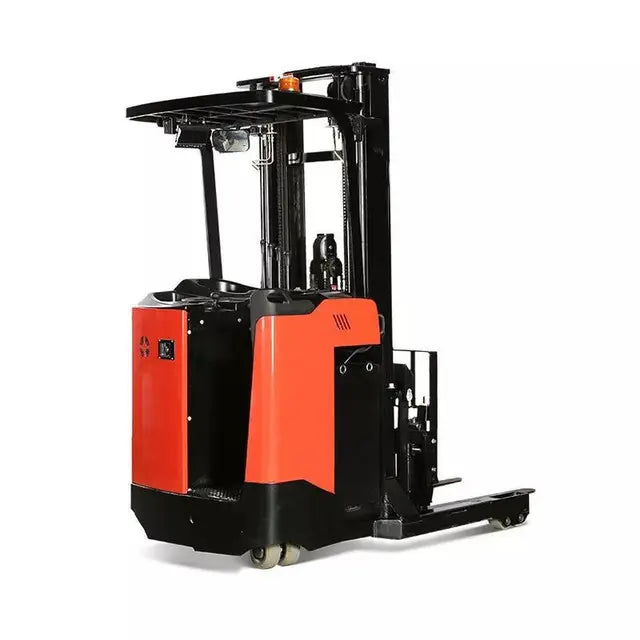

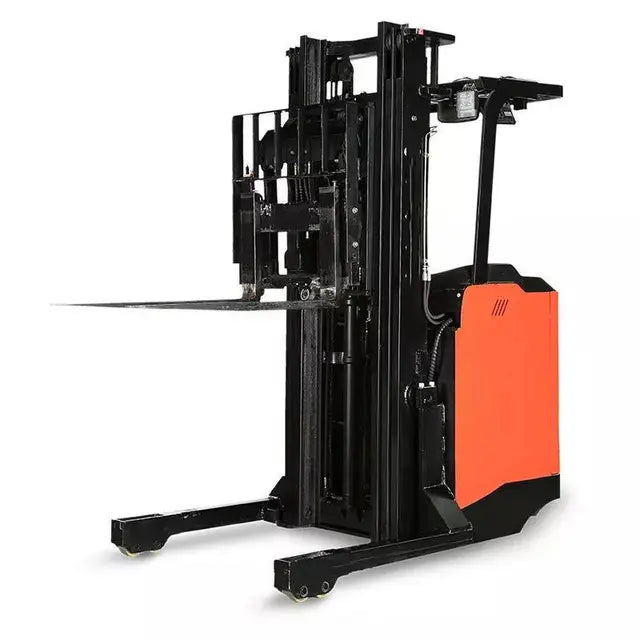

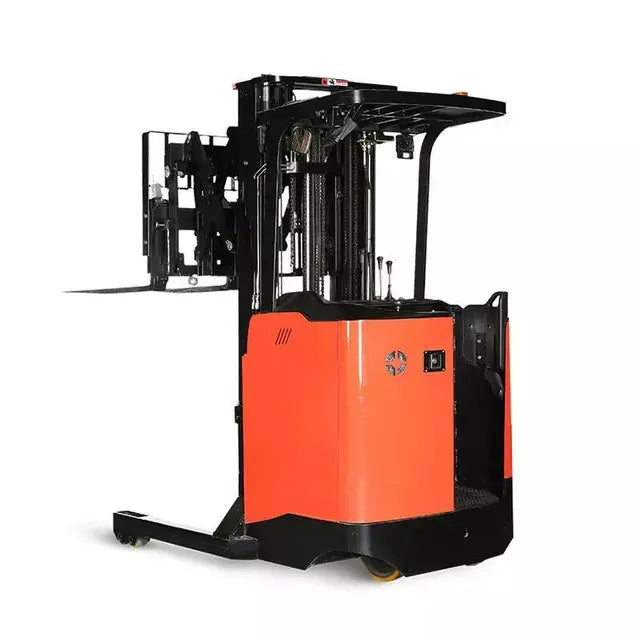

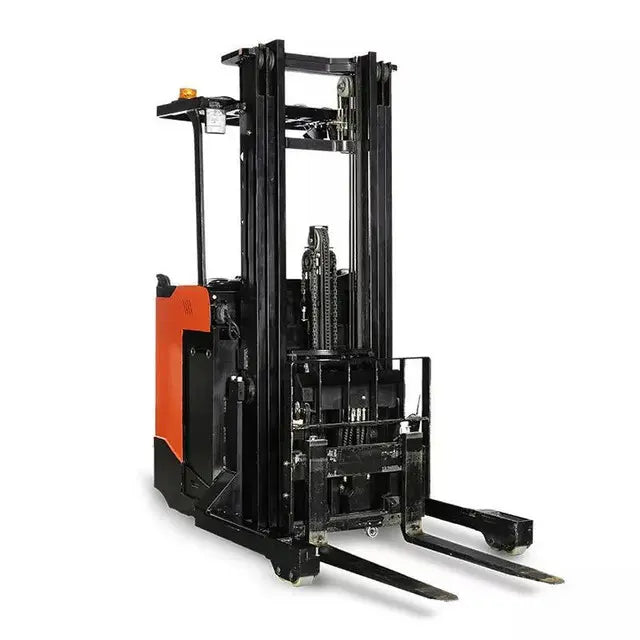

CAEL 1.5 Ton Electric Reach Truck – Double Scissor

Seated or Stand-On Reach Forklift (4M Lift Height)

Powerful • Compact • Professional Warehouse Reach Solution

The CAEL 1.5 Ton Electric Reach Truck is a high-performance warehouse forklift designed for racking systems, narrow aisles, logistics centers, factories, and pallet storage operations.

Available in seated or stand-on configuration, this model features a double scissor reach mechanism that allows smooth pallet placement and retrieval in deep rack positions.

With a 1500 kg (3300 lbs) lifting capacity, 4 m lift height, premium ZAPI controller, and heavy-duty battery system, this reach truck is built for demanding warehouse environments.

Key Features & Benefits

Strong Load Capacity

• Handles up to 1500 kg / 3300 lbs
• Suitable for pallets, cartons, industrial goods, and inventory loads

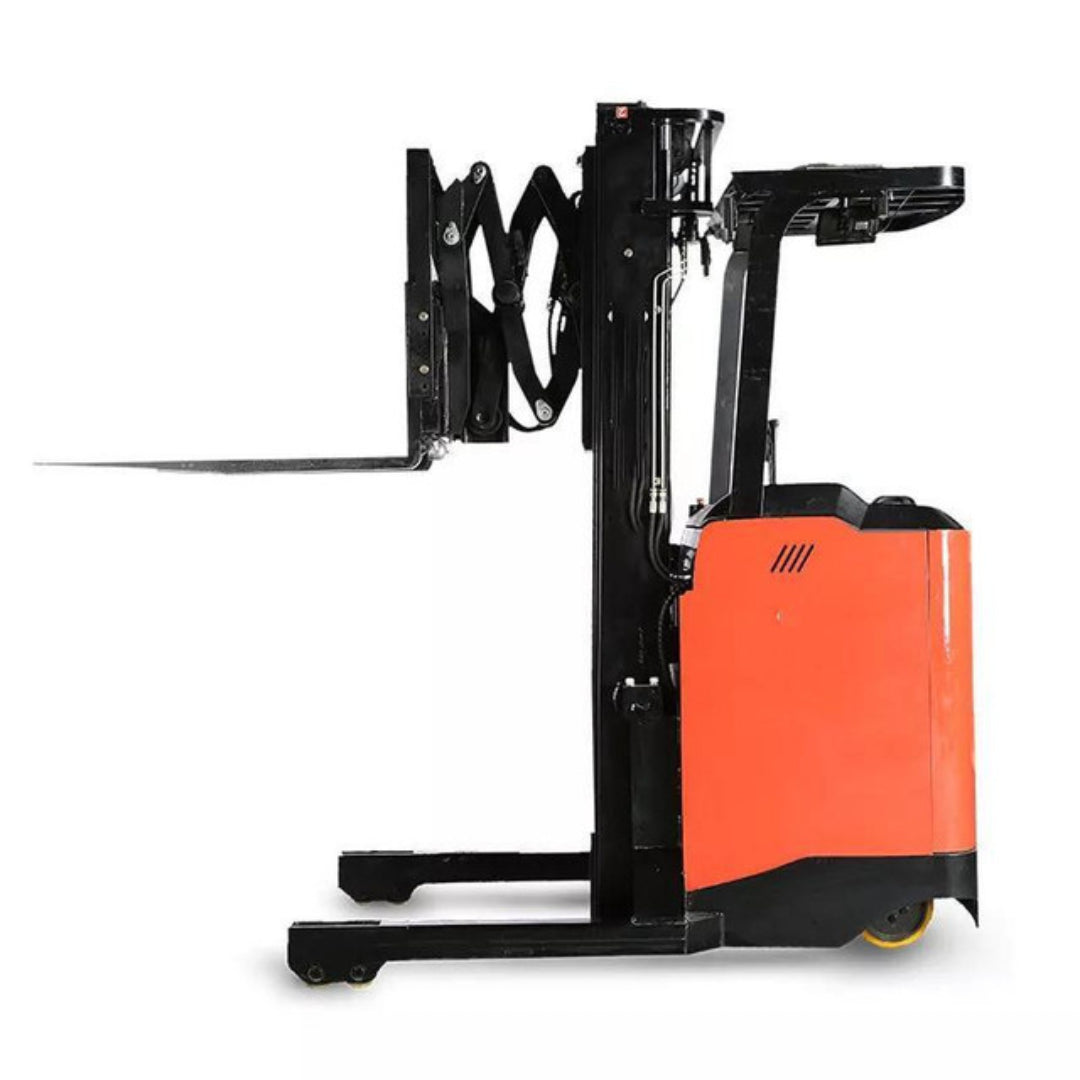

Double Scissor Reach System

• Extended forward reach into racks
• More efficient pallet handling in warehouse aisles

4 Meter Lift Height

• Ideal for shelving, racking, and elevated pallet storage

Seated or Stand-On Configuration

• Choose operator style based on workflow preference

AC Control System

• Smooth acceleration and dependable performance

ZAPI Controller

• Premium electronic control system for precision handling

Compact Turning Radius

• Excellent maneuverability in tight warehouse spaces

Technical Specifications

• Type: Electric Reach Truck
• Style: Seated or Stand-On
• Reach System: Double Scissor

Capacity

• 1500 kg / 3300 lbs

Load Center

• 500 mm / 19.6 in

Maximum Lift Height

• 4 m / 13.1 ft

Free Reach Distance

• 665 mm / 26 in

Weight (With Battery)

• 3030 kg / 6680 lbs

Dimensions

Overall Length (Mast No Reach)

• 2609 mm / 102.7 in

Overall Width

• 1380 mm / 54 in

Overhead Guard Height

• 2246 mm / 88.4 in

Fork Length

• 1070 mm / 42 in

Fork Width

• 100 mm / 3.9 in

Fork Lowered Height

• 35 mm / 1.3 in

Turning Radius

• 1718 mm / 67.6 in

Minimum Intersecting Aisle Width

• 3056 mm / 120 in

Battery & Power

• 24V / 420Ah Lead-Acid Battery
• Charger Included

Controller

• ZAPI Controller

Ideal Applications

✔ Warehouses
✔ Distribution centers
✔ Narrow aisle racking
✔ Inventory storage systems
✔ Retail logistics
✔ Manufacturing plants
✔ High-density pallet operations

Why Choose CAEL Reach Truck?

The CAEL 1.5 Ton Electric Reach Truck delivers excellent reach capability, compact maneuverability, and reliable electric performance for professional warehouse operations.

Perfect for maximizing storage height and daily productivity.

Core Advantages

✔ 3300 lb capacity
✔ 4 m lift height
✔ Double scissor reach system
✔ Seated or stand-on options
✔ ZAPI controller
✔ Battery & charger included
✔ Narrow aisle ready

Request a Quote

Contact us today for pricing, stock availability, shipping options, and additional reach truck models tailored to your warehouse needs.
