CAEL 1.5 Ton Electric Reach Truck – Double Scissor

Seated or Stand-On Reach Forklift (5M Lift Height)

Powerful • High Reach • Professional Warehouse Solution

The CAEL 1.5 Ton Electric Reach Truck is a professional warehouse forklift engineered for high racking systems, narrow aisles, logistics centers, factories, and pallet storage operations.

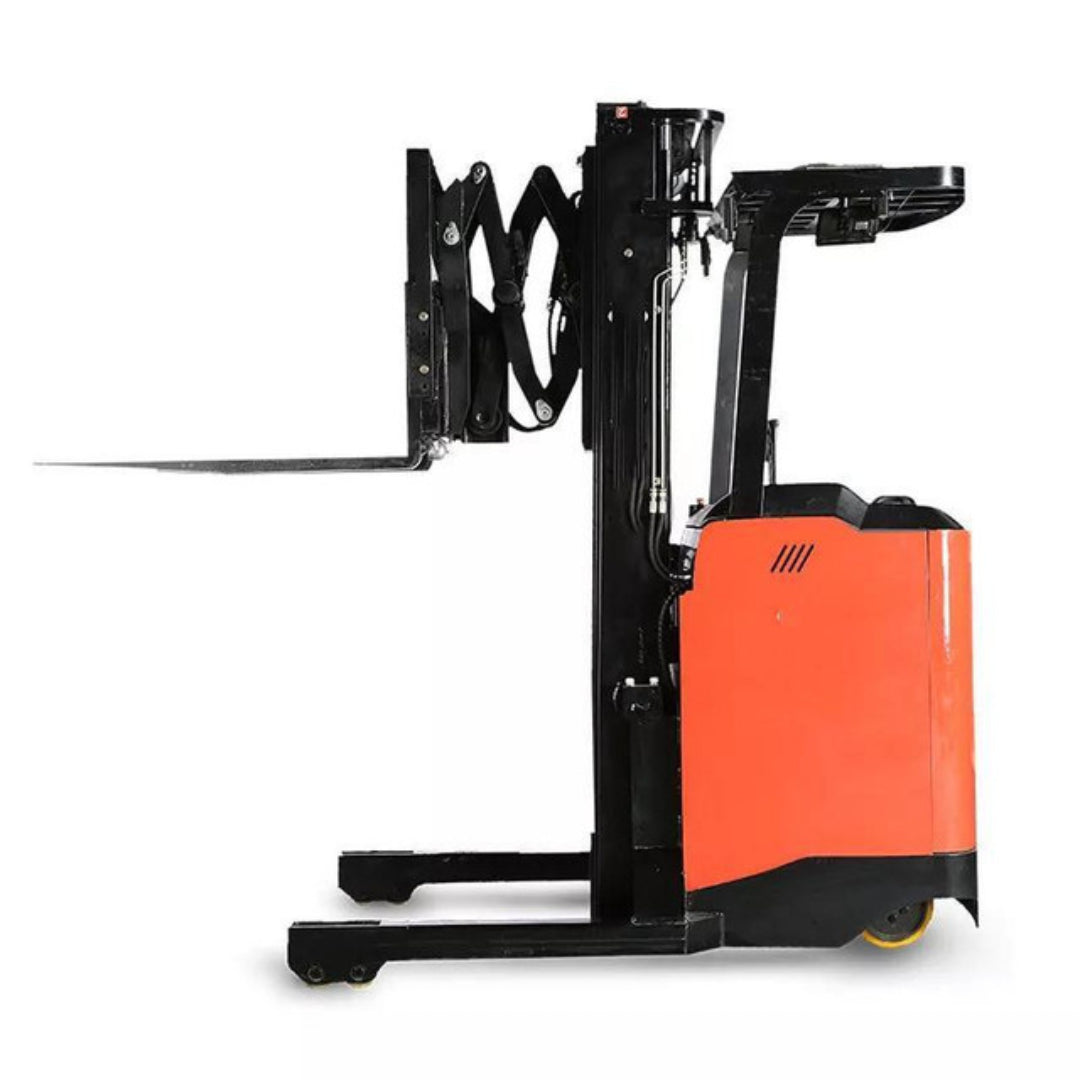

Available in seated or stand-on configuration, this model uses a double scissor reach mechanism to provide extended pallet access and accurate load placement inside racking systems.

With a 1500 kg (3300 lbs) lifting capacity, 5 m lift height, premium ZAPI controller, and heavy-duty battery system, this unit is ideal for demanding indoor warehouse applications.

Key Features & Benefits

Strong Load Capacity

• Handles up to 1500 kg / 3300 lbs
• Suitable for pallets, cartons, industrial goods, and inventory loads

Double Scissor Reach System

• Extended forward reach into racks
• Faster pallet retrieval and storage

High Lift Performance

• 5 m / 16.4 ft lift height
• Ideal for taller warehouse shelving systems

Seated or Stand-On Design

• Choose operator style based on application needs

AC Control System

• Smooth acceleration and efficient low-maintenance operation

ZAPI Controller

• Premium electronic controller for precise handling

Compact Turning Radius

• Easy maneuvering in narrow aisles

Technical Specifications

• Type: Electric Reach Truck
• Style: Seated or Stand-On
• Reach Mechanism: Double Scissor

Capacity

• 1500 kg / 3300 lbs

Load Center

• 500 mm / 19.6 in

Maximum Lift Height

• 5 m / 16.4 ft

Free Reach Distance

• 665 mm / 26 in

Weight (With Battery)

• 3030 kg / 6680 lbs

Dimensions

Overall Length (Mast No Reach)

• 2609 mm / 102.7 in

Overall Width

• 1380 mm / 54 in

Overhead Guard Height

• 2246 mm / 88.4 in

Fork Length

• 1070 mm / 42 in

Fork Width

• 100 mm / 3.9 in

Fork Lowered Height

• 35 mm / 1.3 in

Turning Radius

• 1718 mm / 67.6 in

Minimum Intersecting Aisle Width

• 3056 mm / 120 in

Battery & Power

• 24V / 420Ah Lead-Acid Battery
• Charger Included

Controller

• ZAPI Controller

Ideal Applications

✔ Warehouses
✔ Distribution centers
✔ High-bay pallet storage
✔ Narrow aisle racking
✔ Manufacturing plants
✔ Logistics centers
✔ Inventory warehouses

Why Choose CAEL Reach Truck?

The CAEL 1.5 Ton Electric Reach Truck combines excellent reach capability, compact maneuverability, and dependable electric power for modern warehouse operations.

Perfect for maximizing vertical storage and increasing daily productivity.

Core Advantages

✔ 3300 lb capacity
✔ 5 m lift height
✔ Double scissor reach system
✔ Seated or stand-on options
✔ ZAPI controller
✔ Battery & charger included
✔ Warehouse-ready performance

Request a Quote

Contact us today for pricing, stock availability, shipping options, and more reach truck models tailored to your warehouse needs.
