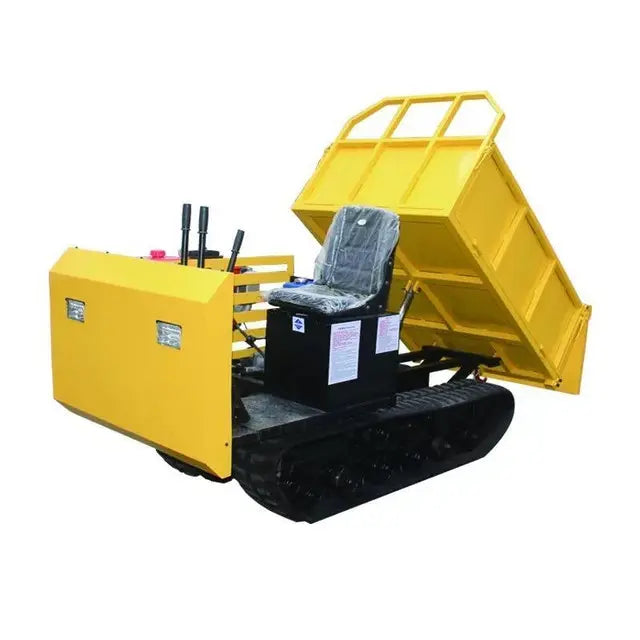

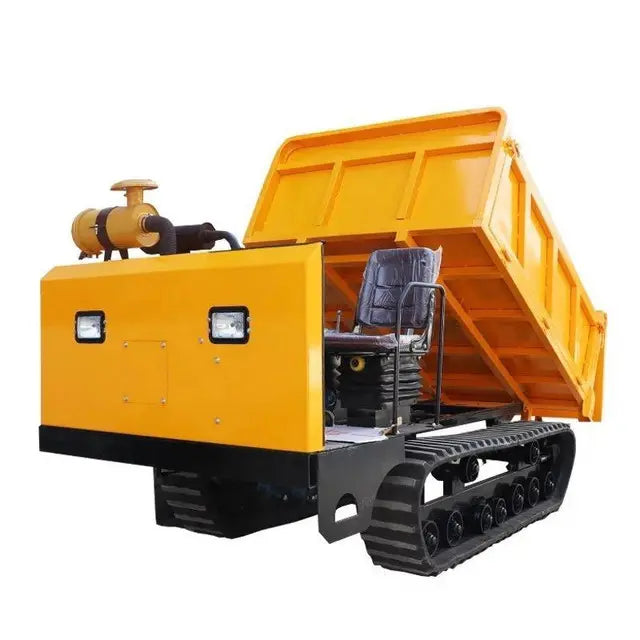

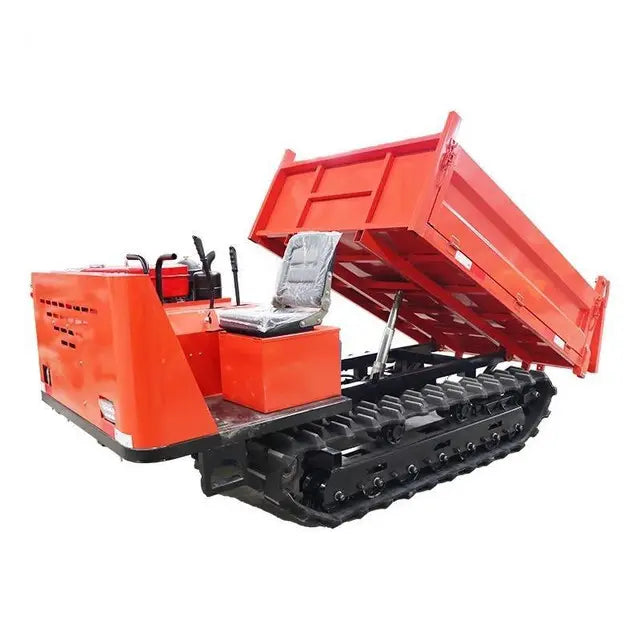

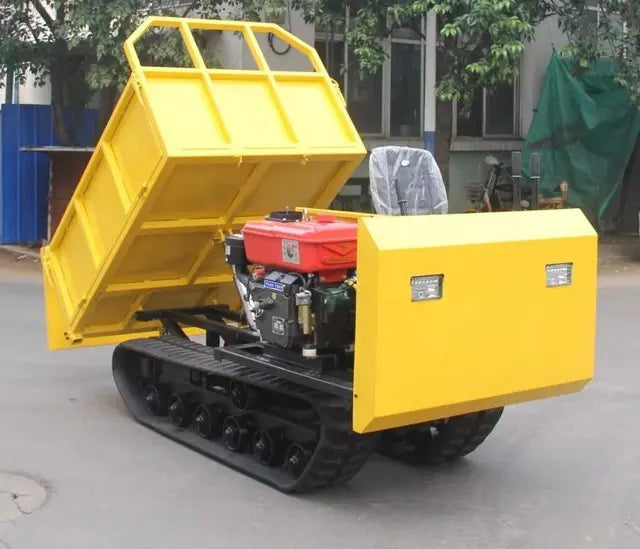

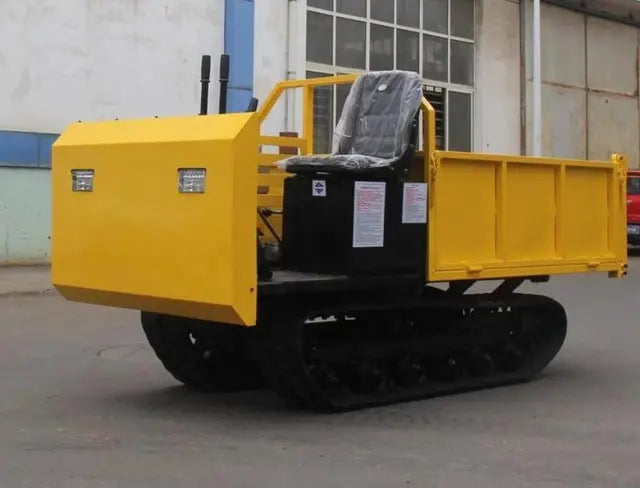

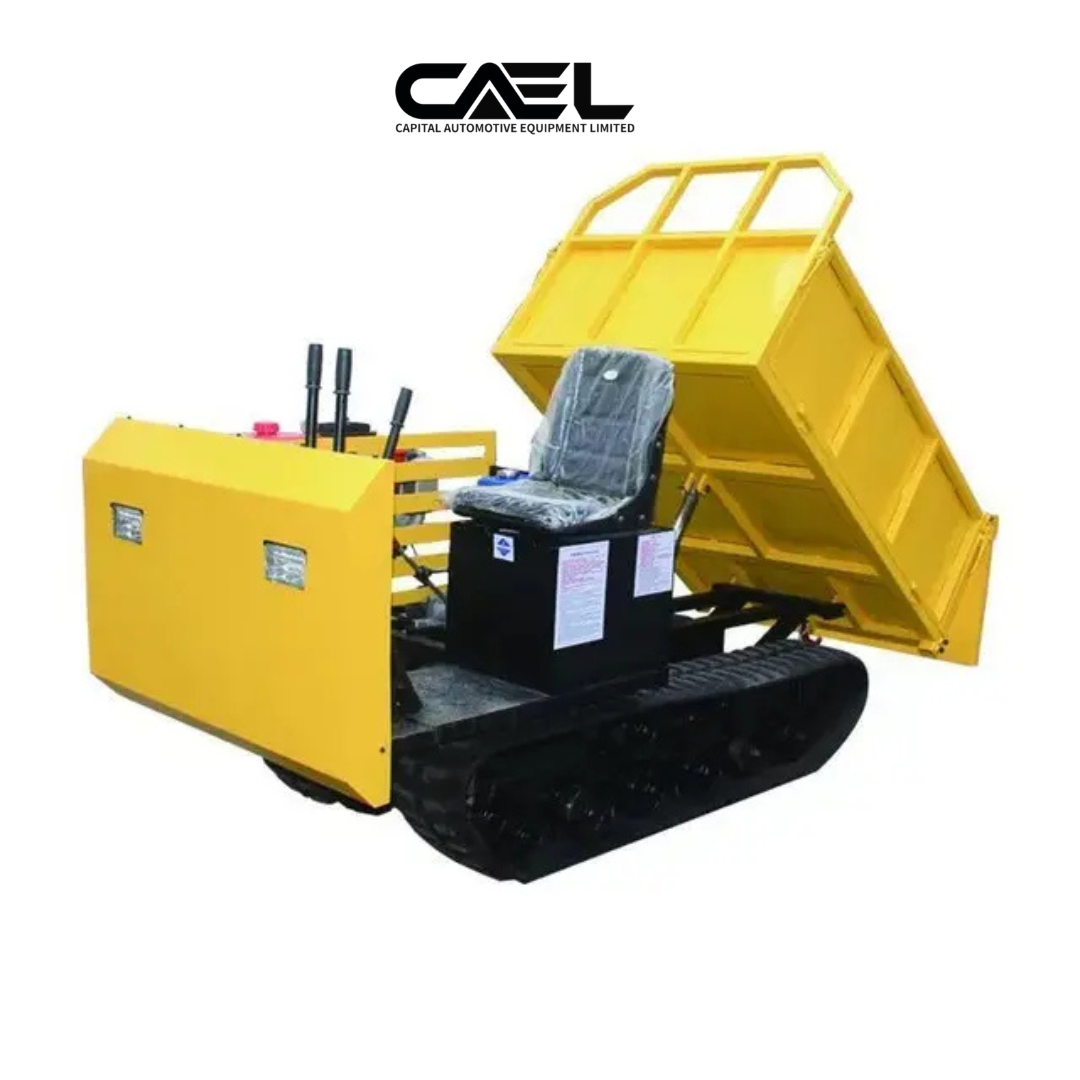

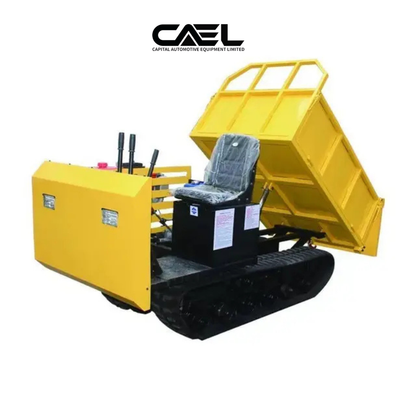

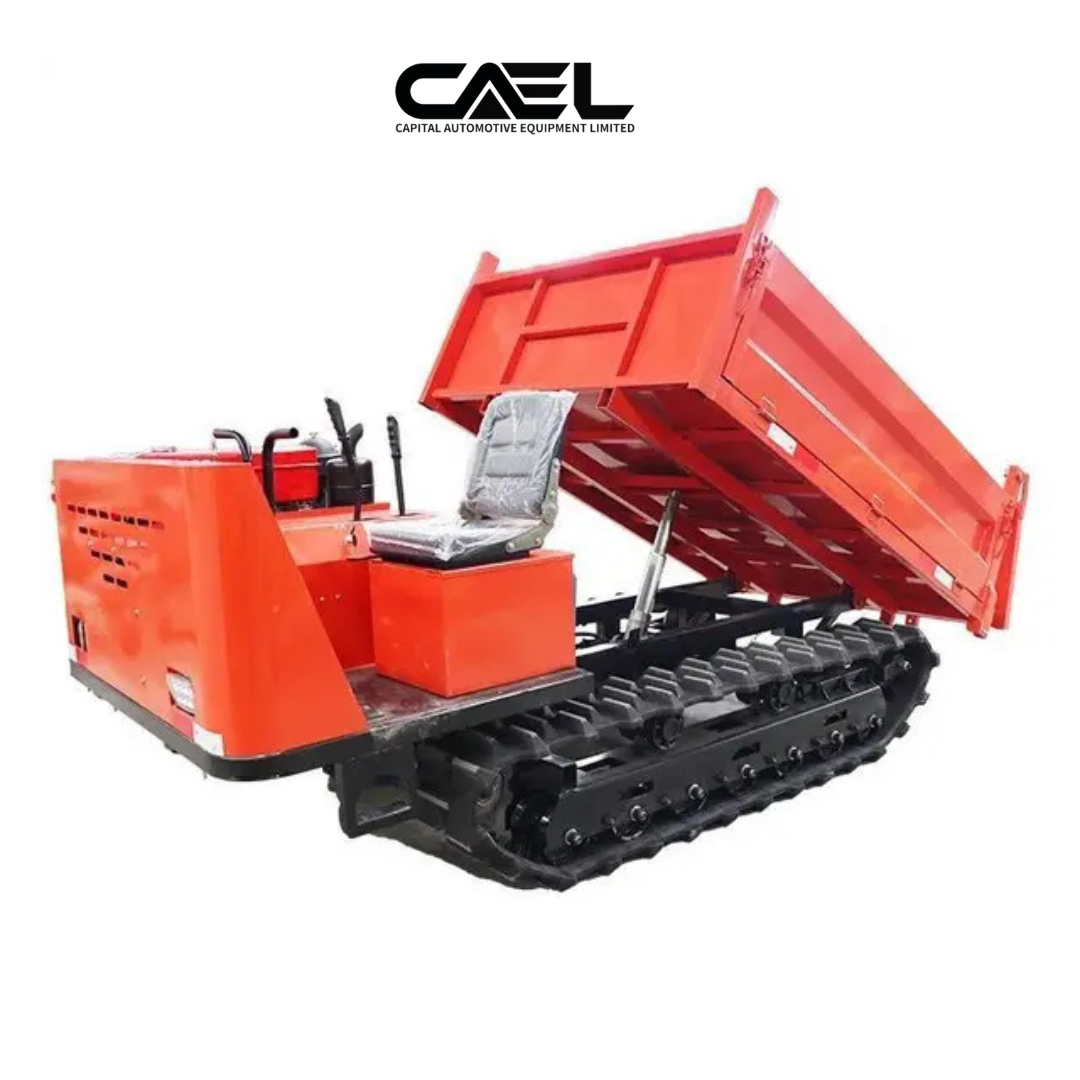

CAEL 4T Mini Dumper – Cummins Diesel Engine
Extreme Duty • High Capacity • All-Terrain Material Transport Machine
The CAEL 4T Mini Dumper is a serious heavy-duty hauling solution engineered for construction sites, mining work, farms, forestry, industrial yards, infrastructure projects, and rough terrain operations.
Powered by a robust 50HP Cummins Diesel Engine, this machine is built to move massive loads through steep slopes, mud, rough ground, and challenging jobsite conditions.
With hydraulic self-unloading, crawler tracks, CVT transmission, and nearly 10,000 lbs payload capacity, the CAEL 4T Mini Dumper is designed for maximum productivity.
Key Features & Benefits
Powerful Cummins Diesel Engine
- 50HP Cummins Diesel Engine
- Reliable torque-rich performance for heavy-duty hauling
Massive Payload Capacity
- Maximum ground load: 4500 kg / 9920 lbs
Strong Slope Performance
- Maximum slope load: 3600 kg / 7936 lbs
Hydraulic Self-Unloading
- Fast dump body operation
- One-way manual valve system
- Independent oil pump
Heavy-Duty Crawler Tracks
- Engineering tracks for mud, slopes, loose soil, and rough ground
High / Low Speed Gear Selection
- Better torque for climbs
- Faster travel when unloaded
Left / Right Commutation Control
- Easy maneuvering in tight jobsites
Strong Roller Frame Structure
- Rugged chassis for long-term commercial use
Obstacle Crossing Ability
- Climbs over 20 cm vertical obstacles
Water Crossing Ability
- Wading depth up to 45 cm
Technical Specifications
Engine
| Feature | Details |
|---|---|
| Engine Type | Cummins Diesel |
| Horsepower | 50 HP |
| Start Method | Electric Start |
Capacity & Performance
| Feature | Details |
|---|---|
| Body Weight | 1680 kg / 3700 lbs |
| Max Ground Load | 4500 kg / 9920 lbs |
| Max Slope Load | 3600 kg / 7936 lbs |
| Top Speed | 4.5 km/h |
| Minimum Speed | 2.5 km/h |
Transmission
| Feature | Details |
|---|---|
| Gearbox | GL-90 CVT |
| Gear Modes | High / Low Speed |
| Steering | Left / Right Commutation |
Dumping System
- Hydraulic self-unloading
- One-way manual valve
- Independent oil pump
Track System
| Feature | Details |
|---|---|
| Track Model | 320 × 90 × 56 |
| Type | Engineering Track |
| Ground Contact Length | 1850 mm / 72.8 in |
Dimensions
Cargo Body Size
-
2300 × 1600 × 600 mm
(90.5 × 63 × 23 in)
Overall Vehicle Size
- 3600 × 1620 × 1650 mm
- 1900 mm height incl. exhaust
(141.7 × 63.7 × 64.9 in)
Terrain Capability
✔ 40° obstacle climbing ability
✔ Crosses 20 cm vertical obstacles
✔ Wading depth 45 cm
✔ Mud / gravel / rough terrain ready
Ideal Applications
✔ Construction hauling
✔ Mining operations
✔ Forestry work
✔ Agriculture & farms
✔ Large landscaping jobs
✔ Roadwork projects
✔ Industrial material transport
Why Choose CAEL 4T Mini Dumper?
The CAEL 4T Mini Dumper combines diesel power, extreme payload capacity, crawler traction, and hydraulic dumping performance to handle the toughest jobs efficiently.
Perfect for professionals needing serious hauling capability where trucks cannot go.
Core Advantages
✔ Cummins 50HP diesel engine
✔ 9920 lb payload
✔ Hydraulic self dump
✔ Engineering crawler tracks
✔ CVT transmission
✔ Climbs rough terrain
✔ Commercial heavy-duty ready
Request a Quote
Contact us today for pricing, stock availability, shipping options, and more dumpers & construction equipment tailored to your operation.
