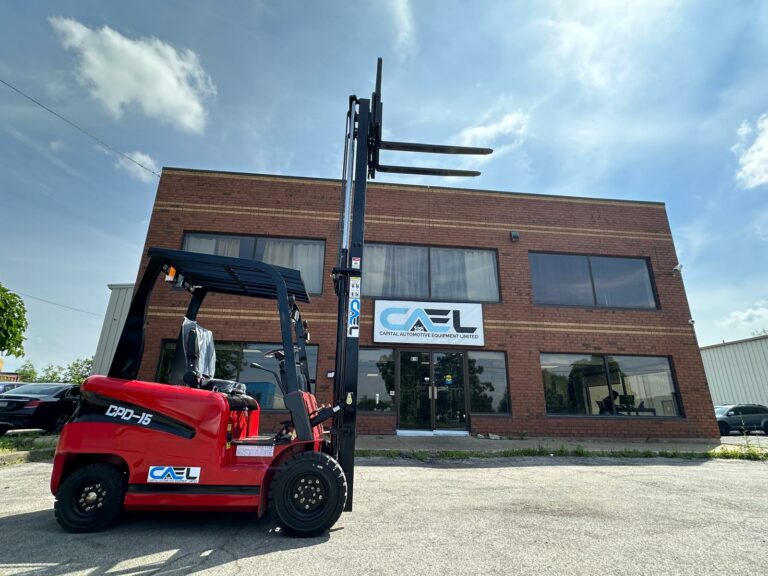

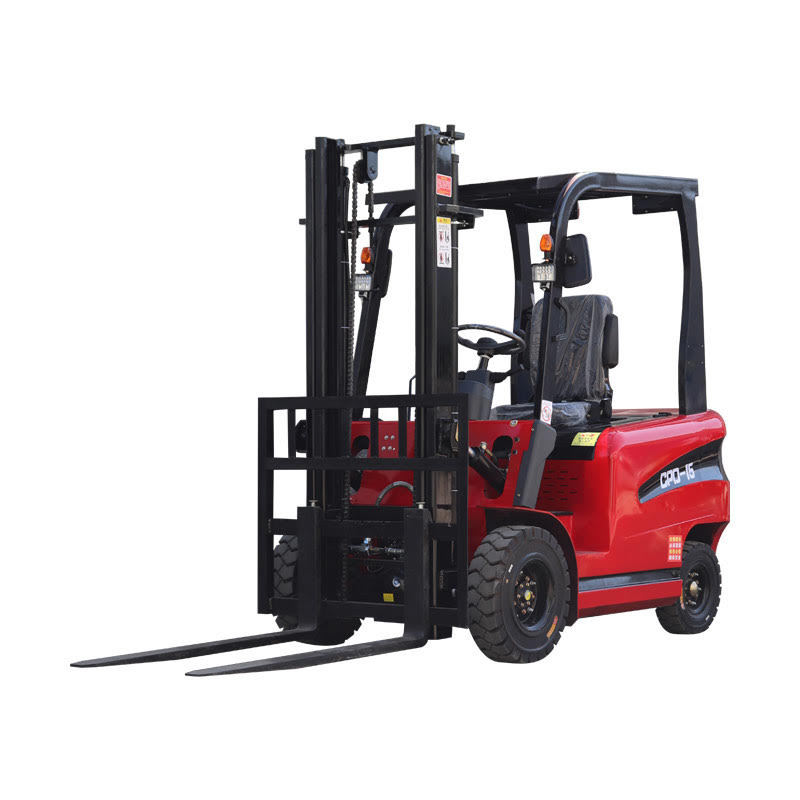

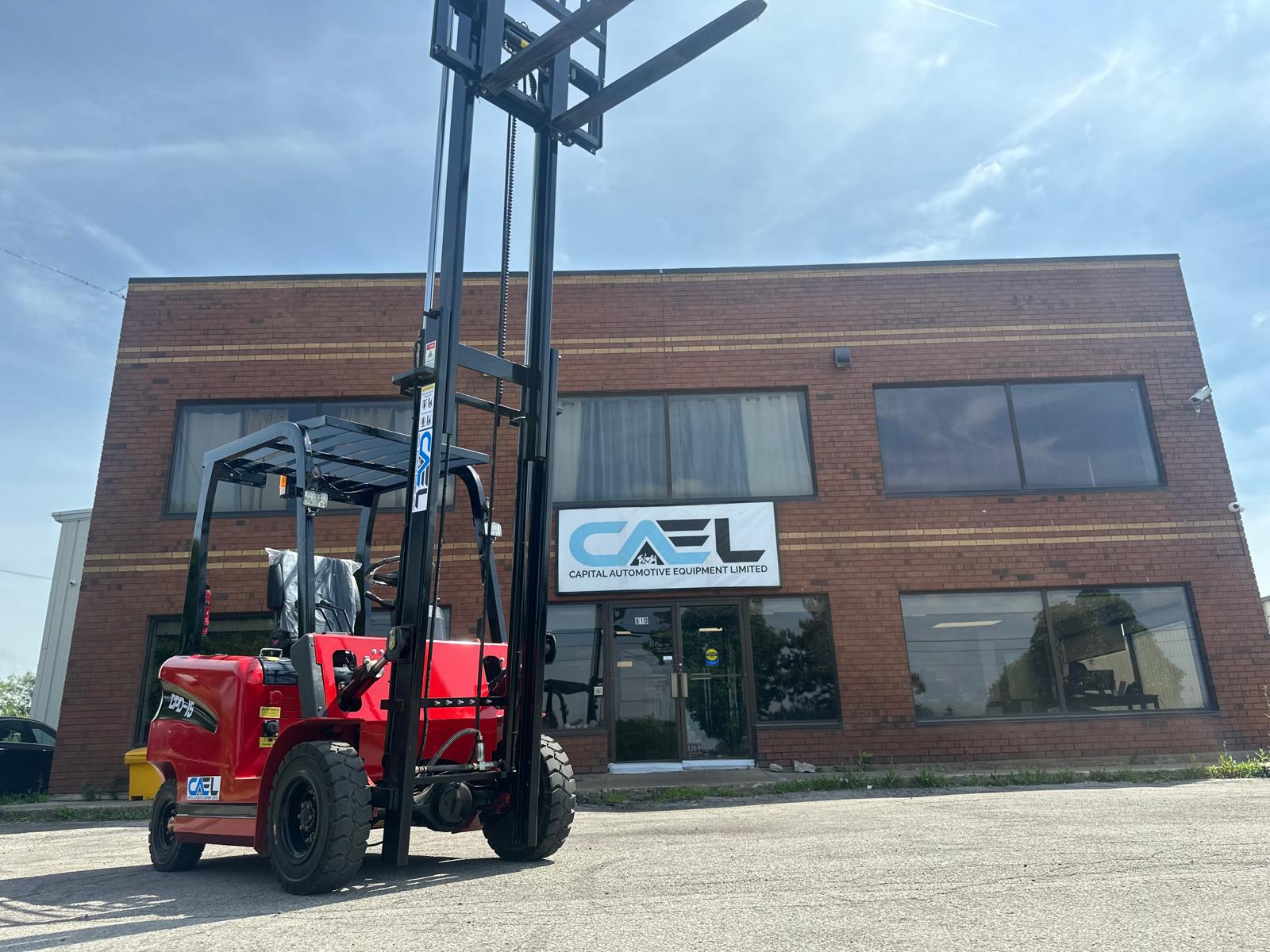

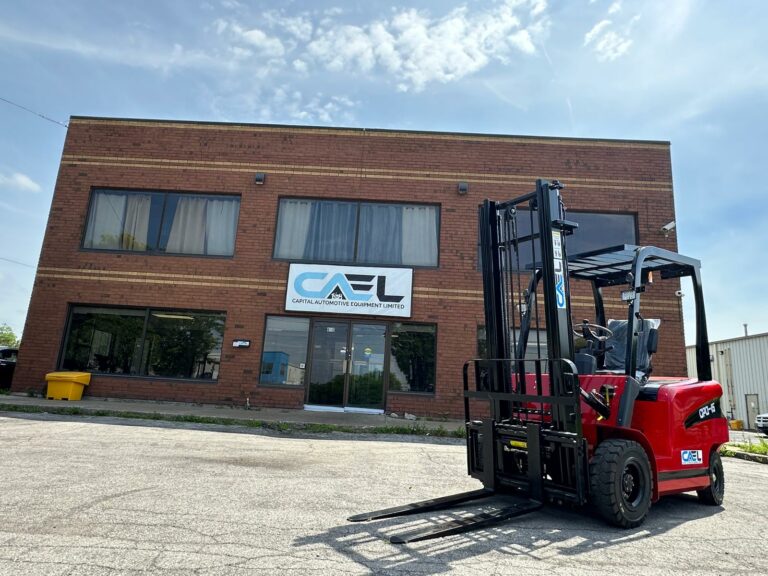

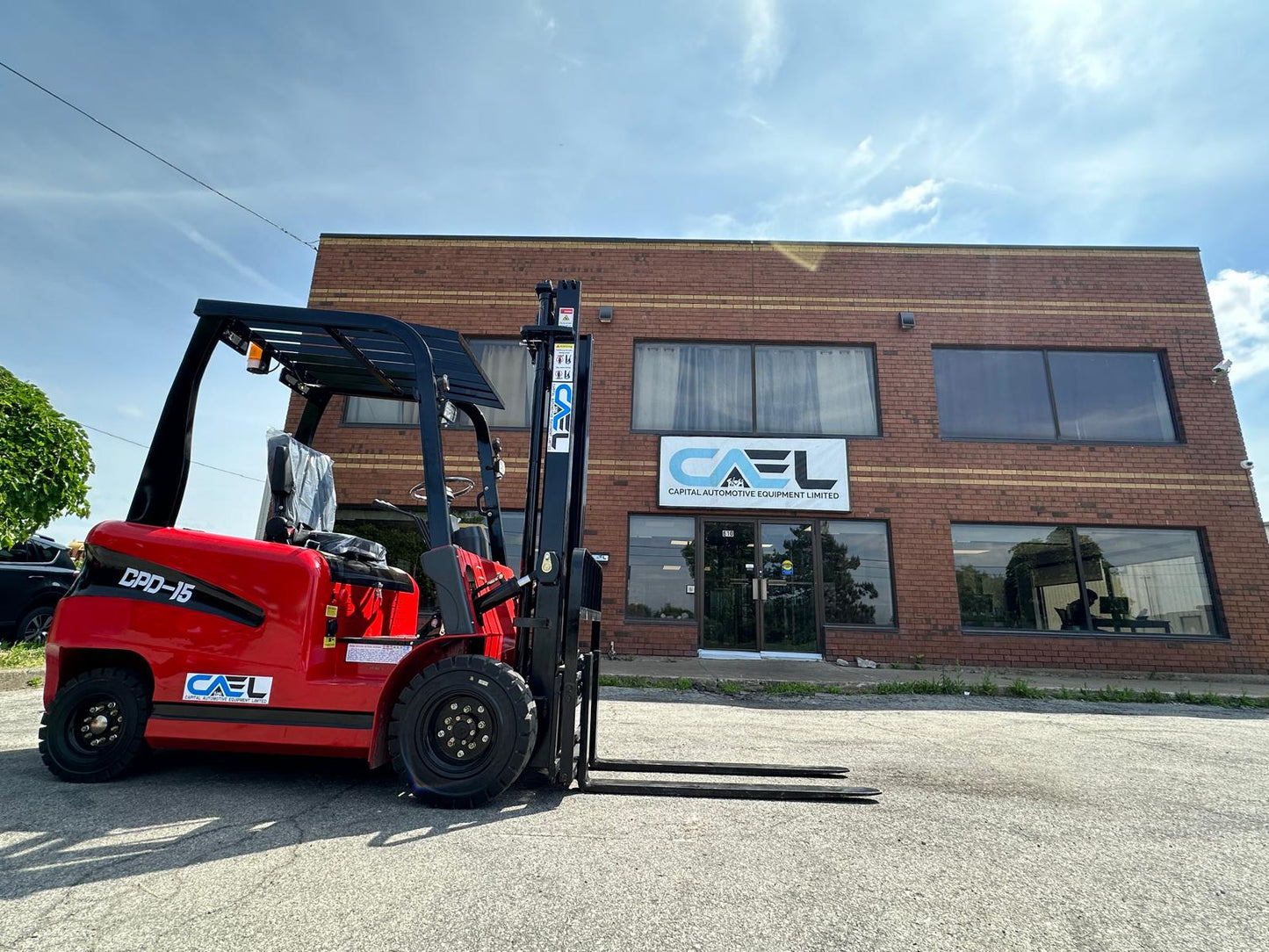

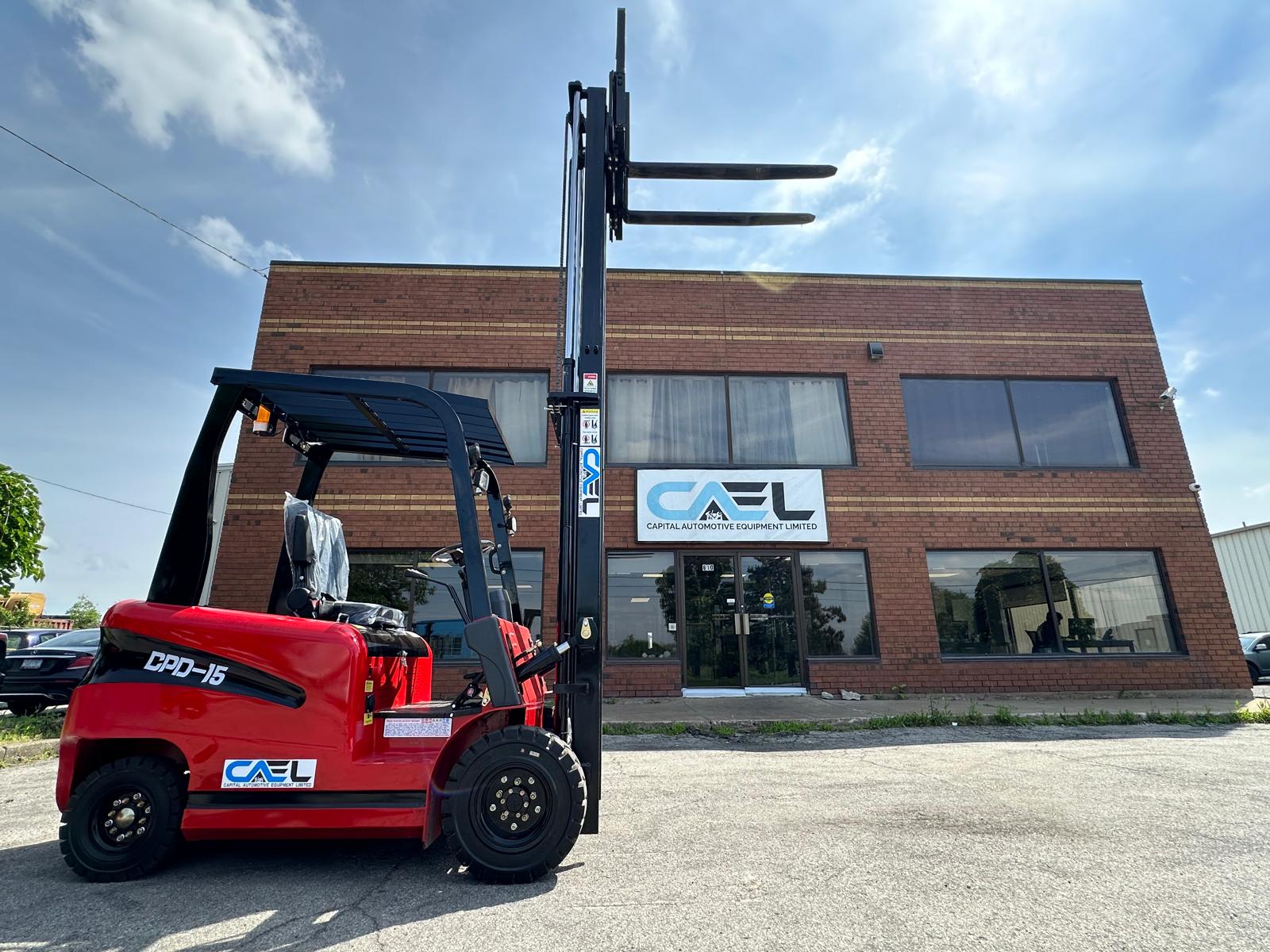

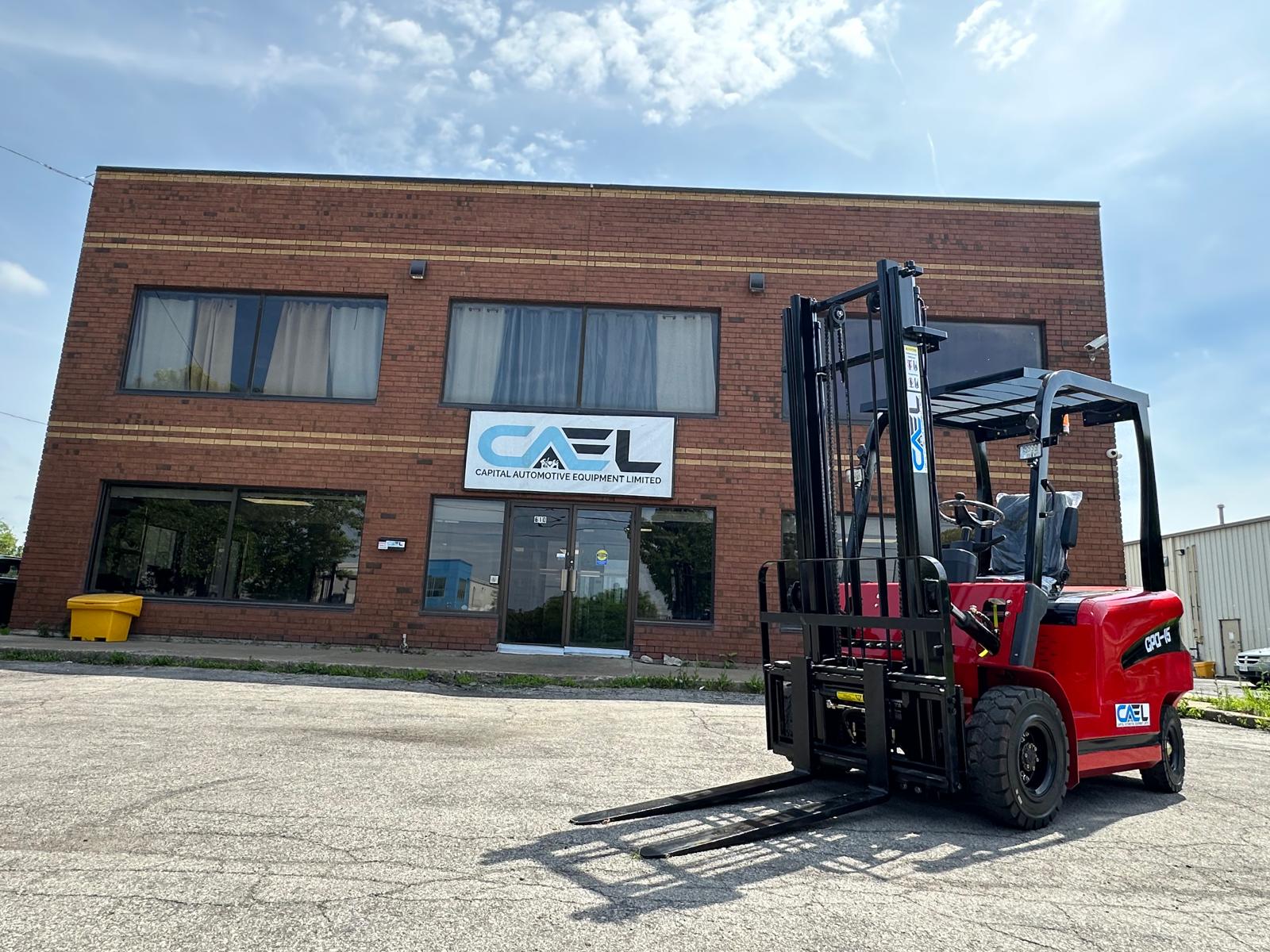

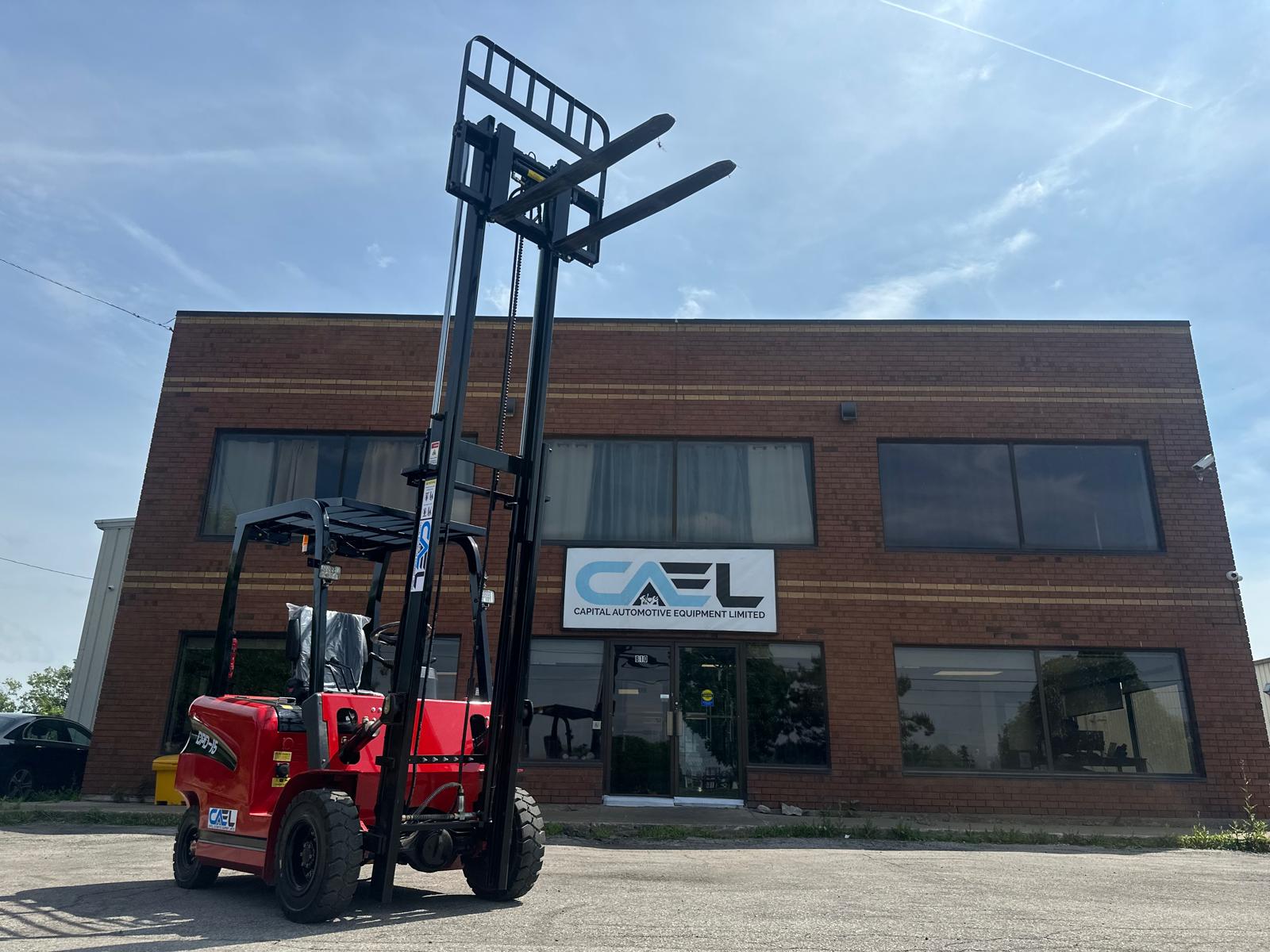

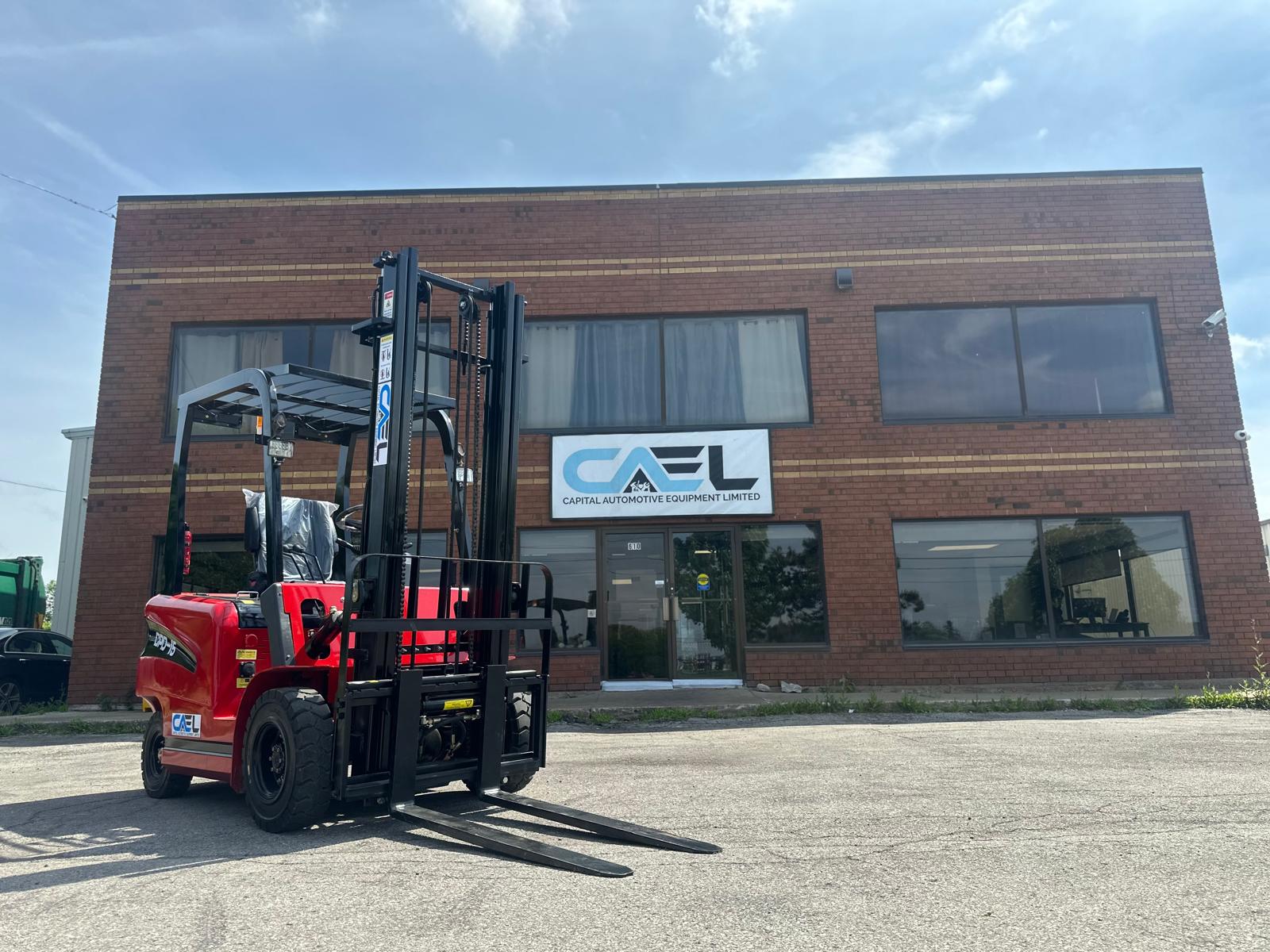

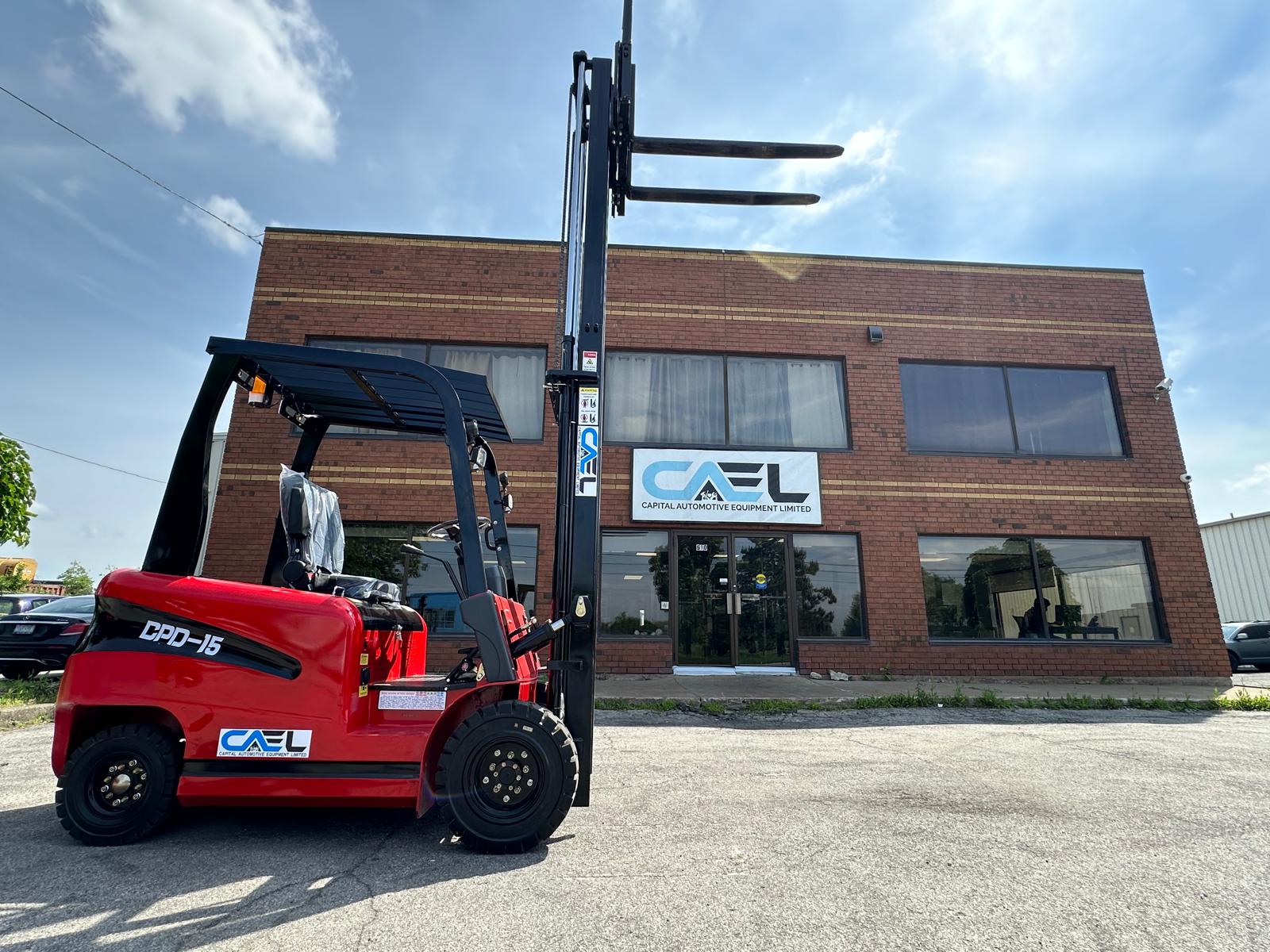

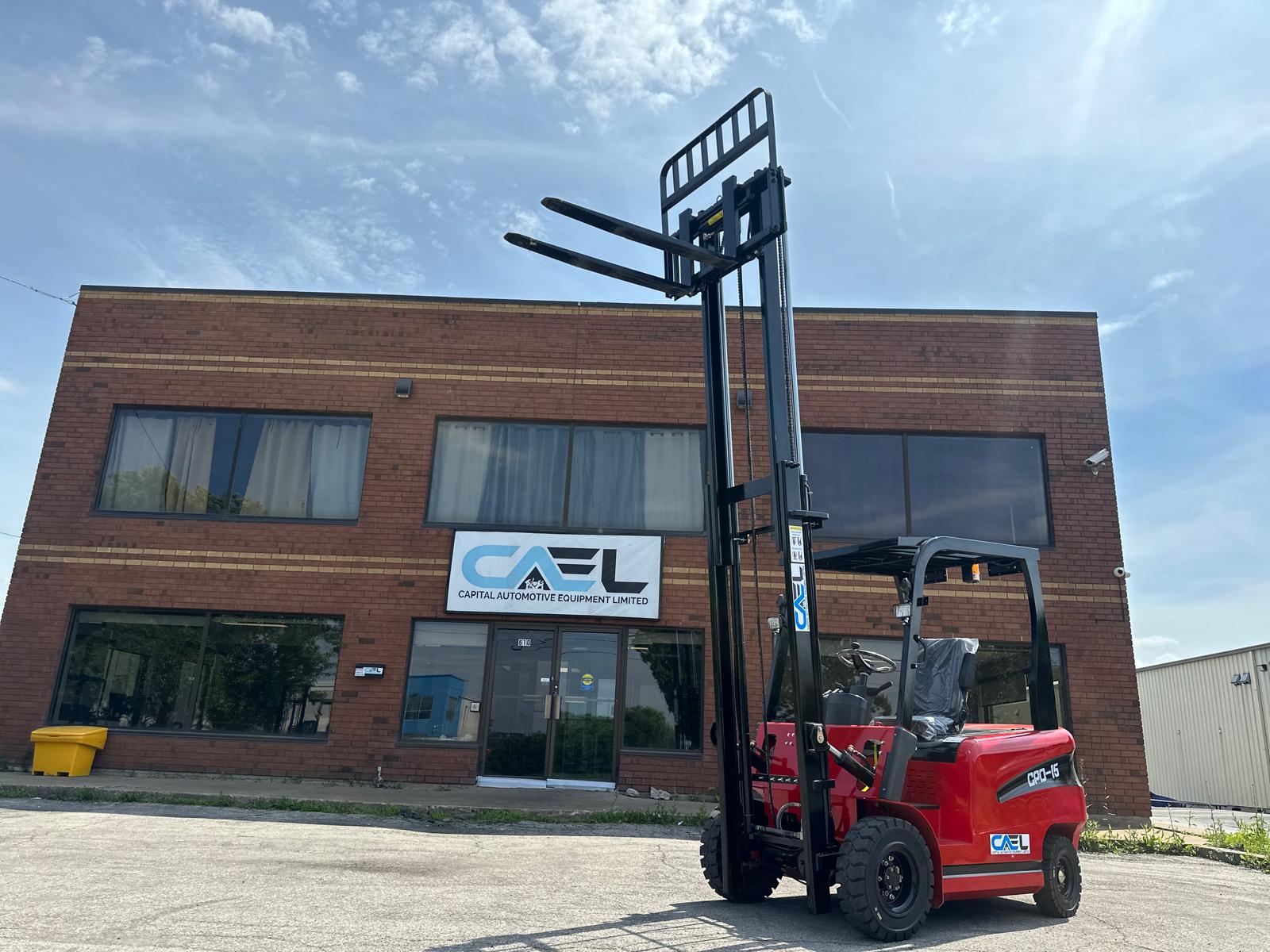

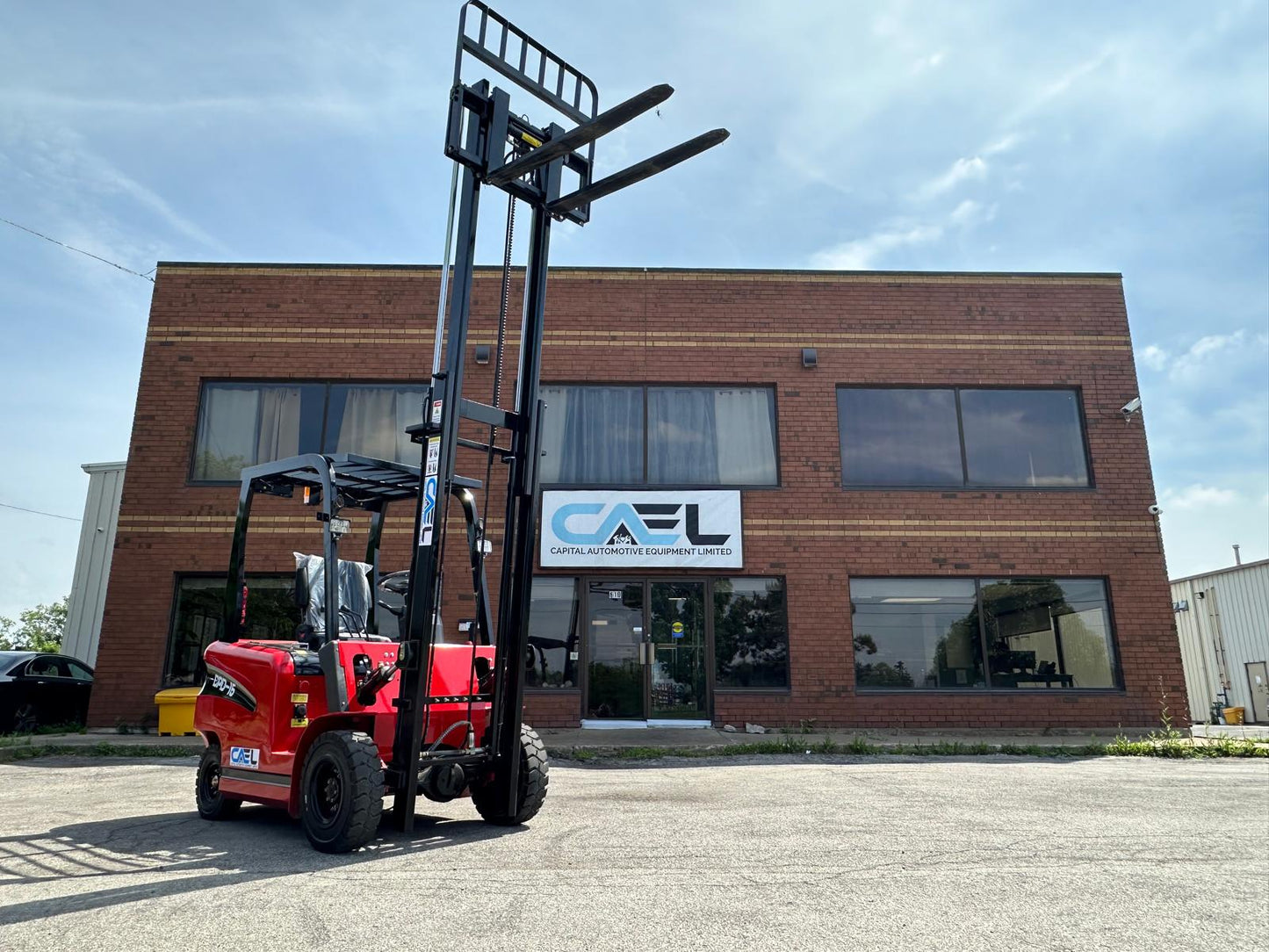

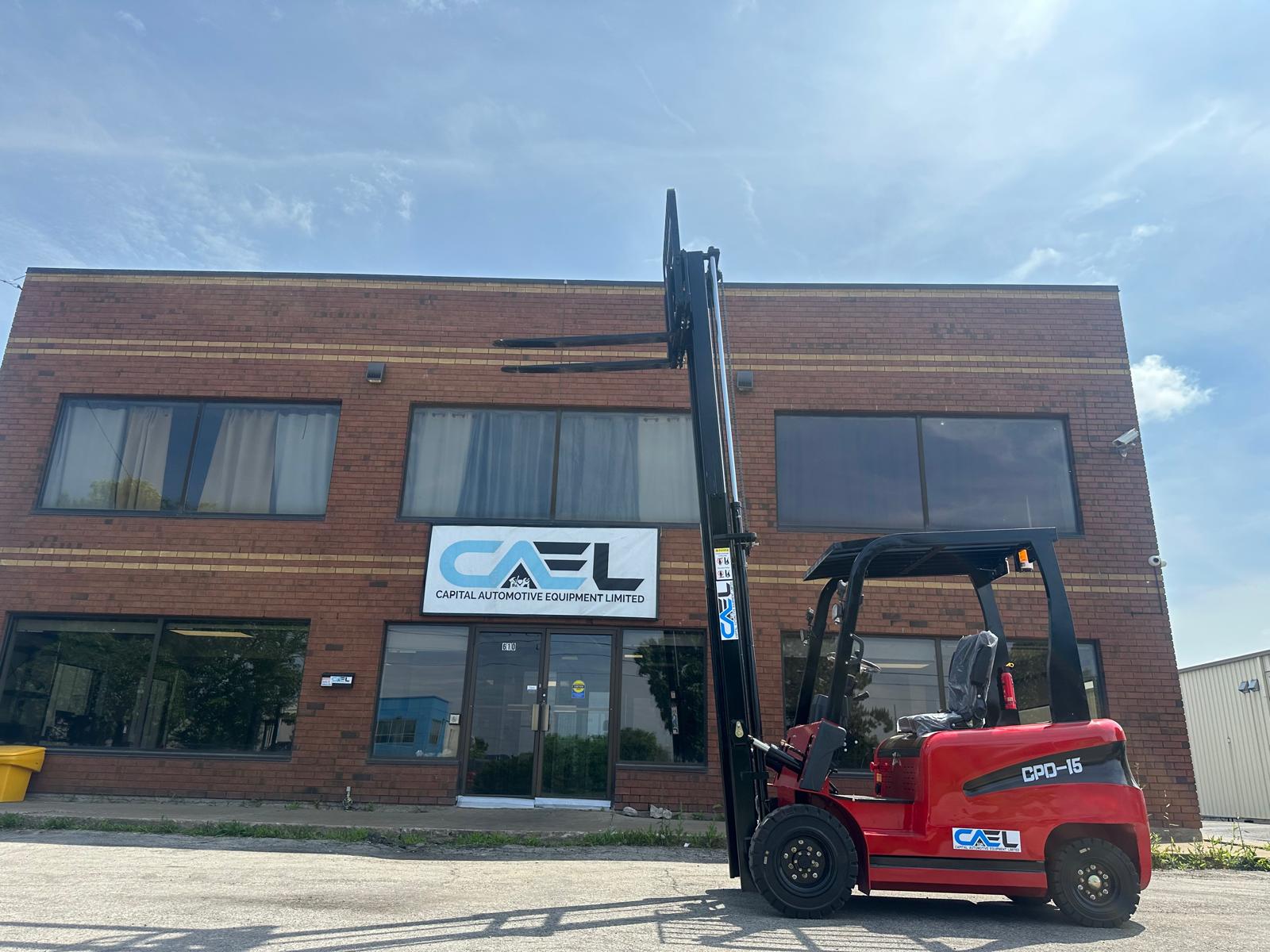

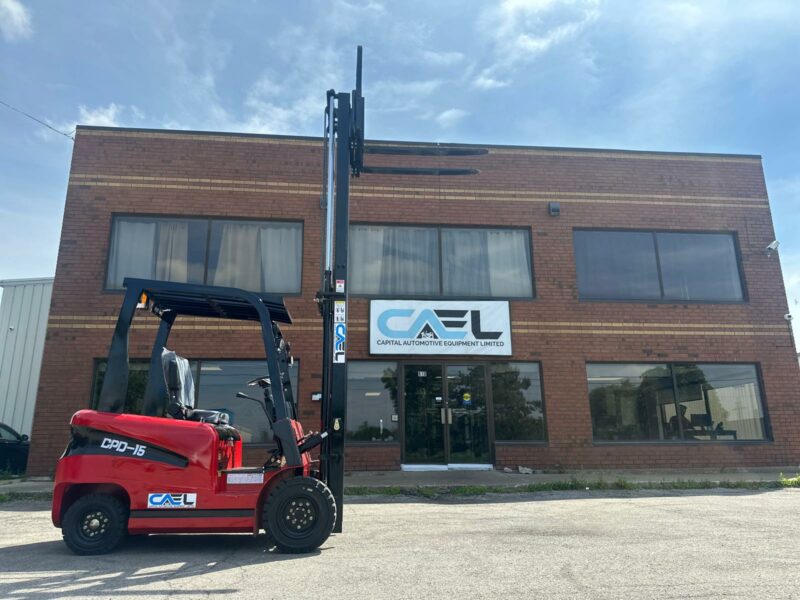

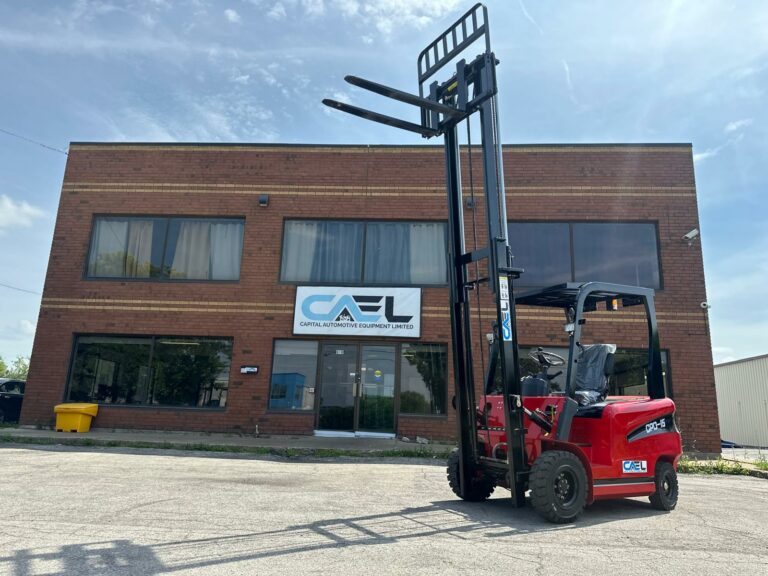

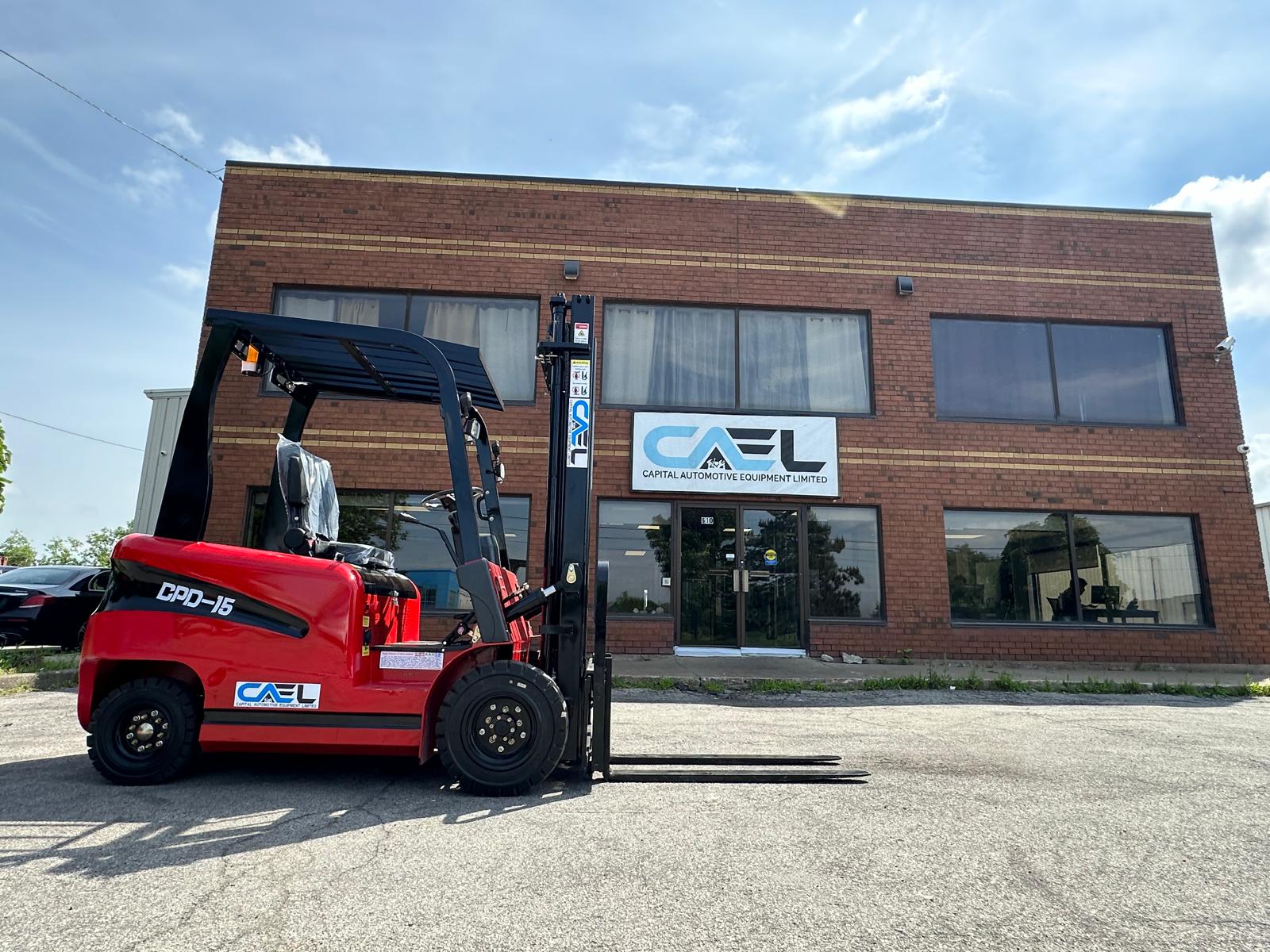

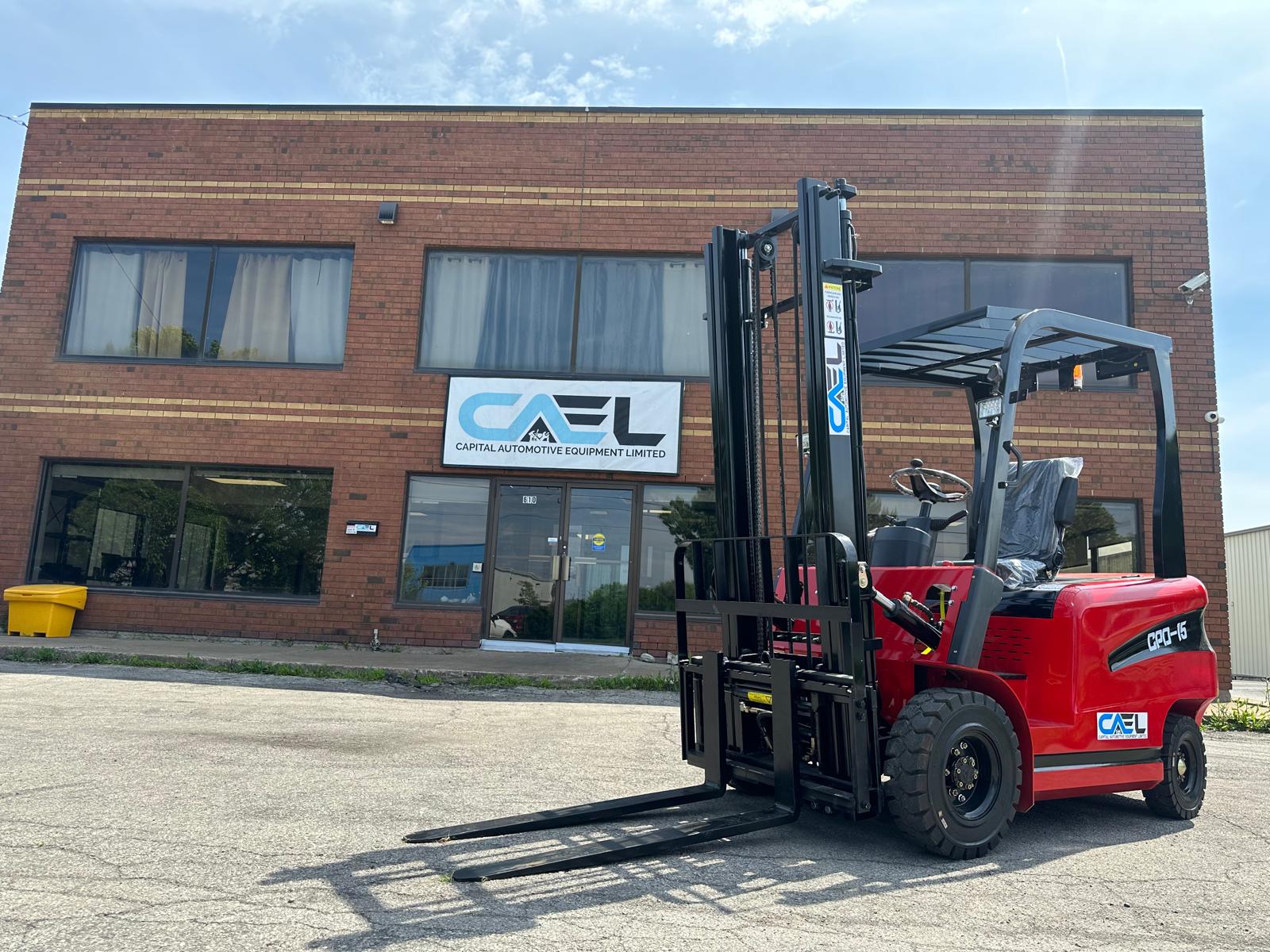

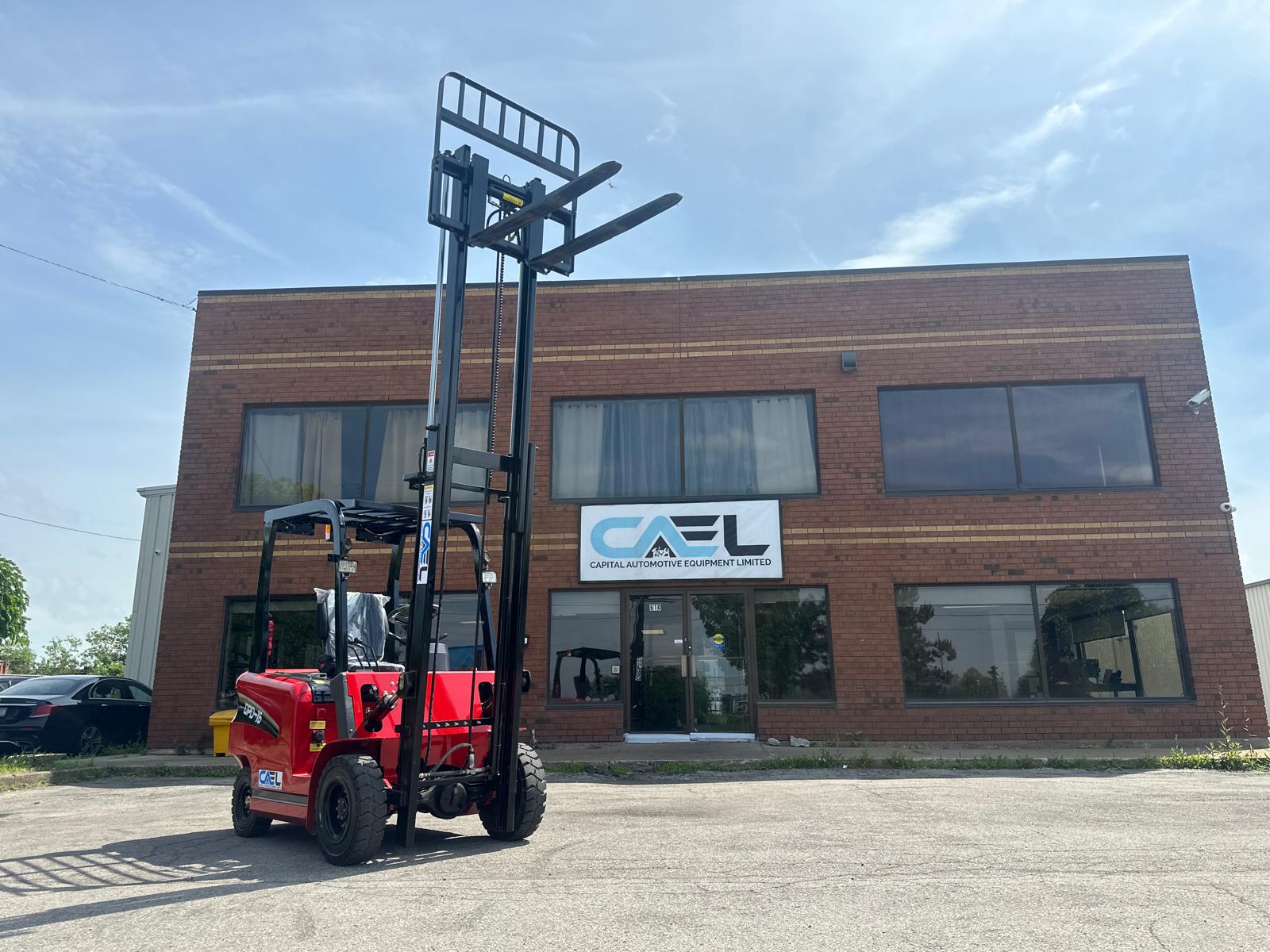

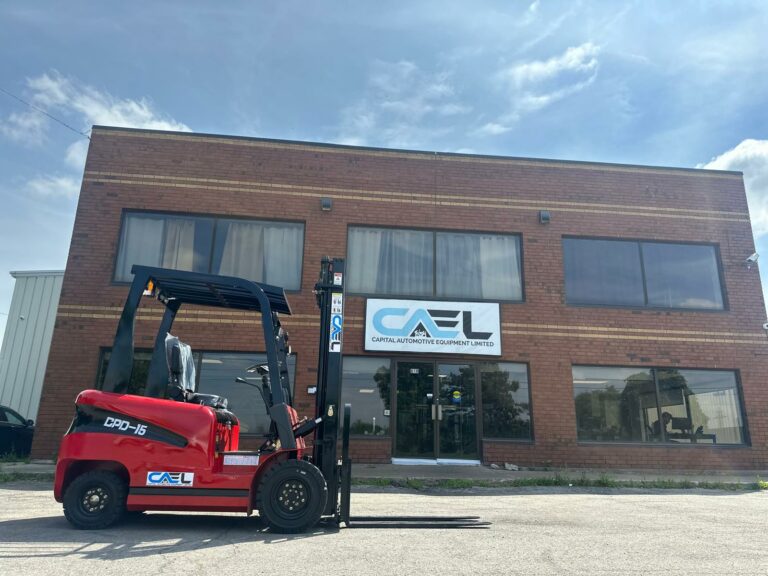

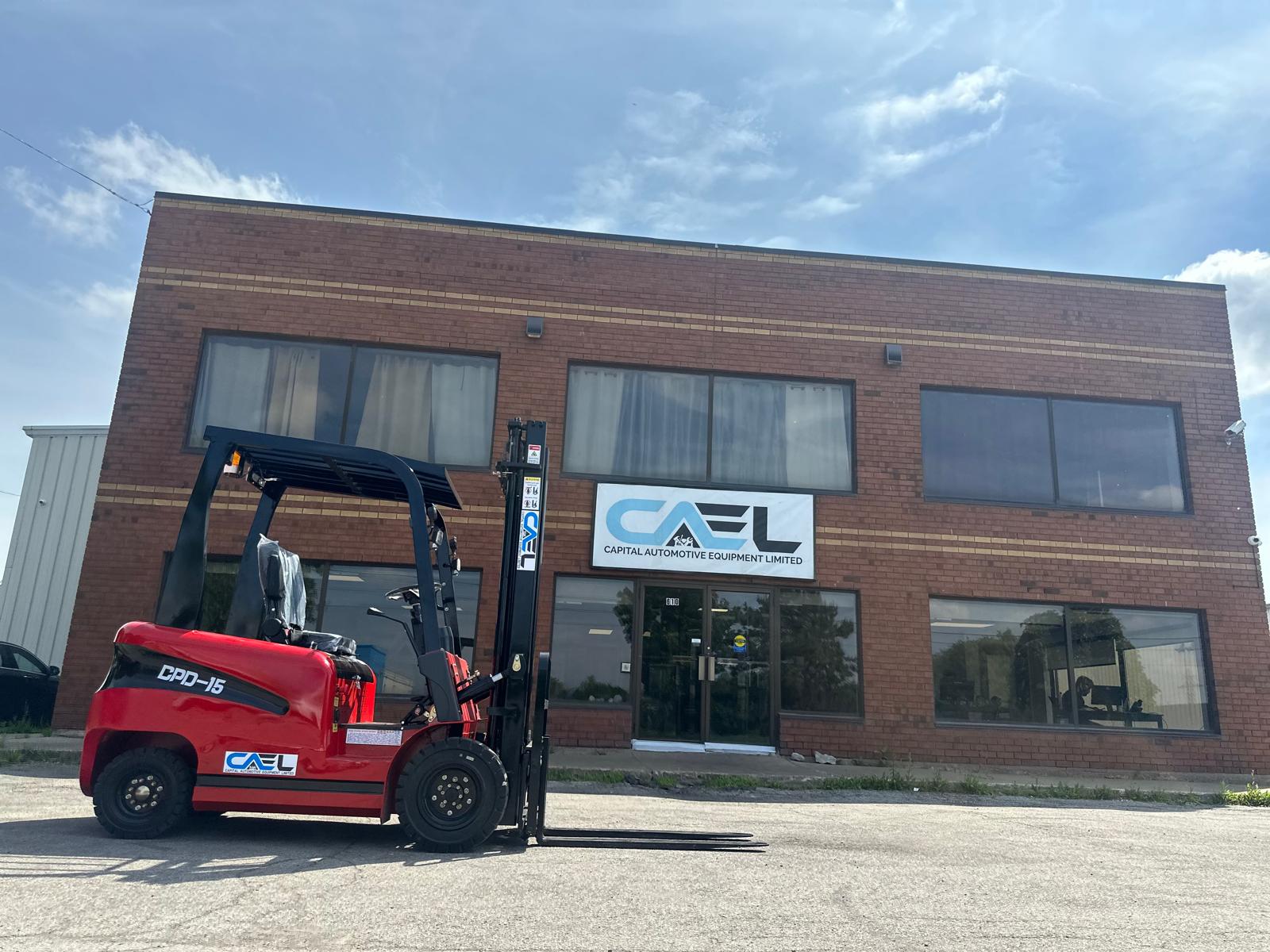

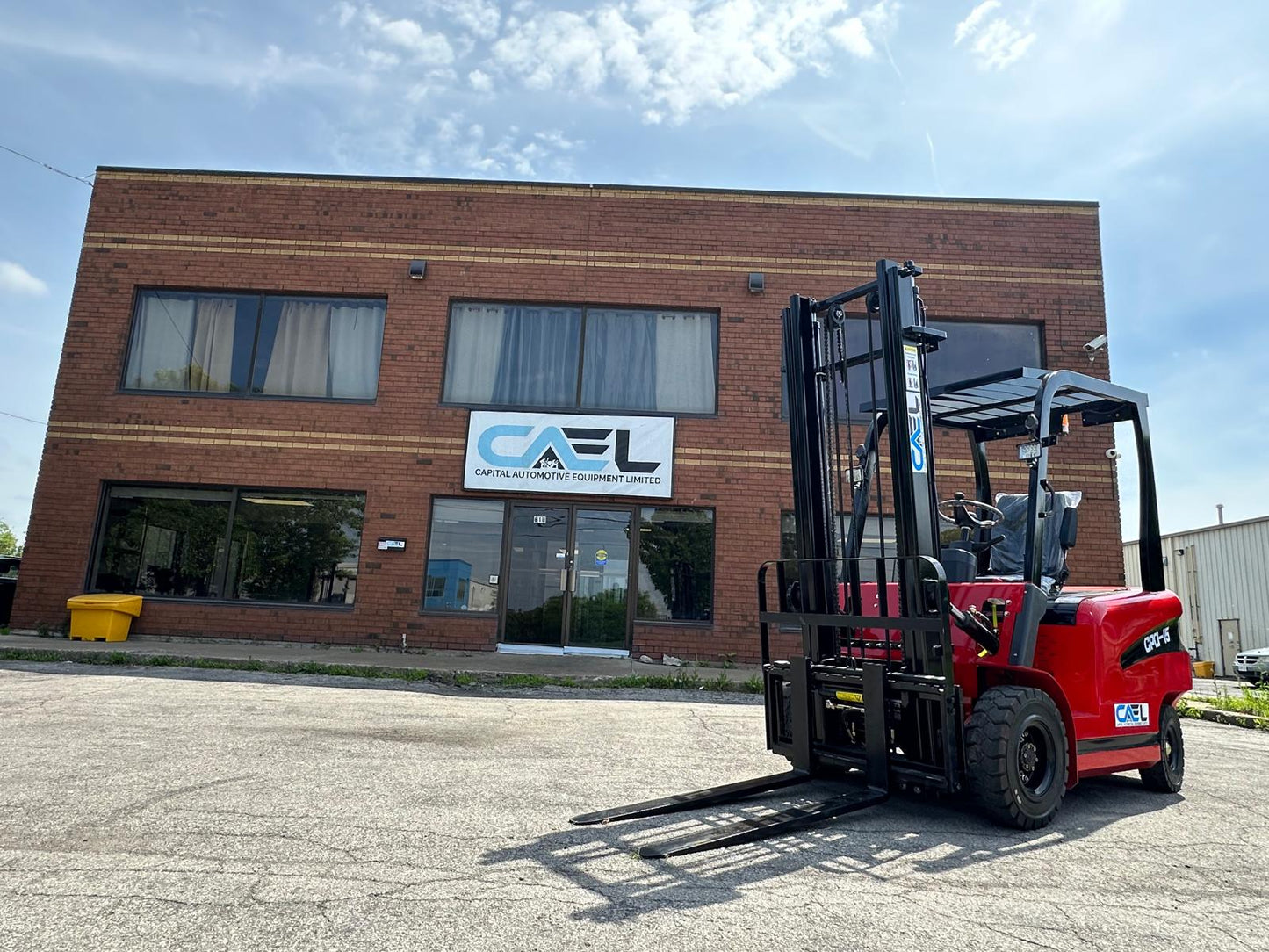

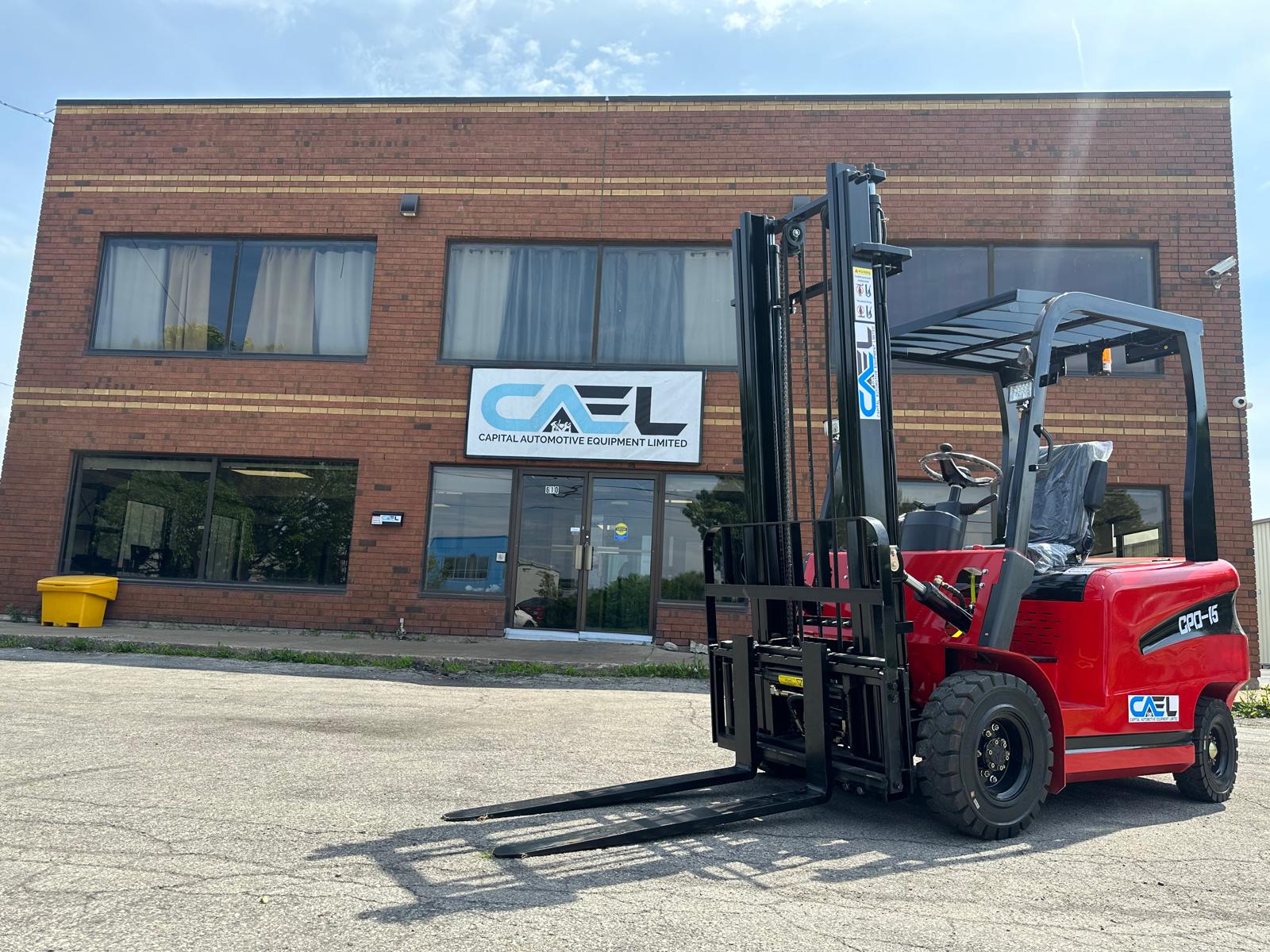

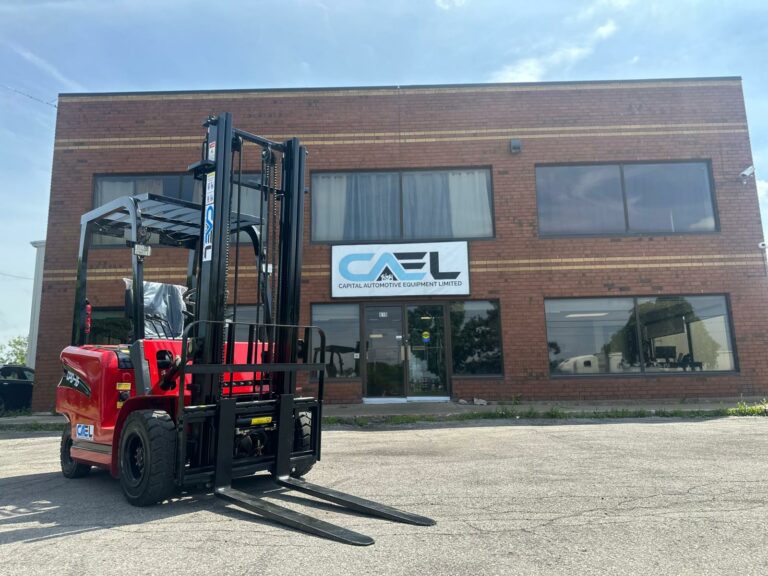

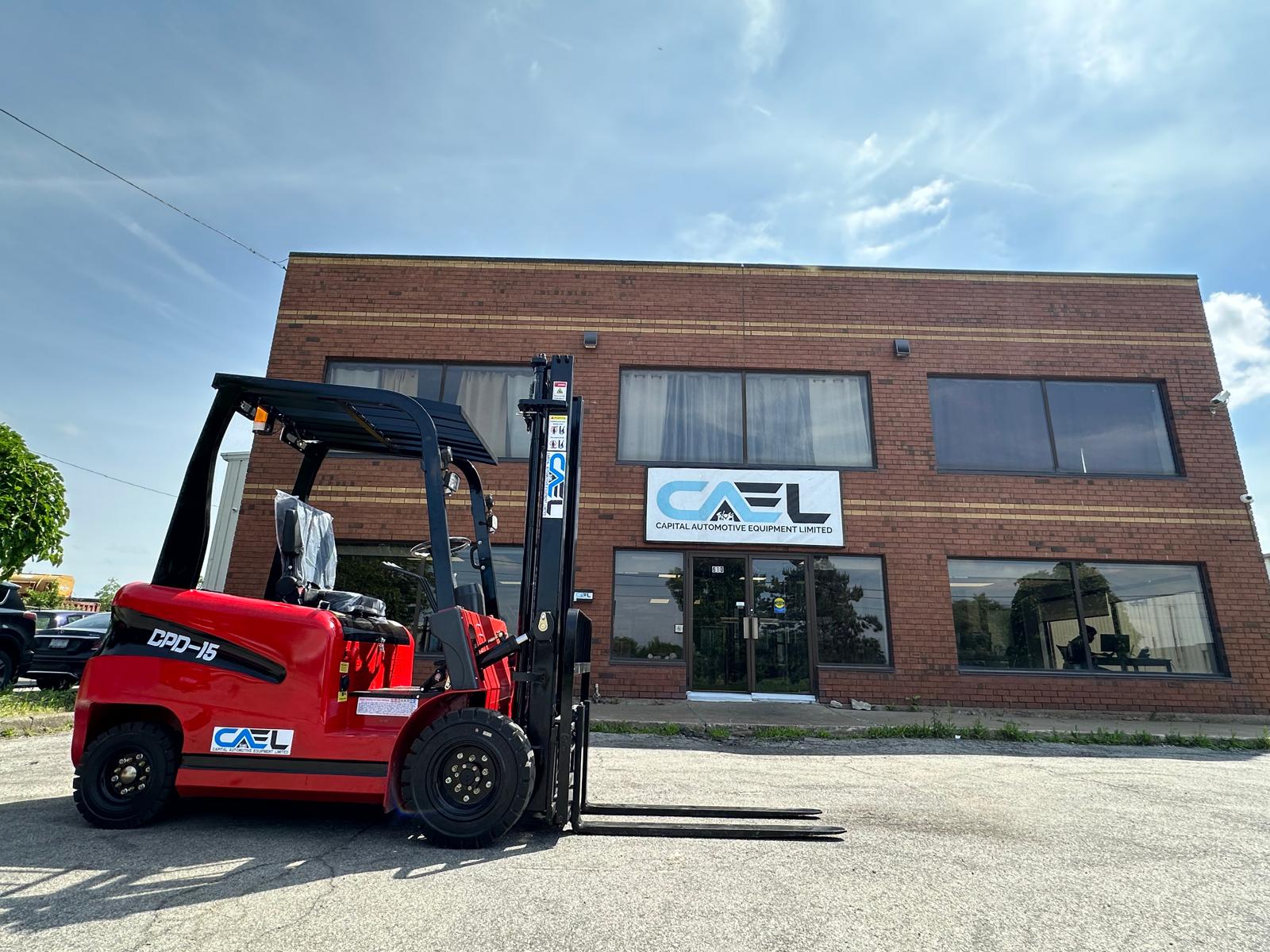

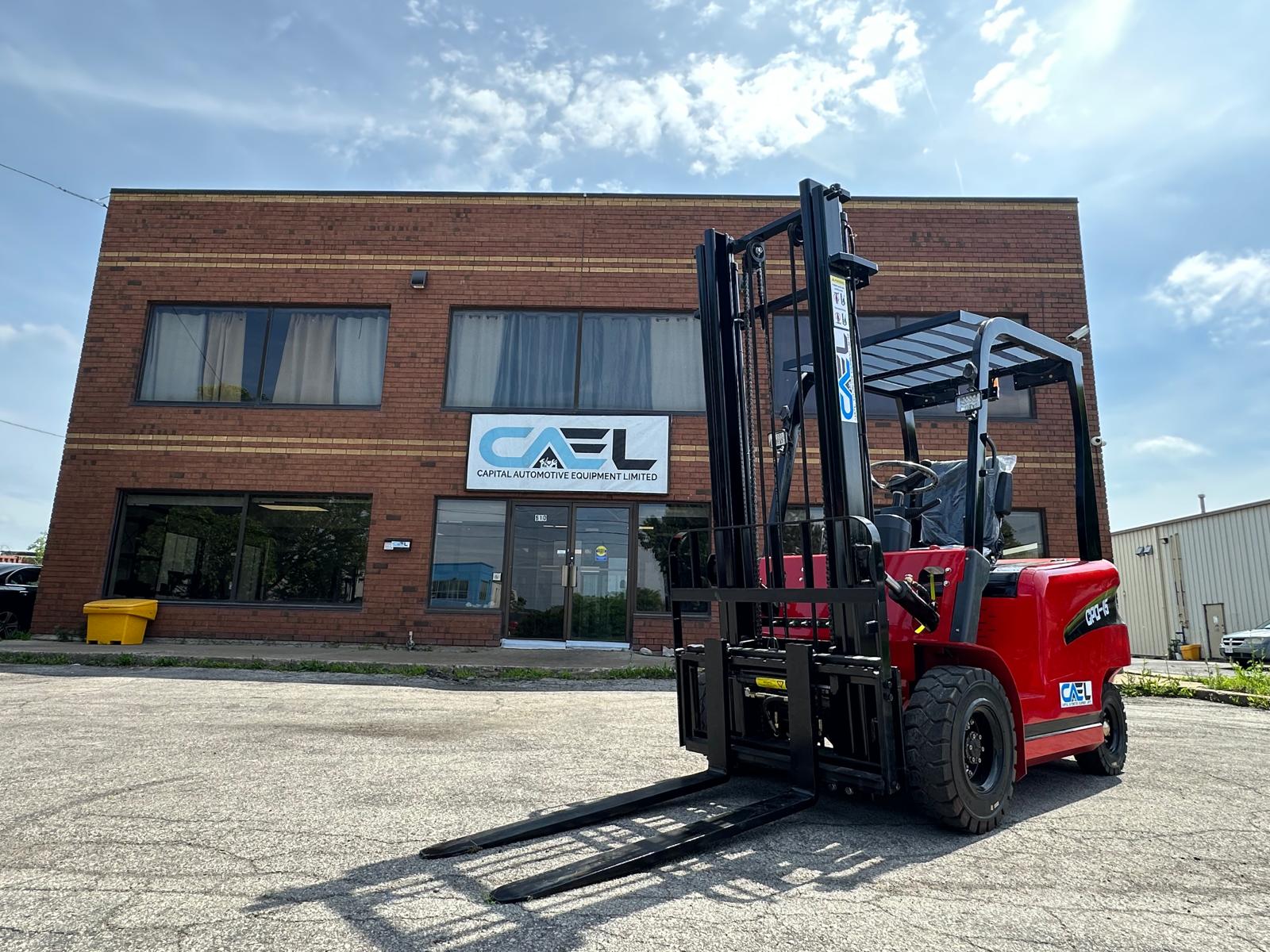

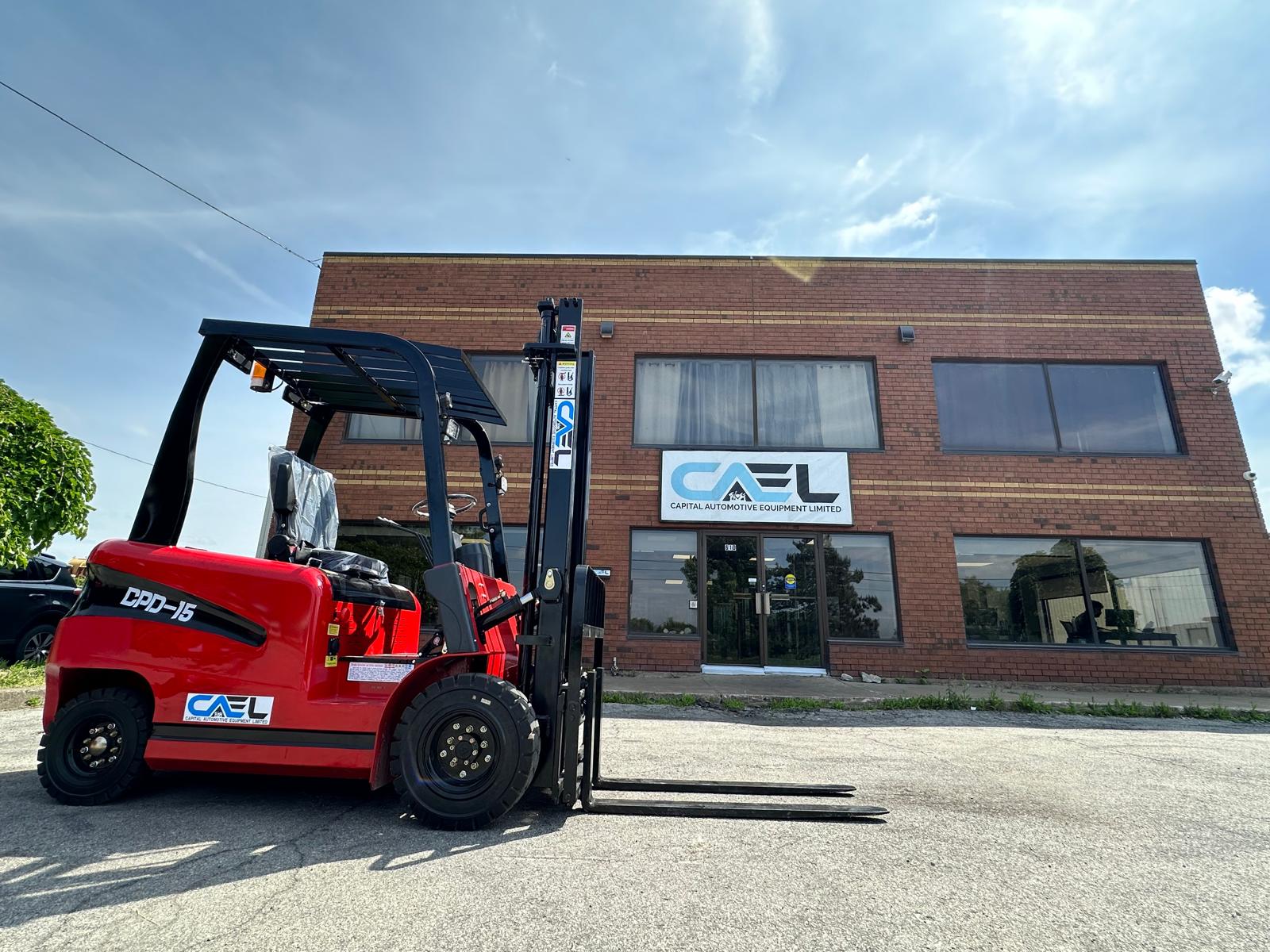

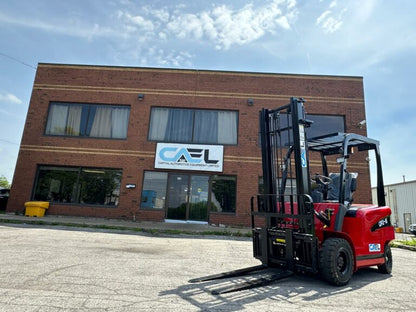

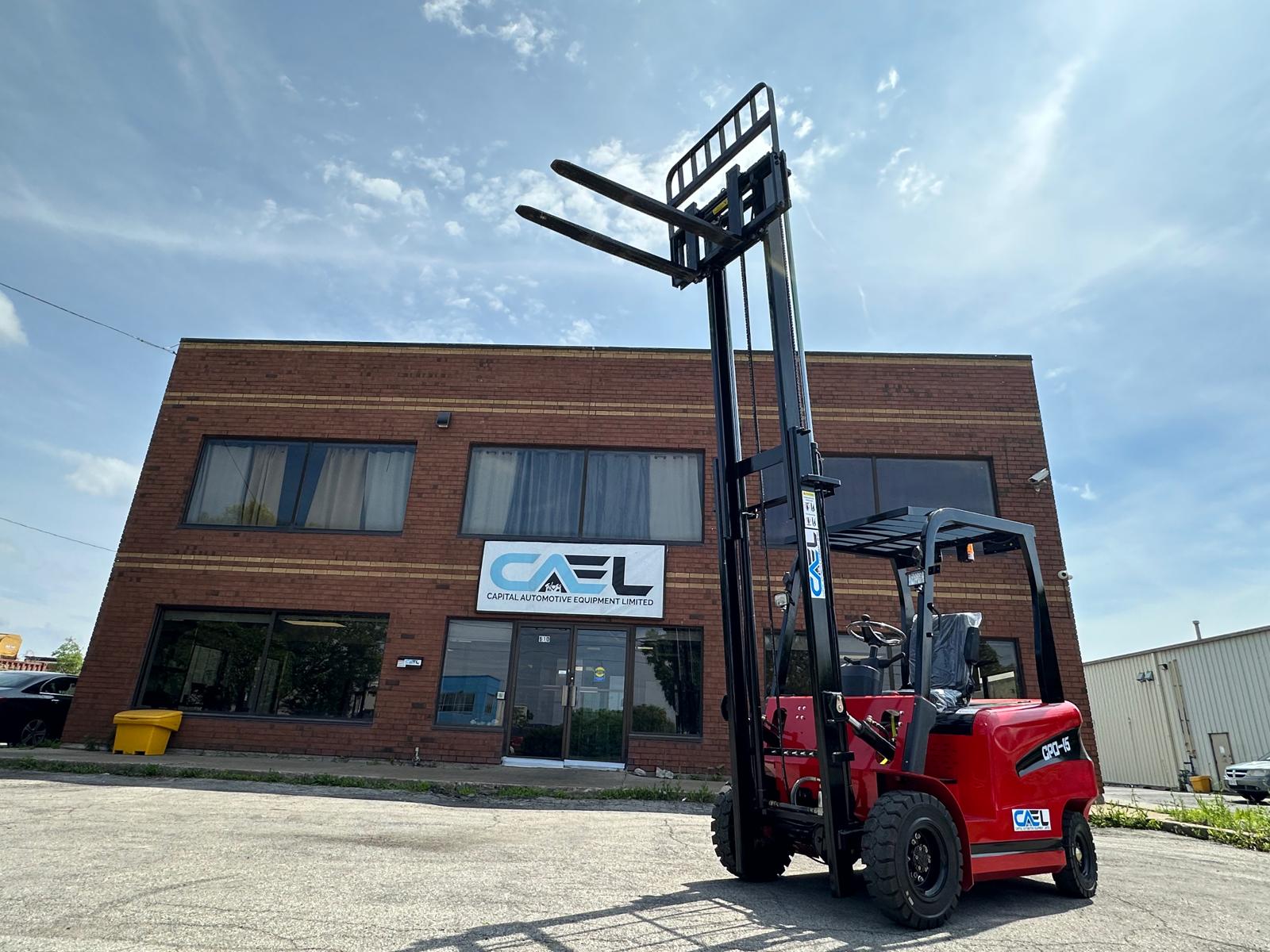

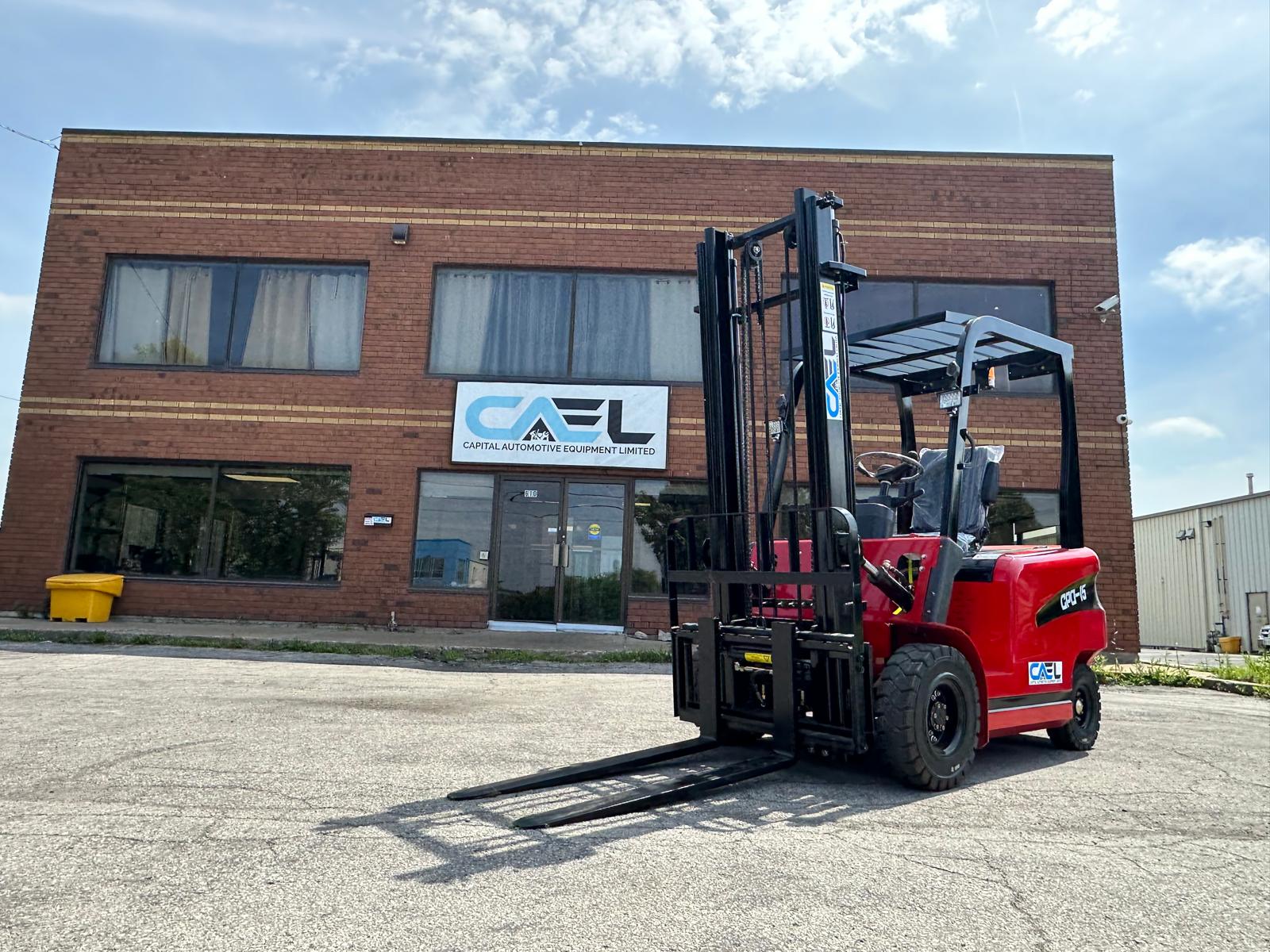

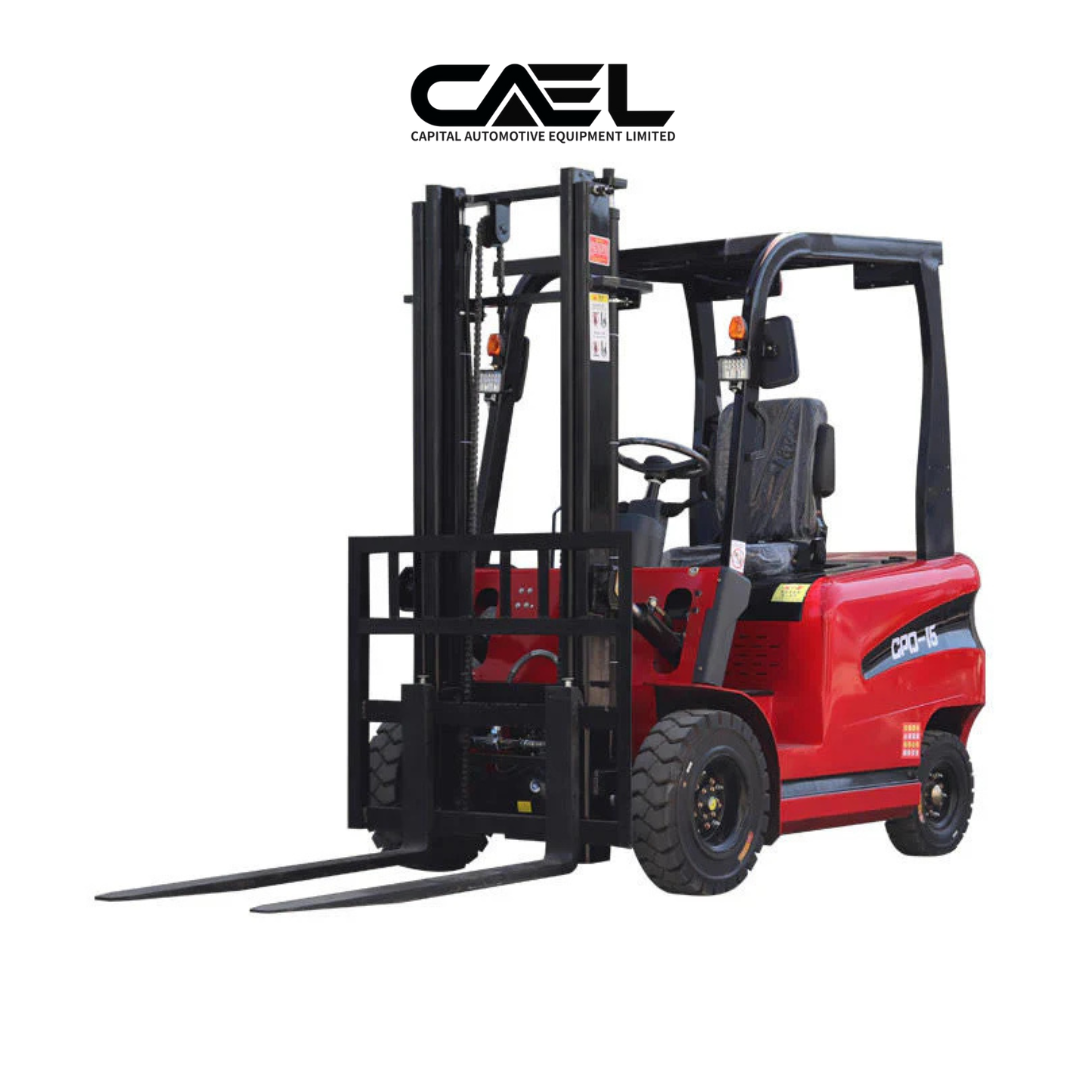

The 1.5 Ton Electric Forklift is a highly efficient and environmentally friendly material handling solution designed for precision and performance in confined spaces. Powered by a durable lead-acid battery, this forklift delivers smooth, quiet, and emission-free operation, making it ideal for indoor applications such as warehouses, factories, retail stores, and logistics centers.
Equipped with a side shifter and a 2-stage mast, it ensures precise load positioning and enhanced productivity. Its compact design, tight turning radius, and ergonomic controls make it an excellent choice for modern material handling operations.
Key Specifications
General Information
Specification
Details
Product Type
Electric Forklift
Load Capacity
1,500 kg (3,306 lbs)
Power Source
Lead-Acid Battery
Mast Type
2-Stage Mast
Attachment
Side Shifter
Operating Weight
2,200 kg (4,850 lbs)
Dimensions & Performance
Specification
Measurement
Overall Dimensions (L × W × H)
2,340 × 1,200 × 2,150 mm (92 × 48 × 85 in)
Wheelbase
1,550 mm (60 in)
Front Gauge
1,050 mm (42 in)
Rear Gauge
880 mm (35 in)
Fork Length
1,070 mm (42 in)
Lifting Height
3,500 mm (138 in)
Minimum Turning Radius
2,400 mm (95 in)
Motor & Power System
Specification
Details
Driving Motor
3.0 kW AC Motor
Power Unit (Lift Motor)
2.2 kW
Battery Type
Lead-Acid Battery
Note: Motor values are expressed in kilowatts (kW).
Tyres
Specification
Details
Front Tyres
650-10
Rear Tyres
500-8
Key Features & Benefits
Efficient Electric Performance: Clean, quiet, and emission-free operation for indoor use.
Compact and Maneuverable: Ideal for narrow aisles and confined workspaces.
Side Shifter: Enables precise and efficient load positioning.
Reliable Lead-Acid Battery: Cost-effective and dependable for daily operations.
High Lifting Capability: Reaches up to 3,500 mm (138 in) for efficient stacking.
Durable Construction: Ensures long-term reliability and minimal maintenance.
Ergonomic Design: Enhances operator comfort and productivity.
Tight Turning Radius: Improves efficiency in warehouses and distribution centers.
Low Operating Costs: Reduced energy consumption and maintenance requirements.
Versatile Applications: Suitable for logistics, retail, and industrial environments.
