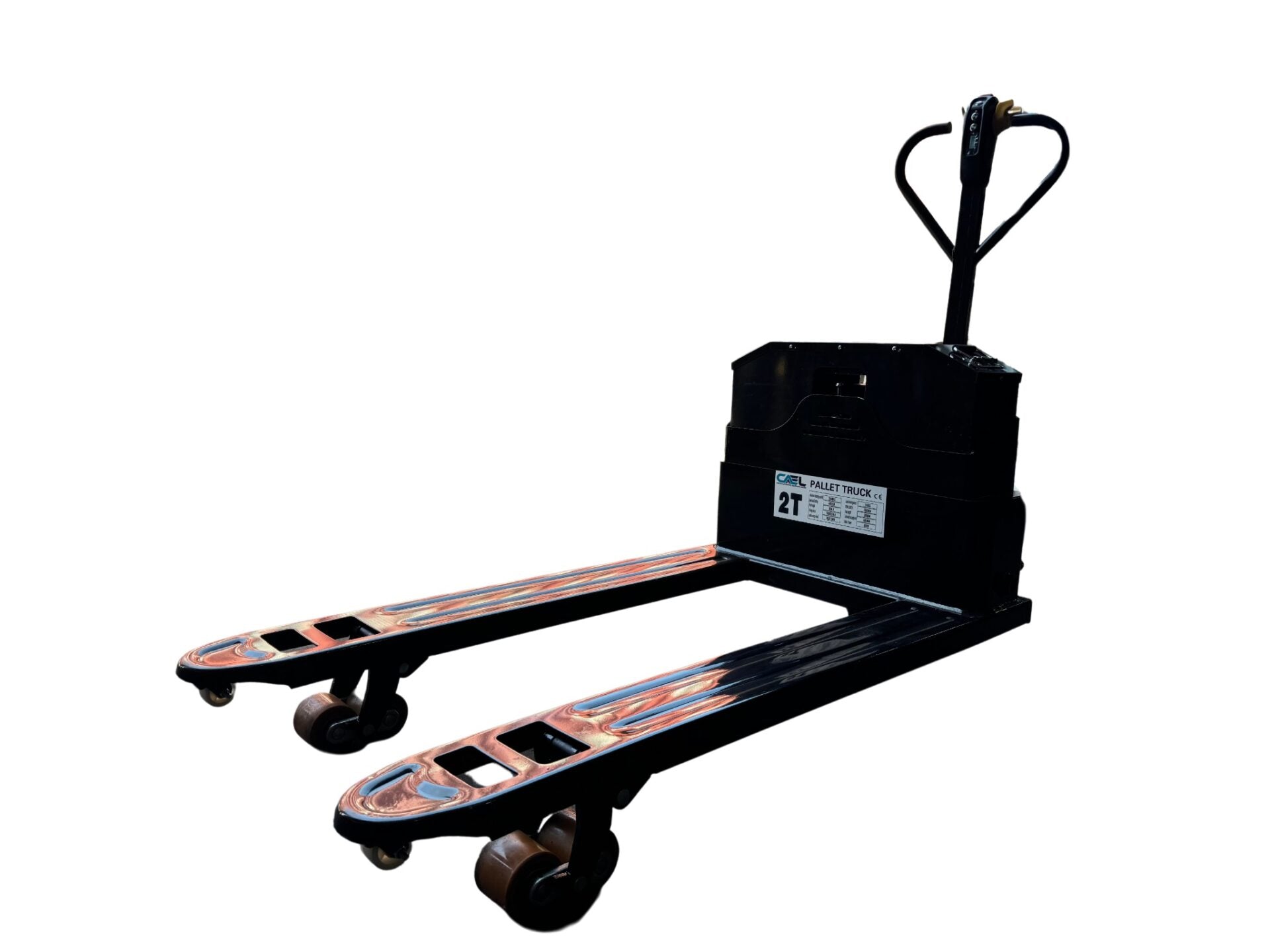

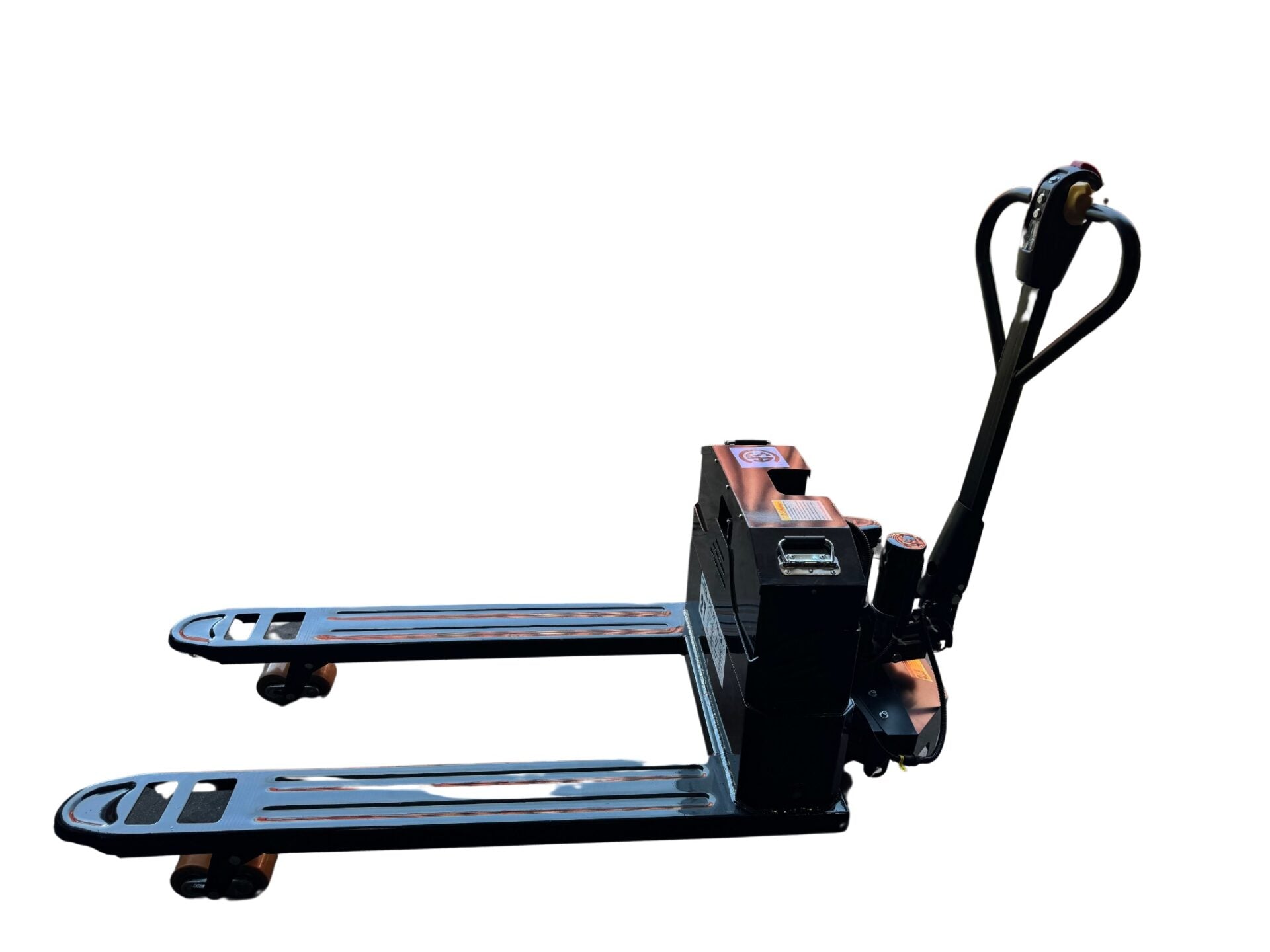

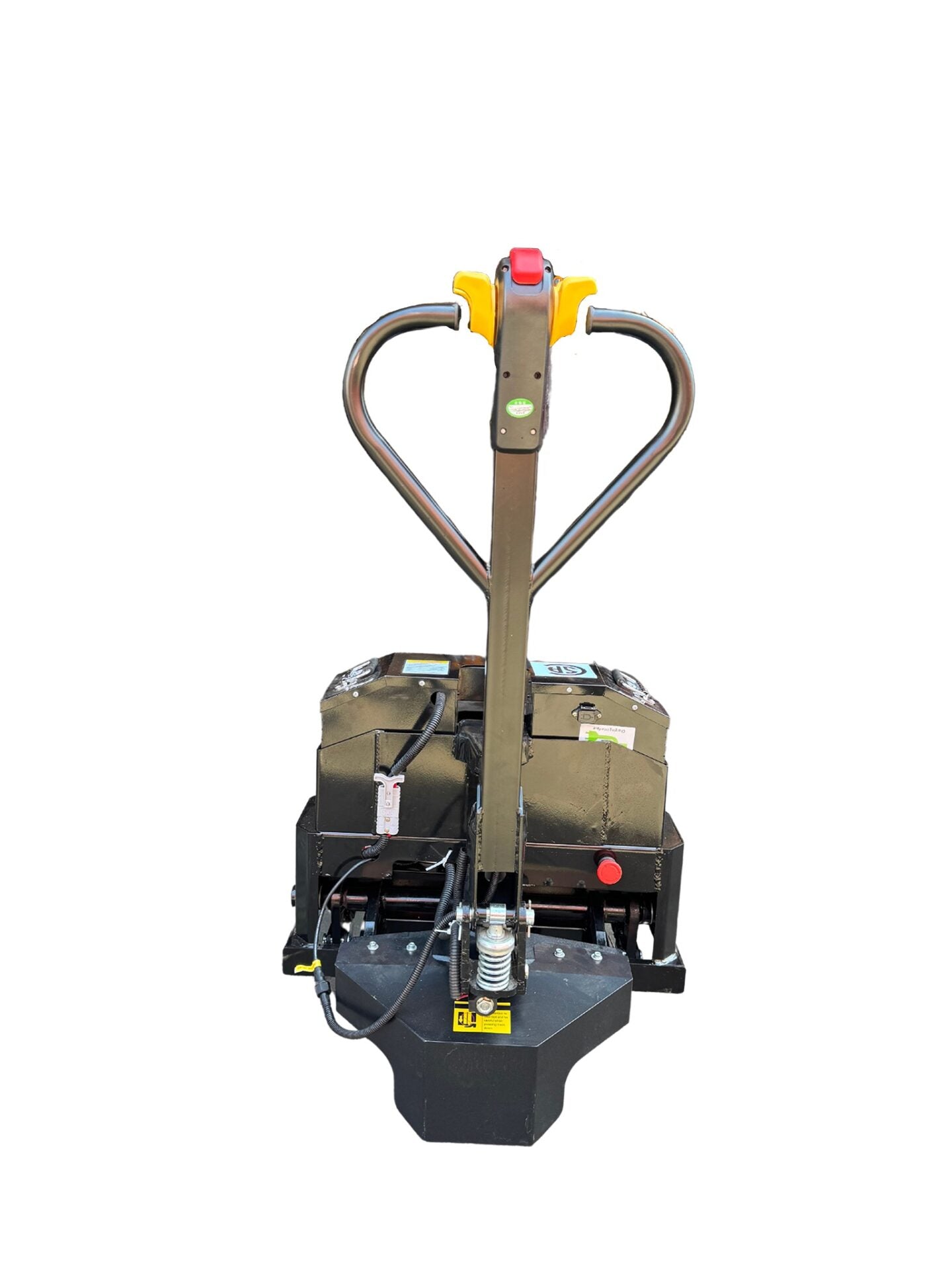

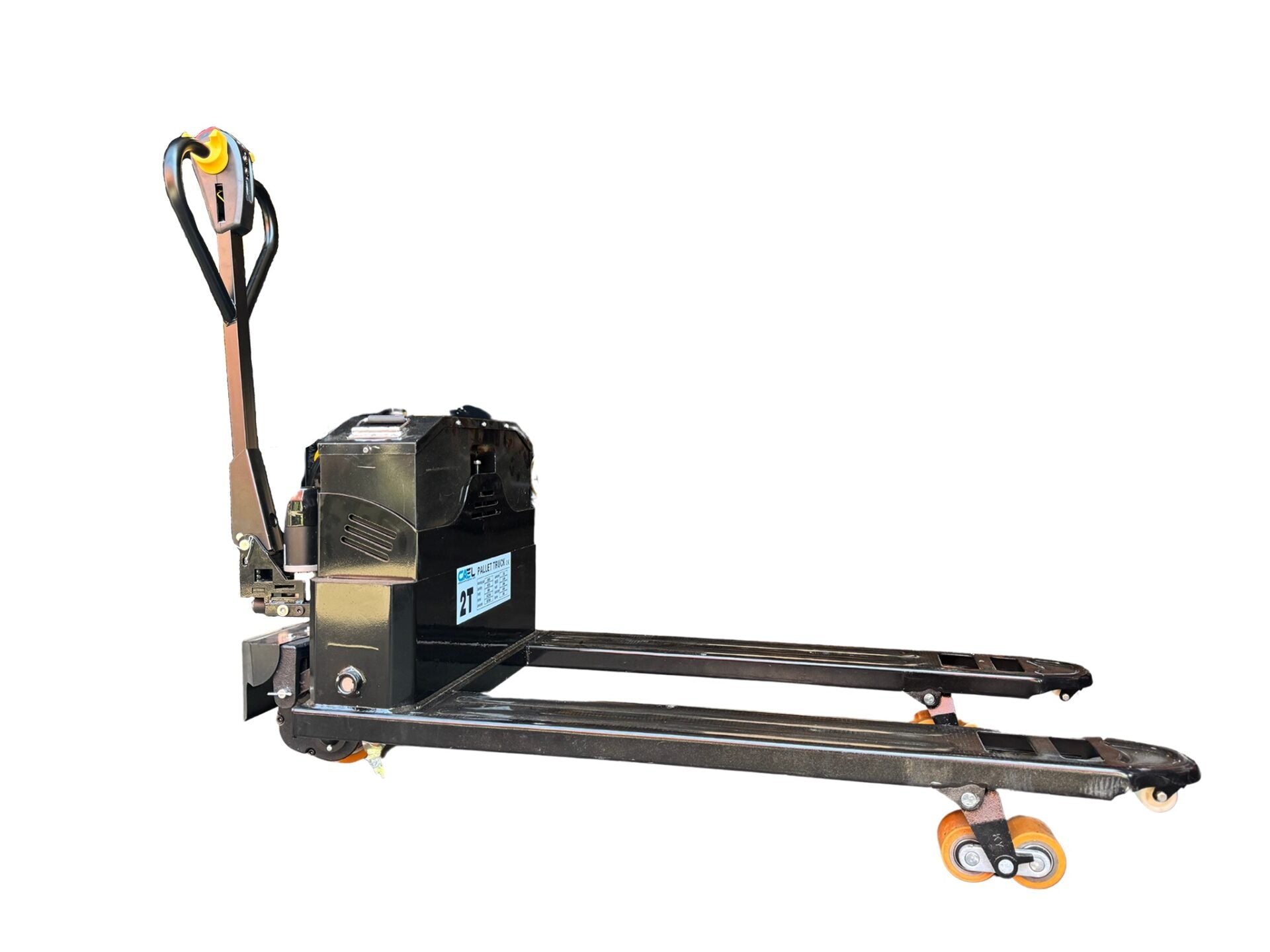

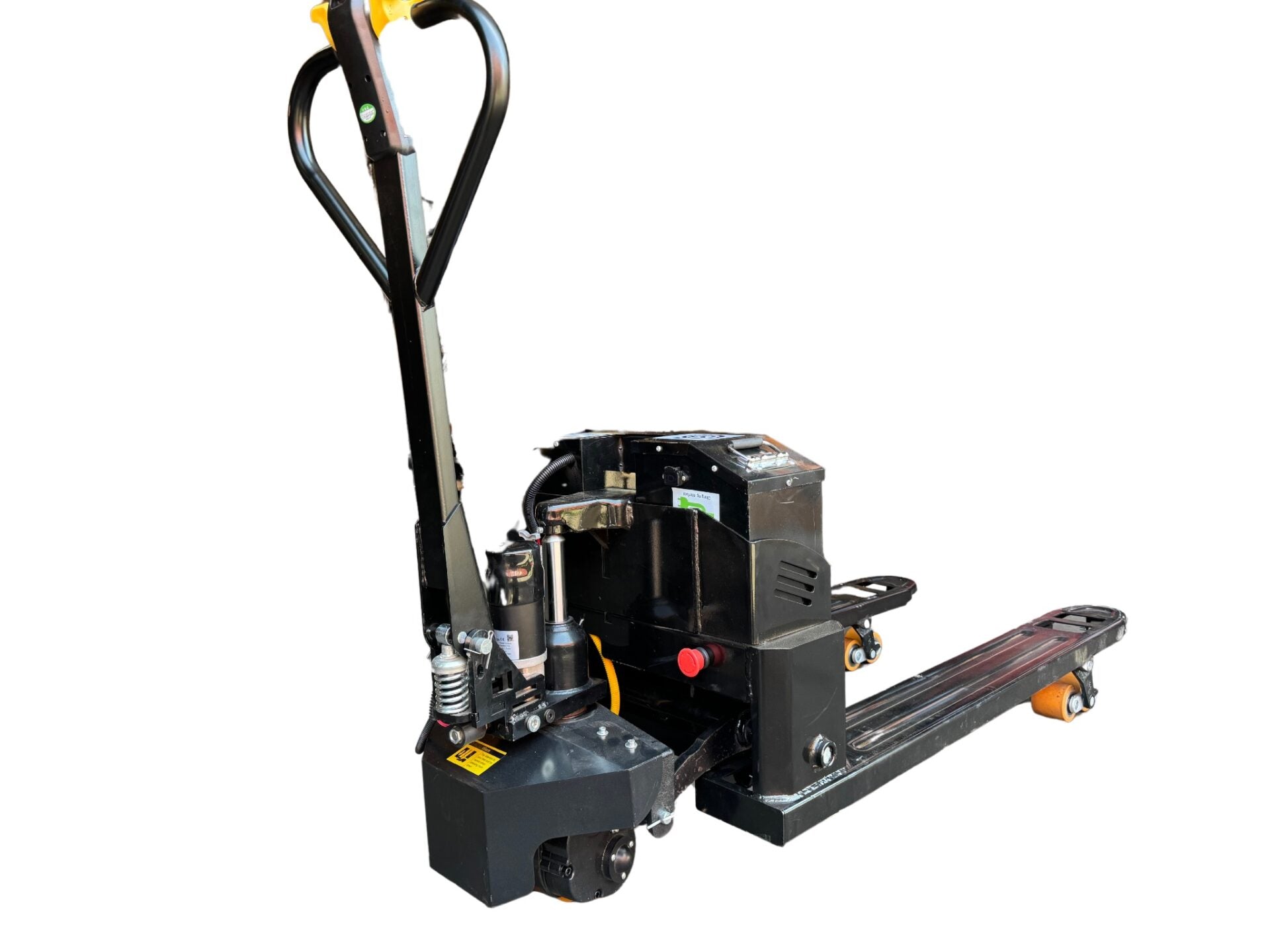

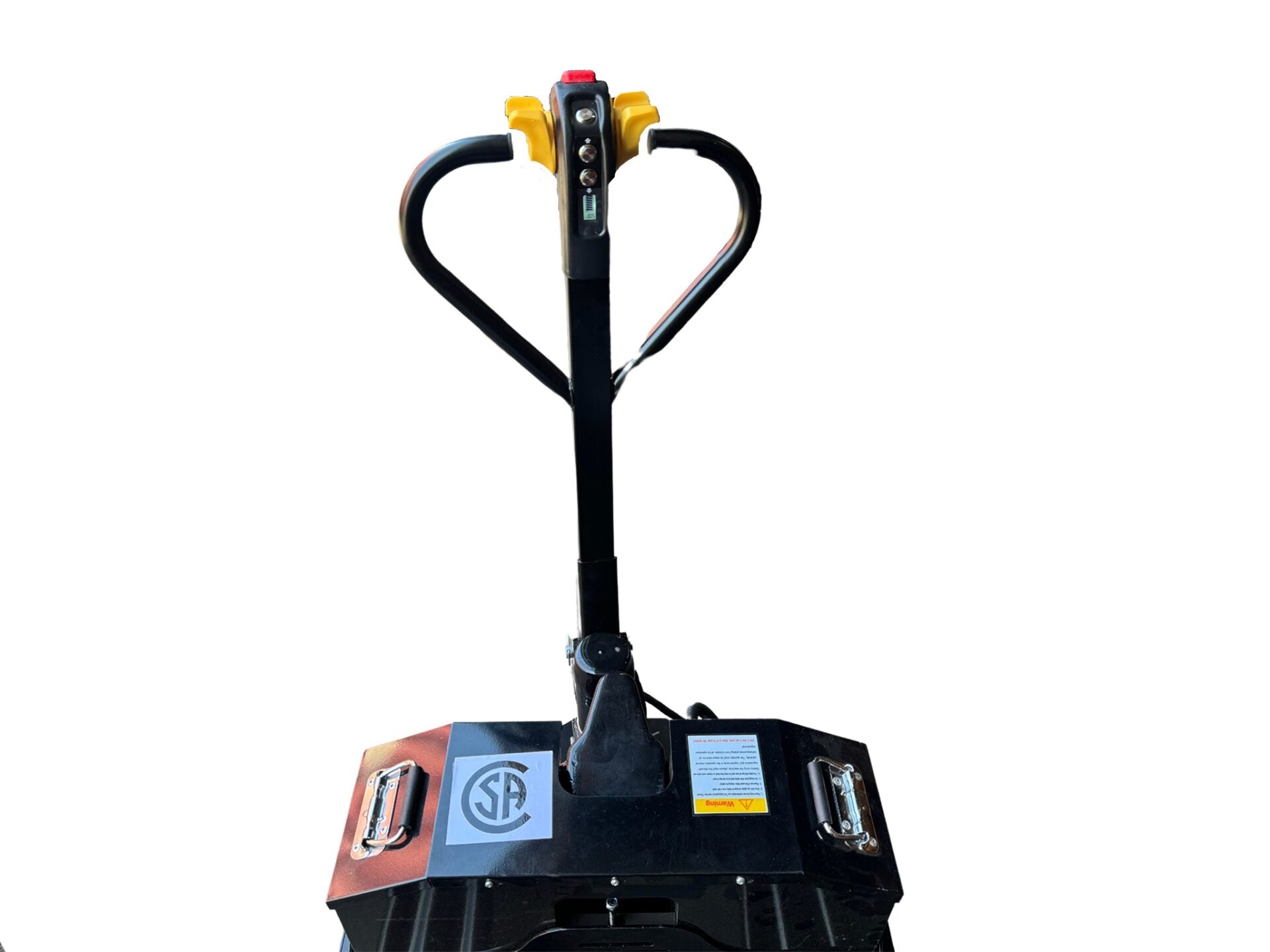

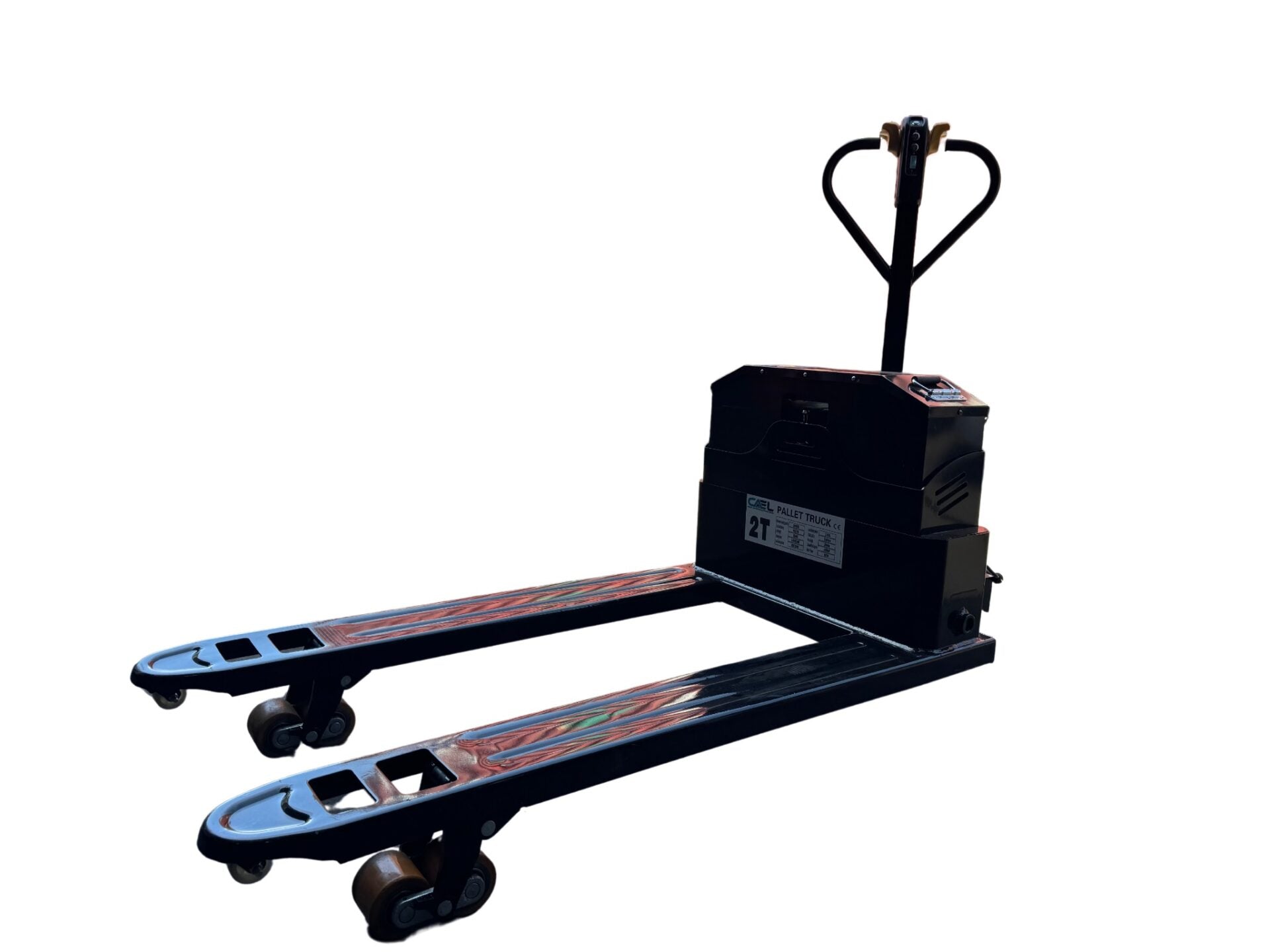

CAEL ELEP-30 Electric Pallet Truck

Heavy-Duty • Compact • Efficient Pallet Handling Solution

The CAEL ELEP-30 Electric Pallet Truck is a powerful and dependable material handling solution designed for warehouses, factories, loading docks, retail stores, logistics centers, and delivery operations.

Built for smooth pallet transport and daily heavy-duty use, the ELEP-30 offers a 2000 kg (4409 lbs) lifting capacity with powered drive assistance to improve efficiency and reduce manual labor.

Its compact design, strong motor, and reliable battery system make it ideal for pallet movement in tight spaces and busy work environments.

Key Features & Benefits

Heavy-Duty Capacity

• Handles up to 2000 kg / 4409 lbs
• Suitable for pallets, stock, cartons, and industrial goods

Efficient Electric Operation

• Reduces operator fatigue
• Faster pallet movement than manual pallet jacks

Compact Warehouse Design

• Easy maneuvering in narrow aisles and truck trailers

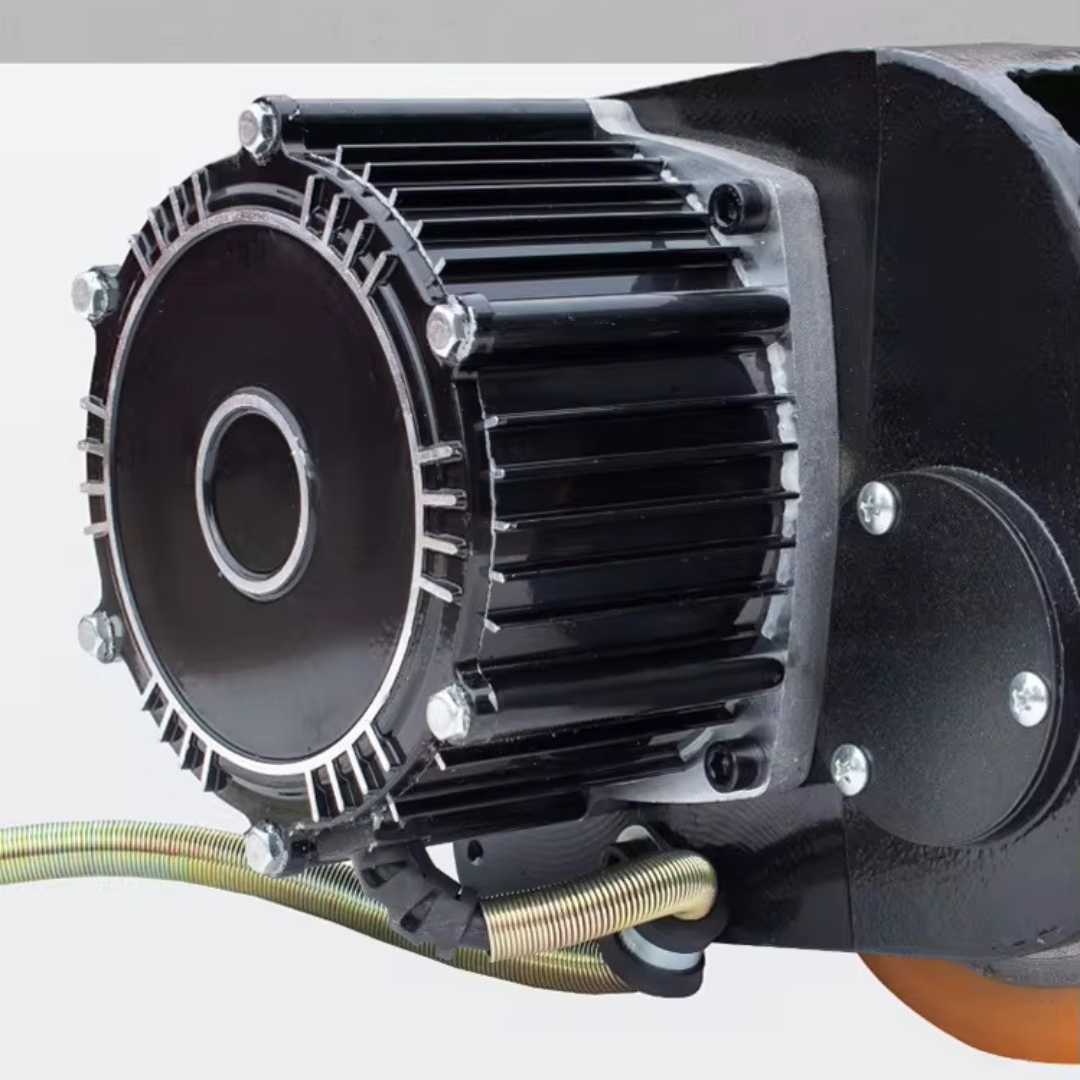

Strong Drive Motor

• Smooth movement under load

Ideal for Daily Commercial Use

• Built for warehouses and repeated pallet transport tasks

Technical Specifications

• Model: ELEP-30
• Type: Electric Pallet Truck

Maximum Bearing Capacity

• 2000 kg / 4409.25 lbs

Load-Bearing Wheel Capacity

• 150 kg / 330.69 lbs

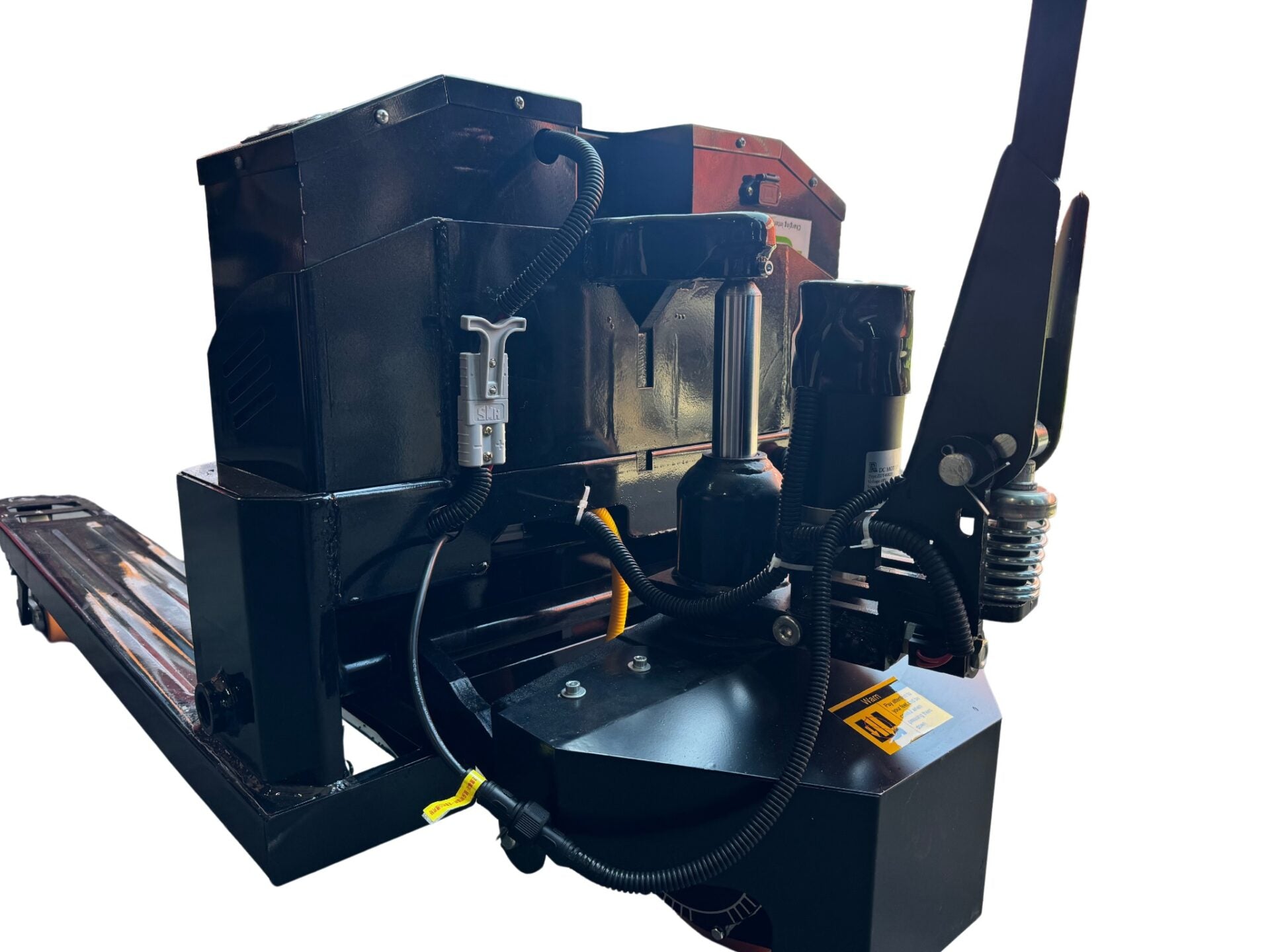

Battery

• 48V / 20A Lead Acid Battery

Motor Power

• 800W

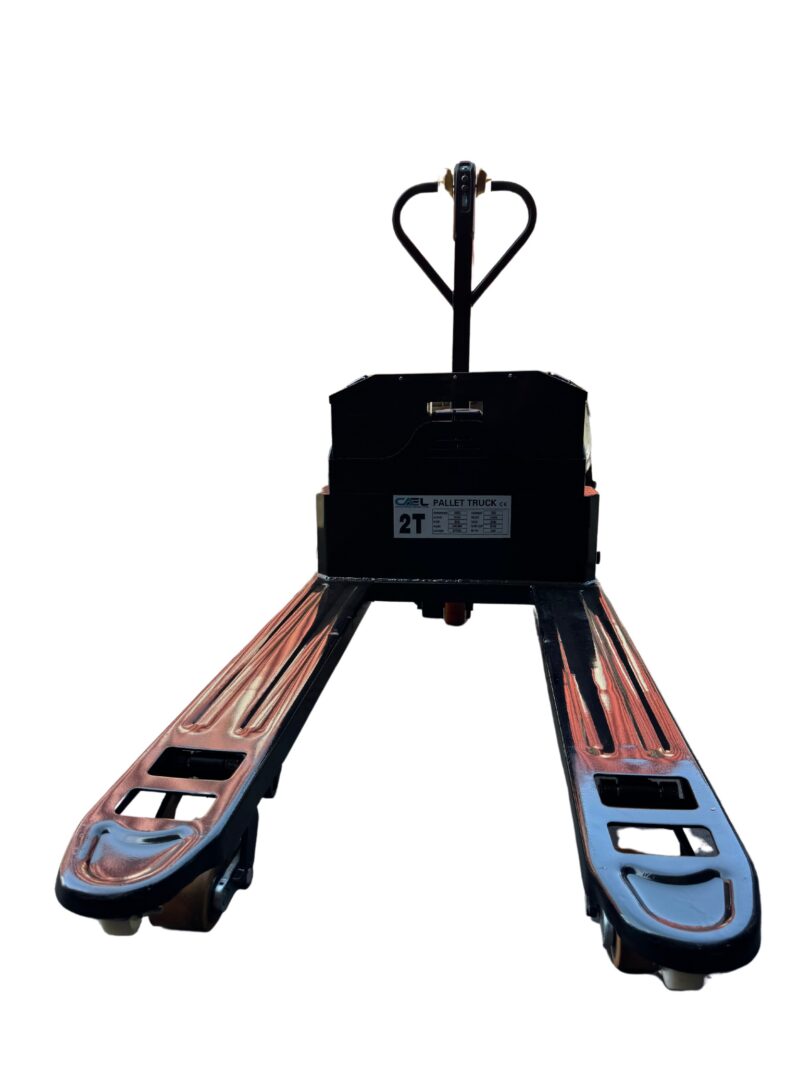

Fork Dimensions

Fork Length

• 1160 mm / 45.67 in

Total Fork Width

• 685 mm / 26.97 in

Minimum Lift Height

• 80 mm / 3.15 in

Maximum Lift Height

• 200 mm / 7.87 in

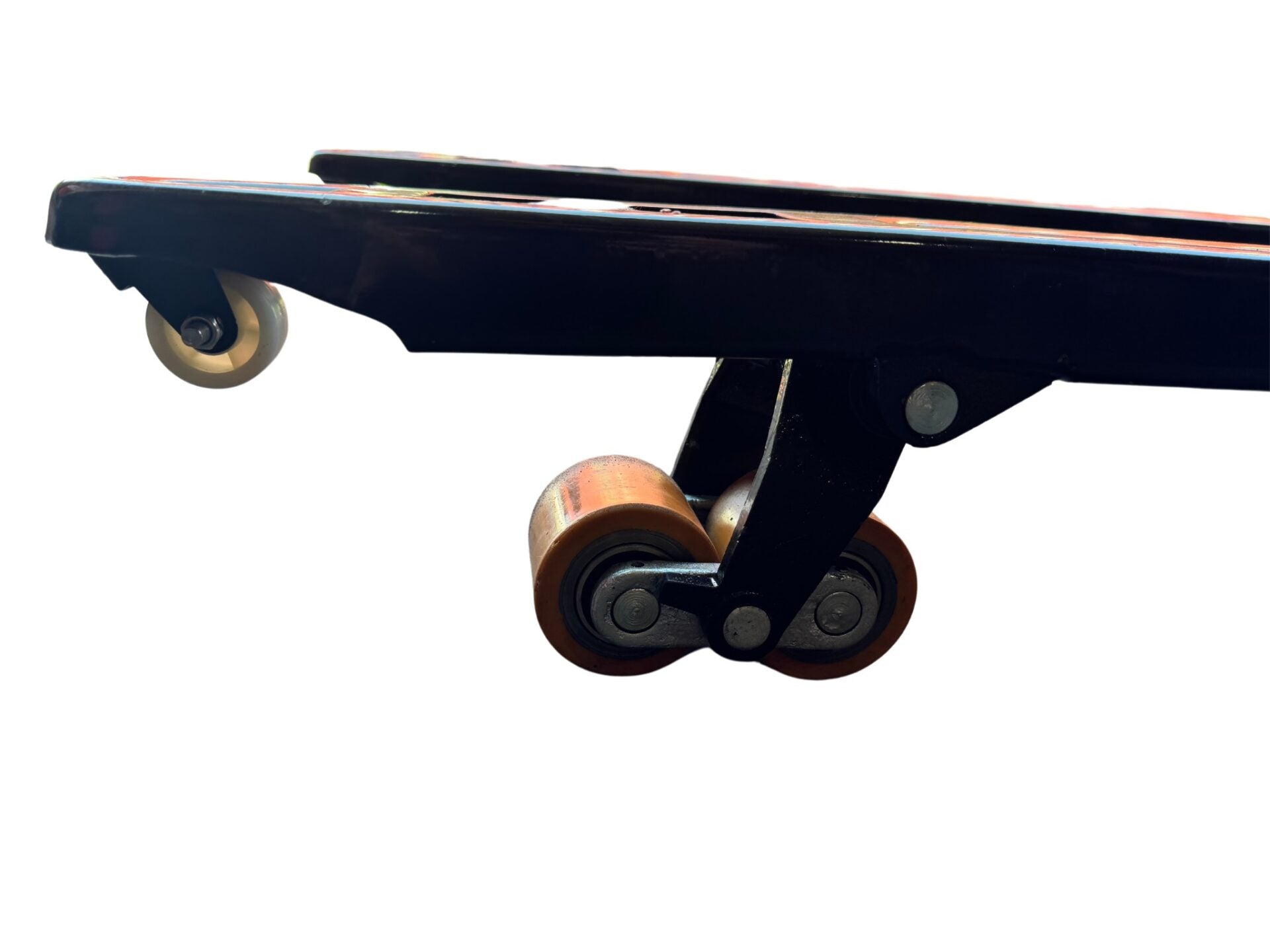

Wheel Sizes

Driving Wheel

• 160 × 55 mm
• 6.30 × 2.17 in

Load-Bearing Wheel

• 80 × 70 mm
• 3.15 × 2.76 in

Ideal Applications

✔ Warehouses
✔ Factories
✔ Retail stores
✔ Loading docks
✔ Delivery vehicles
✔ Logistics centers
✔ Inventory movement
✔ Daily pallet transport

Why Choose CAEL ELEP-30?

The CAEL ELEP-30 provides strong lifting capacity, powered efficiency, and dependable performance for businesses that need a professional pallet handling solution.

Ideal for replacing manual pallet jacks and improving daily productivity.

Core Advantages

✔ 4409 lb capacity
✔ 800W motor
✔ Compact design
✔ Reliable battery system
✔ Smooth pallet movement
✔ Reduced operator fatigue
✔ Built for commercial use

Request a Quote

Contact us today for pricing, stock availability, shipping options, and additional pallet truck models tailored to your business needs.
