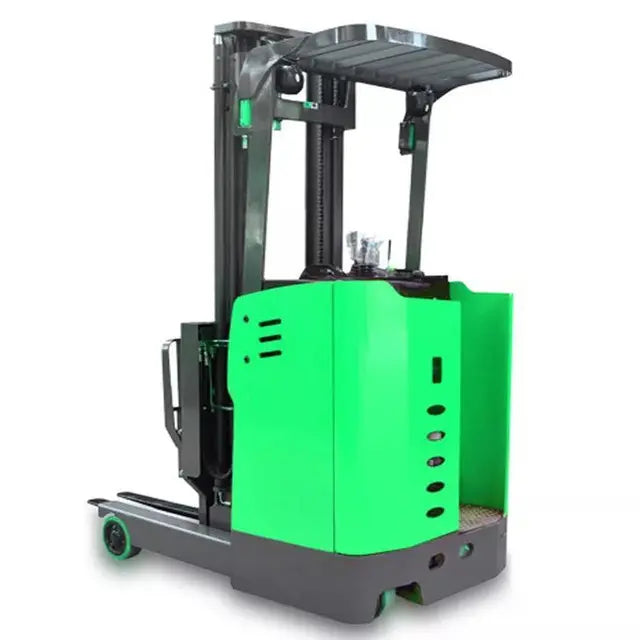

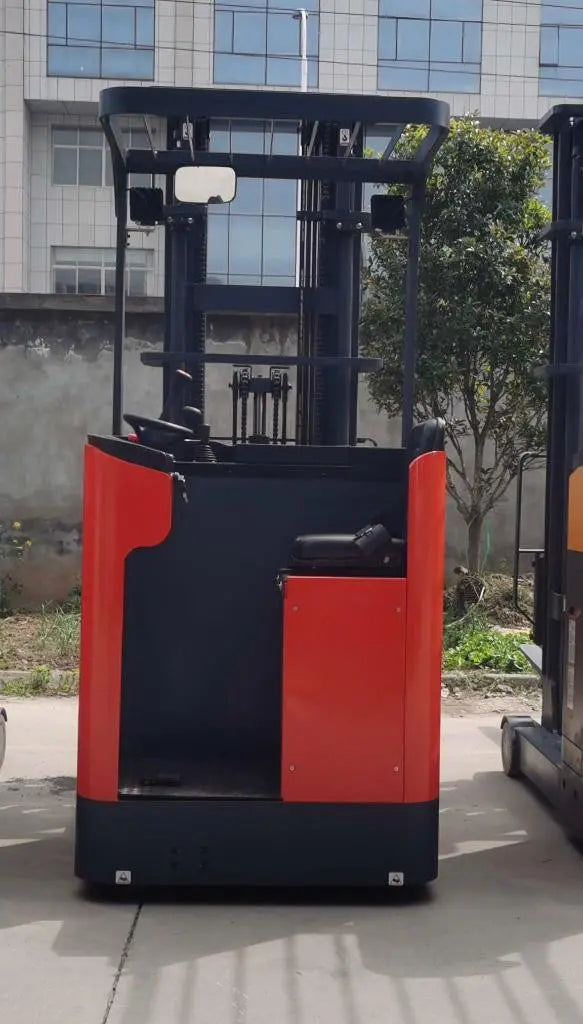

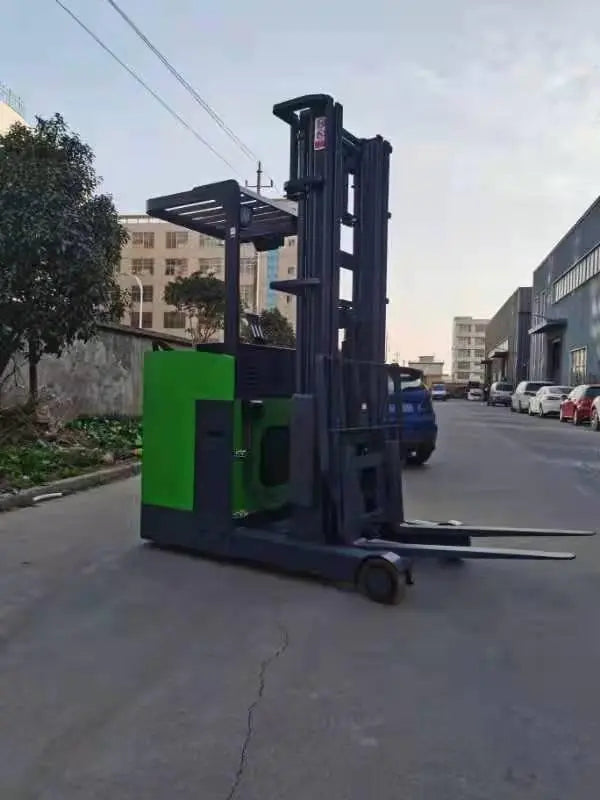

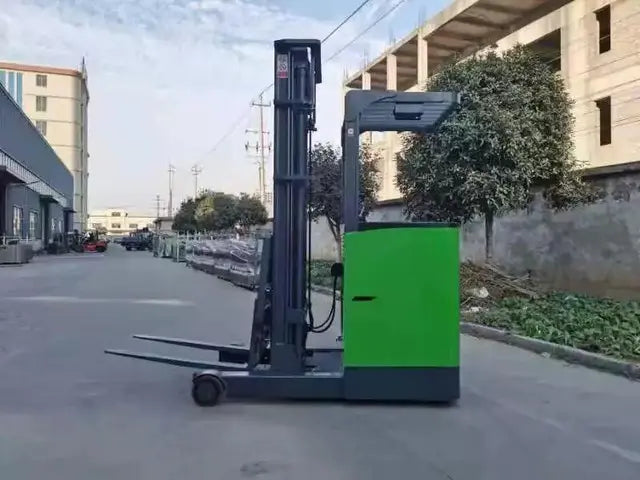

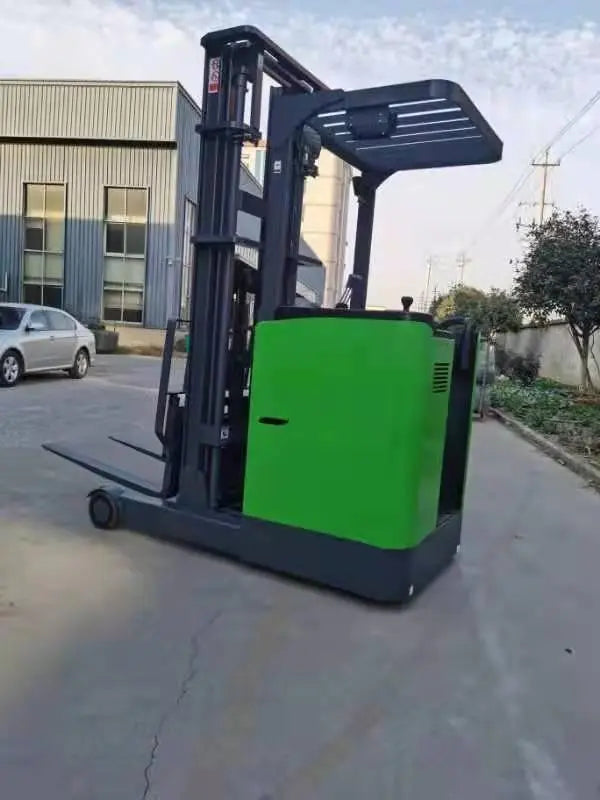

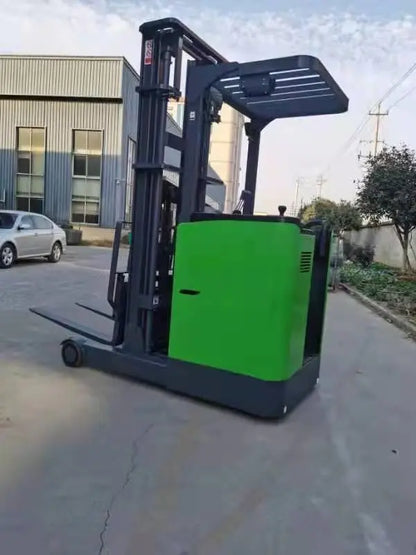

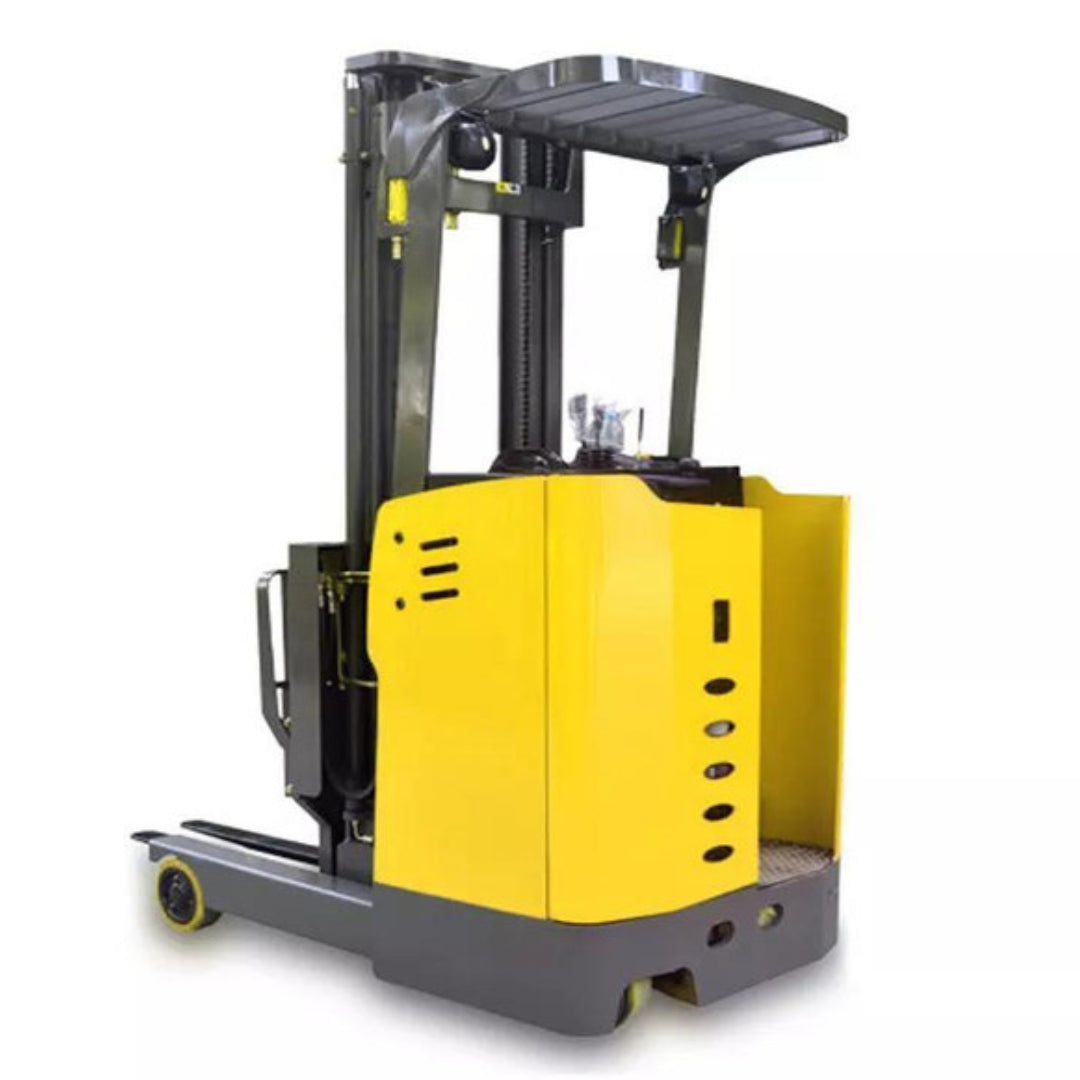

CAEL 1.5 Ton Electric Reach Truck

Ultra High Reach • Compact • Professional Warehouse Solution

The CAEL 1.5 Ton Electric Reach Truck is a high-performance warehouse forklift designed for high racking systems, narrow aisles, logistics centers, distribution warehouses, factories, and pallet storage operations.

With a 1.5 Ton (3300 lbs) lifting capacity and impressive 6 m (19 ft 8 in) lift height, this model is ideal for maximizing vertical storage space while maintaining compact maneuverability.

Its forward reach mechanism allows precise pallet placement into racks, making it an excellent solution for modern warehouse environments.

---

Key Features & Benefits

Strong Load Capacity

• Handles up to 1.5 Ton / 1500 kg / 3300 lbs
• Suitable for pallets, cartons, industrial goods, and inventory loads

Ultra High Lift Performance

• 6 m / 19 ft 8 in lift height
• Perfect for tall warehouse racking systems

Reach Mechanism

• 550 mm / 21.6 in forward reach distance
• Easier pallet insertion and retrieval

Compact Narrow Aisle Design

• Excellent maneuverability in warehouse aisles

Dual Motor System

• AC Drive Motor for smooth travel
• DC Hoist Motor for dependable lifting power

Battery Powered

• Quiet indoor operation with zero emissions

---

Technical Specifications

• Type: Electric Reach Truck

Capacity

• 1.5 Ton / 3300 lbs

Load Center

• 500 mm / 19.6 in

Maximum Lift Height

• 6 m / 19 ft 8 in

Reach Distance

• 550 mm / 21.6 in

Weight (Without Battery)

• 2340 kg / 5158 lbs

---

Dimensions

Overall Length of Frame (Mast No Reach)

• 1780 mm / 70 in

Overall Length (Mast No Reach)

• 2350 mm / 93.5 in

Overall Length (Mast Reach)

• 2860 mm / 112.5 in

Overall Width

• 1035 mm / 40.7 in

Overhead Guard Height

• 2180 mm / 86 in

Mast Lowered Height

• 2200 mm / 86.6 in

---

Fork Dimensions

Fork Length

• 1070 mm / 42 in

Fork Width

• 100 mm / 3.9 in

Fork Lowered Height

• 55 mm / 2.16 in

---

Maneuverability

Turning Radius

• 1710 mm / 67 in

Minimum Intersecting Aisle Width

• 2610 mm / 103 in

---

Power System

Drive Motor

• AC Motor – 1.5 kW

Hoist Motor

• DC Motor – 3 kW

Battery

• 24V / 270Ah

Charger

• 110V Charger Included

---

Ideal Applications

✔ Warehouses
✔ Distribution centers
✔ High-bay storage systems
✔ Narrow aisle operations
✔ Manufacturing plants
✔ Inventory handling
✔ Logistics facilities

---

Why Choose CAEL Reach Truck?

The CAEL 1.5 Ton Reach Truck combines high lift reach, compact dimensions, and dependable electric power to help businesses maximize storage space and daily productivity.

Perfect for professional indoor warehouse operations.

---

Core Advantages

✔ 3300 lb capacity
✔ 19 ft 8 in lift height
✔ Reach system for racks
✔ Narrow aisle ready
✔ AC drive motor
✔ Battery & charger included
✔ High storage efficiency

---

Request a Quote

Contact us today for pricing, stock availability, delivery options, and additional reach truck models tailored to your warehouse needs.
