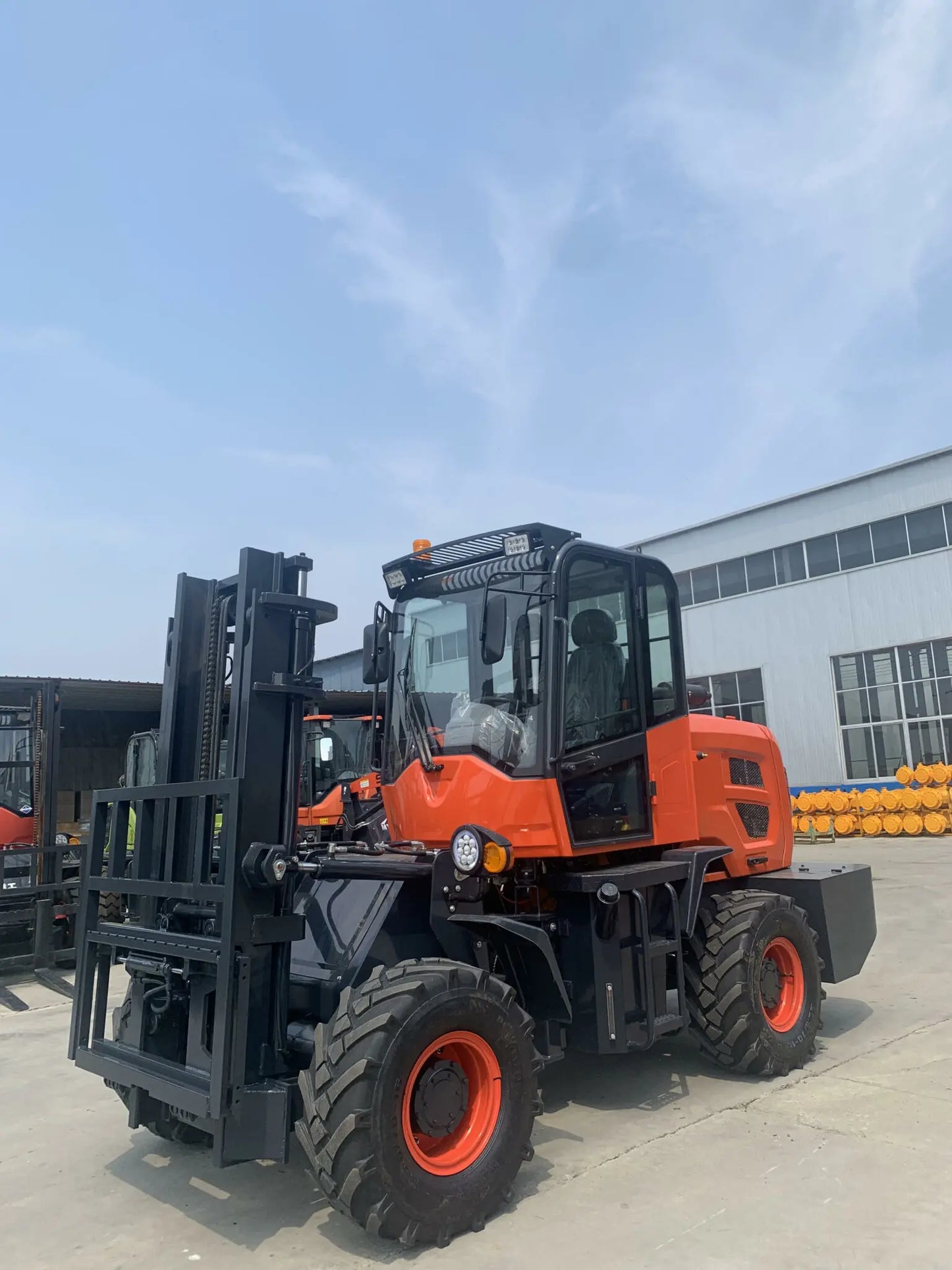

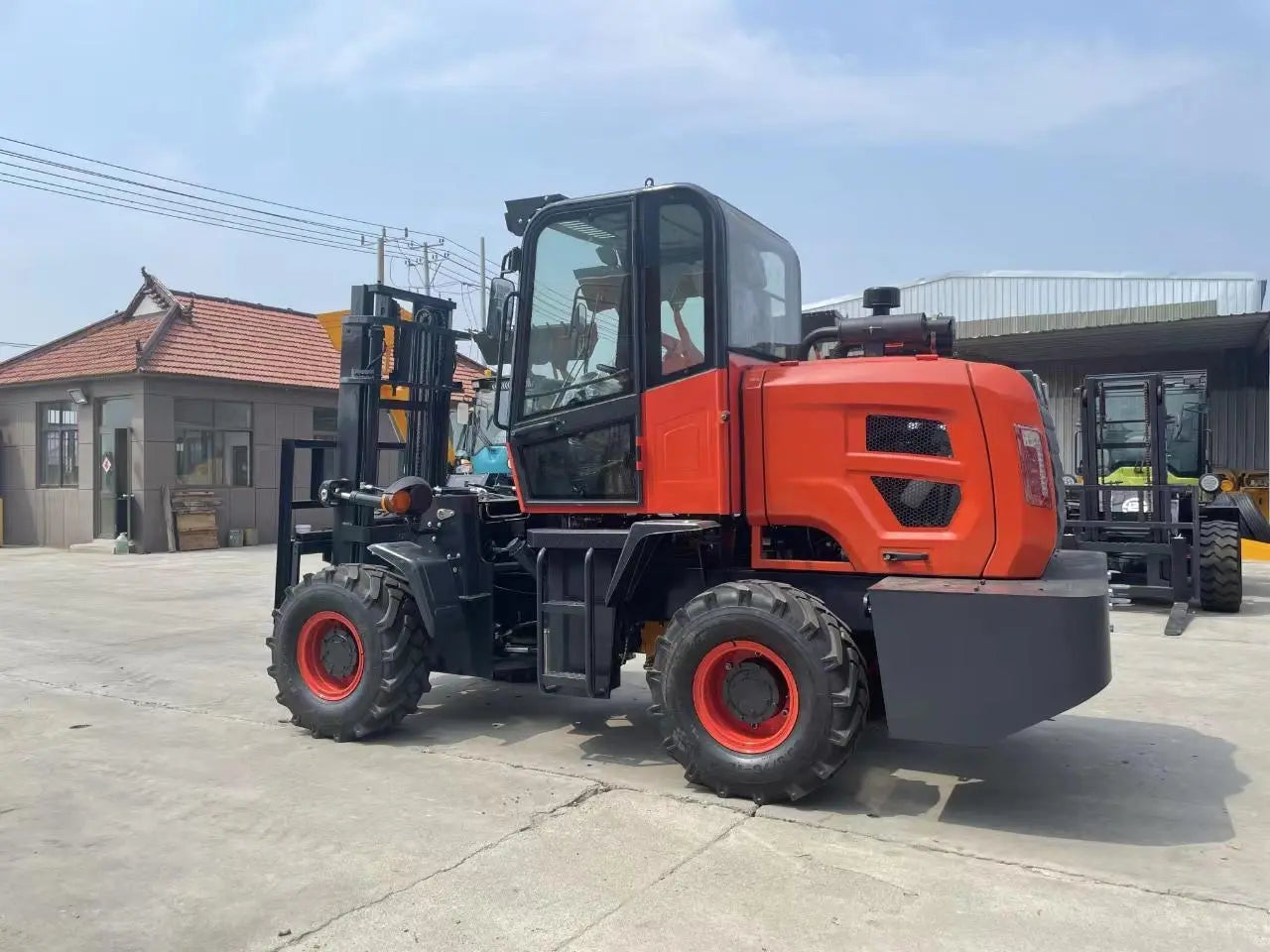

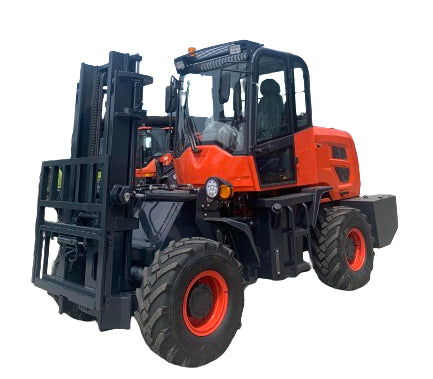

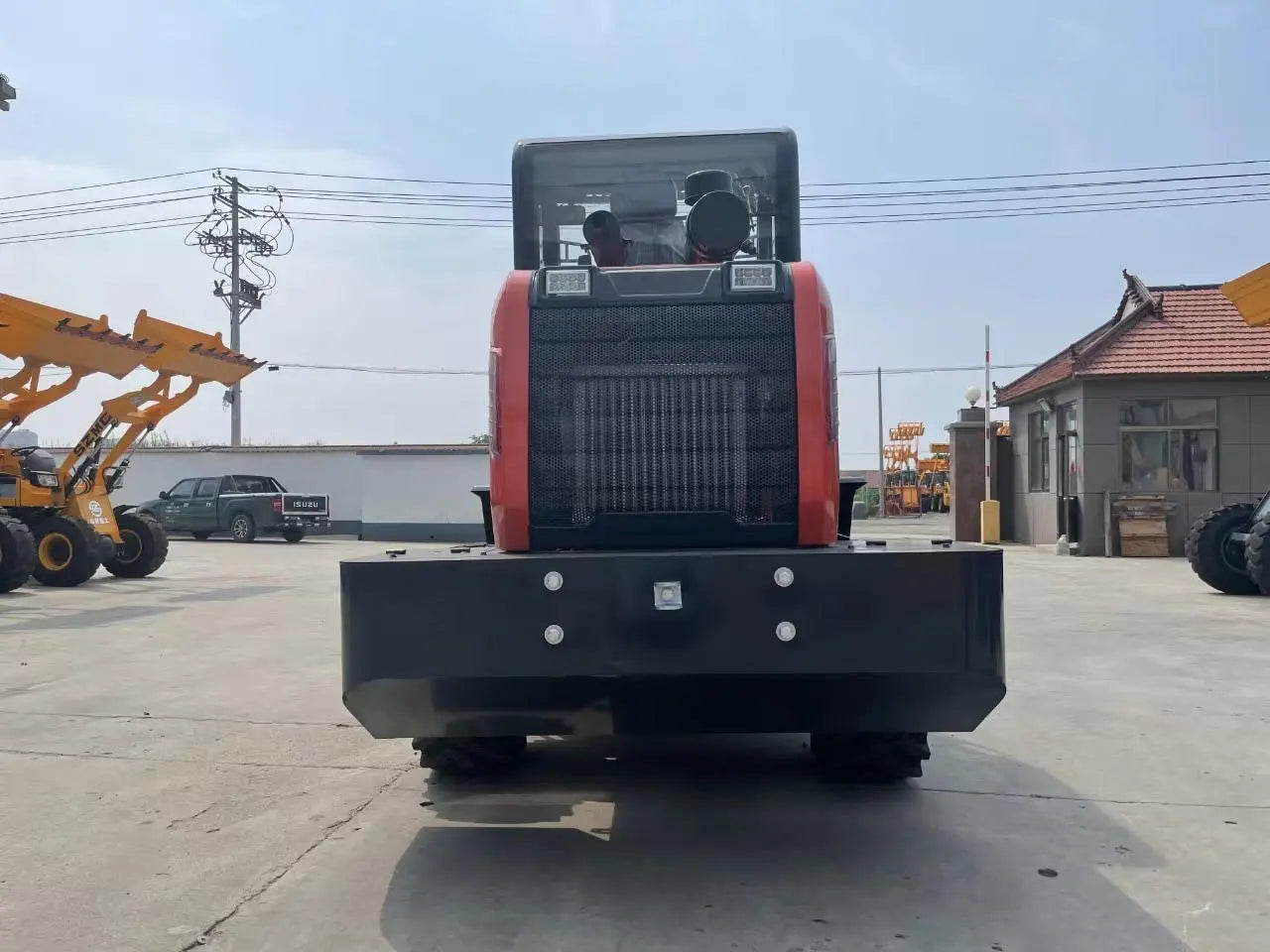

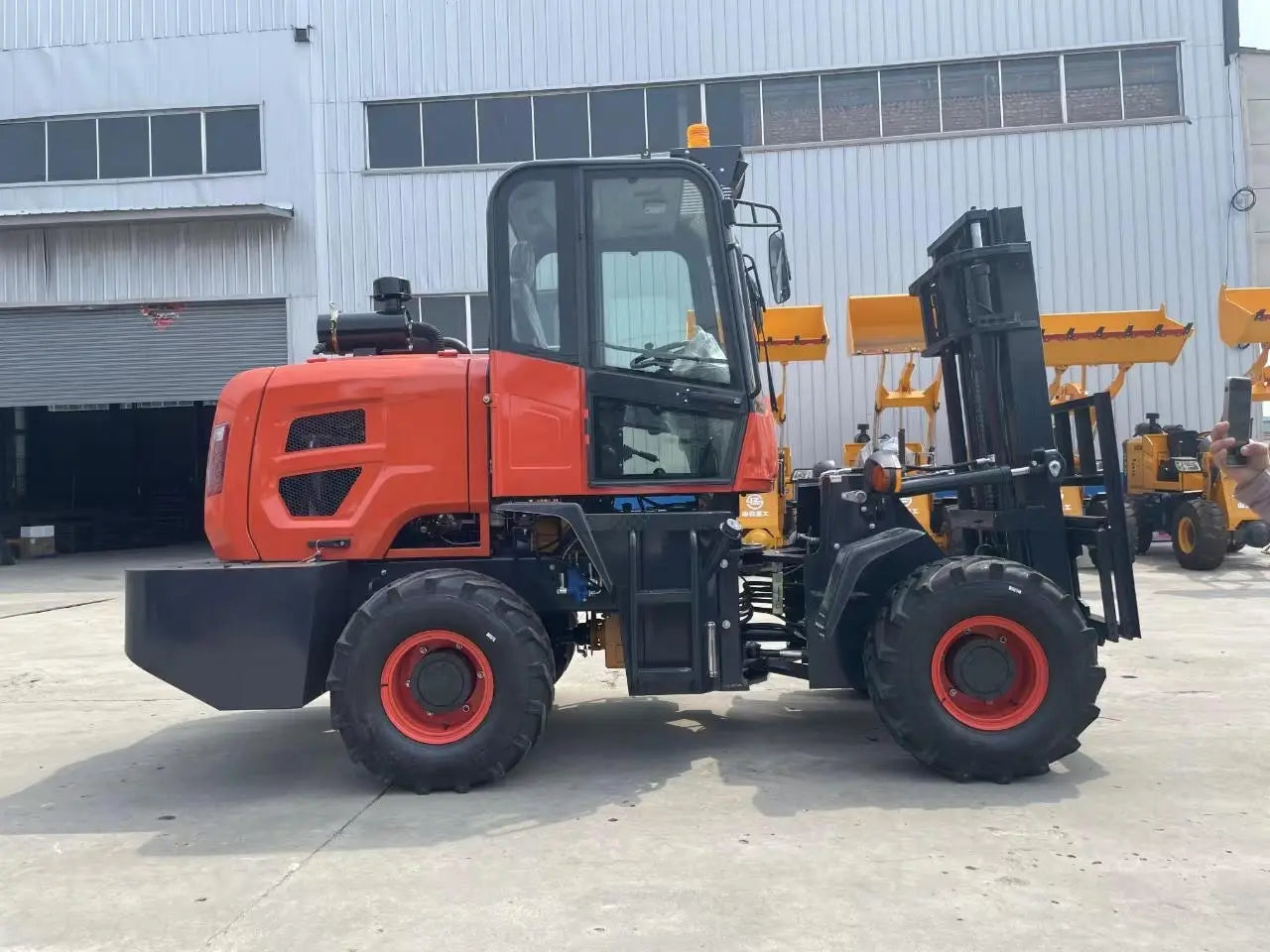

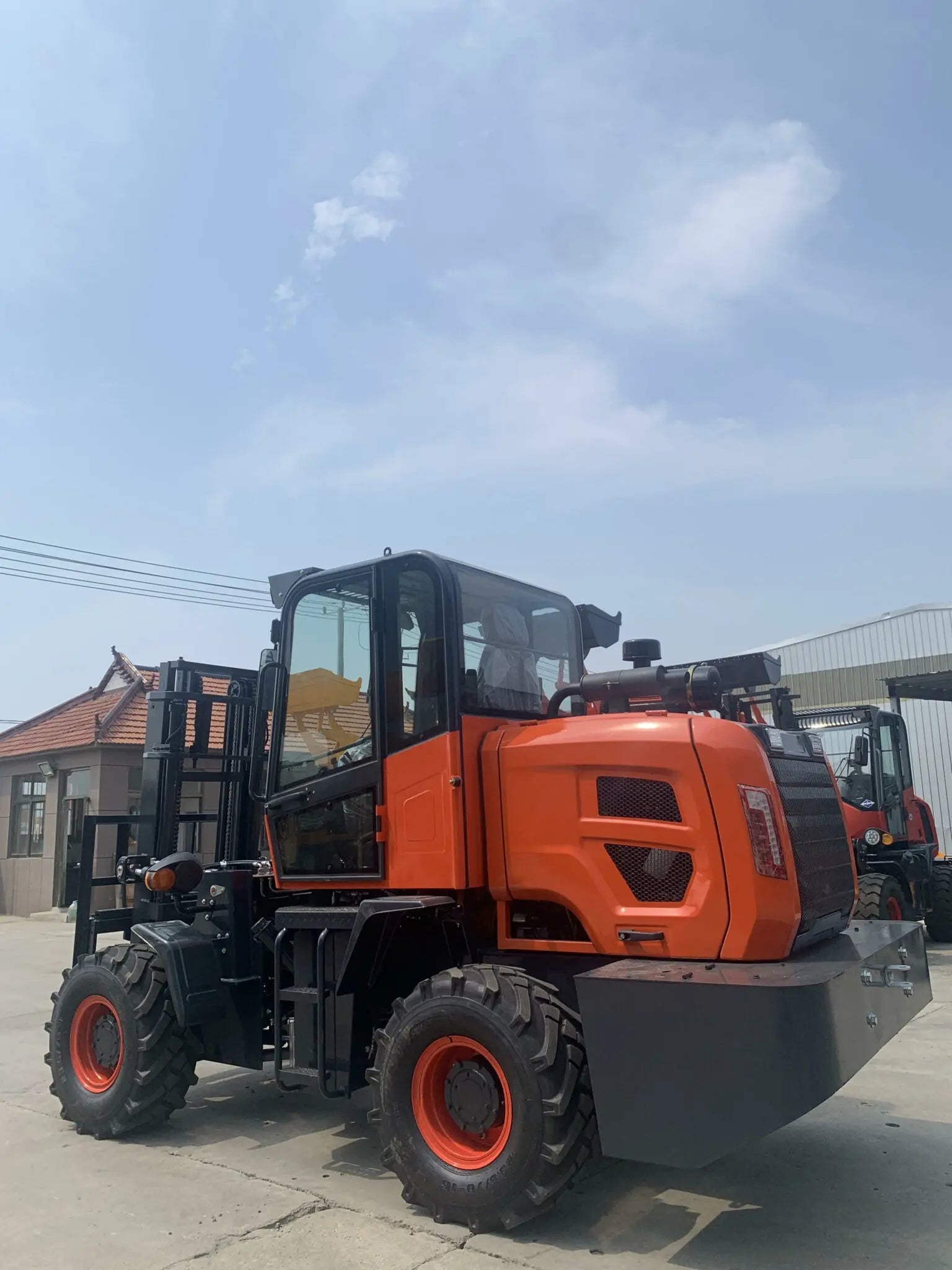

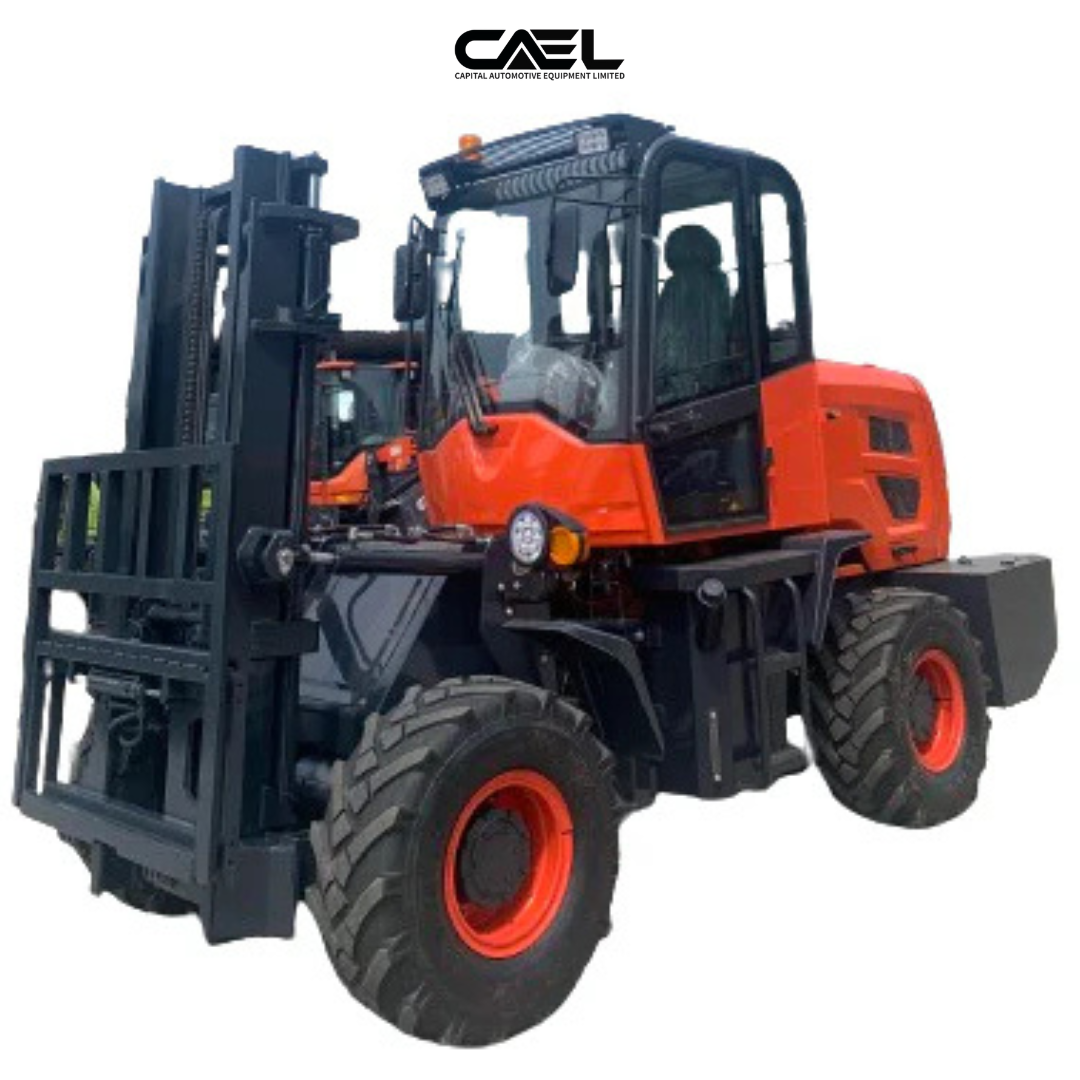

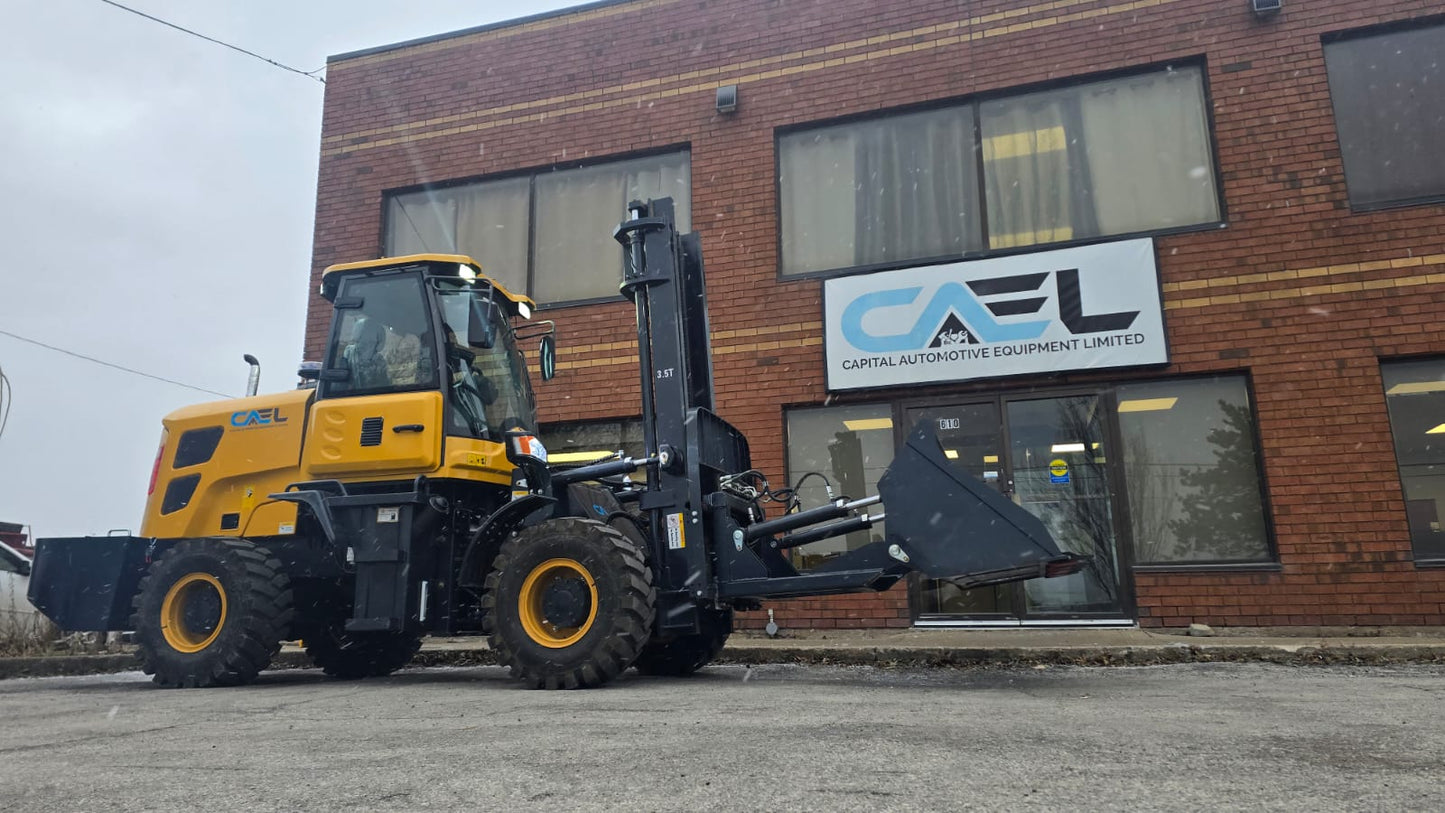

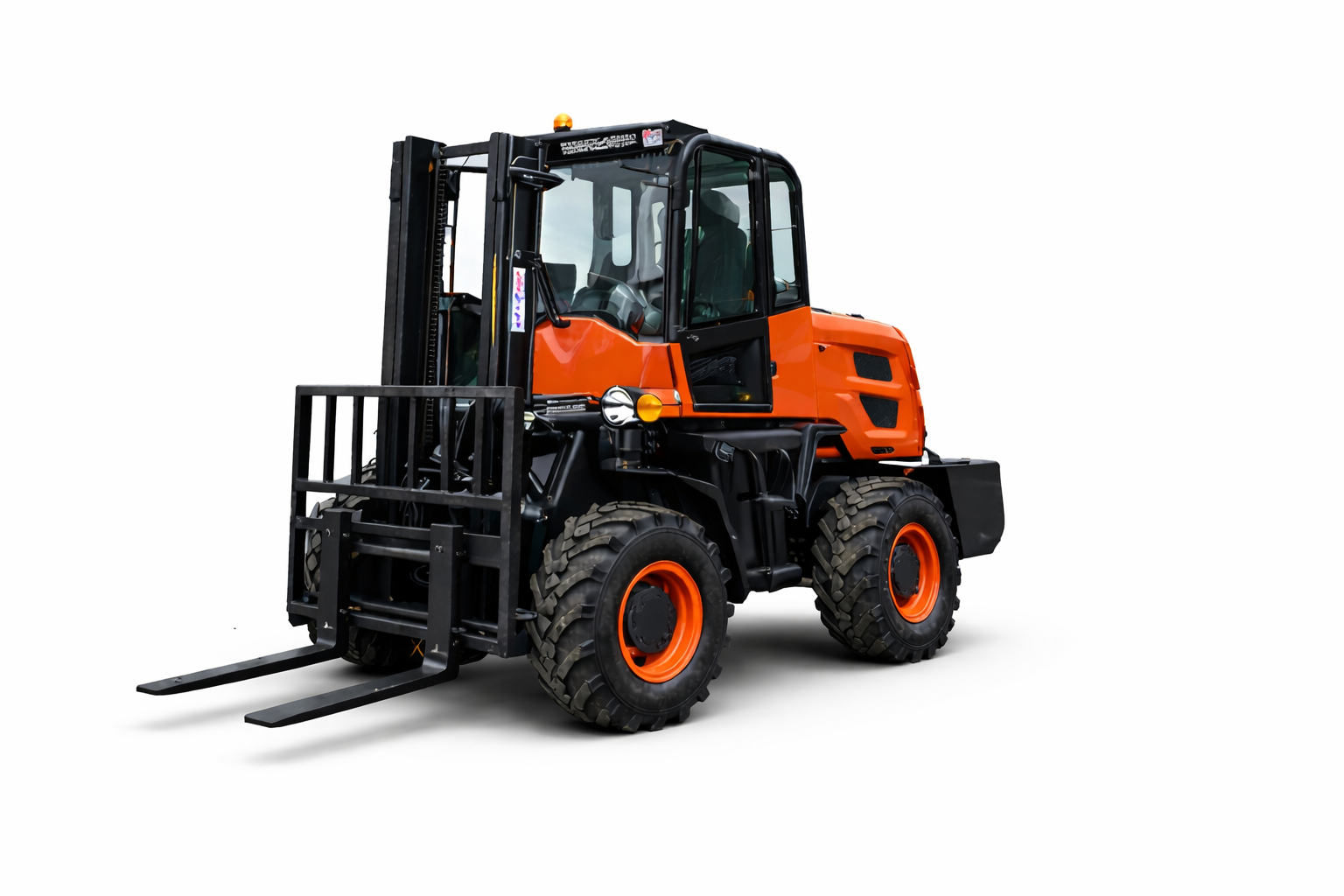

The 3 Ton All-Terrain Forklift YJ265 is a powerful material handling solution designed for demanding outdoor environments. Featuring a rugged 4×4 all-wheel-drive system and a Kohler 1903 engine delivering 36 kW of rated power, this forklift provides reliable performance on rough and uneven terrain.
With a 3,000 kg load capacity, 3,000 mm maximum lifting height, and compact dimensions, the YJ265 is suitable for construction sites, agricultural operations, lumber yards, mining facilities, and outdoor logistics. Its enclosed cabin, air conditioning, and side shifter support operator comfort and efficient load handling.
Key Features
3,000 kg Load Capacity: Handles heavy materials in demanding outdoor environments.
4×4 All-Wheel Drive: Provides traction across uneven and rugged surfaces.
Kohler 1903 Engine: Delivers 36 kW of rated power.
3,000 mm Lift Height: Supports versatile material stacking and handling.

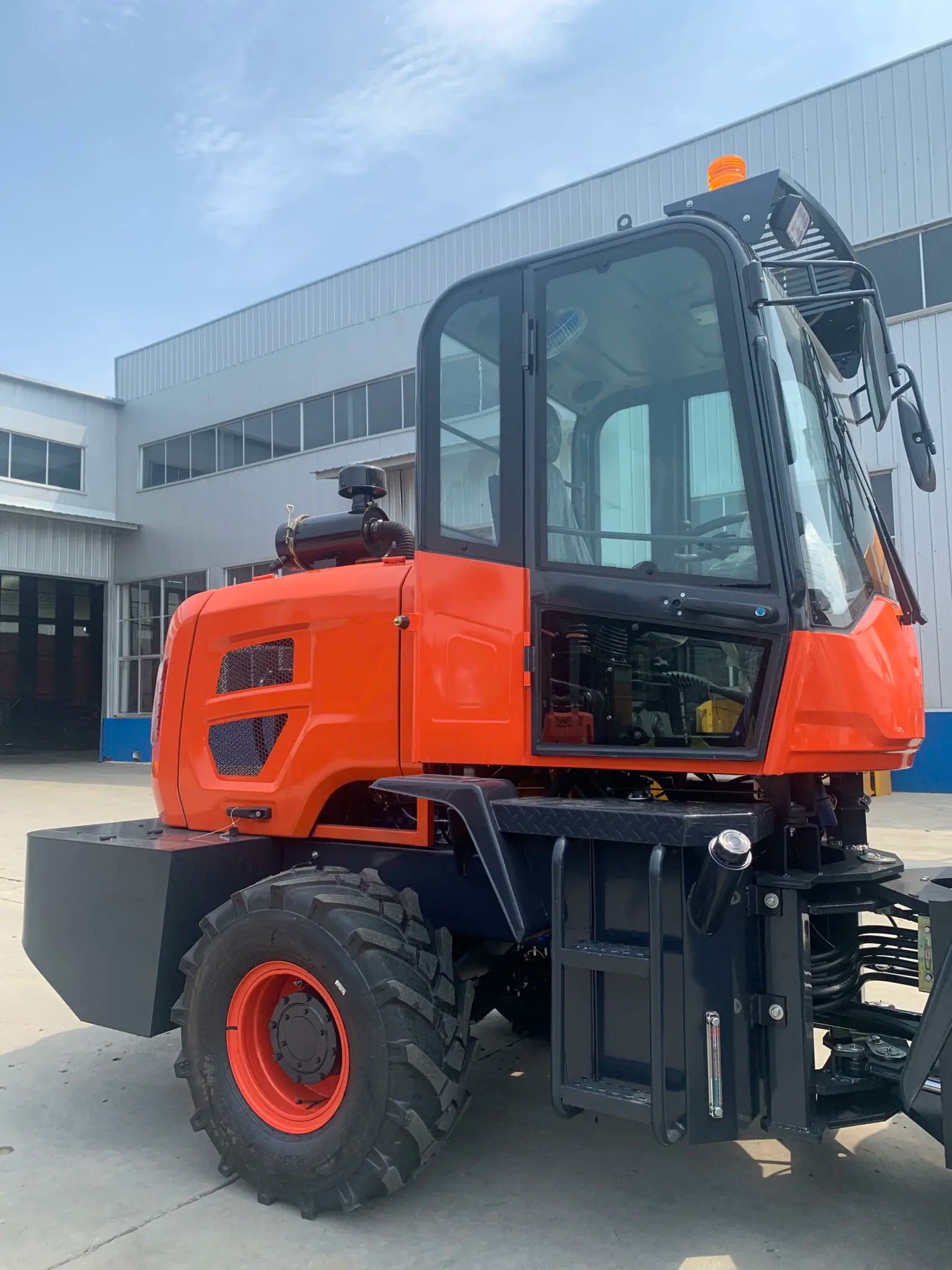

Enclosed Cabin with AC: Helps improve operator comfort.

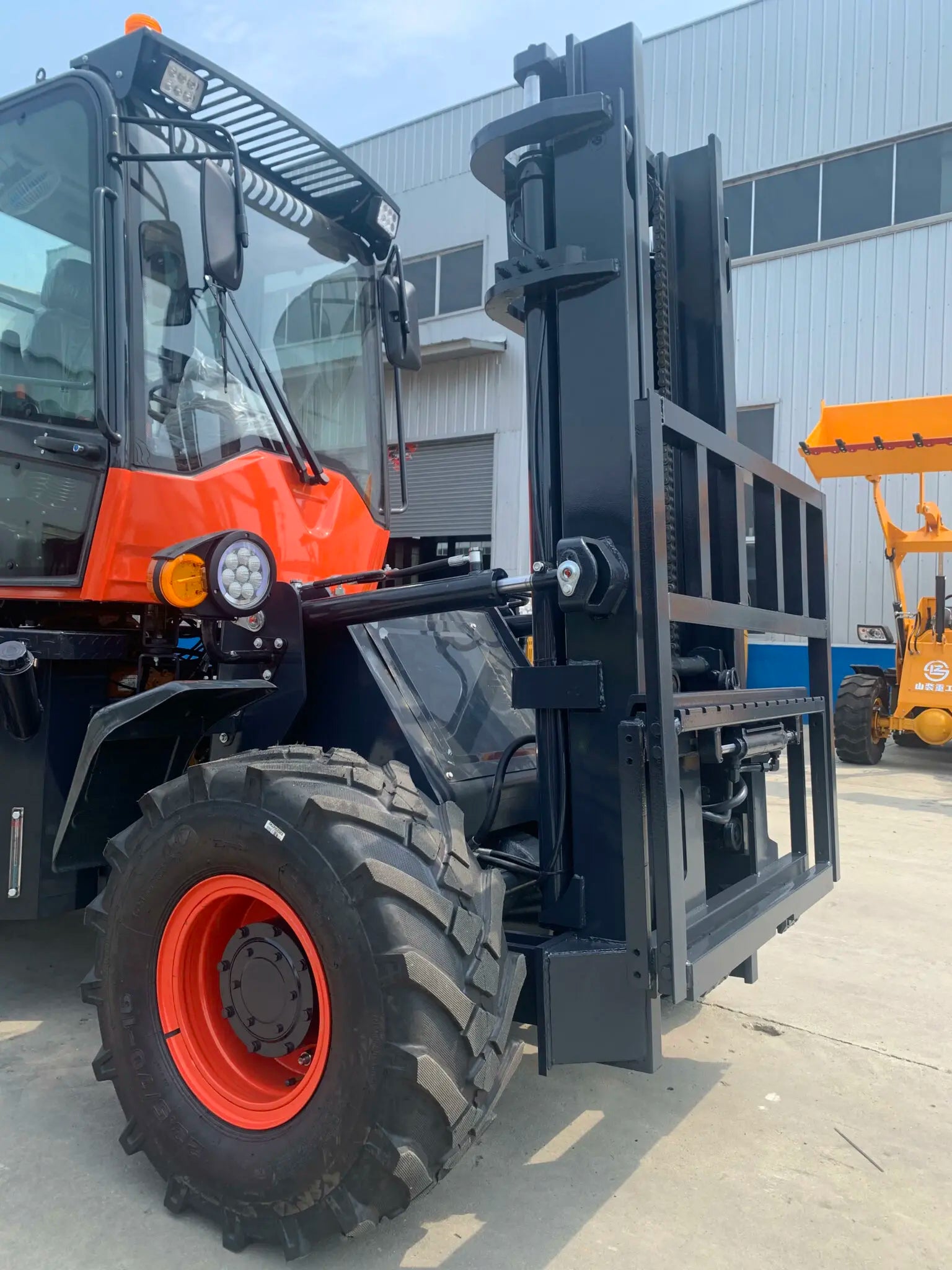

Side Shifter: Enables more precise load positioning.
300 mm Ground Clearance: Helps navigate uneven terrain.
Technical Specifications
General Specifications
Specification
Details
Model
YJ265
Load Capacity
3,000 kg (6,613 lbs)
Operating Weight
4,000 kg (8,818 lbs)
Engine Brand / Model
Kohler 1903
Rated Power
36 kW
Emission Standard
EPA Compliant
Drive Type
4×4 All-Wheel Drive
Front and Rear Tyres
20.5/70-16
Axle Model
Customized Small Wheel Side Axle
Parking Brake
Air Brake
Dimensions
Parameter
Measurement
Transport Dimensions (L × W × H)
4,200 × 1,800 × 2,750 mm (165 × 70 × 108 in)
Wheelbase
2,120 mm (83.4 in)
Axle Track Width
1,500 mm (59 in)
Minimum Turning Radius
3,500 mm (137 in)
Ground Clearance
300 mm (11.8 in)
Fork Length
1,220 mm (48 in)
Performance Specifications
Parameter
Measurement
Maximum Travel Speed
35 km/h (21.7 mph)
Maximum Lifting Height
3,000 mm (118 in)
Maximum Lifting Speed
0.6 m/s
Maximum Descent Speed
0.55 m/s
Mast Tilt Forward
12°
Mast Tilt Backward
6°
Standard Configuration
Side shifter
Enclosed cabin
Air conditioning
Air brake system
Key Benefits
Rugged Outdoor Performance: Designed for challenging work environments.
Improved Maneuverability: Compact dimensions and a 3,500 mm turning radius help with operation in tighter spaces.
Efficient Material Handling: The side shifter supports accurate load positioning.
Operator Comfort: An enclosed, air-conditioned cabin helps reduce exposure to outdoor conditions.
Durable Construction: Heavy-duty tyres and a robust chassis support demanding applications.
Reduced Downtime Potential: A practical design can support long-term operational use when properly maintained.
