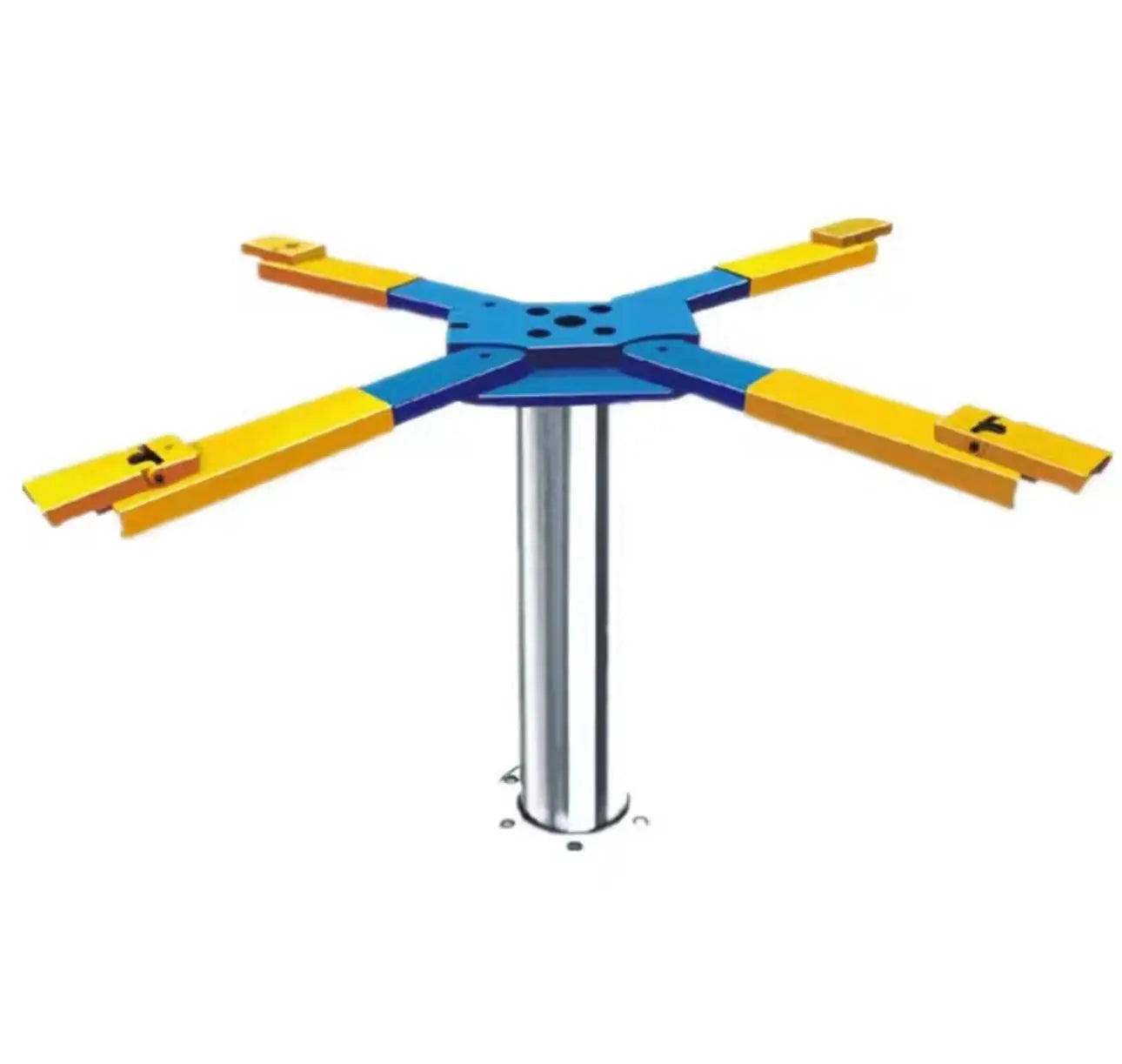

Premium Space-Saving Lift with 360° Rotation & Adjustable Swing Arms

The CAEL In-Ground Single Post Car Lift – X Shape is a professional hydraulic lifting system designed for automotive workshops, detailing bays, tire centers, service garages, and modern showrooms that require clean floor layouts and maximum vehicle access.

Featuring a compact single-post in-ground design with an X-shape lifting platform, this model offers excellent under-vehicle accessibility while maintaining a sleek and space-saving installation. Its 360° rotation, adjustable swing arms, and telescopic support arms provide outstanding flexibility for servicing a wide range of vehicles.

With a lifting capacity of 4,000 kg (8,818 lb), this lift is ideal for passenger cars, SUVs, and many light commercial vehicles.

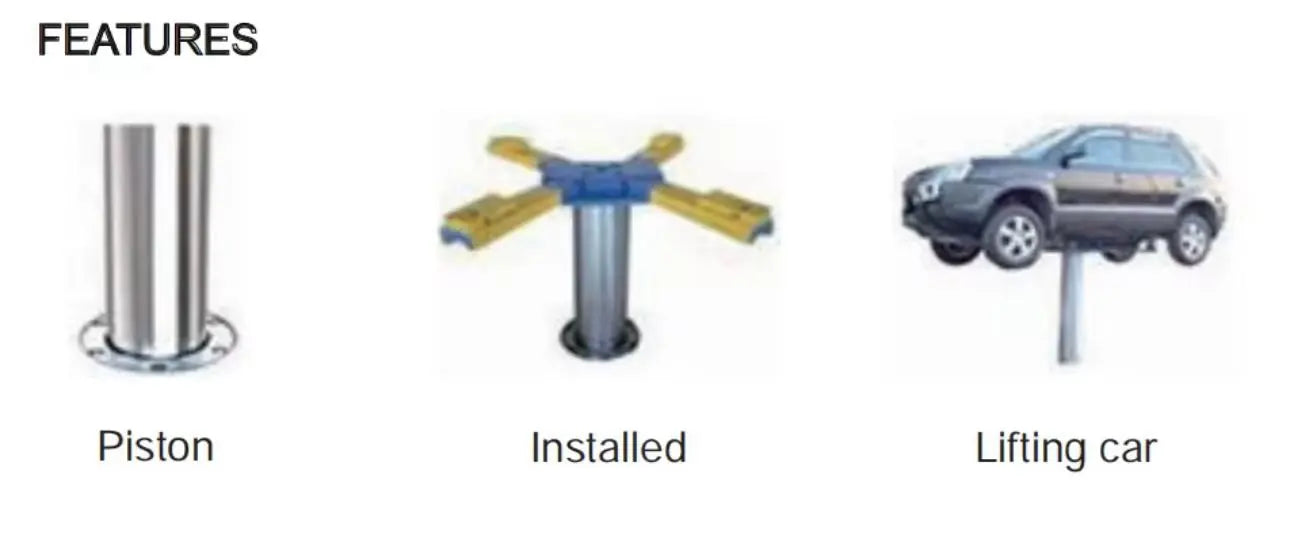

Key Features & Benefits

• 4,000 kg (8,818 lb) Capacity – Suitable for cars, SUVs, and light commercial vehicles.

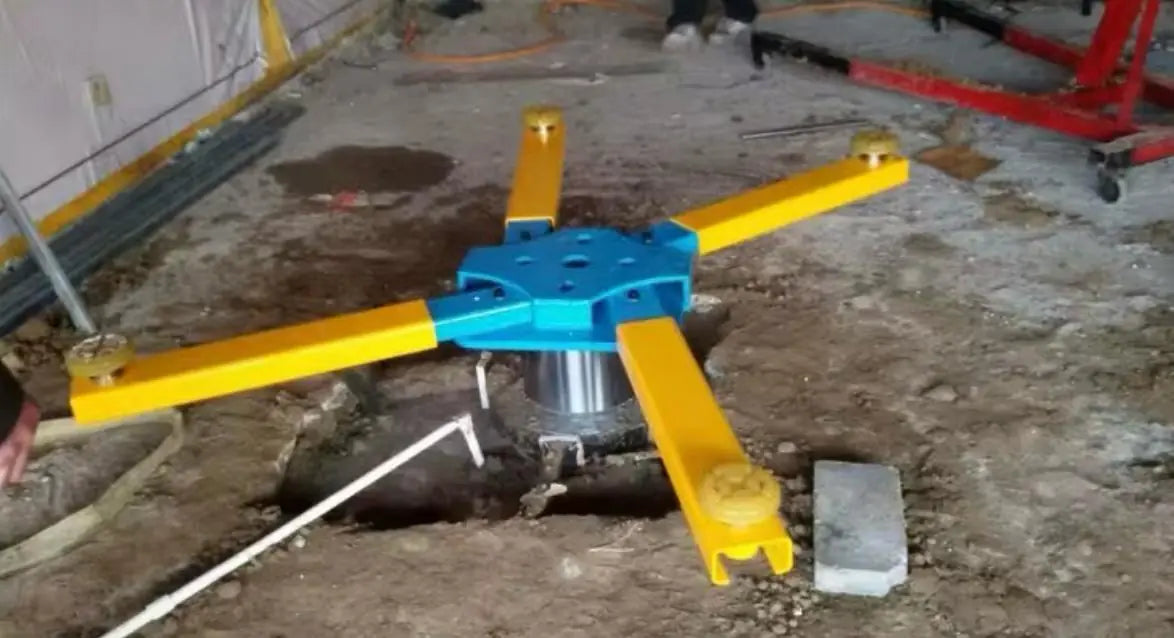

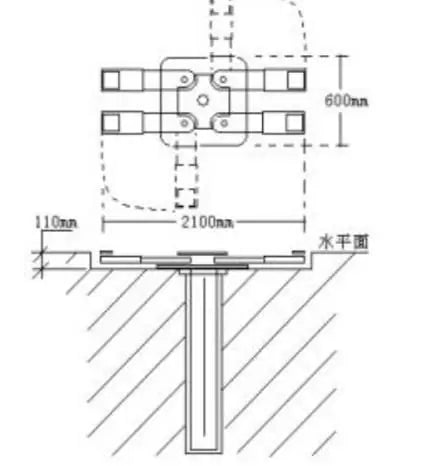

• In-Ground Single Post Design – Keeps workshop floors clean and uncluttered.
• X-Shape Platform Configuration – Strong support with open access.
• 360° Rotation – Flexible positioning for easier service workflow.
• Adjustable Swing Arm Position – Adapts to multiple vehicle wheelbases.
• 2-Section Telescopic Support Arms – Extended compatibility and secure lifting points.
• Pneumatic Hydraulic Operation – Smooth, efficient lifting power.
• Corrosion-Resistant Construction – Painted brackets and chrome-plated cylinder.

Technical Specifications

• Model Type: In-Ground Single Post Car Lift – X Shape
• Lifting Capacity: 4000 kg (8,818 lb)
• Minimum Ground Clearance: 150 mm (5.9 in)
• Maximum Lifting Height: 1750 mm (68.9 in / 5 ft 8.9 in)
• Motor Power: 2.2 kW
• Power Supply: 220V / 380V
• Air Operating Pressure: 5 – 8 bar
• Machine Weight: 650 kg (1,433 lb)

Container Loading Capacity

• 20 ft Container: 16 Sets
• 40 ft Container: 32 Sets

Structural Highlights

1. Pneumatic Hydraulic Lifting System – Reliable lifting performance
2. 360 Degree Rotation – Better service access and workflow flexibility
3. Adjustable Swing Arm Position – Fits various vehicle sizes
4. 2-Section Telescopic Support Arms – Greater reach and lifting adaptability
5. Painted Support Brackets – Corrosion protection finish
6. Chrome-Plated Hydraulic Cylinder – Durable anti-corrosion protection

Ideal Applications

✔ Auto repair shops
✔ Tire & alignment centers

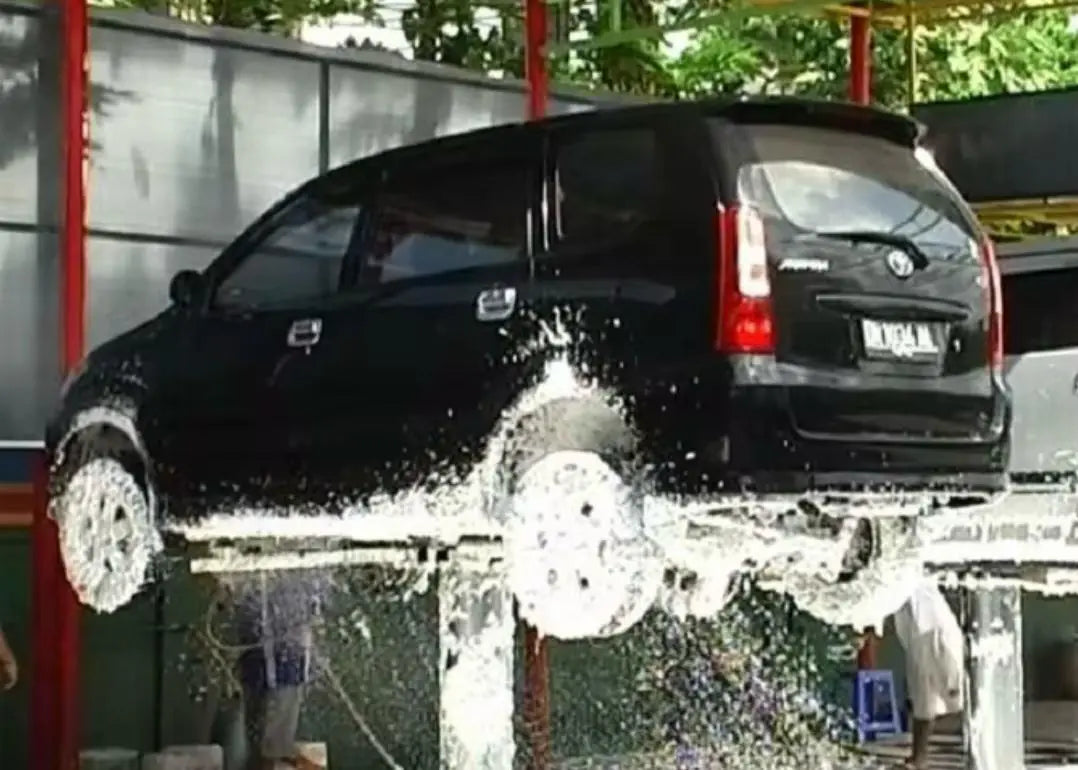

✔ Detailing studios
✔ Luxury showrooms
✔ Home garages
✔ Space-limited service bays

Why Choose the CAEL X Shape Lift?

The CAEL In-Ground X Shape Single Post Lift combines premium presentation, open workspace access, flexible lifting arms, and strong hydraulic performance. It is an ideal solution for modern workshops wanting maximum efficiency and a professional appearance.

Request a Quote

Contact us today for pricing, stock availability, shipping options, installation guidance, and technical support tailored to your facility.

Download Manual-CLICK HERE
