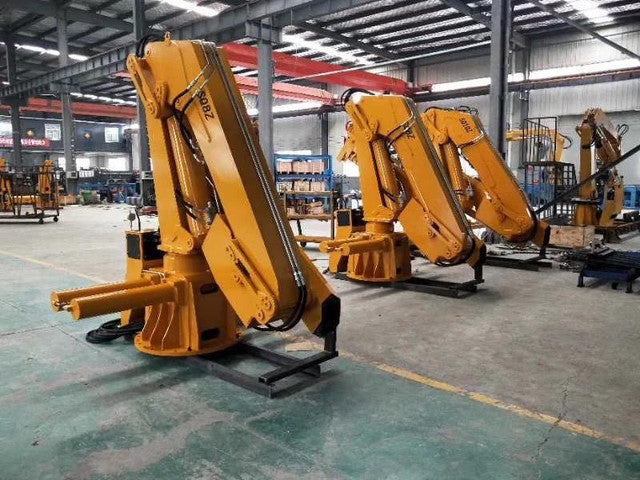

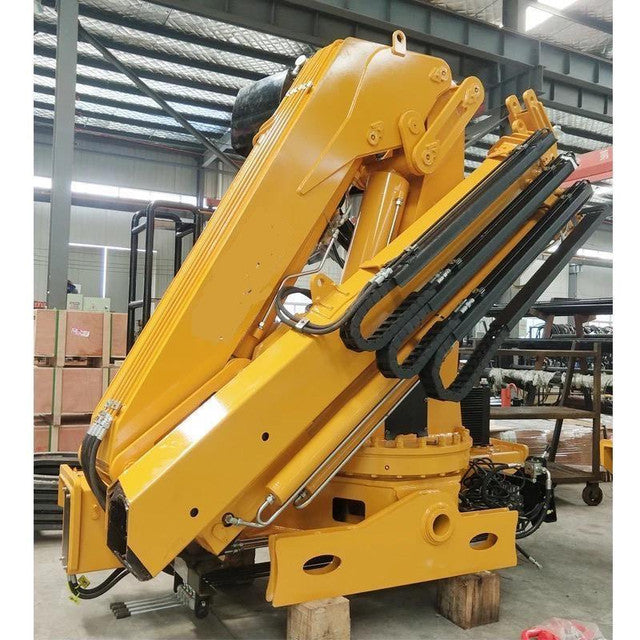

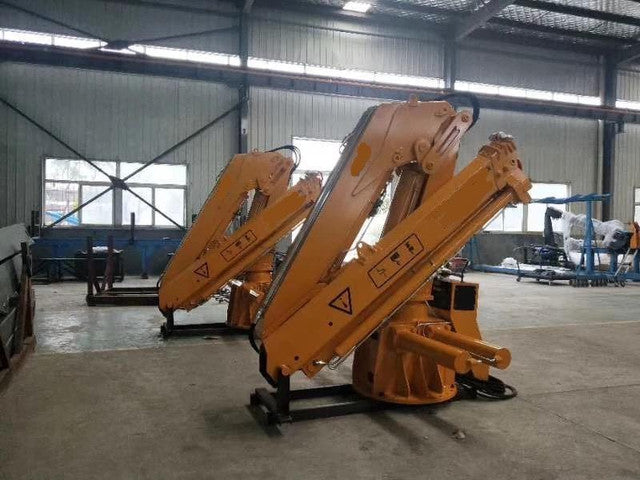

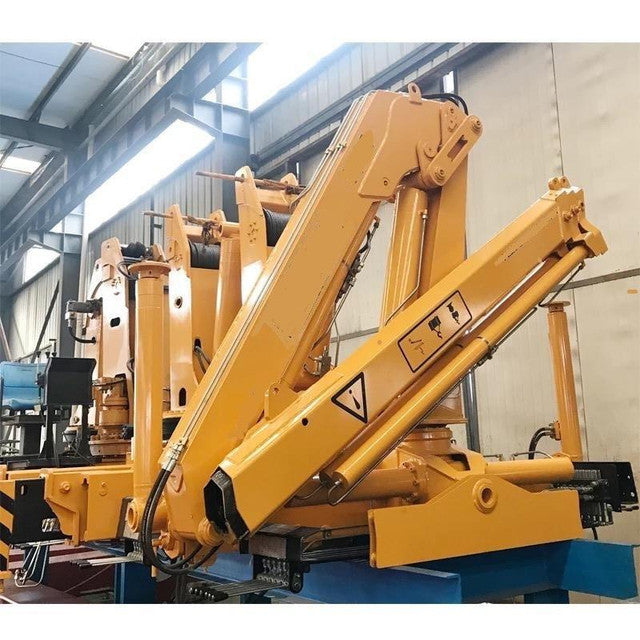

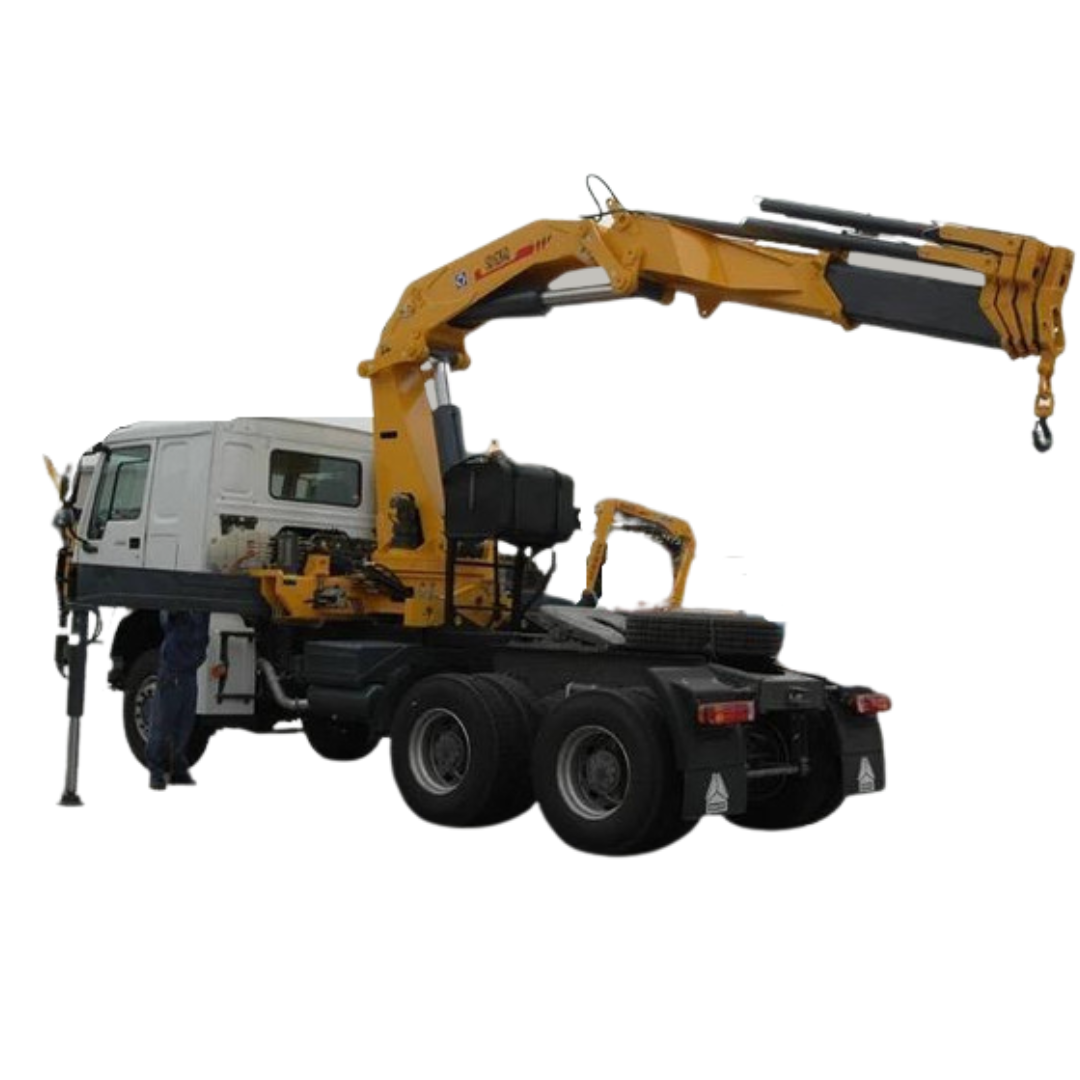

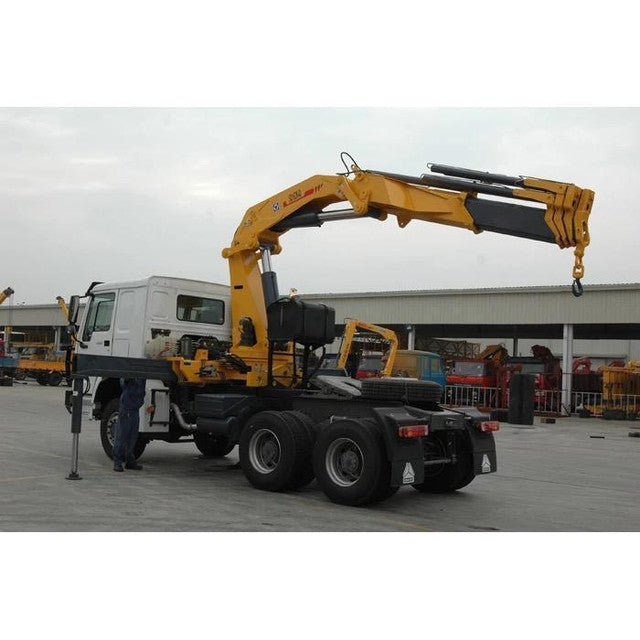

The CAEL -JS10 Folding Arm Crane is a high-performance lifting solution engineered for precision, strength, and versatility in demanding industrial and construction environments. With its advanced hydraulic system and compact folding design, this crane delivers exceptional lifting power while maintaining excellent maneuverability and space efficiency.

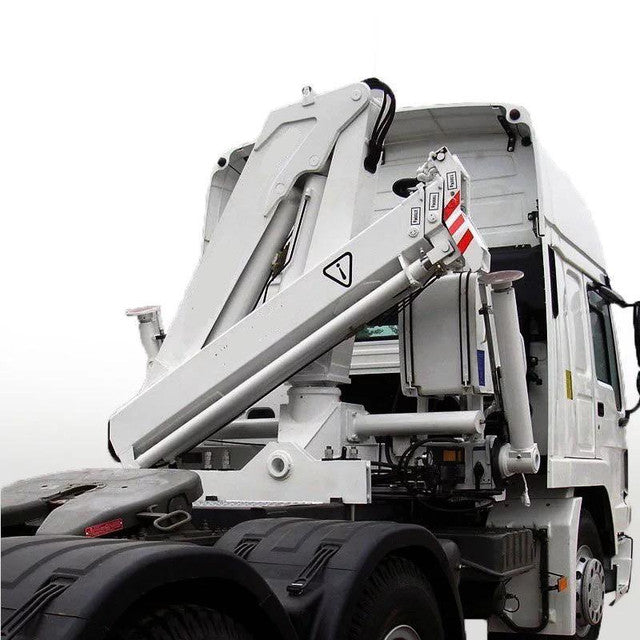

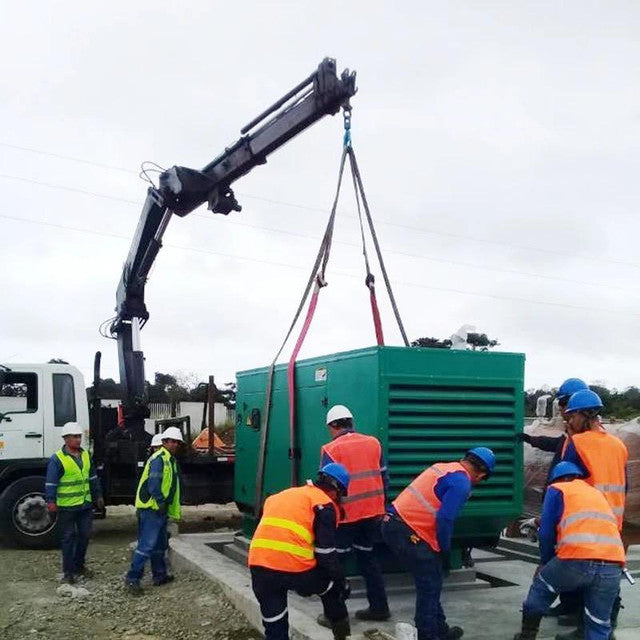

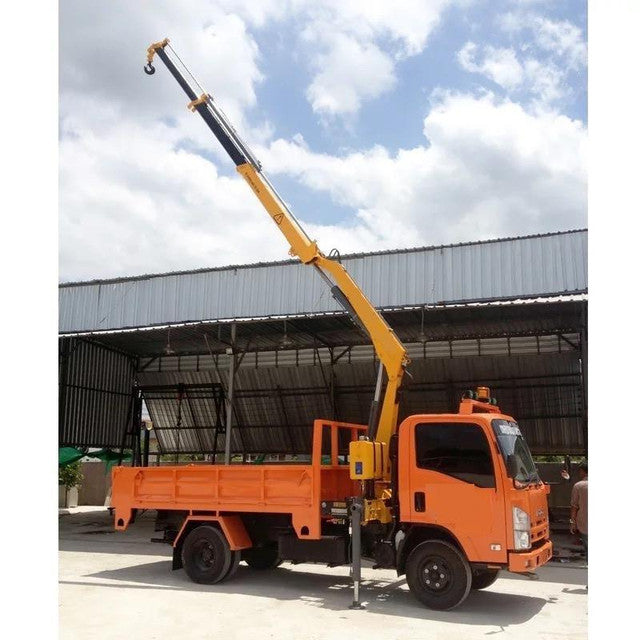

Designed for truck-mounted applications, the JS10 ensures smooth 360° rotation, stable operation, and reliable performance across a wide range of lifting tasks. Its robust structure and optimized load distribution make it ideal for heavy-duty operations requiring both reach and lifting capacity.

Key Specifications

• Max Lifting Capacity:
  10,000 kg (22,046 lbs)
• Max Lifting Moment:
  20.0 Ton·m (approx. 144,680 lb·ft)
• Max Working Radius:
  12.3 m (12,300 mm / 484.3 in)
• Max Working Height:
  15.0 m (15,000 mm / 590.6 in)
• Slewing Angle:
  360° Continuous Rotation

Installation Dimensions

• Lower Operation Space:
  1150 mm (45.3 in)
• Upper Operation Space:
  1450 mm (57.1 in)
• Outrigger Span:
  2420 mm (95.3 in) / 5200 mm (204.7 in)

Weight

• Self Weight:
  4.2 Ton (4,200 kg / 9,259 lbs)

Key Features

• Folding arm design for compact storage and transport
• High lifting efficiency with precise load control
• 360° rotation for maximum operational flexibility
• Strong and durable construction for long service life
• Stable outriggers for enhanced safety during operation
• Ideal for logistics, construction, and heavy-duty material handling
