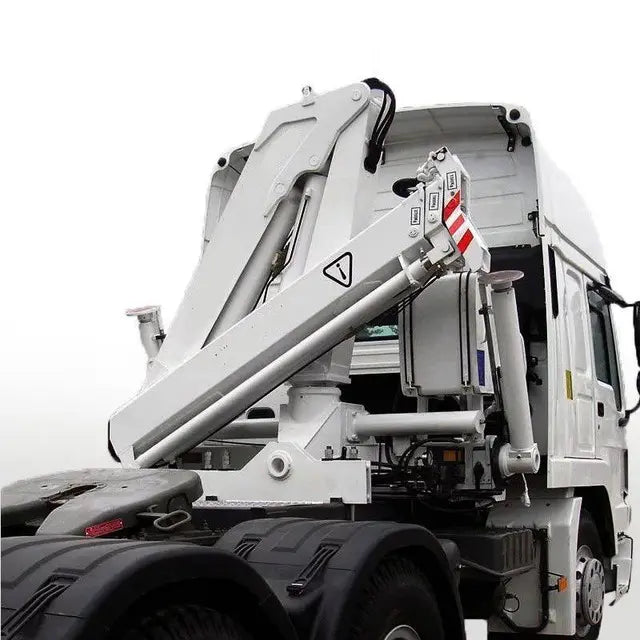

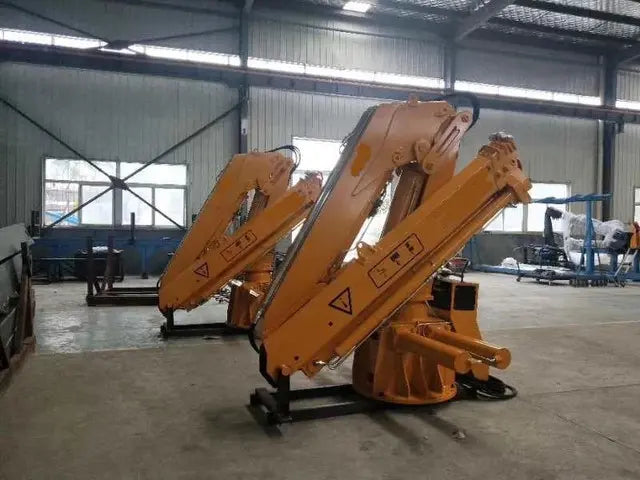

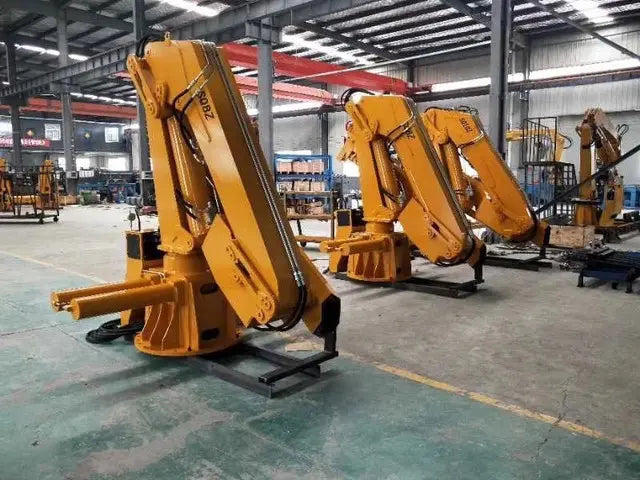

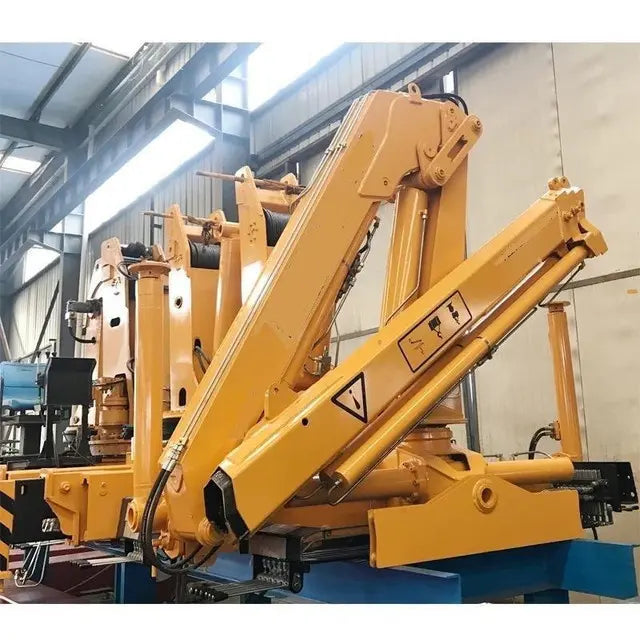

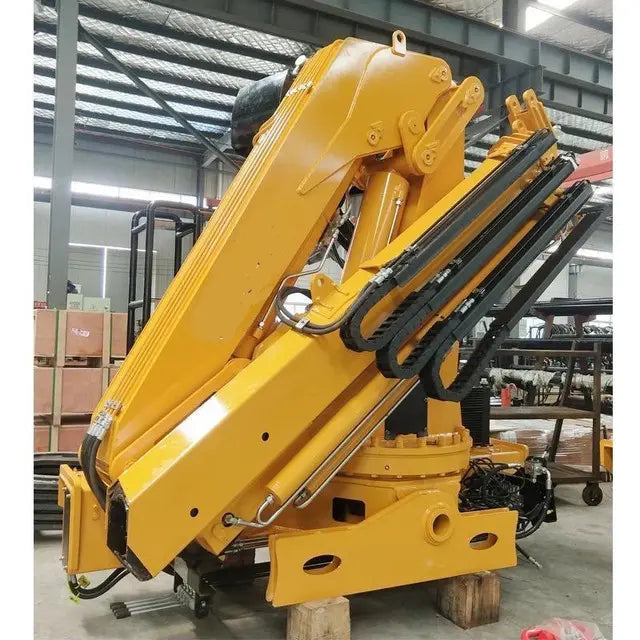

The CAEL Folding Arm Crane is a compact yet powerful lifting solution designed for efficient performance in light to medium-duty applications. Featuring a robust folding boom design and an advanced hydraulic system, it delivers reliable lifting capacity, smooth operation, and excellent maneuverability.

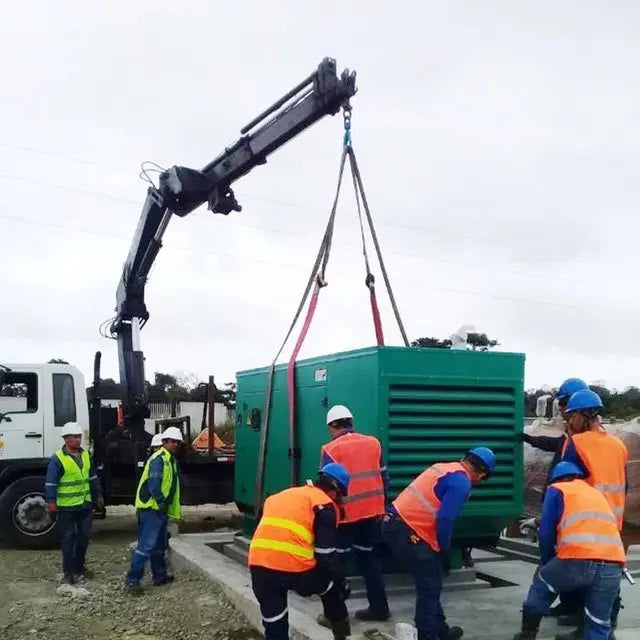

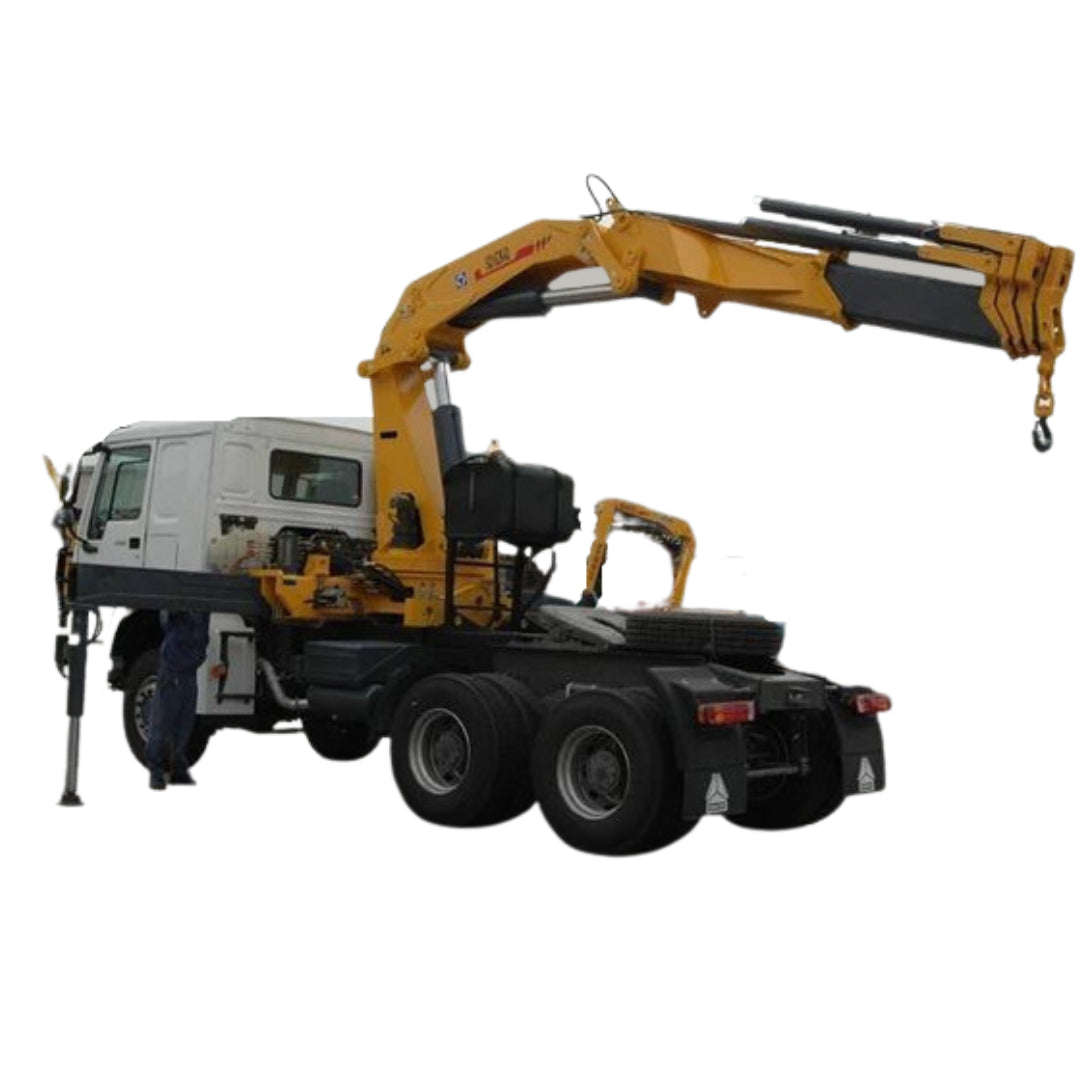

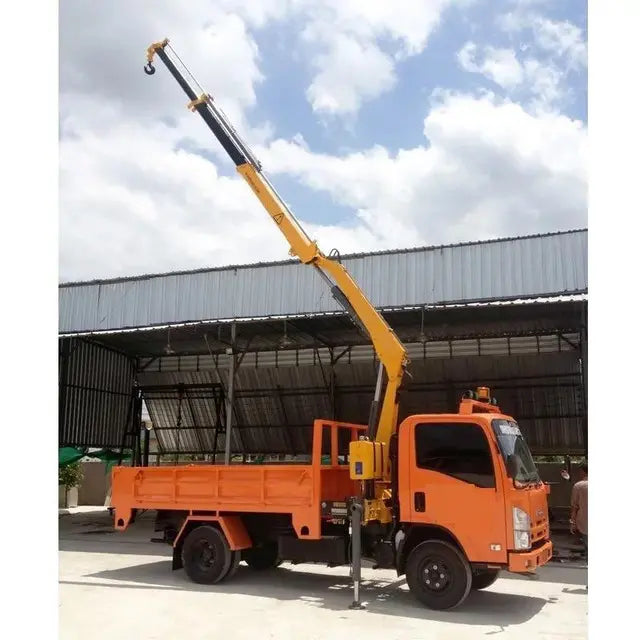

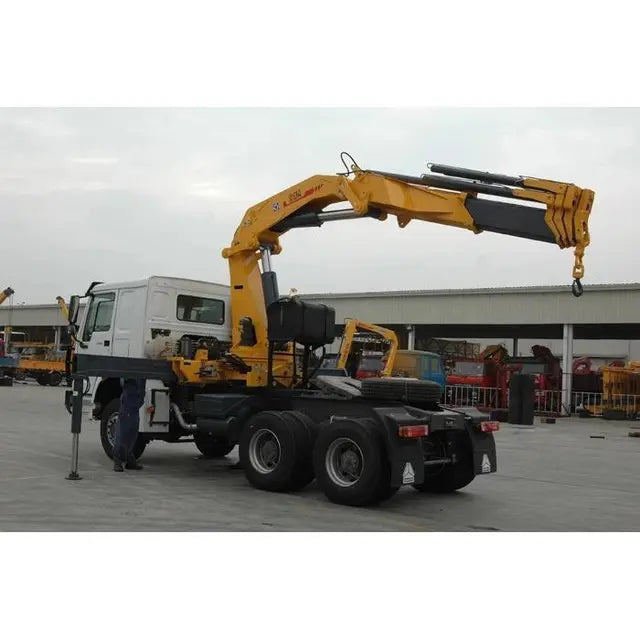

Ideal for truck-mounted use, the JS5 offers 360° full rotation, enabling maximum flexibility in confined job sites. Its optimized structure ensures stability, durability, and long-term performance, making it suitable for logistics, construction, and general material handling operations.

Key Specifications

• Max Lifting Capacity:
  5,000 kg (11,023 lbs)
• Max Lifting Moment:
  10.0 Ton·m (approx. 72,340 lb·ft)
• Max Working Radius:
  8.2 m (8,200 mm / 322.8 in)
• Max Working Height:
  10.6 m (10,600 mm / 417.3 in)
• Slewing Angle:
  360° Full Rotation

Installation & Dimensions

• Installation Space Required:
  800 mm (31.5 in)
• Outrigger Span:
  2150 mm (84.6 in) / 4300 mm (169.3 in)

Weight

• Self Weight:
  ≈ 1.9 Ton (1,900 kg / 4,189 lbs)

Key Features

• Compact folding boom for easy transport and storage
• Smooth and precise hydraulic control system
• 360° rotation for maximum working coverage
• Strong and stable outrigger design for safe operation
• Durable construction for long service life
• Ideal for trucks, logistics, and construction applications
