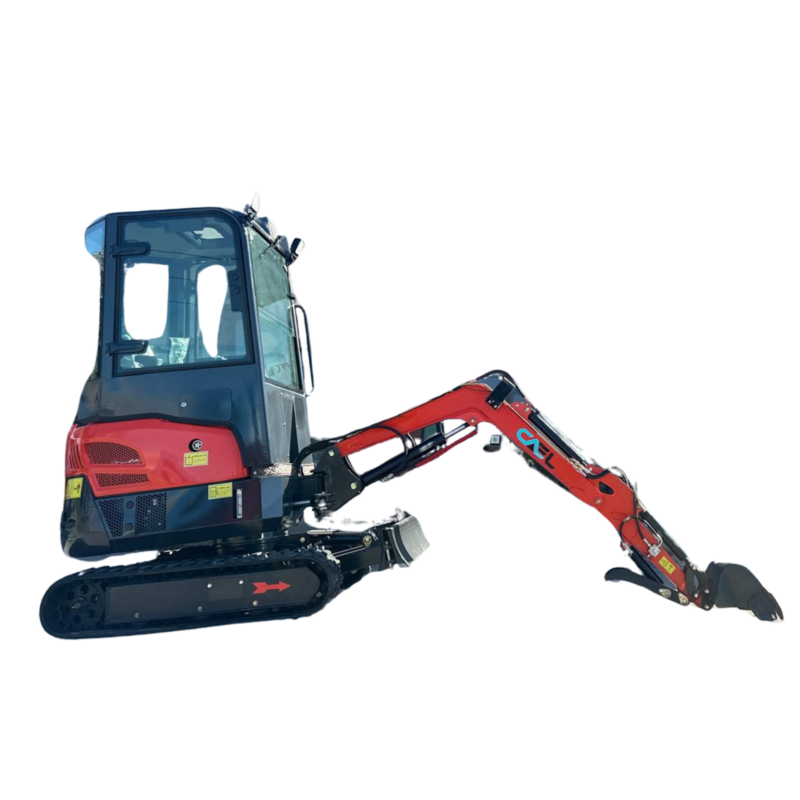

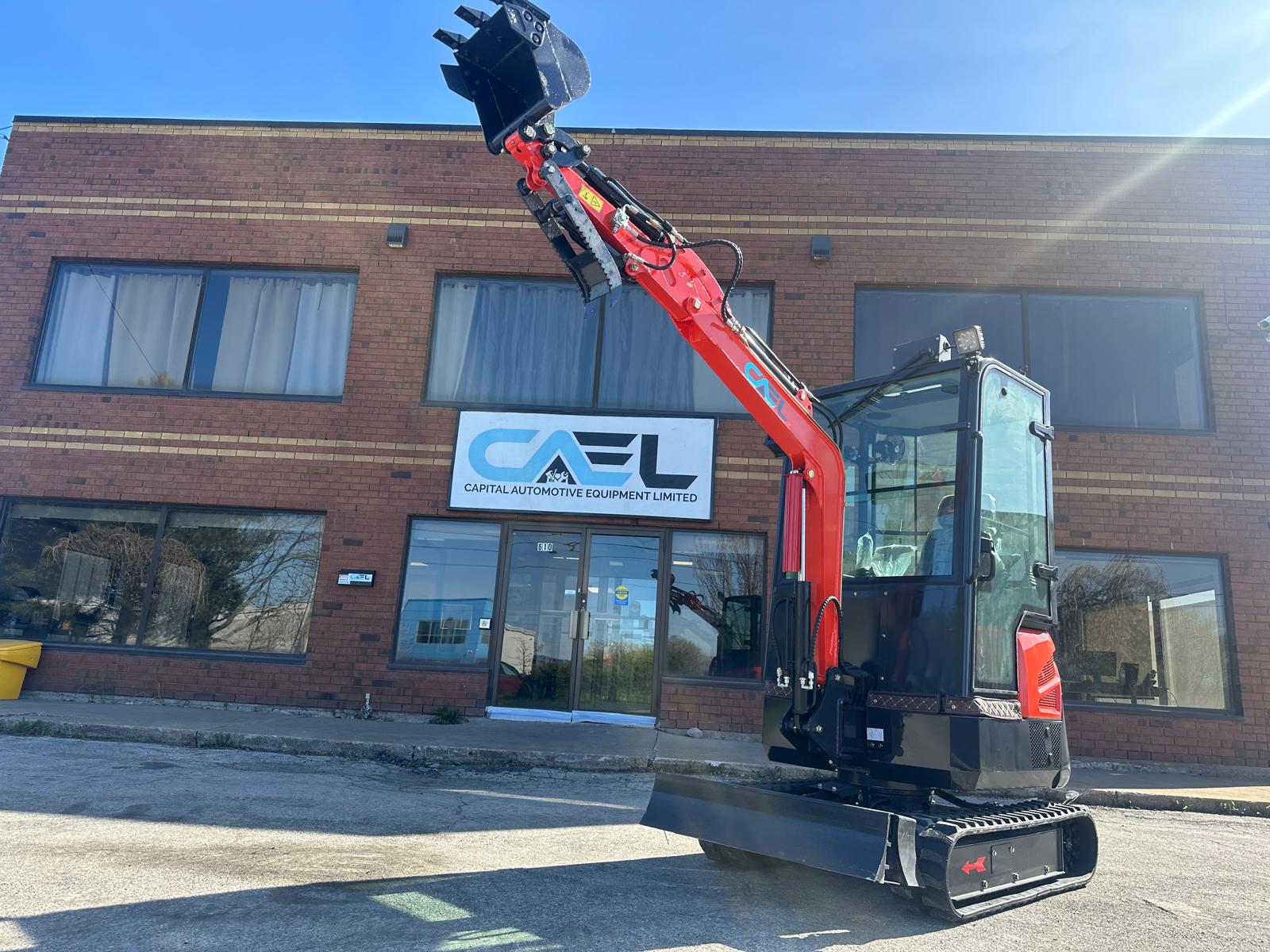

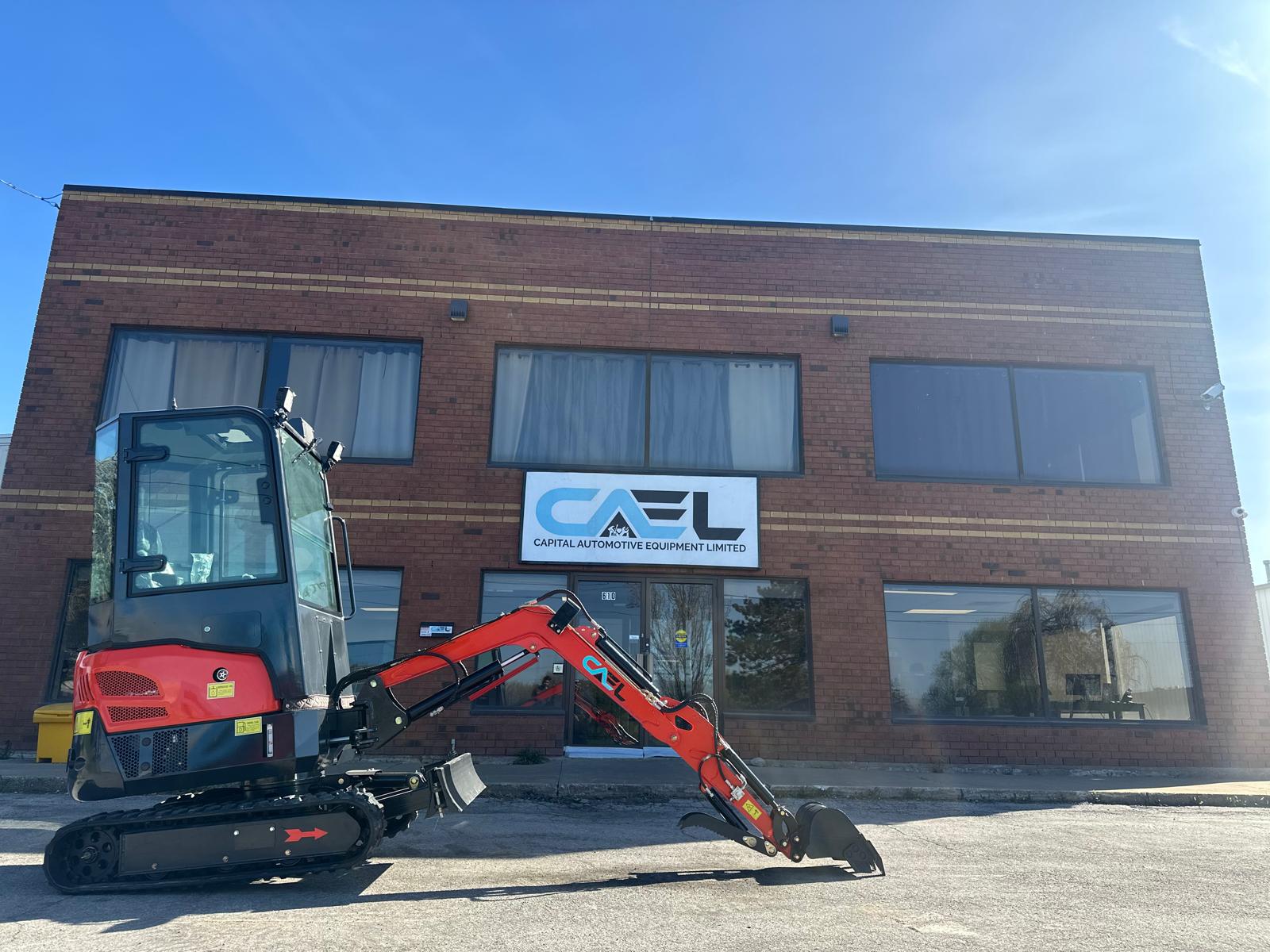

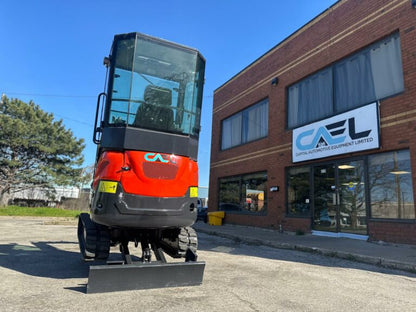

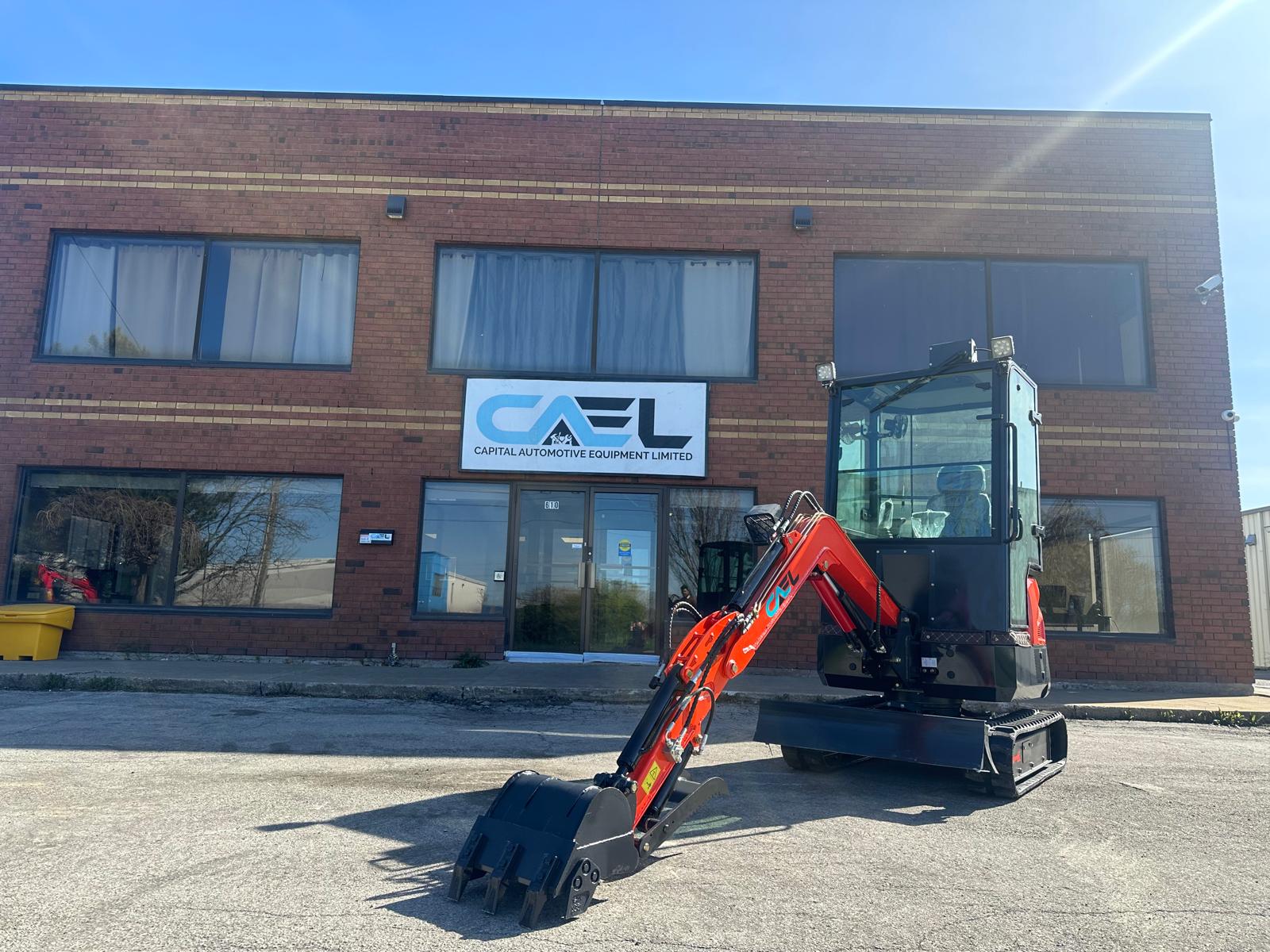

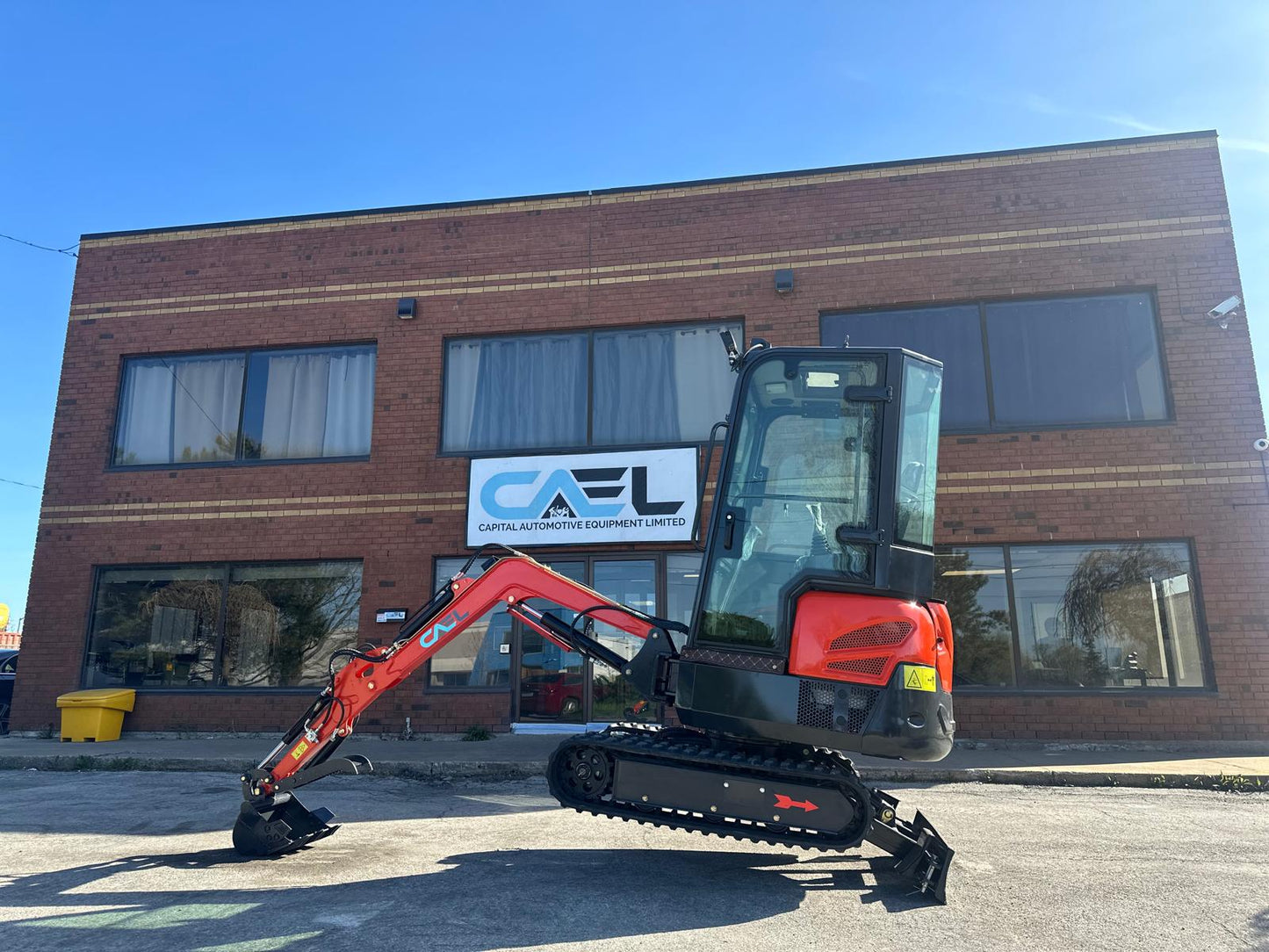

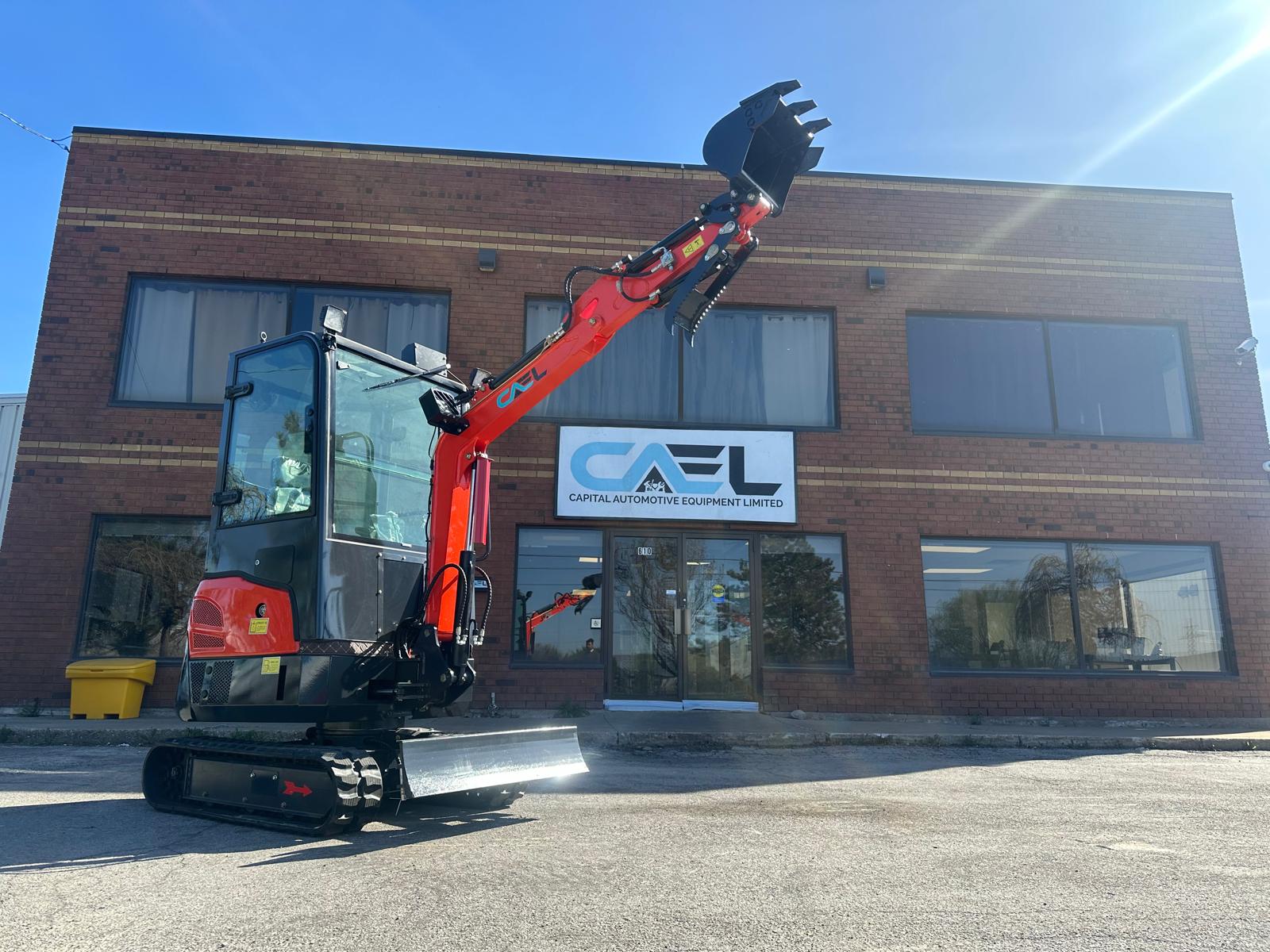

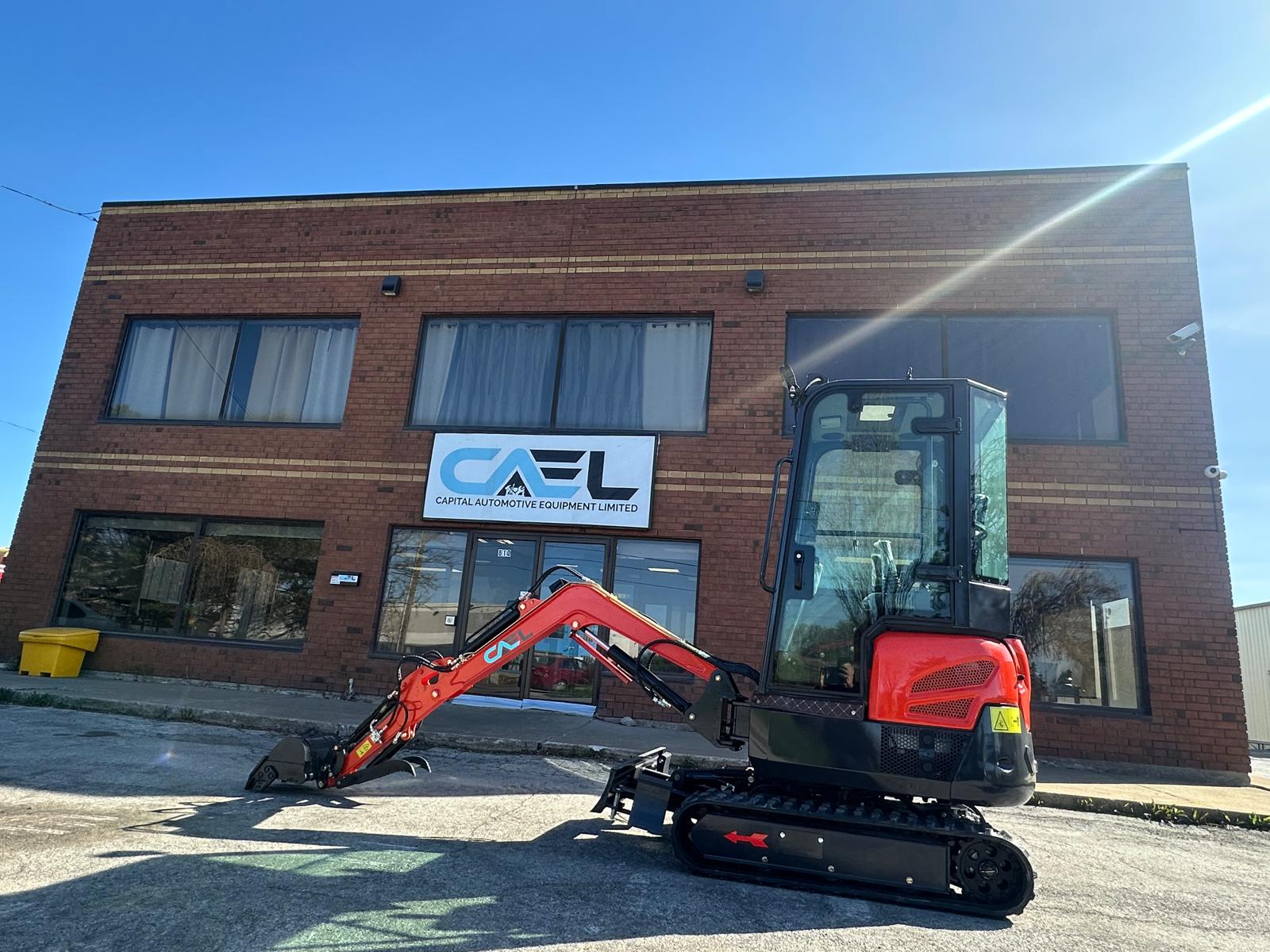

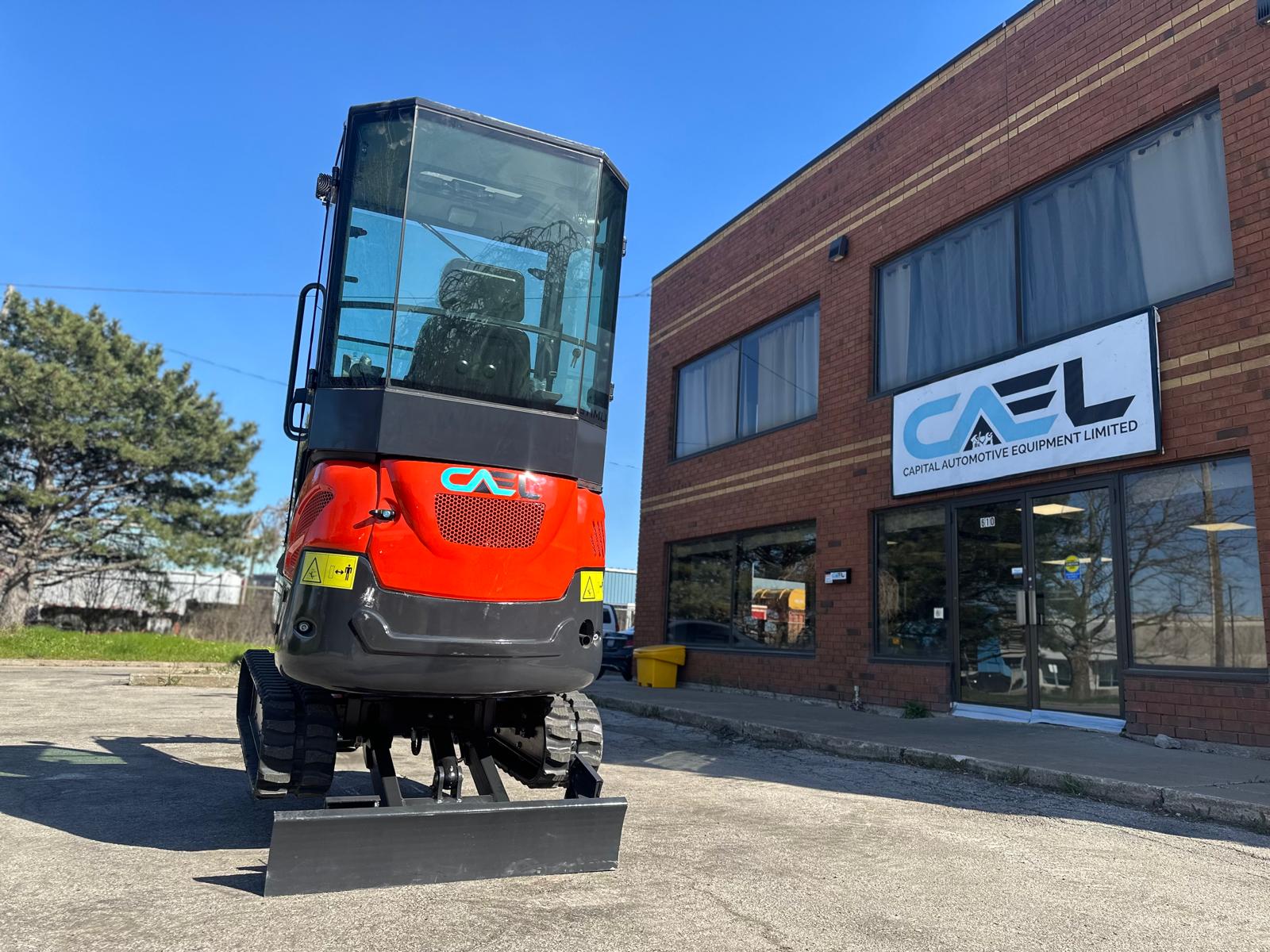

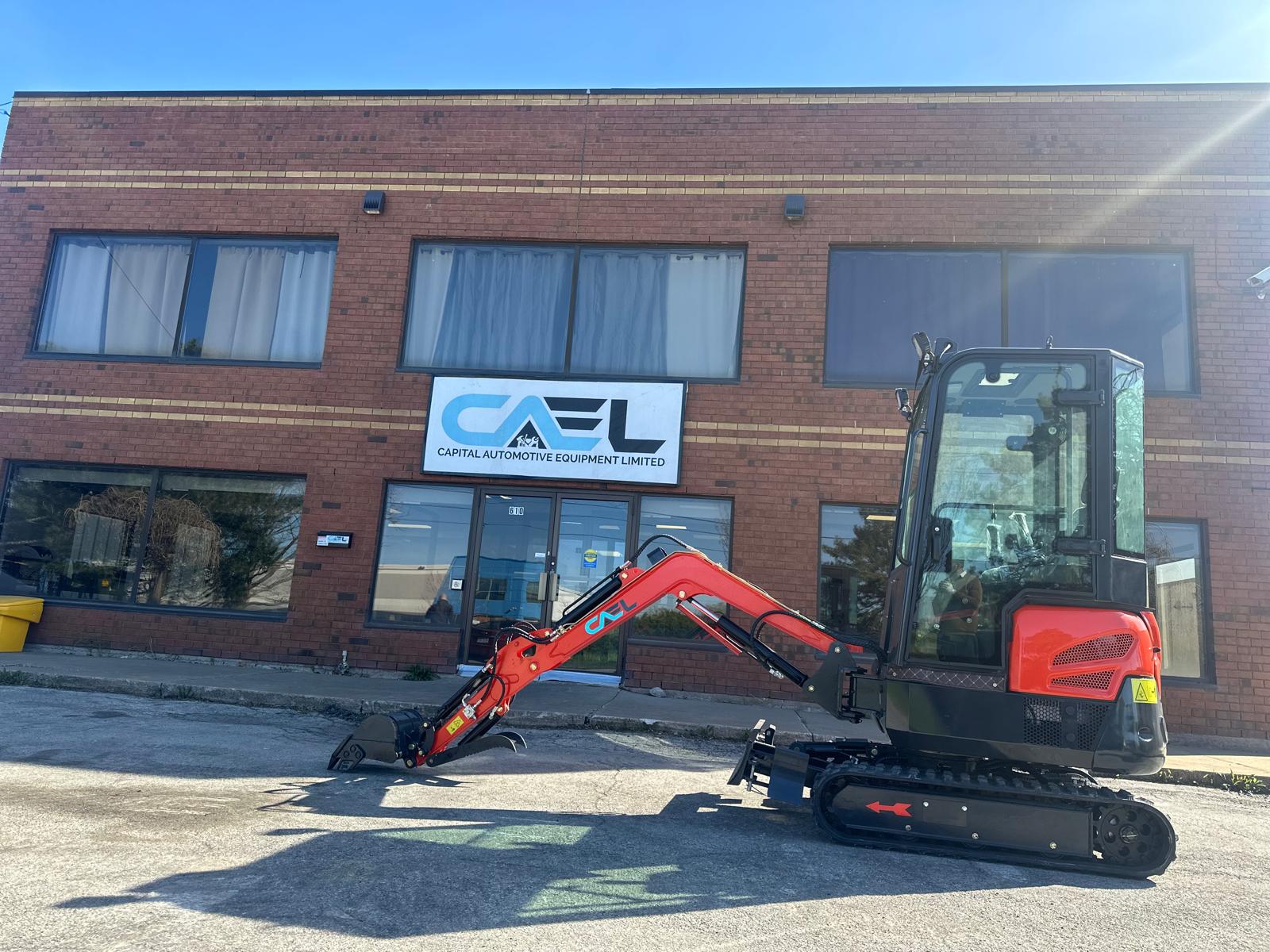

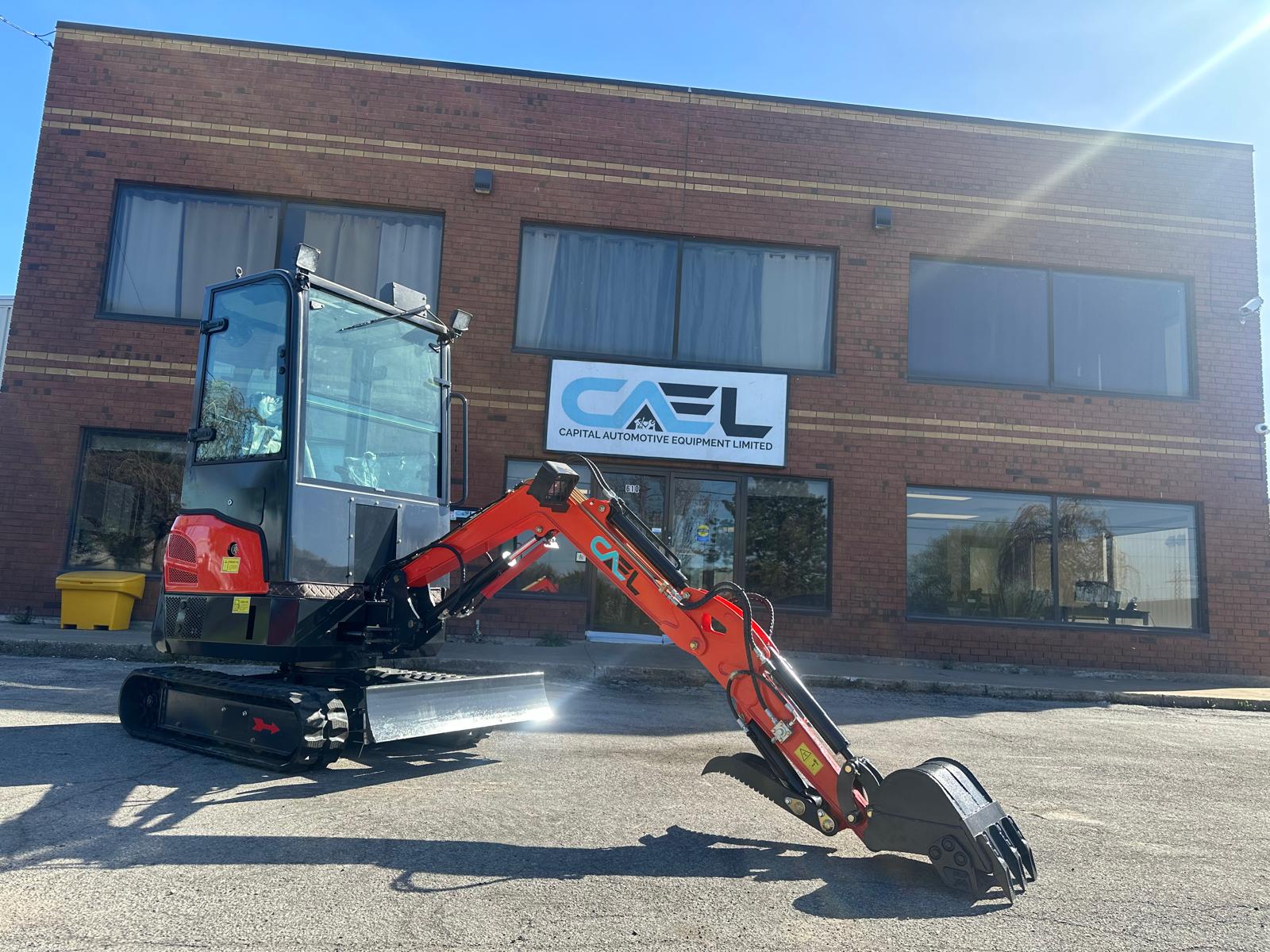

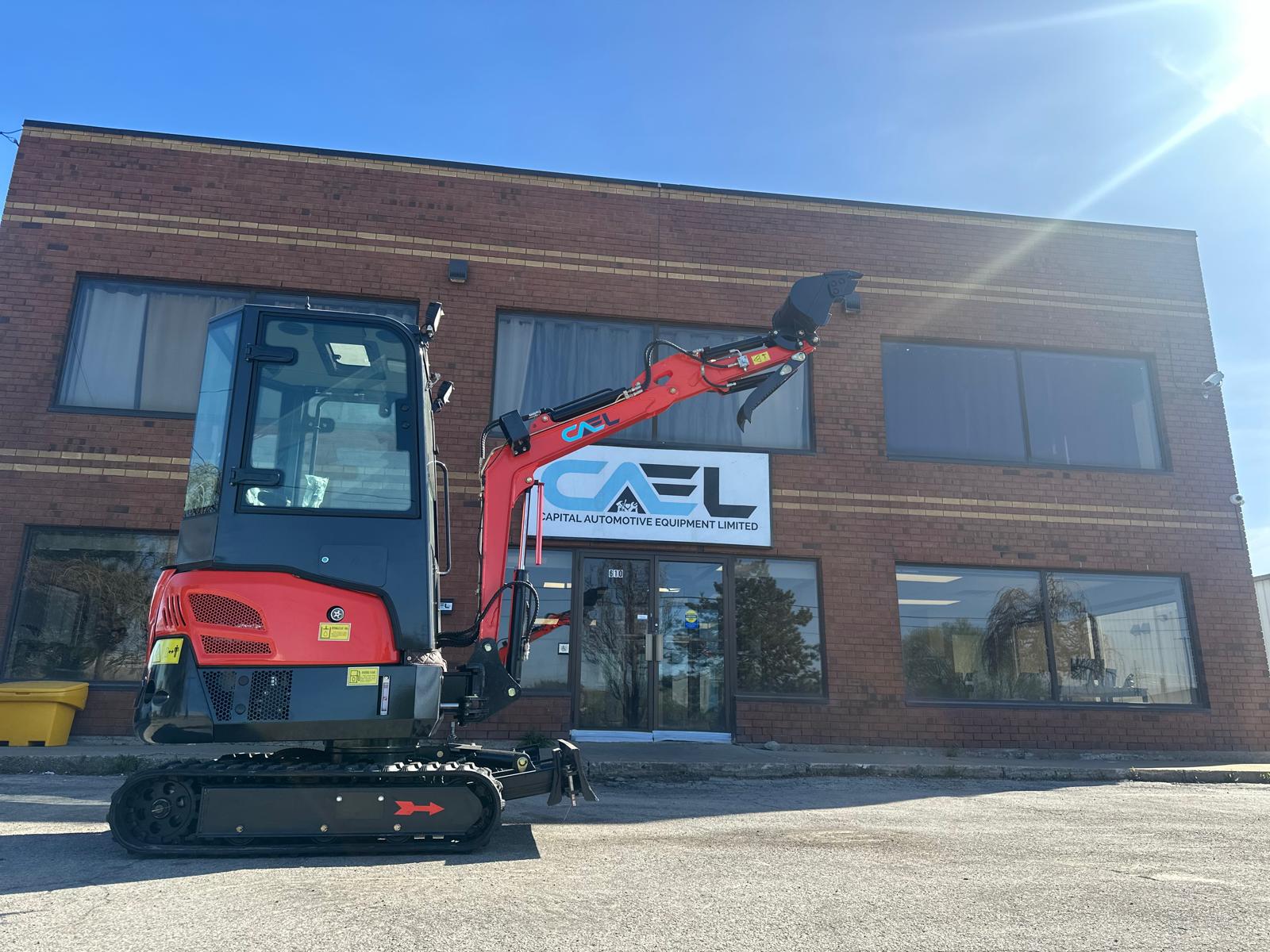

The CAEL 1.75 Ton Mini Excavator is engineered for precision, efficiency, and durability in confined work environments. Powered by a dependable Kubota engine and equipped with high-quality hydraulic components, this compact machine delivers exceptional productivity for construction, landscaping, agriculture, and utility applications. Its robust design ensures smooth operation, stability, and long-term reliability.
| Parameter | Metric (mm) | Imperial (inches) |
|---|---|---|
| Overall Length / Shipping Length (A) | 4325 / 1655 | 170 / 65 |
| Overall Width (B) | 1100 | 43.3 |
| Upper Width (D) | 990 | 39 |
| Overall Height – Cab Roof (C) | 2272 | 89.4 |
| Standard Track Shoe Width (F) | 180 | 7 |
| Track Gauge (G) | 920 | 36 |
| Minimum Ground Clearance (H) | 119 | 4.6 |
| Tail Swing Radius (I) | 790 | 31 |
| Track Grounding Length (J) | 1050 | 41.3 |
| Track Length (K) | 1545 | 60.8 |
| Parameter | Specification |
|---|---|
| Operating Weight | 1,750 kg (3,858 lbs) |
| Bucket Capacity | 0.02 m³ |
| Rated Power | 10.2 kW @ 2500 rpm (13.7 HP) |
| Swing Speed | 12 rpm |
| Gradeability | 30° |
| Parameter | Metric (mm) | Imperial (inches) |
|---|---|---|
| Maximum Excavation Height (a) | 2580 | 101.5 |
| Maximum Dumping Height (b) | 1637 | 64.4 |
| Maximum Excavation Depth (c) | 2060 | 81 |
| Maximum Excavation Distance (d) | 3160 | 124.4 |
| Minimum Swing Radius (e) | 1711 | 67.3 |
| Maximum Height at Minimum Swing Radius (f) | 2048 | 80.6 |
| Component | Specification |
|---|---|
| Engine | Kubota |
| Hydraulic Valve | Beifang |
| Feature | Price |
|---|---|
| Adjustable Tracks | $1,000 (Optional) |
