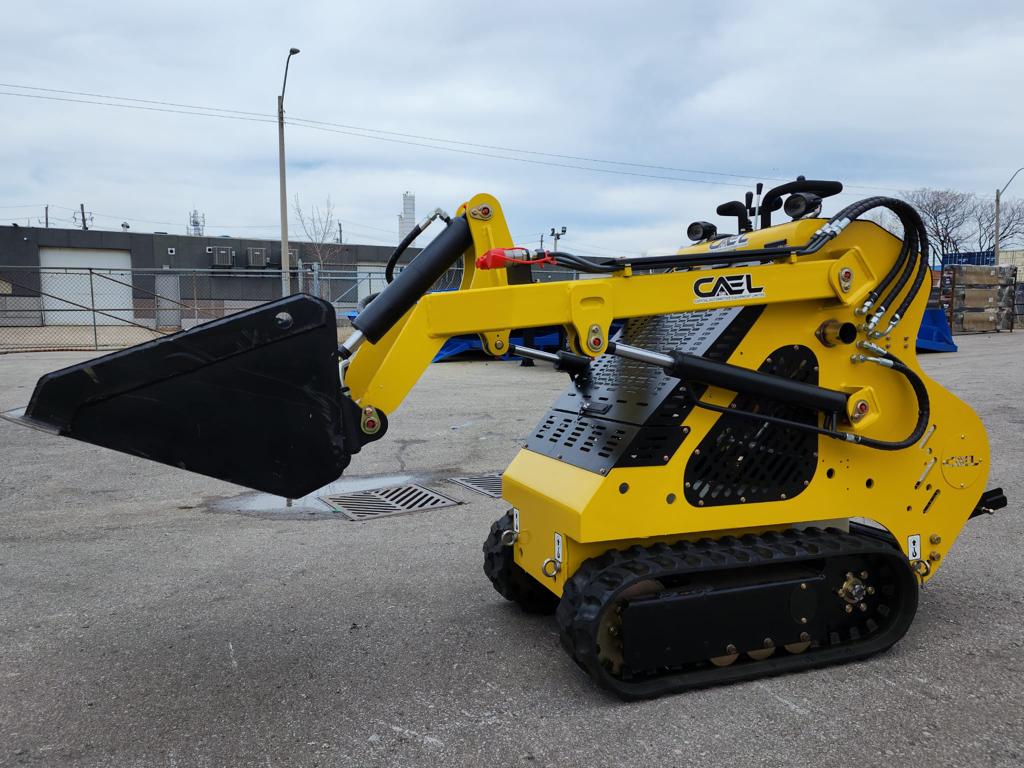

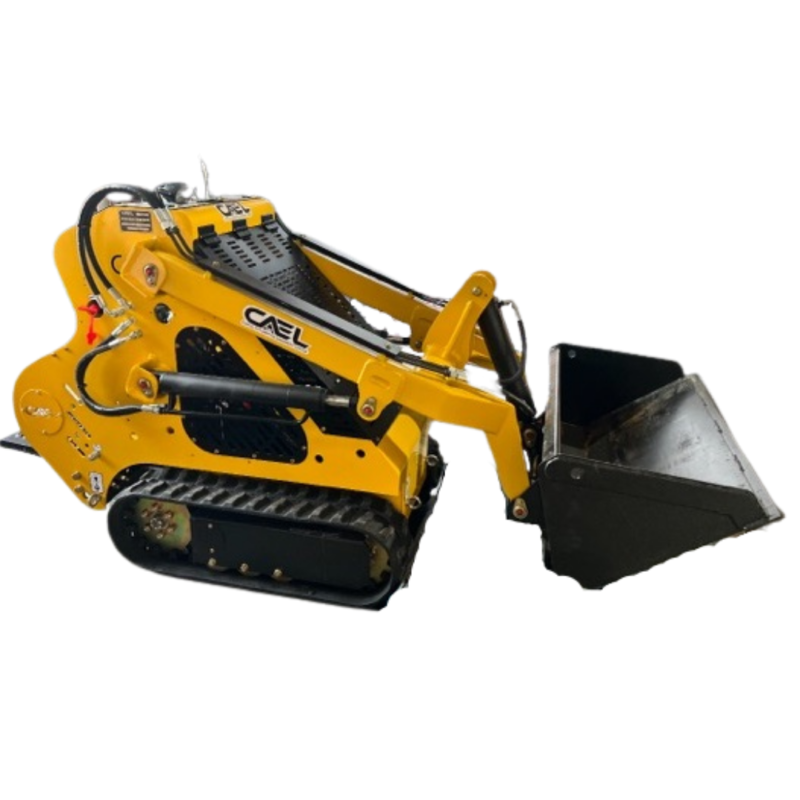

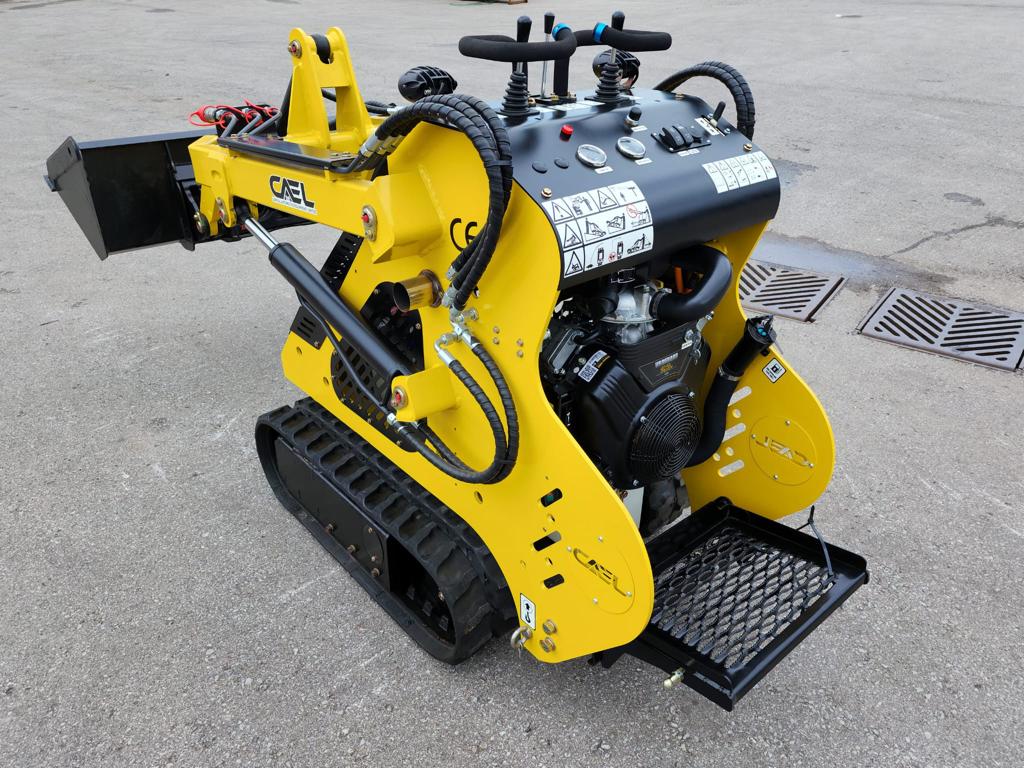

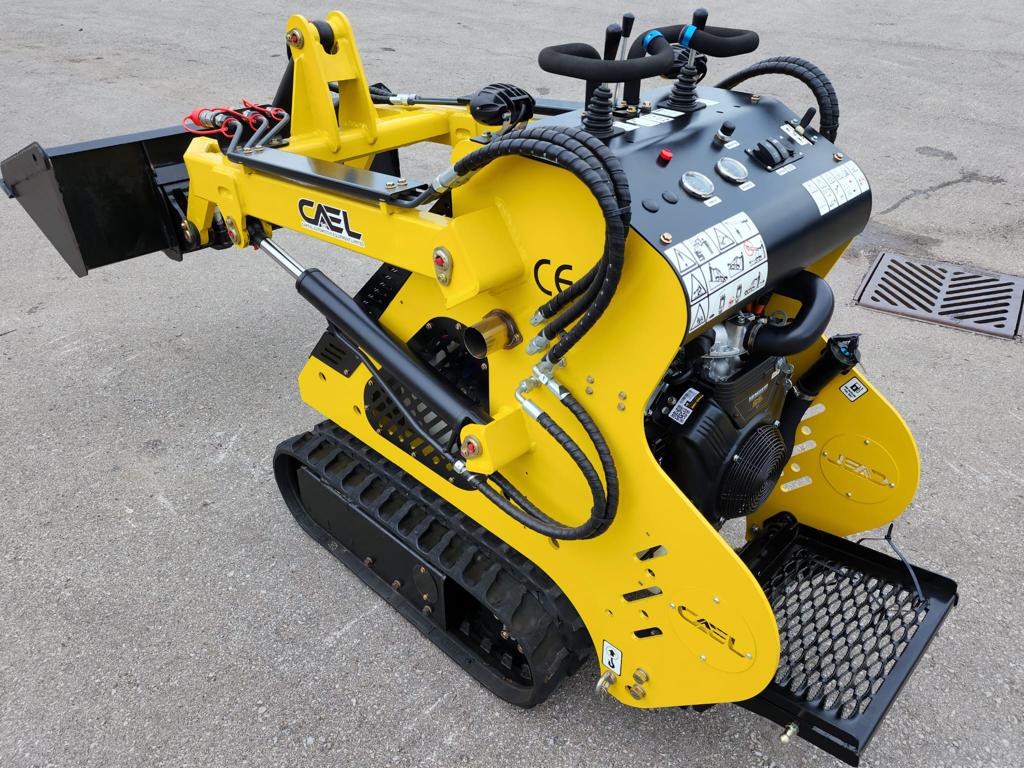

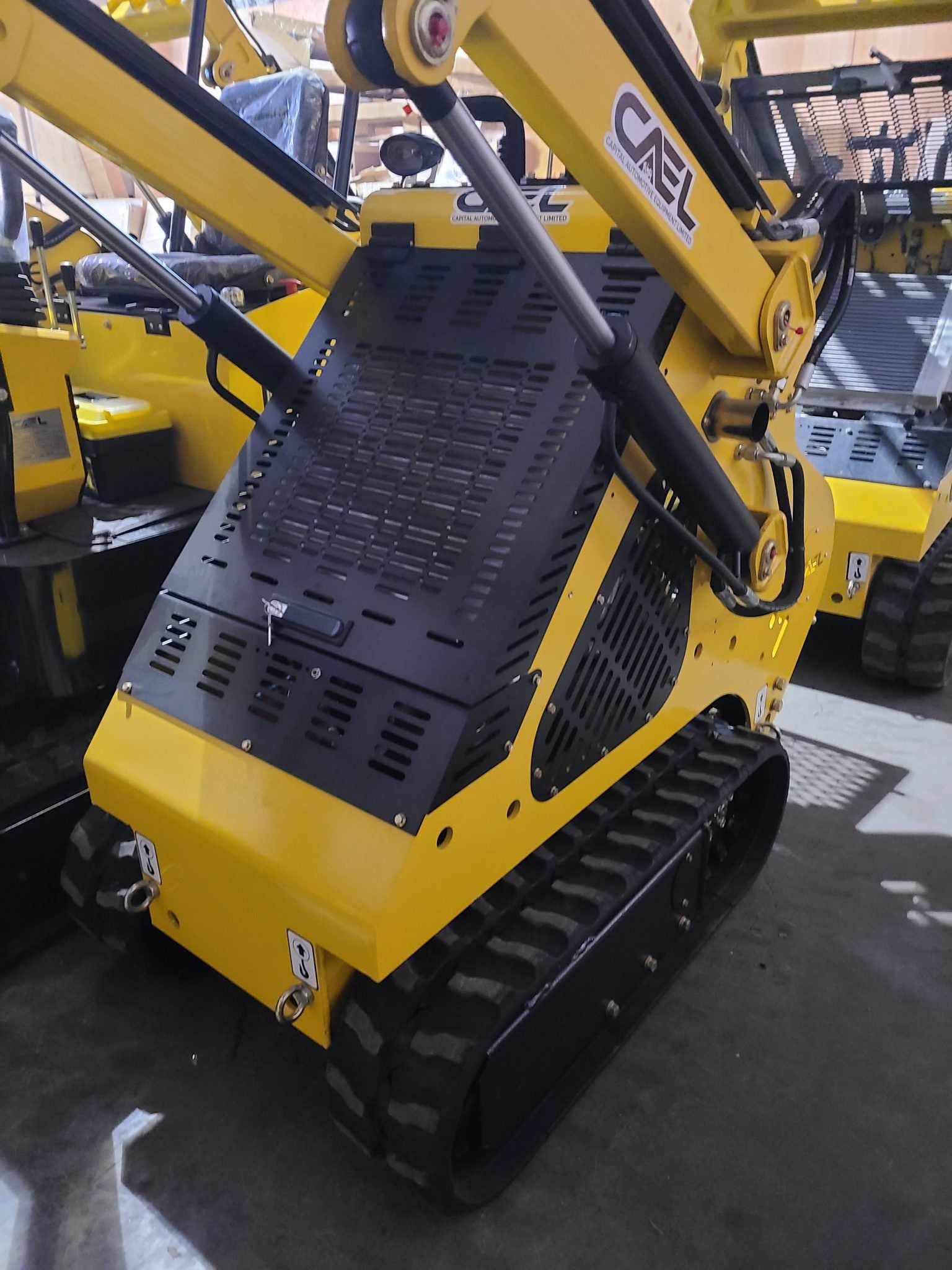

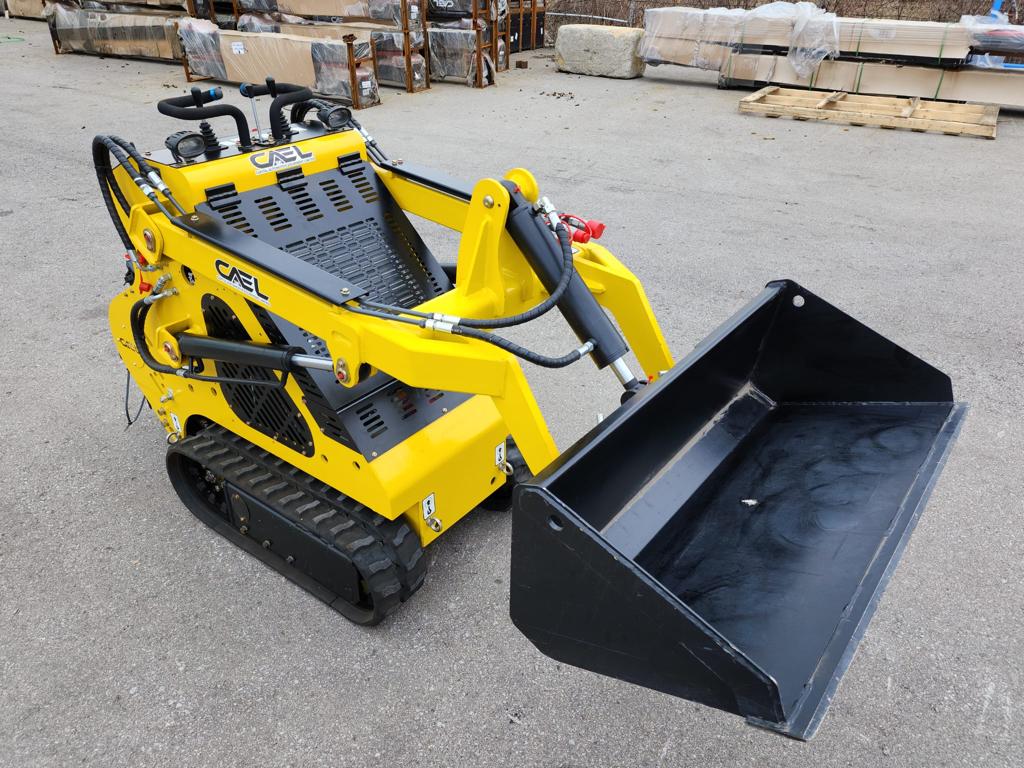

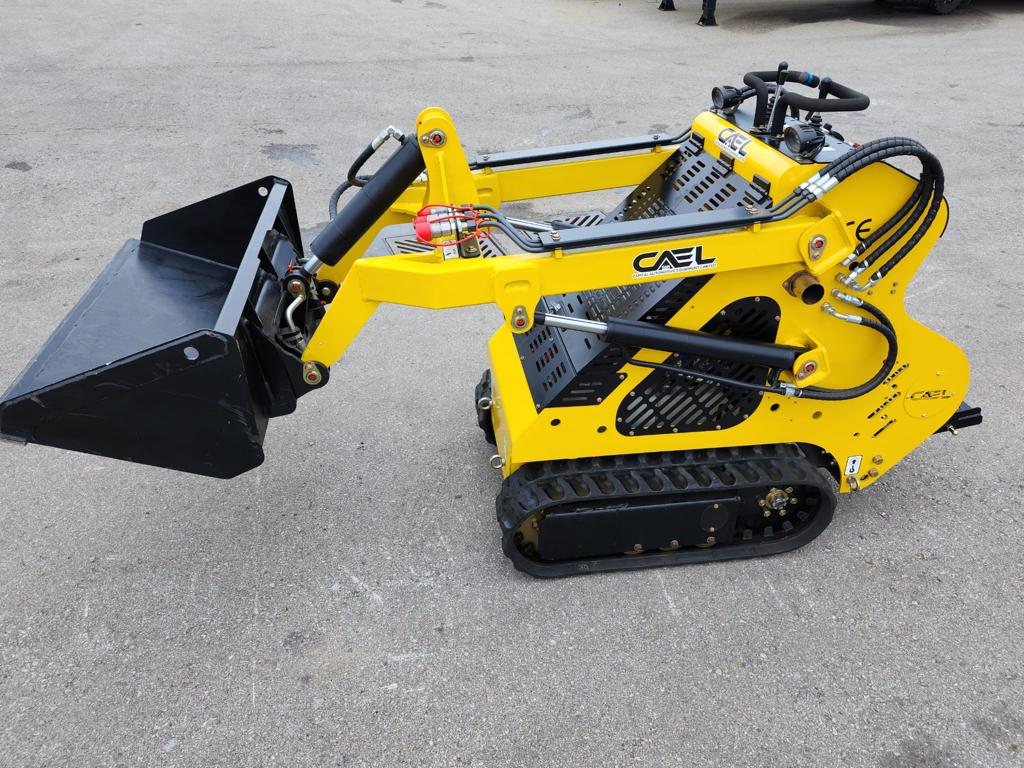

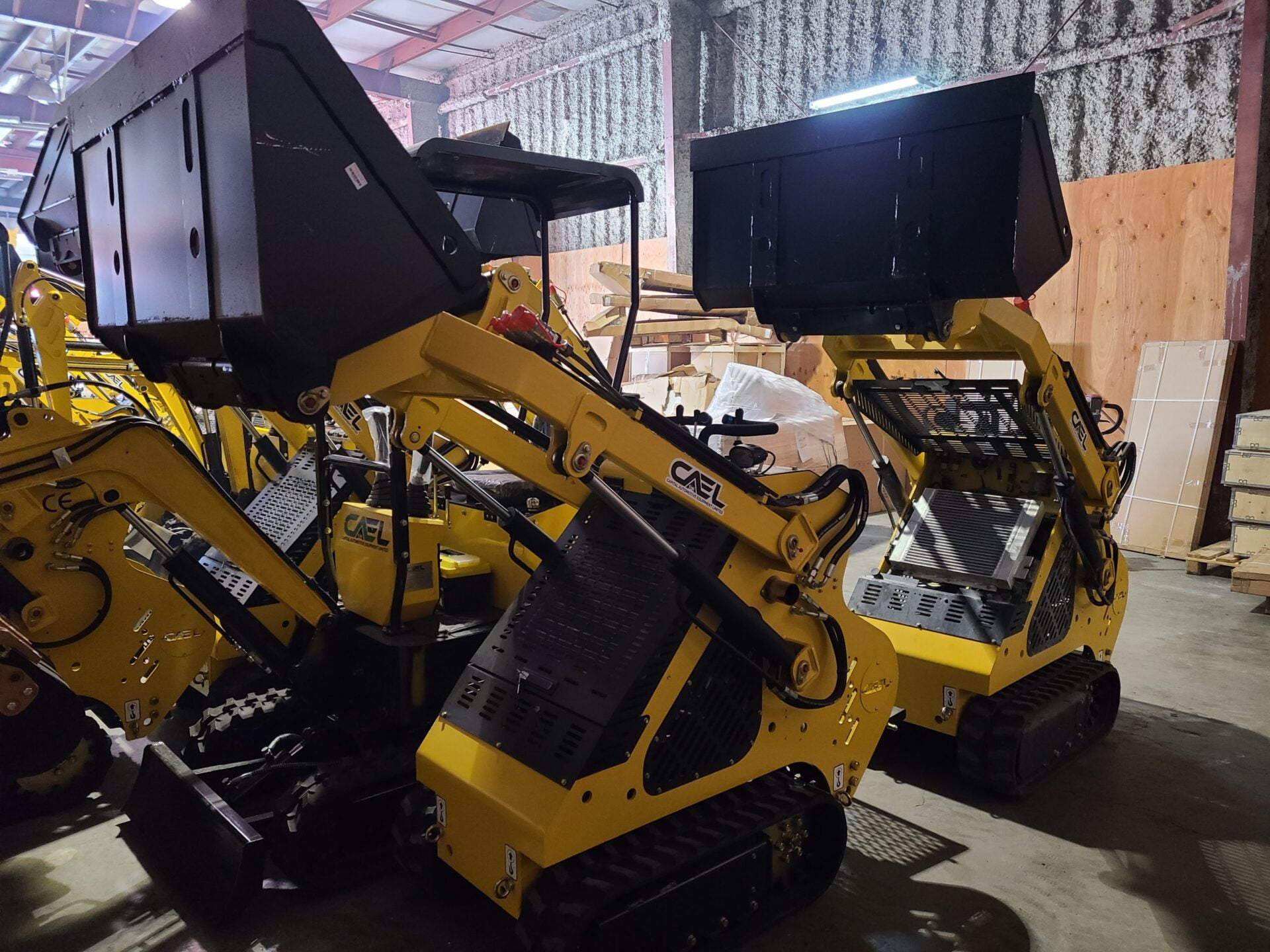

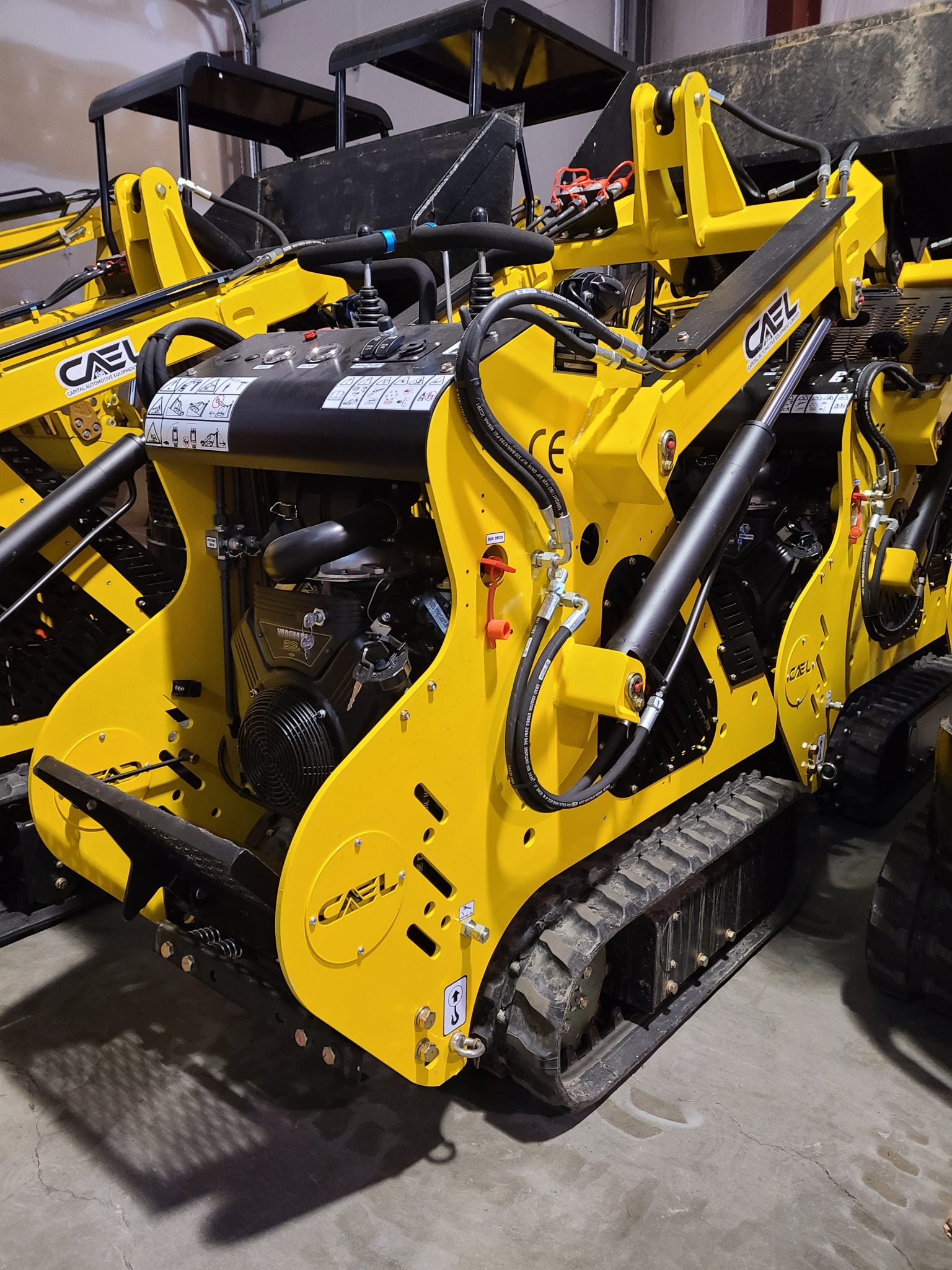

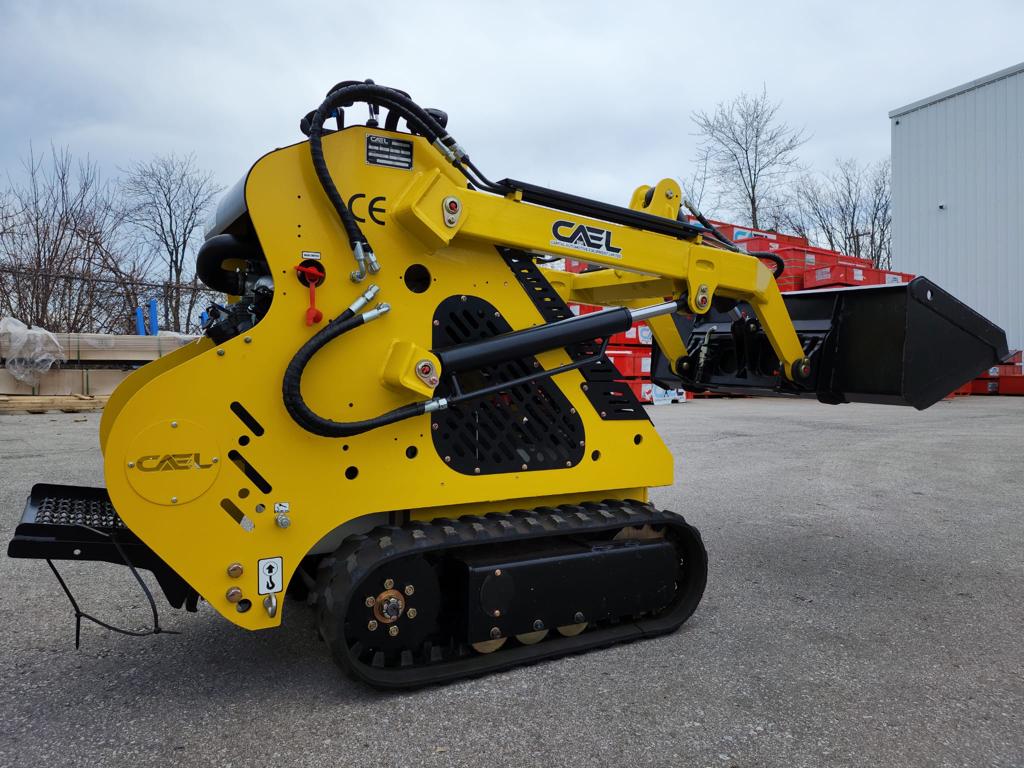

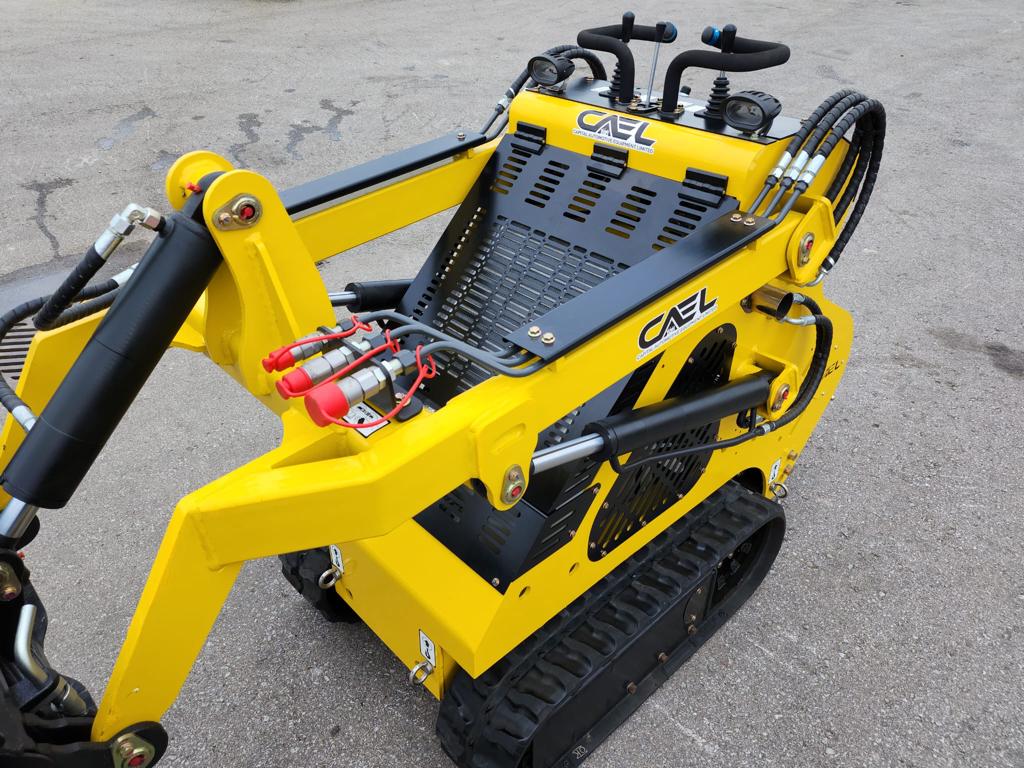

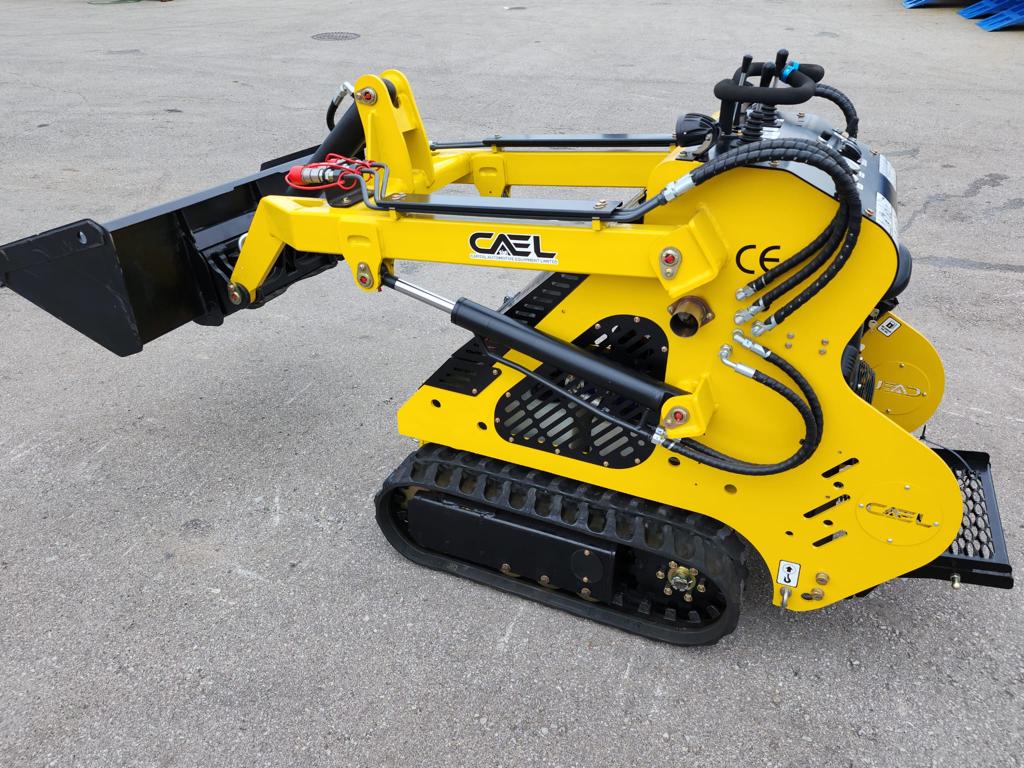

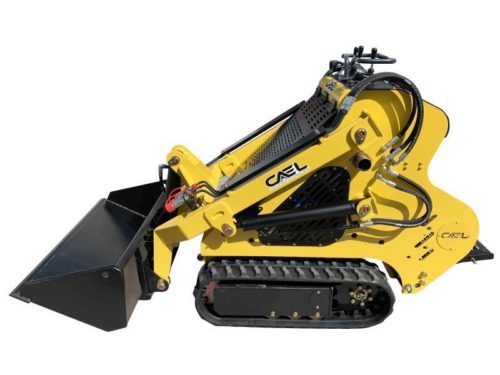

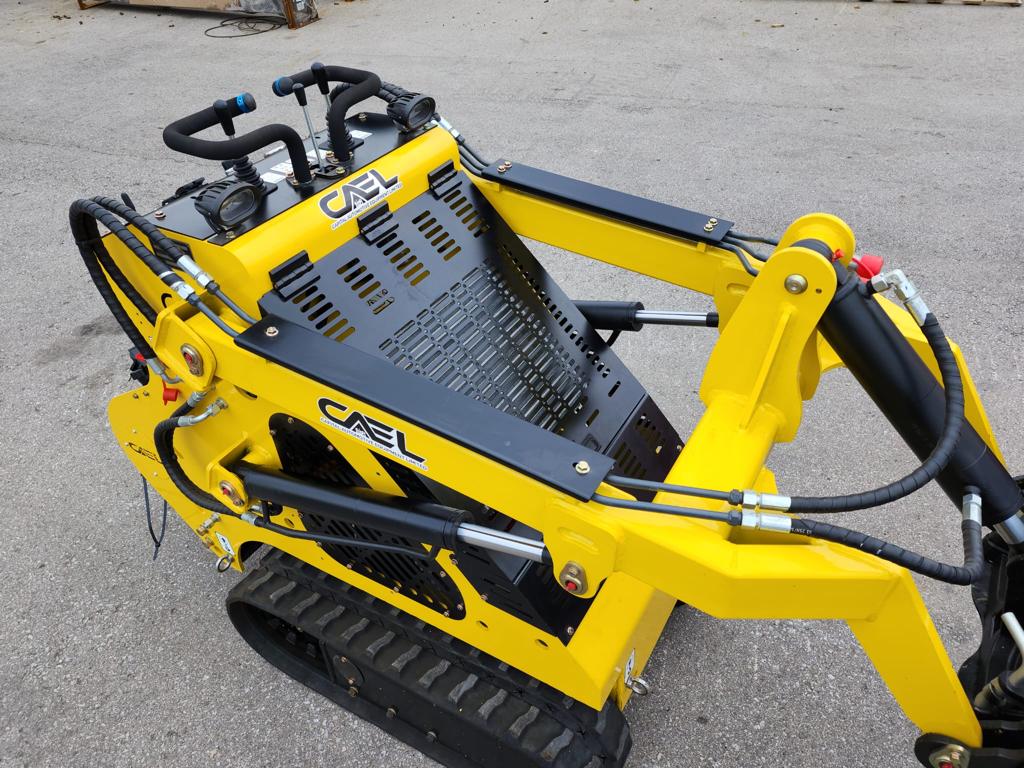

The CAEL Compact Loader is engineered for durability, precision, and high efficiency in demanding environments. Powered by a trusted Briggs & Stratton engine, this machine delivers excellent lifting capability, smooth hydraulic control, and compact maneuverability—making it ideal for construction, farming, and landscaping applications.

Engine & Performance

• Brand: CAEL

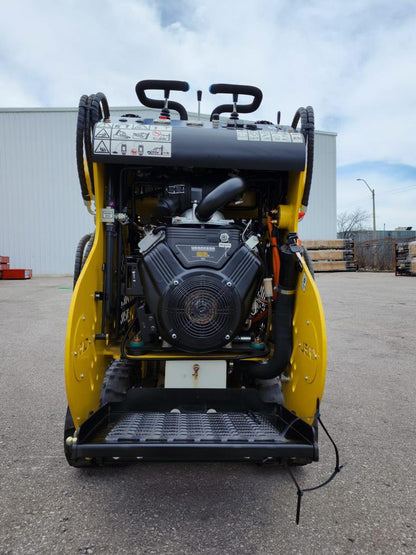

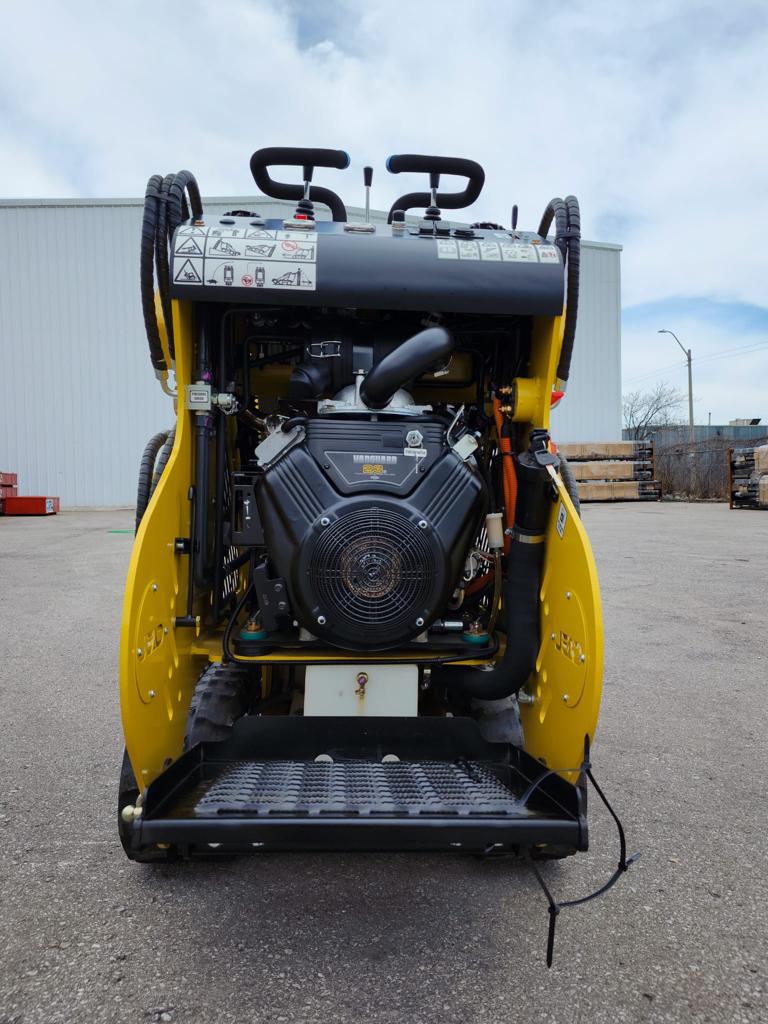

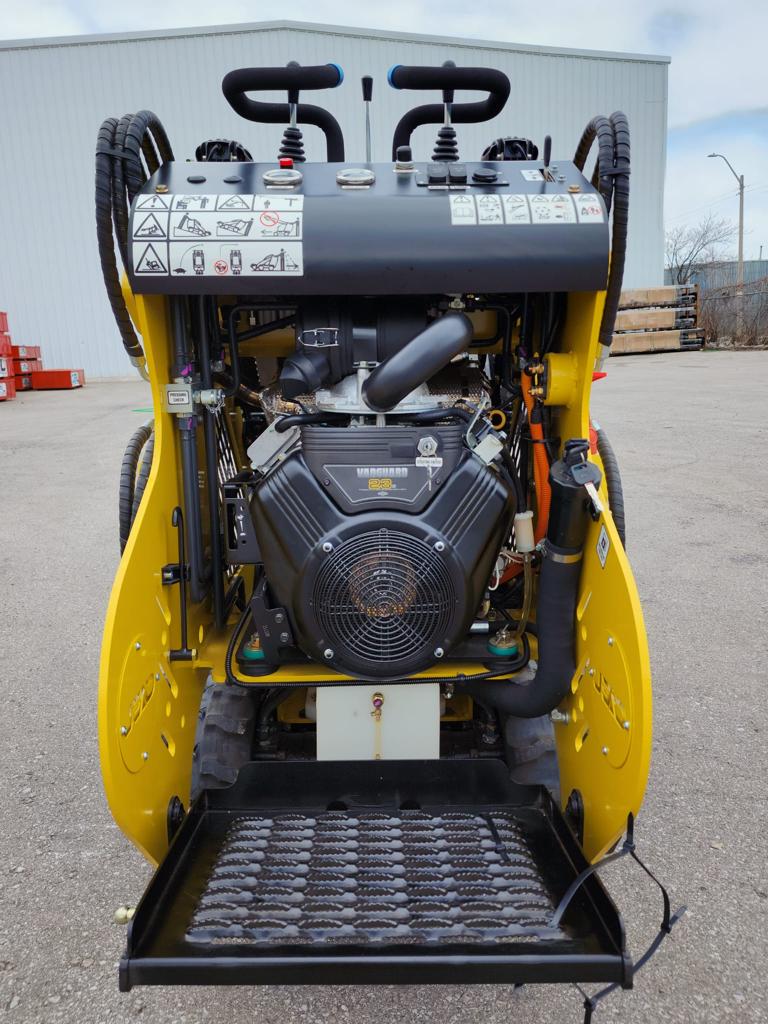

• Engine: Briggs & Stratton (USA)
• Rated Power: 21–23 HP
• Rated Speed: 3600 RPM
• Travel Speed: 0–5.5 km/h (0–3.4 mph)

Hydraulic System

• System Pressure: 17 MPa
• Cycle Times:
  • Raise: 4.27 seconds
  • Dump (Tipping): 1.34 seconds
  • Lower: 3.31 seconds

Performance Specifications

• Rated Load Capacity: 200 kg (441 lbs)

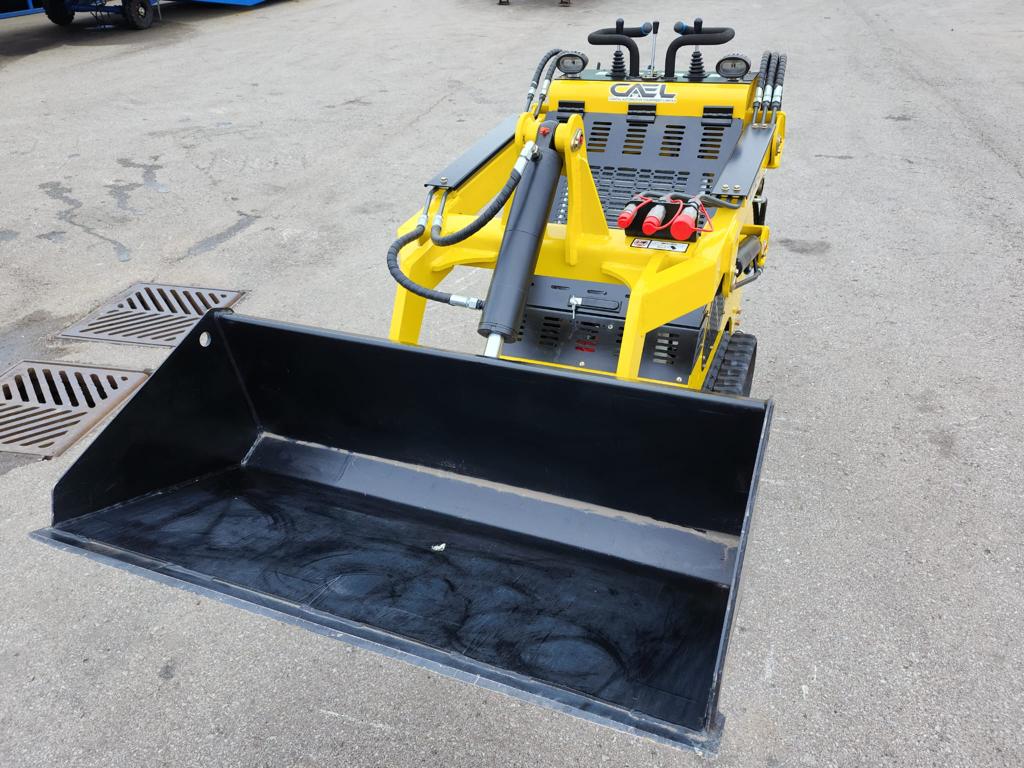

• Bucket Capacity: 0.12 m³ (4.26 ft³)
• Maximum Lifting Force: 375 kg (827 lbs)
• Operating Weight (Tracked): 855 kg (1884 lbs)

Dimensions & Working Range

• Max Working Height (H3): 2065 mm (81.3 in)
• Max Pin Height (H2): 1803 mm (71.0 in)
• Max Dump Height (H1): 1386 mm (54.6 in)
• Max Dumping Distance (E): 471 mm (18.5 in)
• Max Dump Angle (a3): 32°
• Bucket Rollback Angle (a2): 33°
• Departure Angle (a1): 18°

Machine Dimensions

• Overall Height (H): 1309 mm (51.5 in)
• Ground Clearance: 123 mm (4.8 in)
• Wheelbase (L1): 690 mm (27.2 in)
• Length without Bucket (L3): 1778 mm (70.0 in)
• Total Length (with Bucket) (L): 2210 mm (87.0 in)
• Machine Width (B2): 800 mm (31.5 in)
• Bucket Width (B1): 820 mm (32.3 in)
• Turning Radius (R): 1236 mm (48.7 in)

Key Advantages

• Compact design for tight working spaces
• Powerful lifting performance for its size
• Fast and responsive hydraulic system
• Durable construction for long-term use
• Easy handling with excellent turning radius

Warranty

• 2 Years Warranty on Motor
• 1 Year Warranty on All Parts
