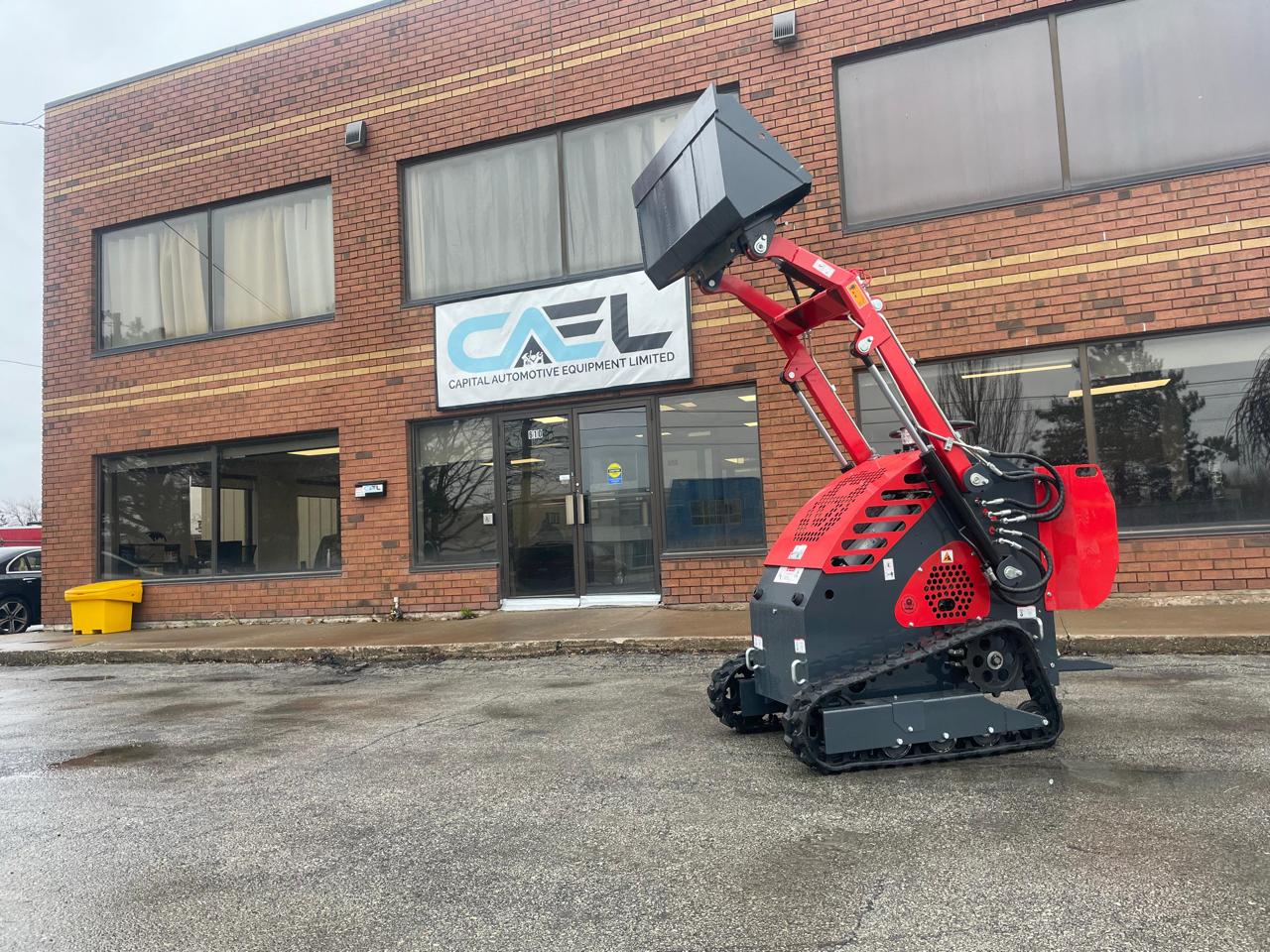

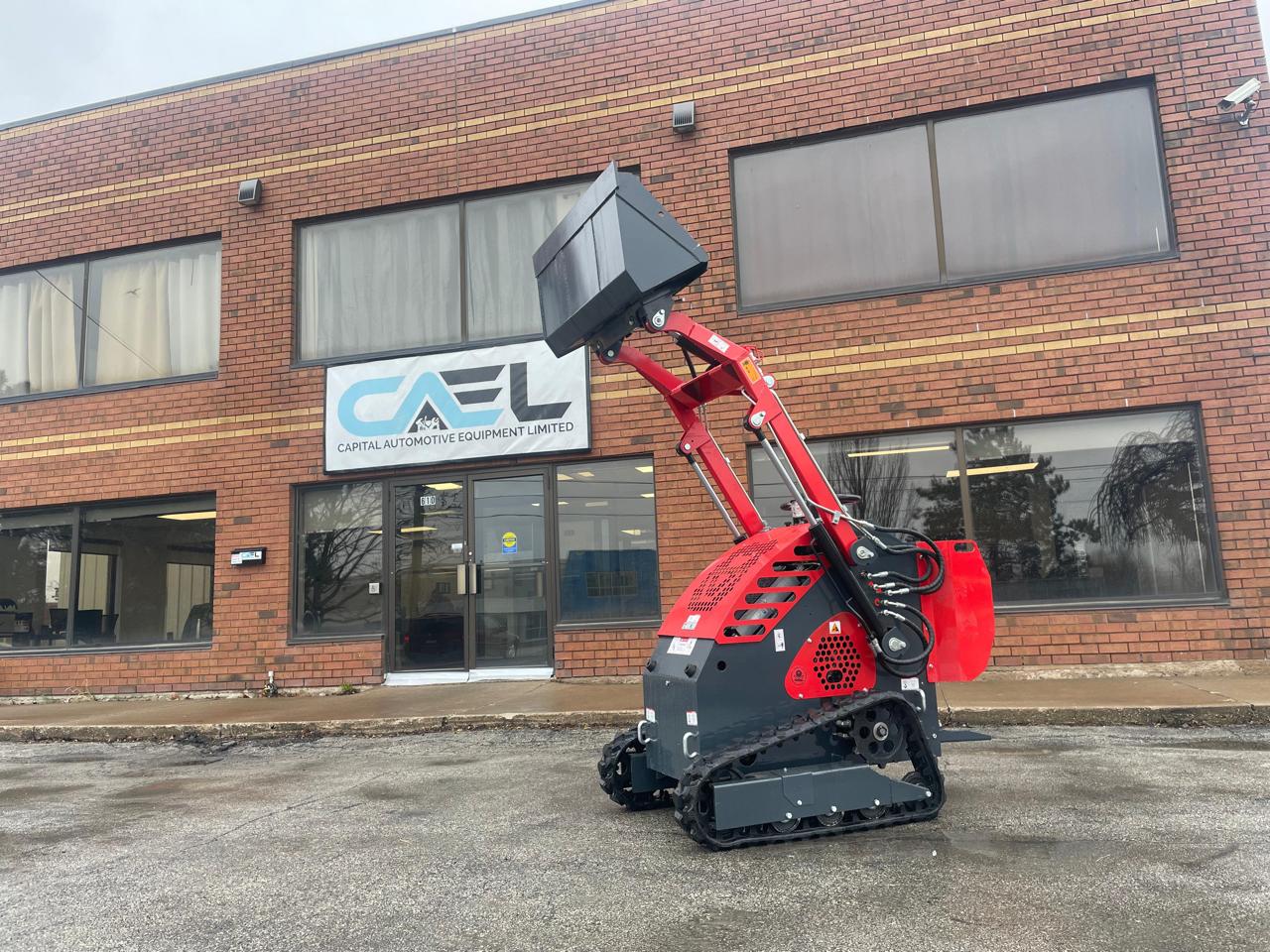

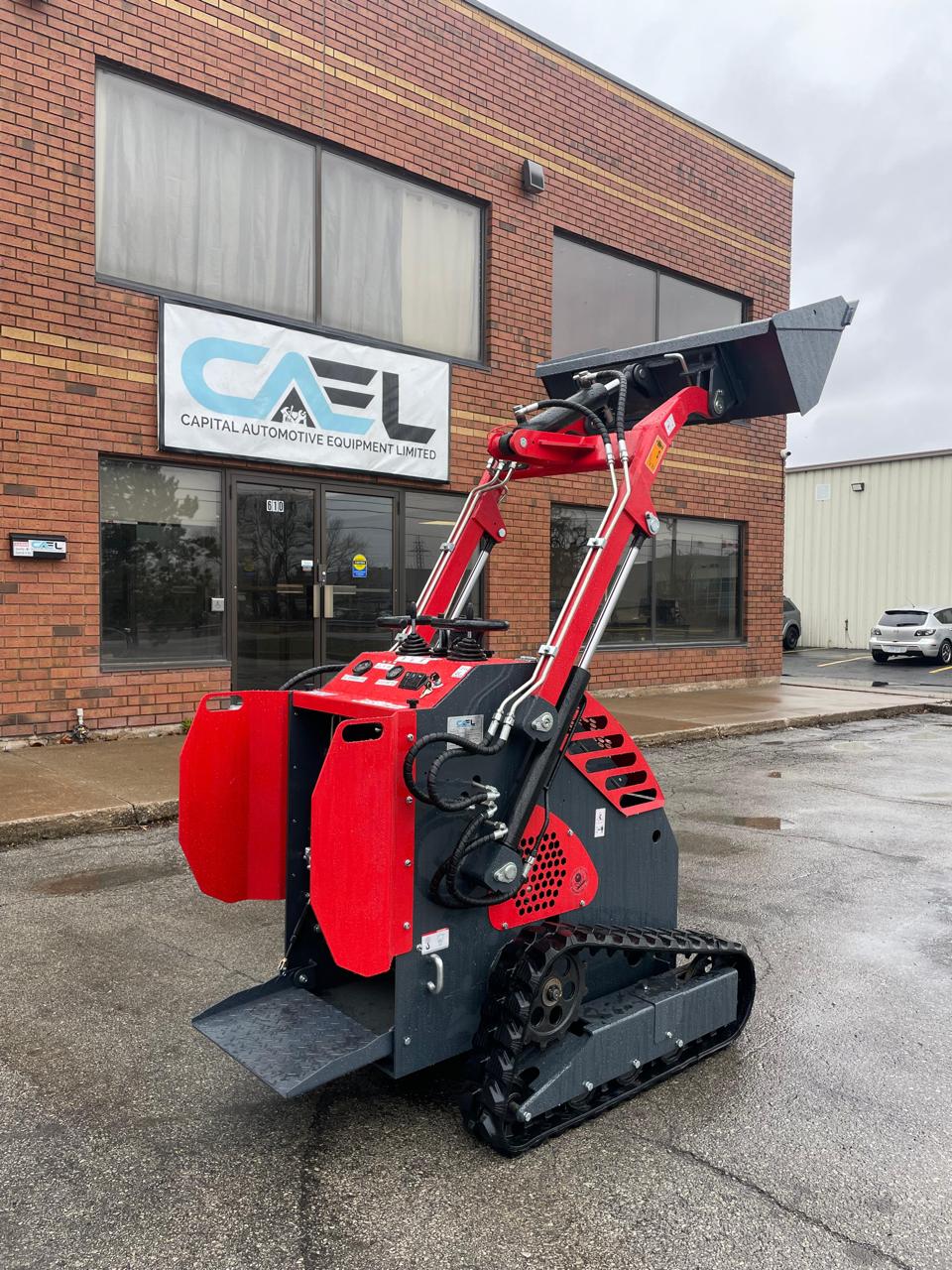

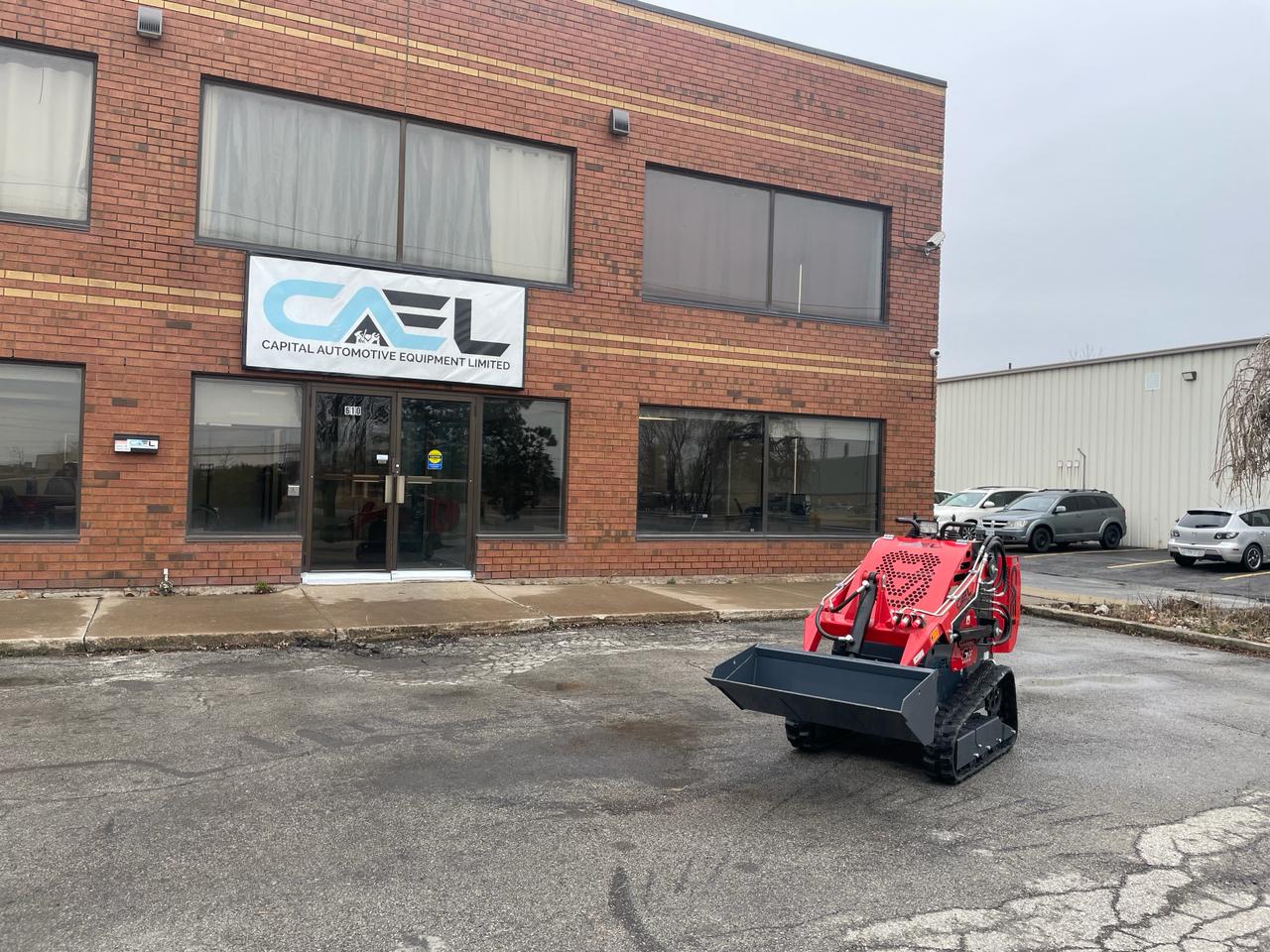

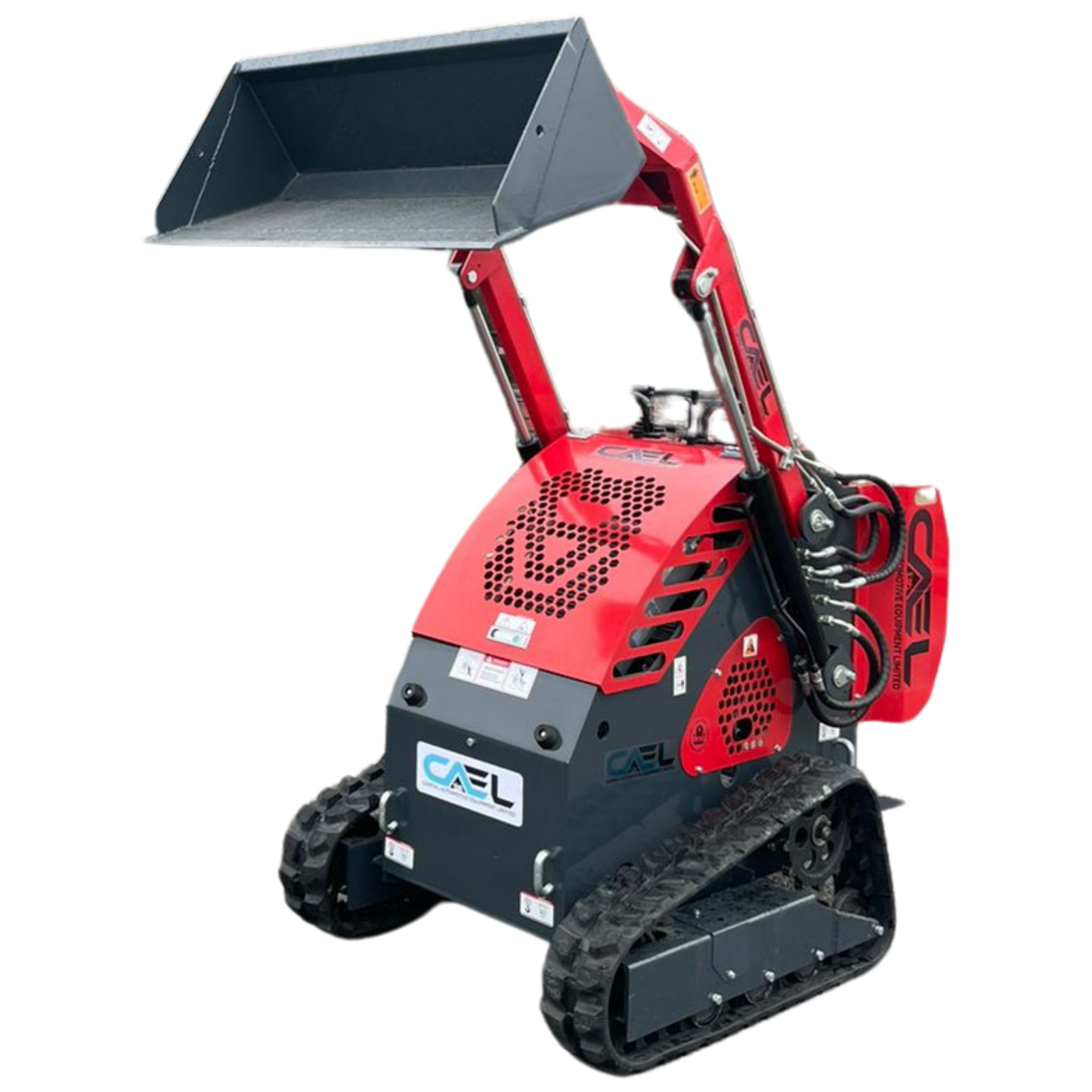

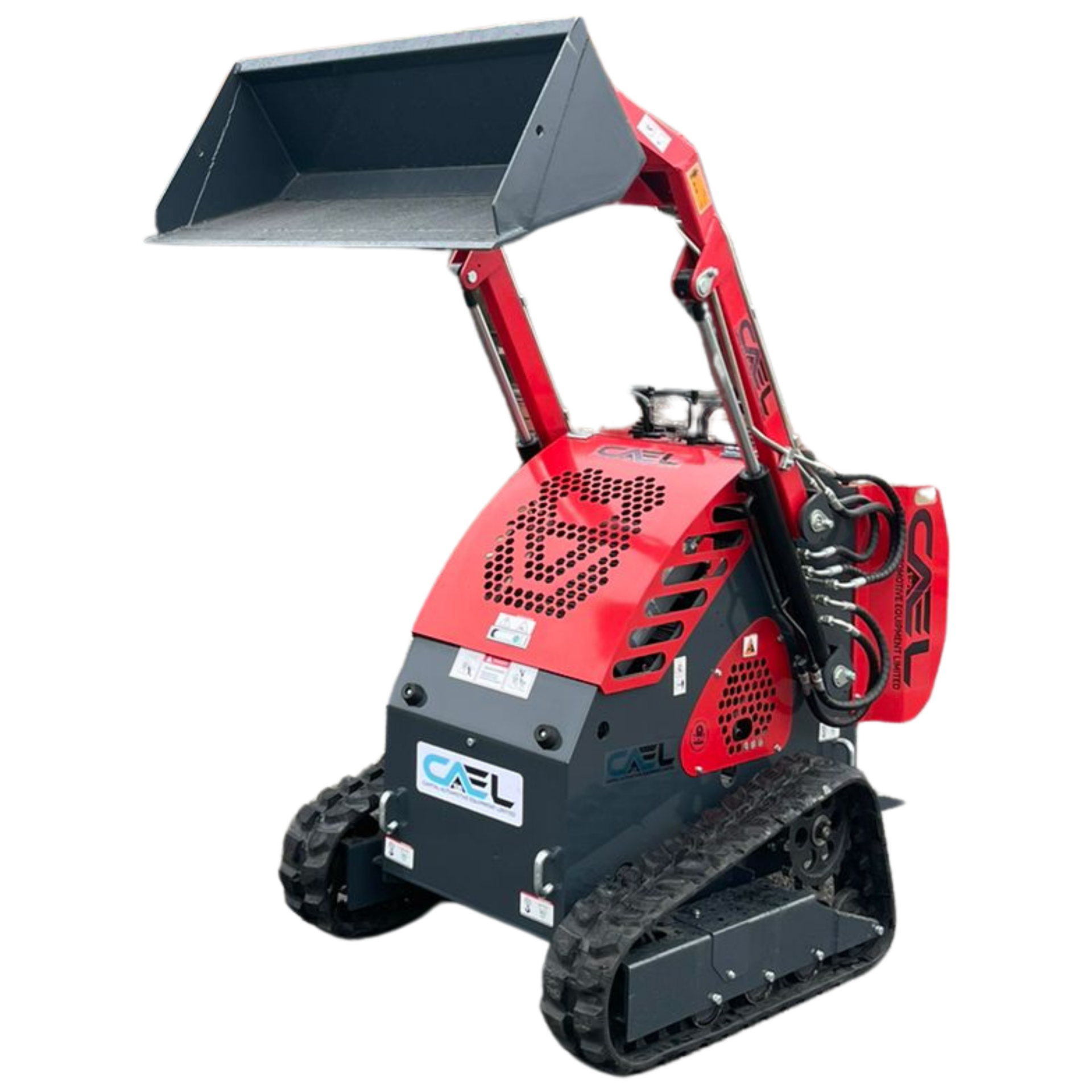

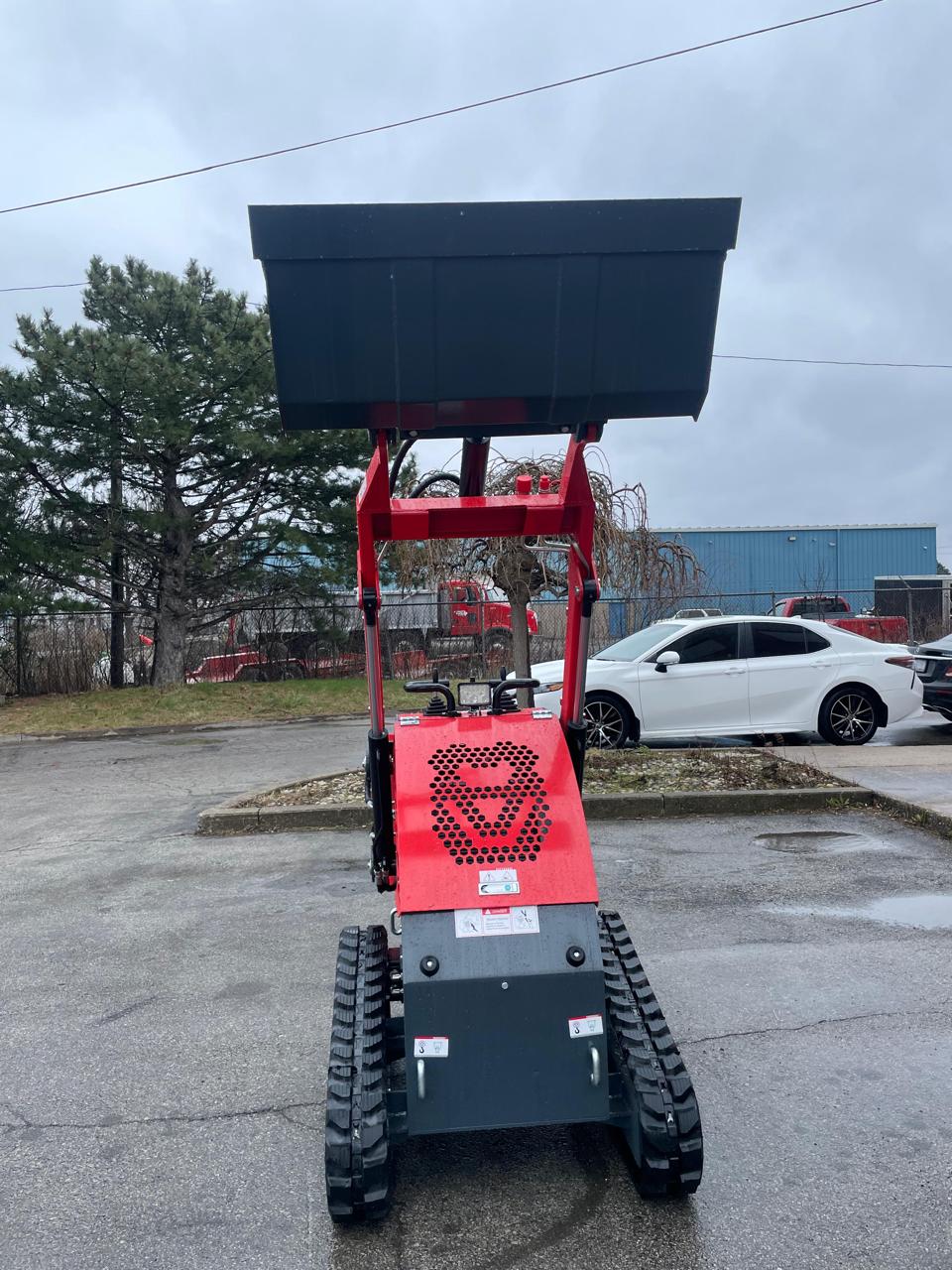

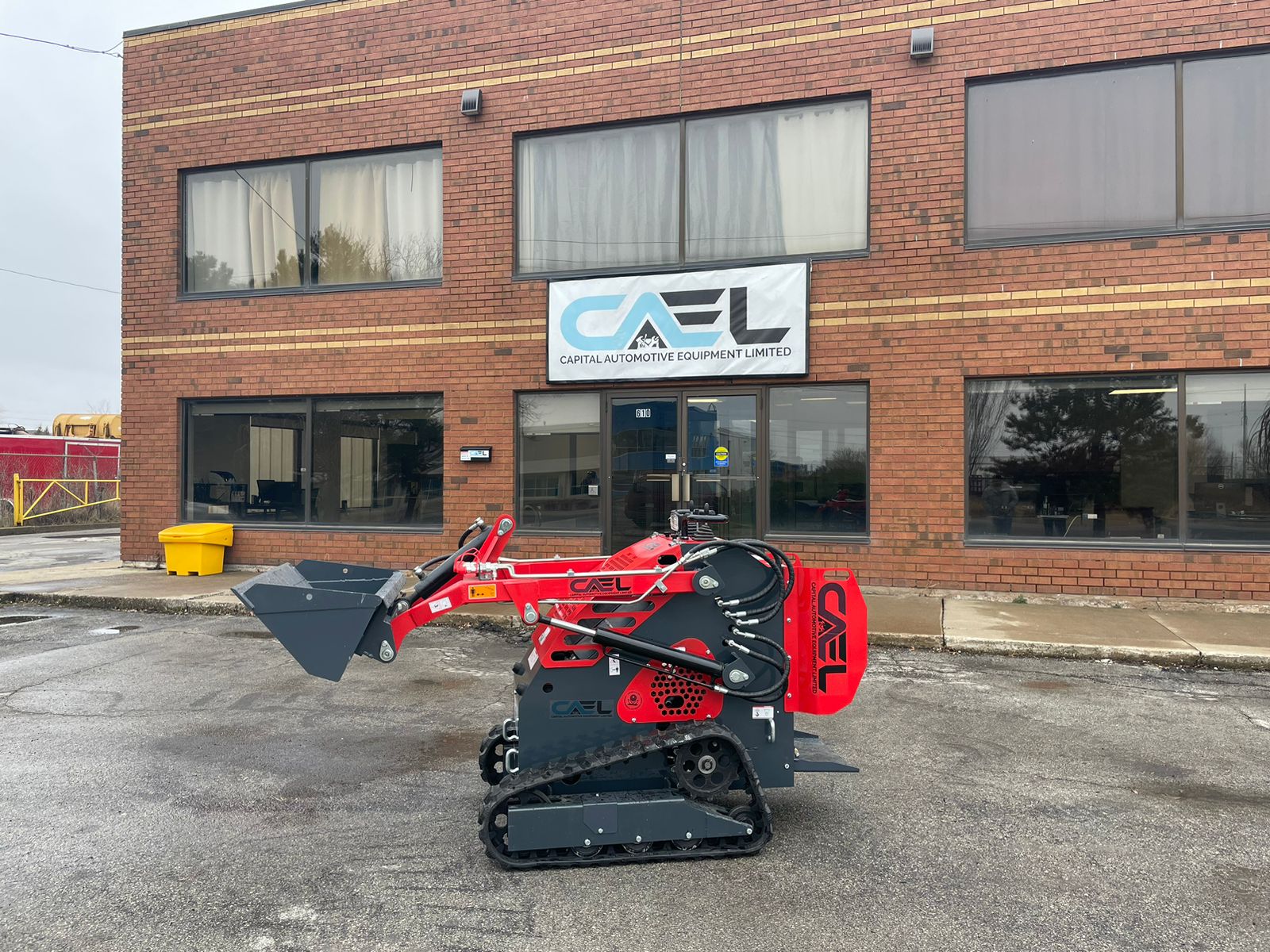

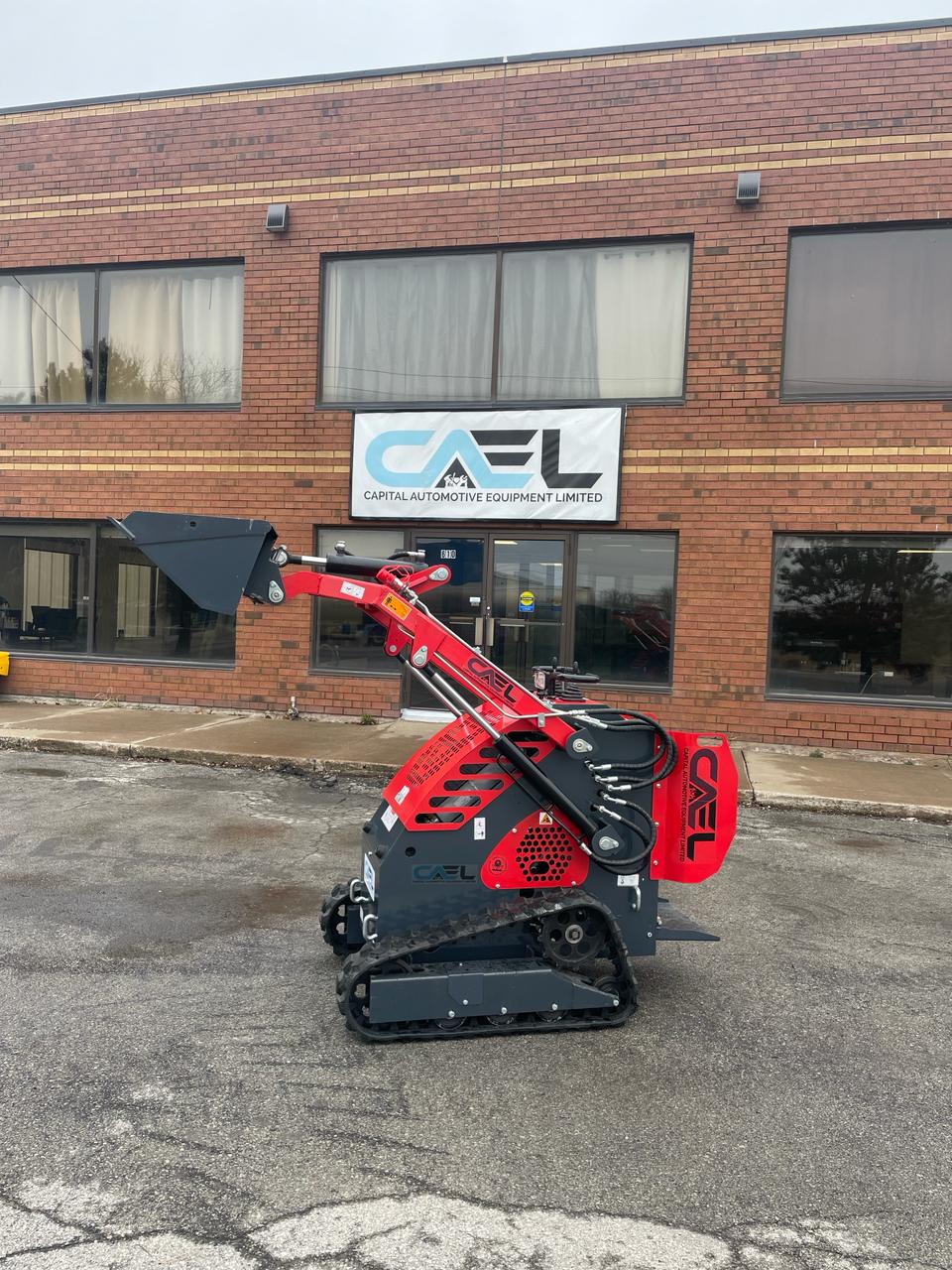

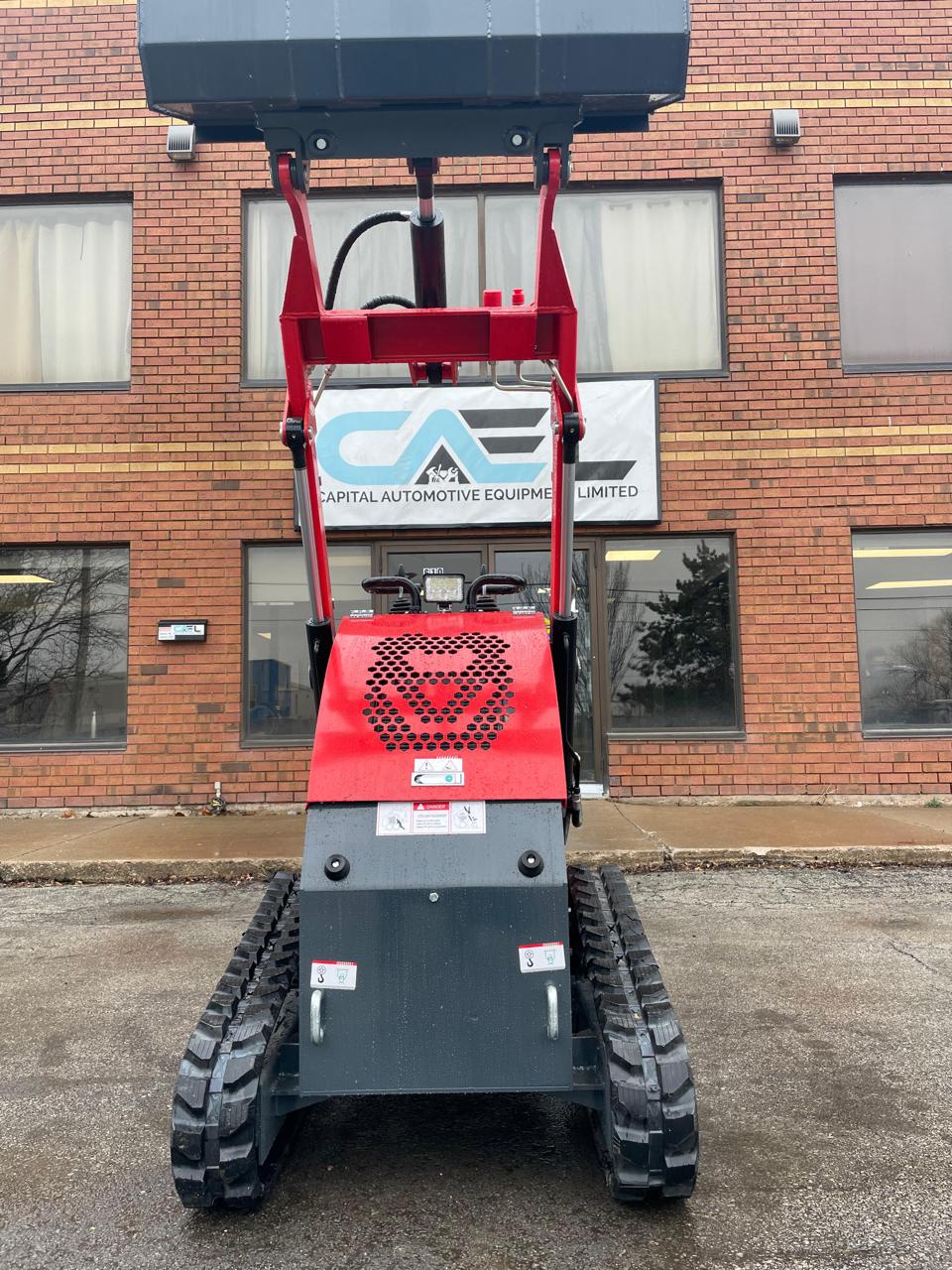

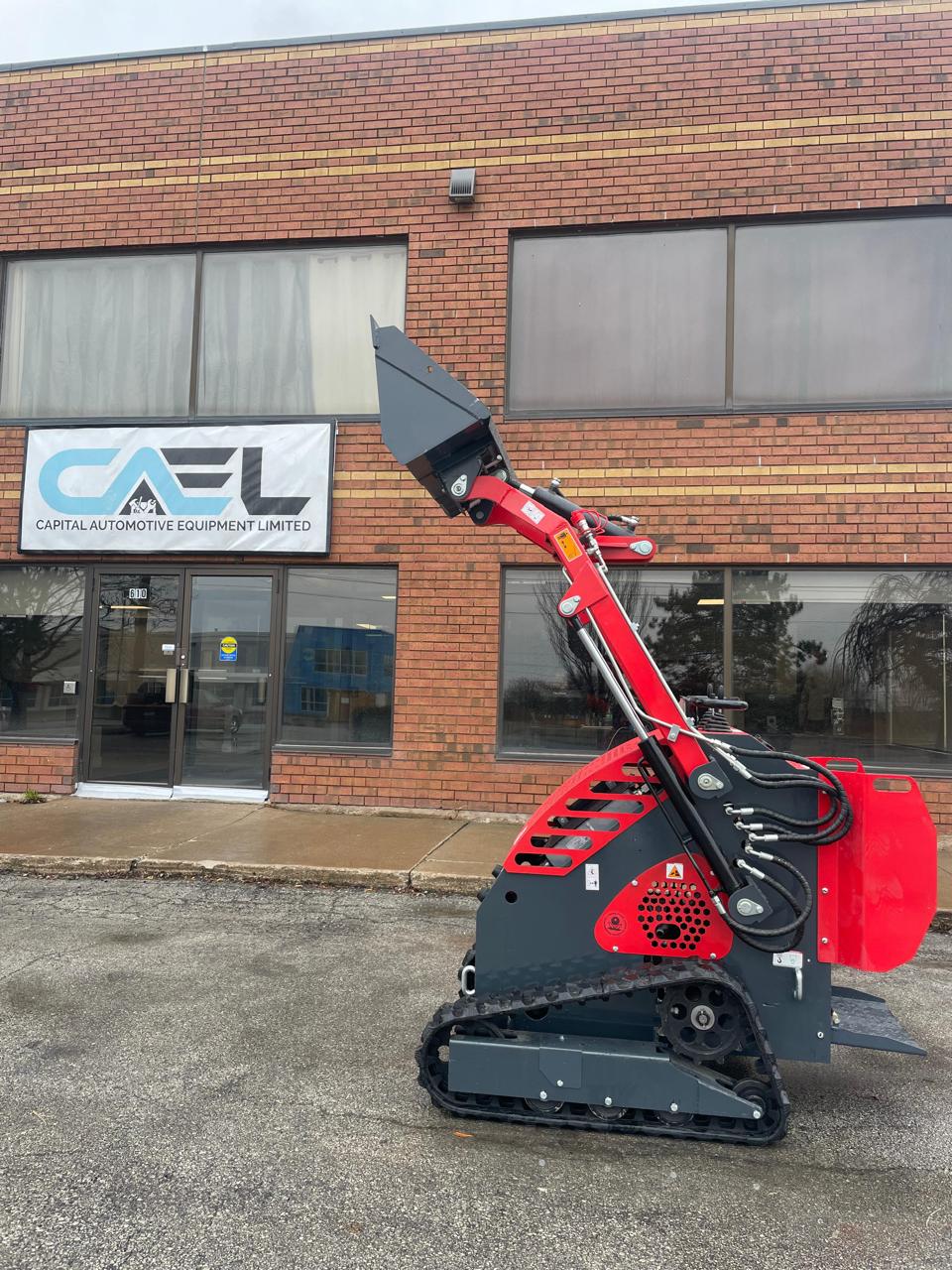

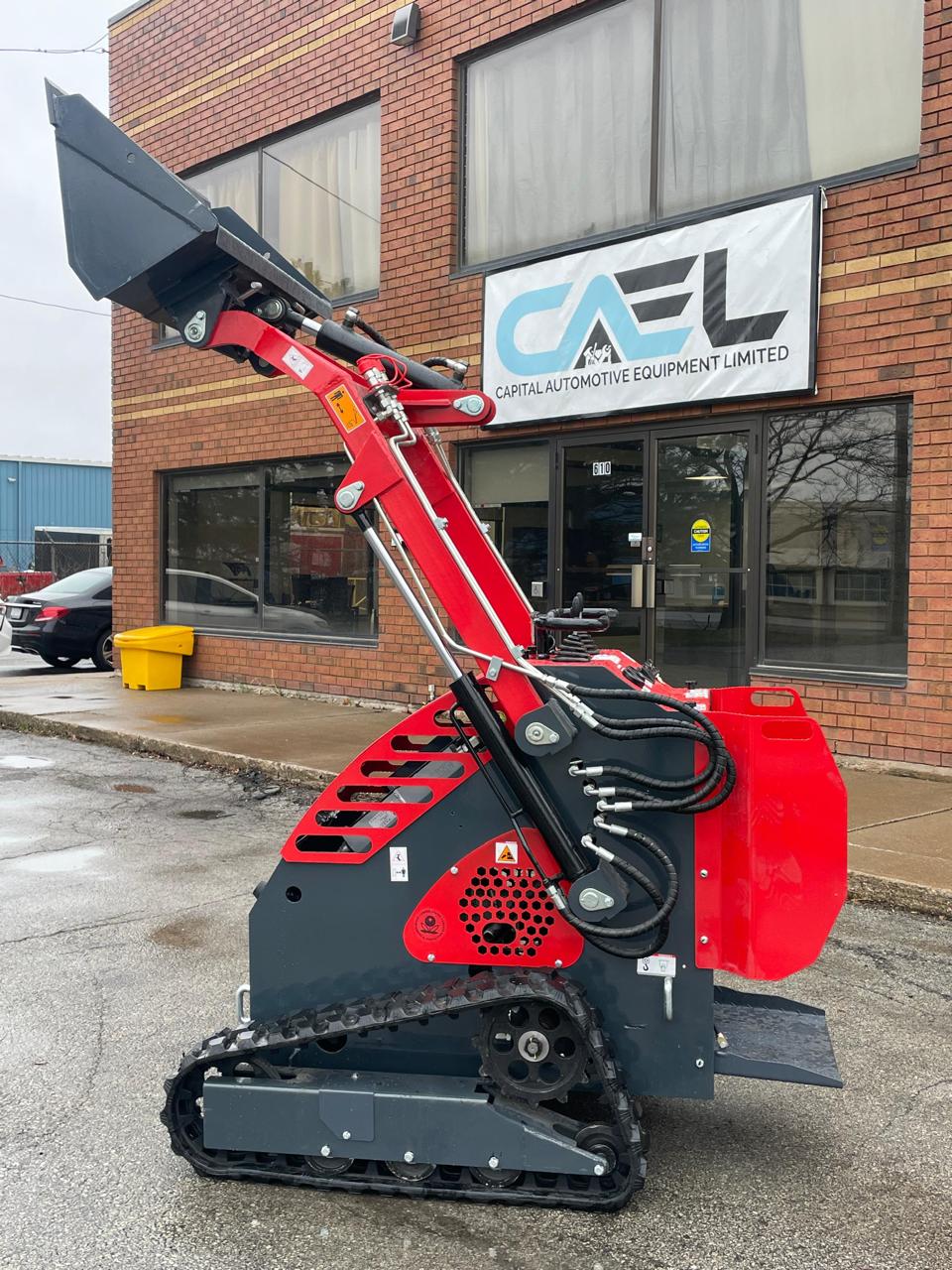

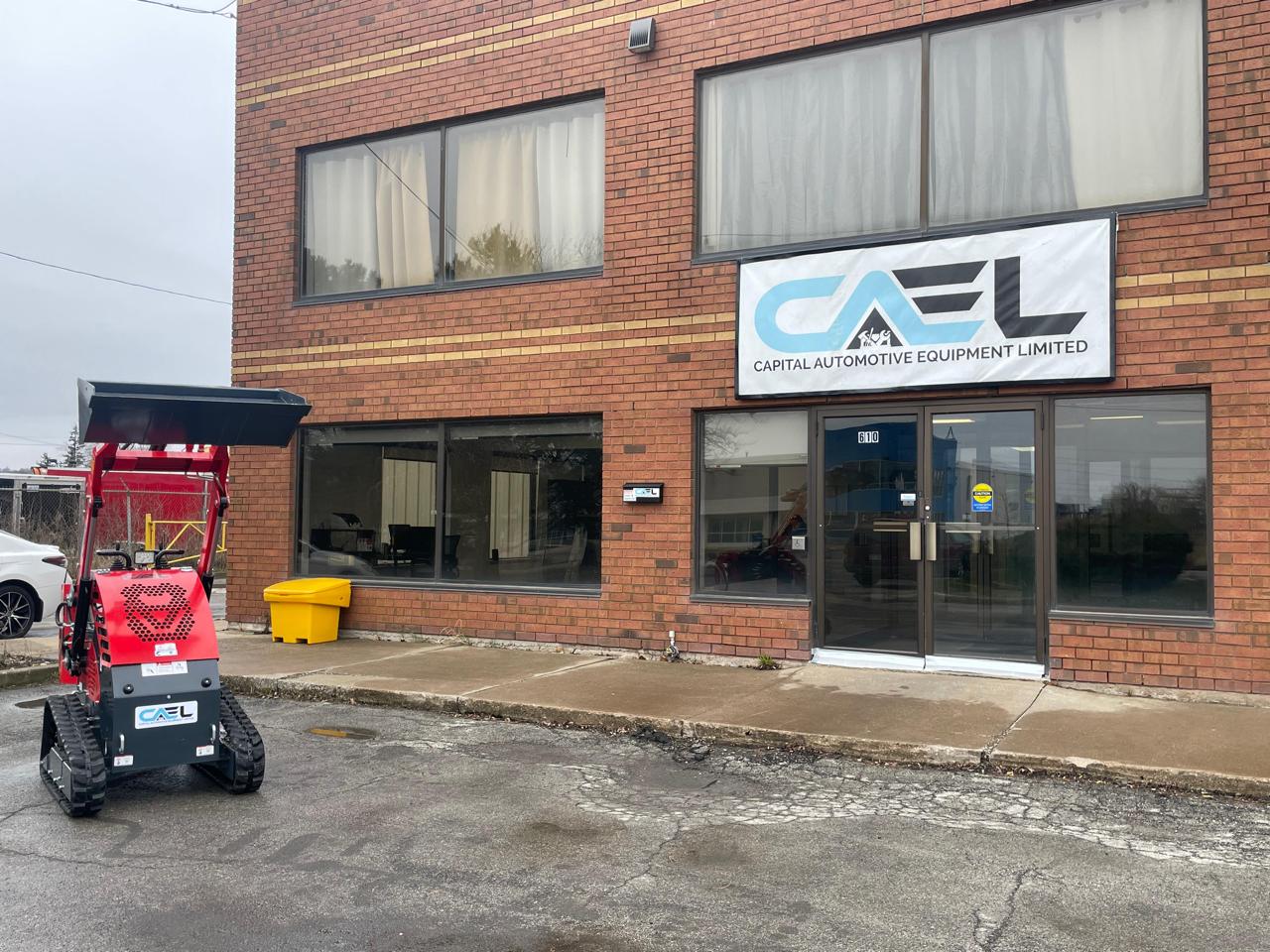

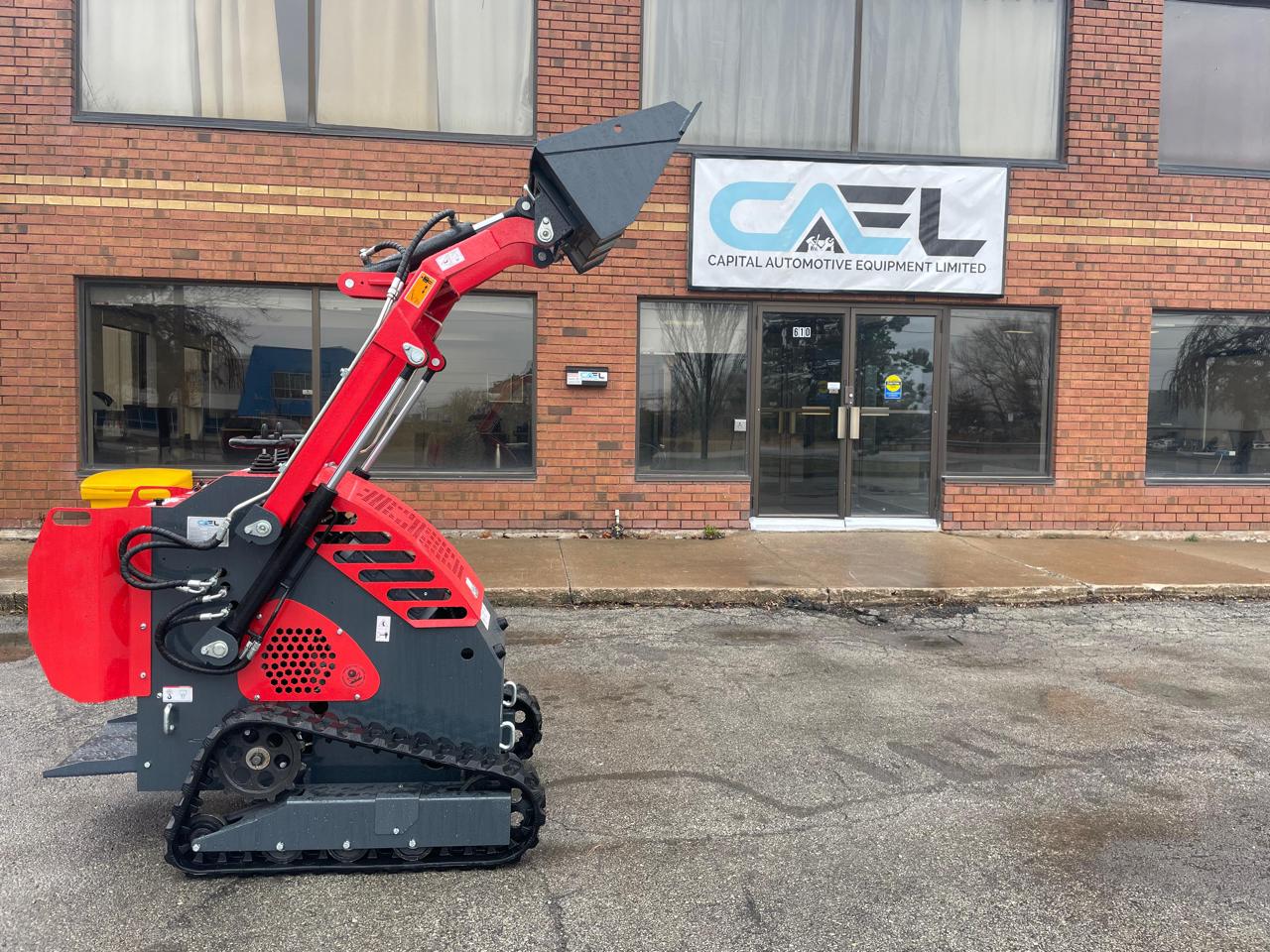

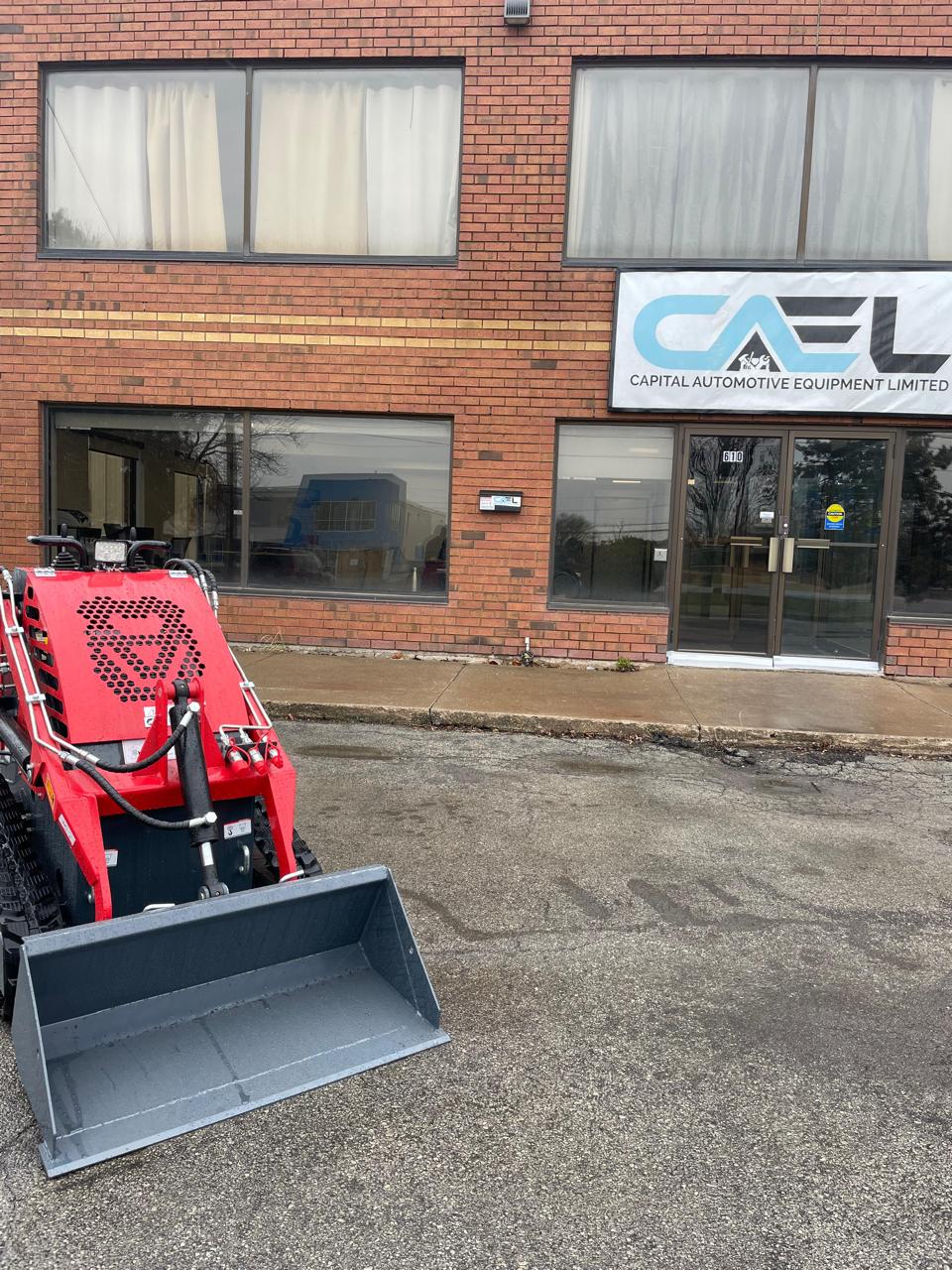

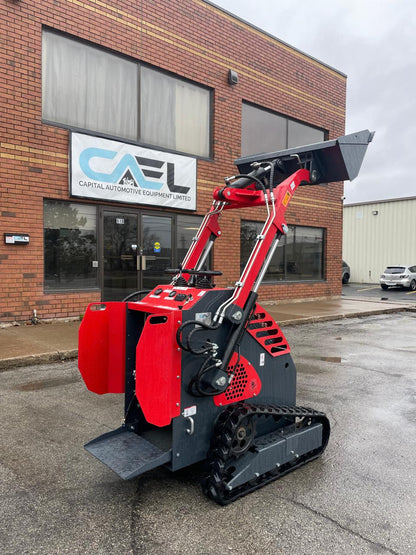

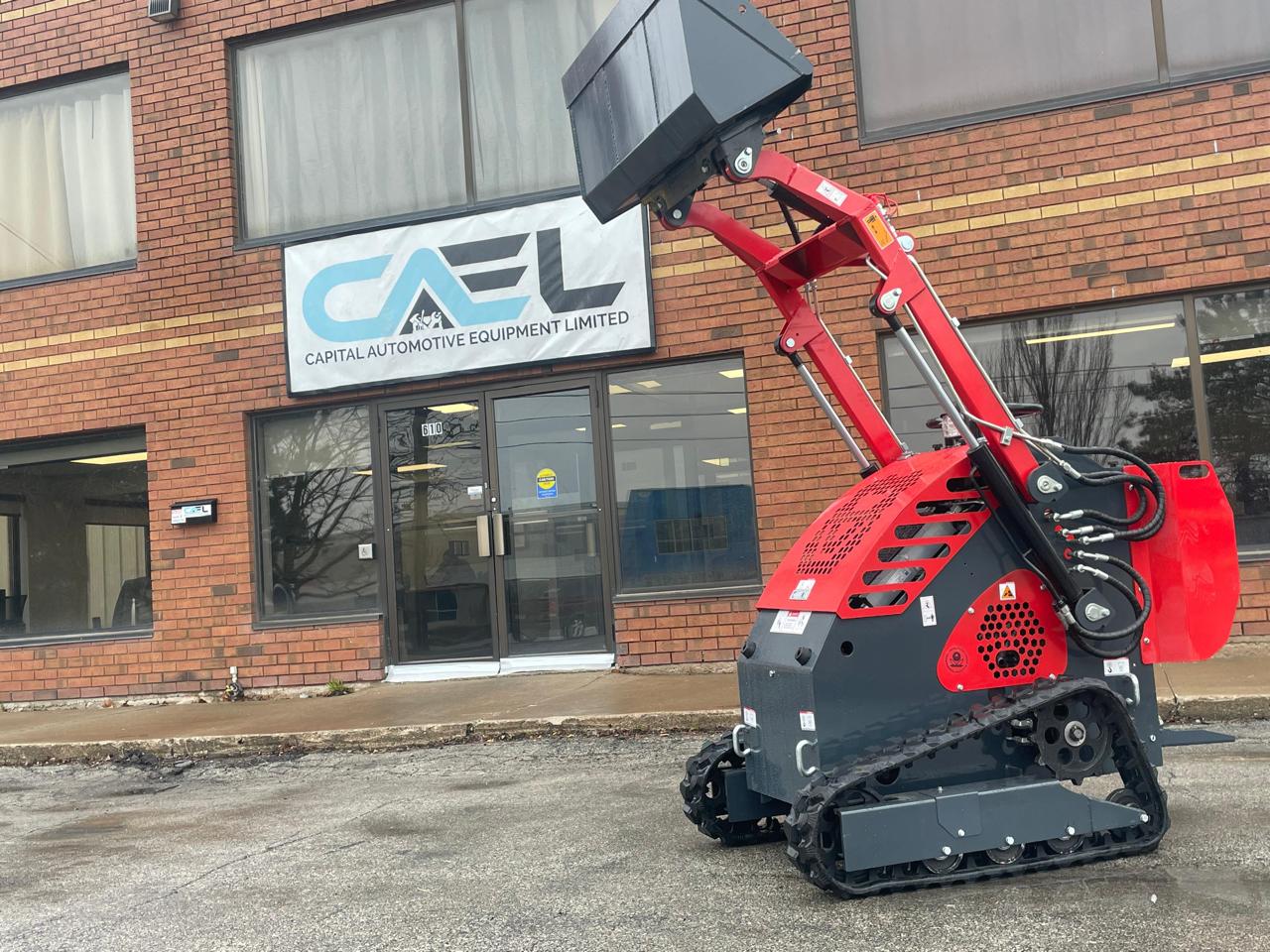

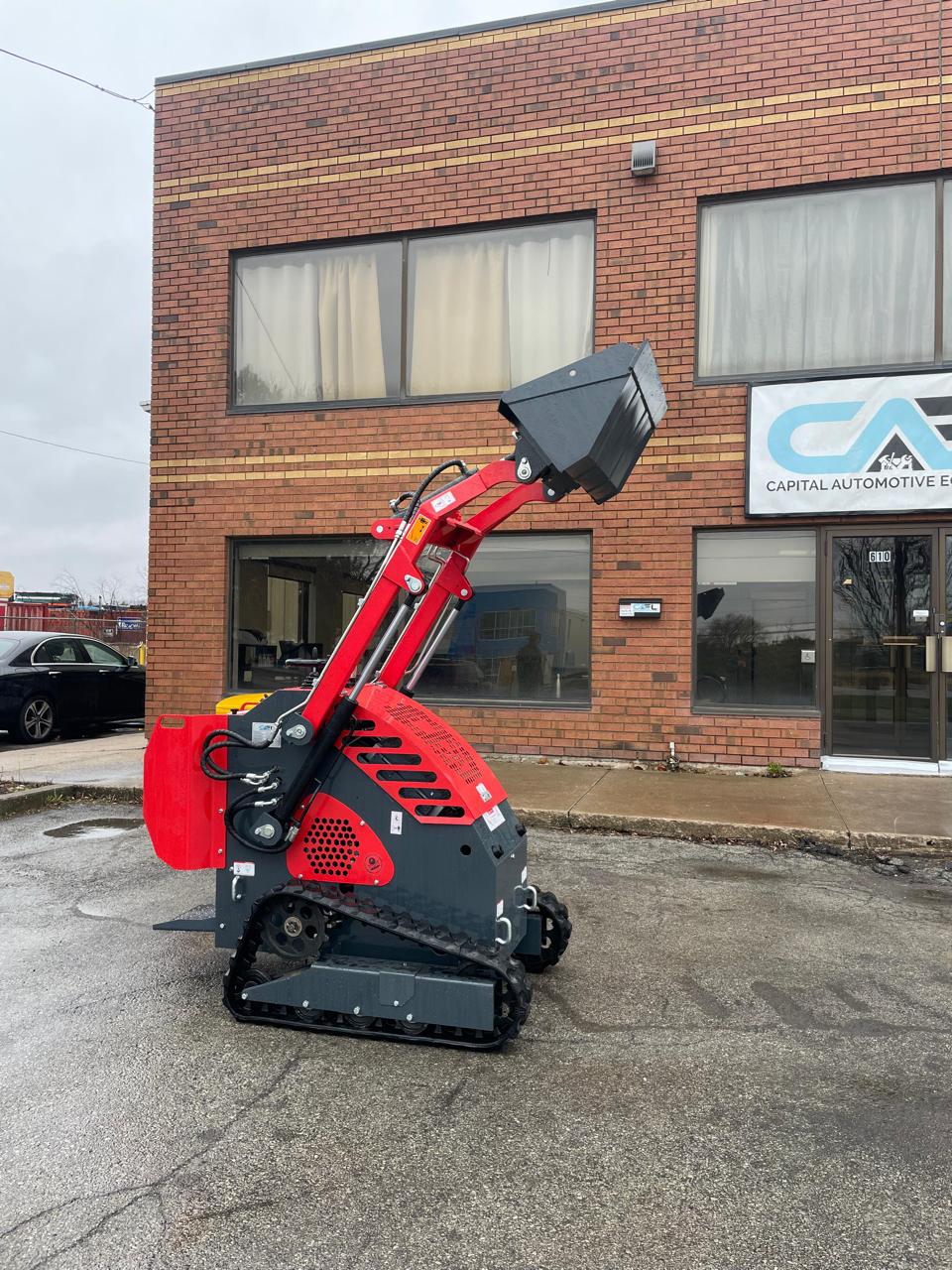

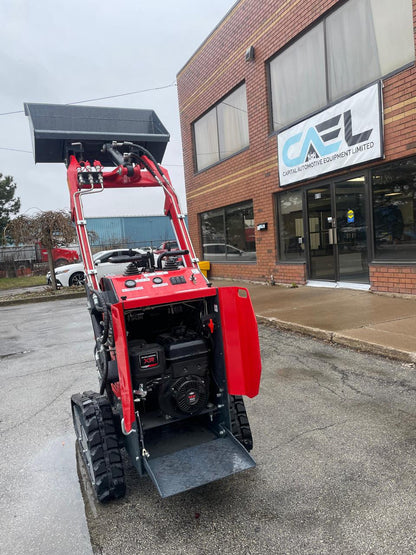

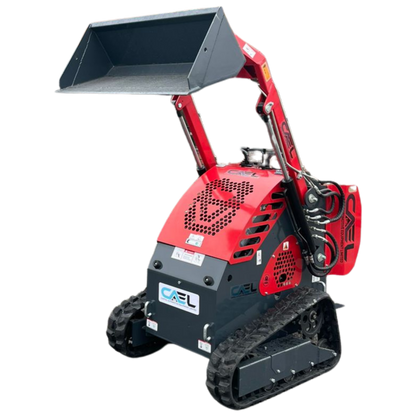

This compact mini loader is designed for efficiency, maneuverability, and reliable performance in tight working environments. Powered by a trusted Briggs & Stratton (B&S) engine, it delivers consistent power while maintaining low noise levels—ideal for construction, landscaping, and agricultural tasks.
Engine & Performance

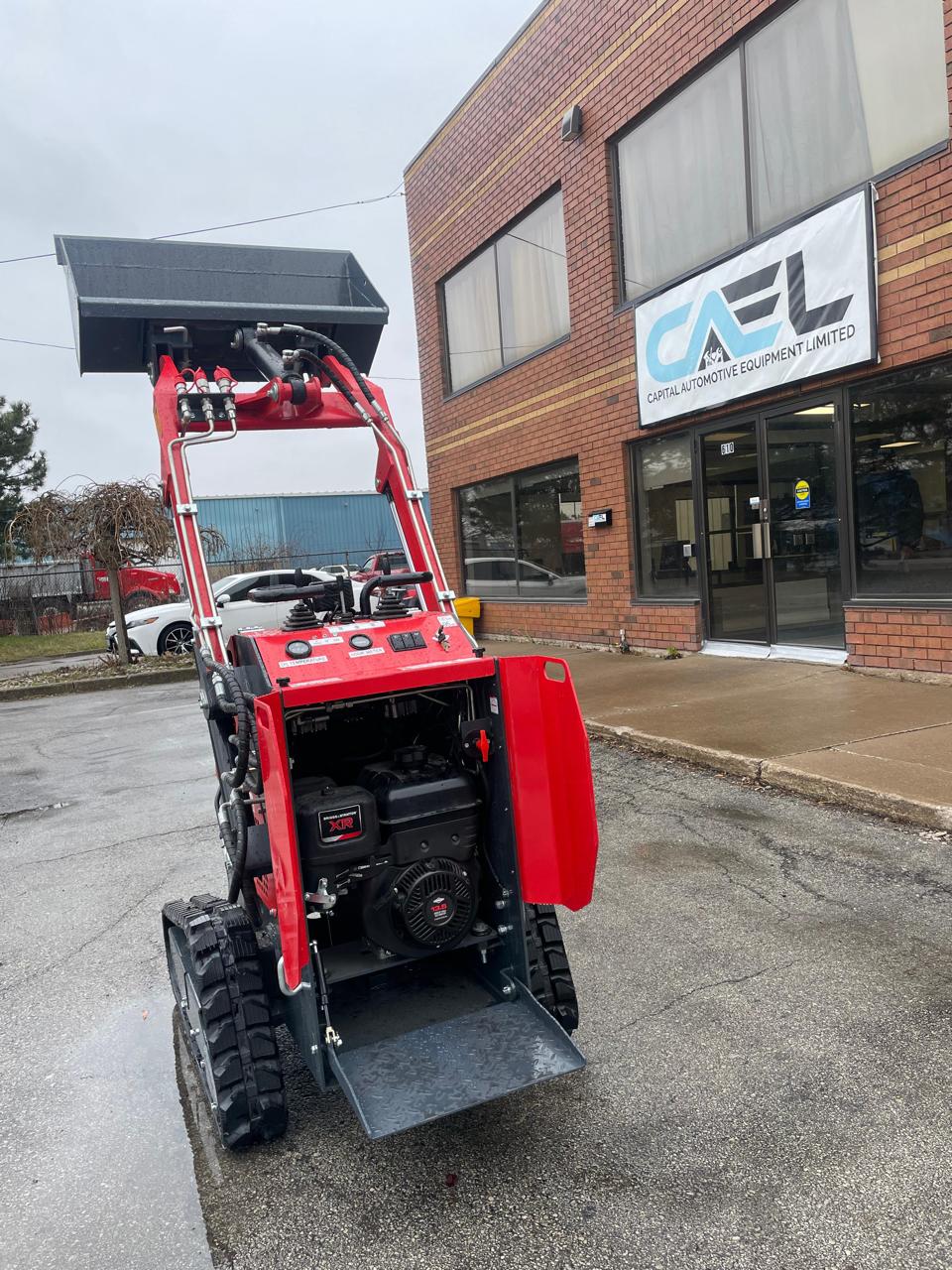

Engine: Briggs & Stratton (B&S)
Power Output: 10 kW (13.5 HP)
Rated Speed: 3600 RPM
Noise Level: < 95 dB
Hydraulic System
System Pressure: 17 MPa
Cycle Times:
Raise: 4.0 seconds
Dump: 1.3 seconds
Lower: 3.2 seconds
Key Features
Rated Operating Load: 573.2 lbs (260 kg)
Bucket Capacity: 3 ft³ (0.085 m³)
Max Lifting Force: 661.4 lbs (300 kg)
Travel Speed: 3.73 mph (6 km/h)
Operating Weight: 1410 lbs (640 kg)
Dimensions & Working Range
Max Working Height (H3): 98.58 in (2504 mm)
Max Pin Height (H2): 76.81 in (1951 mm)
Max Dump Height (H1): 56.02 in (1423 mm)
Max Dumping Distance (E): 3.94 in (100 mm)
Max Dump Angle (a3): 53°
Bucket Rollback Angle (a2): 32°
Departure Angle (a1): 17°
Machine Dimensions
Overall Height (H): 47.64 in (1210 mm)
Ground Clearance (F): 5.26 in (134 mm)
Wheelbase (L1): 25.71 in (653 mm)
Length without Bucket (L3): 61.1 in (1552 mm)
Total Length with Bucket (L): 78.43 in (1992 mm)
Machine Width (B2): 33.0 in (838 mm)
Bucket Width (B1): 37.0 in (940 mm)
Turning Radius (R): 47.44 in (1205 mm)
Key Advantages
Compact design for narrow and confined spaces
Efficient hydraulic system for faster operation cycles
