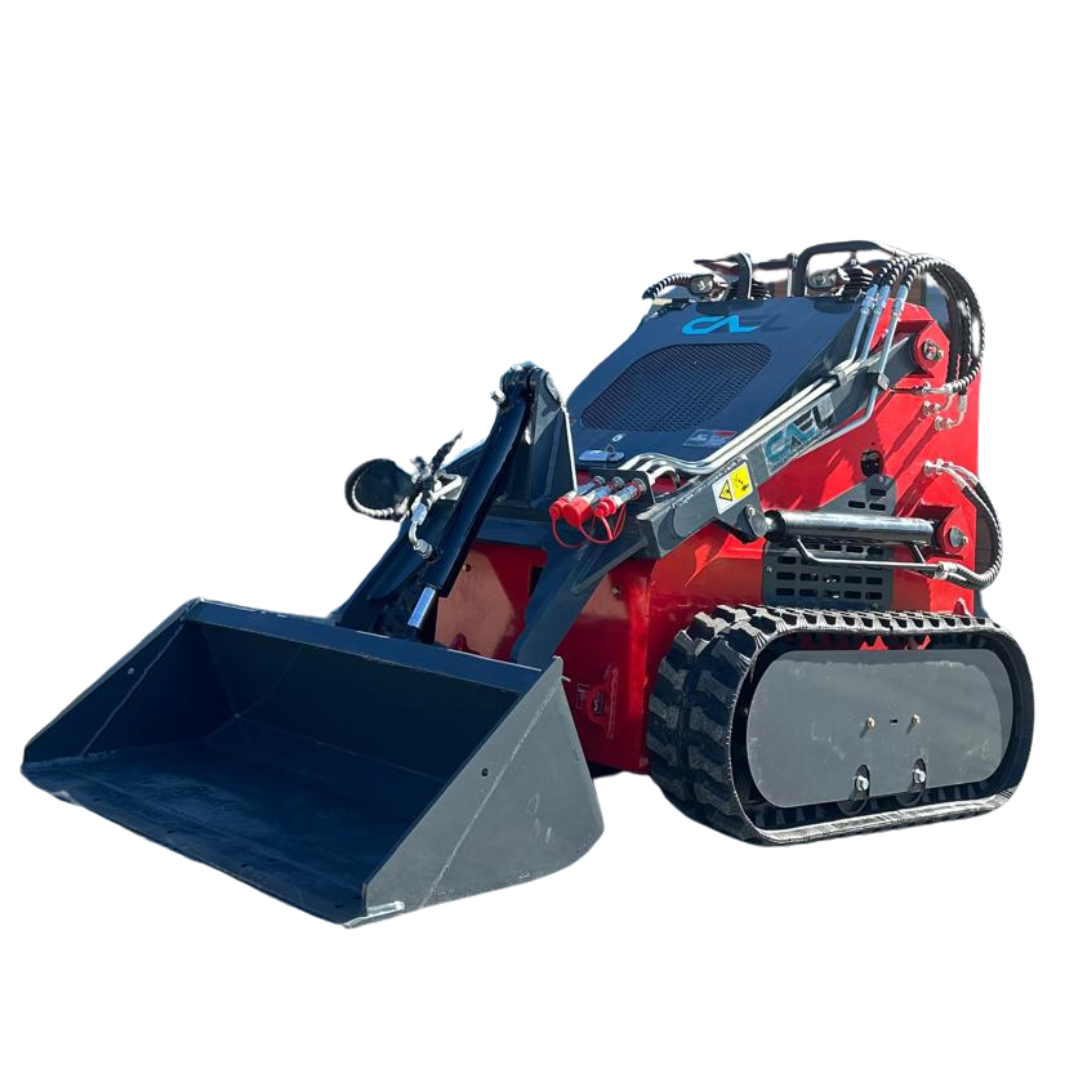

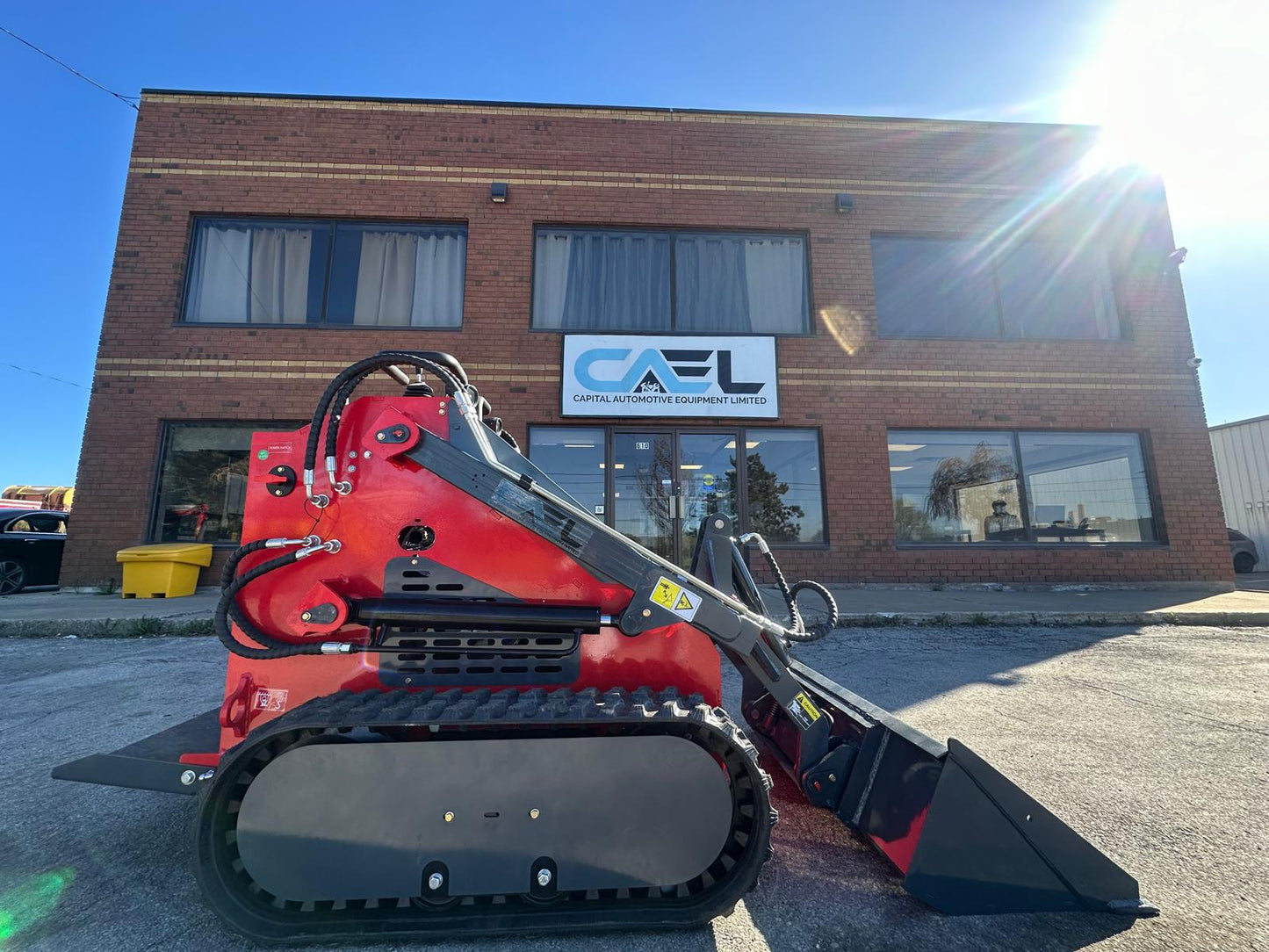

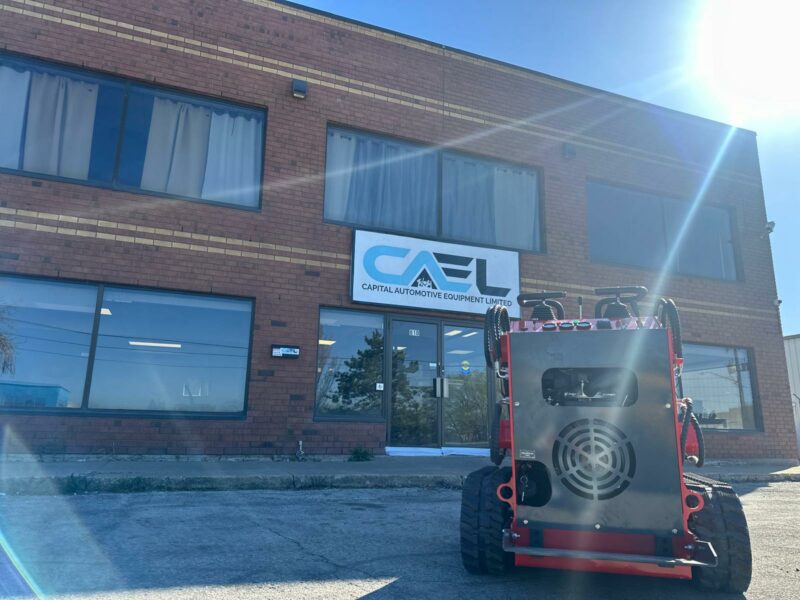

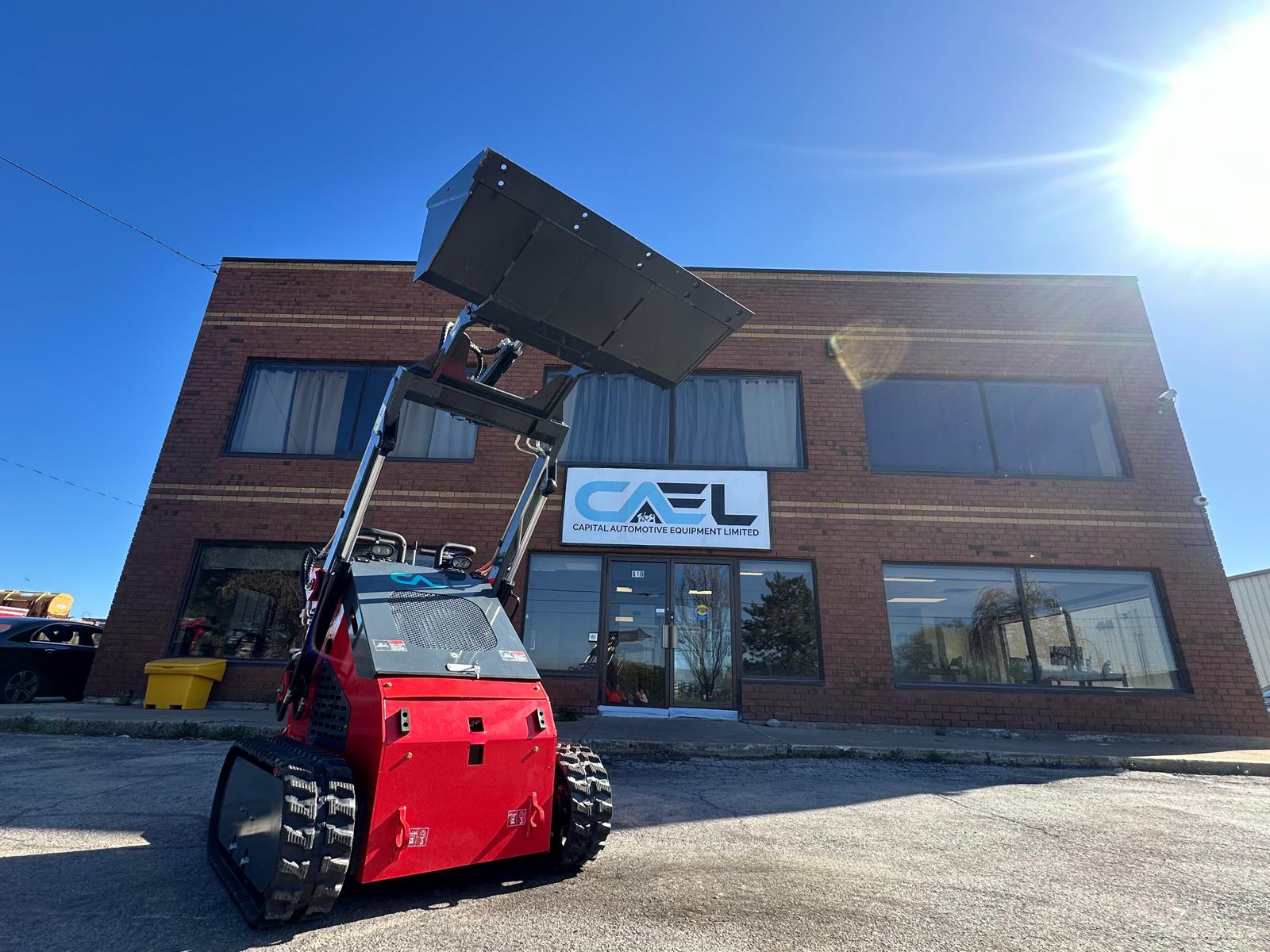

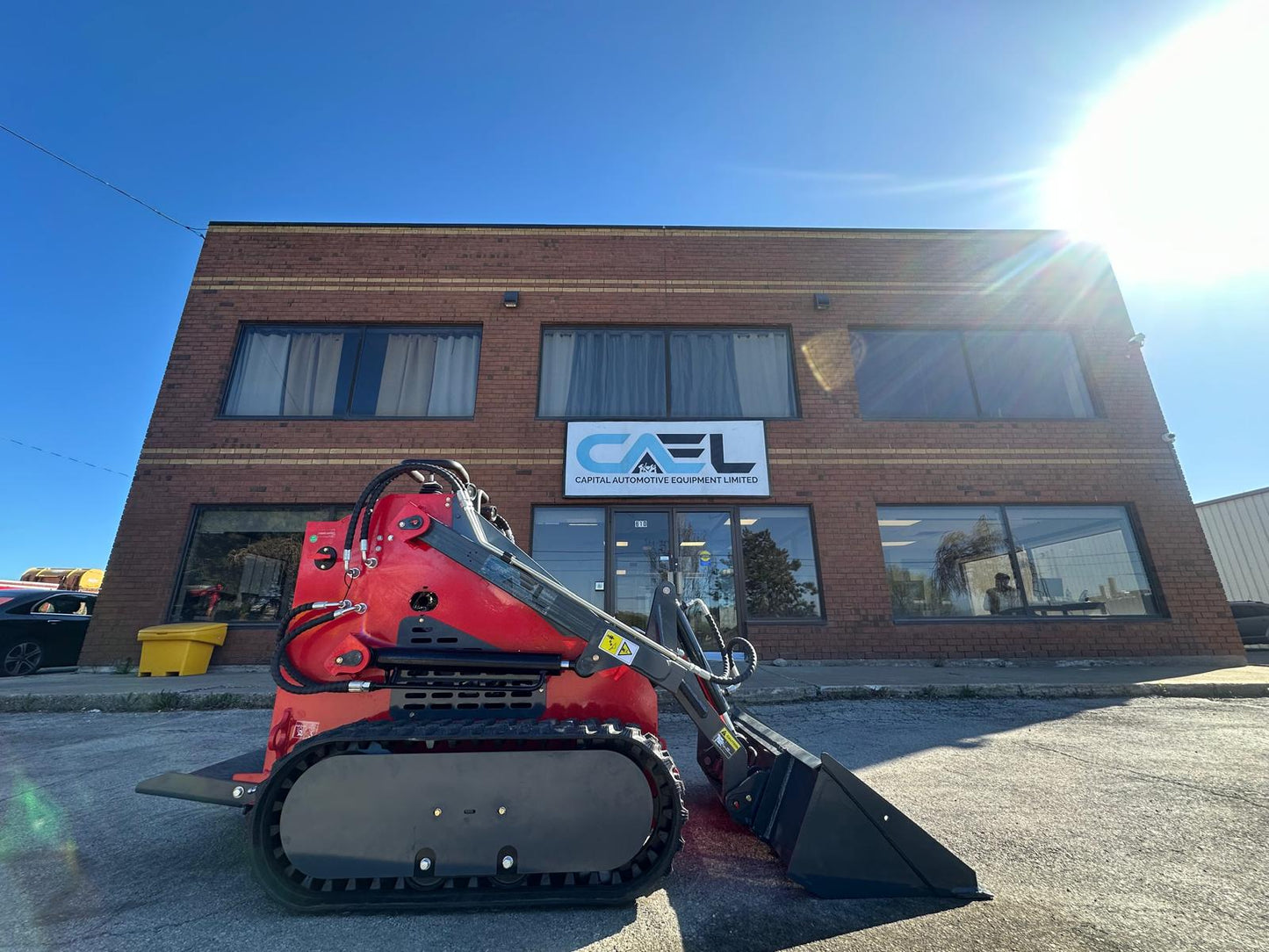

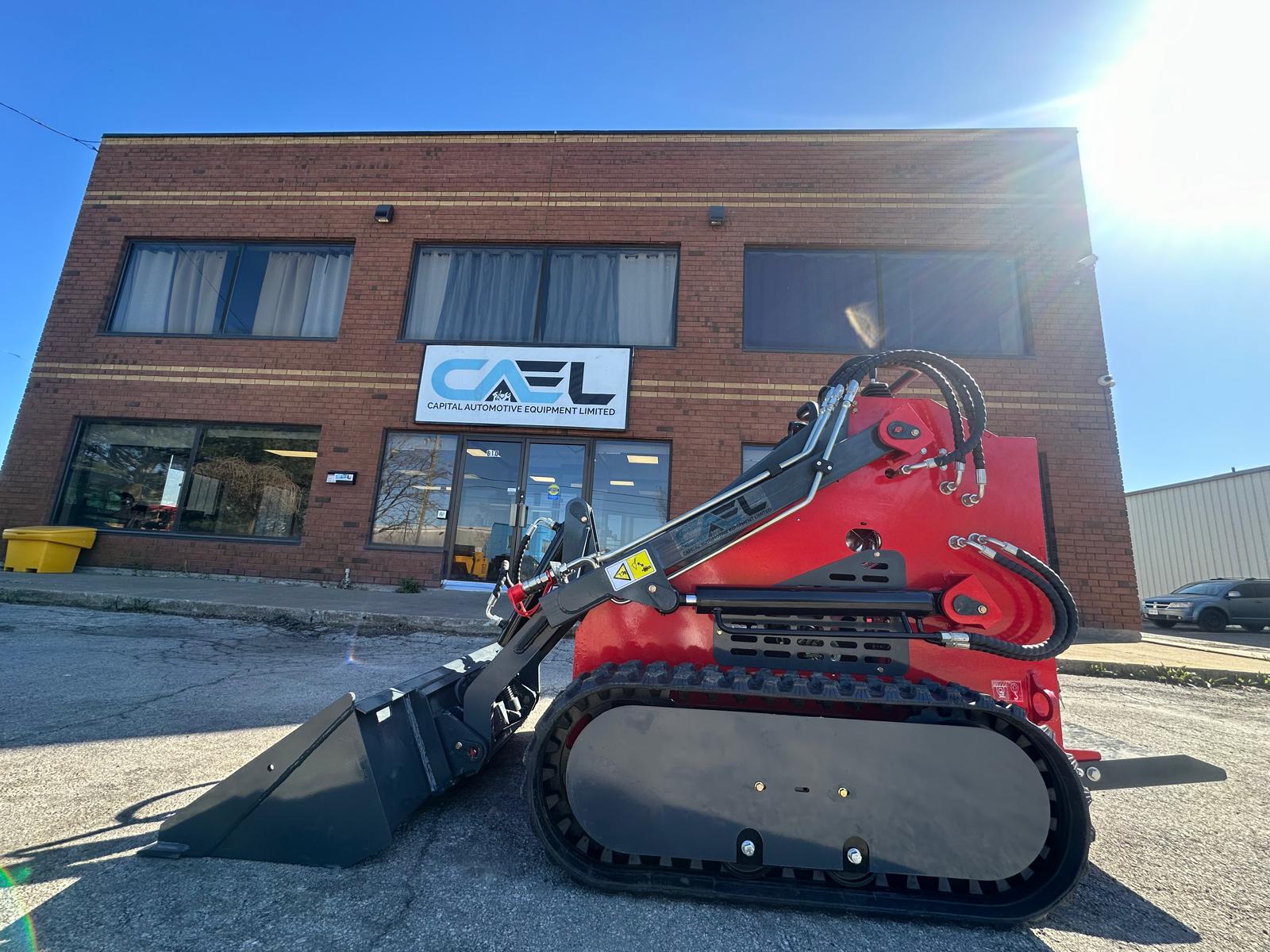

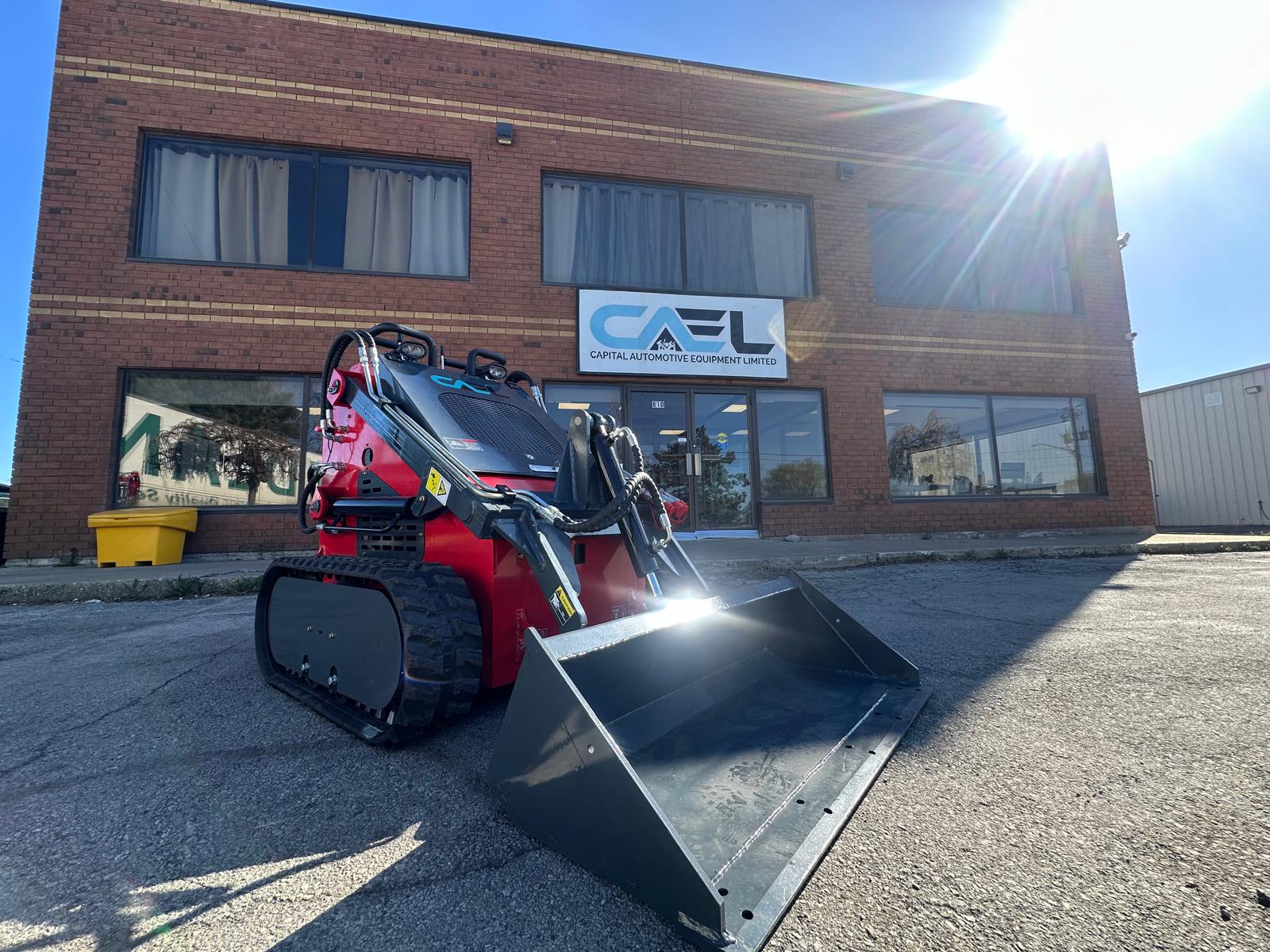

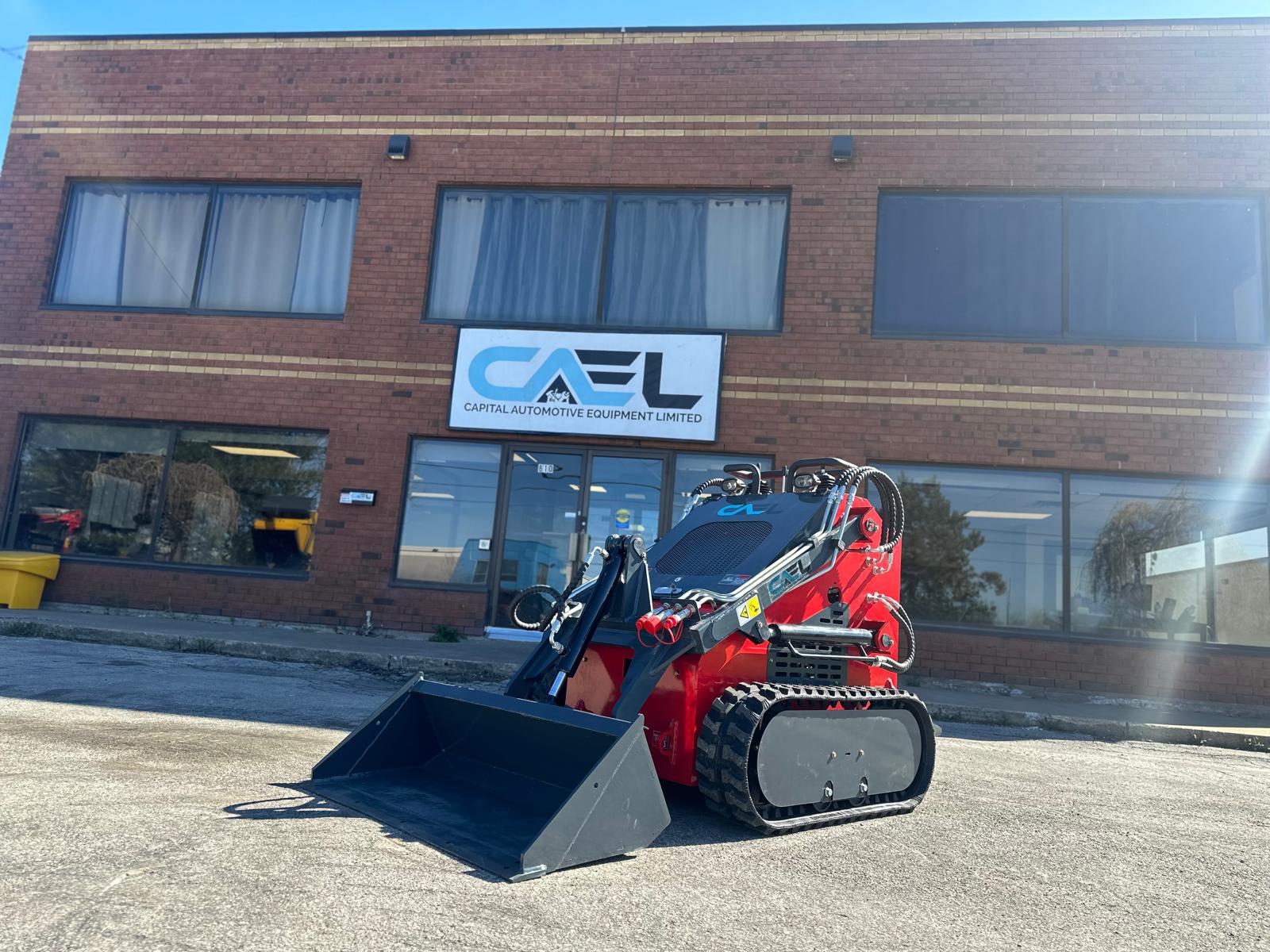

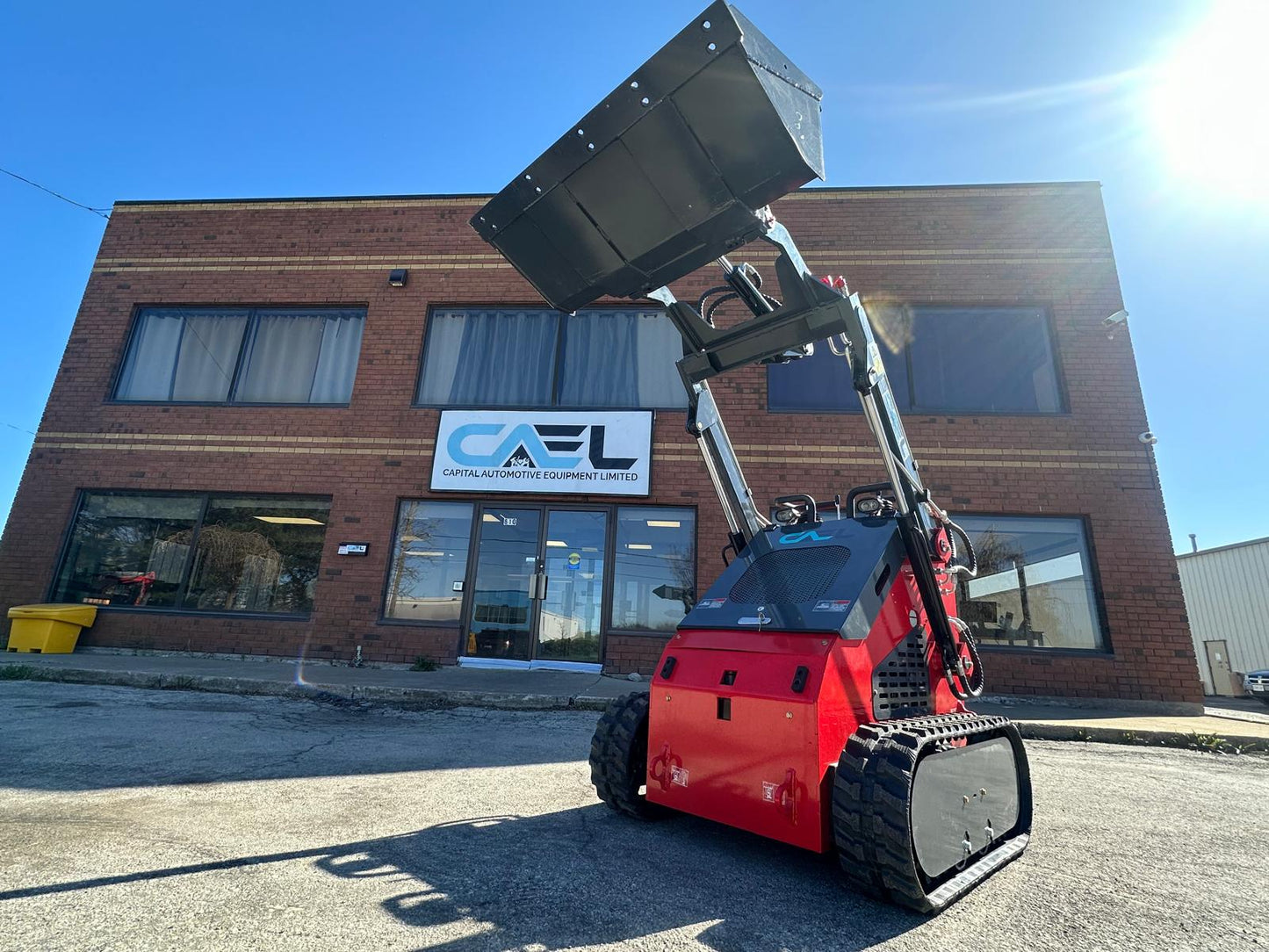

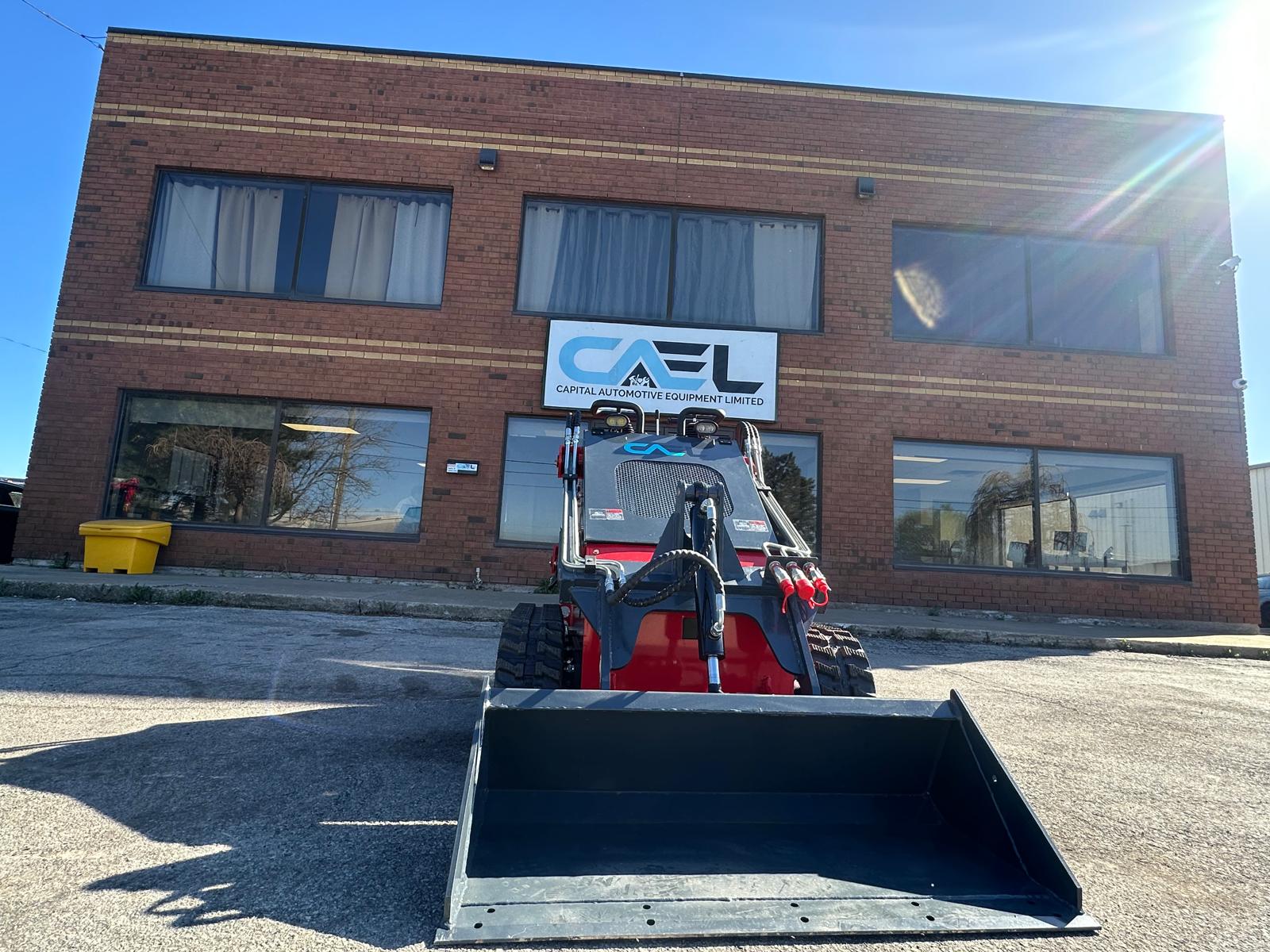

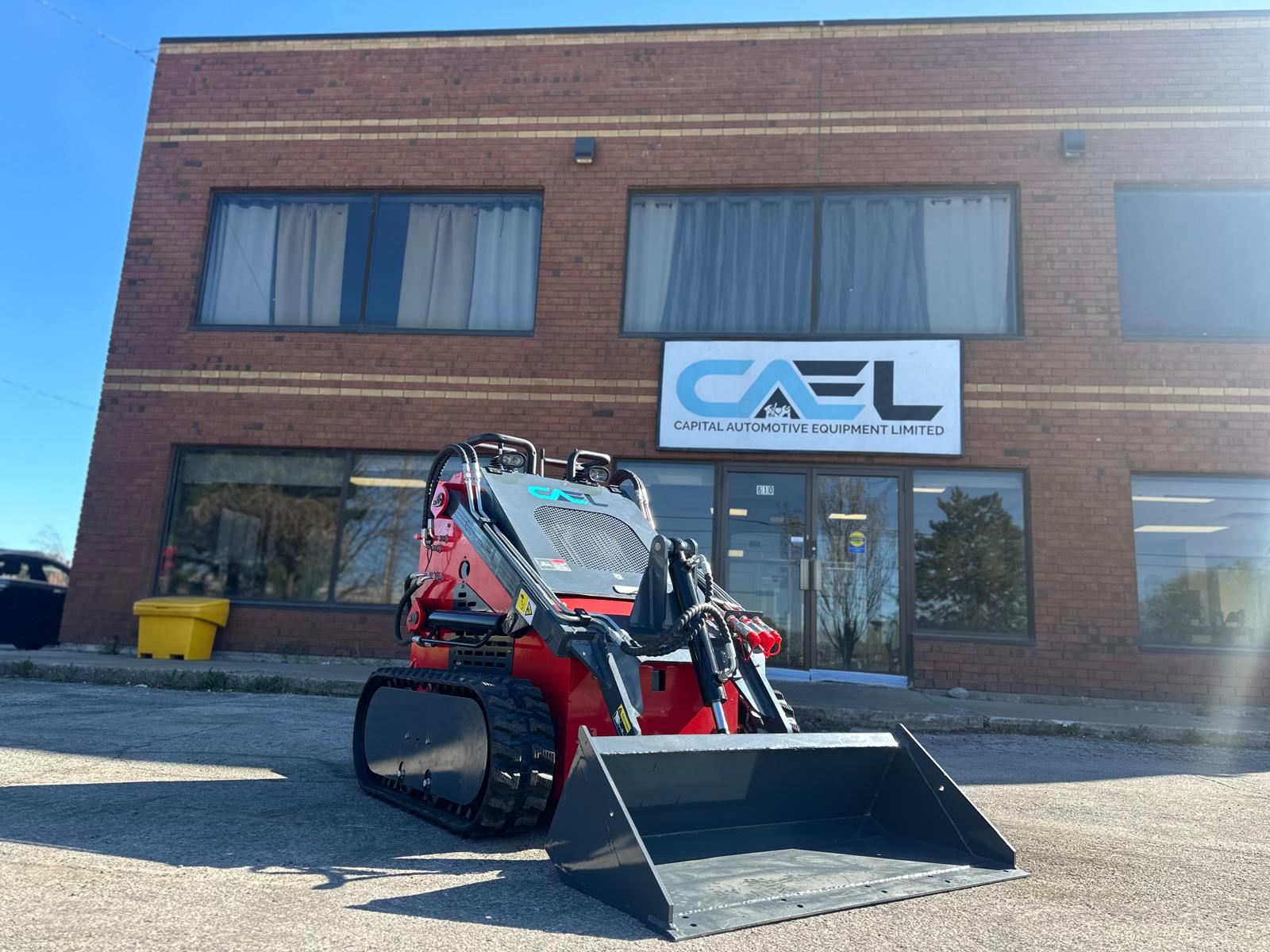

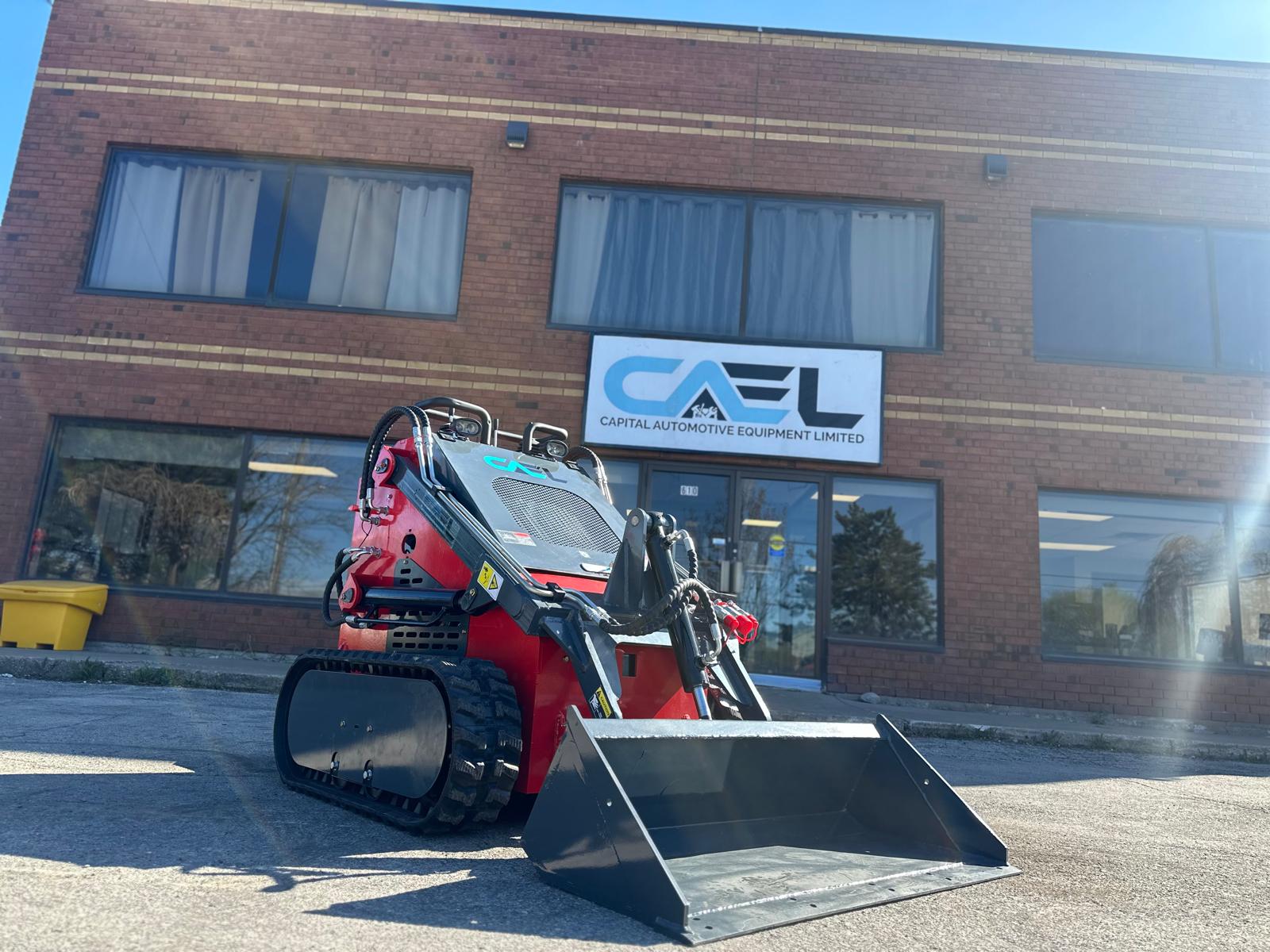

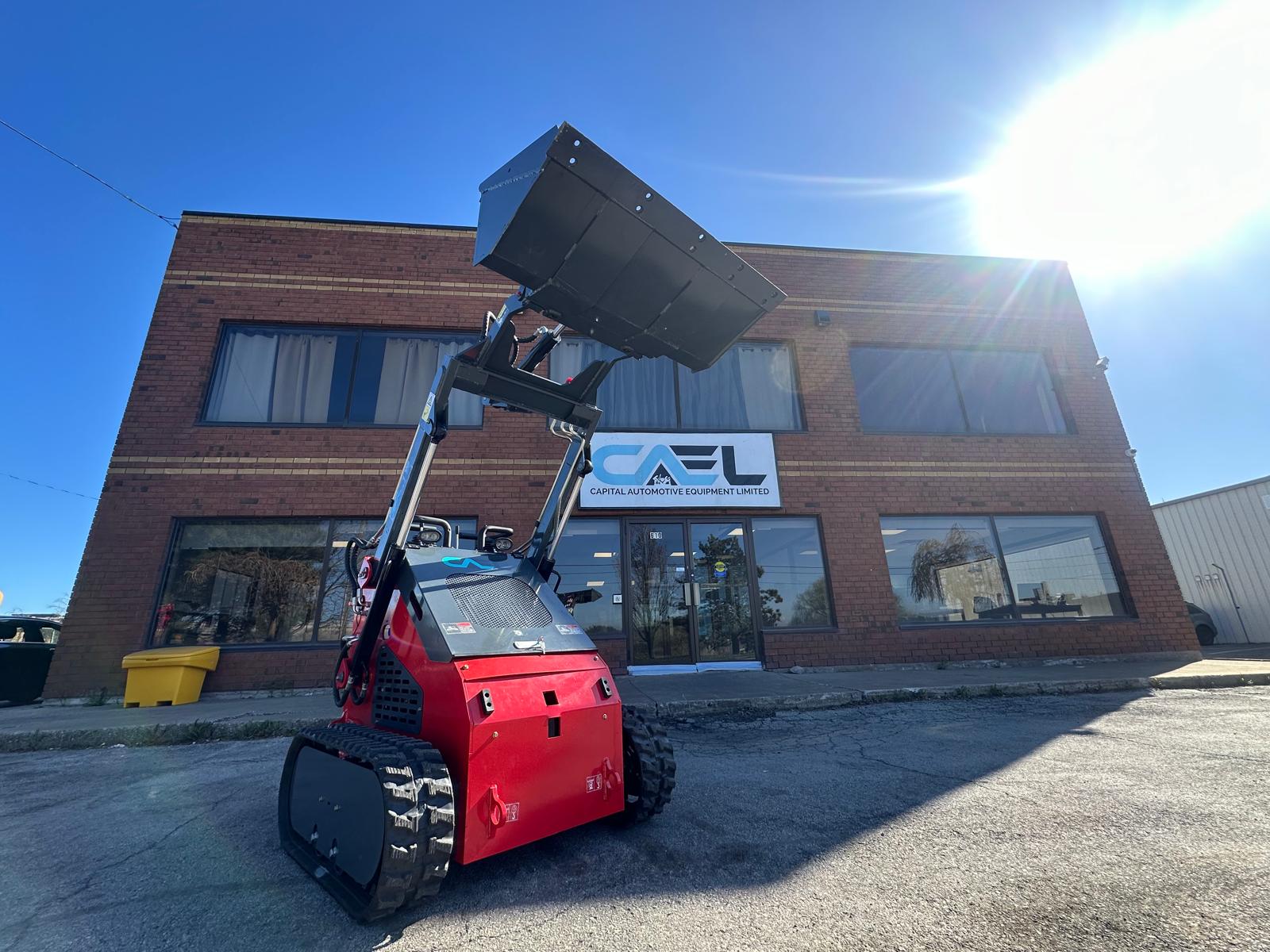

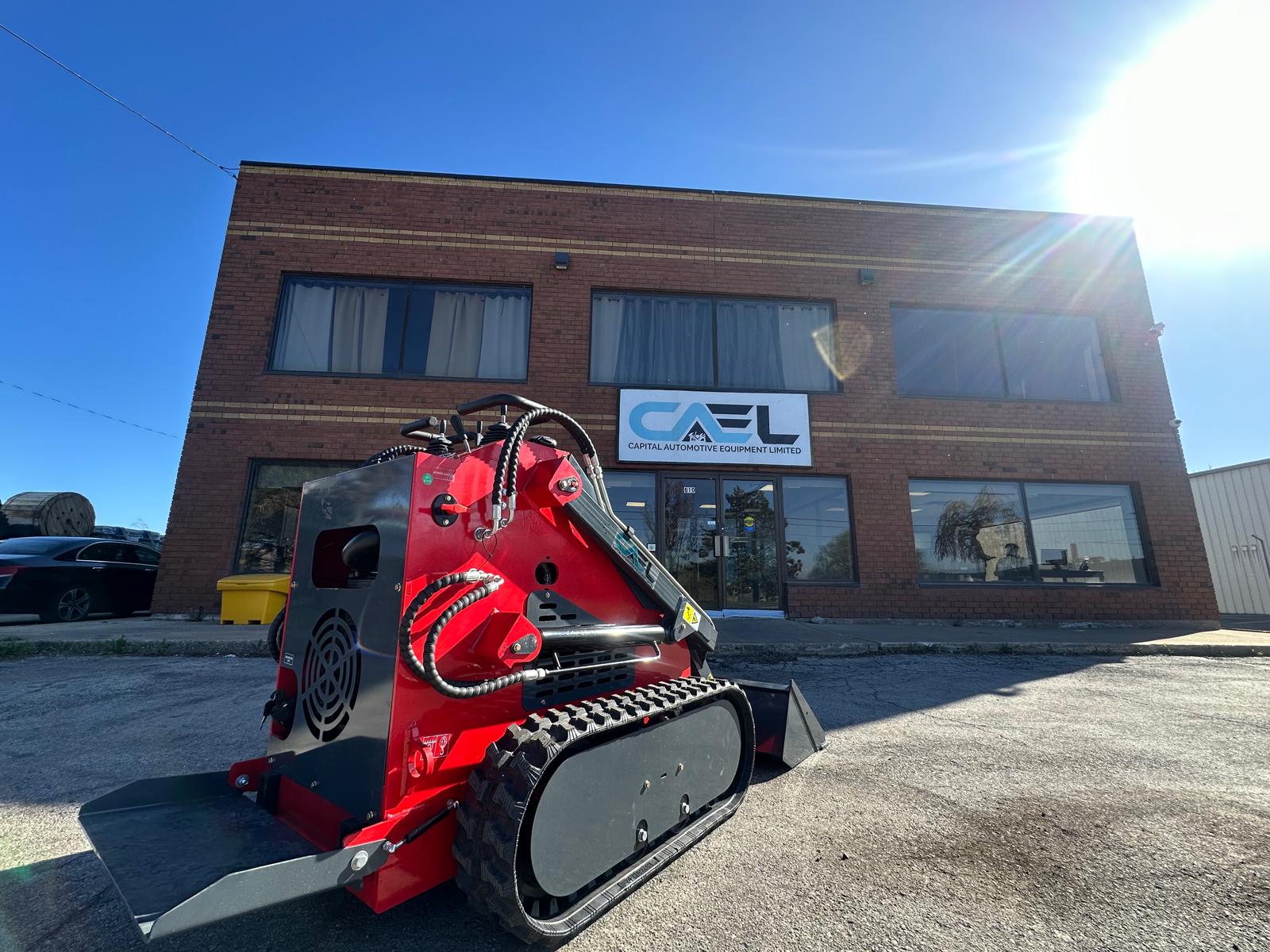

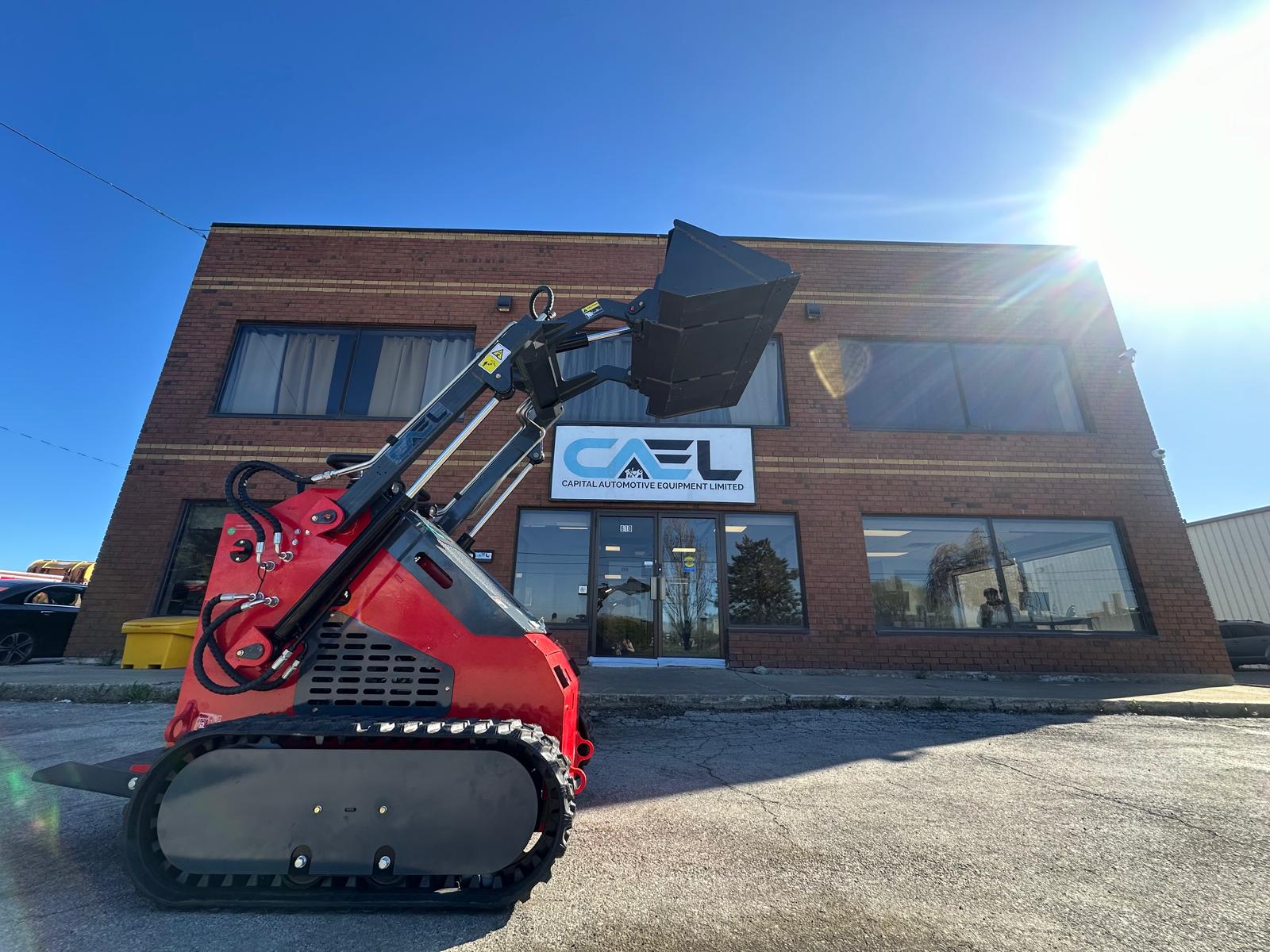

Built for power, precision, and efficiency, this compact loader is equipped with a reliable Briggs & Stratton (B&S) engine delivering strong performance in a compact footprint. Ideal for landscaping, construction, and agricultural applications, it combines high lifting capacity with smooth hydraulic operation.

Engine & Performance

• Engine Brand: Briggs & Stratton (B&S)
• Engine Power: 10 kW (23 HP)
• Rated Speed: 3600 RPM
• Noise Level: < 95 dB

Hydraulic System

Designed for fast and efficient operation:

• System Pressure: 17 MPa
• Cycle Times:
  • Raise: 4.0 seconds
  • Dump: 1.3 seconds
  • Lower: 3.2 seconds

Key Features

• Rated Operating Load: 573.2 lbs (260 kg)
• Bucket Capacity: 3 ft³ (0.085 m³)
• Maximum Lifting Force: 661.4 lbs (300 kg)
• Travel Speed: 3.73 mph (6 km/h)
• Operating Weight: 1410 lbs (640 kg)

Dimensions & Working Range

• Max Working Height (H3): 98.58 in (2504 mm)
• Max Pin Height (H2): 76.81 in (1951 mm)
• Max Dumping Height (H1): 56.02 in (1423 mm)
• Max Dumping Distance (E): 3.94 in (100 mm)
• Max Dumping Angle (a3): 53°
• Bucket Rollback on Ground (a2): 32°
• Departure Angle (a1): 17°

Machine Dimensions

• Overall Height (H): 47.64 in (1210 mm)
• Ground Clearance (F): 5.26 in (134 mm)
• Wheelbase (L1): 25.71 in (653 mm)
• Length without Bucket (L3): 61.1 in (1552 mm)
• Total Length with Bucket (L): 78.43 in (1992 mm)
• Machine Width (B2): 41.34 in (1050 mm)
• Bucket Width (B1): 42.52 in (1080 mm)
• Turning Radius (R): 47.44 in (1205 mm)

Why Choose This Machine?

• Compact yet powerful design for tight spaces
• Fast hydraulic response for increased productivity
• Durable construction with high lifting capability
• Easy maneuverability with tight turning radius
