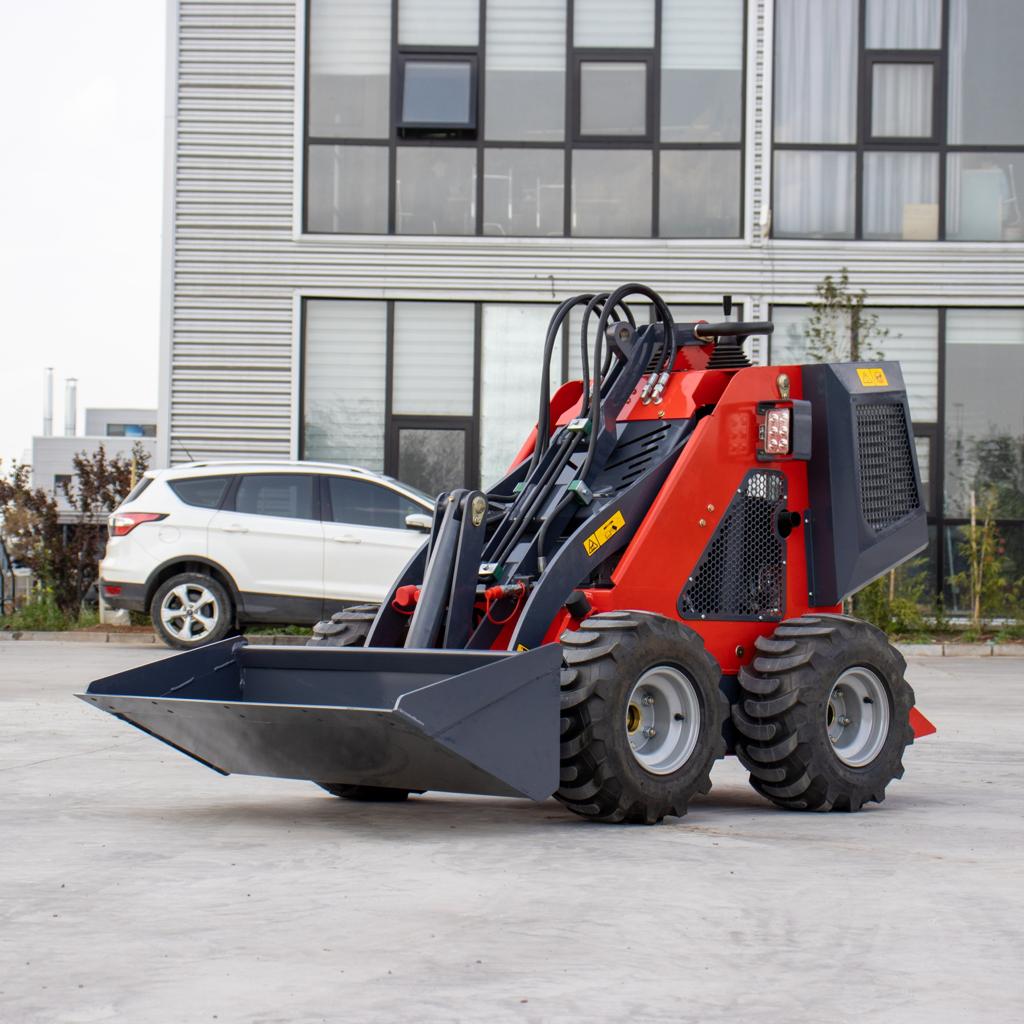

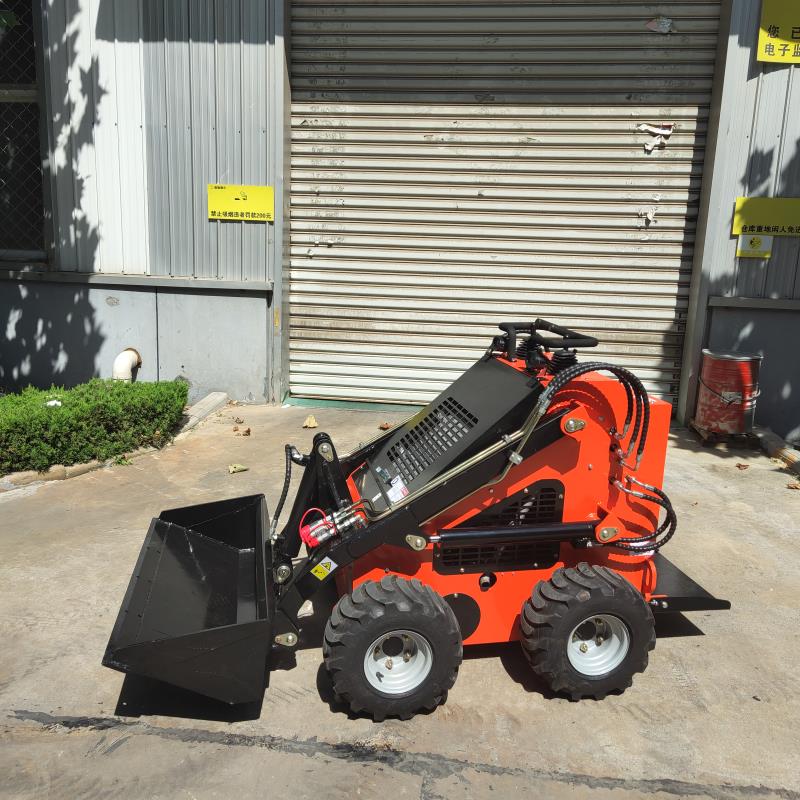

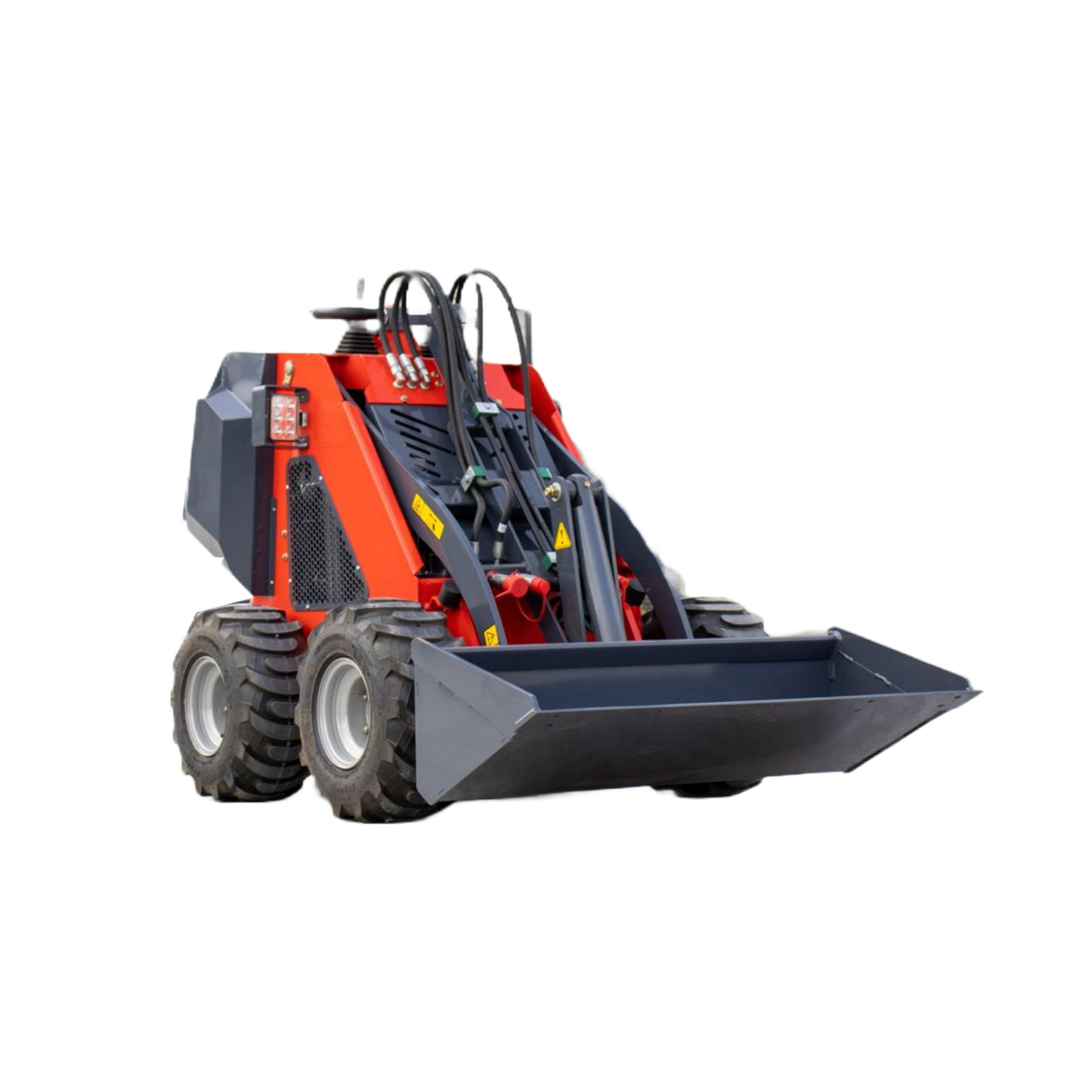

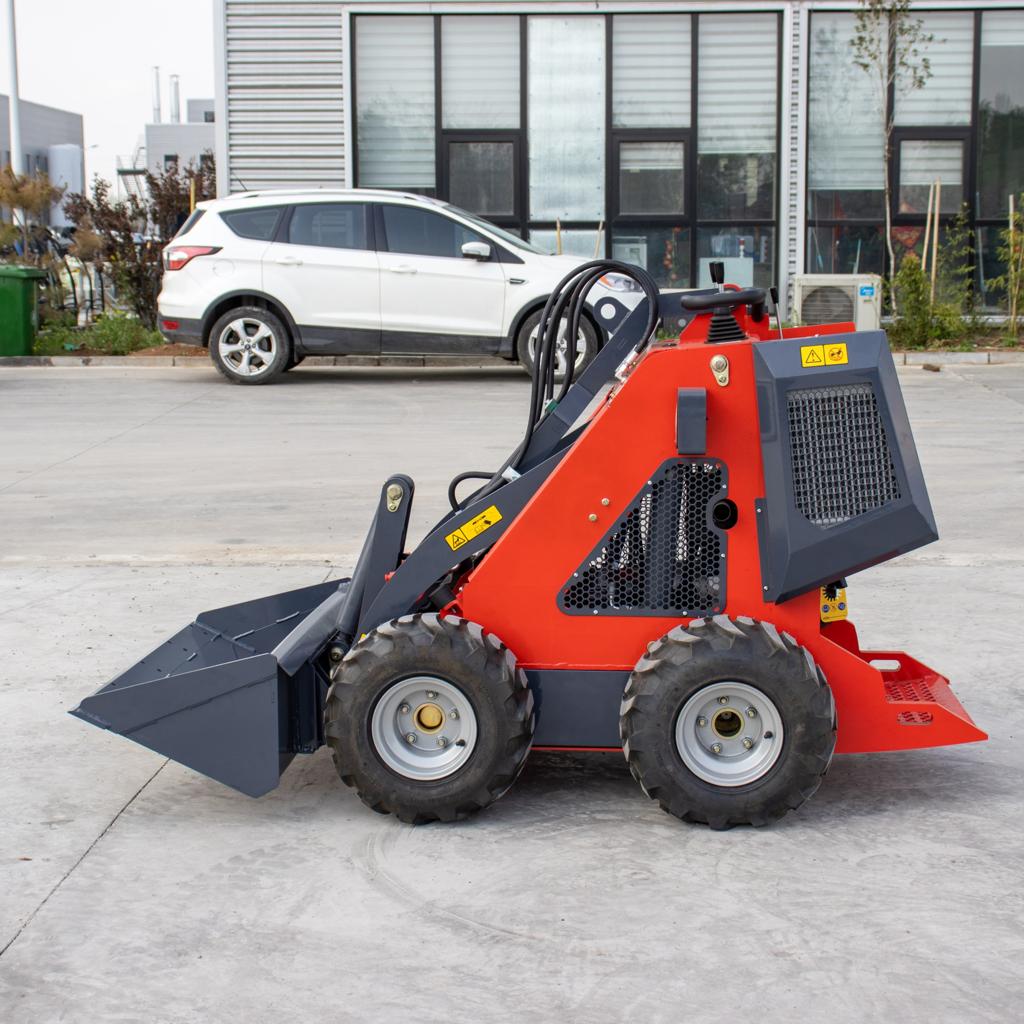

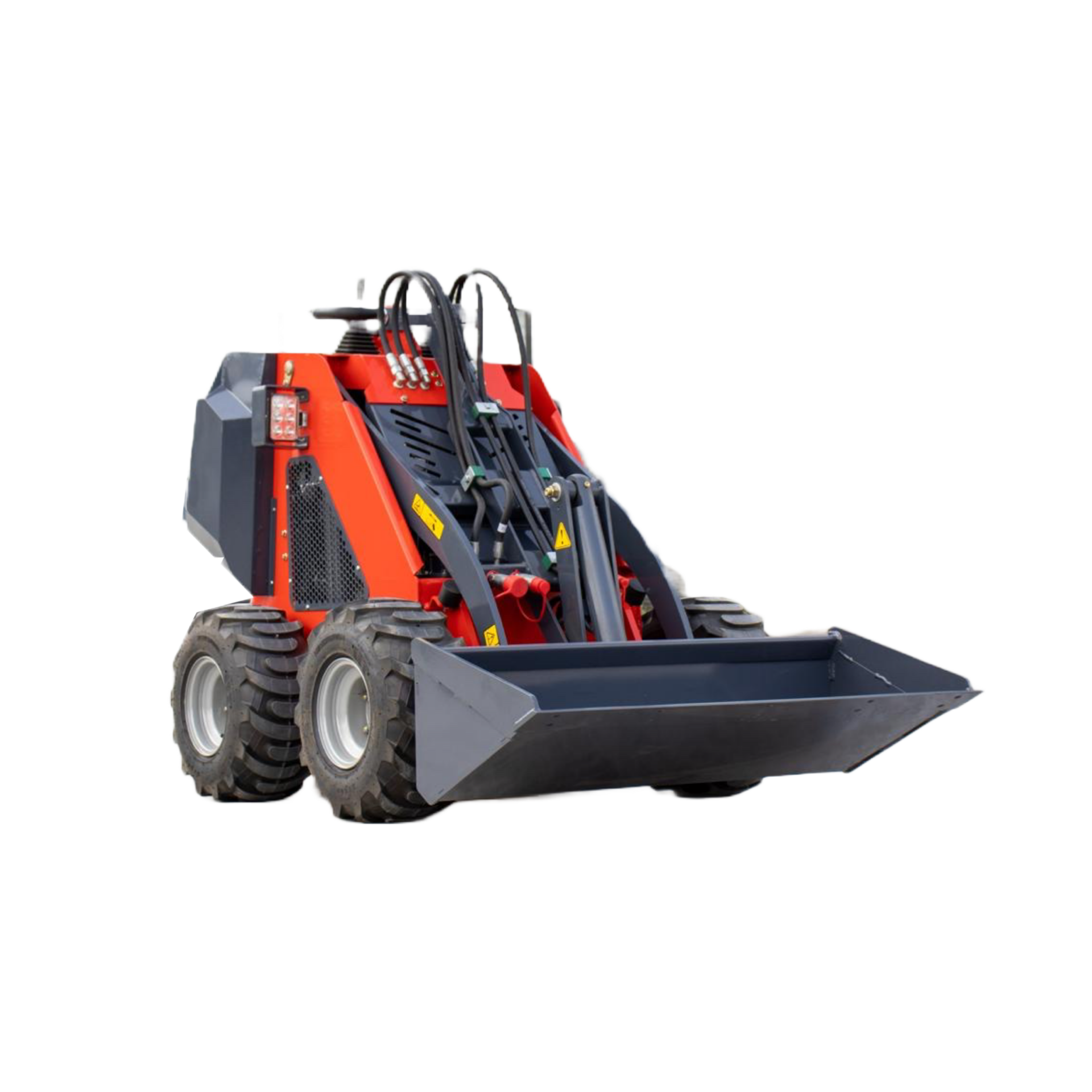

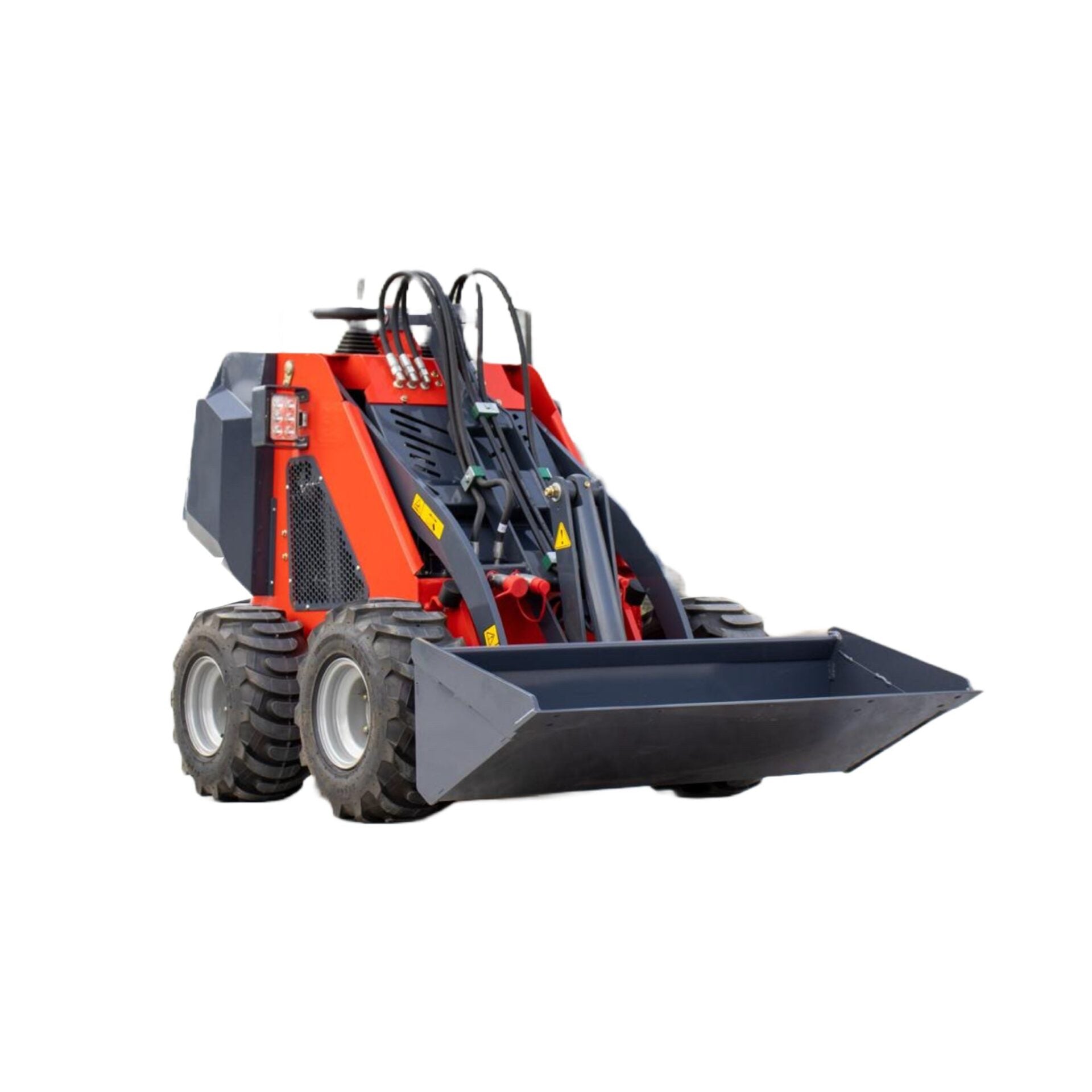

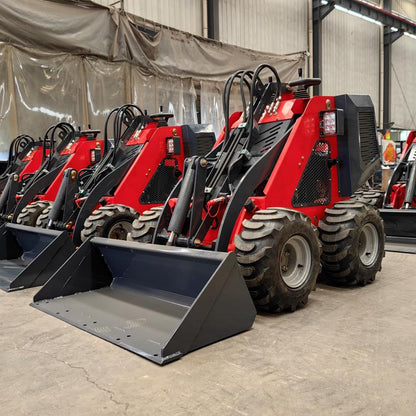

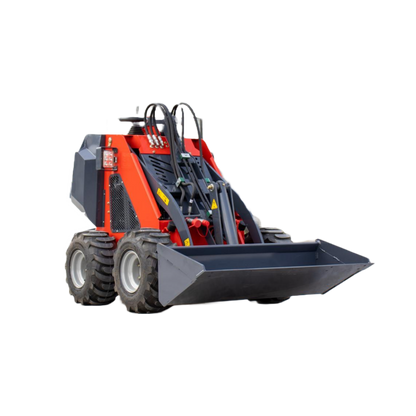

Introducing the Mini Skid Steer Loader, your ideal solution for construction, landscaping, and agricultural applications. Designed for tight spaces and demanding tasks, this compact machine delivers impressive power, maneuverability, and efficiency.
Equipped with a reliable Briggs & Stratton (B&S) engine, and available in both wheel and track configurations, this mini skid steer ensures flexibility across different terrains and job requirements.
Available Variant
Mini Skid Steer (Wheels, 14HP B&S Engine) – $7,899
Engine Specifications
Engine Brand: Briggs & Stratton (B&S)
Power Output: 10 kW (13.5 HP)
Rated Speed: 3600 RPM
Noise Level: < 95 dB
Hydraulic System
Working Pressure: 17 MPa
Cycle Times:
Raise: 4.0 sec
Dump: 1.3 sec
Lower: 3.2 sec
Performance Specifications
Rated Operating Load: 260 kg (573 lbs)
Maximum Lifting Force: 300 kg (661 lbs)
Bucket Capacity: 0.085 m³ (3.0 ft³)
Travel Speed: 6 km/h (3.73 mph)
Operating Weight: 640 kg (1410 lbs)
Dimensions
Overall Length (with Bucket): 1992 mm (78.4 in)
Overall Length (without Bucket): 1552 mm (61.1 in)
Overall Width: 1050 mm (41.3 in)
Bucket Width: 1080 mm (42.5 in)
Wheelbase: 653 mm (25.7 in)
Ground Clearance: 134 mm (5.3 in)
Total Height: 1210 mm (47.6 in)
Working Range

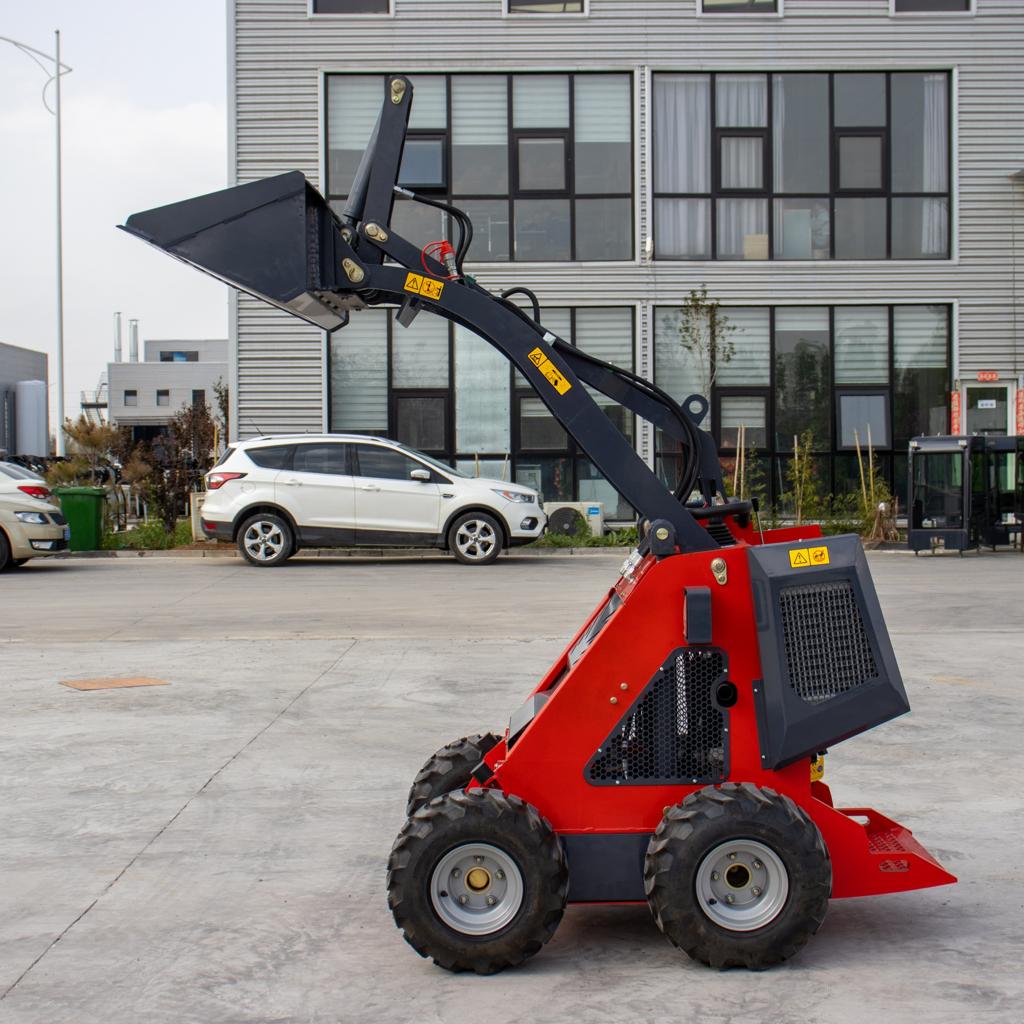

Maximum Working Height: 2505 mm (98.6 in)
Hinge Pin Height: 1950 mm (76.8 in)
Dumping Height: 1423 mm (56.0 in)
Dumping Distance: 100 mm (3.9 in)
Dumping Angle: 53°
Rollback Angle (Ground): 32°
Departure Angle: 17°
Turning Radius: 1205 mm (47.4 in)
Key Advantages
Compact design for tight and narrow spaces
Available in wheel and track variants for versatility
Fast hydraulic response for efficient operation
Durable construction for long-term reliability
Ideal for construction, landscaping, farming, and indoor work
Warranty
2 Years Warranty on Engine
1 Year Warranty on All Parts
Why Choose This Mini Skid Steer?
With its compact footprint, powerful engine, and versatile functionality, this machine is the perfect choice for professionals looking to maximize productivity in limited spaces without compromising performance.
