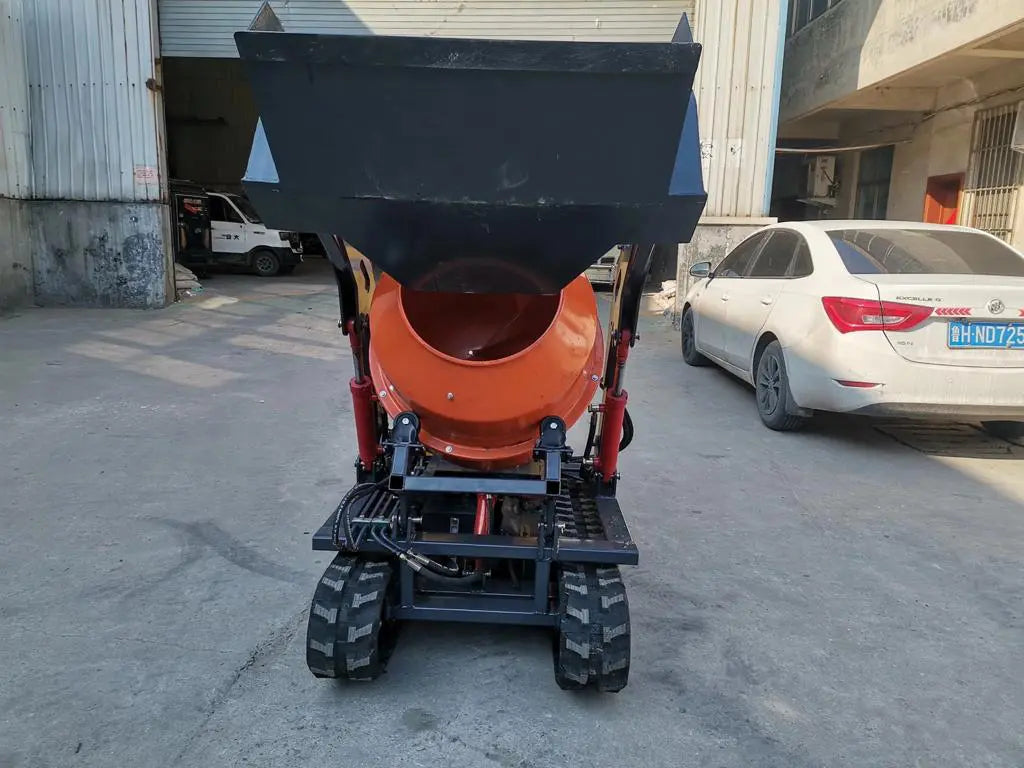

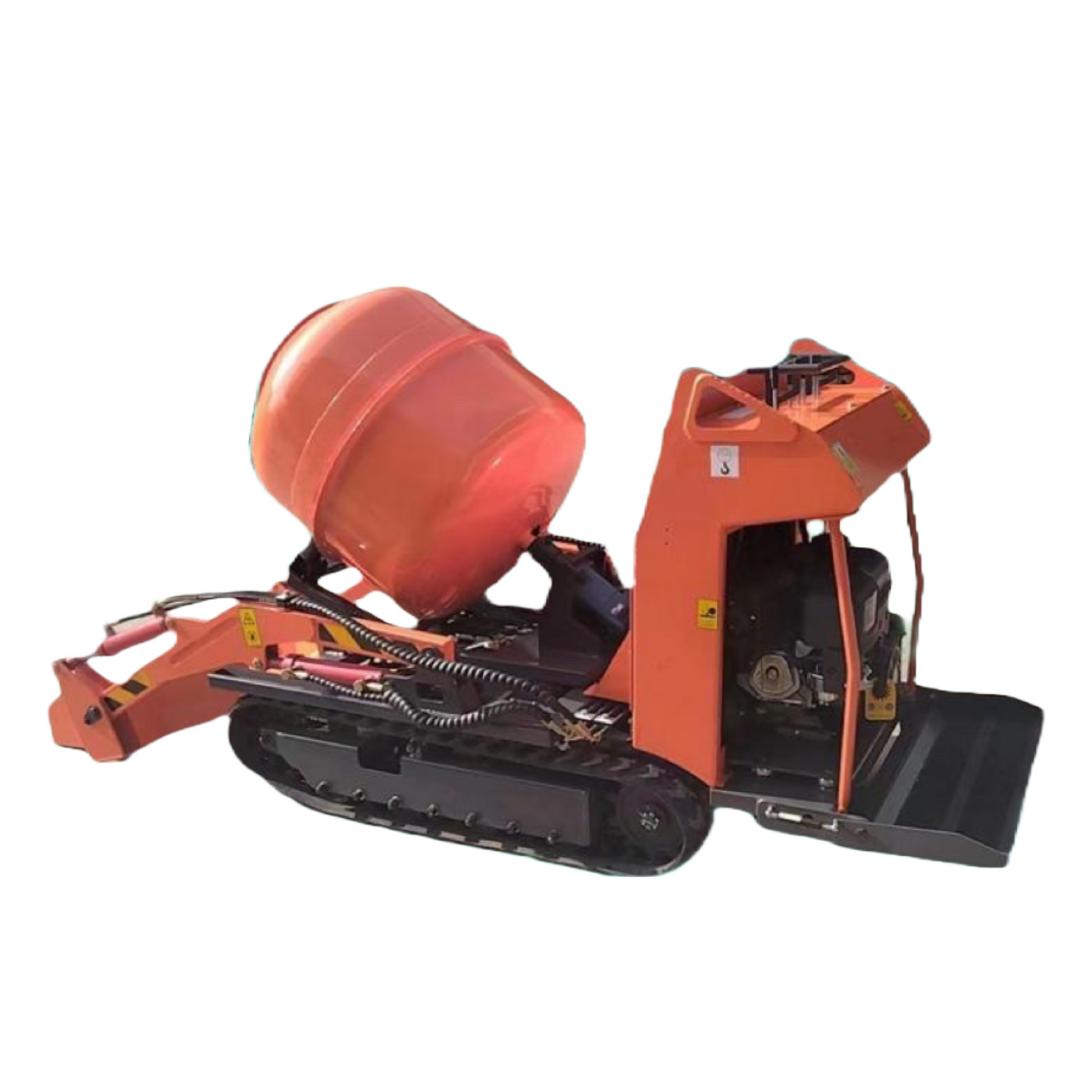

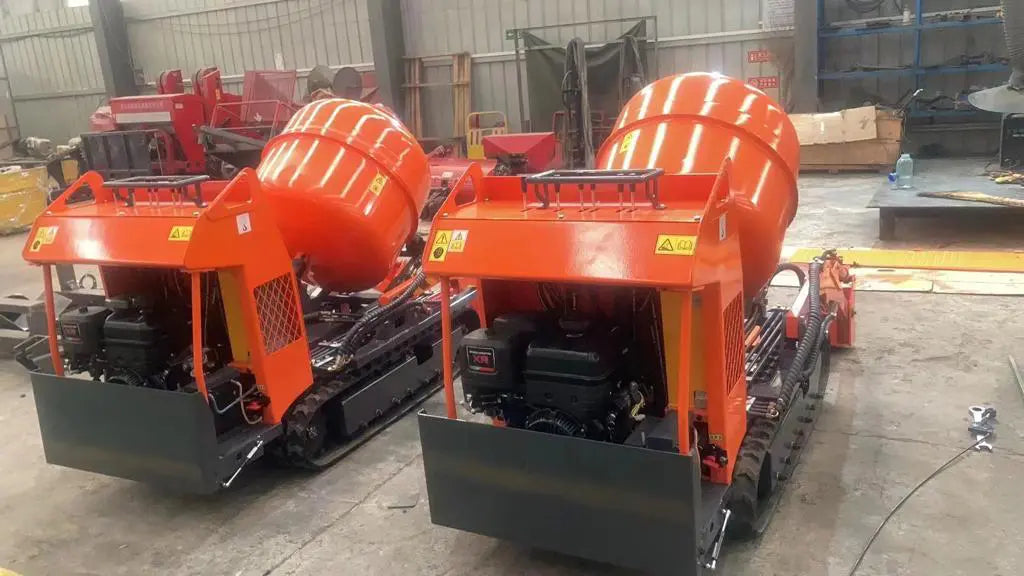

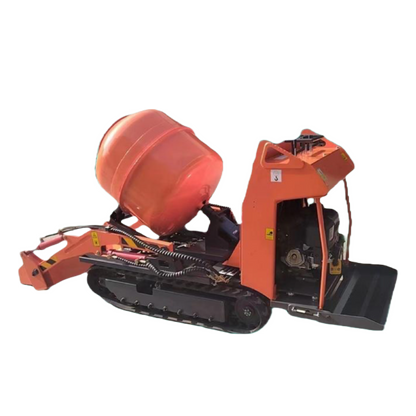

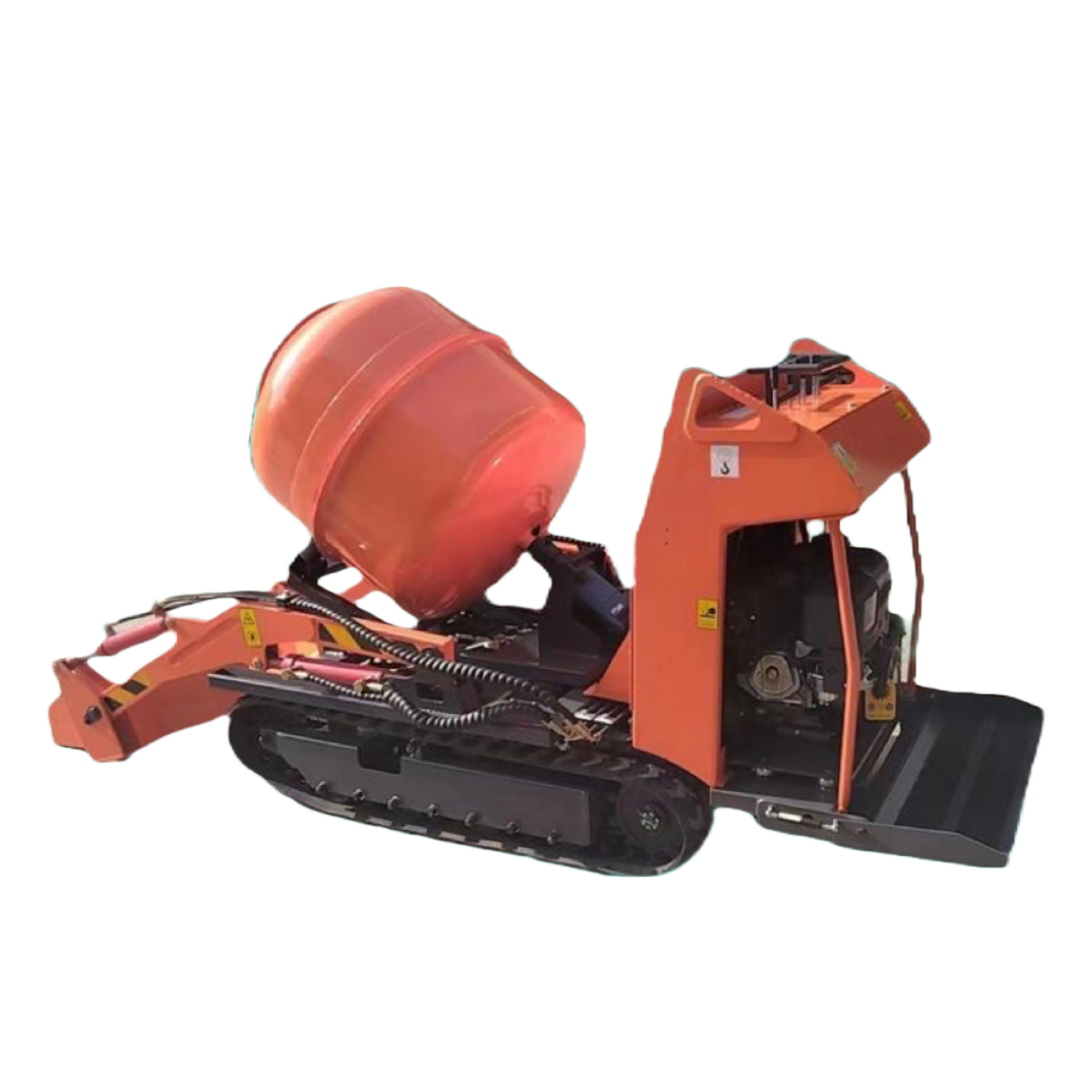

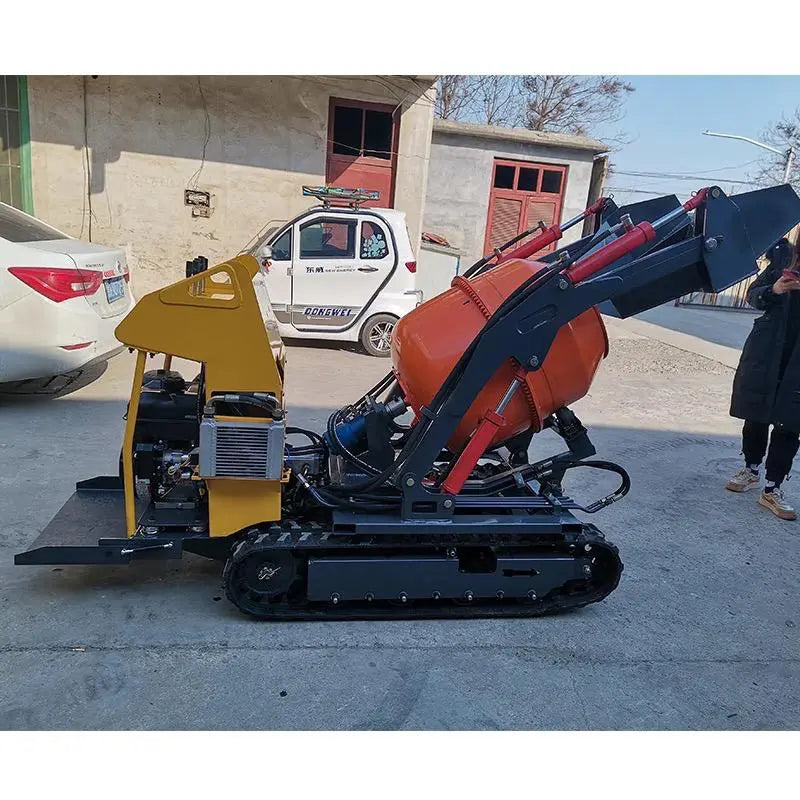

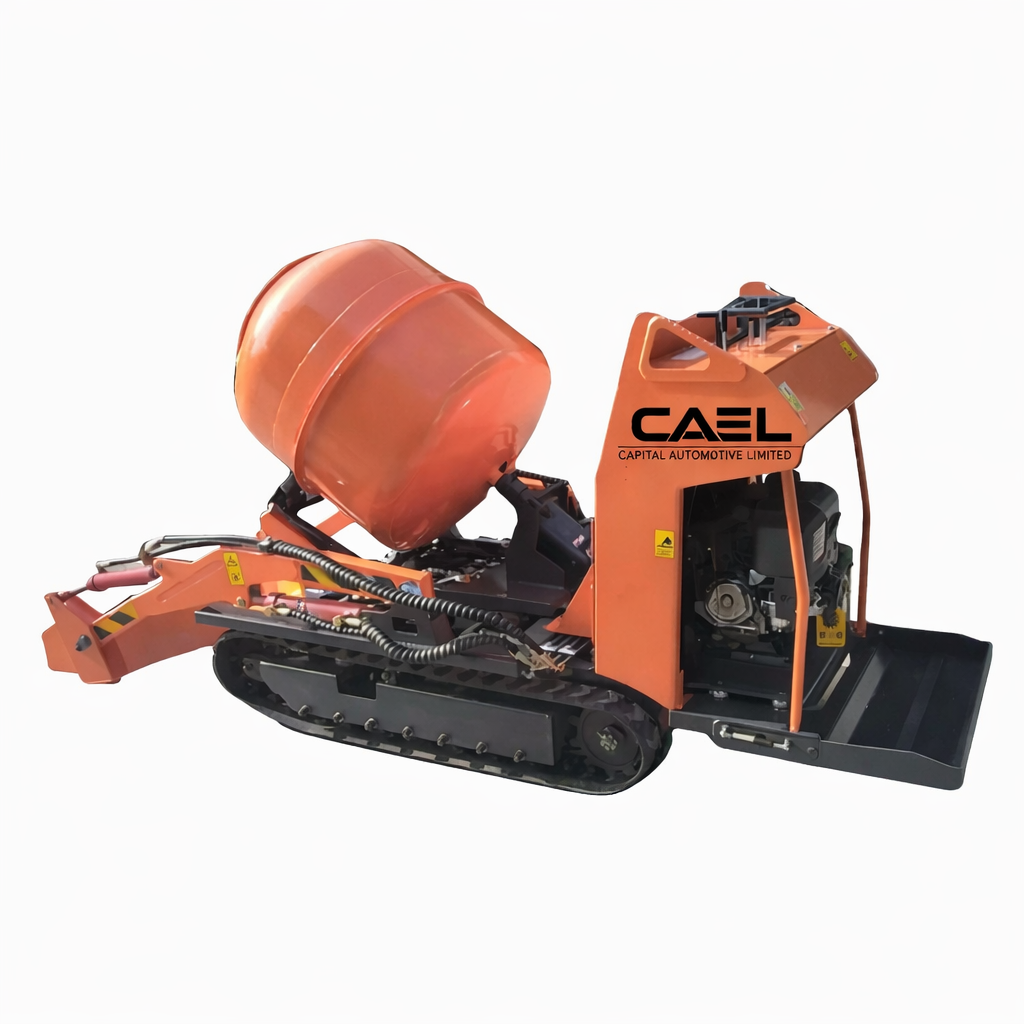

Introducing the Self-Load Tracked Hydraulic Concrete Mixer, engineered for efficient concrete mixing in confined and challenging job sites. Its compact tracked design ensures excellent mobility on uneven or non-hardened surfaces, making it ideal for small to medium-scale construction projects.

Designed with a self-loading system and fully hydraulic operation, this machine minimizes manual labor while maximizing productivity, delivering consistent mixing performance and easy material handling.

Key Specifications

Dimensions & Weight

• Machine Dimensions (L × W × H):
  2750 × 900 × 1300 mm
  (108.3 × 35.4 × 51.2 inches)
• Machine Weight: 600 kg (1323 lbs)

Capacity

• Mixing Tank Capacity: 0.28 m³ (9.89 ft³)
• Auxiliary (Vice) Bucket Capacity: 0.04 m³ (1.41 ft³)
• Loading Capacity: 300 kg (661 lbs)

Performance

• Discharge Angle: 47°–57°
• Triple Pump Displacement: 10-10-06 ml/r
• Hydraulic Tank Capacity: 19.4 L (5.12 gallons)

Engine & Hydraulic System

• Engine: Briggs & Stratton (EPA Compliant)
• Engine Power: 13.5 HP
• Hydraulic Motor: Eaton
• Fully Hydraulic Operating System for smooth and efficient performance

Key Features

• Self-Loading & Discharge System
  Integrated tipping bucket enables automatic material loading, mixing, and unloading, reducing manual effort.
• Tracked Mobility
  Durable crawler tracks allow smooth movement across rough, muddy, and uneven terrain.
• Compact & Space-Saving Design
  Ideal for narrow construction sites, rural roads, and small-scale projects.
• Full Hydraulic Operation
  Ensures precise control, higher efficiency, and reduced mechanical wear.
• High-Performance Components
  Equipped with reliable Briggs & Stratton engine and Eaton motor for long-lasting performance.
• Modular Structure
  Easy maintenance with detachable components and simplified servicing.
