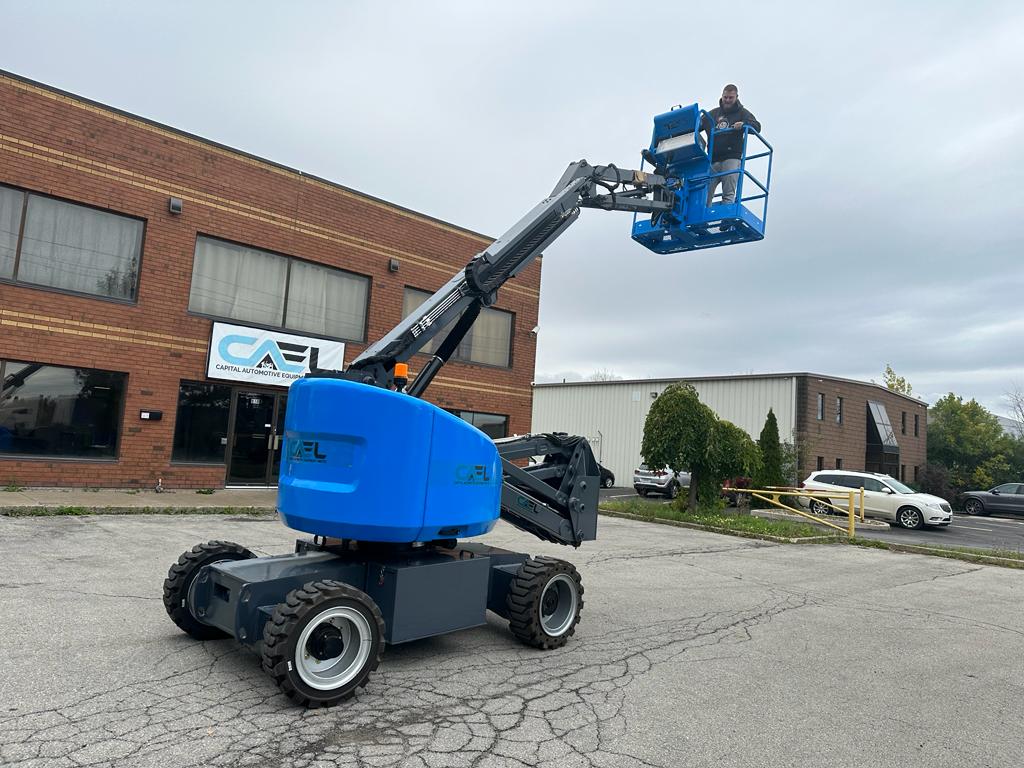

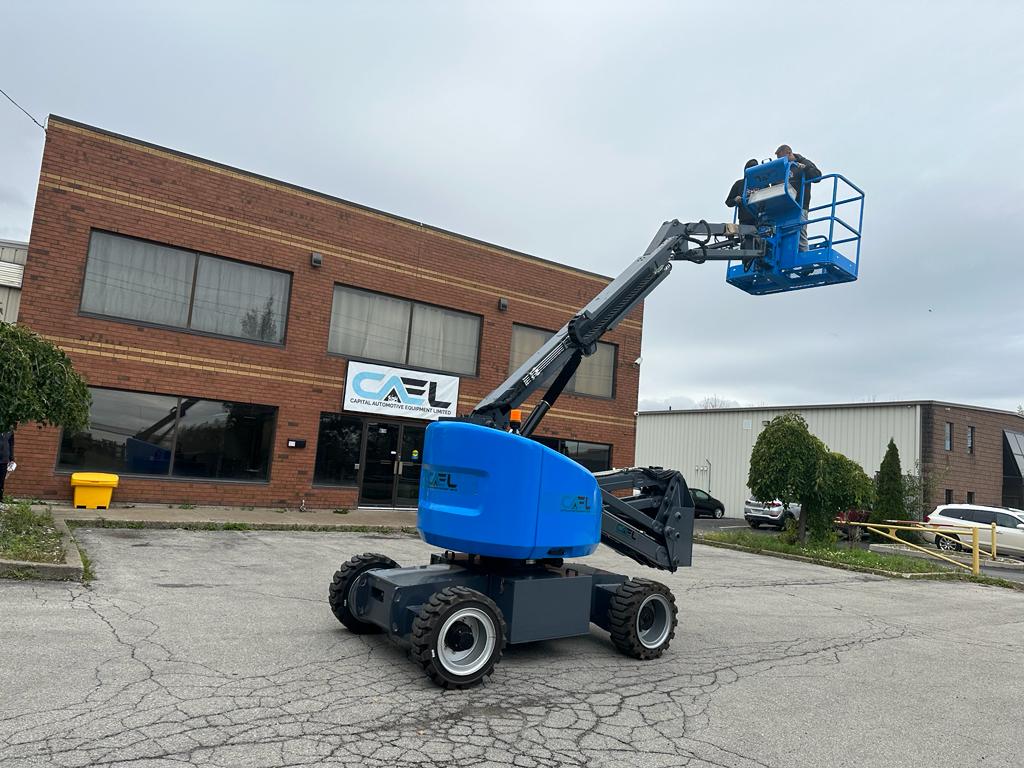

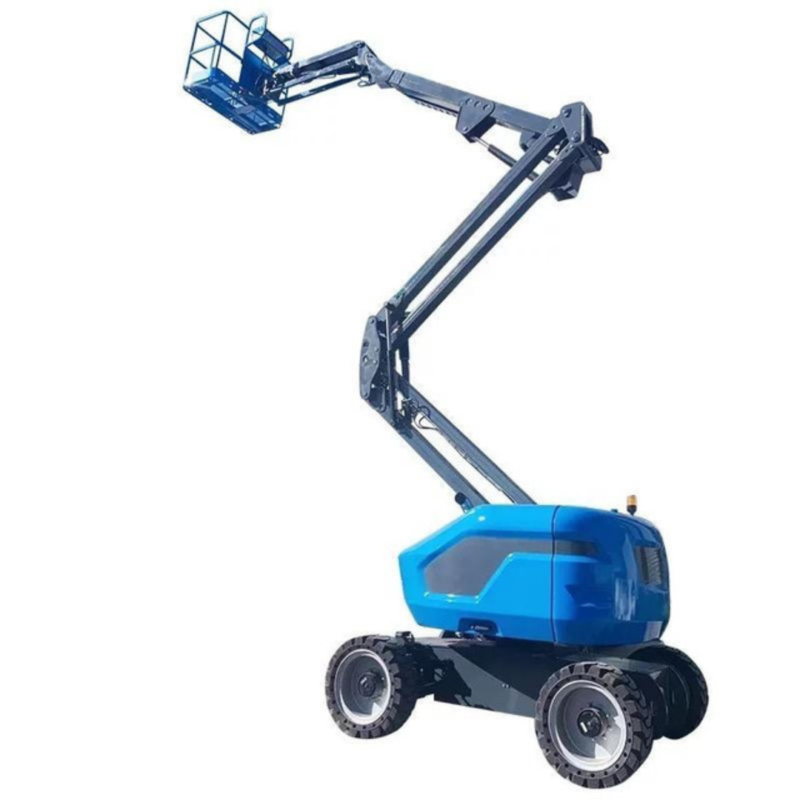

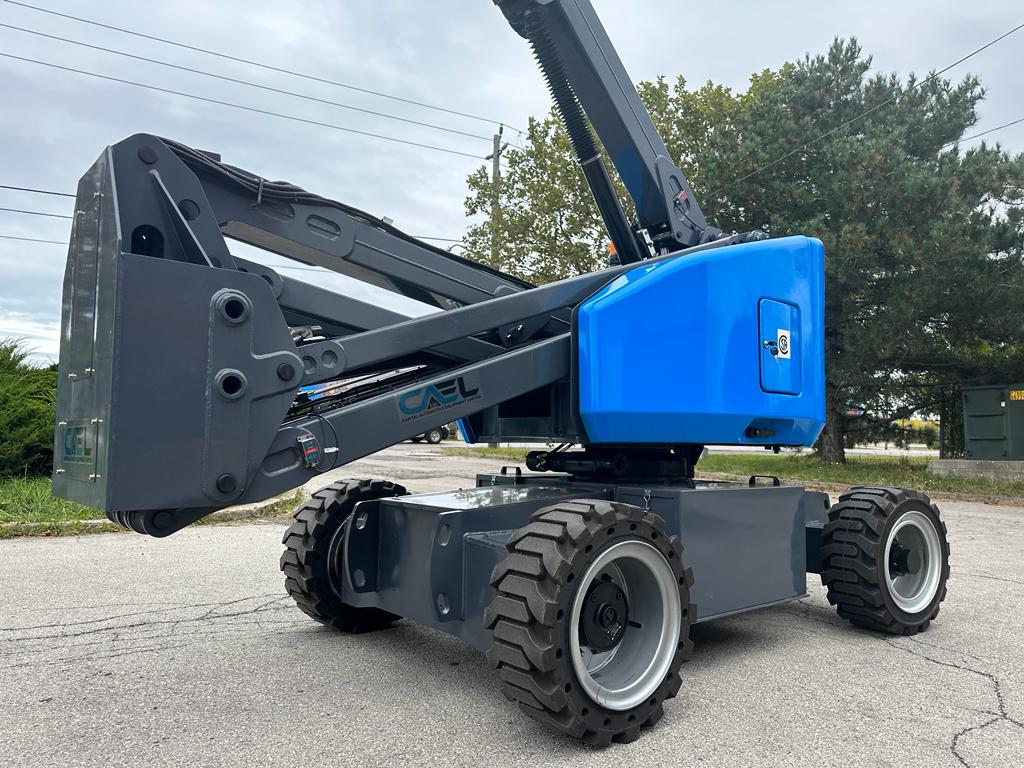

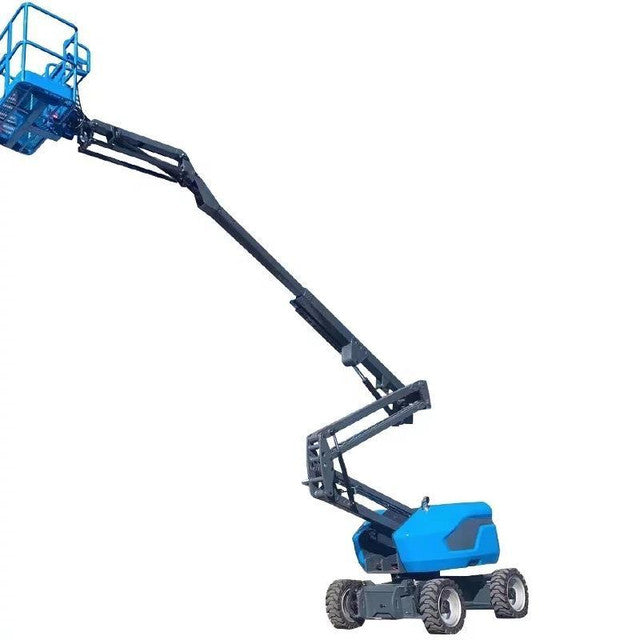

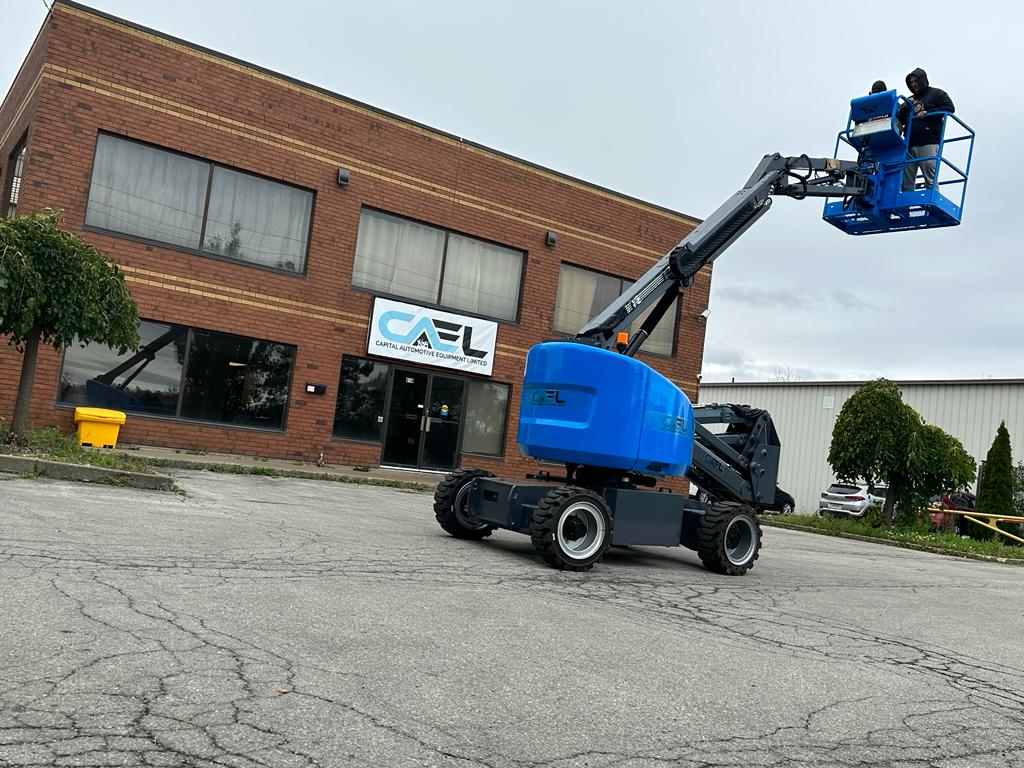

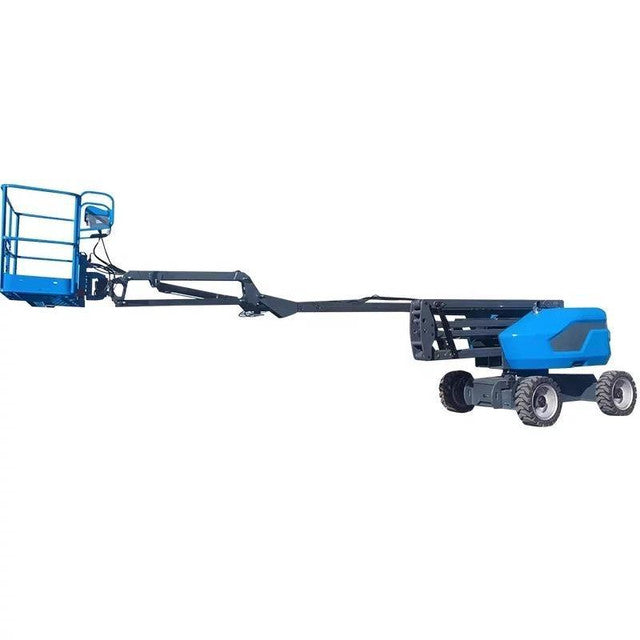

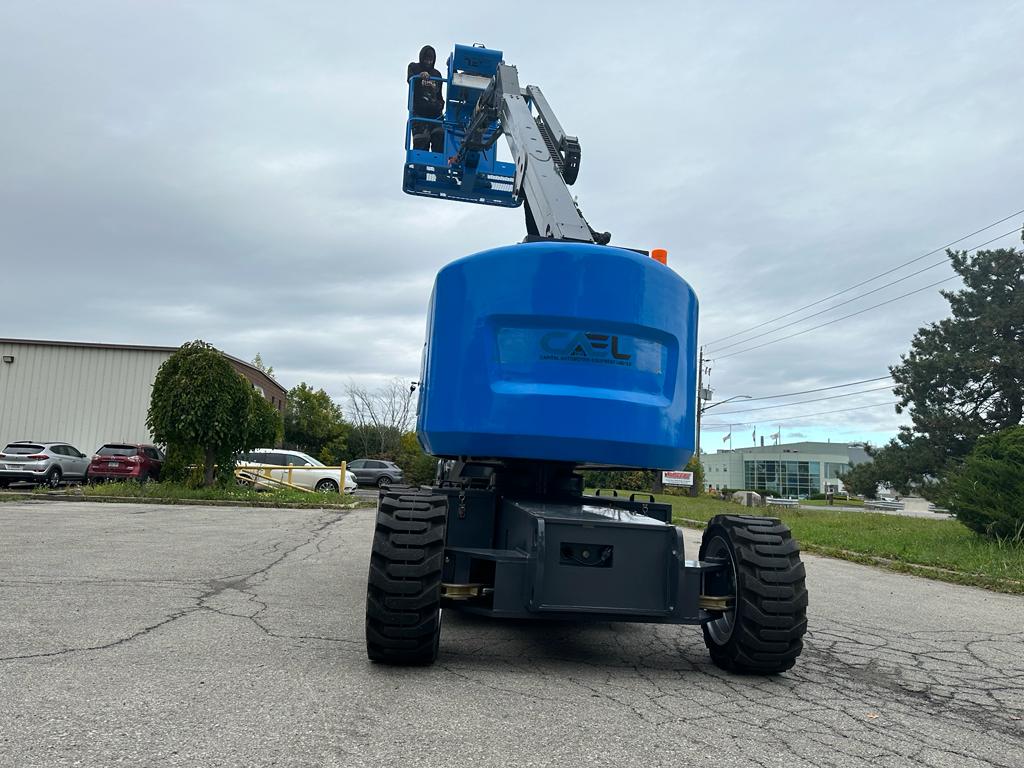

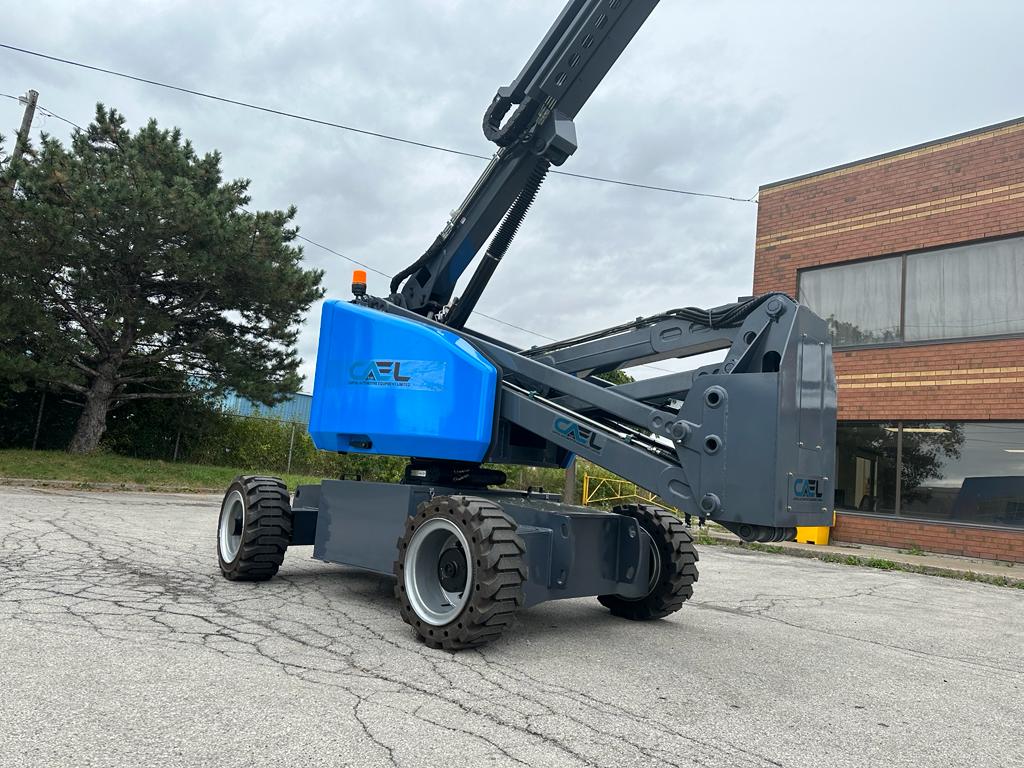

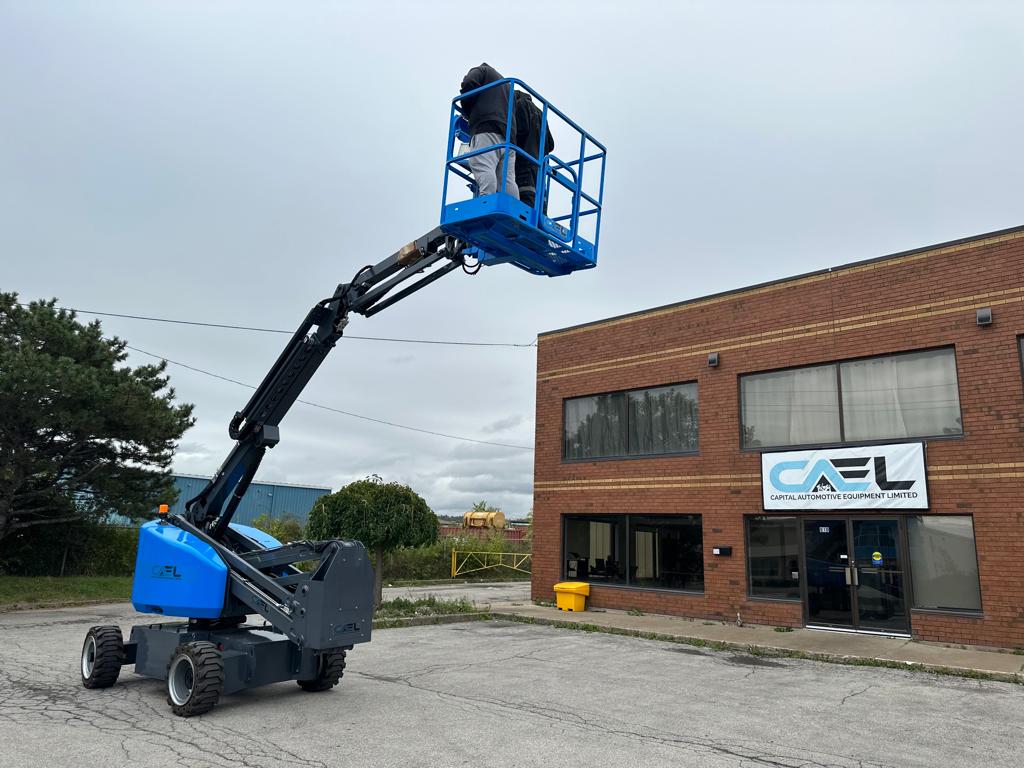

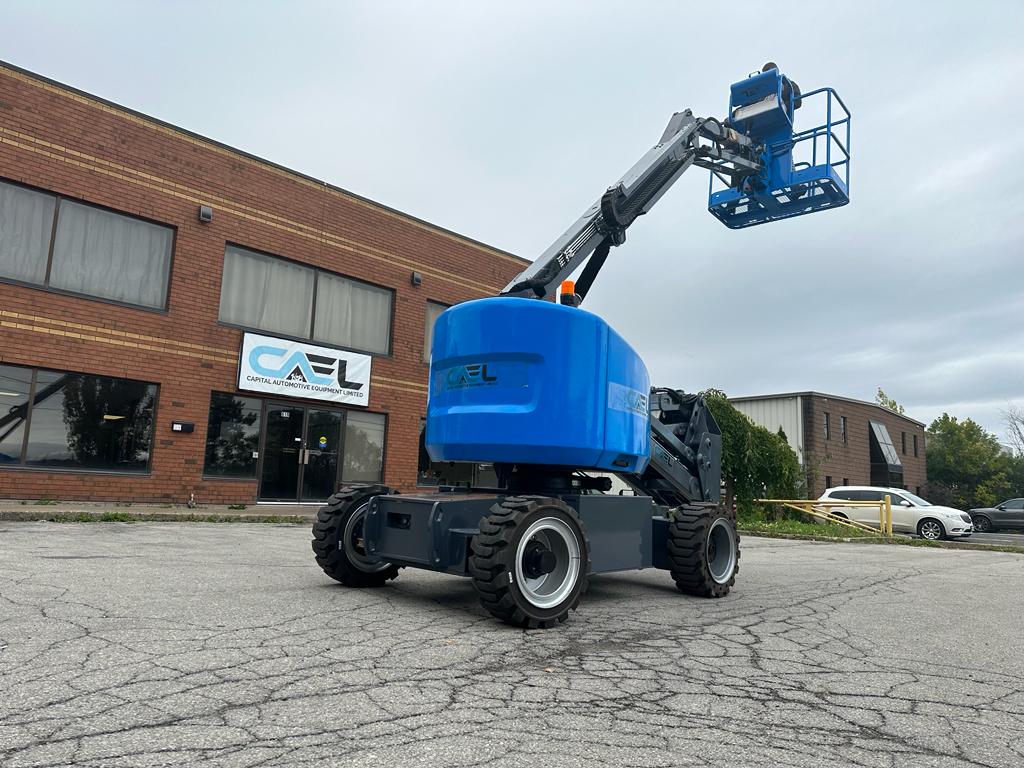

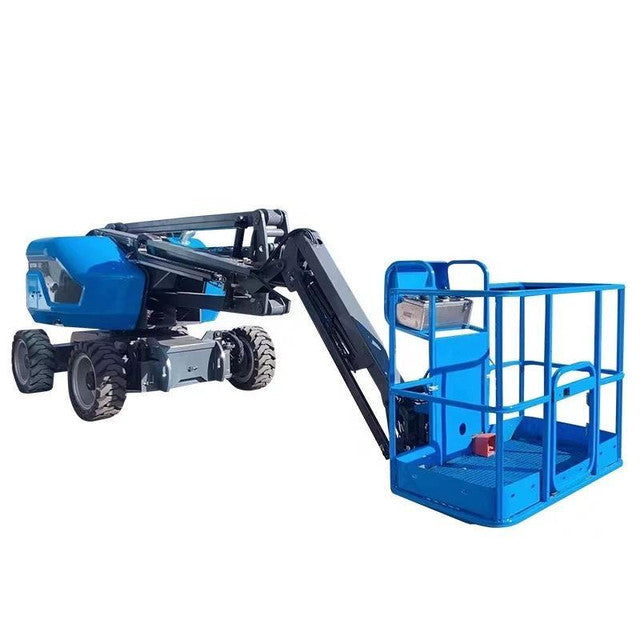

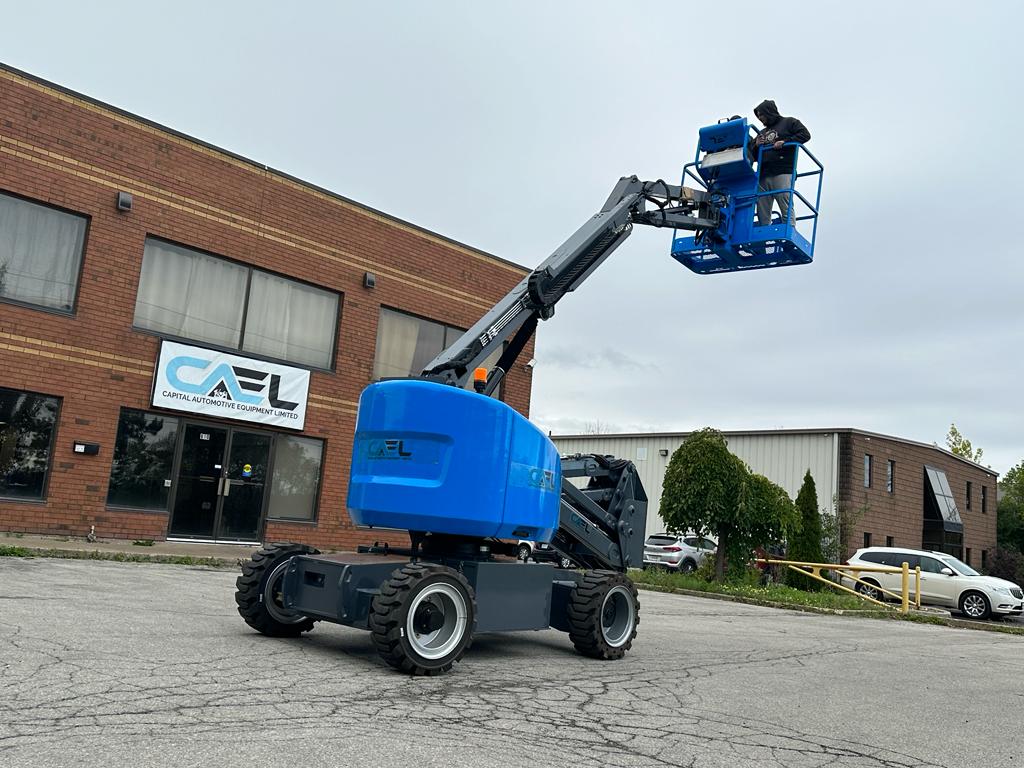

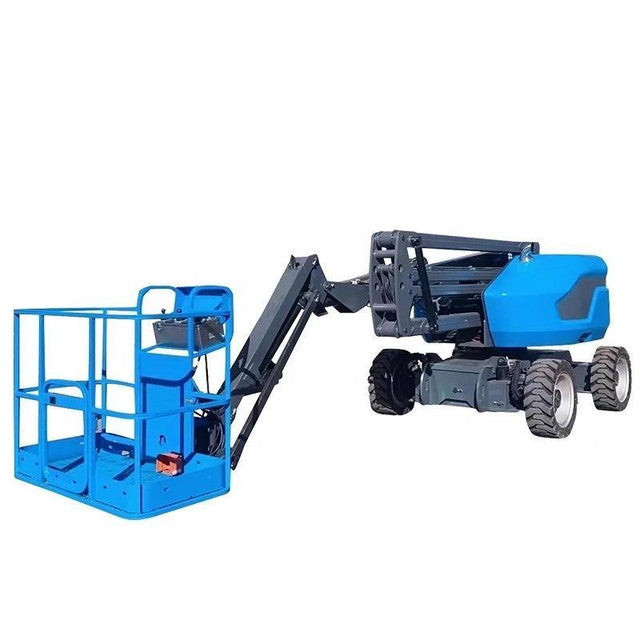

Self Propelled Articulated Boom Lift 12M (SPBM-12)

Self-Propelled Articulated Boom Lift 12M (SPBM-12) – Specifications

• Model: SPBM-12

• Maximum Working Height: 12 m (39.4 ft)

• Maximum Platform Height: 10 m (32.8 ft)

• Horizontal Outreach: 6–7 m (19.7–23 ft)

• Lift Capacity: 200–230 kg (440–507 lbs)

• Platform Dimensions: Approx. 1.2 m × 0.8 m (47 in × 31 in)

• Platform Rotation: ±90°

• Turret Rotation: 360° non-continuous

• Jib Arm Movement: 0° to 130° for enhanced maneuverability

• Drive System: Self-propelled with dual-speed drive motors

• Tracks: Heavy-duty rubber tracks for stability on uneven terrain

• Gradeability: 30–35% for superior off-road performance

• Power Source: Diesel, battery electric, or hybrid options available

• Control System: Fully proportional joystick controls for precise operation

• Stowed Dimensions: Approx. 4.7 m (L) × 1.7 m (W) × 2.1 m (H)

• Machine Weight: ~4,000–4,800 kg depending on configuration

• Safety Features:

  • Emergency stop system

  • Tilt alarm

  • Overload sensor

  • Safety harness anchor points

  • Guard-railed platform

Disclaimer - specs may differ from website content, contact us for specific details.
