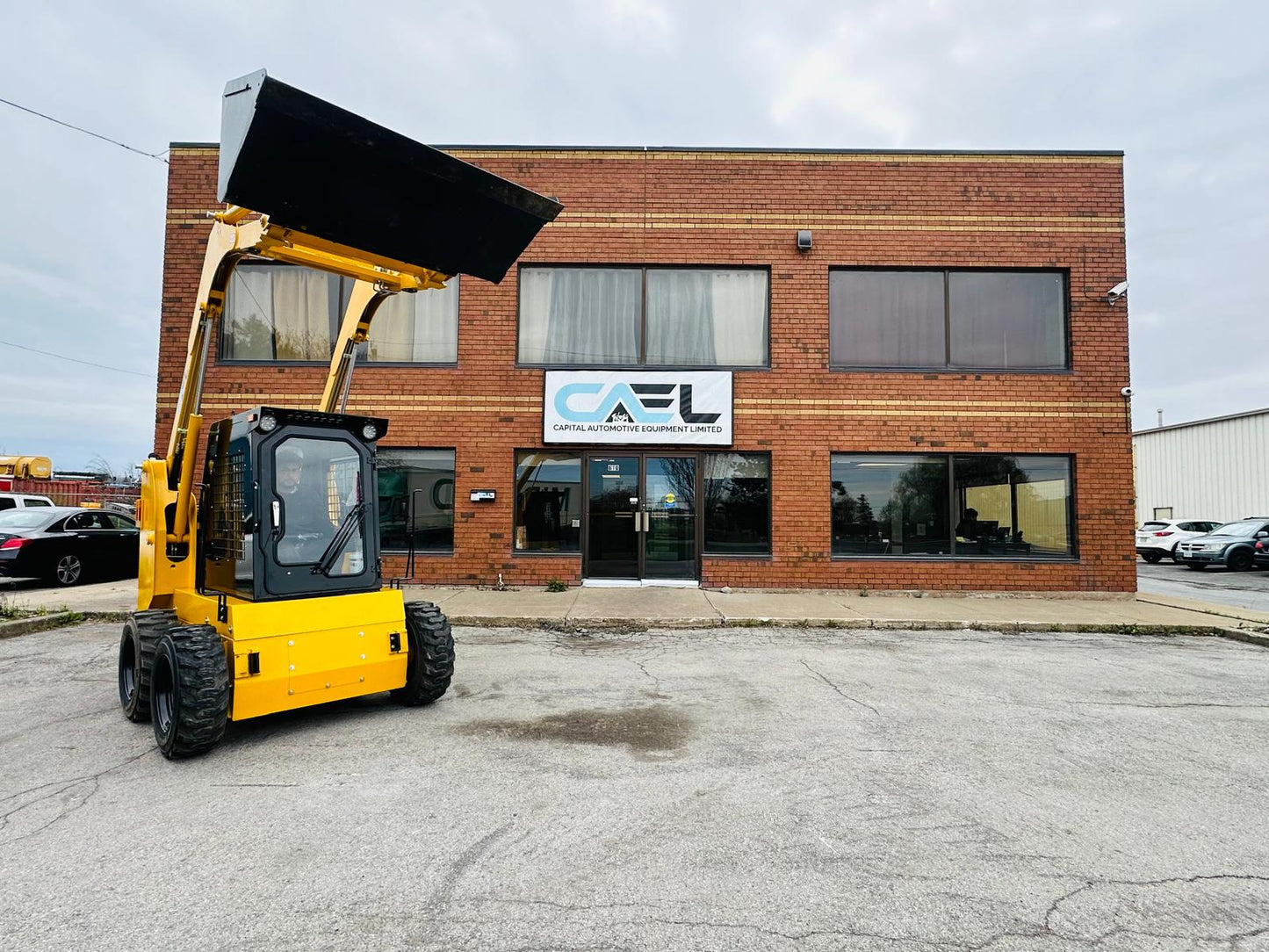

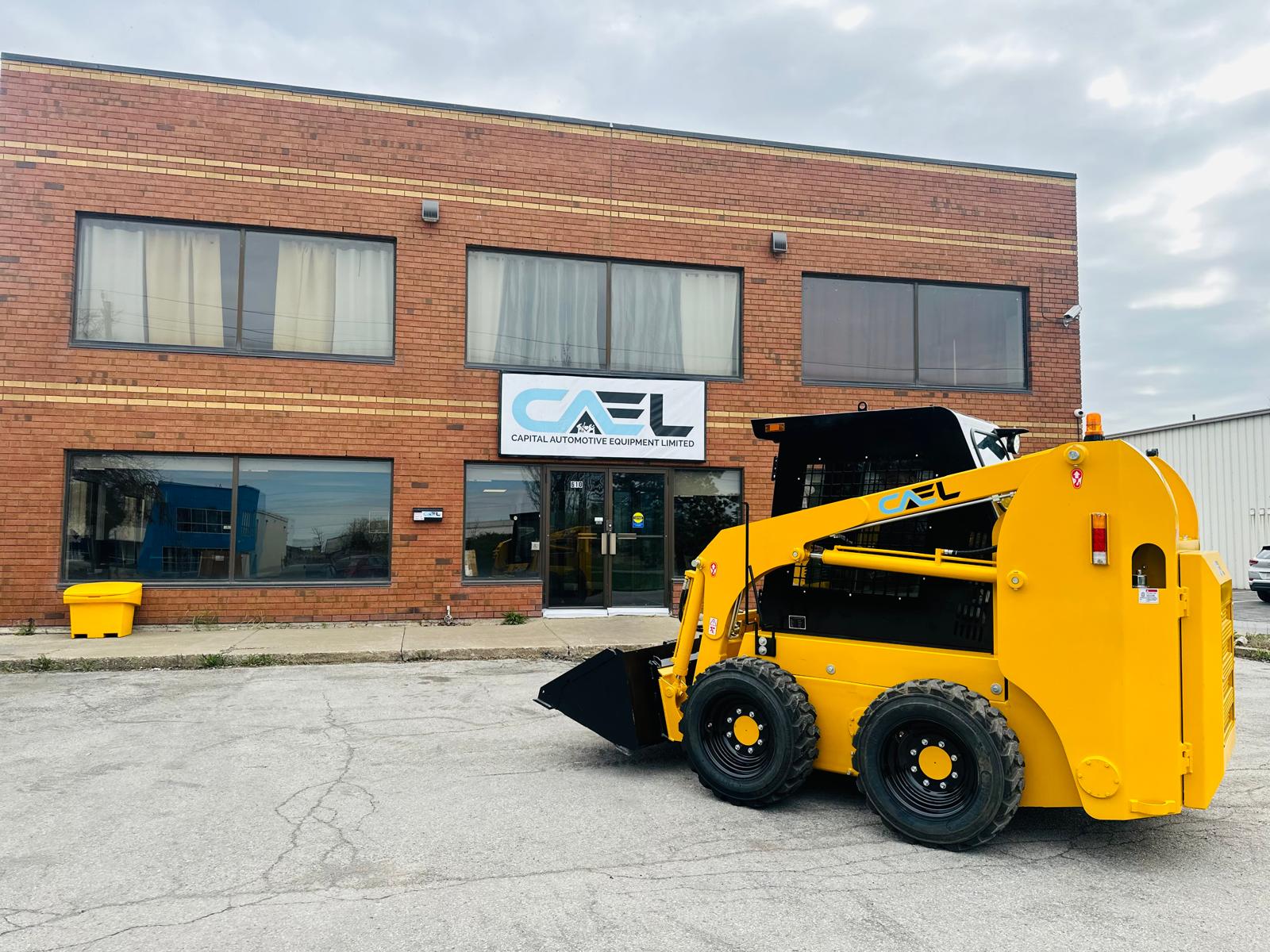

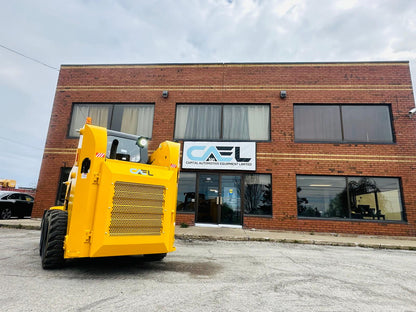

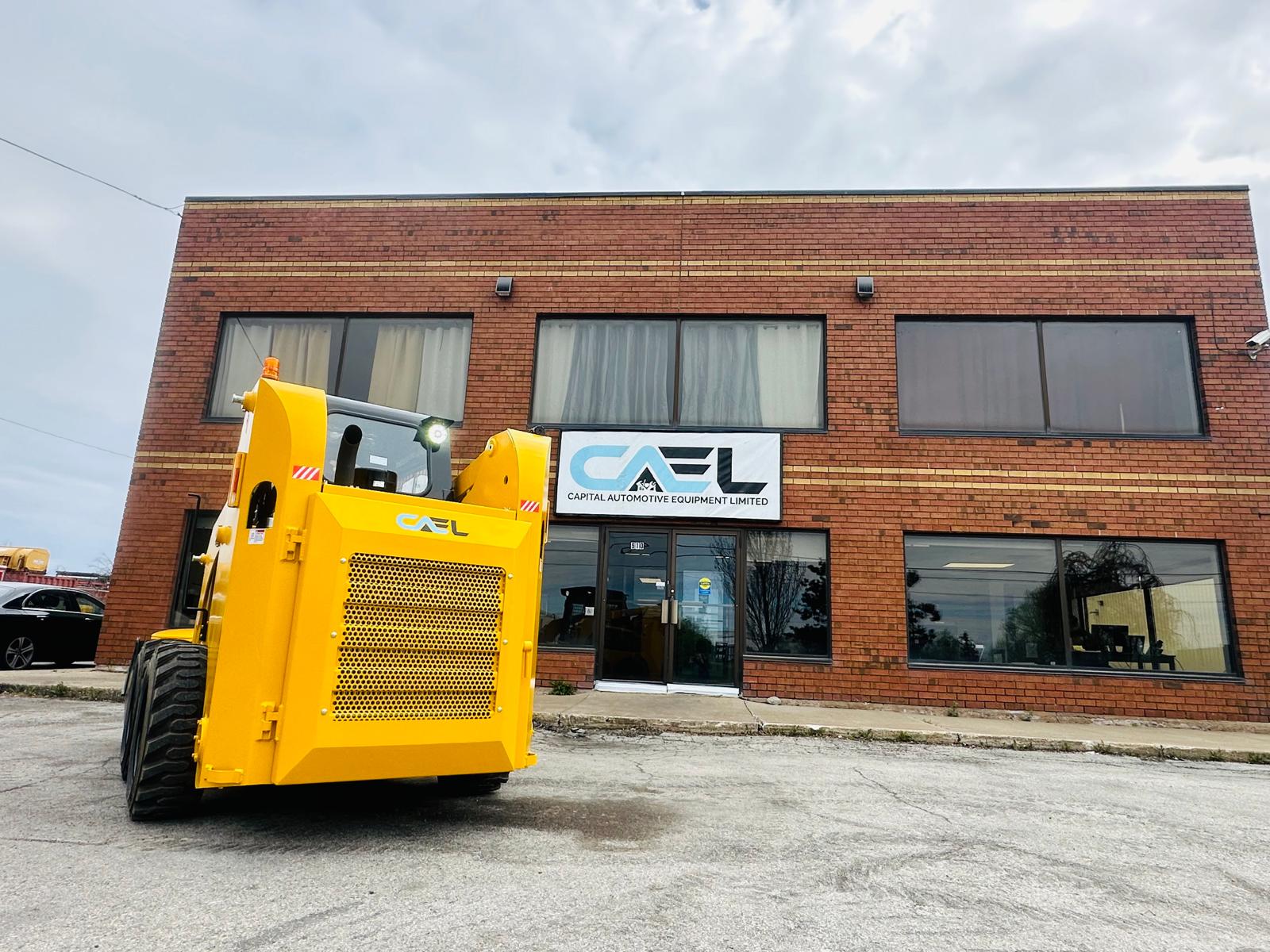

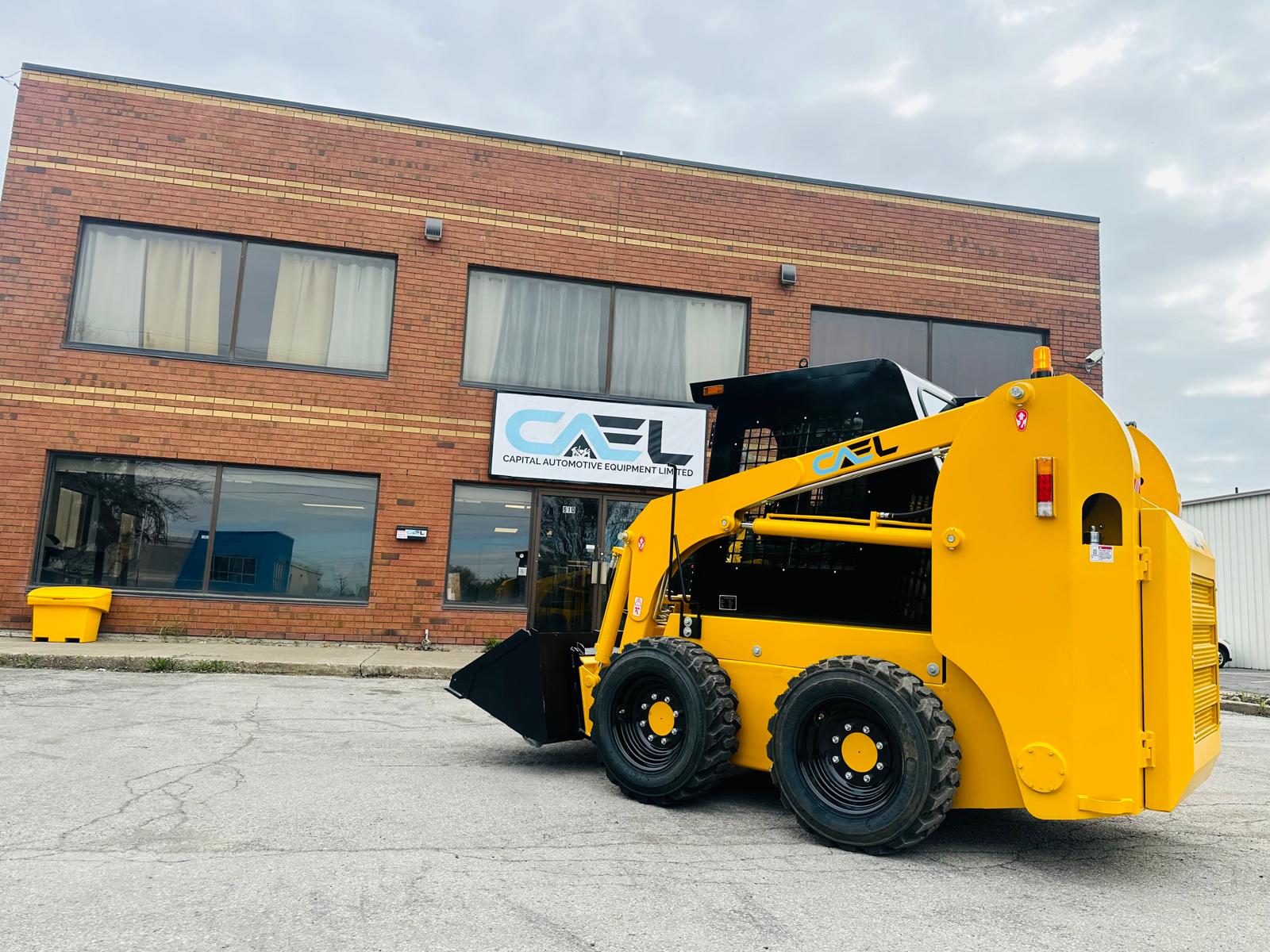

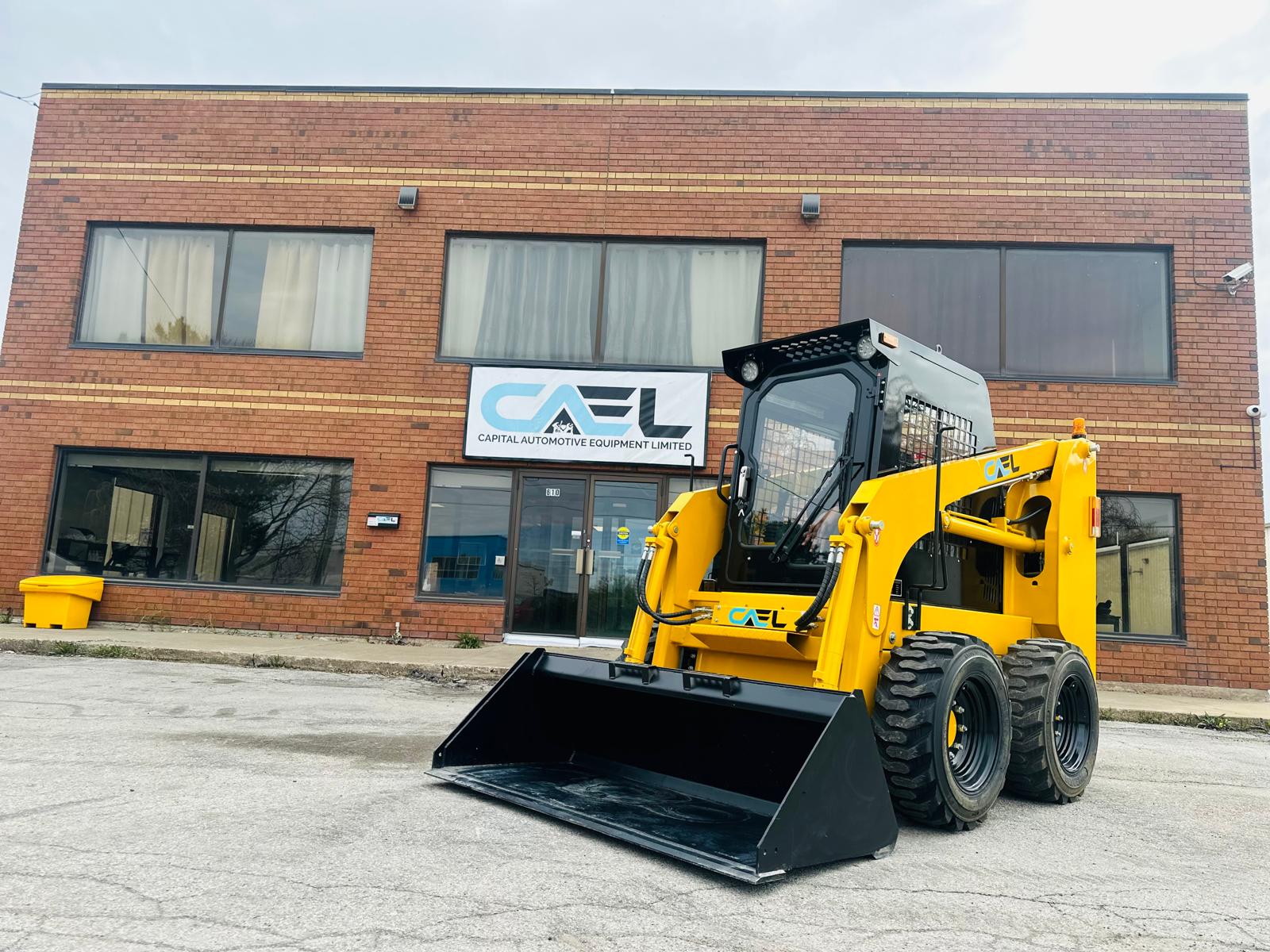

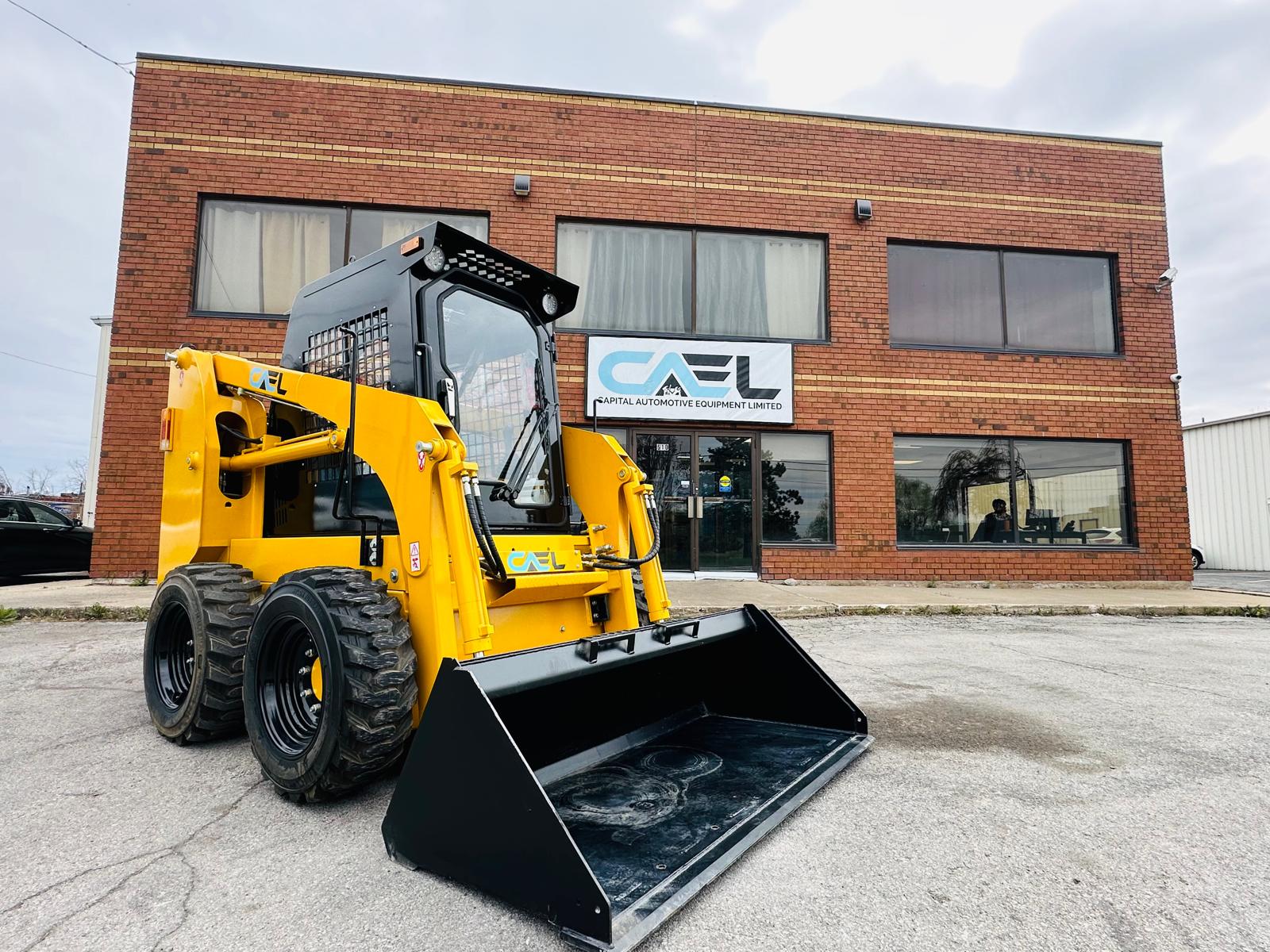

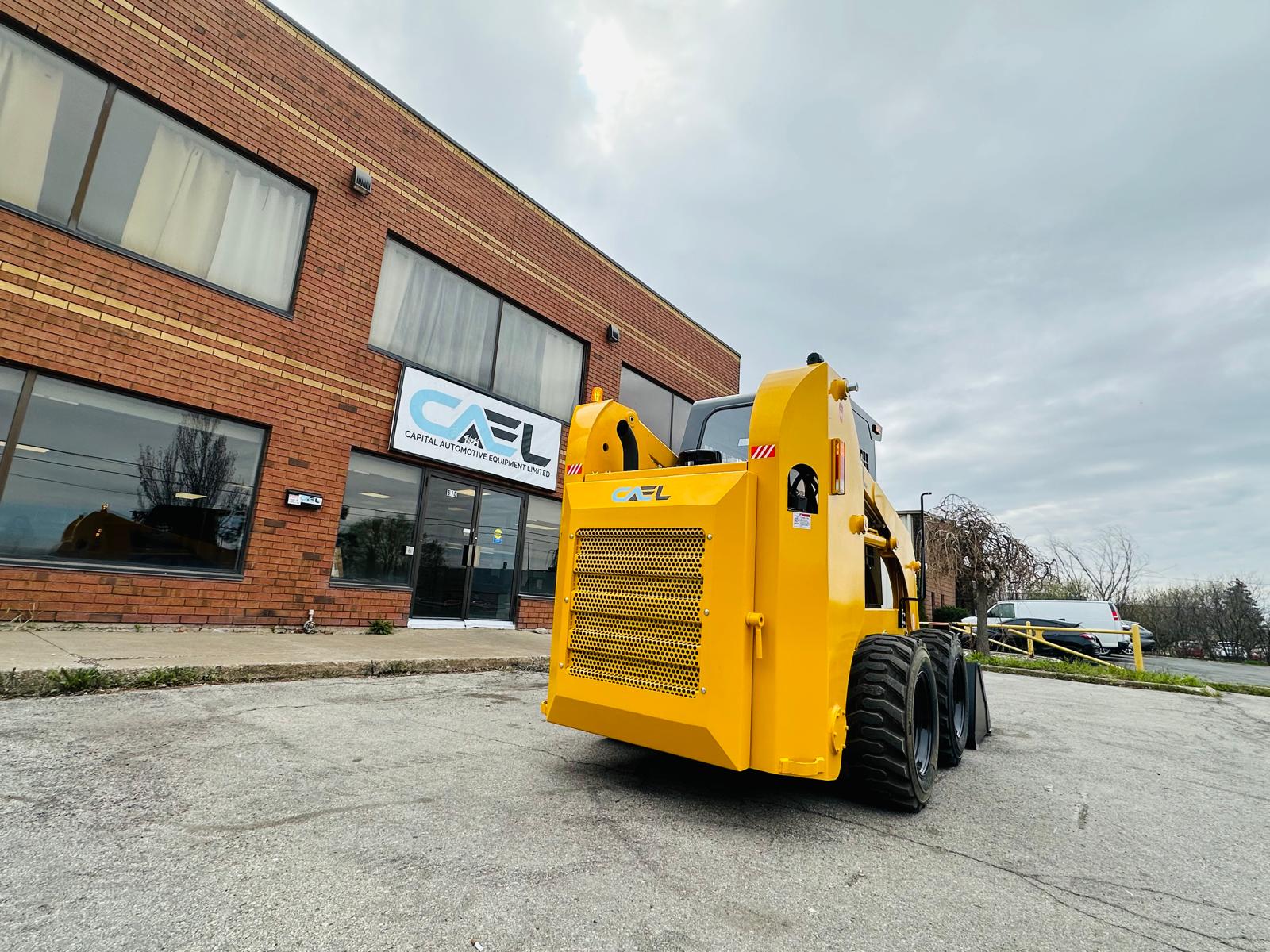

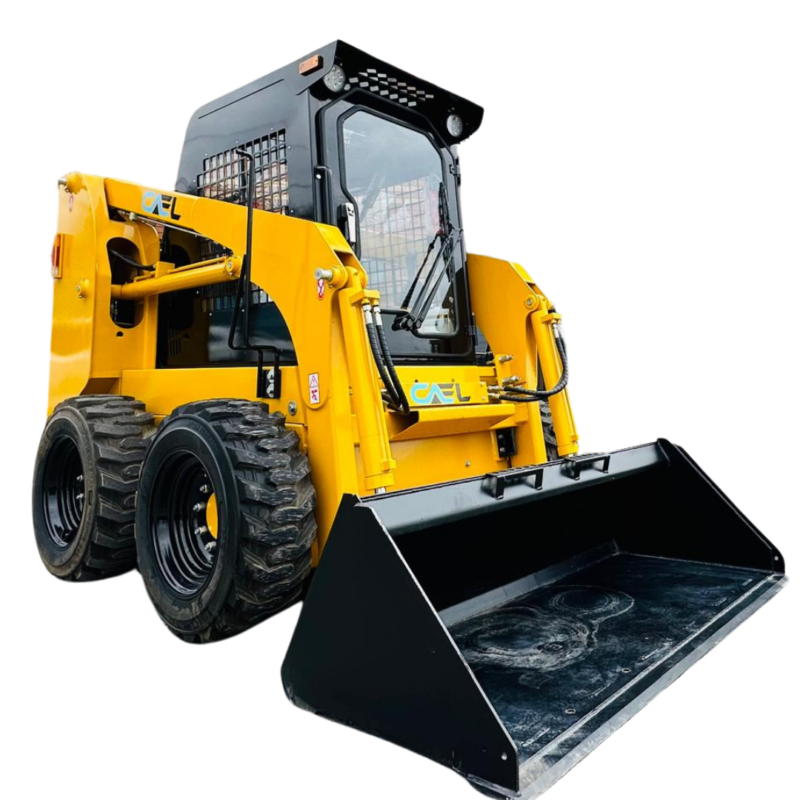

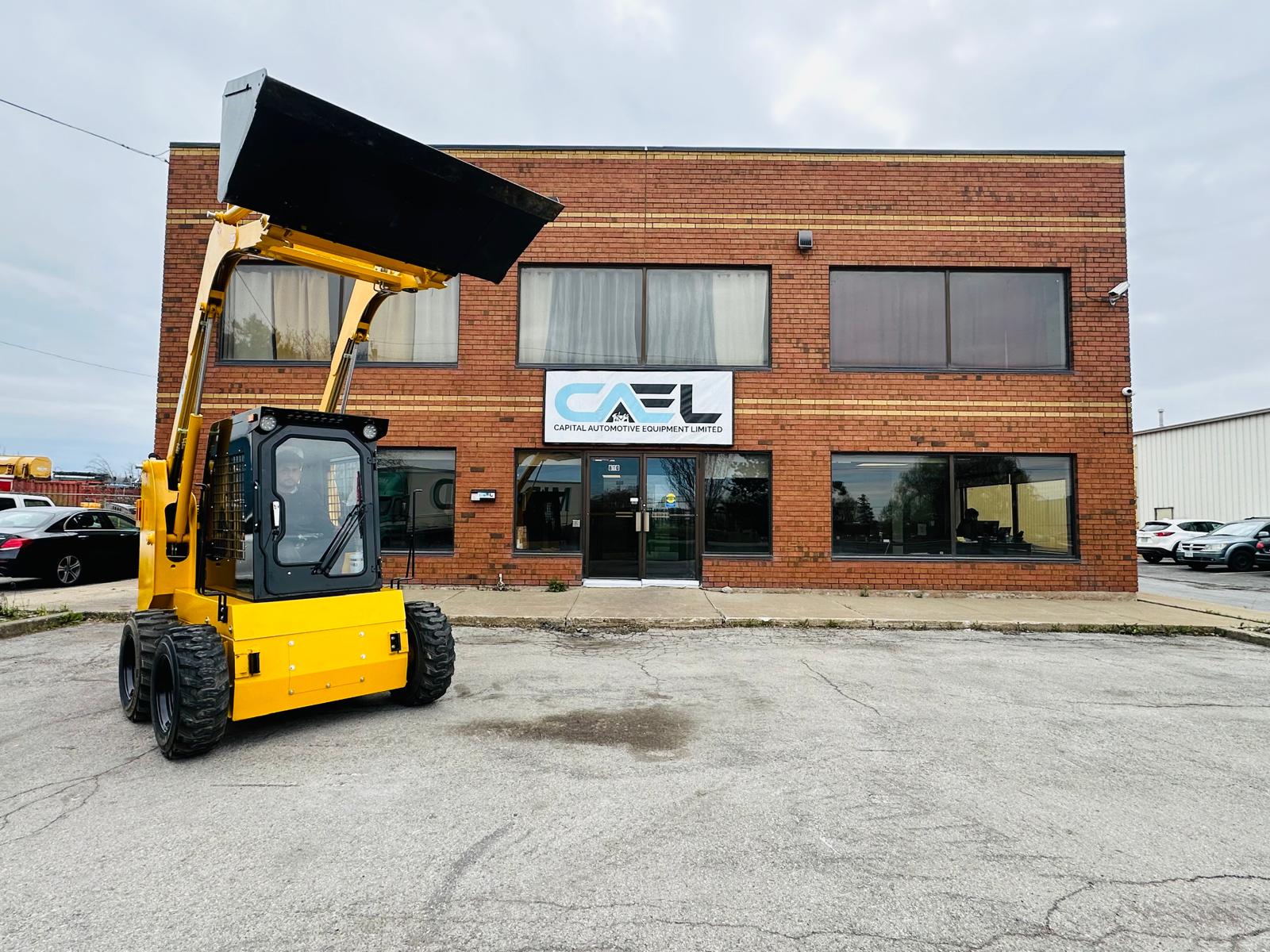

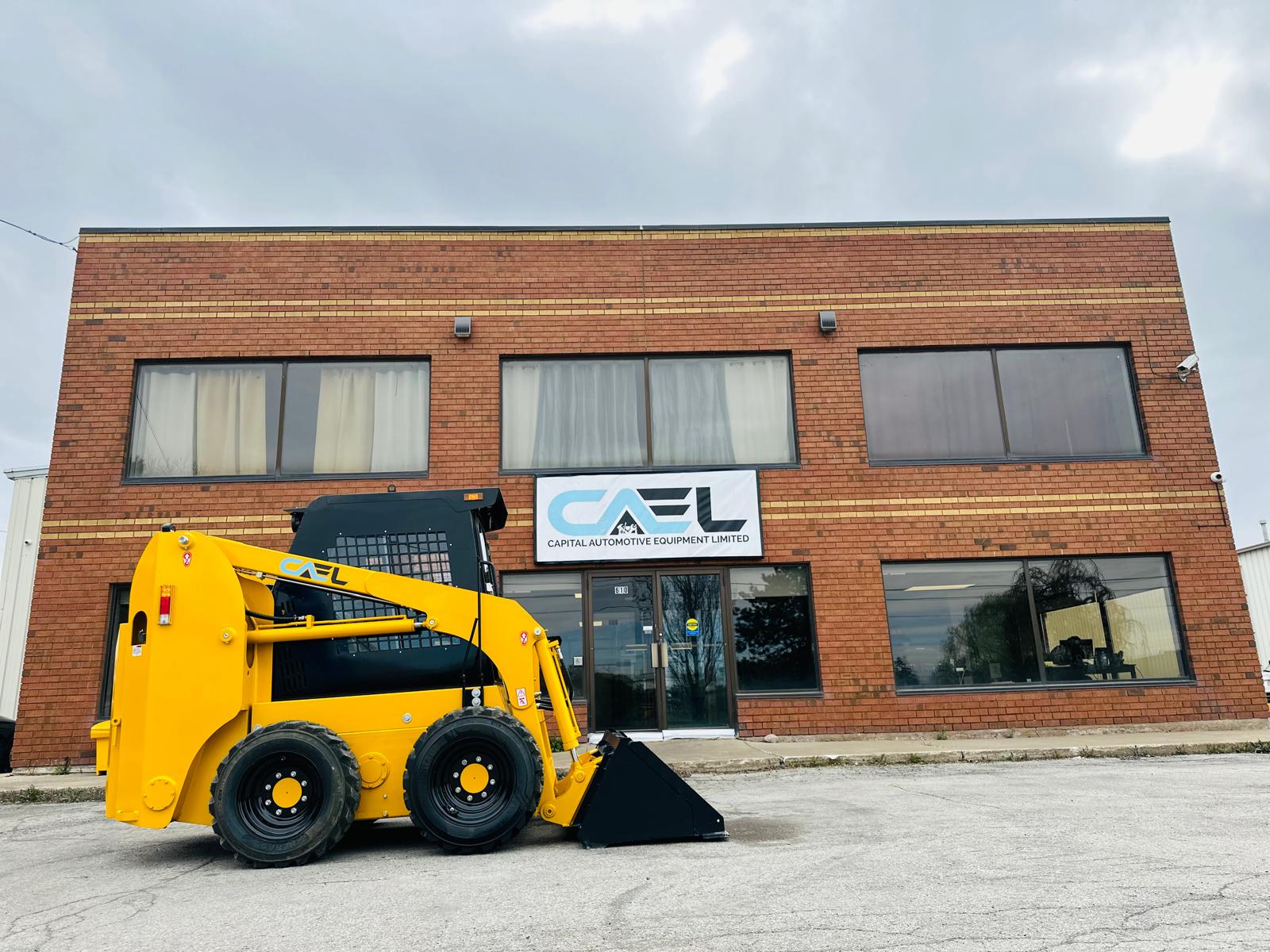

Introducing the CAEL 35 Wheeled Skid Steer Loader, a compact yet powerful machine engineered for efficiency, maneuverability, and reliable performance. Equipped with a robust LS Korea engine, this loader is ideal for construction, landscaping, agriculture, and material handling tasks.

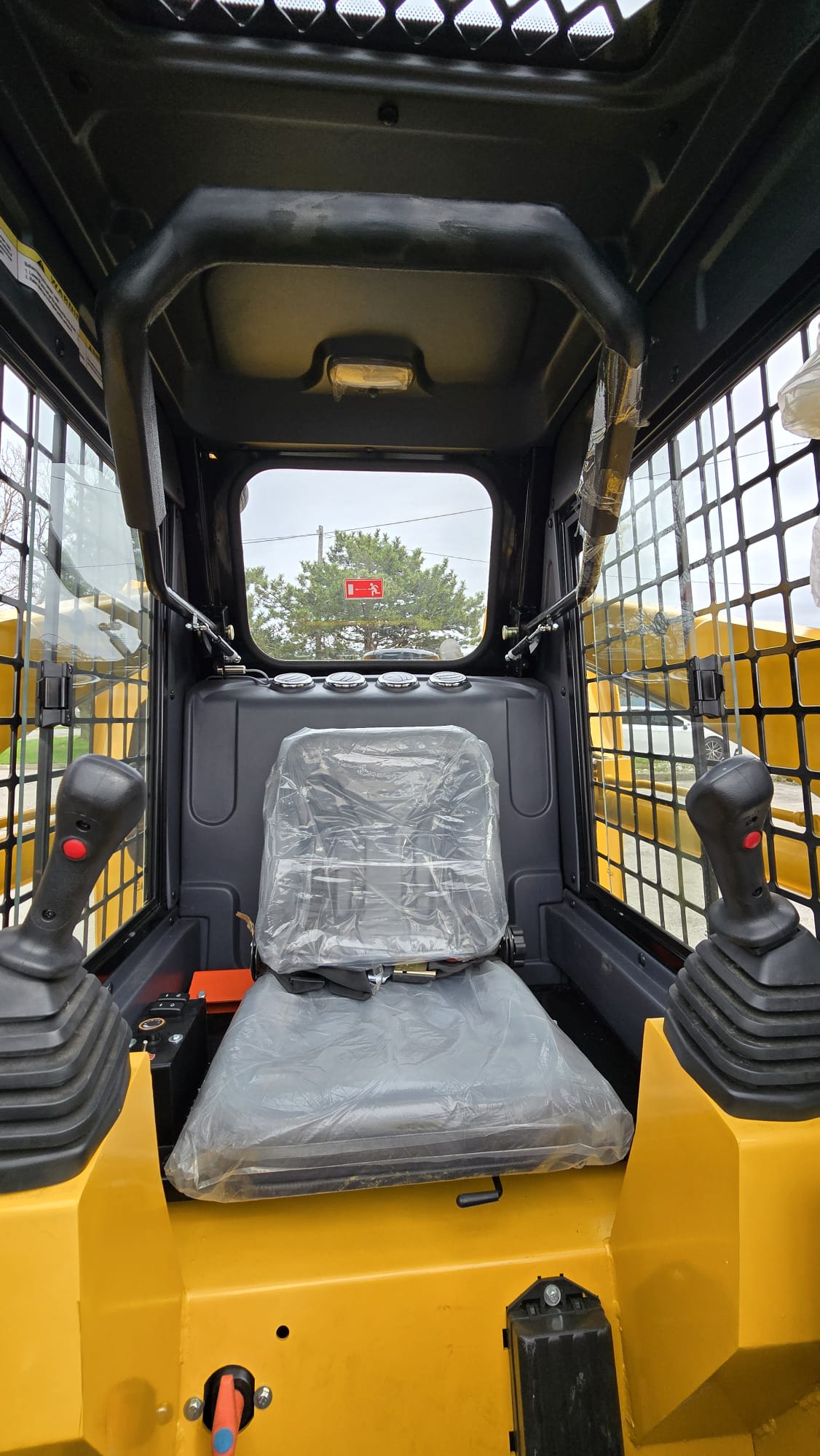

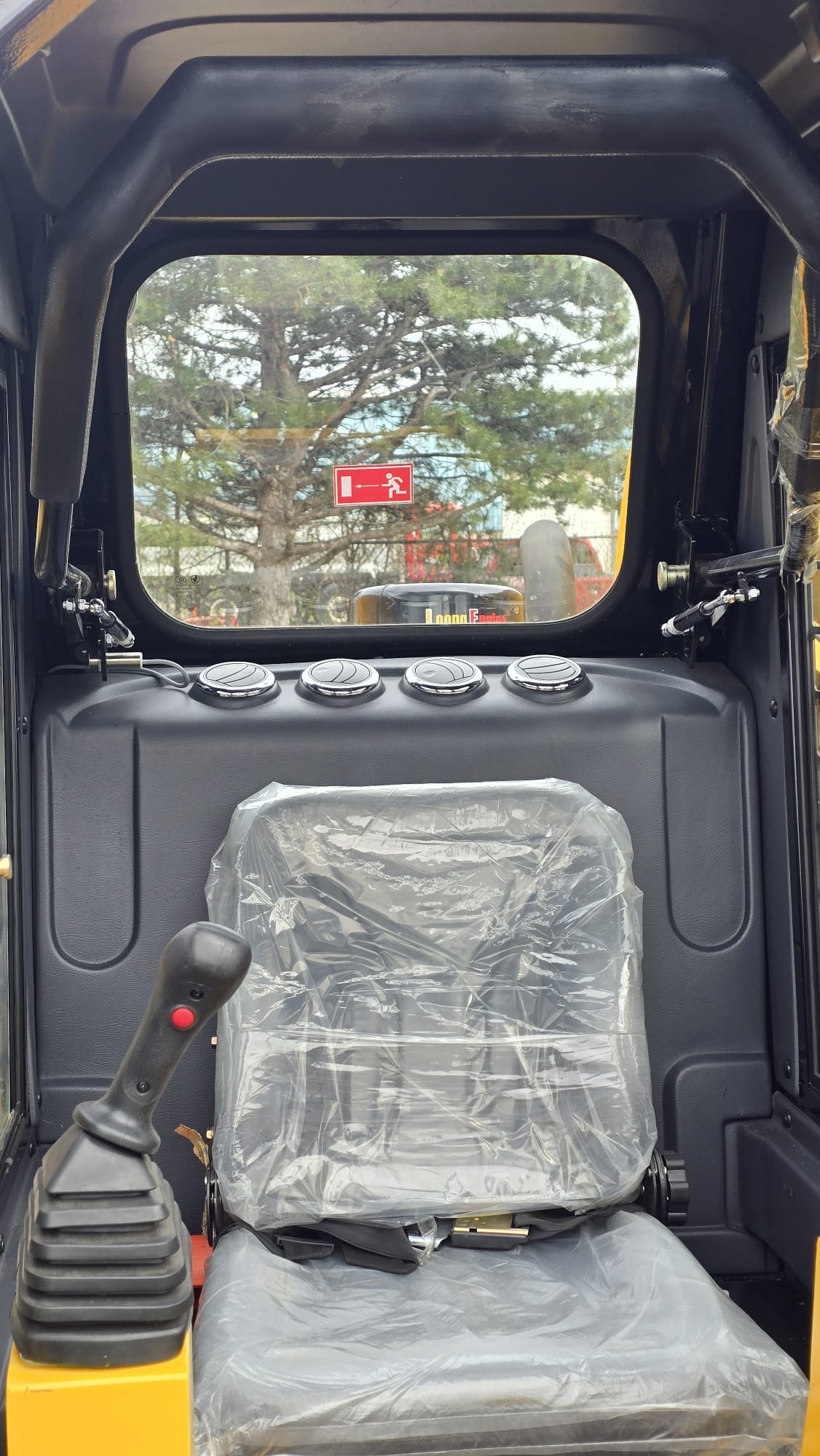

Designed with operator comfort and control in mind, it features hydraulic pilot controls and an open cabin, ensuring smooth operation even in demanding environments.
Engine & Pricing
Engine: LS Korea Engine – 50 HP (35 kW)
Net Power: 37 kW @ 2500 RPM
Base Price:$35,499
Key Features
Hydraulic Pilot Control System for precise operation
Open Cabin Design for better visibility and accessibility
Compact Size for easy maneuverability in tight spaces
Durable Wheel Setup for stable performance on various terrains
Ideal for Construction, Farming, and Industrial Applications
Performance Specifications
Rated Operating Capacity: 500 kg (1102 lbs)
Tipping Load: 1000 kg (2204 lbs)
Bucket Capacity: 0.3 m³
Operating Weight: 2200 kg (4850 lbs)
Max Travel Speed: 10 km/h (6.2 mph)
Hydraulic Pump Flow: 60 L/min
Fuel Tank Capacity: 60 L
Tires: 8.5 – 15
Dimensions
Overall Dimensions (L × W × H): 2950 × 1350 × 2000 mm (116.1 × 53.1 × 78.7 in)
Width with Bucket: 1400 mm (55.1 in)
Track Width: 1080 mm (42.5 in)
Wheelbase: 897 mm (35.3 in)
Ground Clearance: 140 mm (5.5 in)
Working Range
Height at Maximum Extension: 3300 mm (129.9 in)
Hinge Pin Height: 2725 mm (107.3 in)
Dumping Height: 2050 mm (80.7 in)
Maximum Reach: 790 mm (31.1 in)
Dump Angle: 40°
Angle of Departure: 20°
Customization Options (Optional)
Low Temperature Cold Start: $600
Air Conditioning System: $1400
Cabin Heating System: $500
Why Choose CAEL 35?
The CAEL 35 combines compact design, strong lifting capability, and efficient hydraulics, making it a dependable solution for professionals who need performance in confined working areas without compromising on power.
