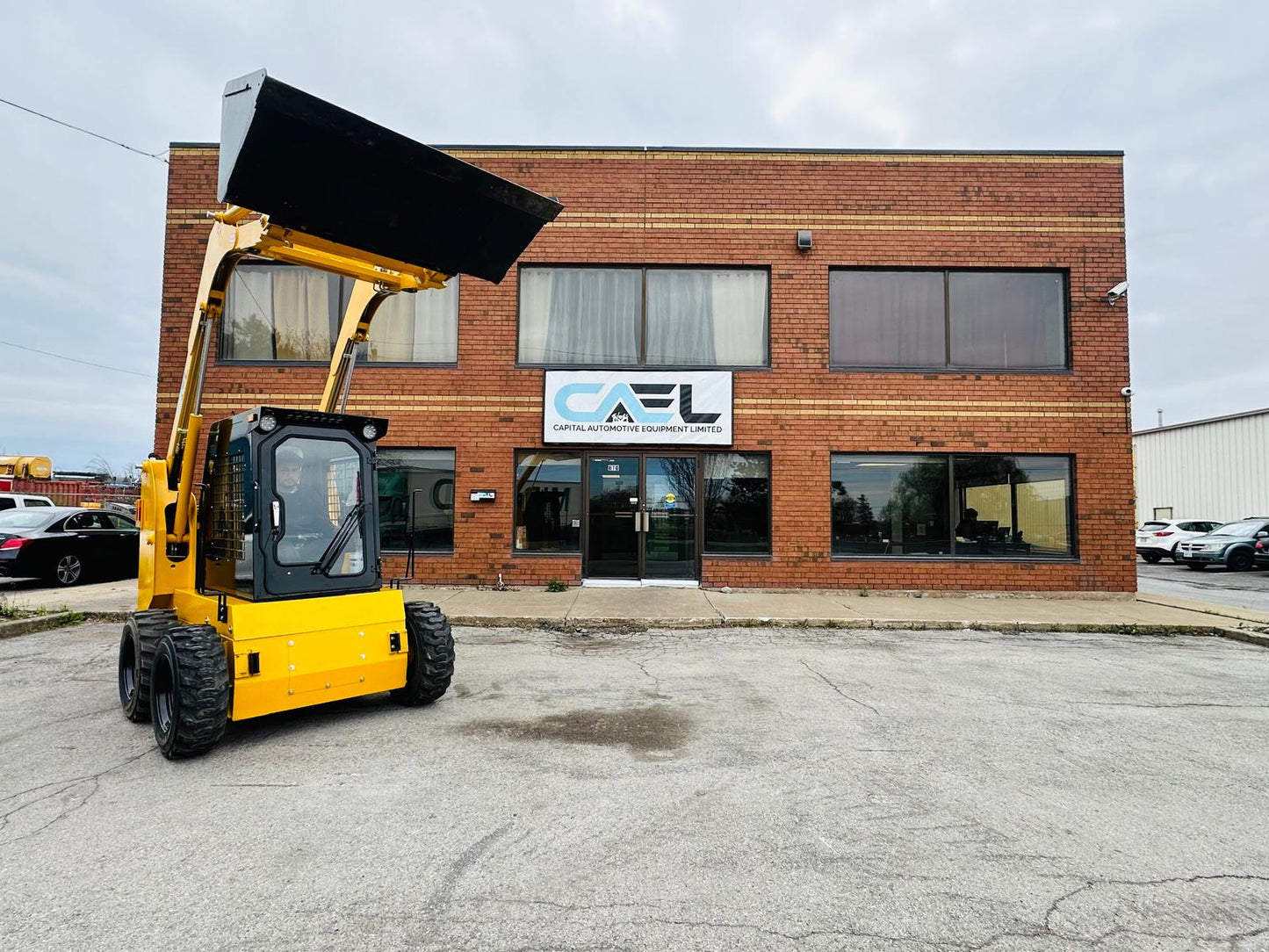

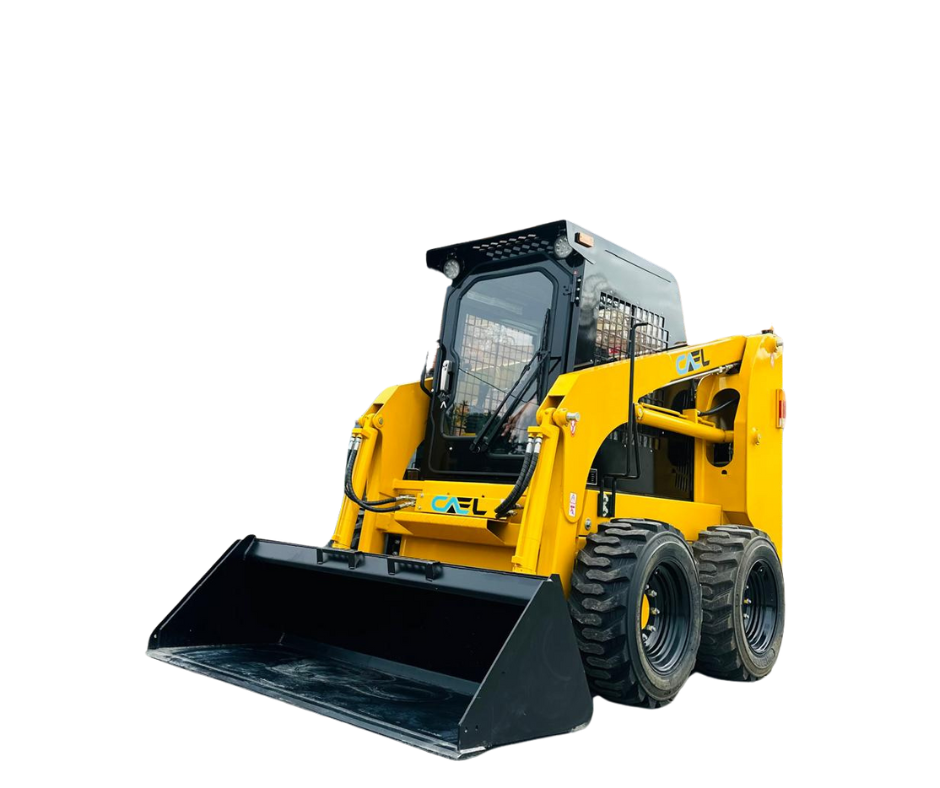

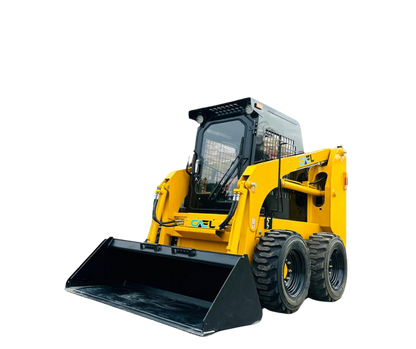

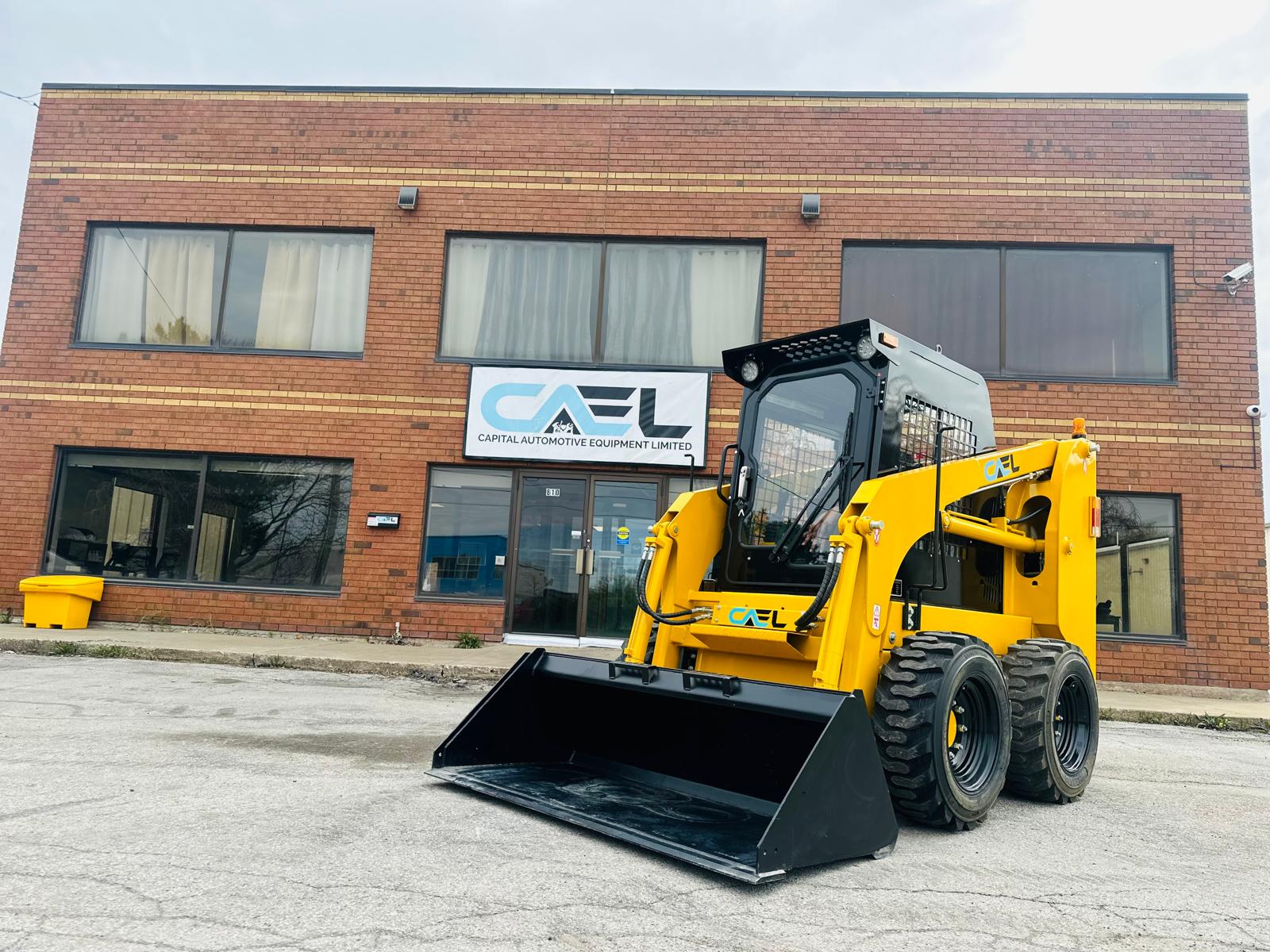

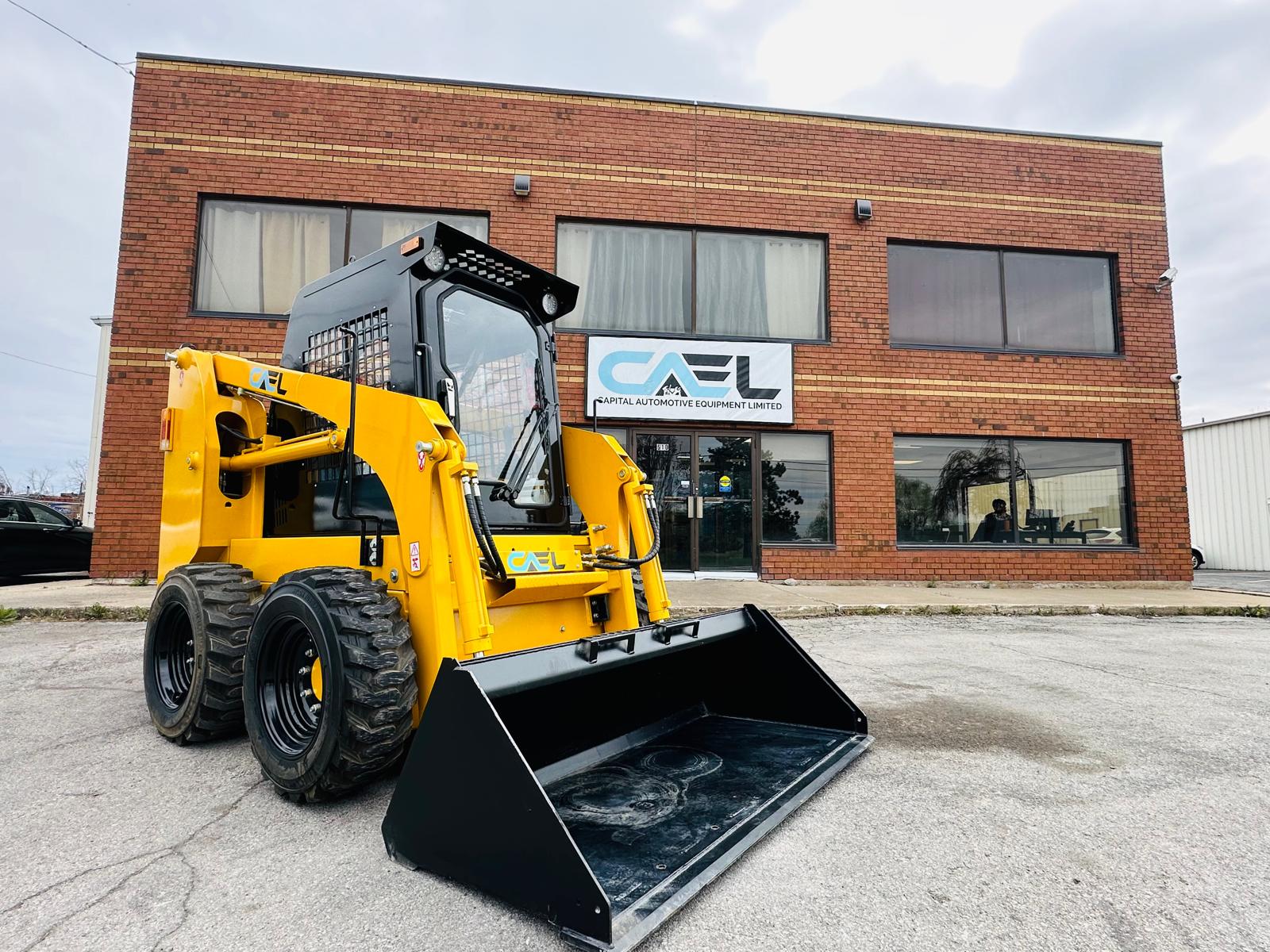

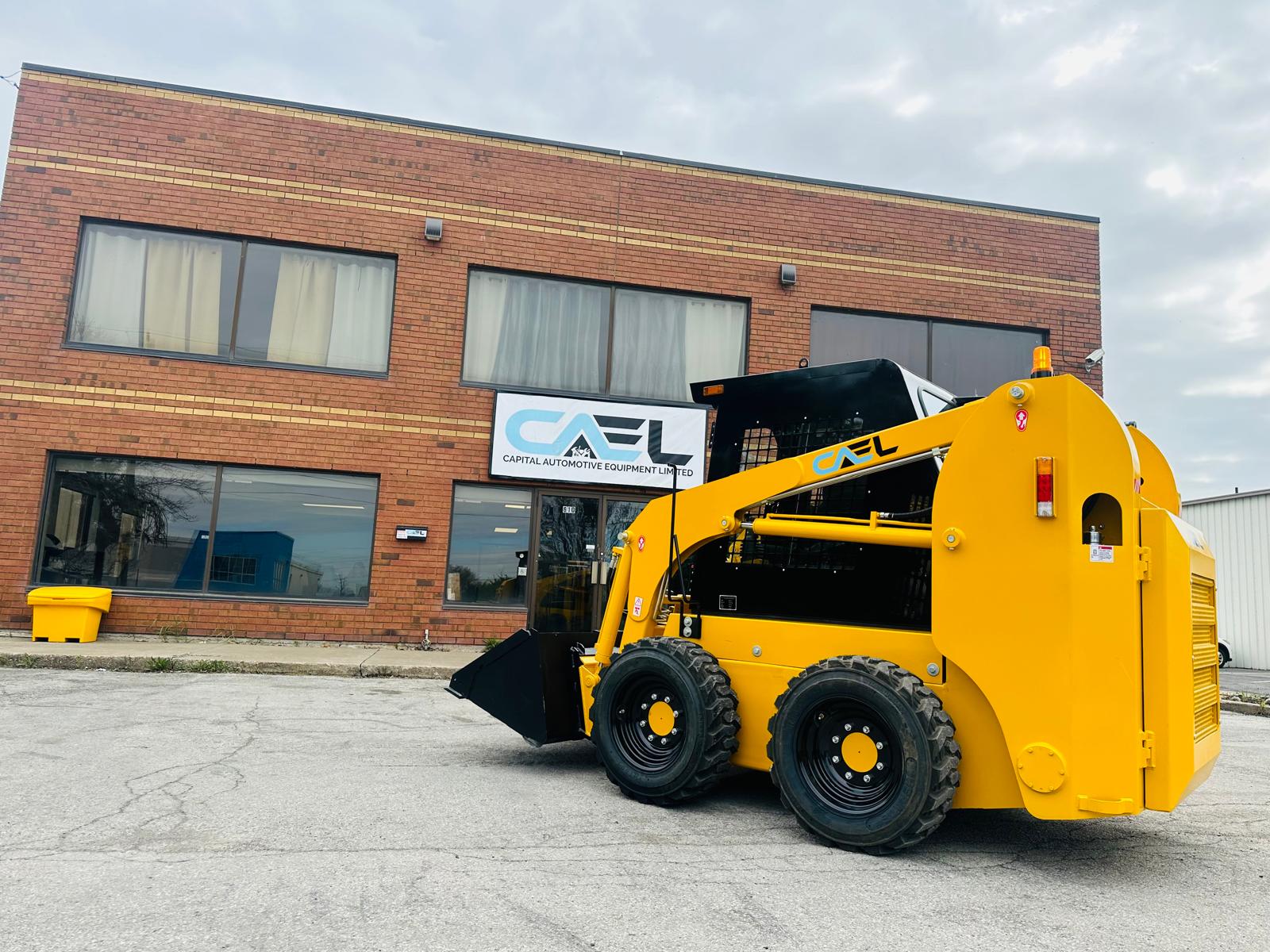

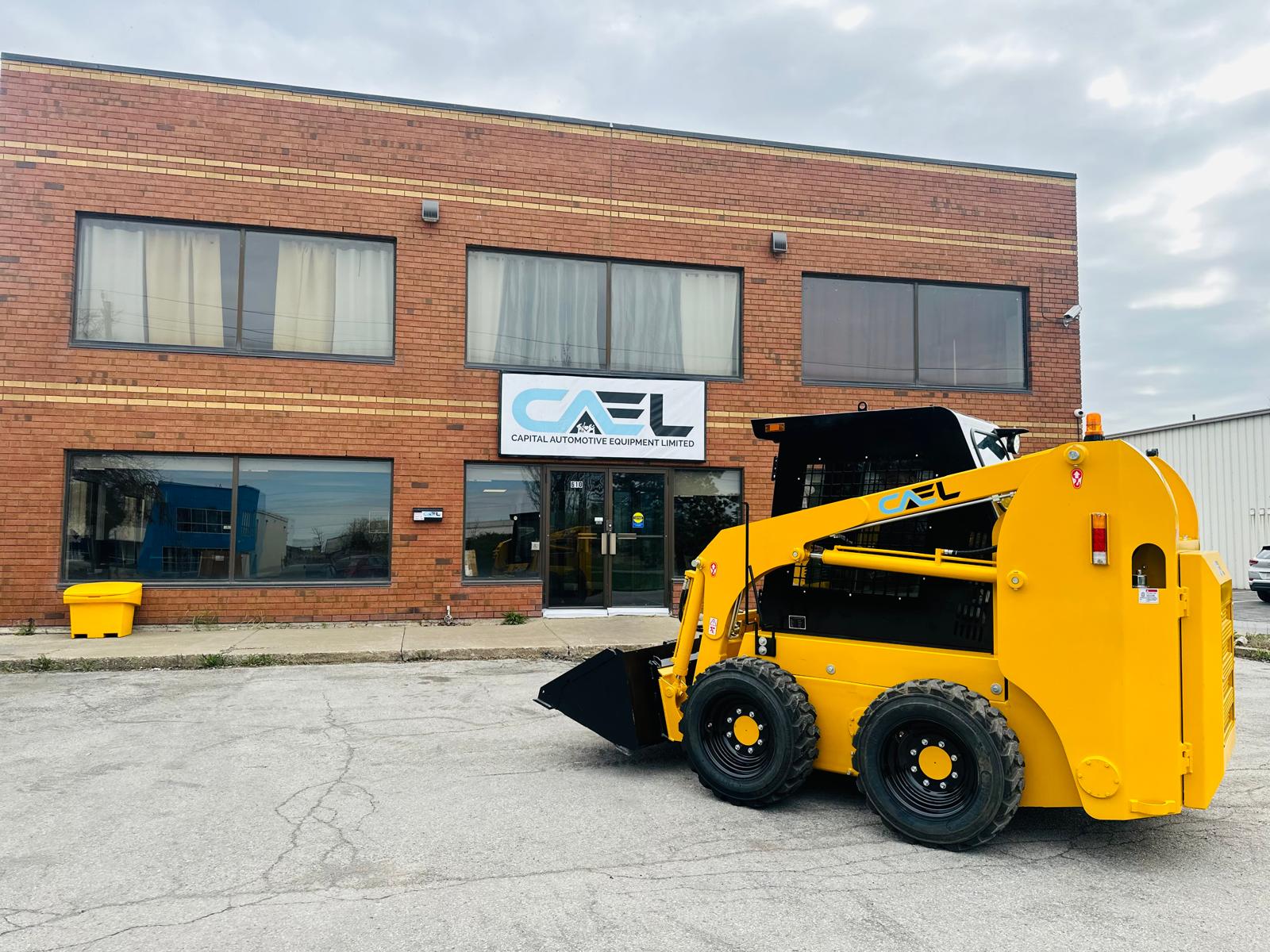

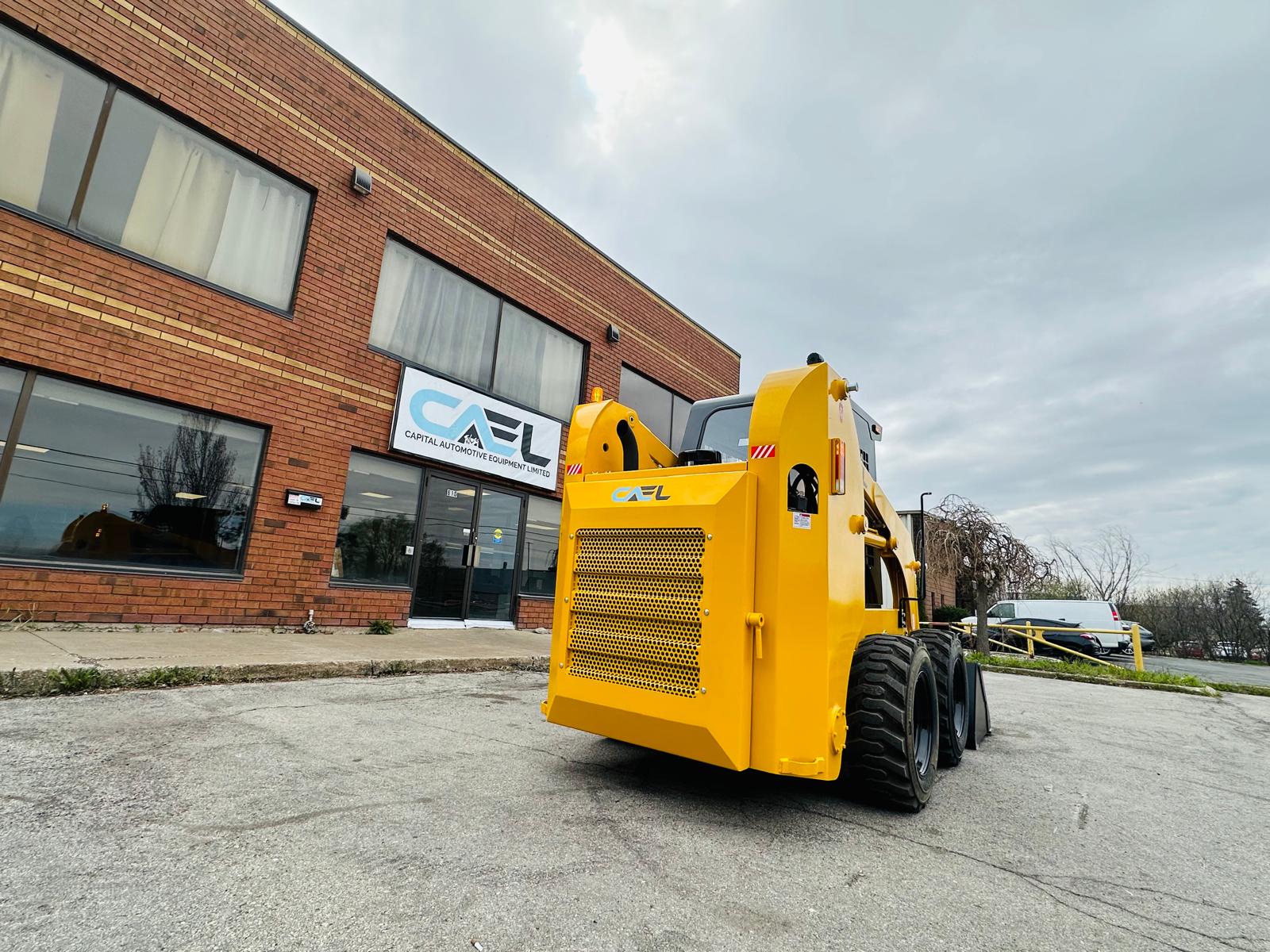

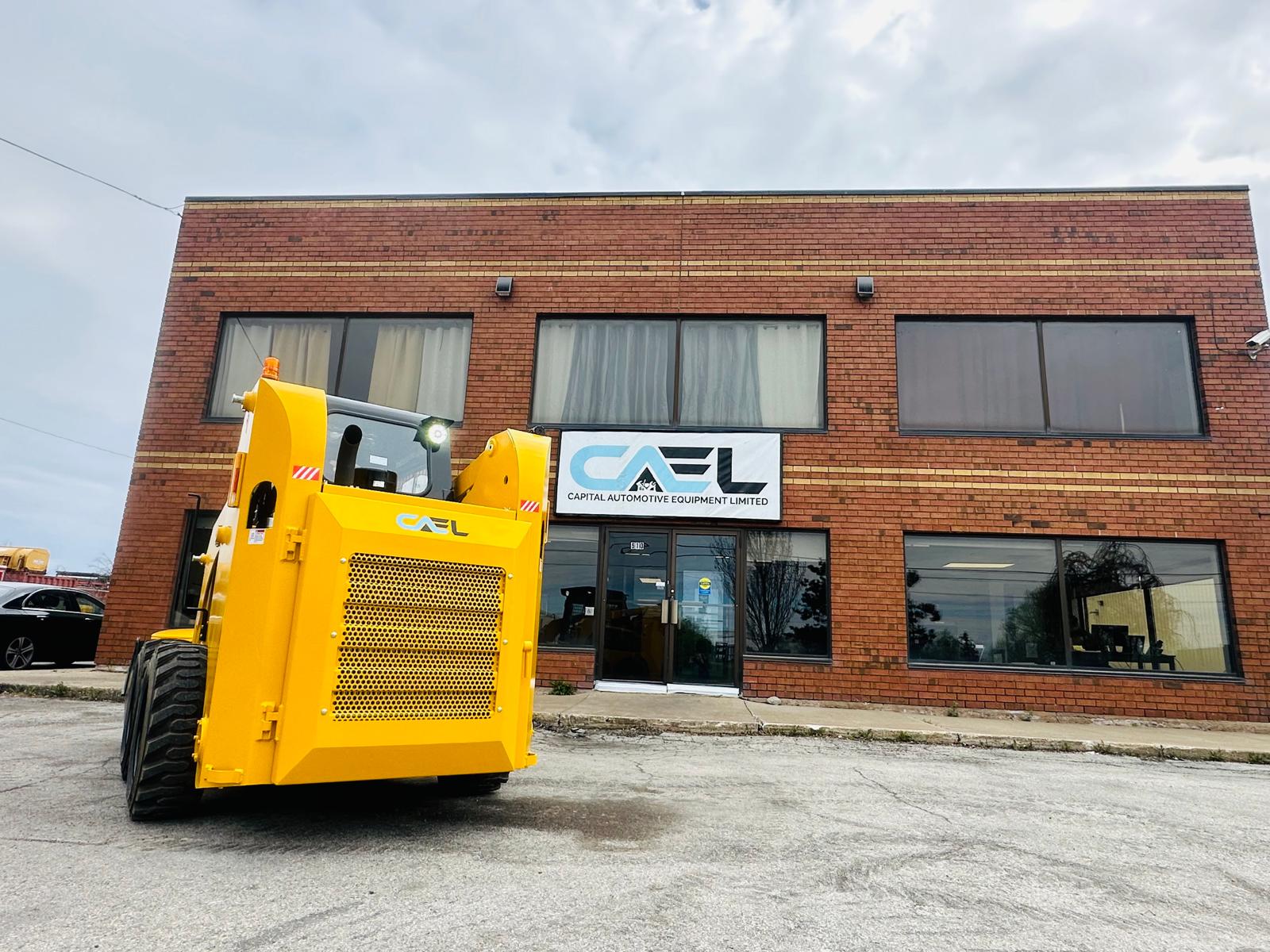

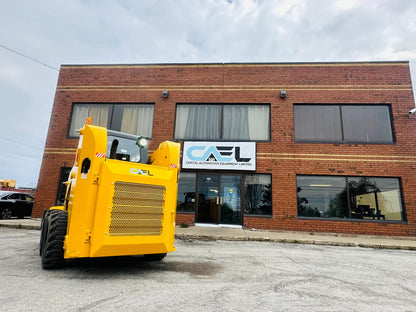

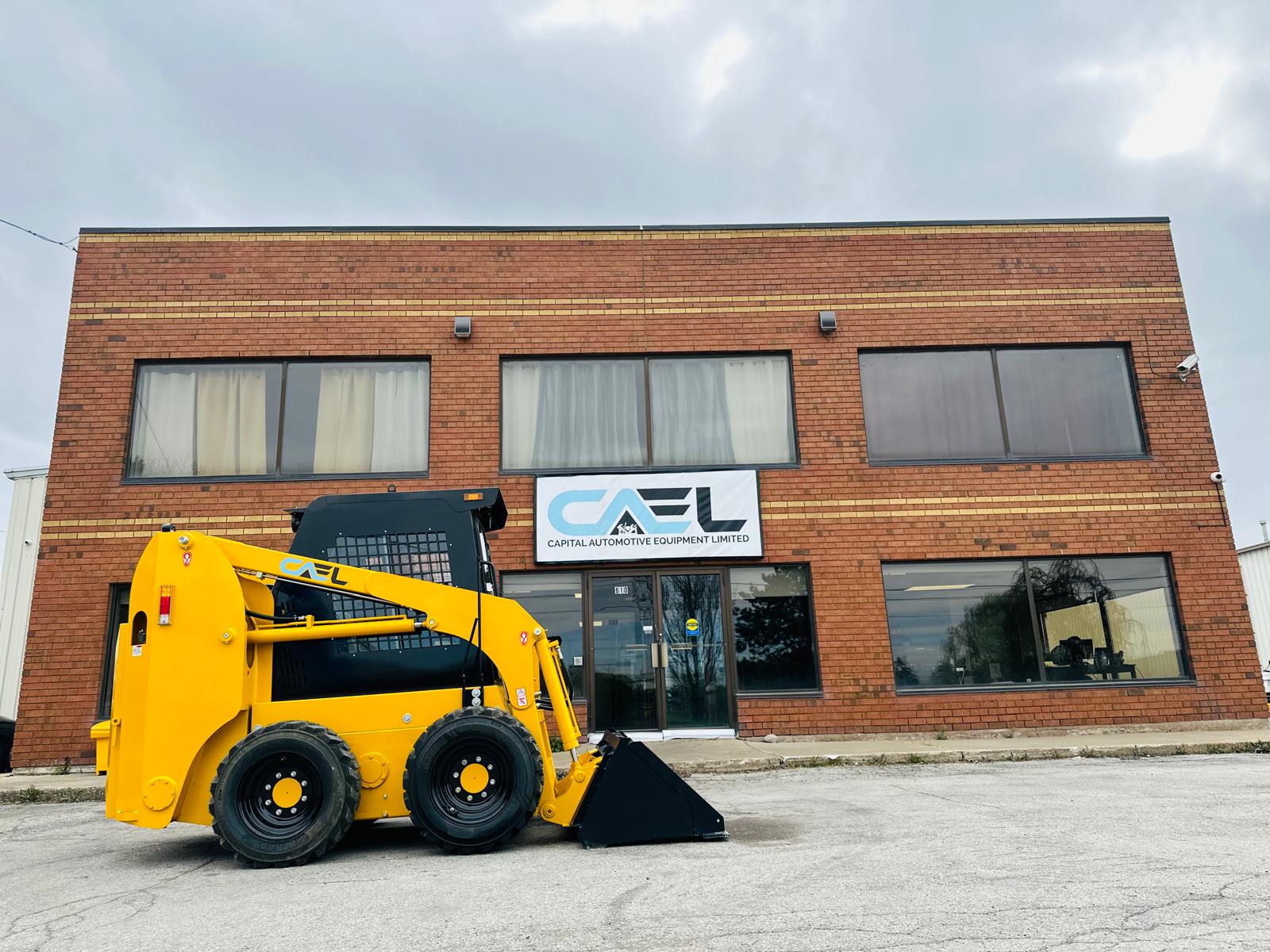

This compact skid steer loader is engineered for high performance, durability, and versatility across construction, agriculture, and material handling applications. Equipped with a reliable Korean LS engine, hydraulic pilot controls, and a fully enclosed cabin, it ensures smooth operation, operator comfort, and maximum productivity in demanding environments.

Included Features

• Korean LS Engine – 37 kW (50 HP), EPA Compliant
• Hydraulic Pilot Operated Control System

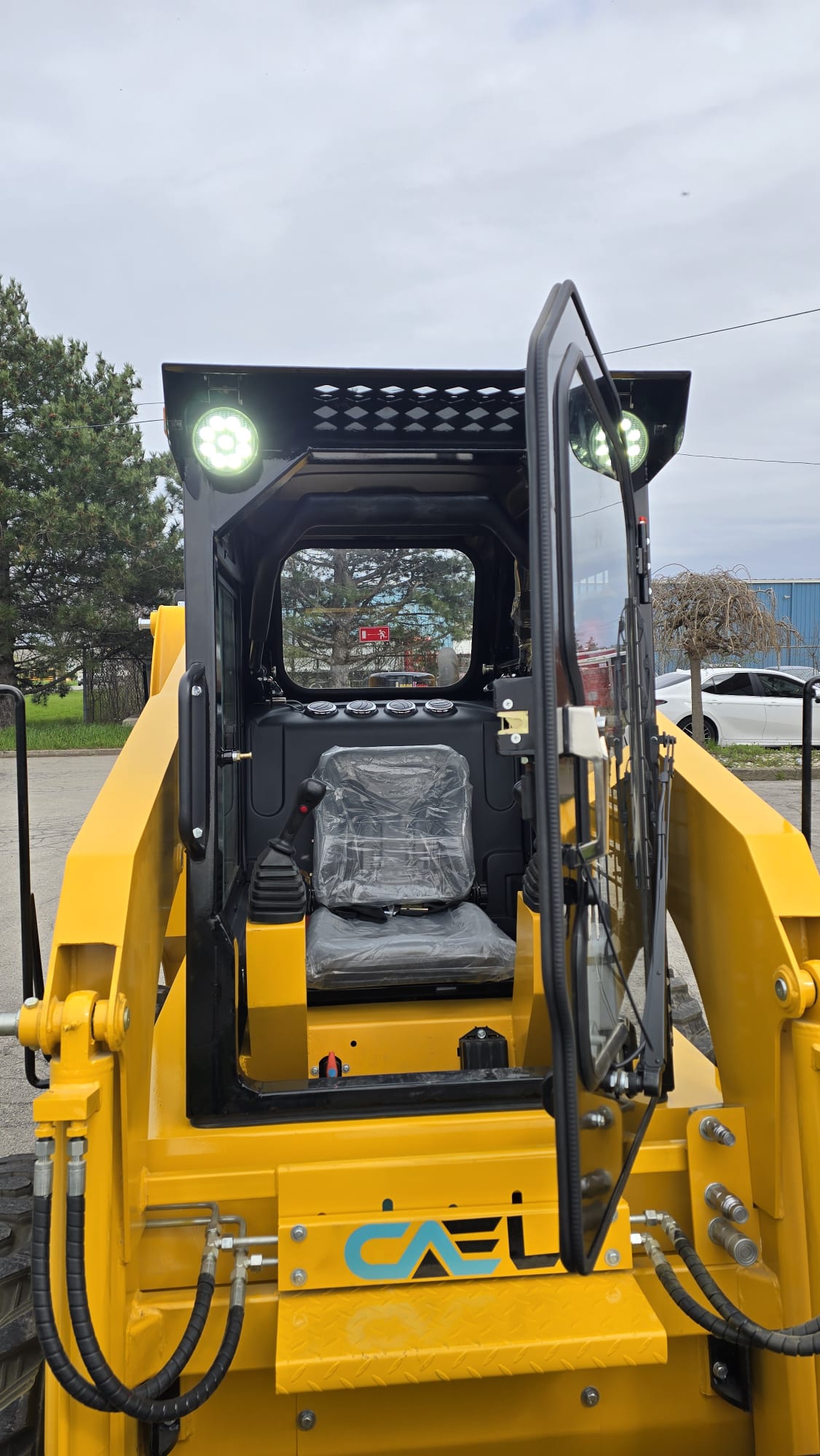

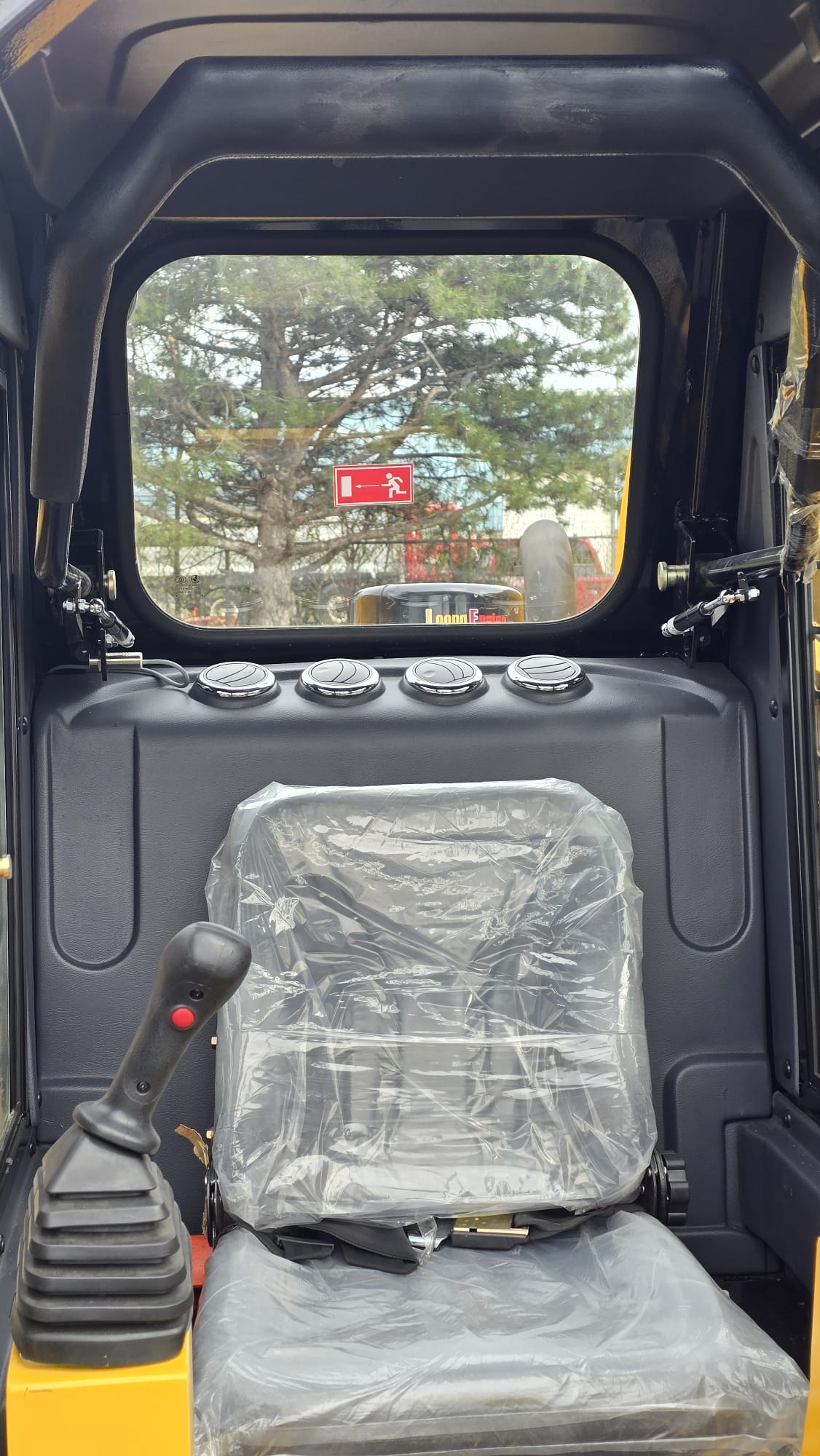

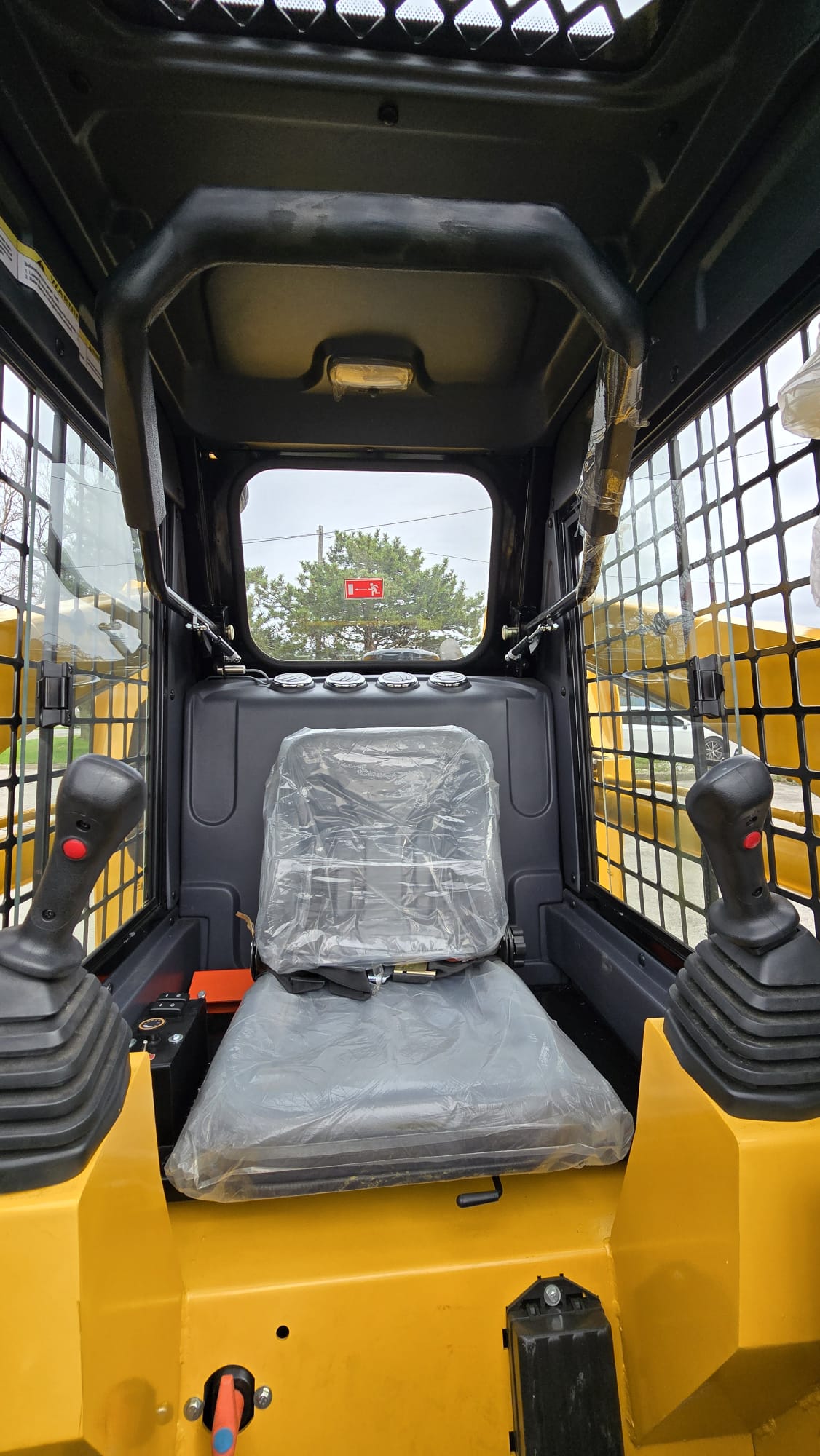

• Enclosed Cabin for Enhanced Safety & Comfort

Performance Specifications

• Rated Operating Capacity: 700 kg (1543 lbs)
• Tipping Load: 1400 kg (3086 lbs)
• Bucket Capacity: 0.4 m³
• Lifting Force: 1950 kg (4300 lbs)
• Hydraulic Pump Flow: 75 L/min
• Engine Power: 50 HP
• Operating Weight: 3100 kg (6834 lbs)
• Max Travel Speed: 12 km/h (7.5 mph)
• Gradeability: 20°
• Tires: 10 – 16.5
• Fuel Capacity: 65 L
• Hydraulic Oil Capacity: 65 L

Dimensions

• Overall Length (with Bucket): 3420 mm (134.6 in)
• Overall Length (without Bucket): 2640 mm (104.0 in)
• Overall Width (with Bucket): 1740 mm (68.5 in)
• Track Width: 1450 mm (57.1 in)
• Wheelbase: 991 mm (39.0 in) (corrected from 31″)
• Ground Clearance: 185 mm (7.3 in)

Working Range

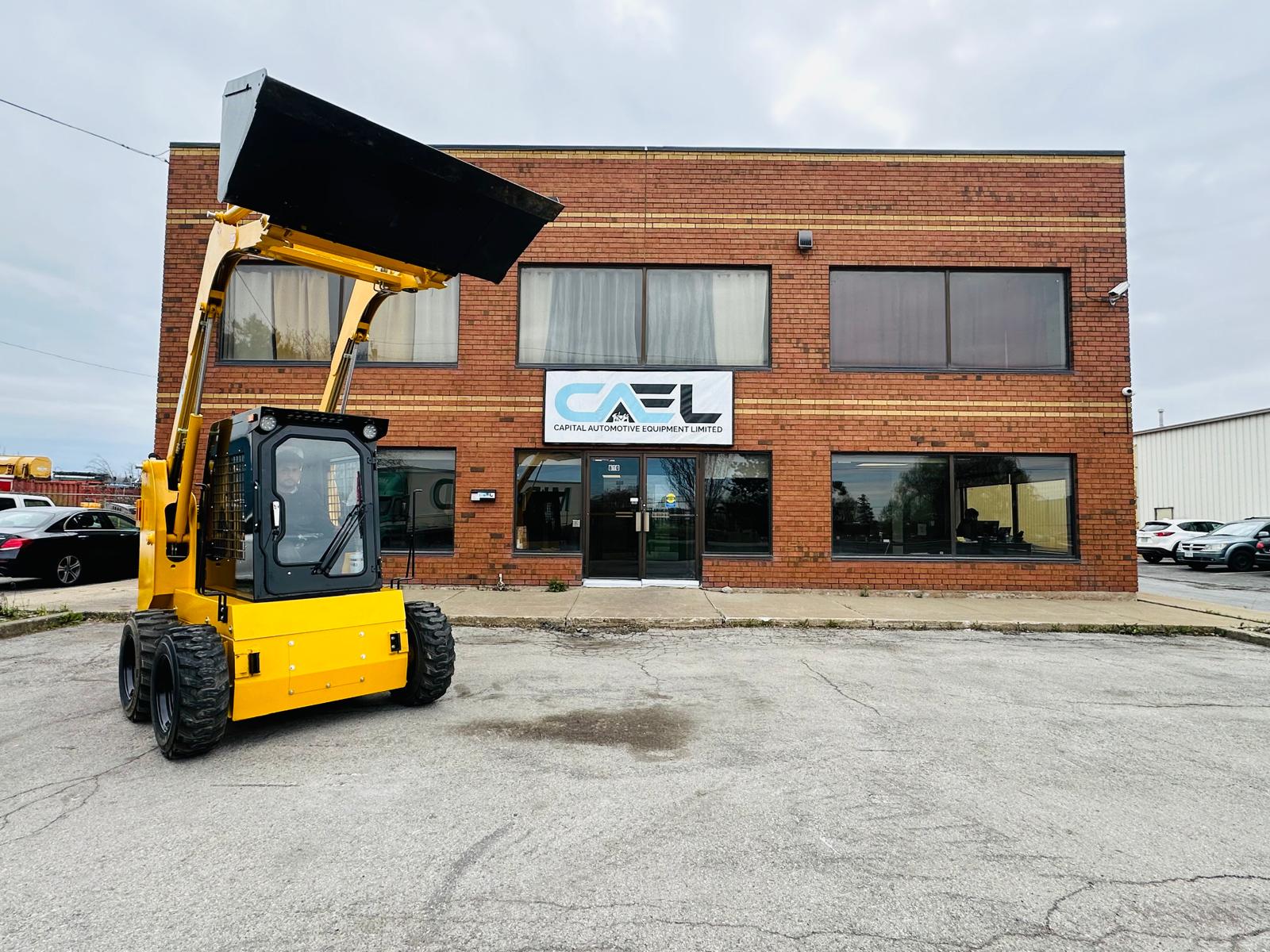

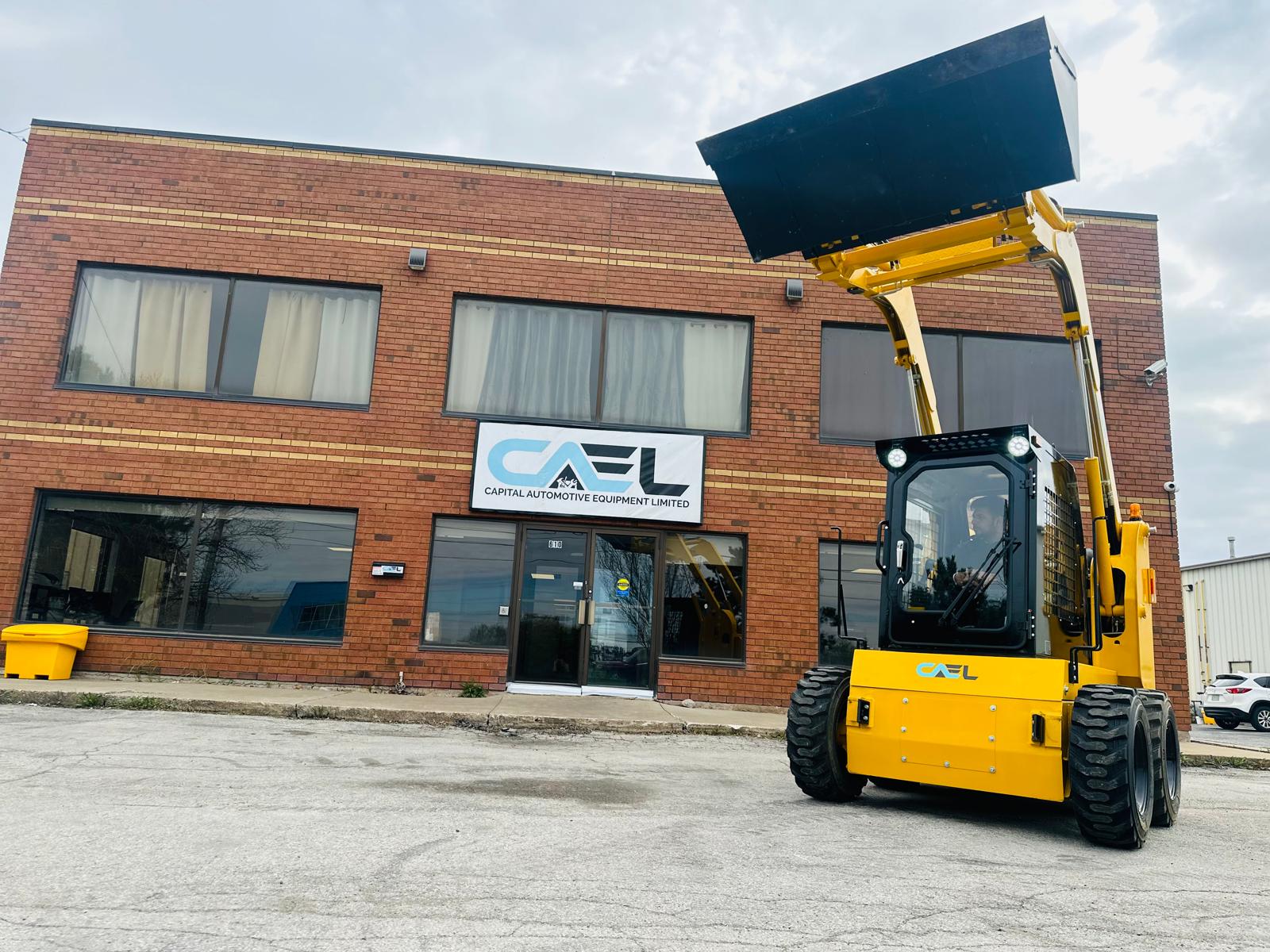

• Height at Maximum Extension: 3980 mm (156.7 in)
• Hinge Pin Height: 3080 mm (121.3 in)
• Total Height: 2050 mm (80.7 in)
• Dumping Height: 2380 mm (93.7 in)
• Maximum Reach: 750 mm (29.5 in)
• Dumping Angle: 40°

Customization Options (Optional)

• Low Temperature Cold Start: $600
• Air Conditioning System: $1400
• Cabin Heating System: $500

Warranty

• 2 Years Warranty on Engine
• 1 Year Warranty on All Parts

Why Choose This Model?

Combining compact design, strong lifting capability, and efficient hydraulics, this skid steer loader is ideal for professionals who need reliable performance in tight spaces without sacrificing power.
