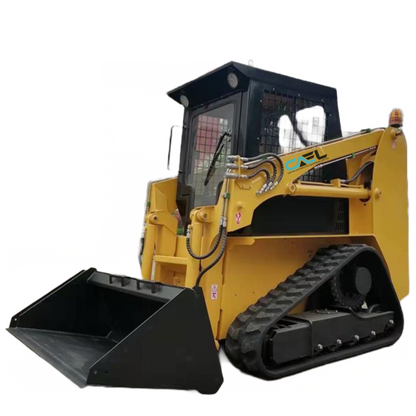

Introducing the CAEL-50, a powerful and efficient skid steer designed to tackle a wide range of tasks with ease. Powered by a Korean LS engine, this equipment delivers reliable performance and meets EPA standards.

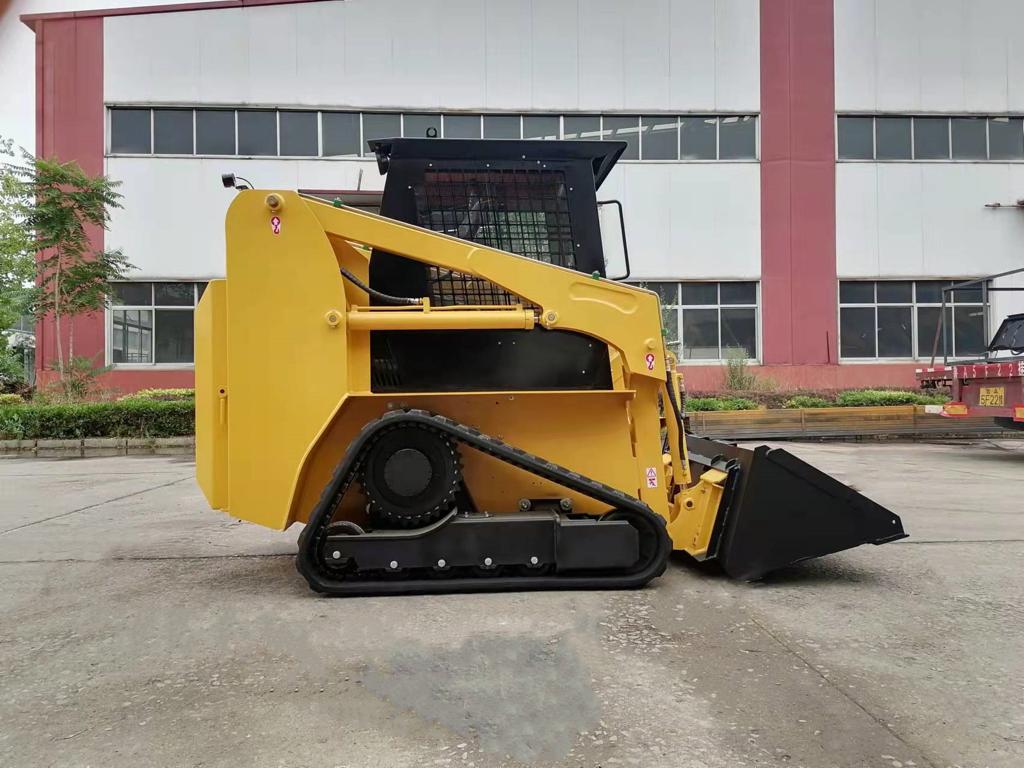

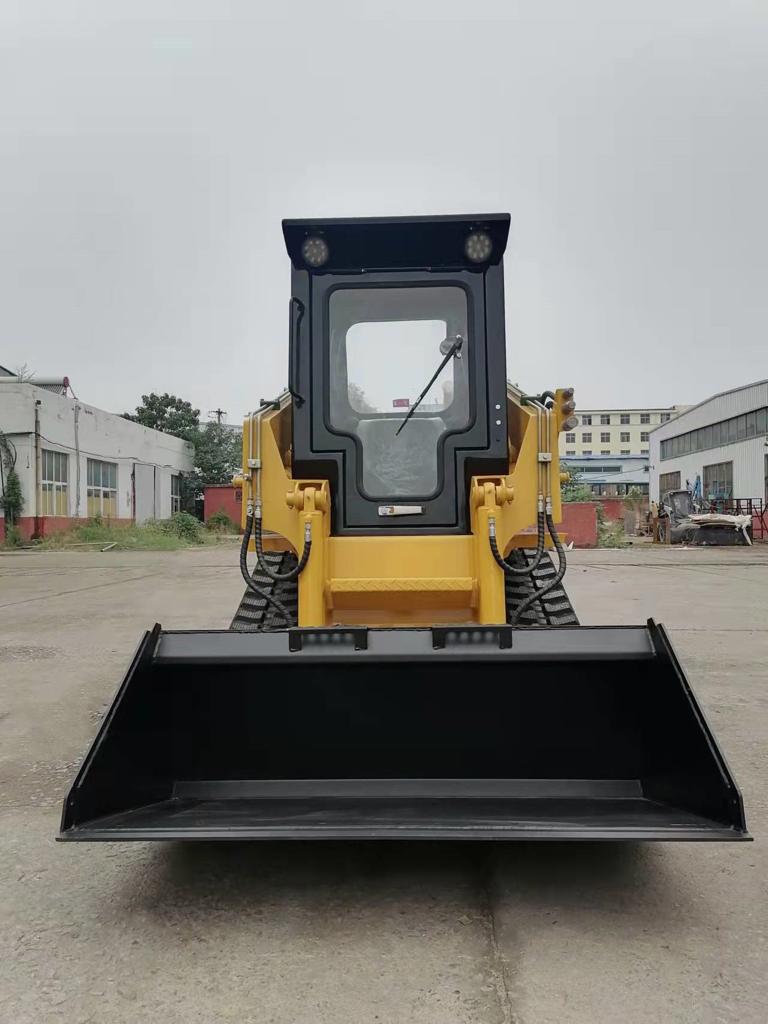

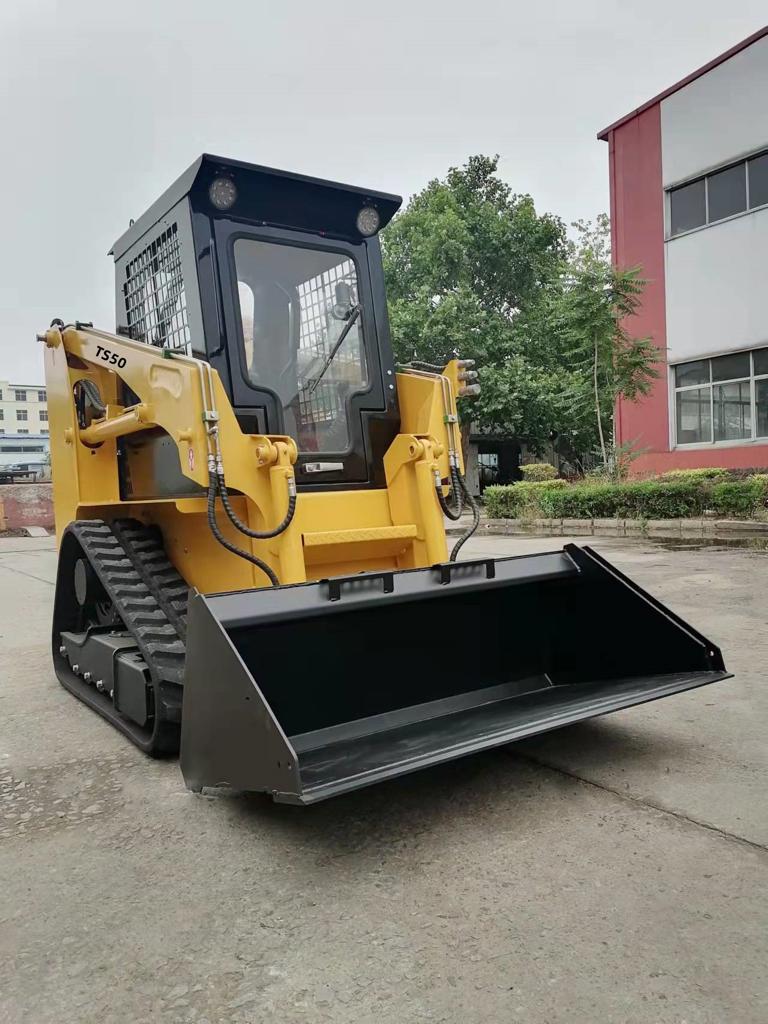

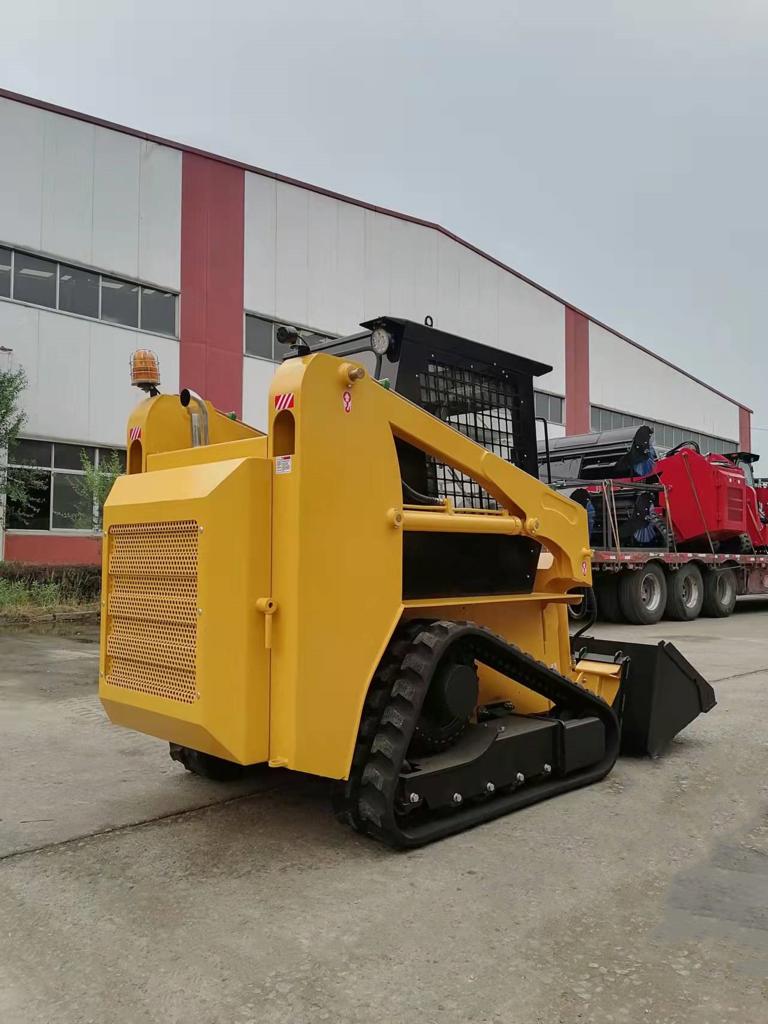

This high-performance compact track loader is built for demanding job sites, offering superior power, stability, and operator comfort. Equipped with a Korean LS engine and advanced hydraulic pilot controls, it delivers smooth handling, strong lifting capability, and reliable performance across construction, agriculture, and industrial applications.

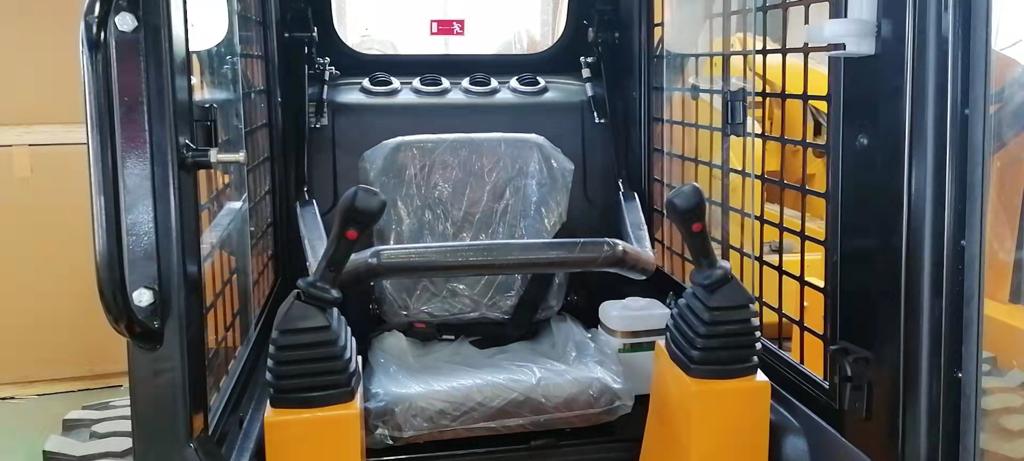

The fully enclosed cabin enhances operator safety and comfort, making it ideal for long working hours in various environments.
Included Features
Korean LS Engine (36.7 kW, EPA Certified)

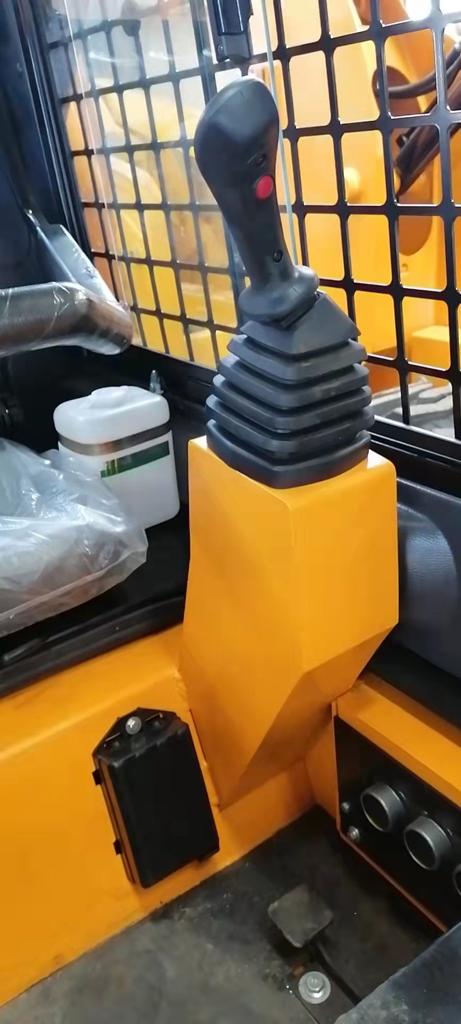

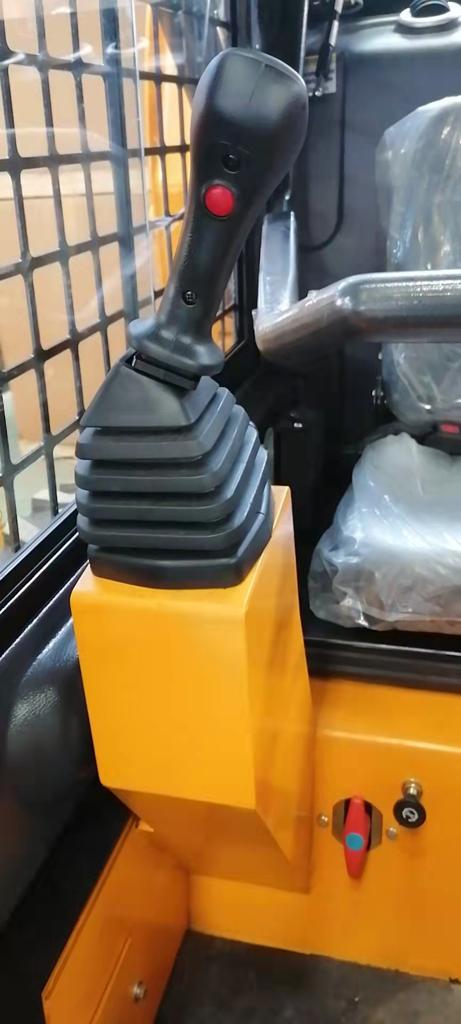

Hydraulic Pilot Control System
Fully Enclosed Operator Cabin
Engine & Performance
Engine Model: XINCHAI
Net Power: 36.7 kW @ 2600 RPM (≈ 49 HP)
Displacement: 2.7 L
Max Travel Speed: 10 km/h (6.2 mph)
Hydraulic Pump Flow: 60 L/min
Fuel Tank Capacity: 50 L
Performance Specifications
Rated Operating Capacity: 700 kg (1543 lbs)
Bucket Capacity: 0.3 m³ (10.6 ft³)
Operating Weight: 2800 kg (6173 lbs)
Dimensions & Working Range
Overall Dimensions (L × W × H): 2950 × 1402 × 2050 mm (116.1 × 55.2 × 80.7 in)
Height to Bucket Hinge Pin: 2770 mm (109.1 in)
Width with Bucket: 1500 mm (59.1 in)
Track Width: 300 mm (11.8 in)
Machine Dimensions
Wheelbase: 1240 mm (48.8 in)
Ground Clearance: 140 mm (5.5 in)
Key Advantages
Powerful 36.7 kW engine for heavy-duty performance
Smooth and precise hydraulic pilot operation
High lifting capacity for its class
Stable track system for rough terrain
Comfortable enclosed cabin for all-weather operation
Customization Options (Available at Additional Cost)
