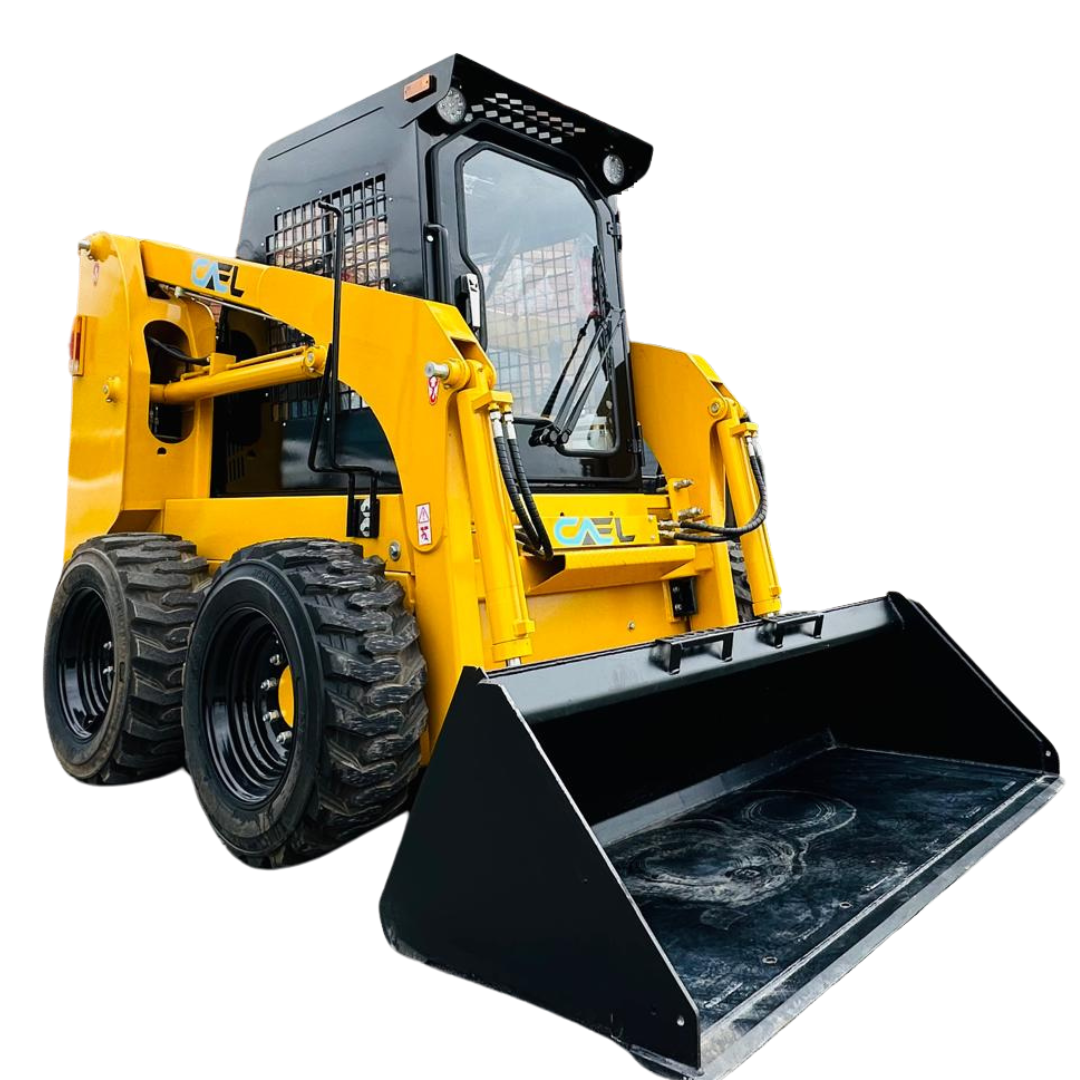

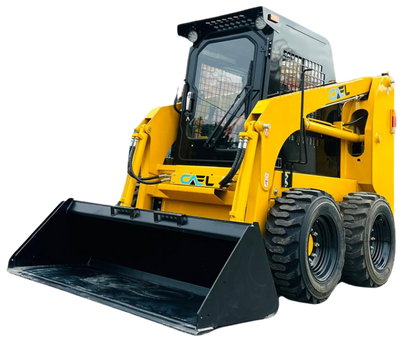

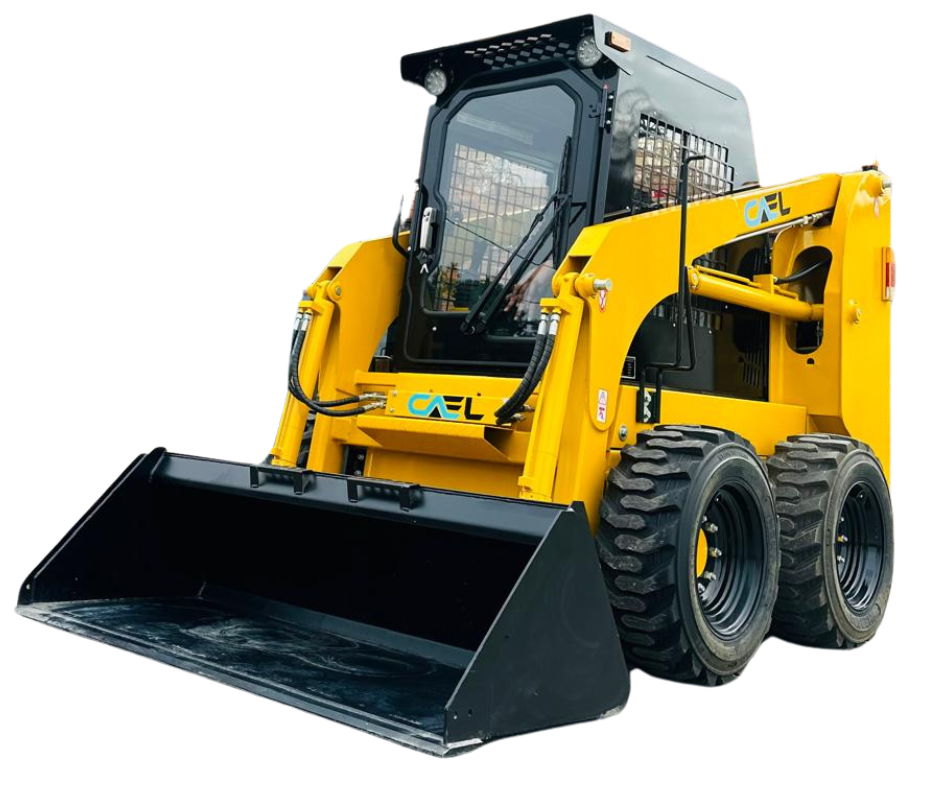

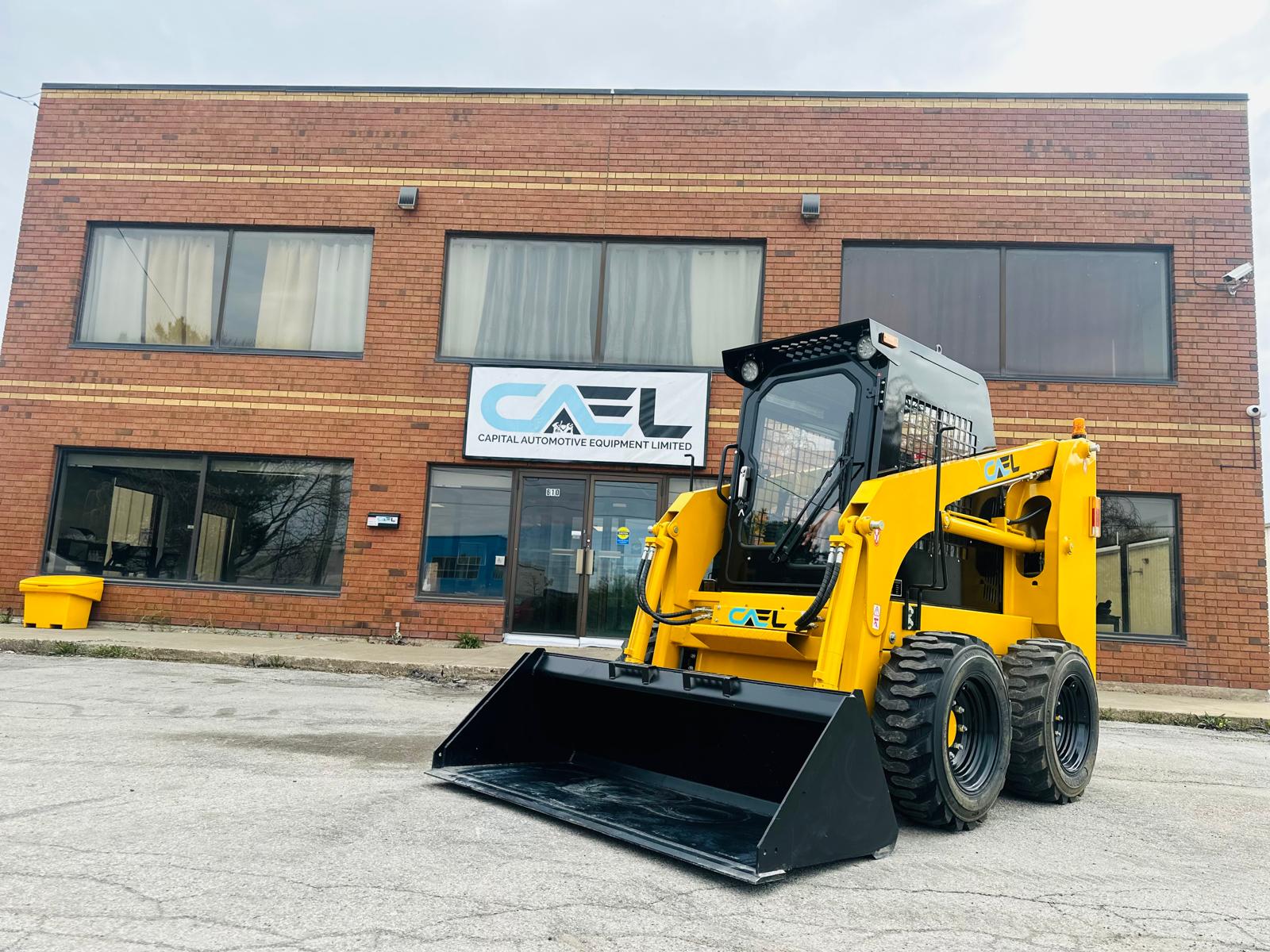

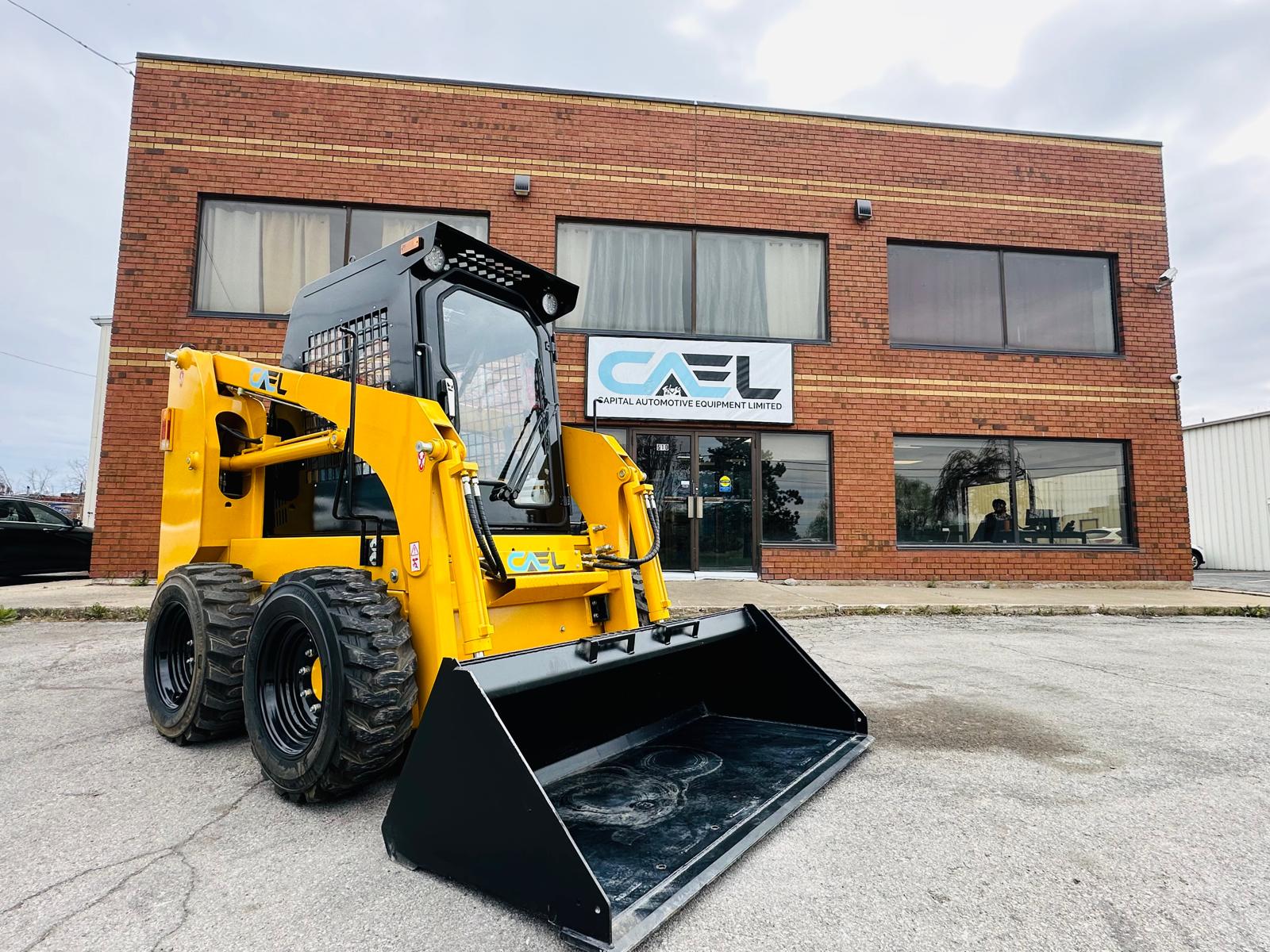

Description
Included
-Korean LS engine (42.5KW,EPA)
-Hydraulic Pilot Operated
-Cabin
Specification
– Rated Operating Capacity(Kg) 850 / 1874 LBS
– Tipping load(Kg) 1700 / 3748 LBS
– Bucket Capacity(m3) 0.5
– Lifting Force(Kg) 1950 / 4300 LBS
– Hydraulic Pump Flow(L/min) 75
– Engine power(HP) 60
– Weight(Kg) 3240 / 7143 LBS
– Max. Travel Speed(km/h) 12
– Grade ability(° ) 20
– Tire 12-16.5
– Fuel/hyd. Oil capacity(L) 80/80
Dimensions

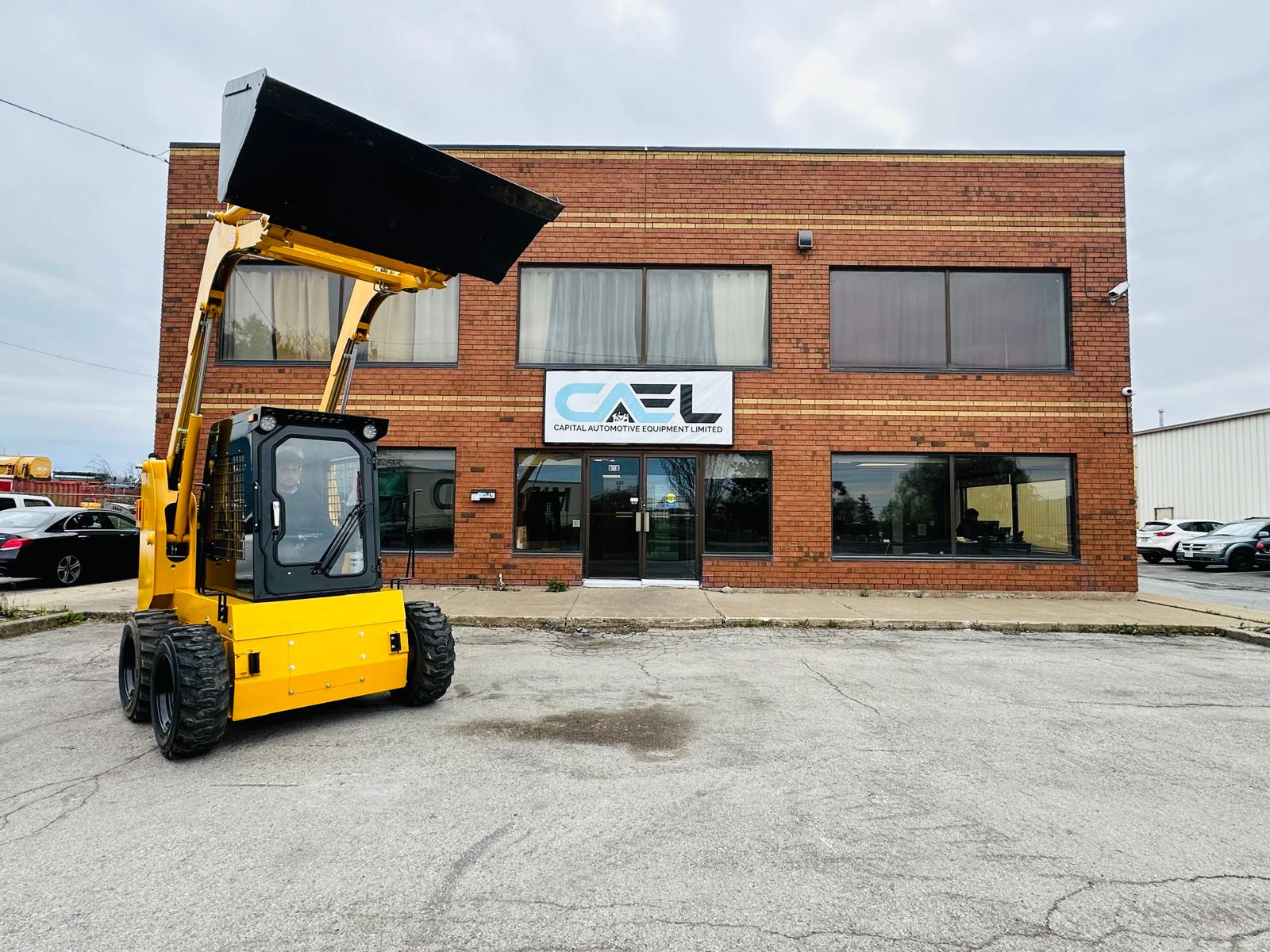

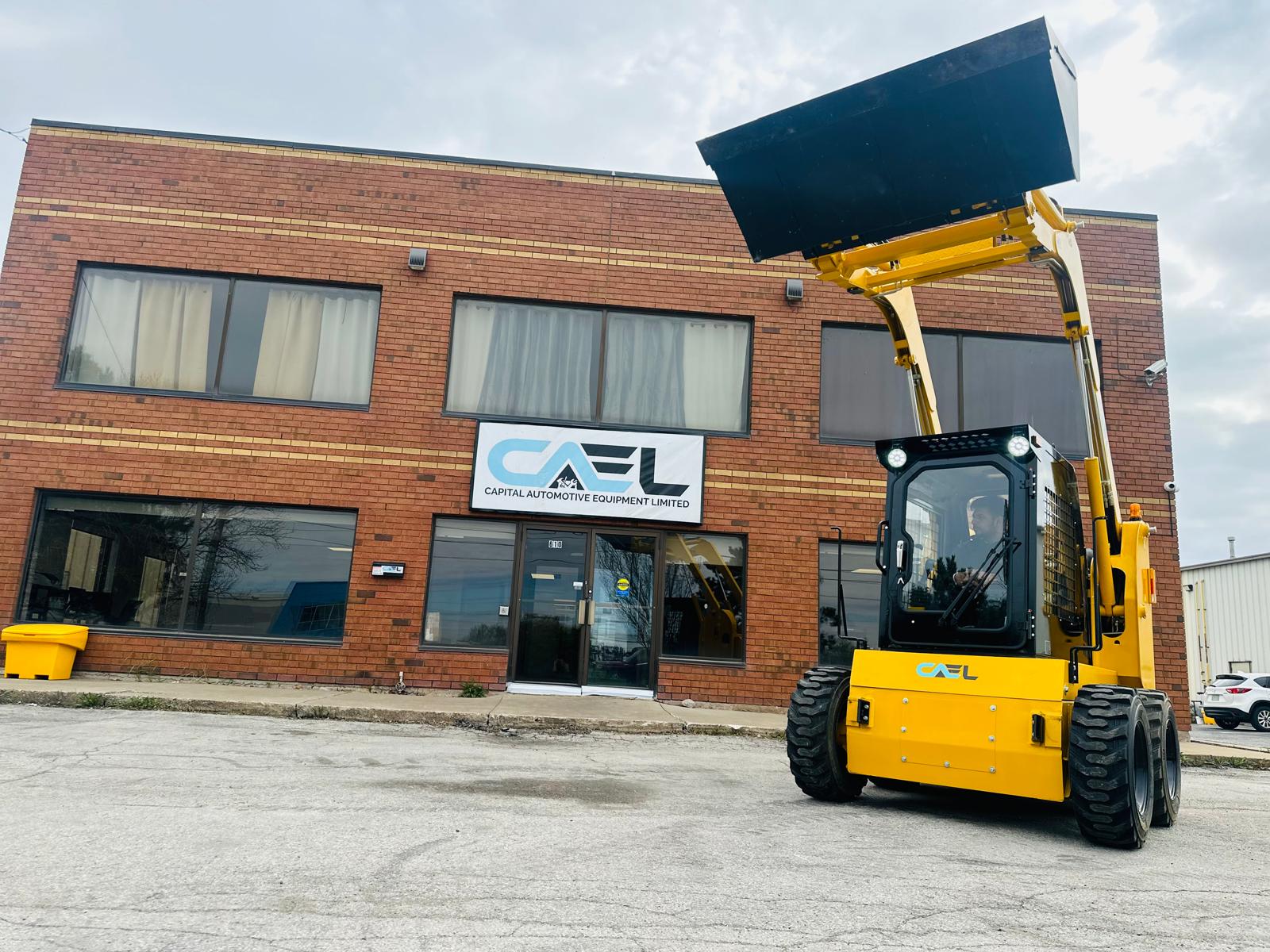

– Height at Maximum Extension : 4000mm / 157.4″
– Hinge Pin Height : 3100mm / 122″
– Total Height : 2160mm / 85″
– Length with Bucket : 3490mm / 137.4″
– Length without Bucket : 2750mm / 108″
– Width with Bucket : 1880mm / 74″
– Track Width : 1500mm / 59″
– Wheelbase : 991mm / 39″
– Ground Clearance : 205mm / 8″
– Dumping Angle ° : 40°
– Dumping Height : 2400mm / 94.4″
– Maximum Reach : 750mm / 29.5″
Customization Options (Additional Charges):
- Low temperature cold start : 600$
- Air conditioning 1400$
- Heat 500$
2 years warranty on motor
1 year Warranty on all parts
