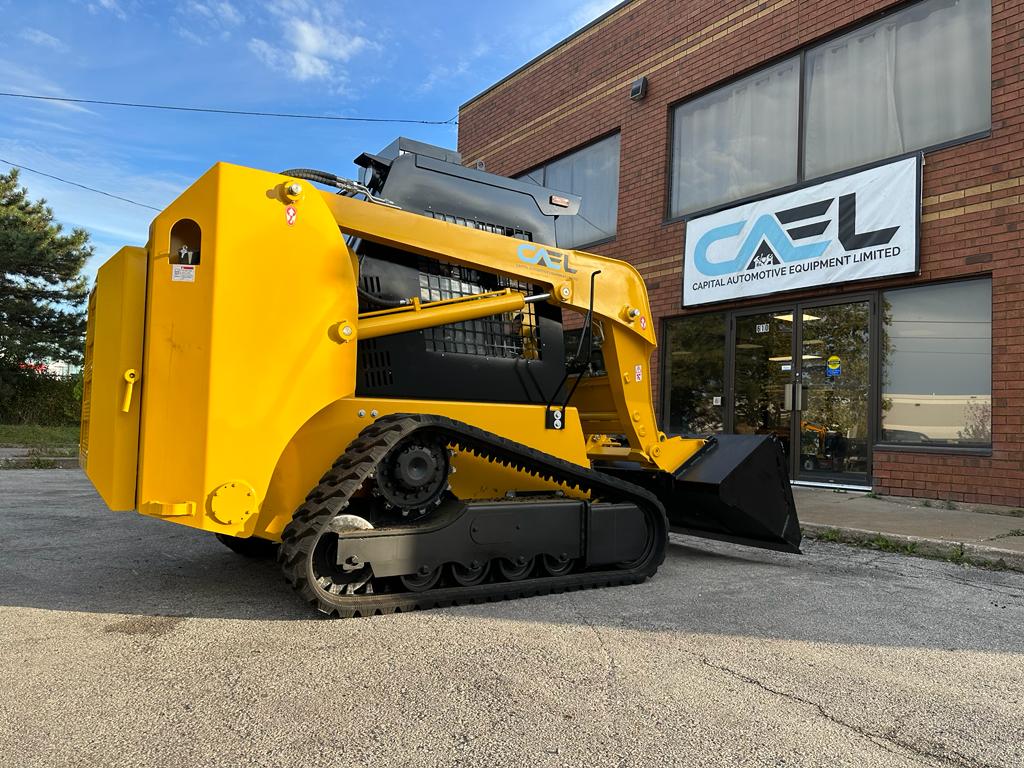

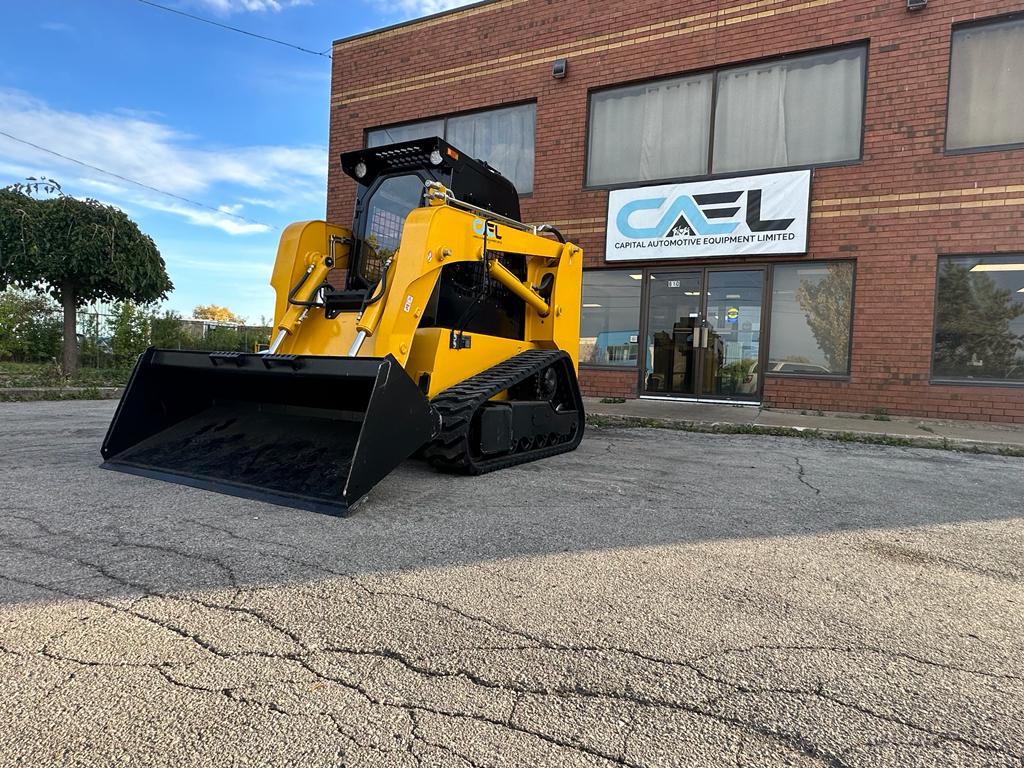

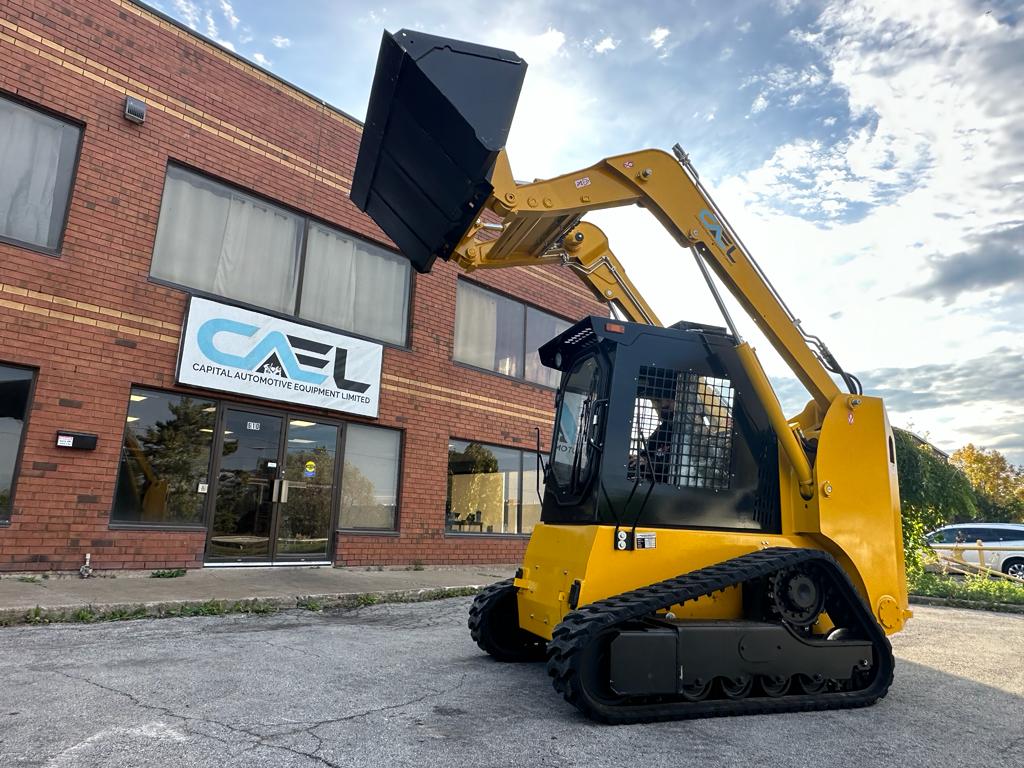

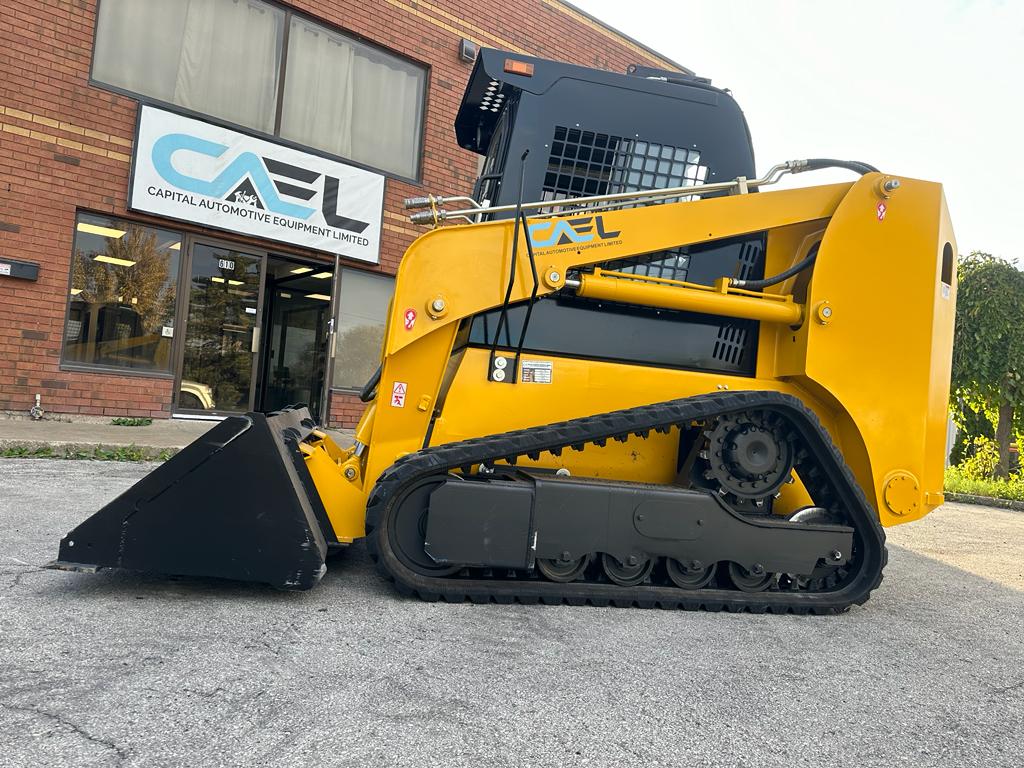

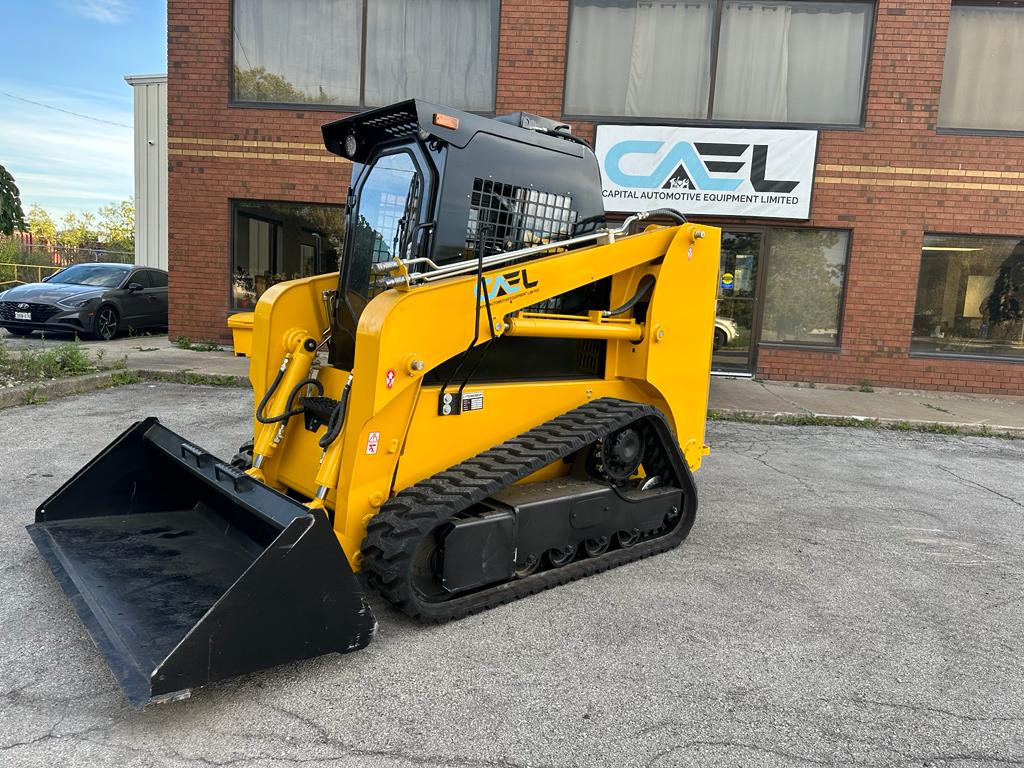

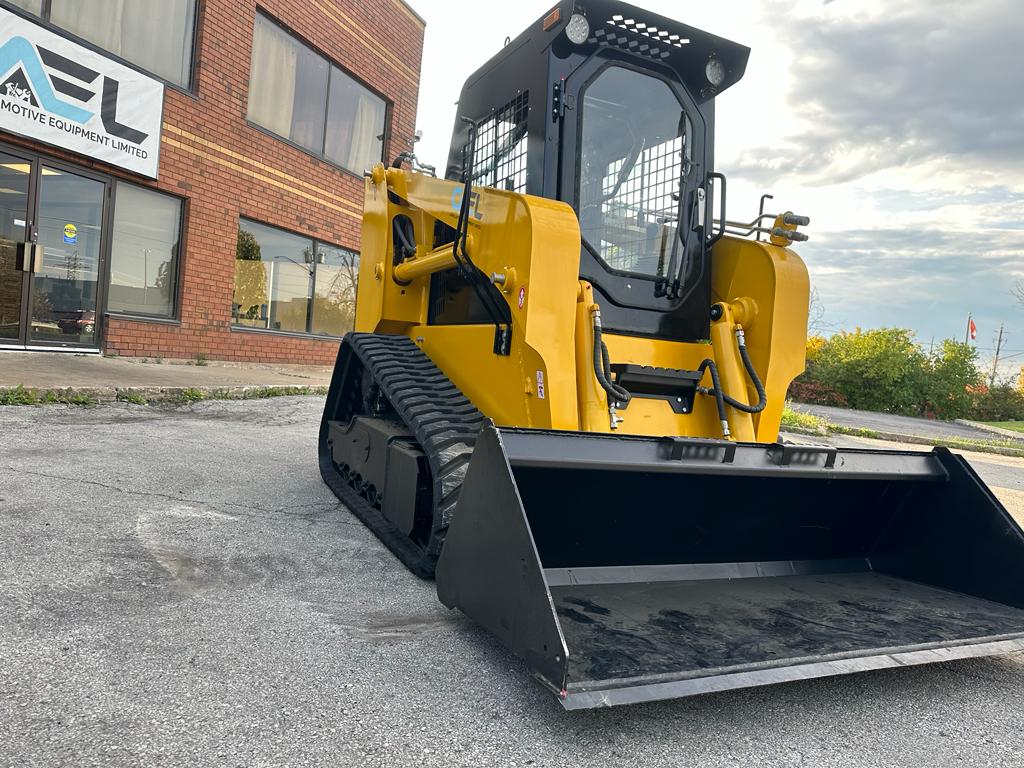

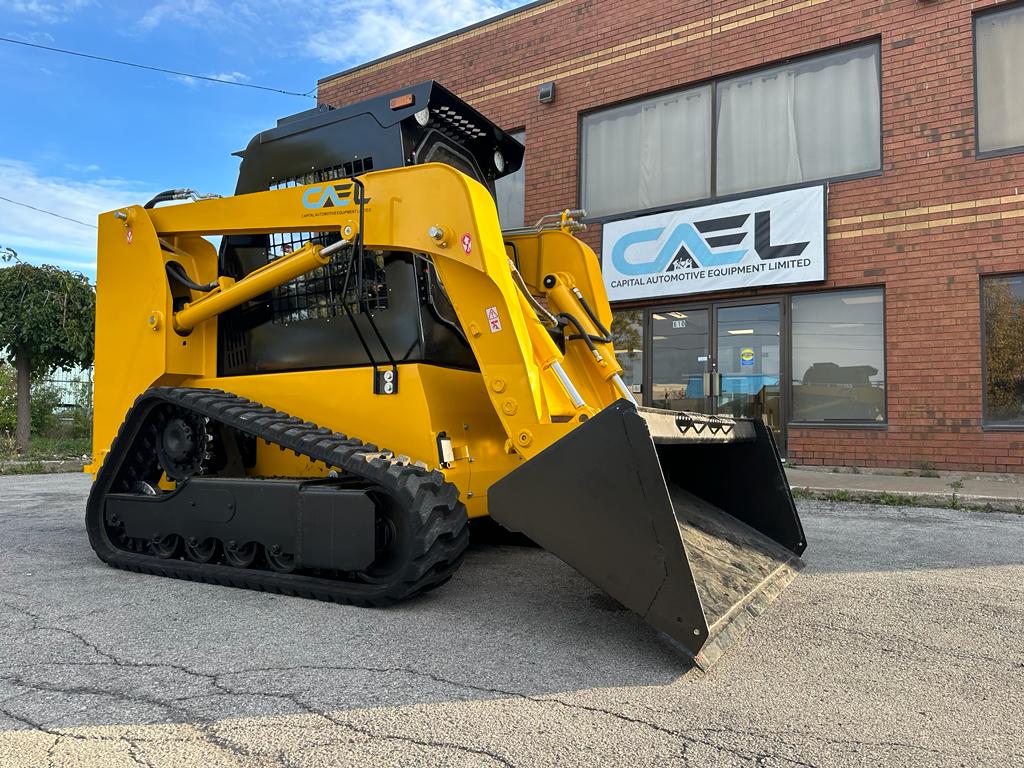

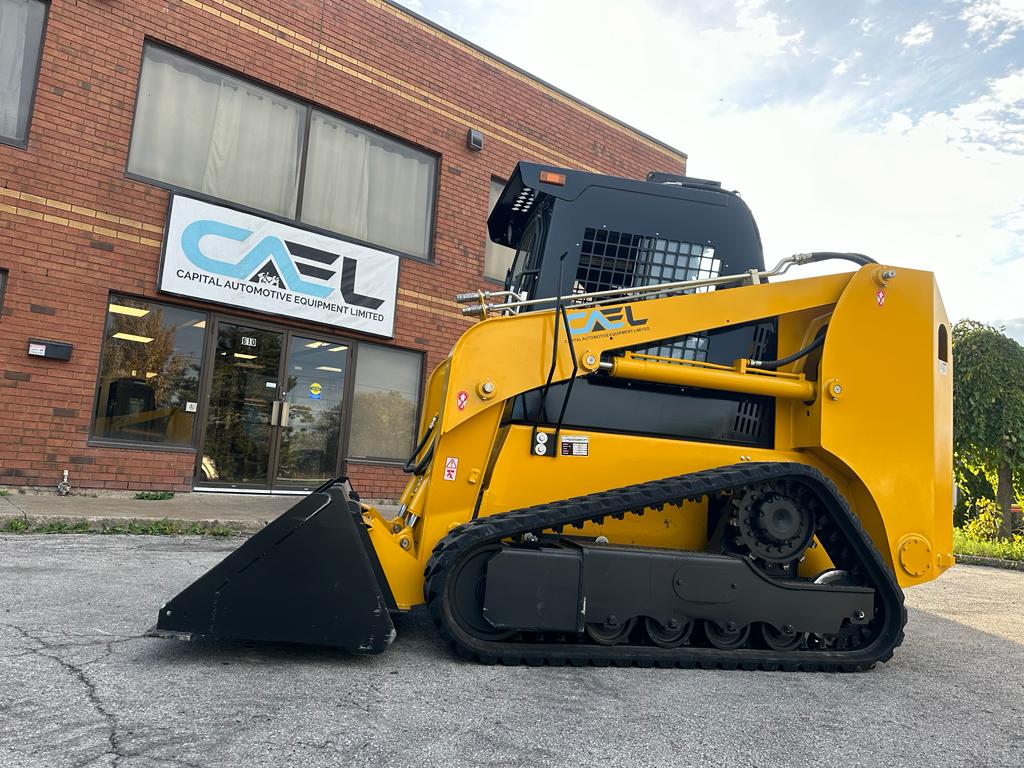

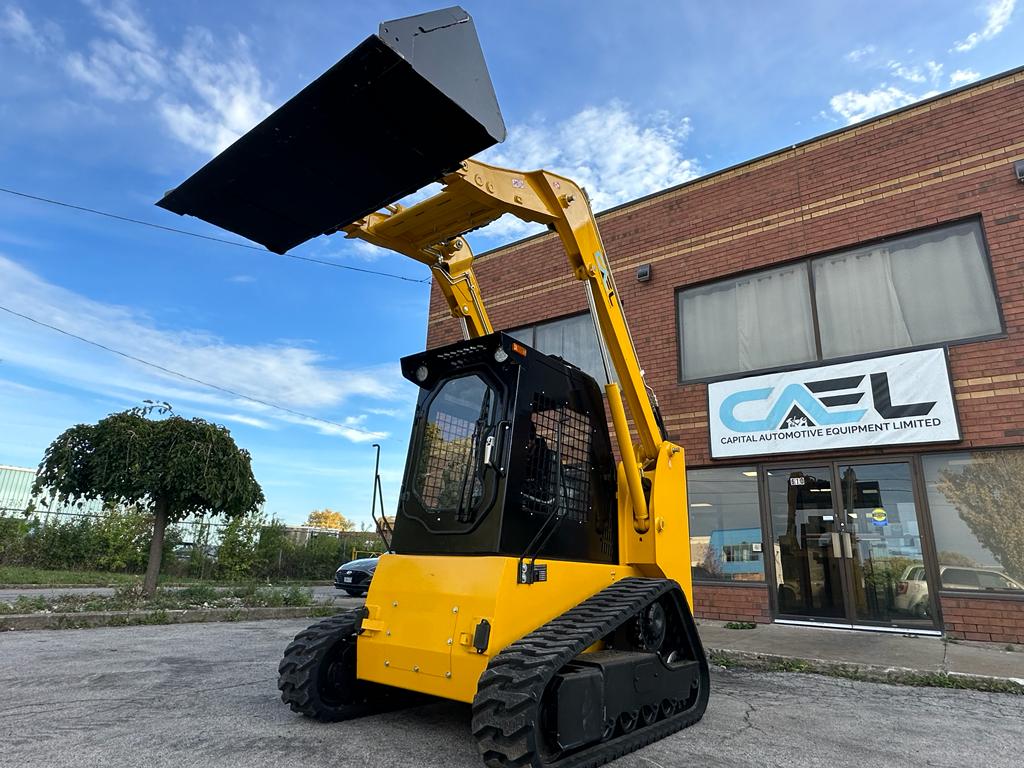

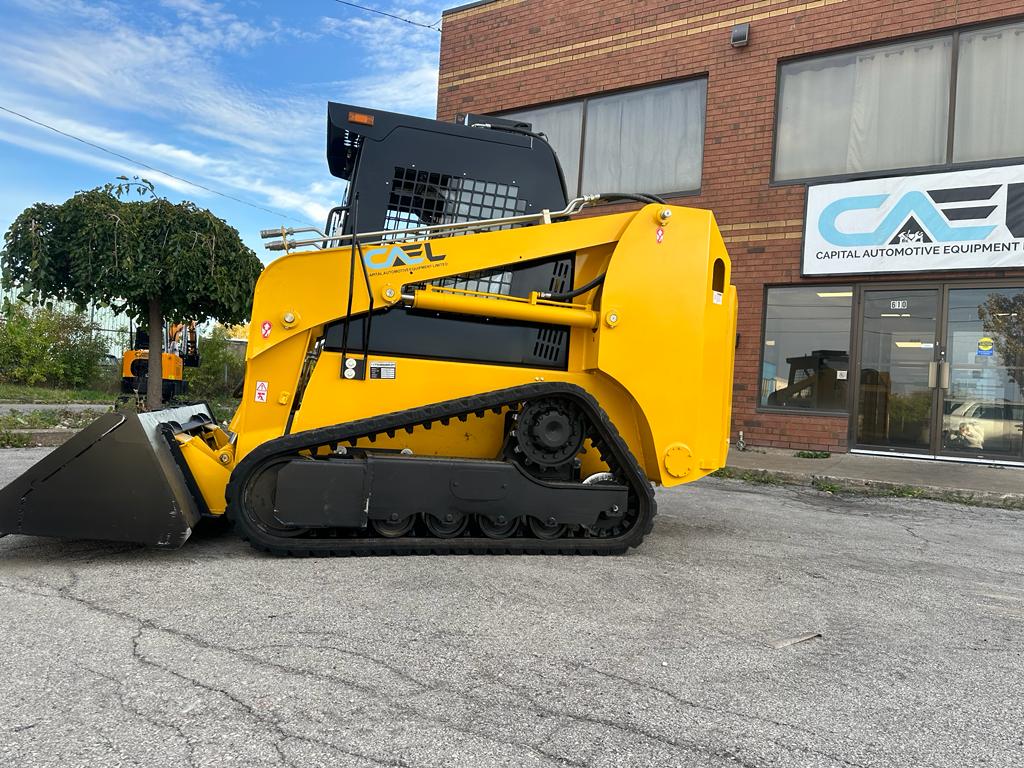

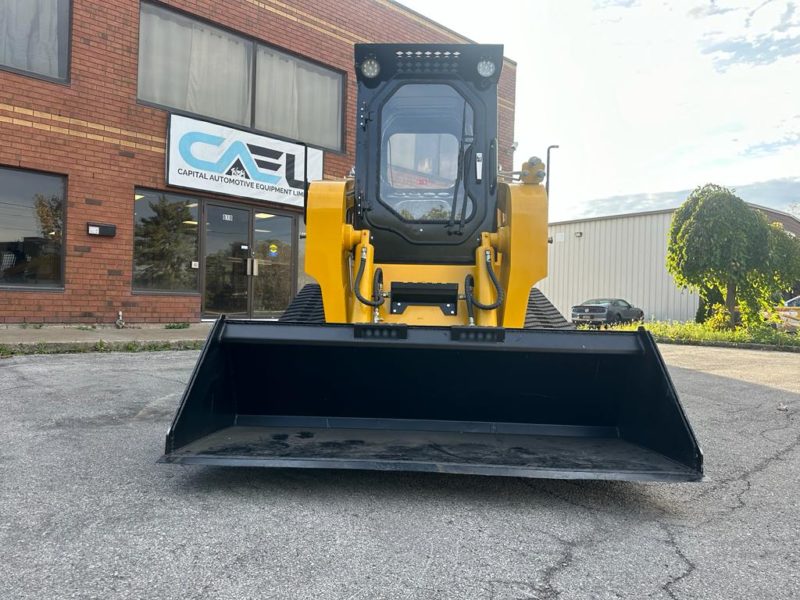

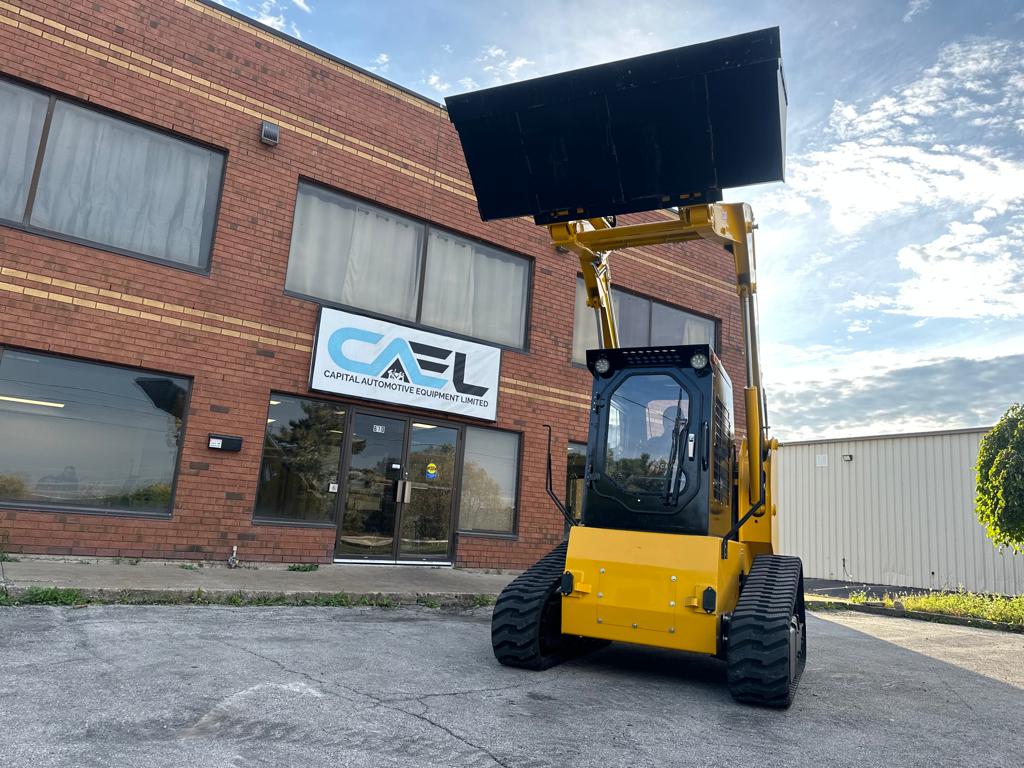

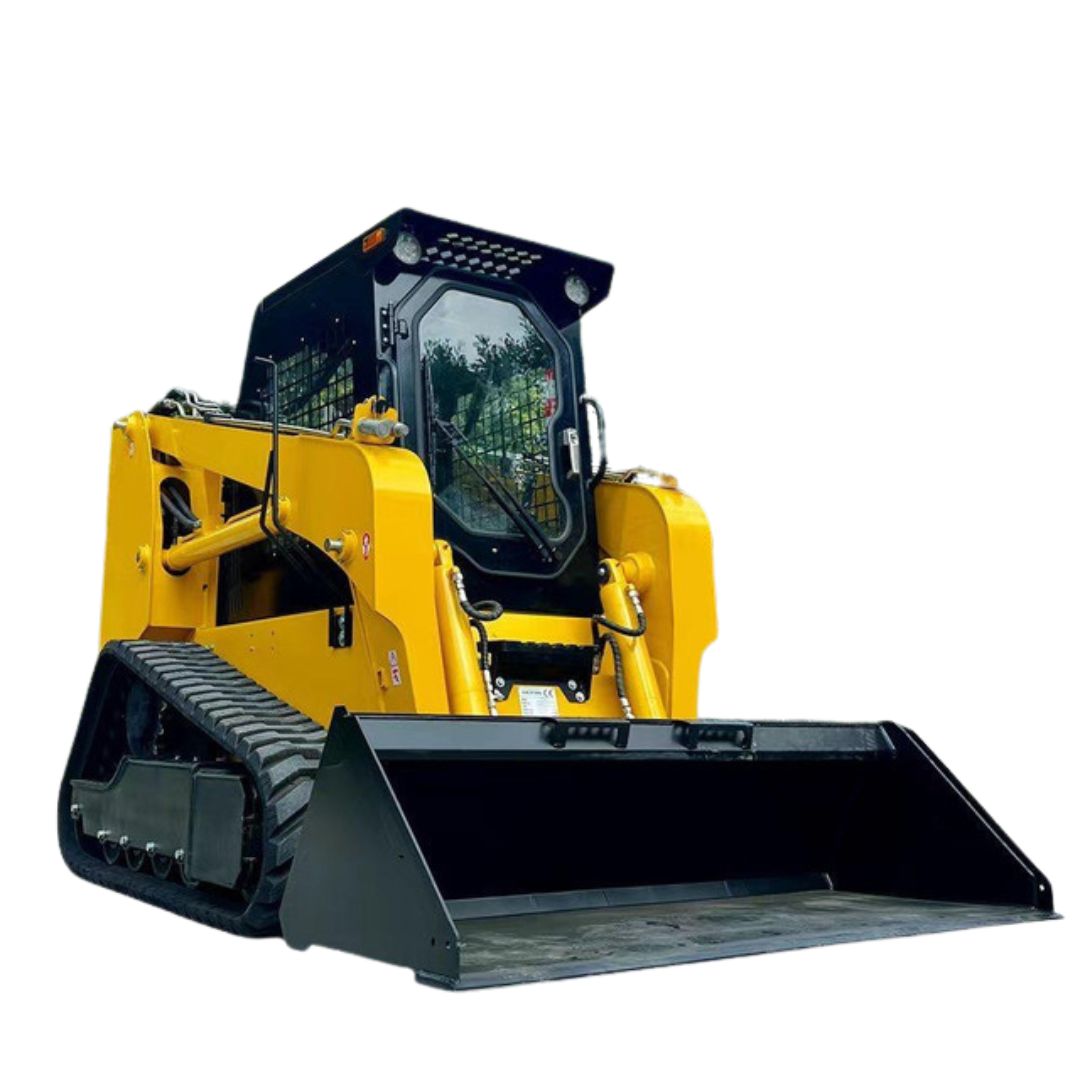

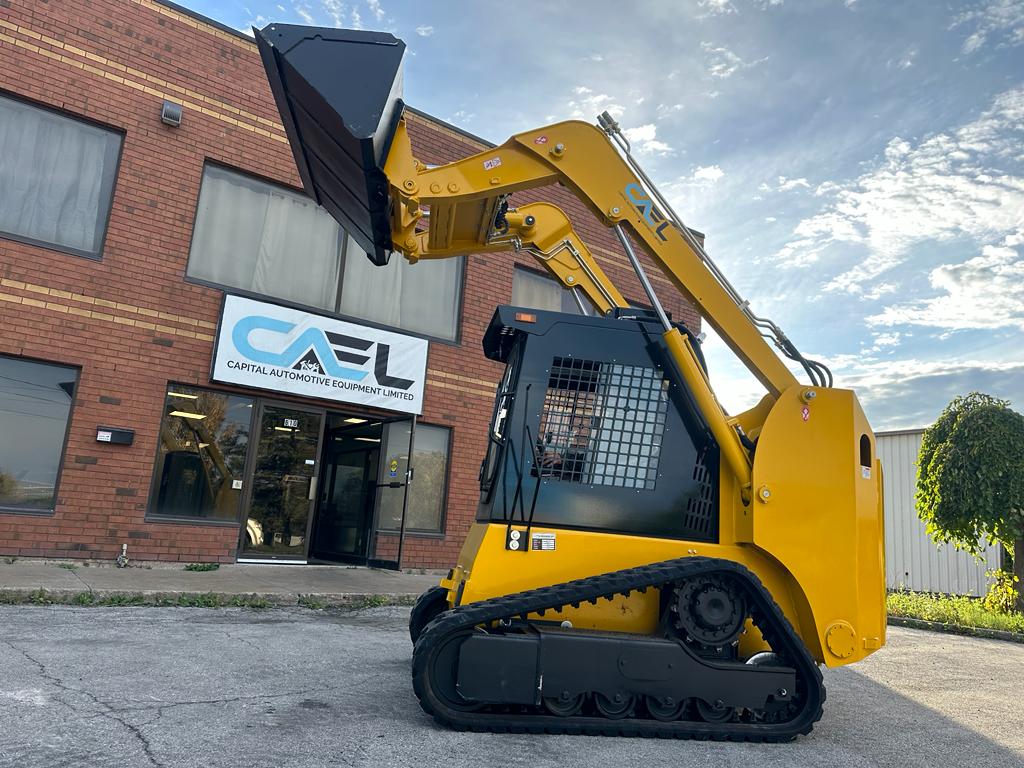

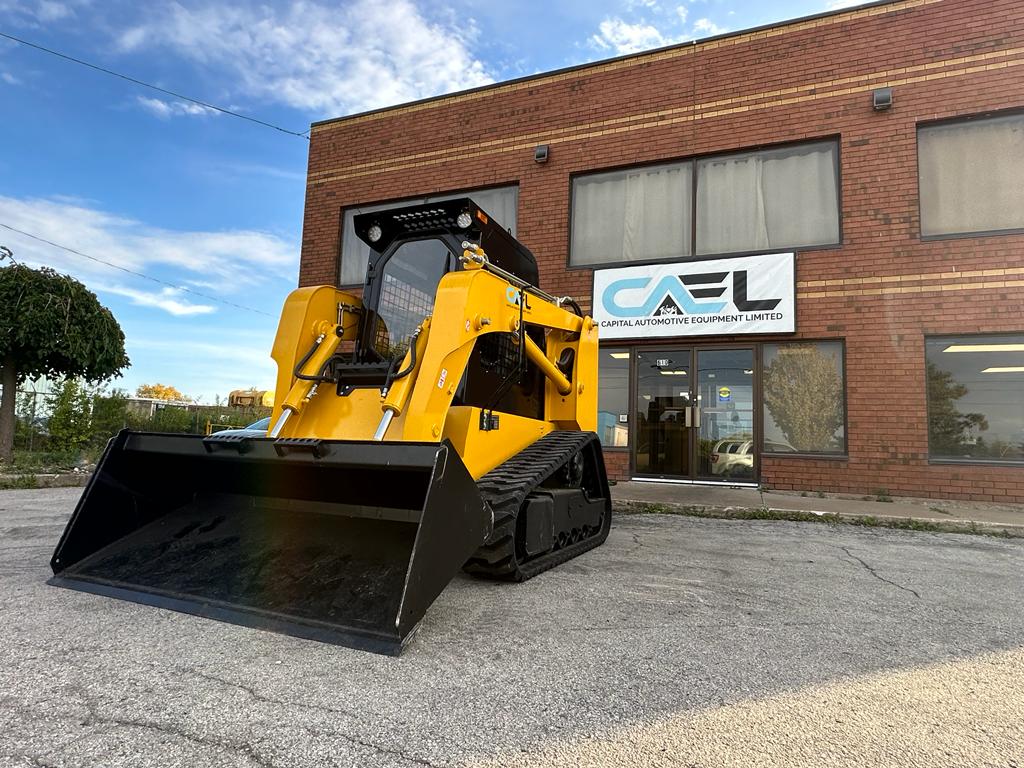

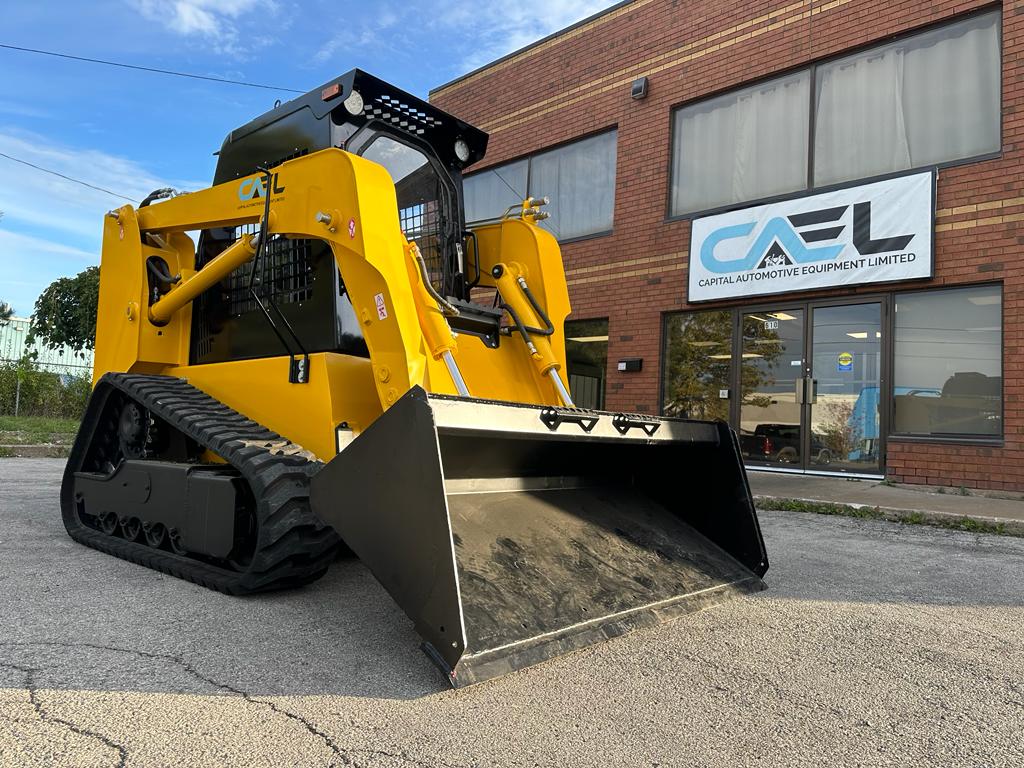

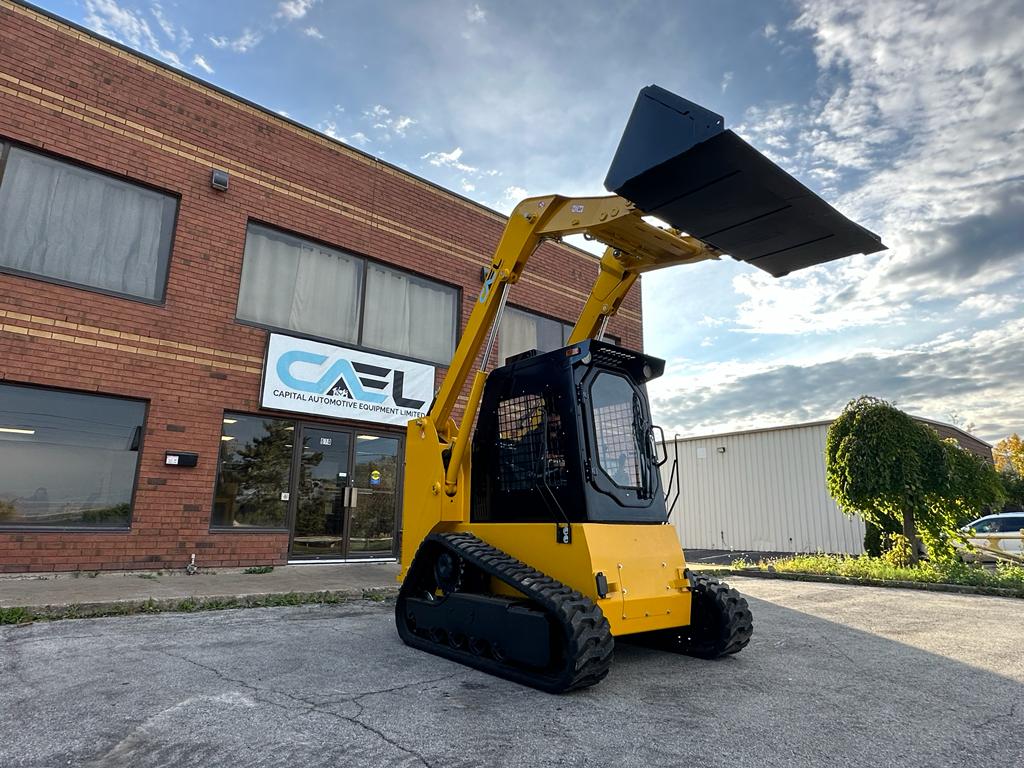

Engineered for power, durability, and efficiency, this compact track loader is designed to handle demanding construction, landscaping, and material handling applications. With advanced hydraulic control, high lifting capacity, and operator-focused comfort, it delivers consistent performance across a wide range of job sites.
Ideal for Construction, Agriculture & Industrial Applications
Performance Specifications
Rated Operating Capacity: 1000 kg (2204 lbs)
Tipping Load: 2000 kg (4400 lbs)
Bucket Capacity: 0.5 m³
Lifting Force: 2730 kg (6000 lbs)
Hydraulic Pump Flow: 75 L/min
Engine Power: 75 HP
Operating Weight: 3800 kg (8300 lbs)
Track Weight: 3800 kg (8300 lbs)
Max Travel Speed: 8 / 16 km/h
Gradeability: 20°
Track Size: 320 × 84 mm
Fuel Capacity: 80 L
Hydraulic Oil Capacity: 80 L
Dimensions
Overall Length (with Bucket): 3500 mm (137.8 in)
Overall Length (without Bucket): 2750 mm (108.3 in)
Overall Width (with Bucket): 1782 mm (70.2 in)
Track Width: 1462 mm (57.6 in)
Wheelbase: 1500 mm (59.1 in)
Ground Clearance: 200 mm (7.9 in)
Working Range
Height at Maximum Extension: 3480 mm (137.0 in)
Hinge Pin Height: 2900 mm (114.2 in)
Total Machine Height: 2150 mm (84.6 in)
Dumping Height: 2230 mm (87.8 in)
Maximum Reach: 715 mm (28.1 in)
Dumping Angle: 40°
Customization Options (Optional)
Low Temperature Cold Start: $600
Air Conditioning System: $1400
Cabin Heating System: $500
Warranty
2 Years Warranty on Engine
1 Year Warranty on All Parts
This machine combines power, precision, and reliability, making it an excellent choice for professionals seeking high productivity and long-term performance.
