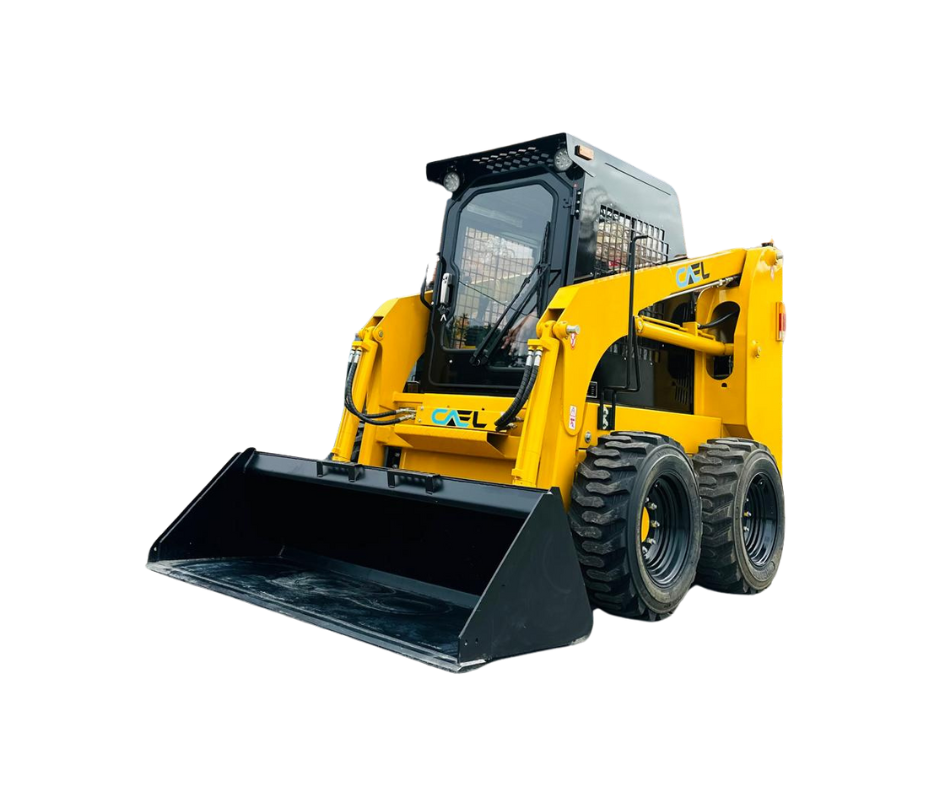

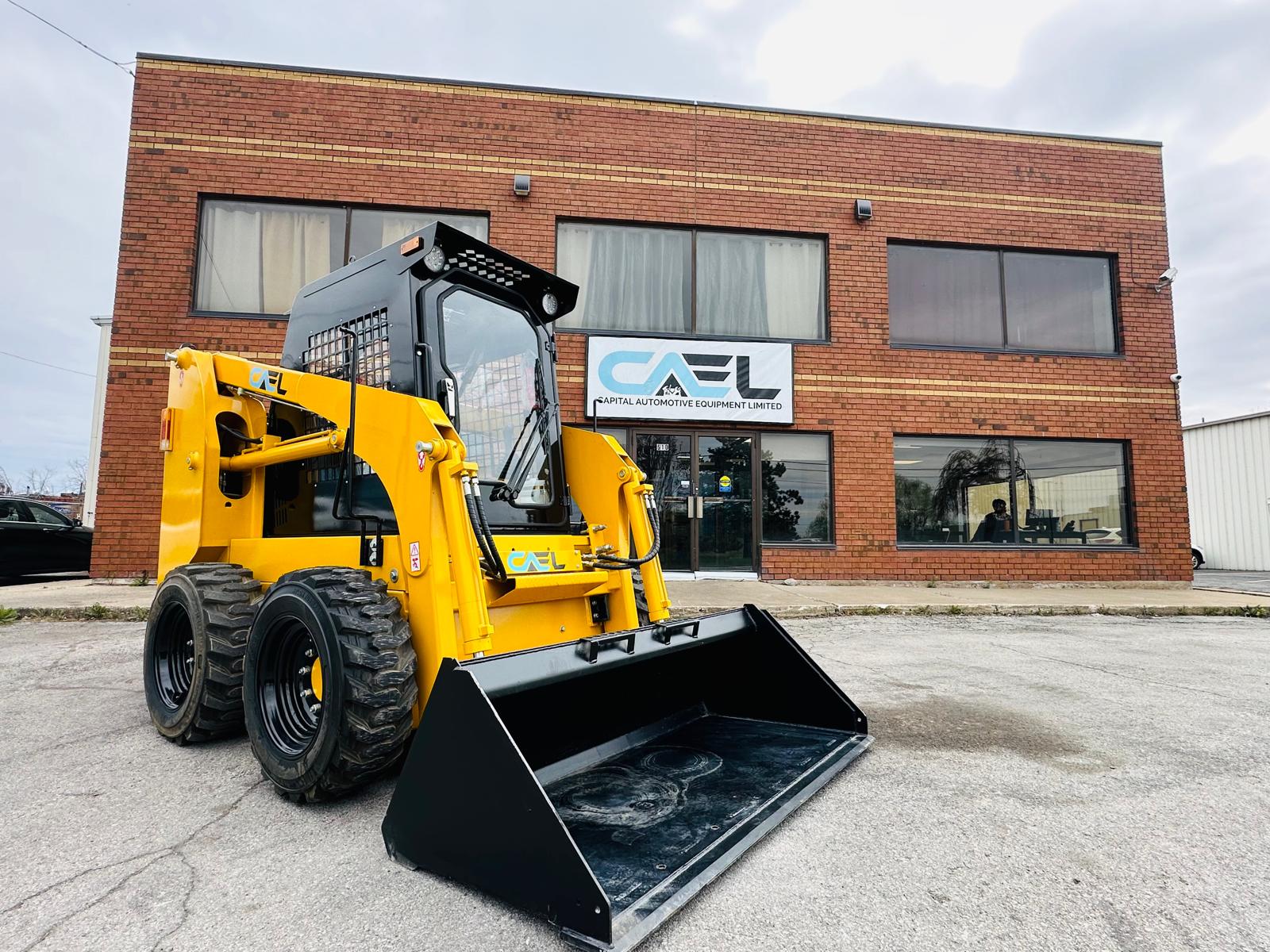

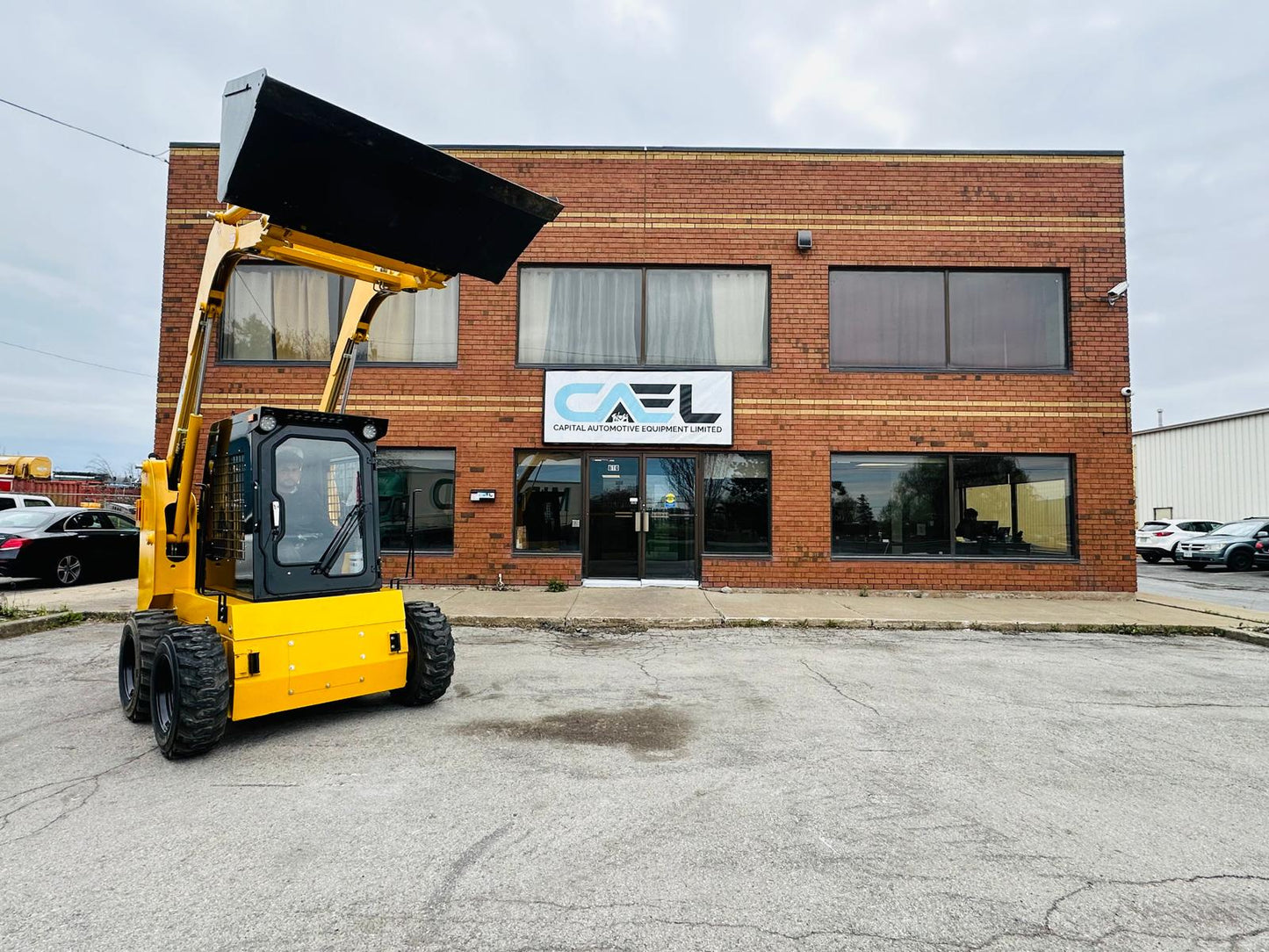

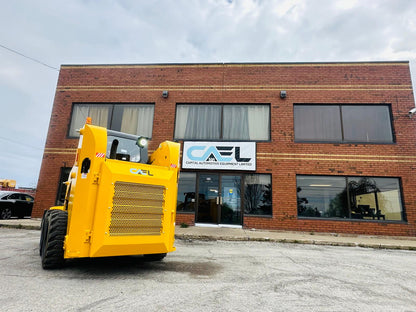

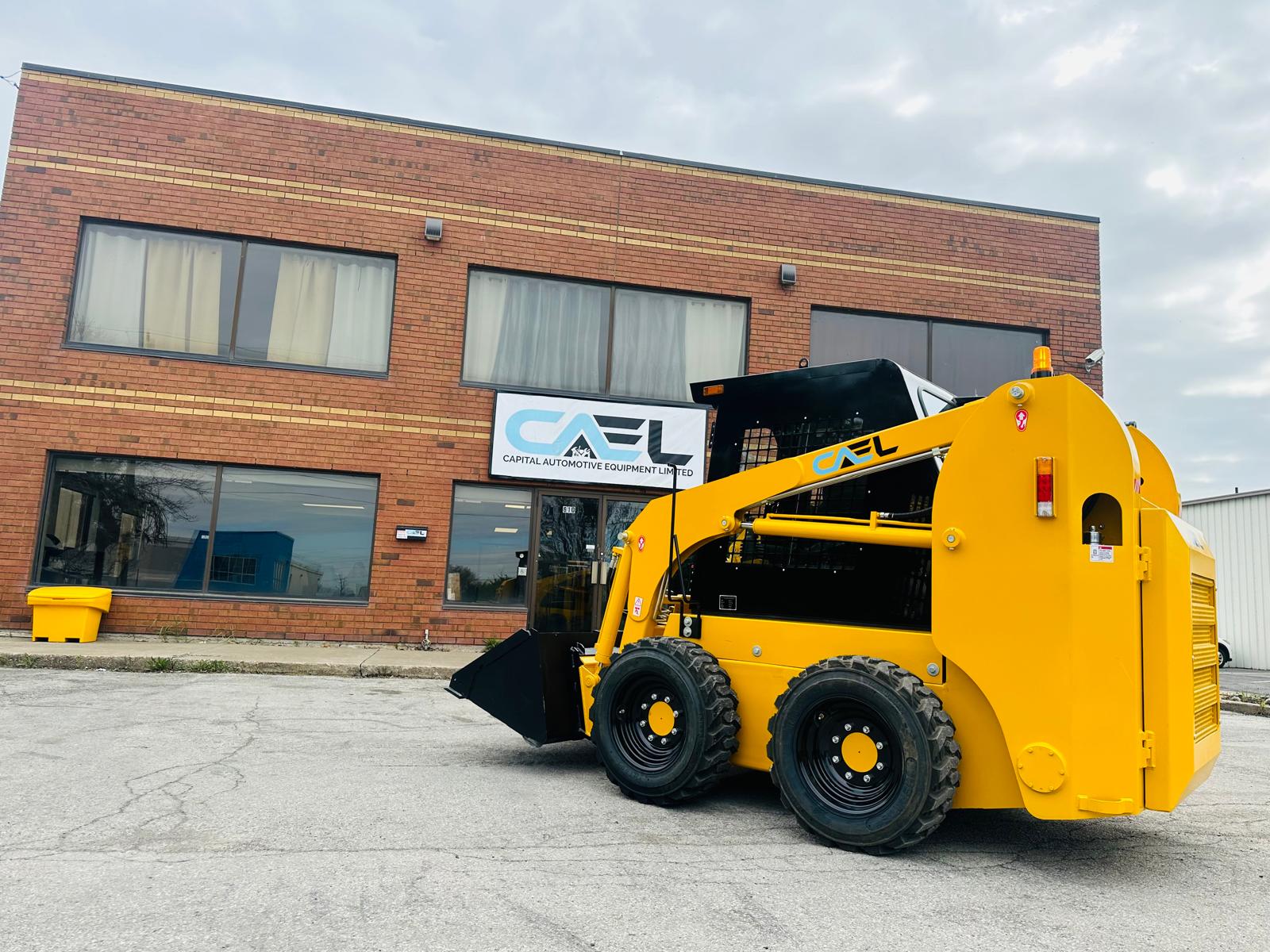

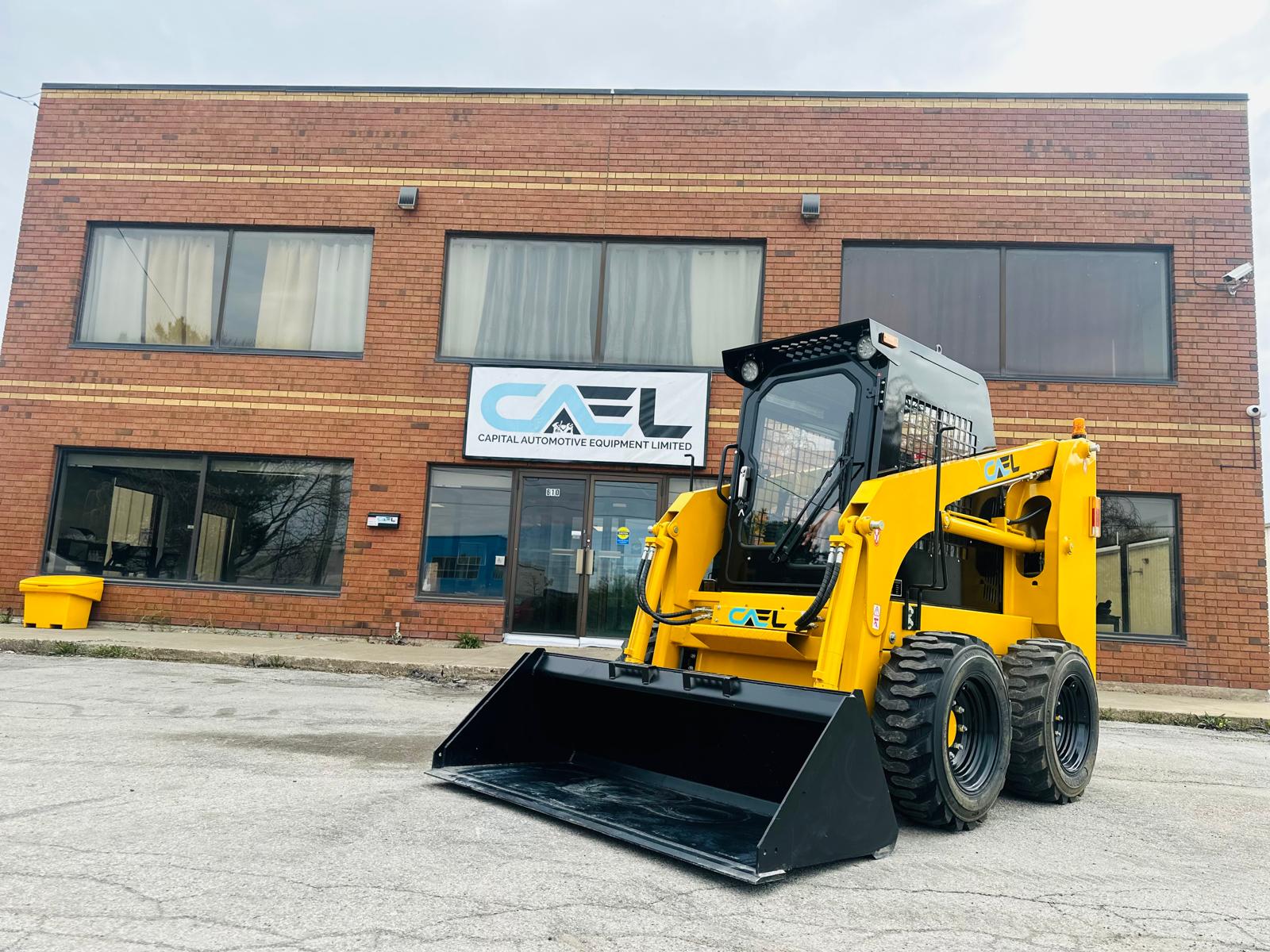

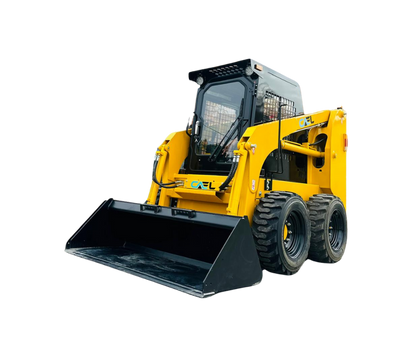

Built for demanding applications, this compact track loader delivers exceptional power, stability, and efficiency. Designed with a hydraulic pilot control system and enclosed cabin, it ensures smooth operation and operator comfort across construction, landscaping, and industrial jobs.
Hydraulic Pilot Operated Controls for Precision Handling

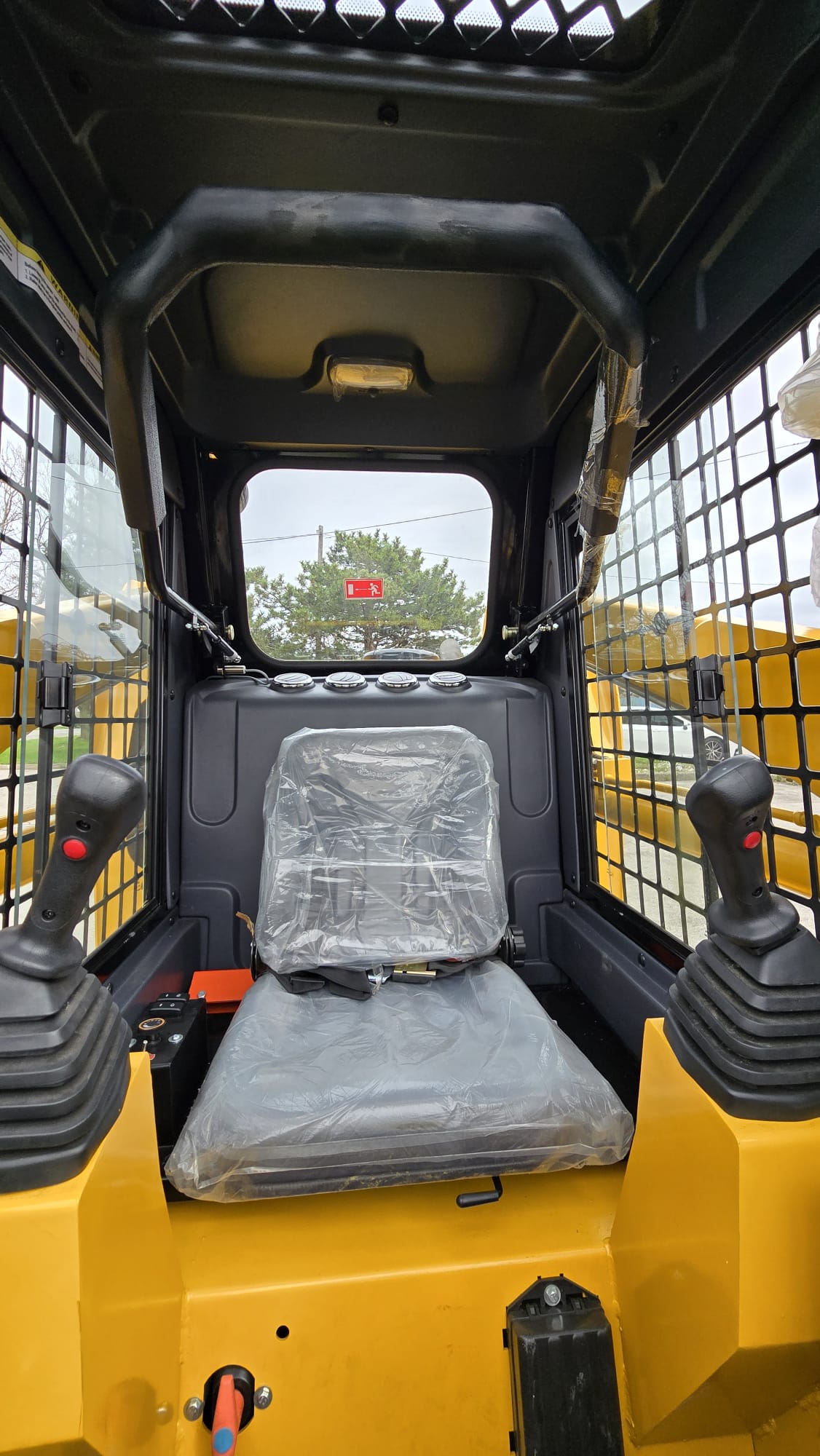

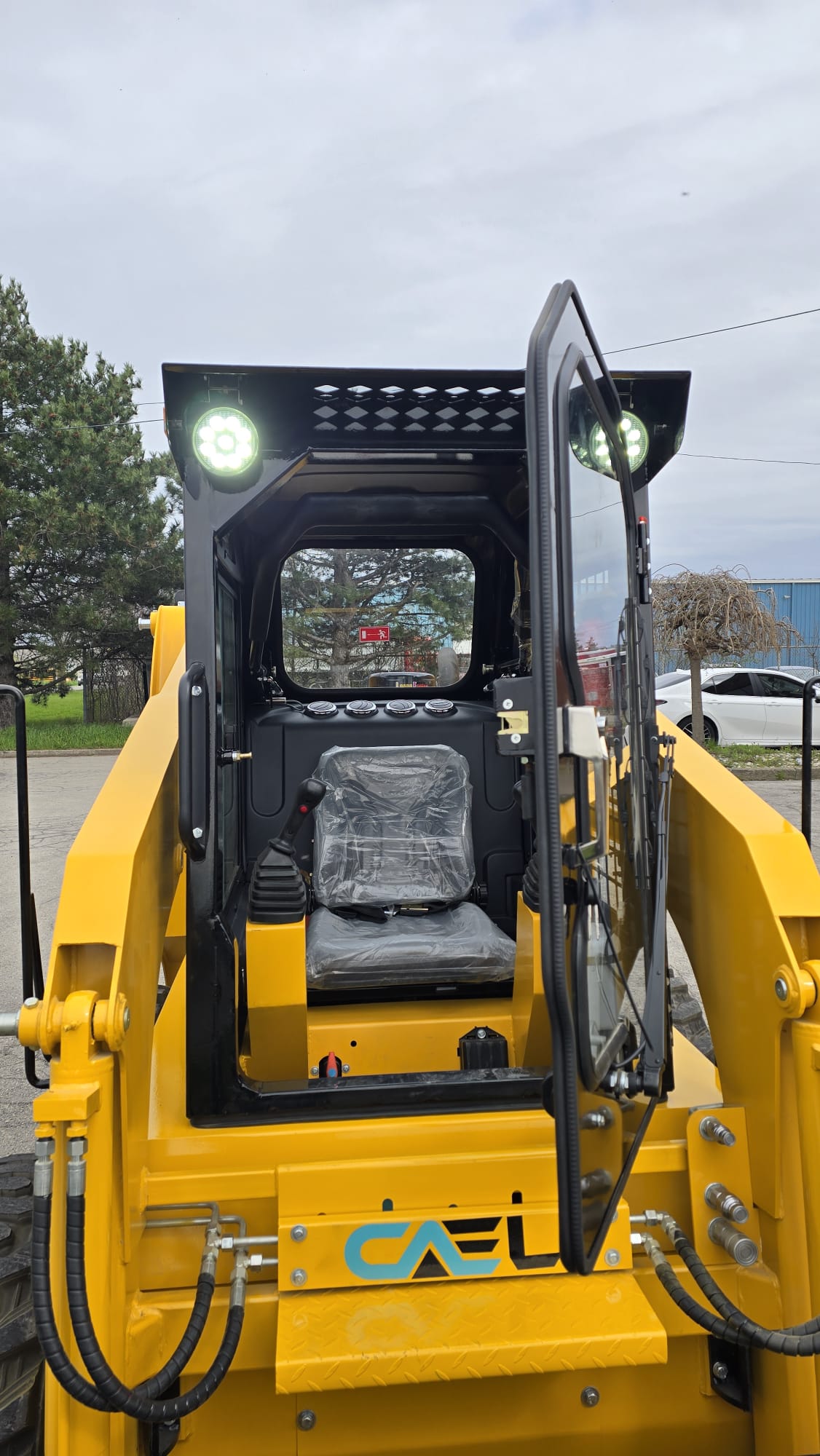

Enclosed Cabin for Enhanced Operator Comfort & Safety
Durable Track System for Superior Traction & Stability
High Lifting Capacity with Efficient Hydraulic Performance
Suitable for Construction, Agriculture, and Material Handling
Performance Specifications
Rated Operating Capacity: 1100 kg (2425 lbs)
Tipping Load: 2000 kg (4400 lbs)
Bucket Capacity: 0.5 m³
Lifting Force: 2730 kg (6000 lbs)
Hydraulic Pump Flow: 75 L/min
Engine Power: 75 HP
Operating Weight: 3800 kg (8378 lbs)
Max Travel Speed: 8 / 16 km/h
Gradeability: 20°
Track Size: 320 × 84 mm
Fuel Capacity: 80 L
Hydraulic Oil Capacity: 80 L
Dimensions
Overall Length (with Bucket): 3500 mm (137.8 in)
Overall Length (without Bucket): 2750 mm (108.3 in)
Overall Width (with Bucket): 1782 mm (70.2 in)
Track Width: 1462 mm (57.6 in)
Wheelbase: 1500 mm (59.1 in)
Ground Clearance: 200 mm (7.9 in)
Working Range
Height at Maximum Extension: 3480 mm (137.0 in)
Hinge Pin Height: 2900 mm (114.2 in)
Total Height: 2150 mm (84.6 in)
Dumping Height: 2230 mm (87.8 in)
Maximum Reach: 715 mm (28.1 in)
Dumping Angle: 40°
Customization Options (Optional)
Low Temperature Cold Start: $600
Air Conditioning System: $1400
Cabin Heating System: $500
Warranty
2 Years Warranty on Engine
1 Year Warranty on All Parts
This compact track loader offers a perfect balance of power, precision, and durability, making it an ideal choice for professionals seeking dependable performance in tough working conditions.
