Description
SPECIFICATION
Engine: Perkins EURO 5 engine

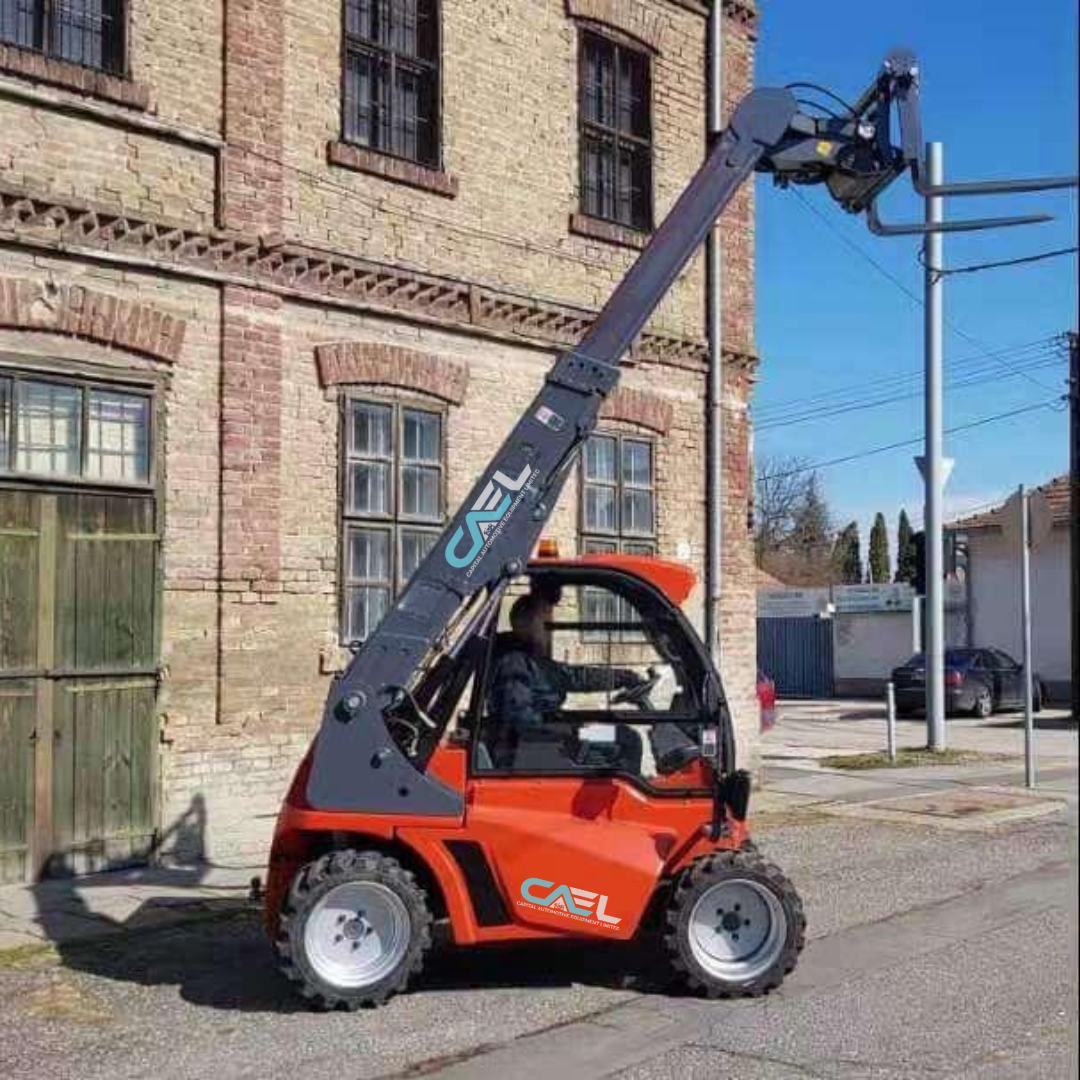

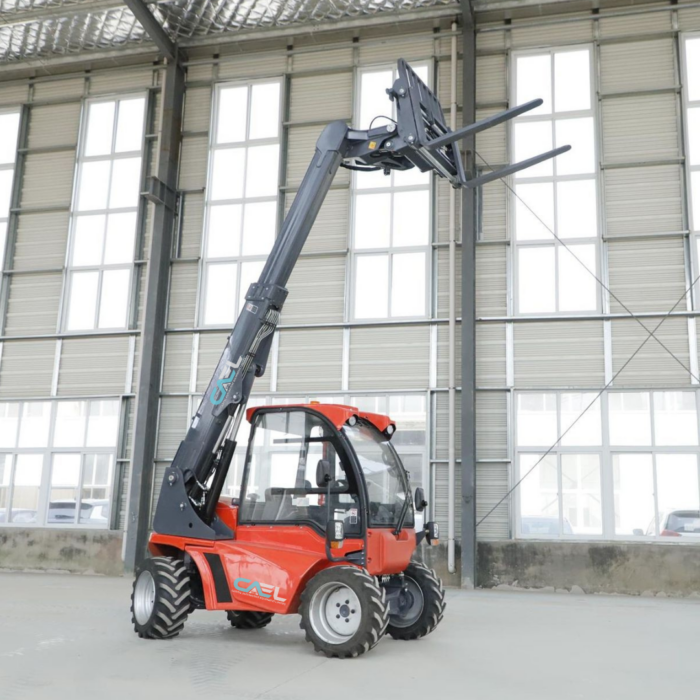

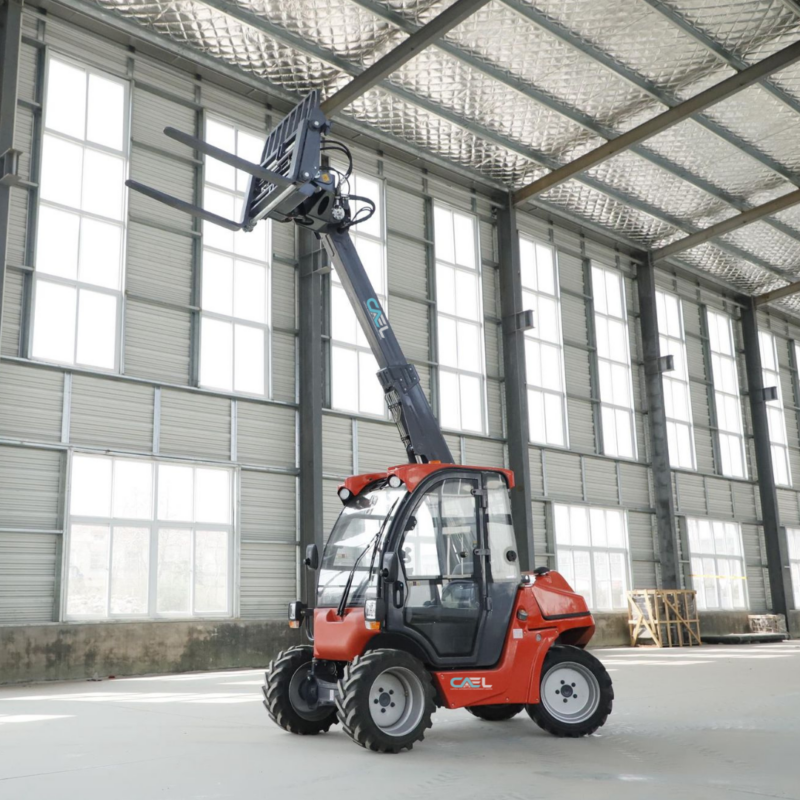

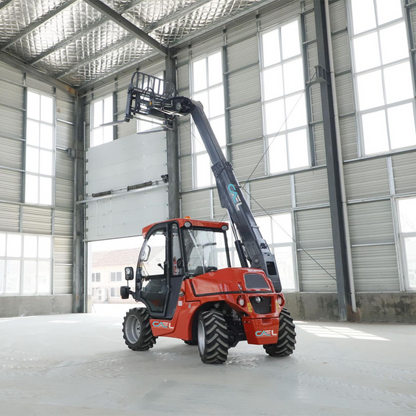

Model: CAEL1500
Engine Type: In-line arrangement, water-cooled, three-cylinder diesel
engine
Rated Power: 18.4KW
Speed: 2200 r/min(rpm)
Fuel Consumption ration in
Standard working condition: 230g/kw.H
Transmission System
Bucket capacity:
Bucket Width:
Hydraulic Motor + 4 Wheel Drive Motors
Standard Bucket
Bucket type: 0.³ m3
Rated Width: 1588mm
Bucket Type: Standard
Rated Load: 1400 kg including attachment
Overall Dimensions
Overall length(bucket on ground): 3350mm
Overall Height: 1955mm
Overall width: 1588mm
Max. lifting Height: 4010mm
Operating Specifications
Steering system: Rear axle with hydraulic power steering
Min.turning radius: 3560mm
Driving system: Hydraulic Motor, Four Wheel Drive
Operating Weight:2800 KG
Max. Driving Speed:18km/h
Other: Quick Coupling System: Joystick : Self-levelling
Brake System
Service Brake: Hydraulic Oil Cutting-Off Brake
Parking Brake: Electrical Parking Brake
Tyre
Model: 26×12-16.5
Width: 275mm
Diameter: 658mm
Wheelbase: 1720mm
Track: 1150mm
System Pressure
Driving system:З5Мра : 46сс
Work system:24Mpa: 22L/min
