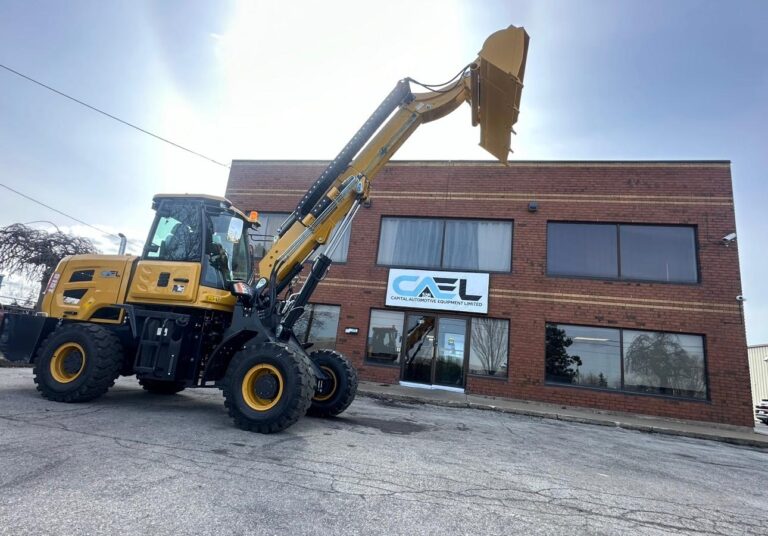

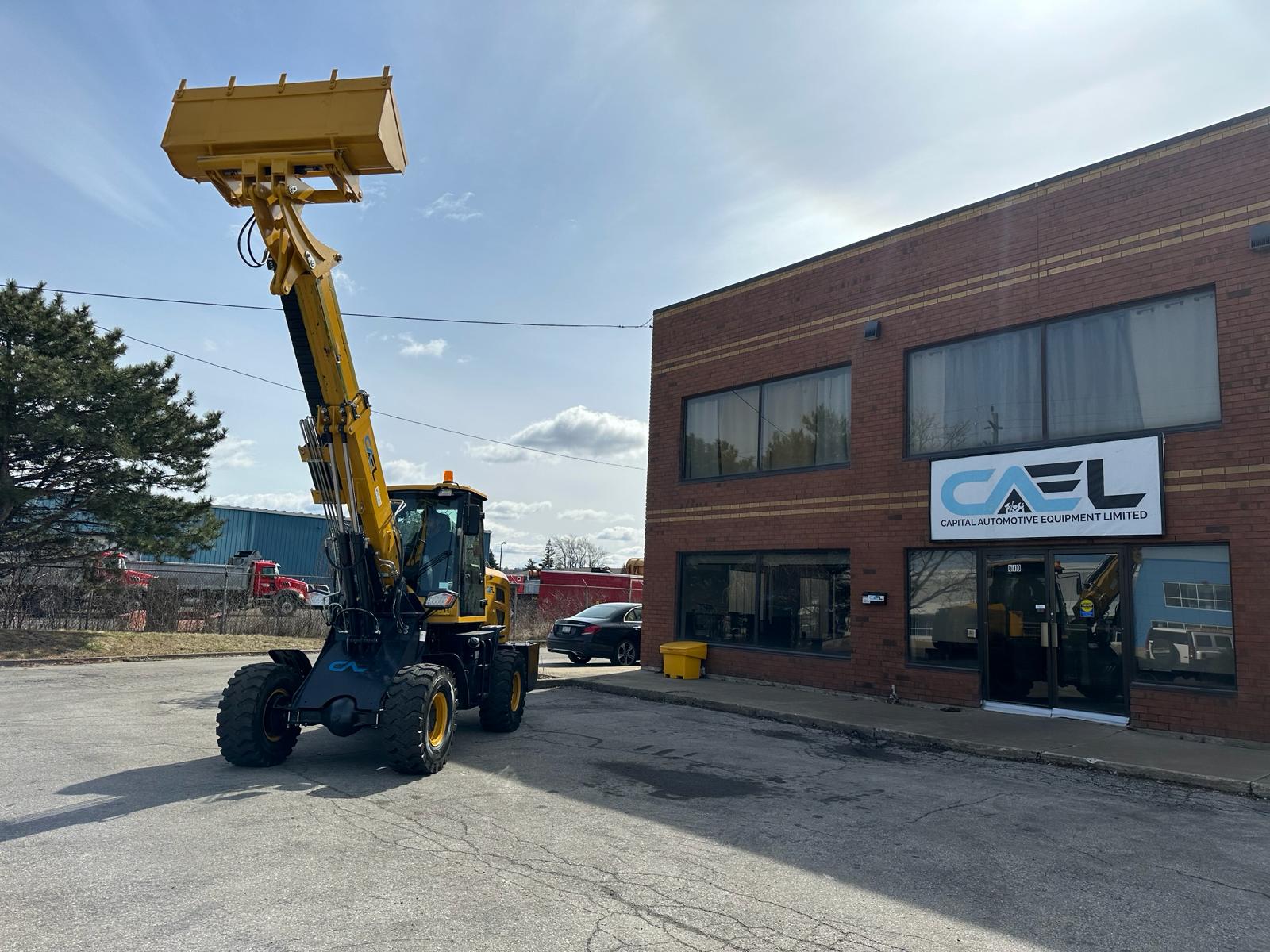

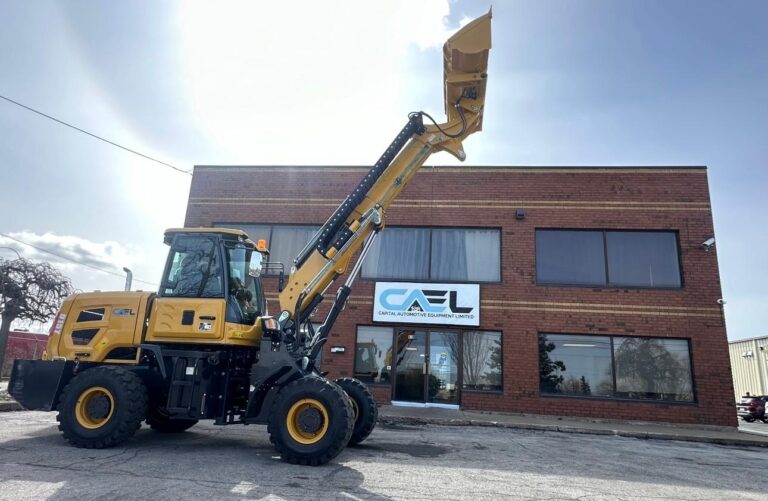

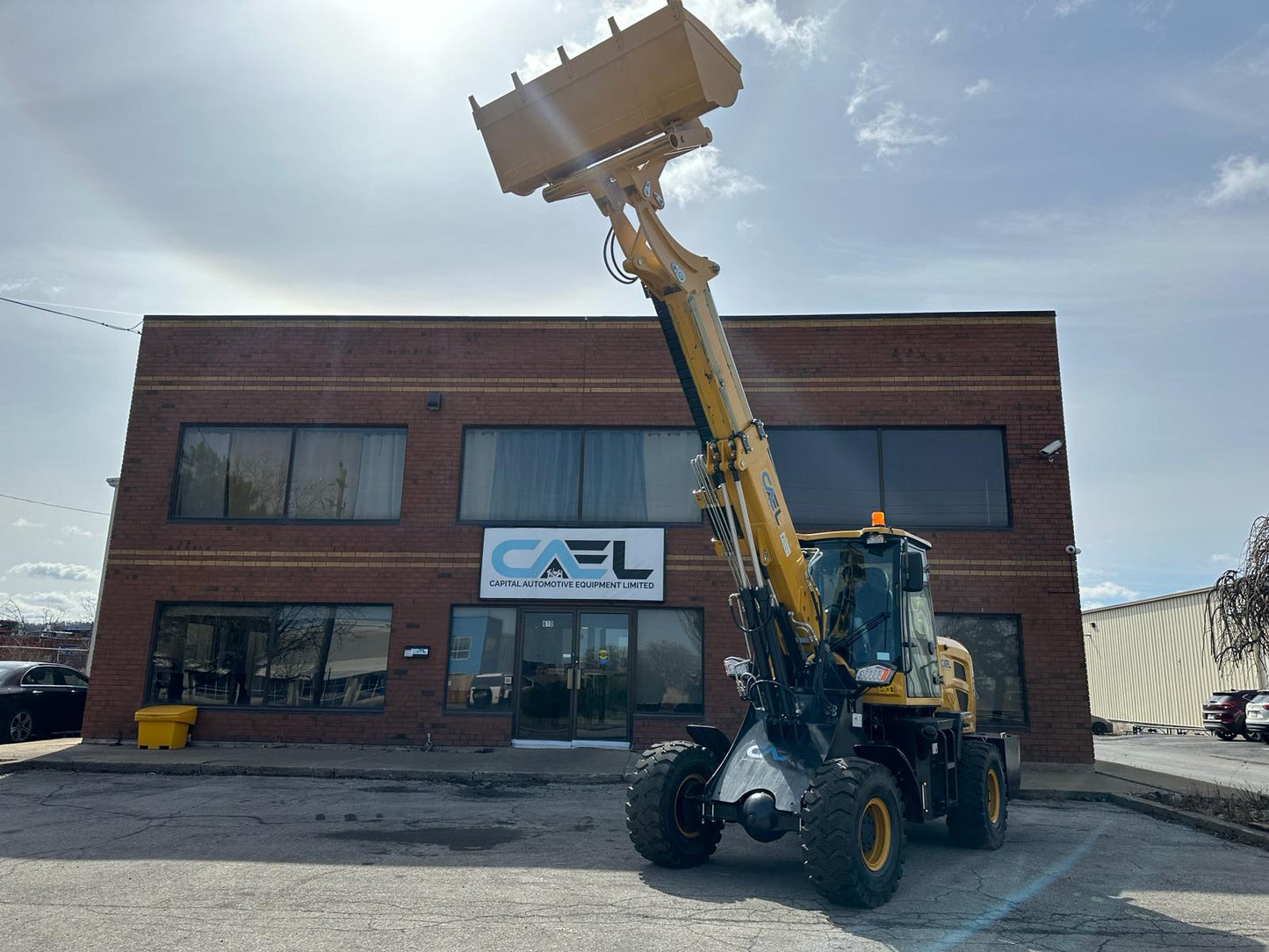

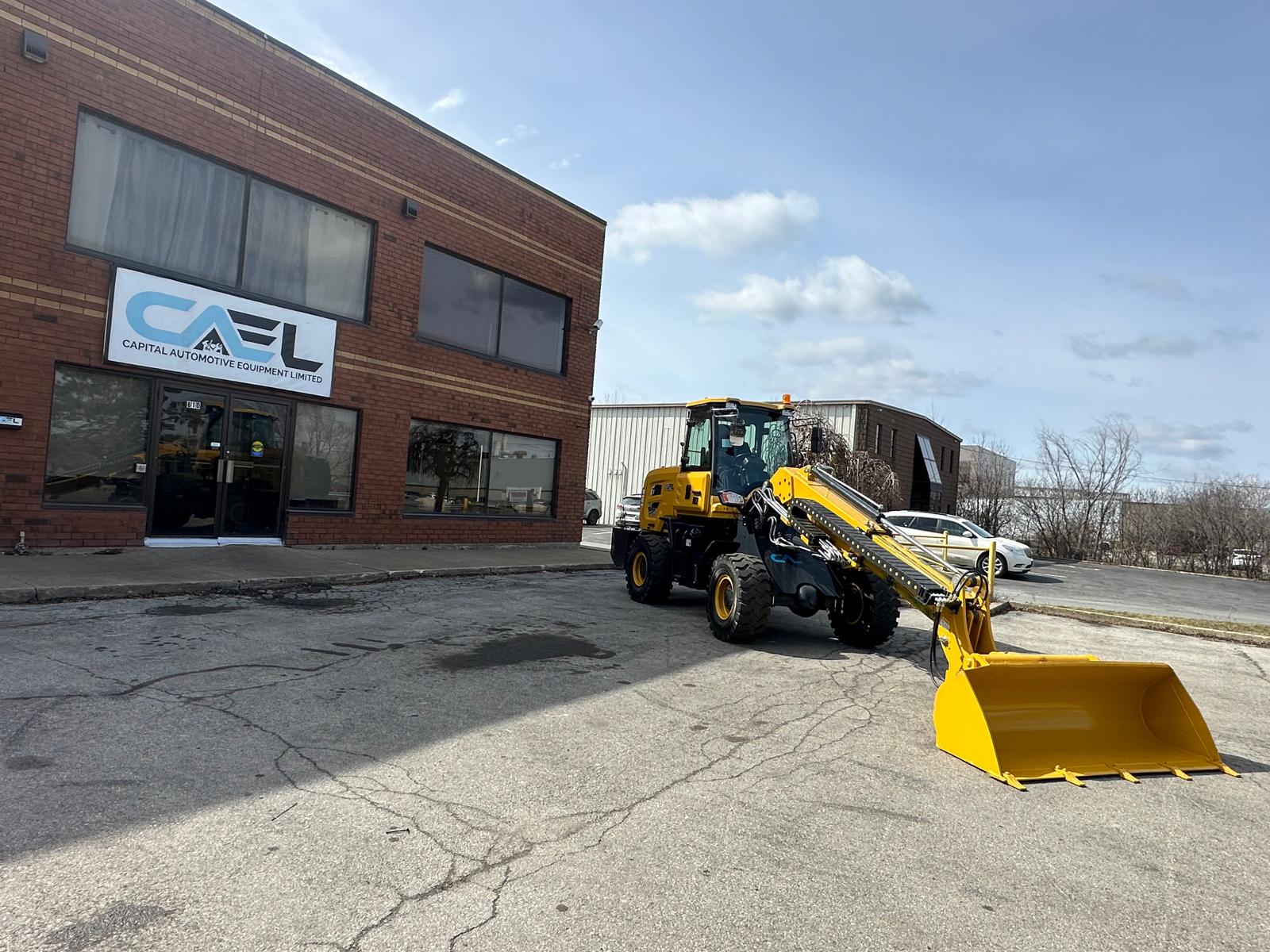

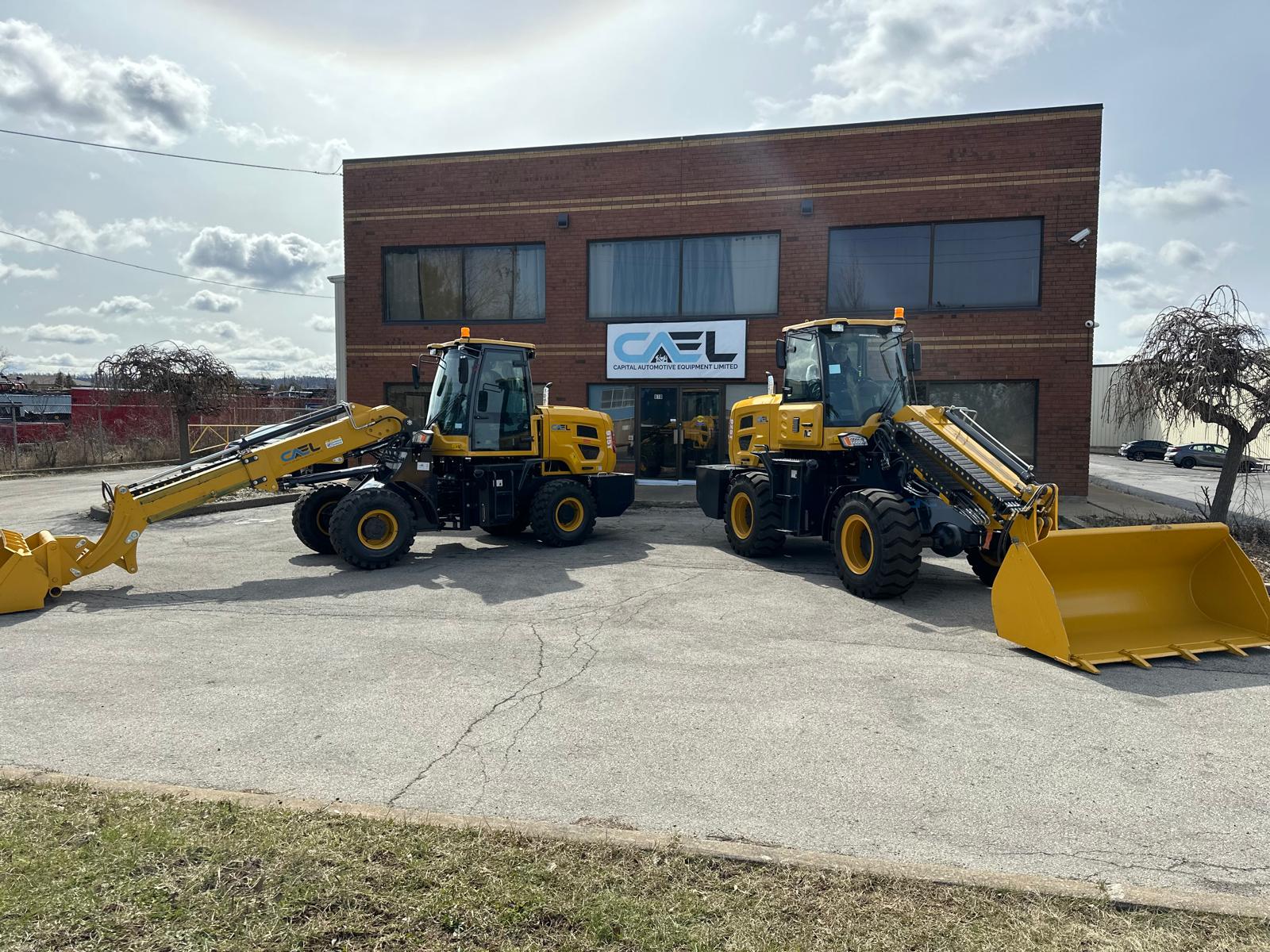

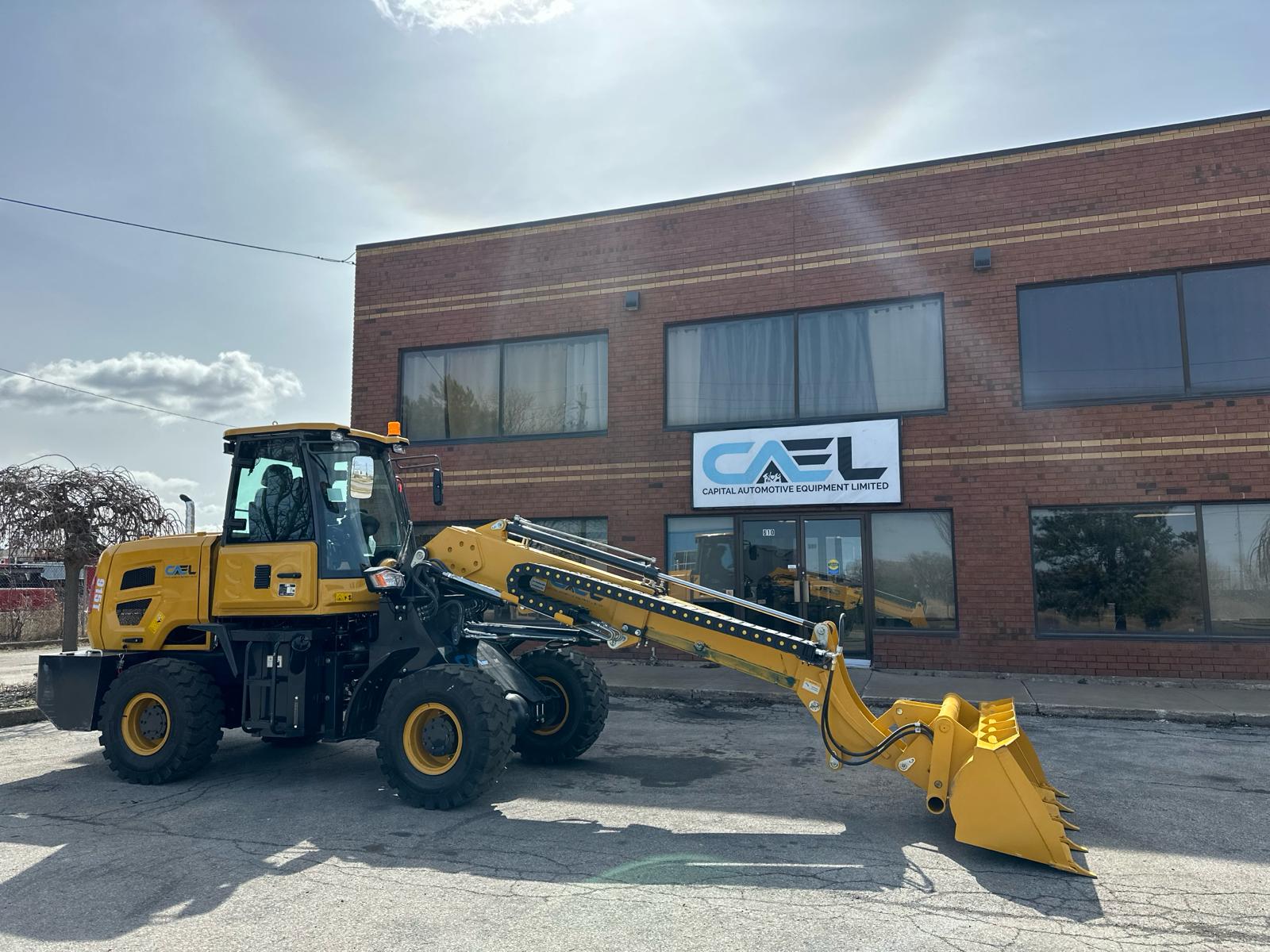

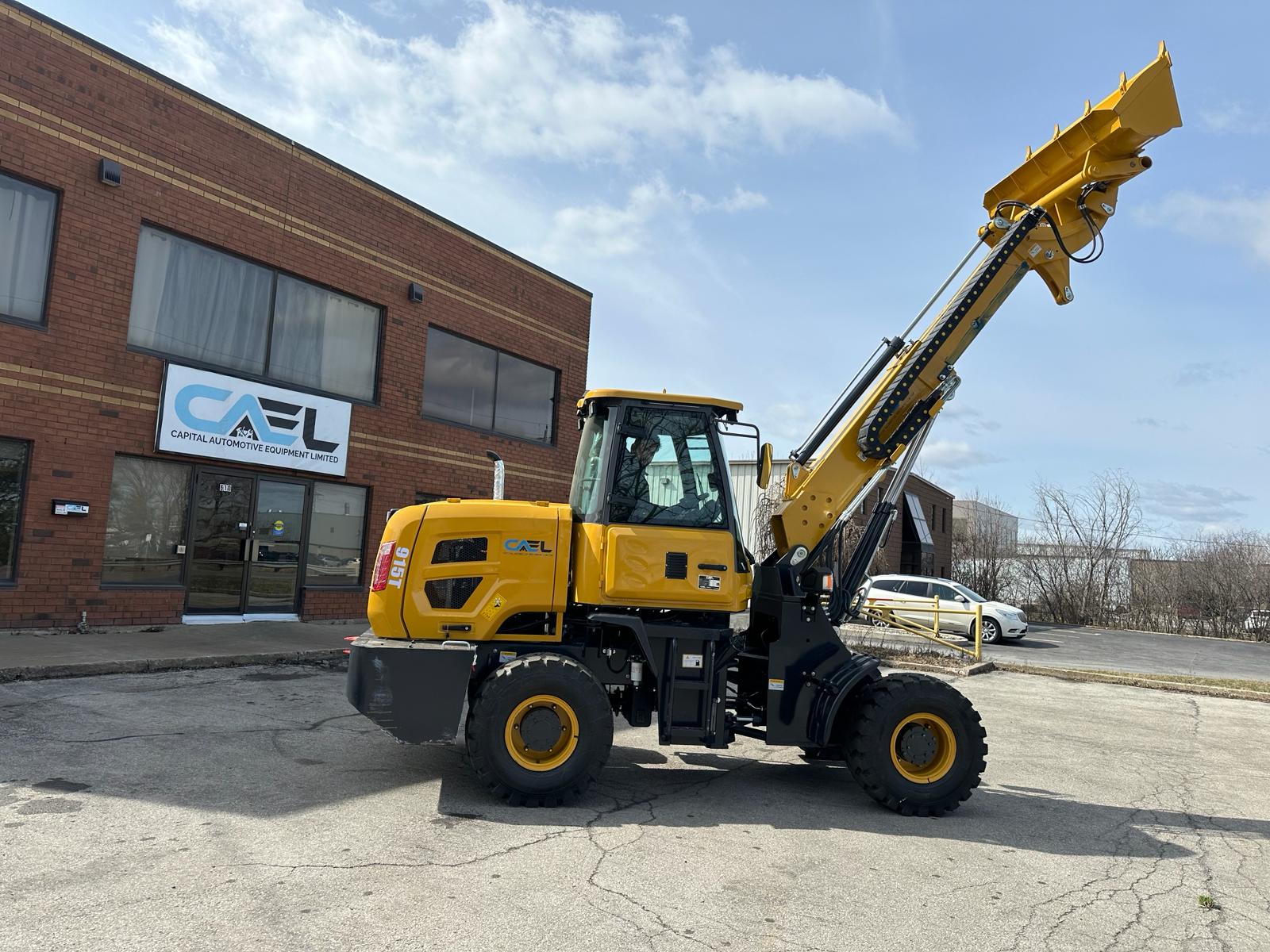

Description
1.0 Engine Details
– Model: Kohler
– Rated Power: 55KW
– Rated Speed: 2400 r/min(rpm)
– Fuel Consumption ration in Standard working condition:230g/kw.H
2.0 Transmission System
– Type: Fixed-spindle power shift
– Shift gear control oil pressure 1.2-1.6 MPa
– Rated input speed: 2500(rpm)
– Max.Breakout Force: 36.8KN
3.0 Bucket
– Bucket capacity: 0.6m3
– Bucket Width: 2000mm
– Bucket type: Heavy-duty bolt on teeth
– Rated load: 1500kg
– Operating Weight 3307kg
4.0 Overall Dimensions
– Overall length(bucket on ground) 5832mm
– Overall Height 2619mm
– Dumping height: 3777mm
– Lifting height: 4232mm
– Overall width 1700mm
5.0 Operating Specifications
Steering system: Articulated frame with hydraulic power
steering
– Min.turning radius: 2400mm
– Max.turning radius: 4145mm
– Driving system: Hydraulic converter
6.0 Brake System
– Service Brake Four wheel hydraulic spread-shoed brake
– Parking Brake Hand operated
7.0 Tire 23.5/70-16 Tires / Ag Tires
8.0 Wheelbase 2317mm
Included:
Backup Camera
Skid Steer Quick Attach
Radio
