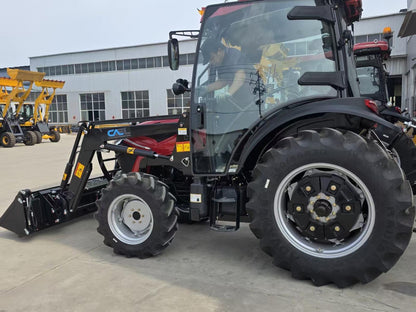

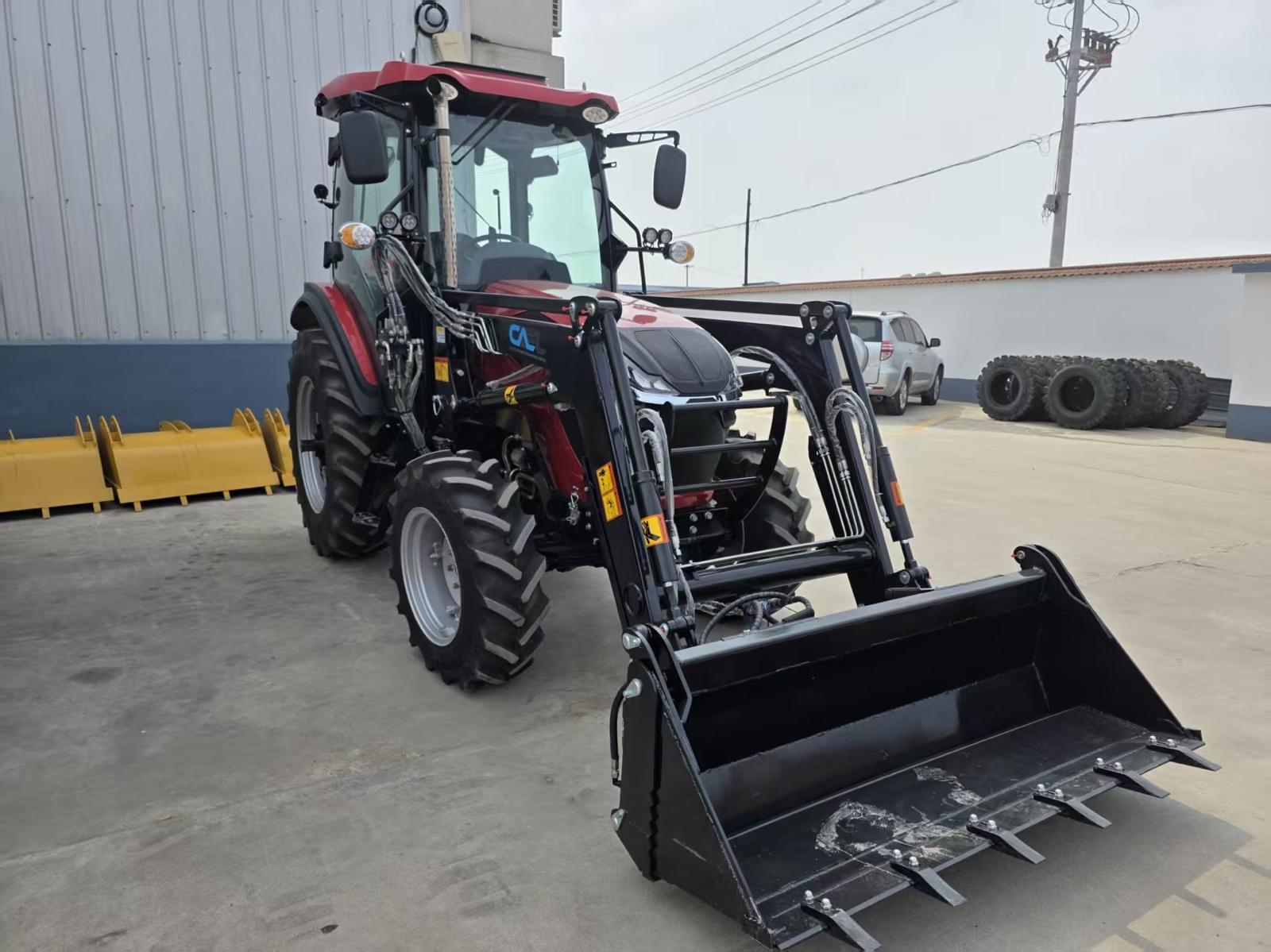

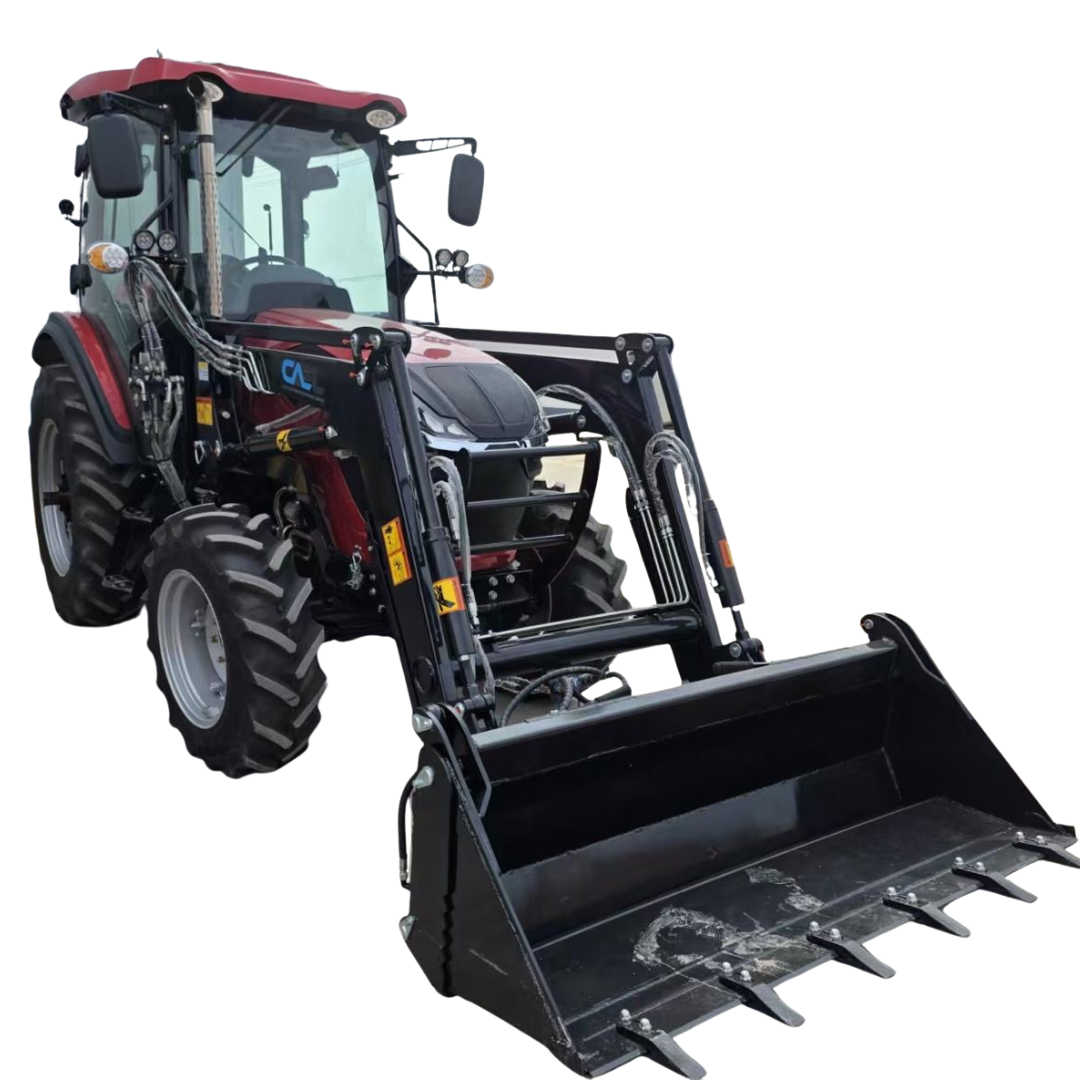

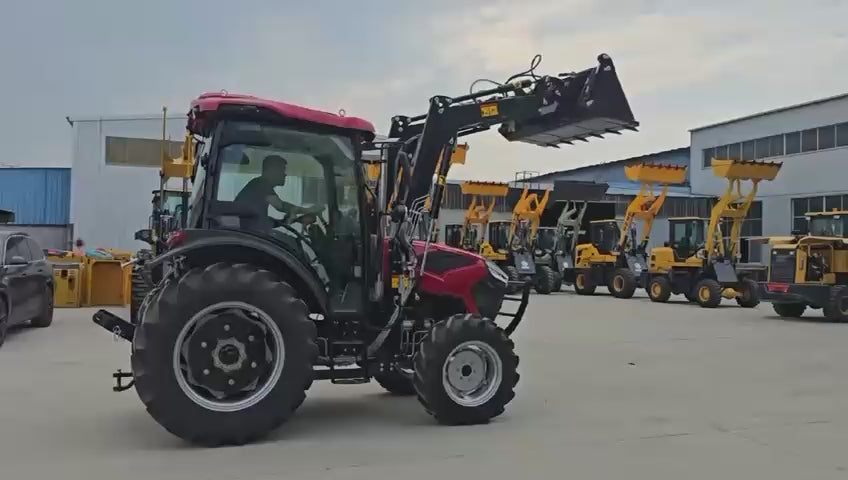

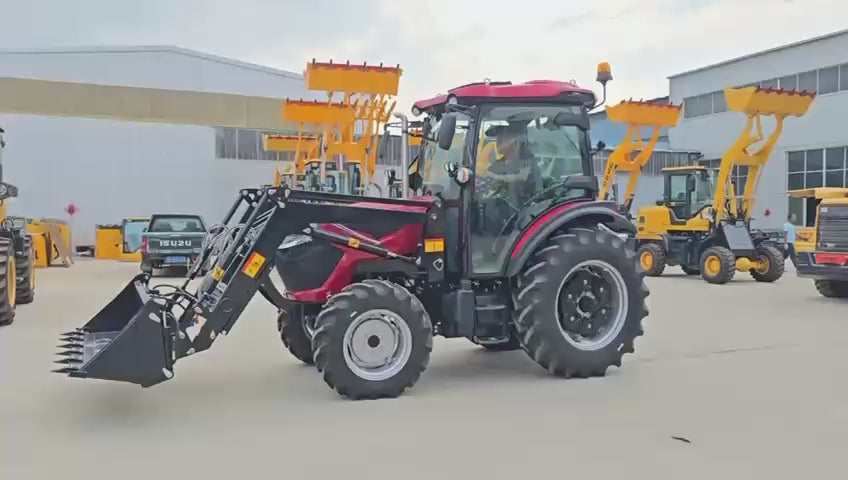

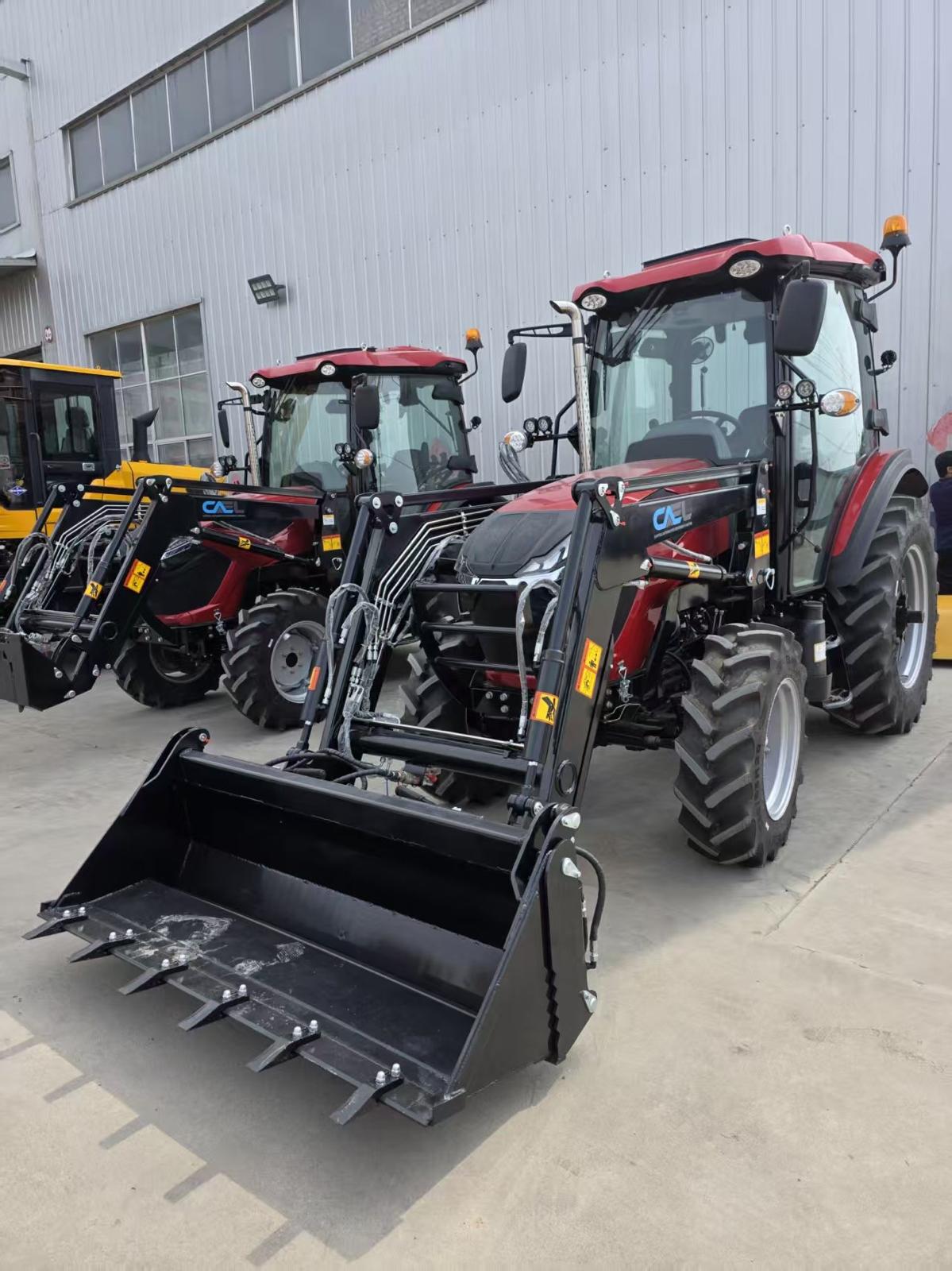

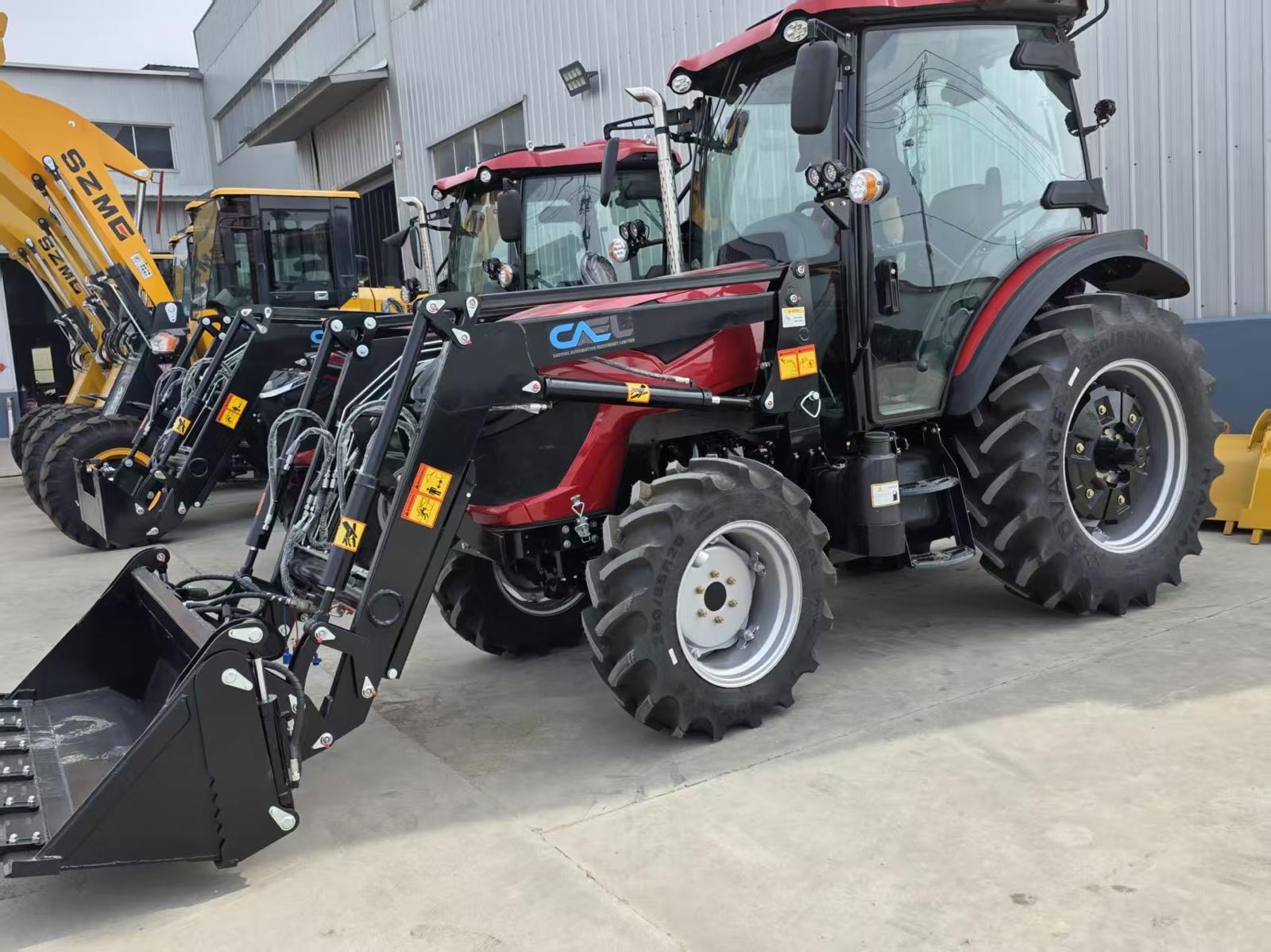

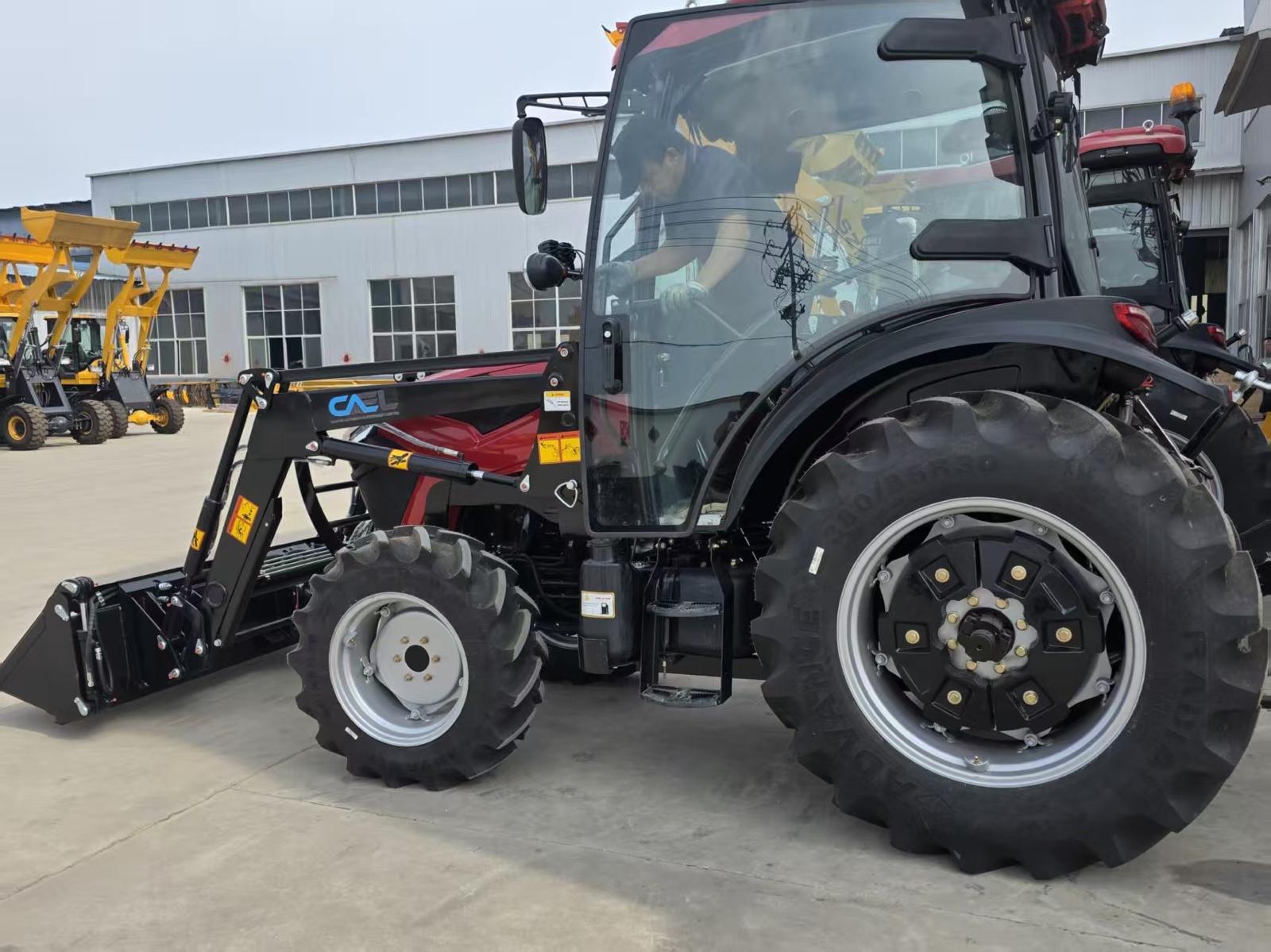

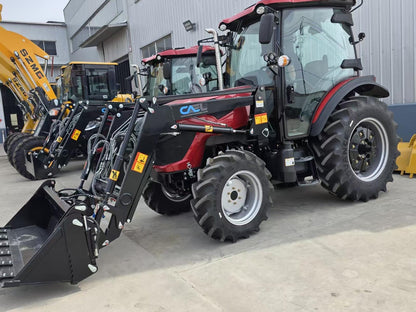

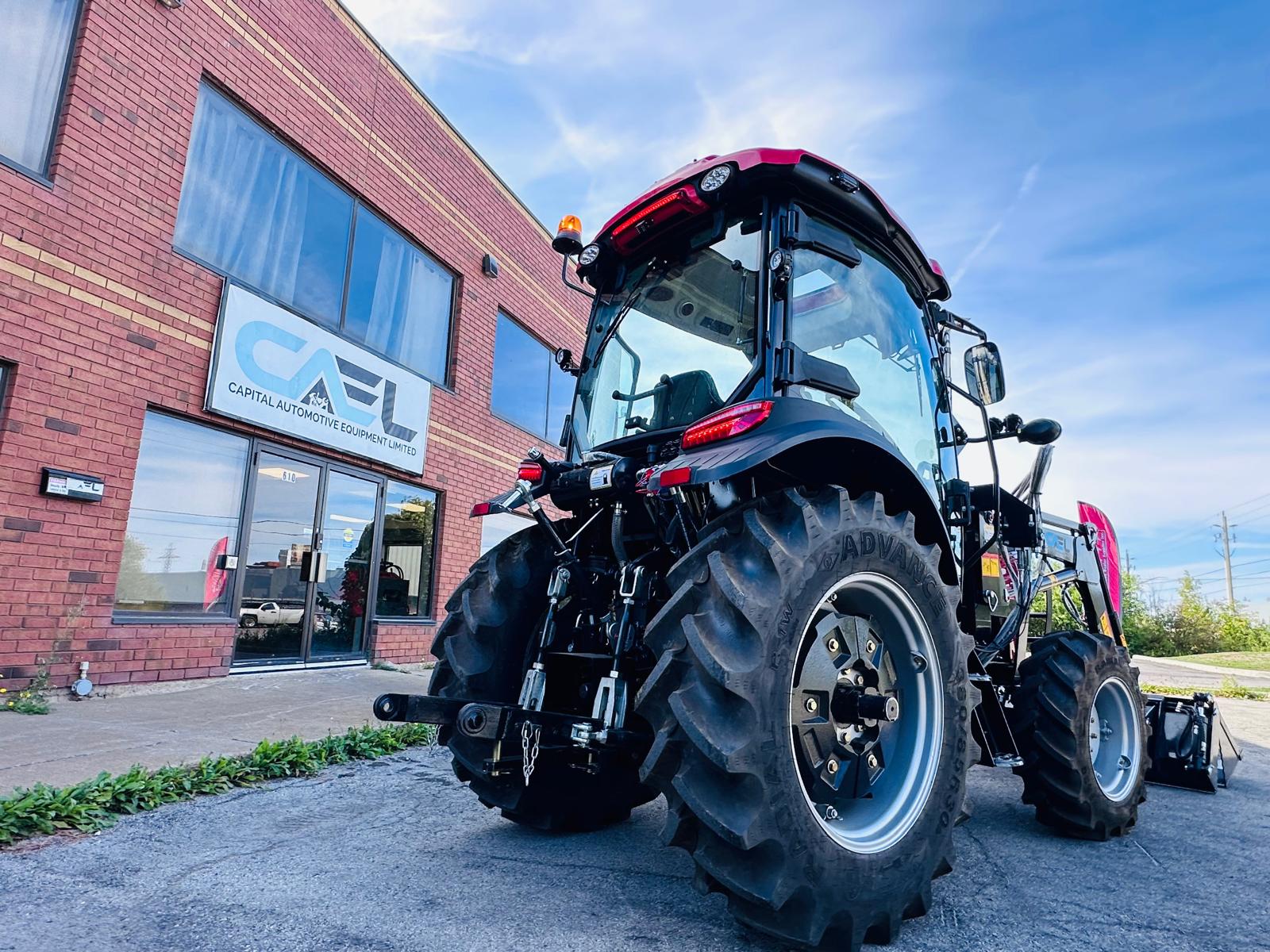

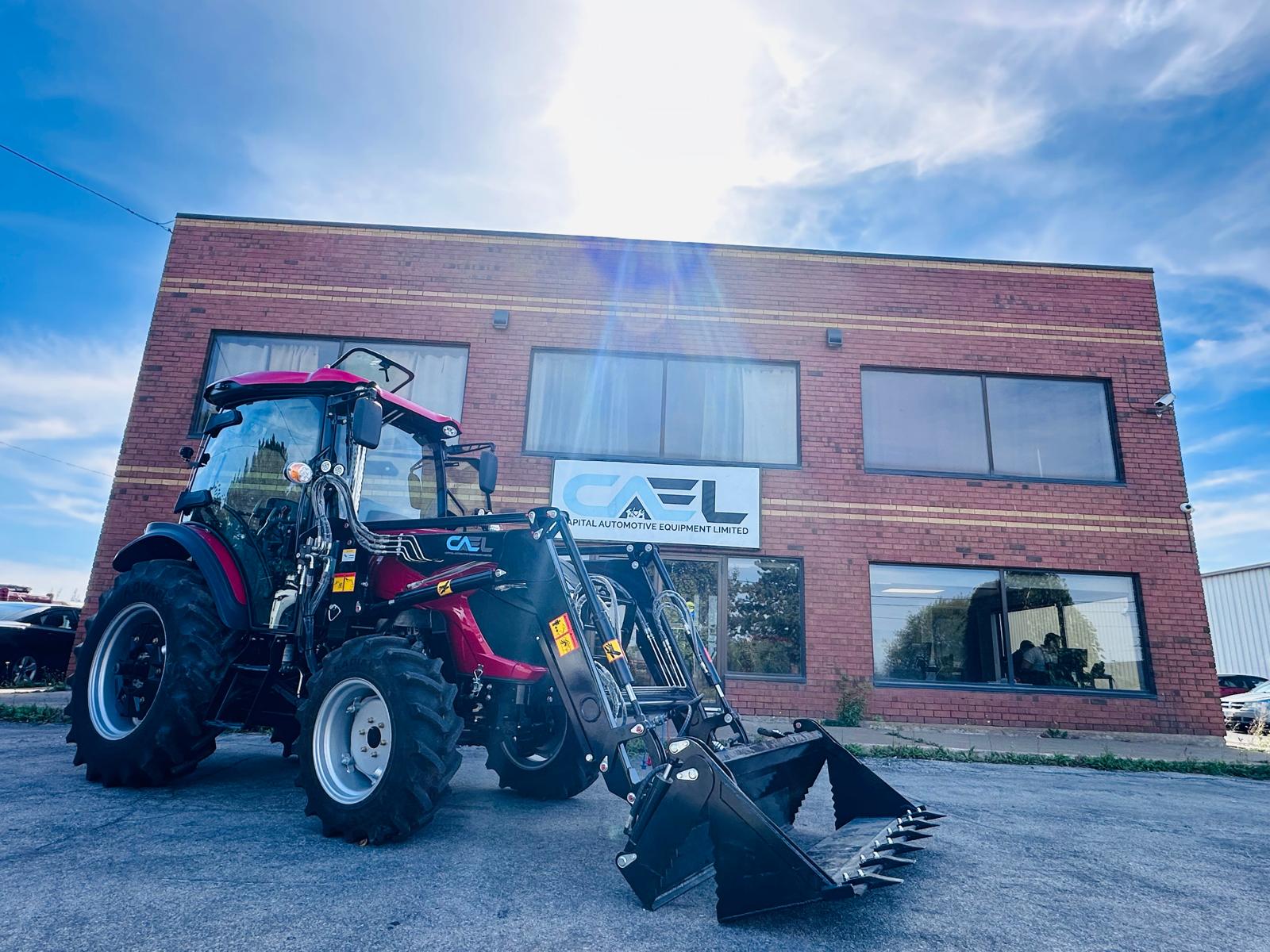

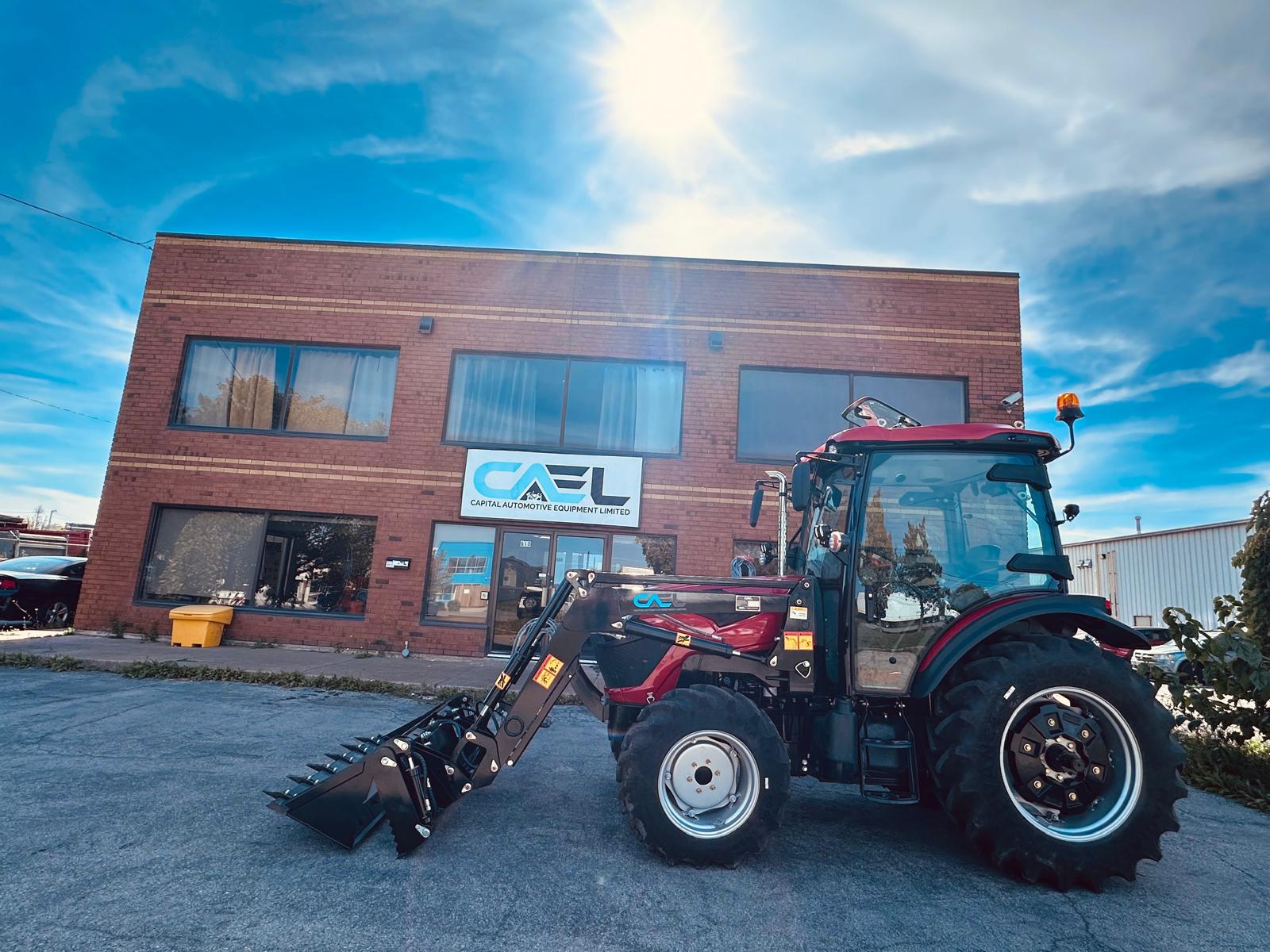

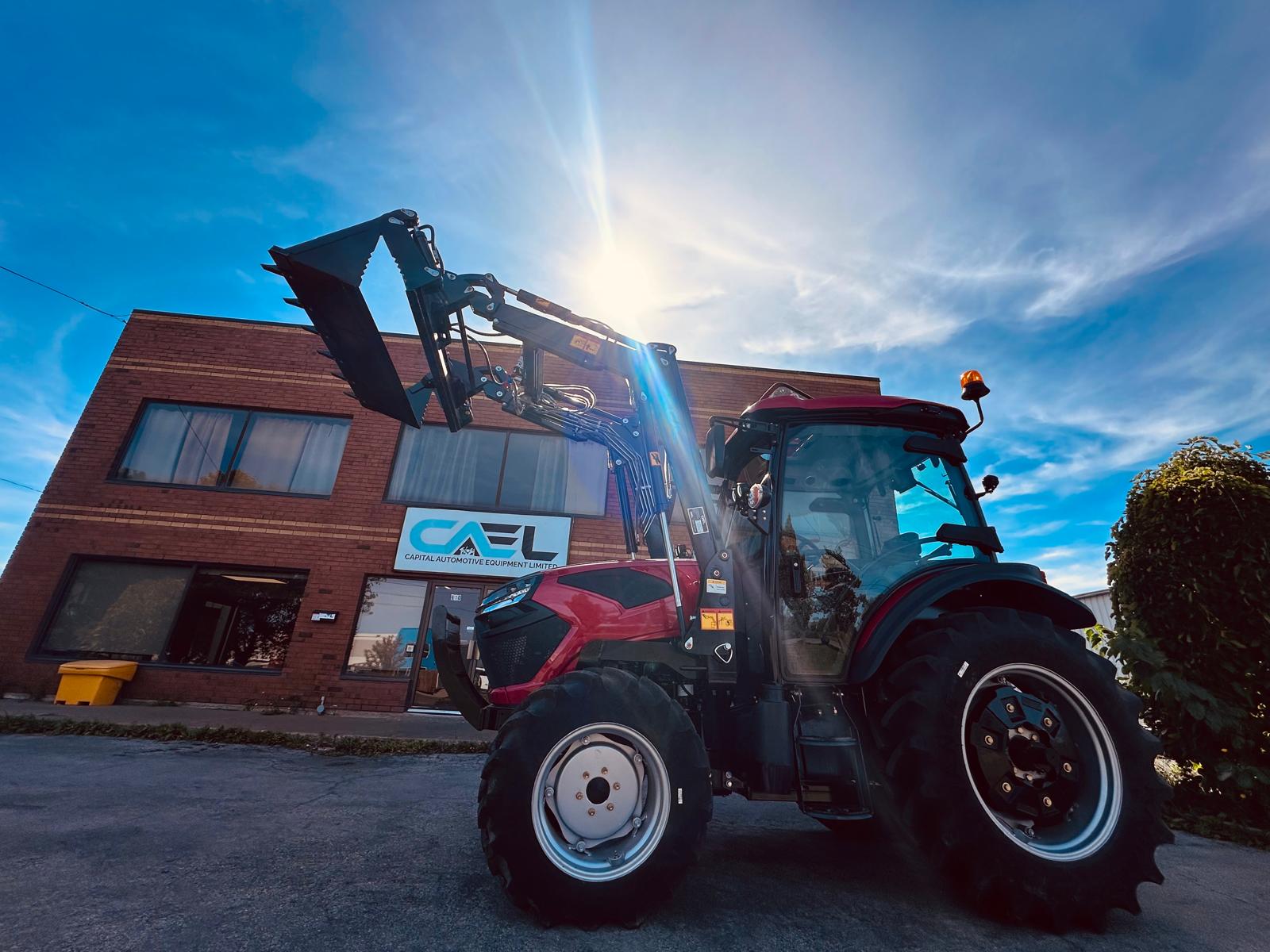

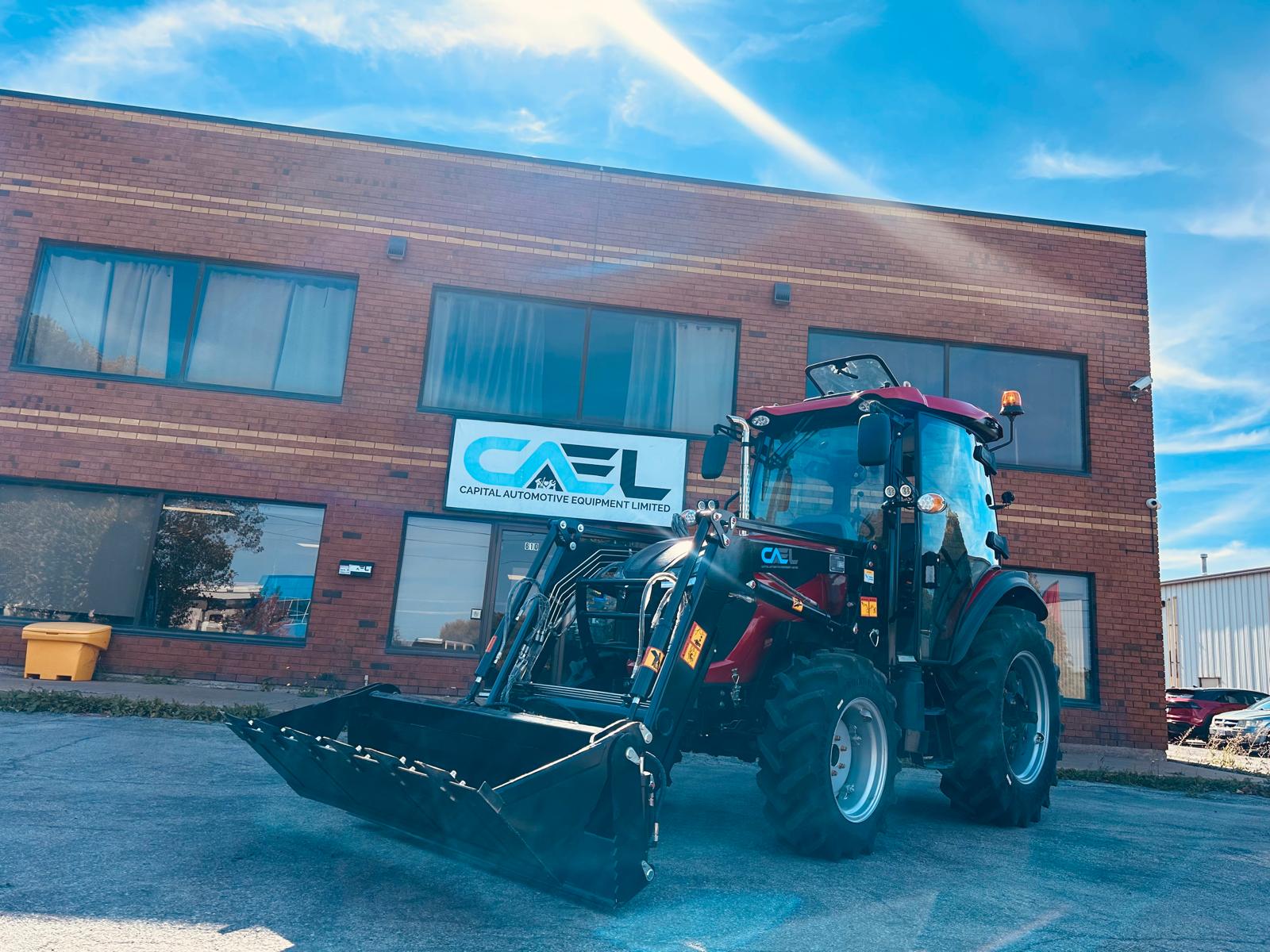

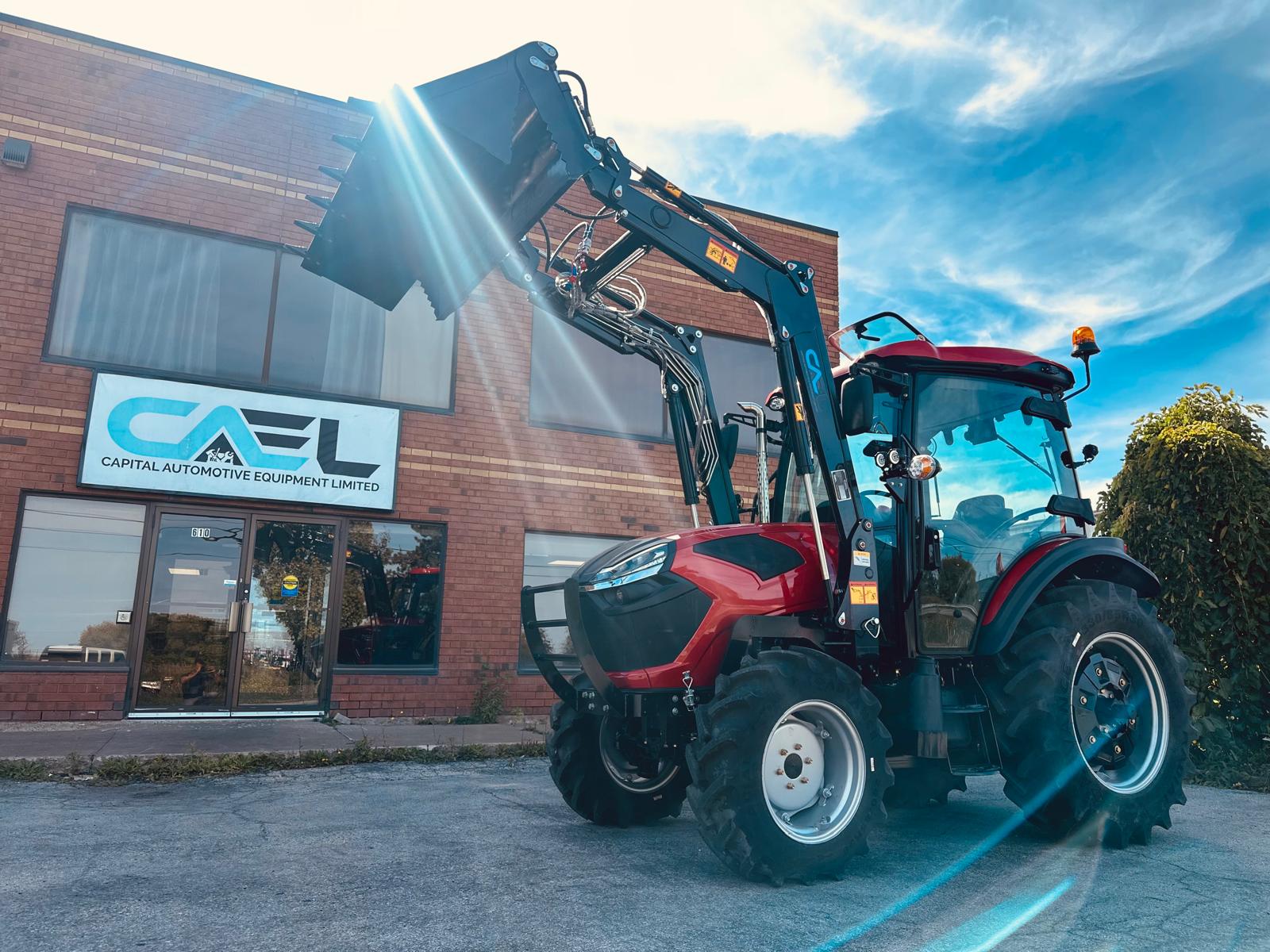

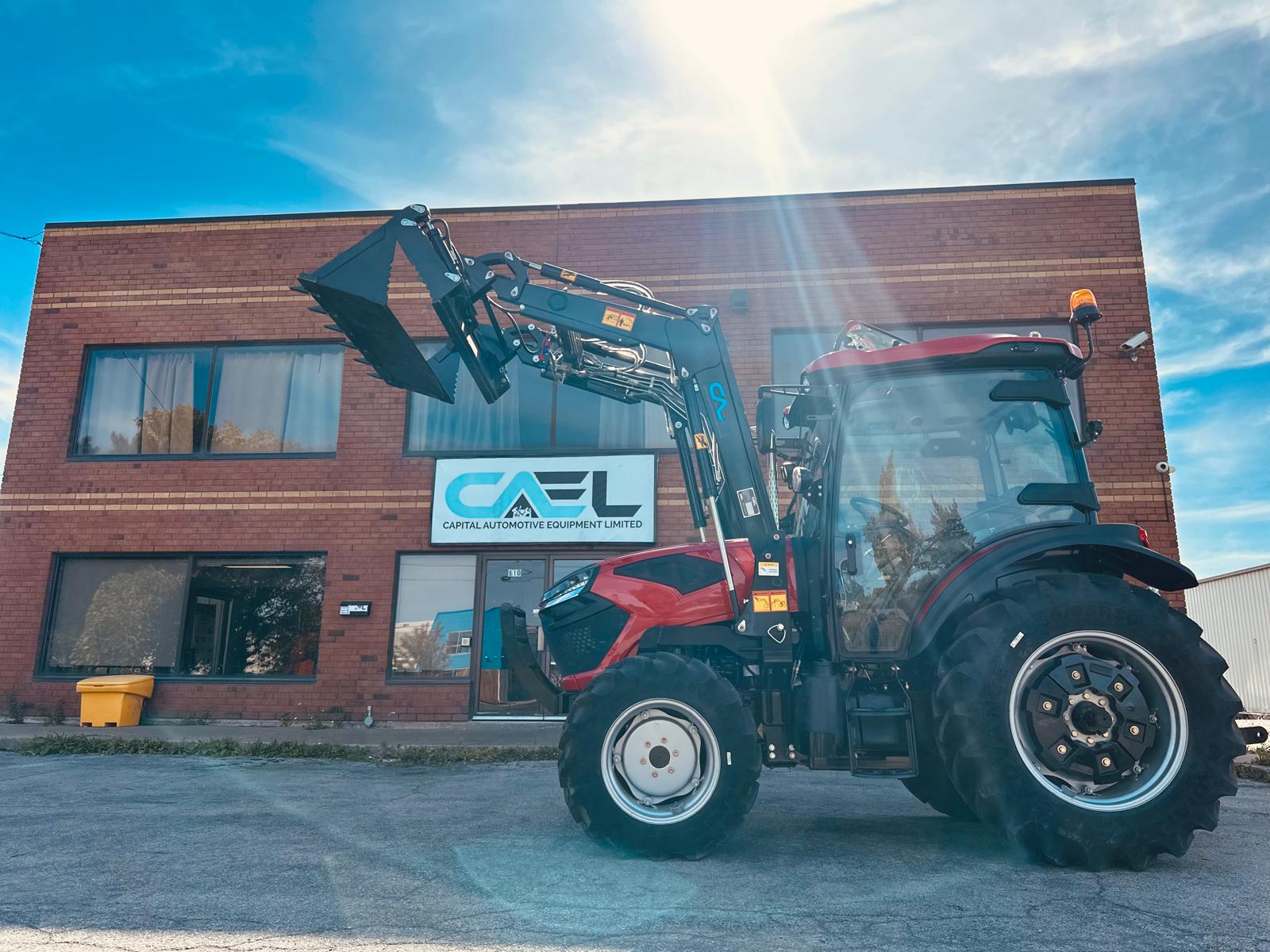

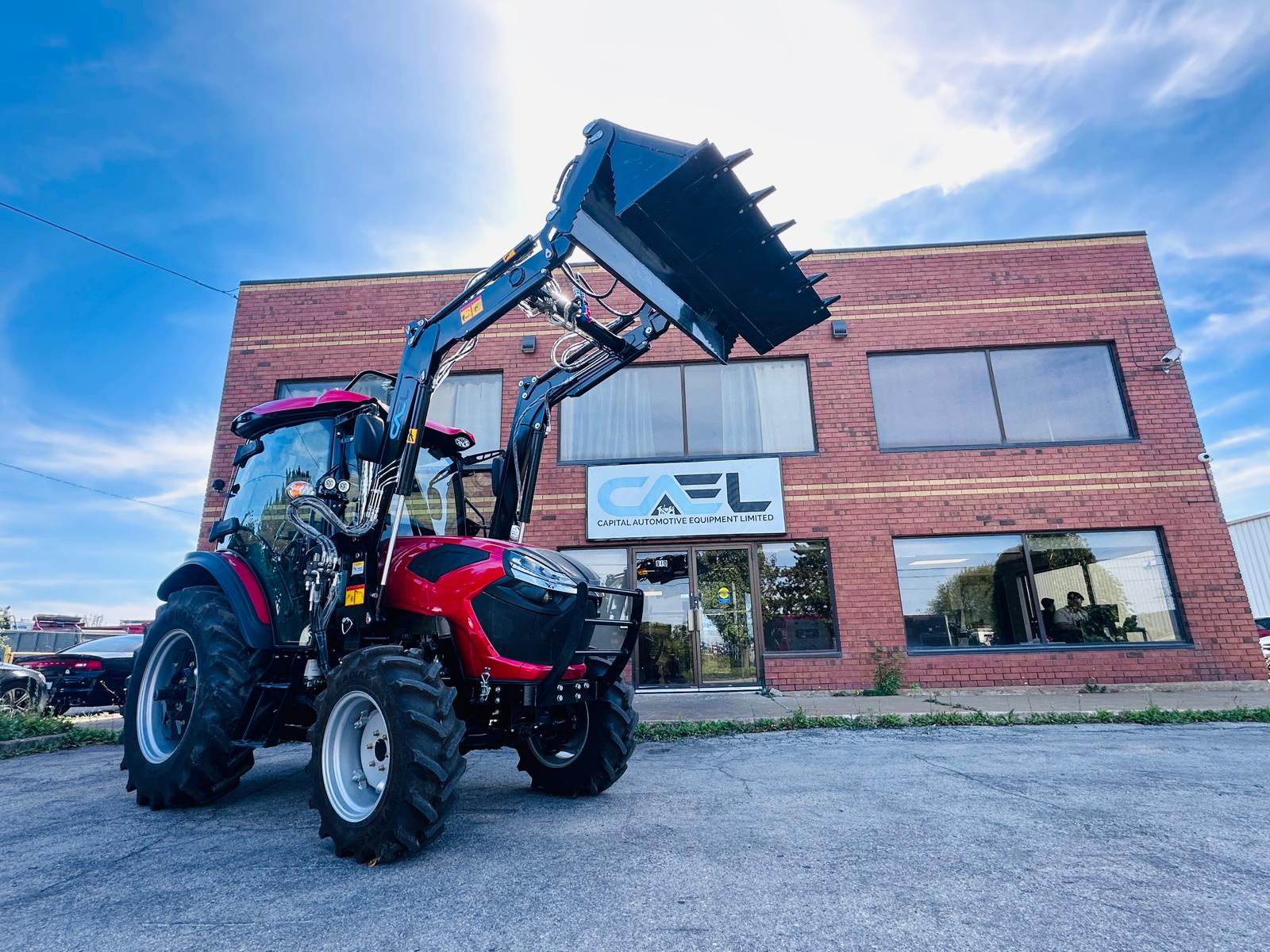

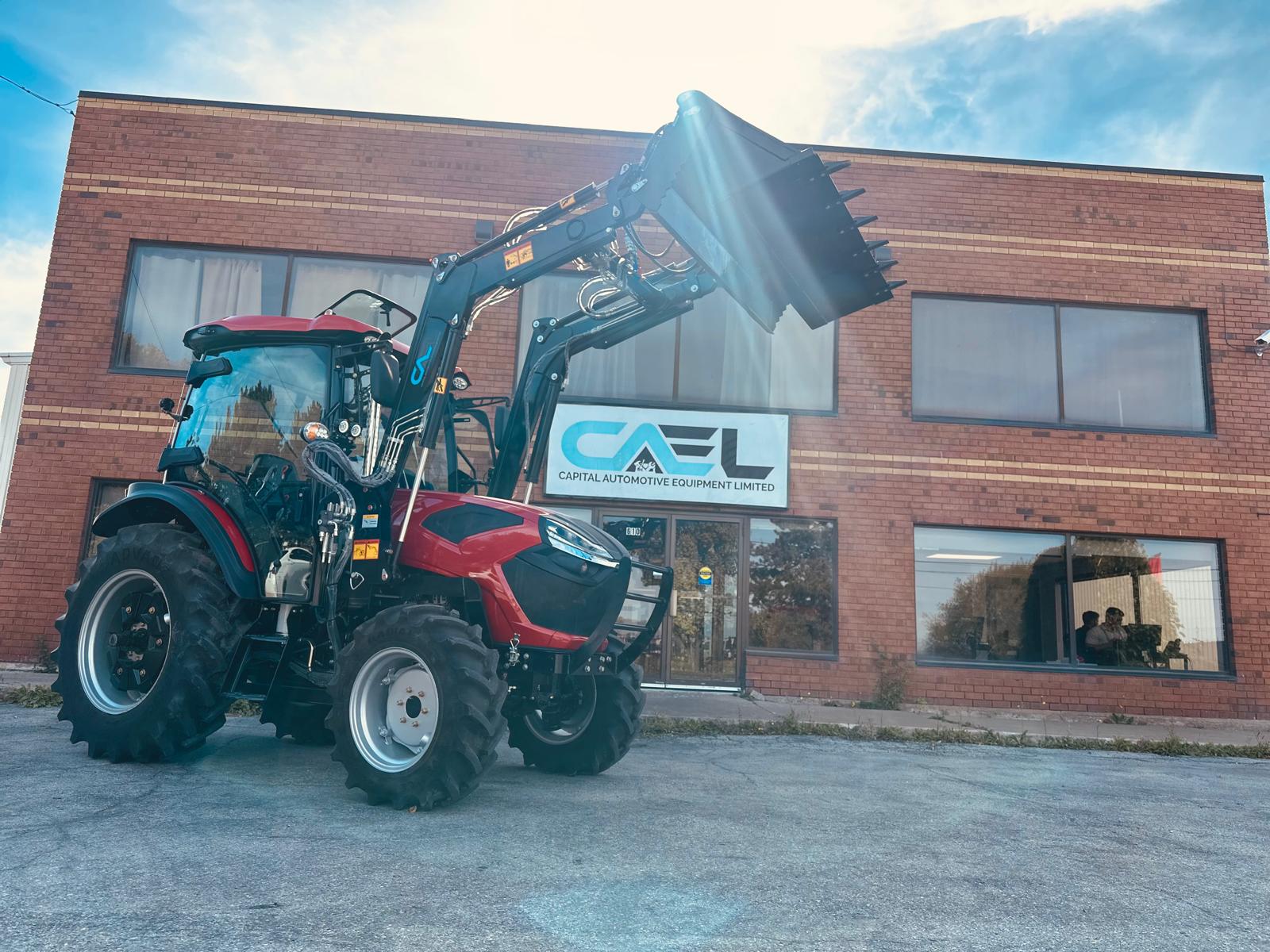

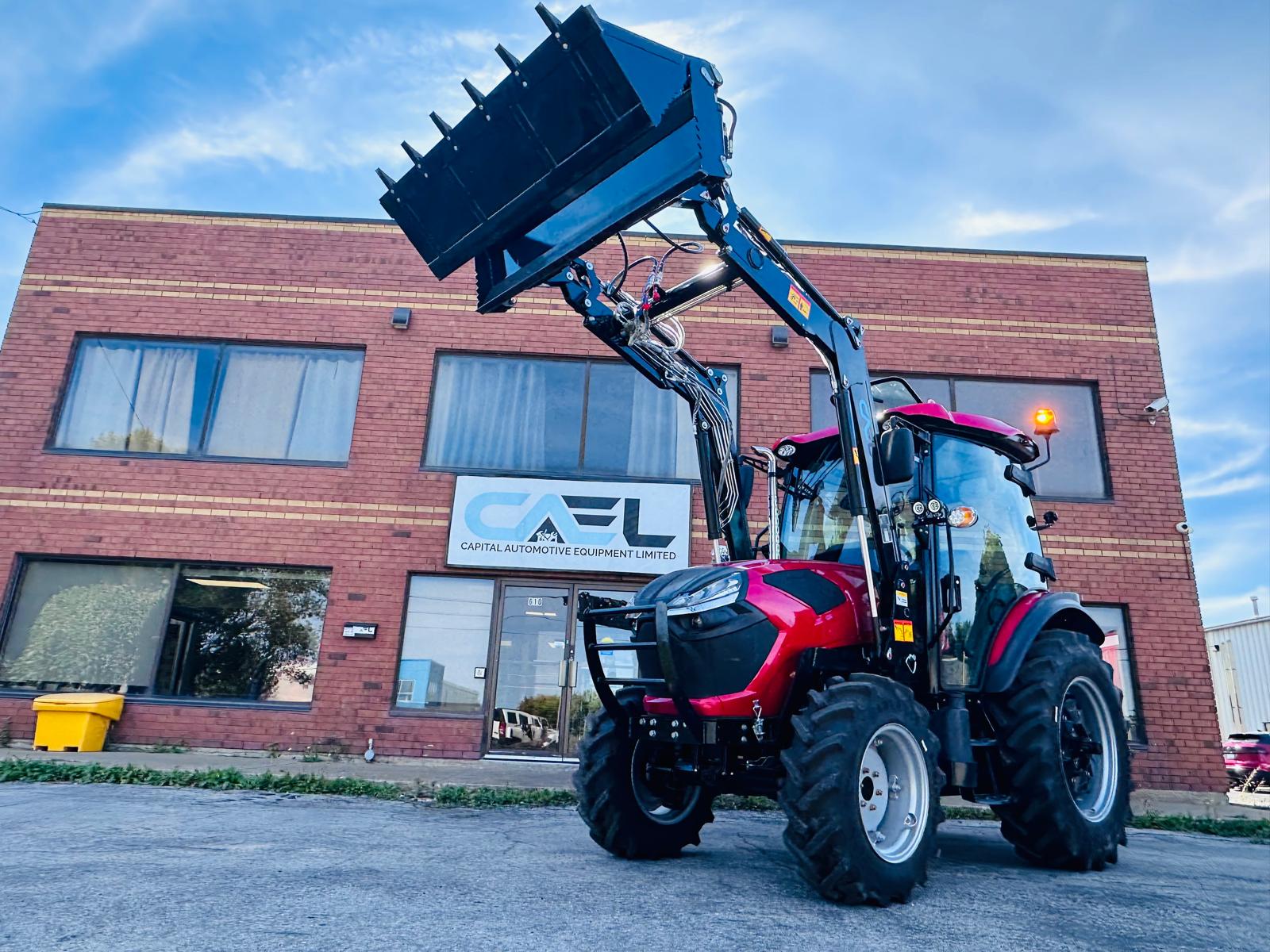

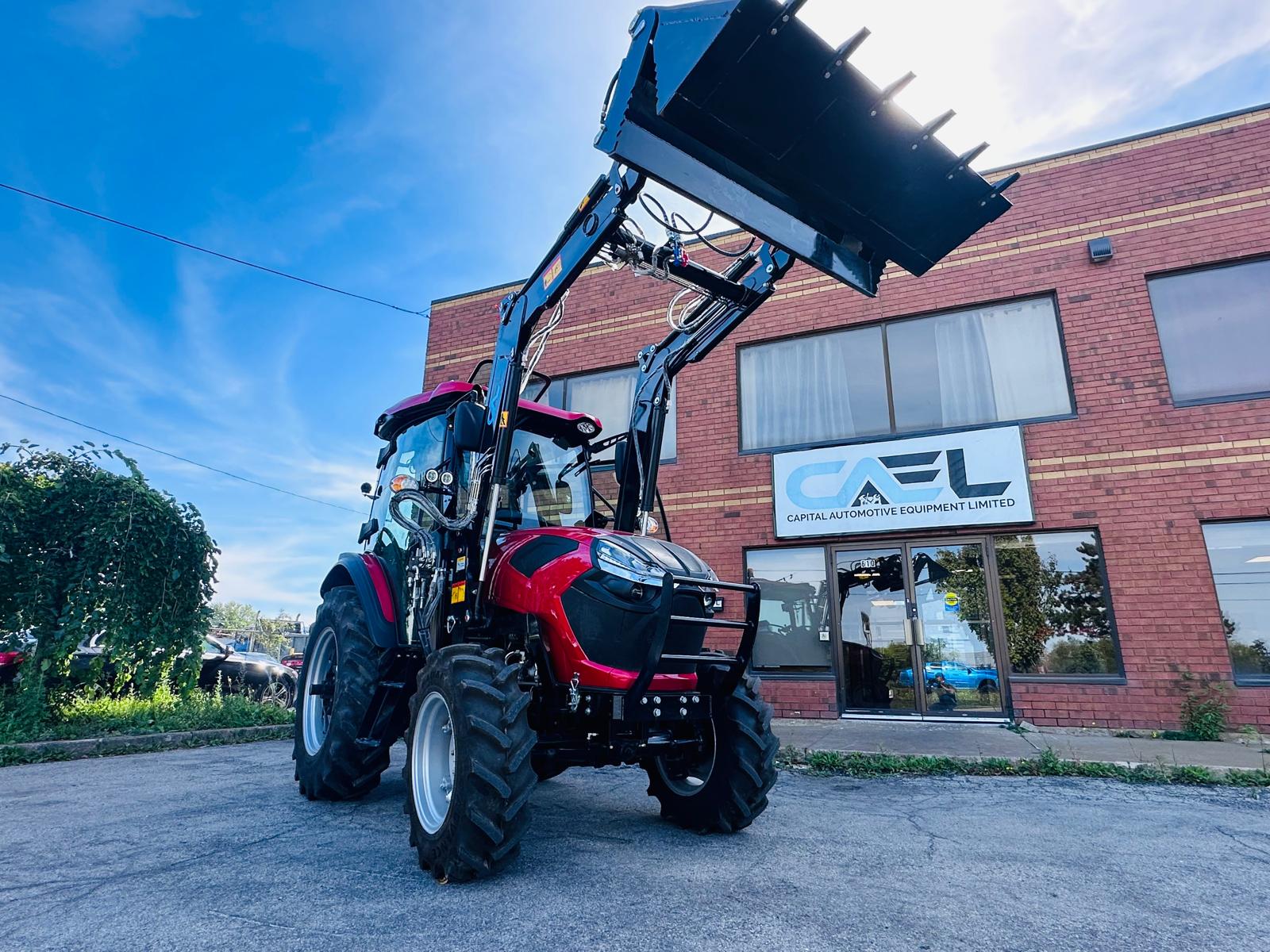

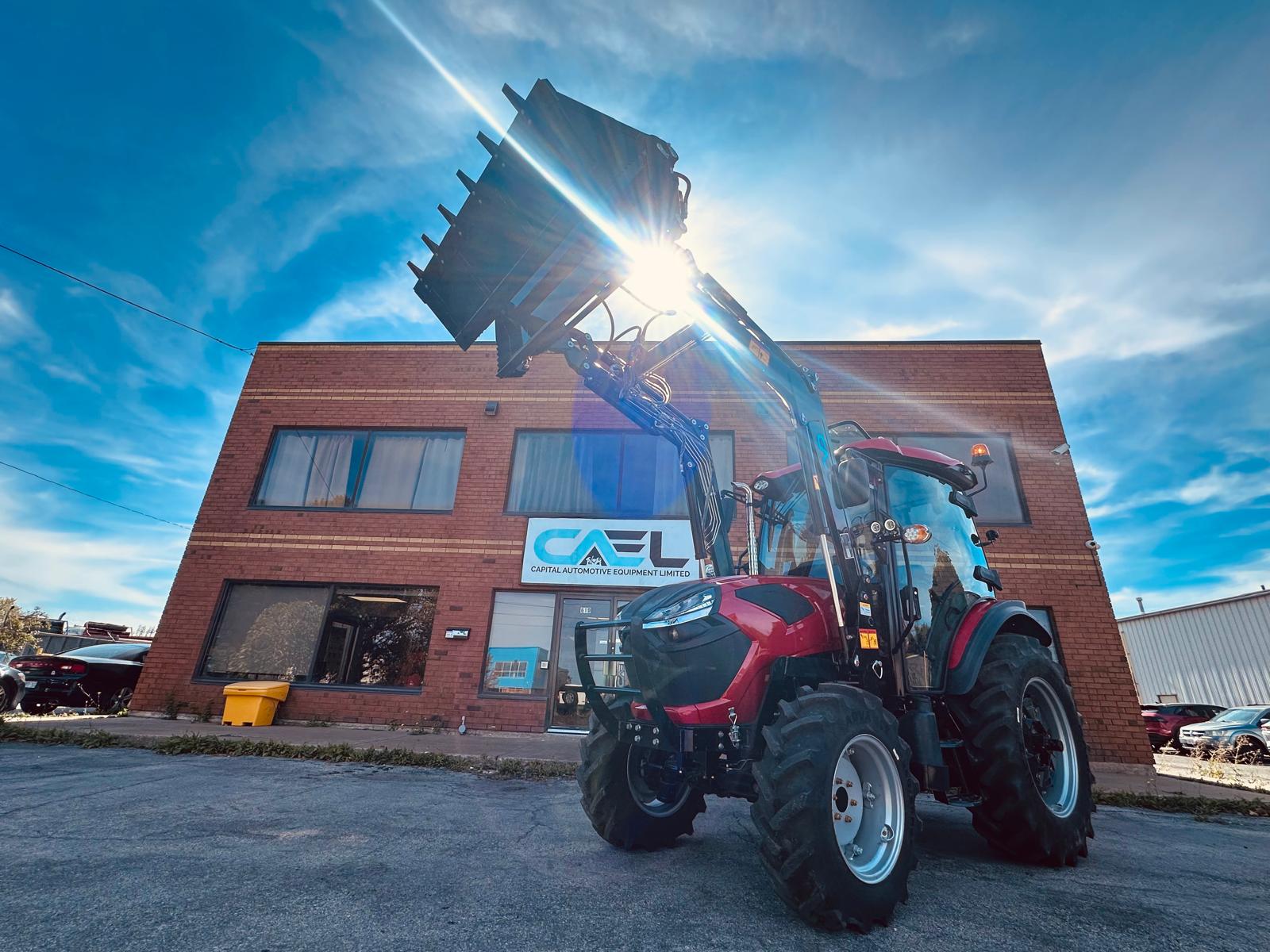

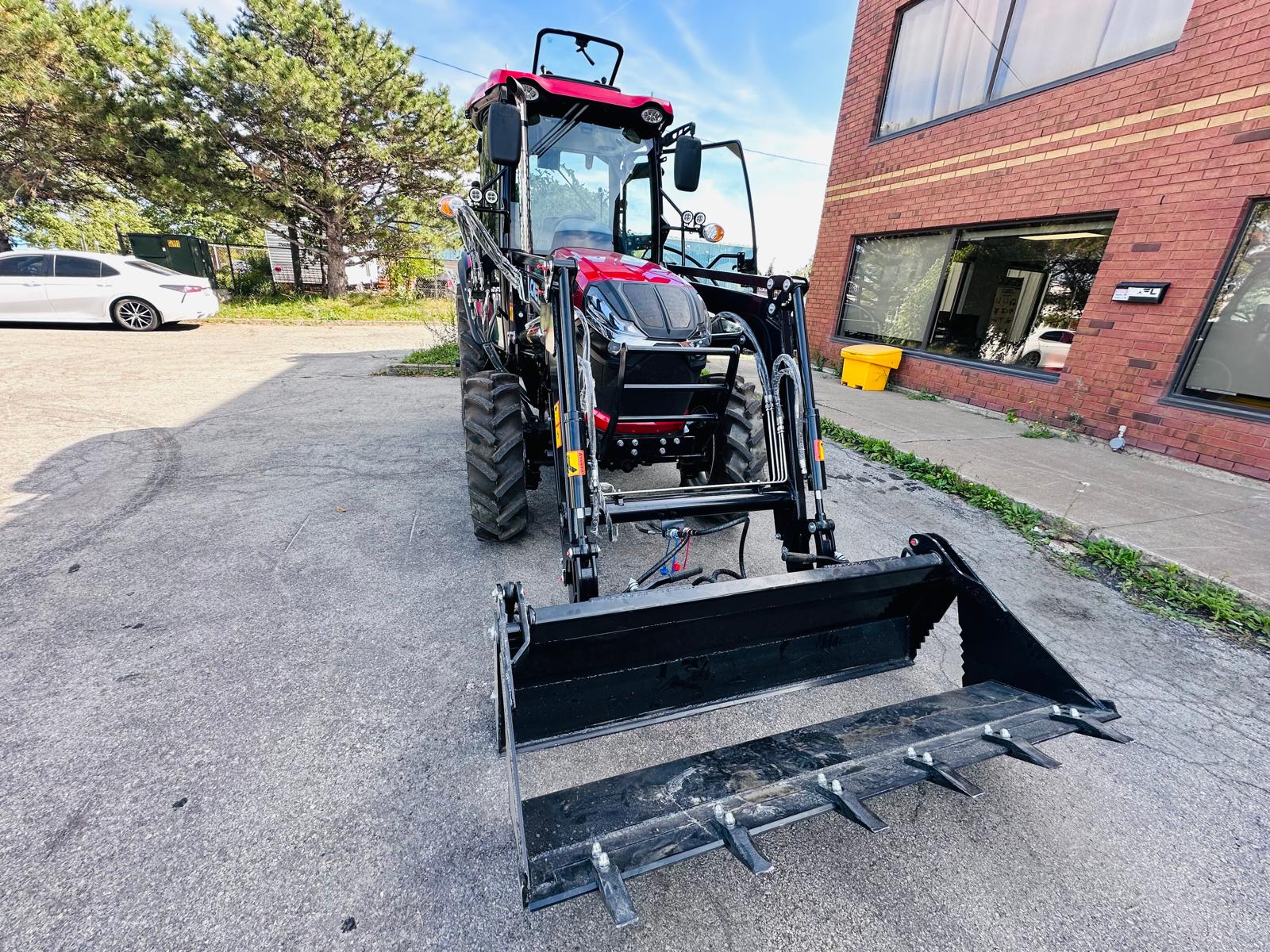

Tractor Loader with Cab 75 HP

Tractor Loader with Cab 75 HP

$44,999.00 CAD
$44,999.00 CAD
1% Deposit Sold out
Shipping calculated at checkout.

Pay just 1% now as a deposit. The remaining balance will be due later.
View full details

Description

Engine:

  • Power: 75HP, LS Korean L4CRV-T3 (Euro5/EPA)

Water Tank:

  • Design: Enlarged and thickened water tank (Four-layer water pipes) with expansion kettle.

Gearbox:

  • Type: TB gearbox 12F+12R shuttle gear, synchronizer shift (SHILIHE).

Rear Axle:

  • Type: Standard TB axle with an extremely adjustable wheelbase chassis (SHILIHE).

Clutch:

  • Type: 11-inch domestic clutch (Brand: KAFULAI imported).

Handbrake:

  • Type: Cable type handbrake.

Counterweight:

  • Front Counterweight: None specified.

  • Rear Counterweight: 27kg*4.

Anti-Overturning Frame / Sunshade or Cab:

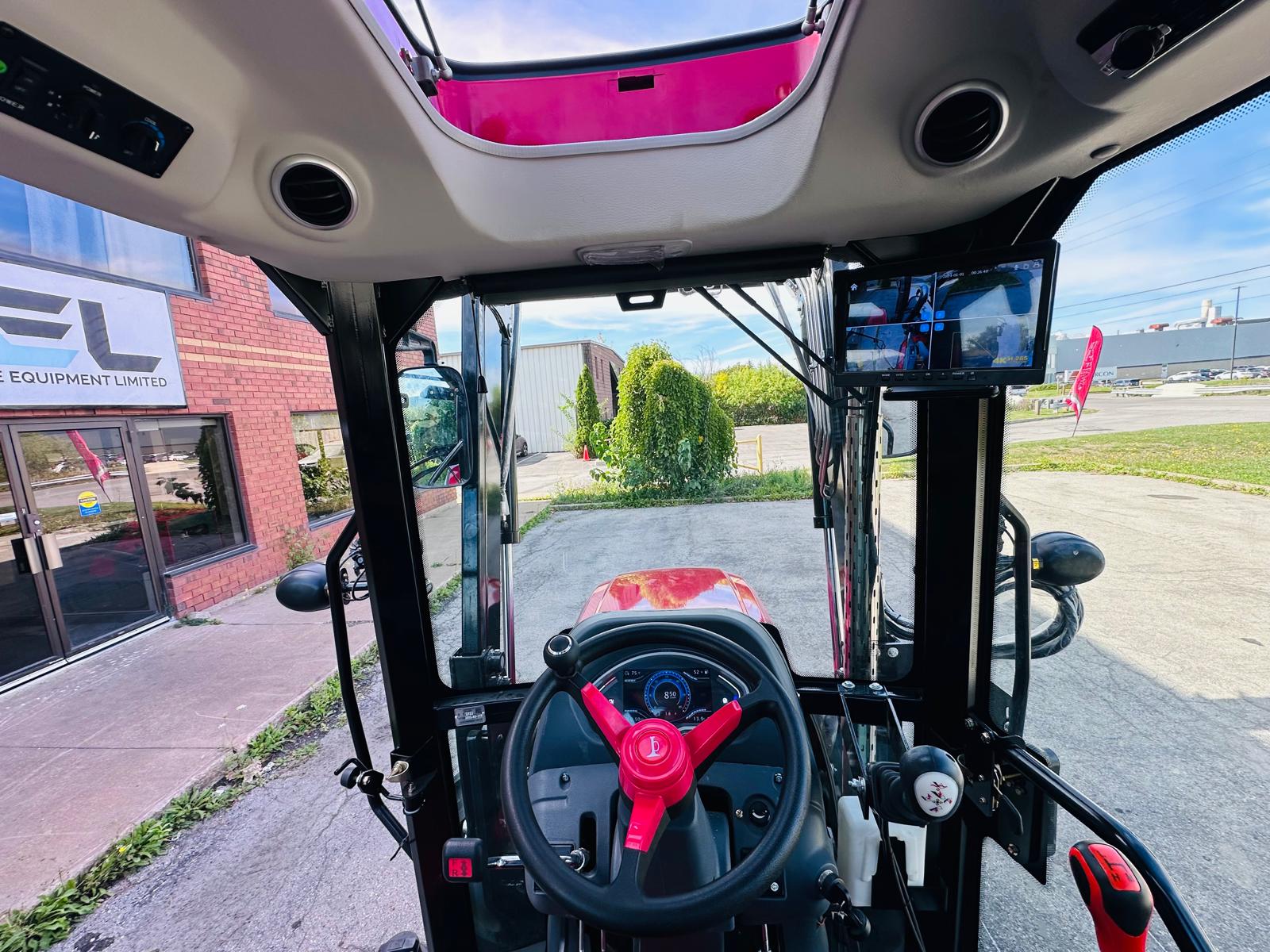

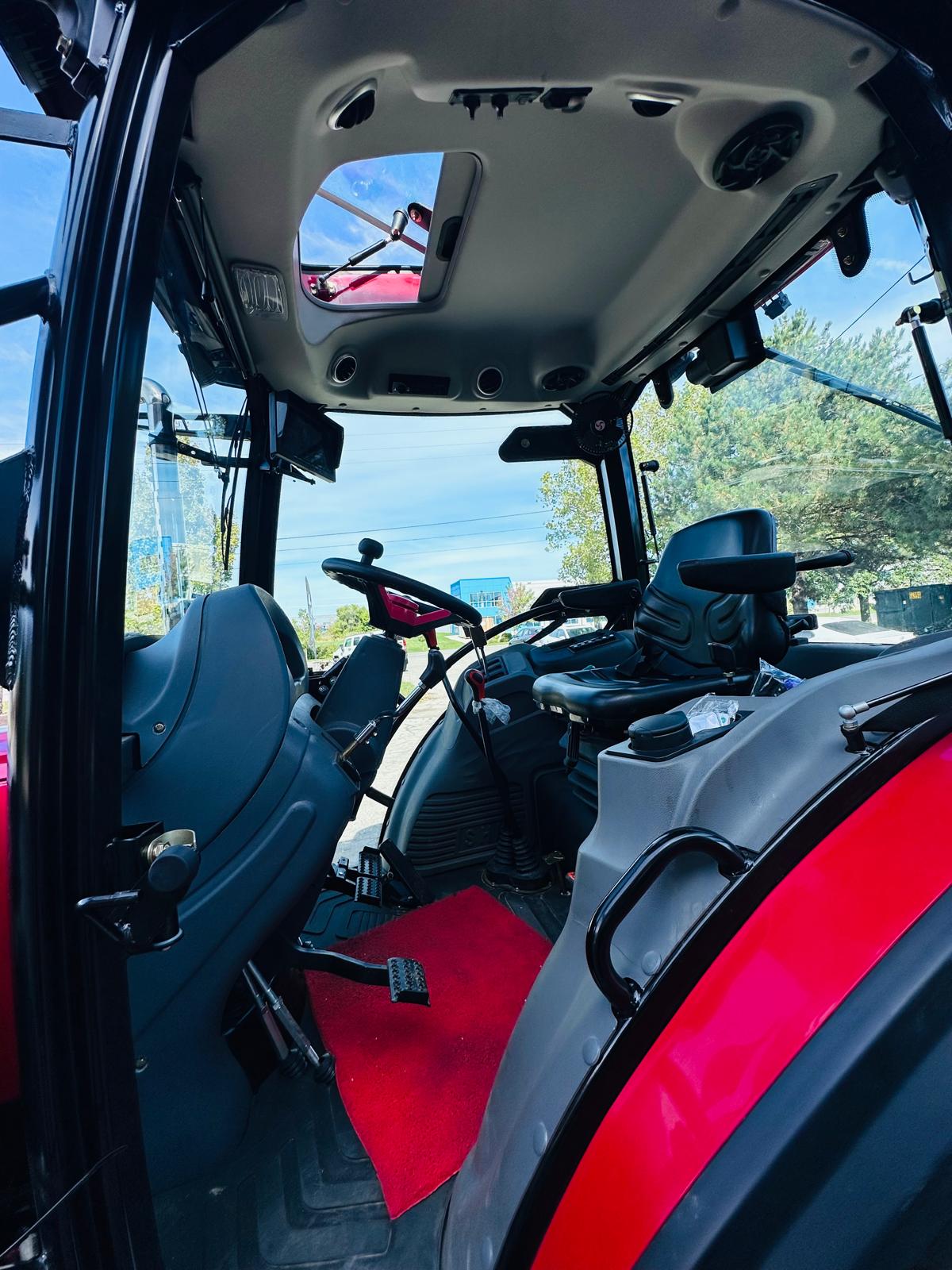

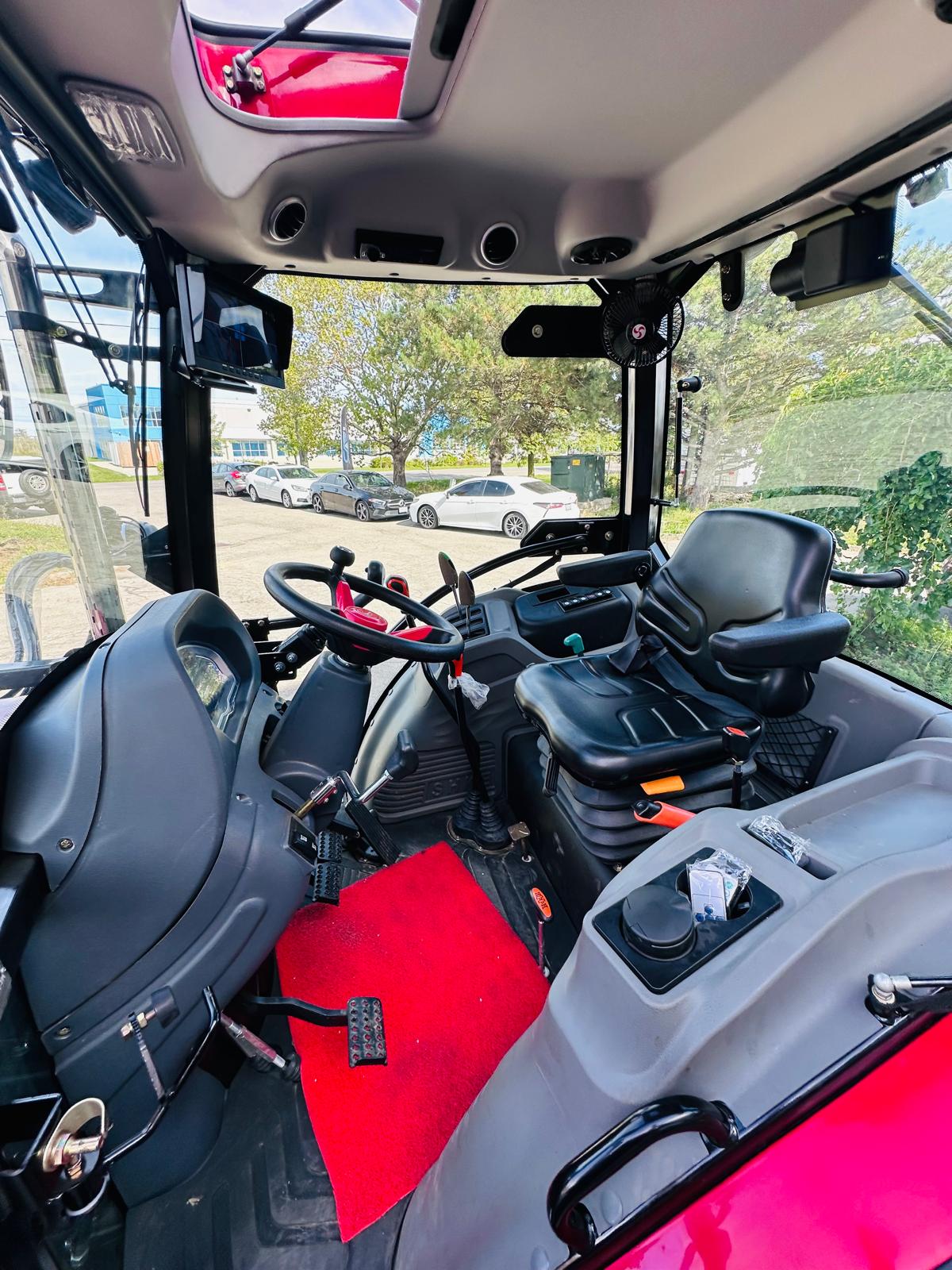

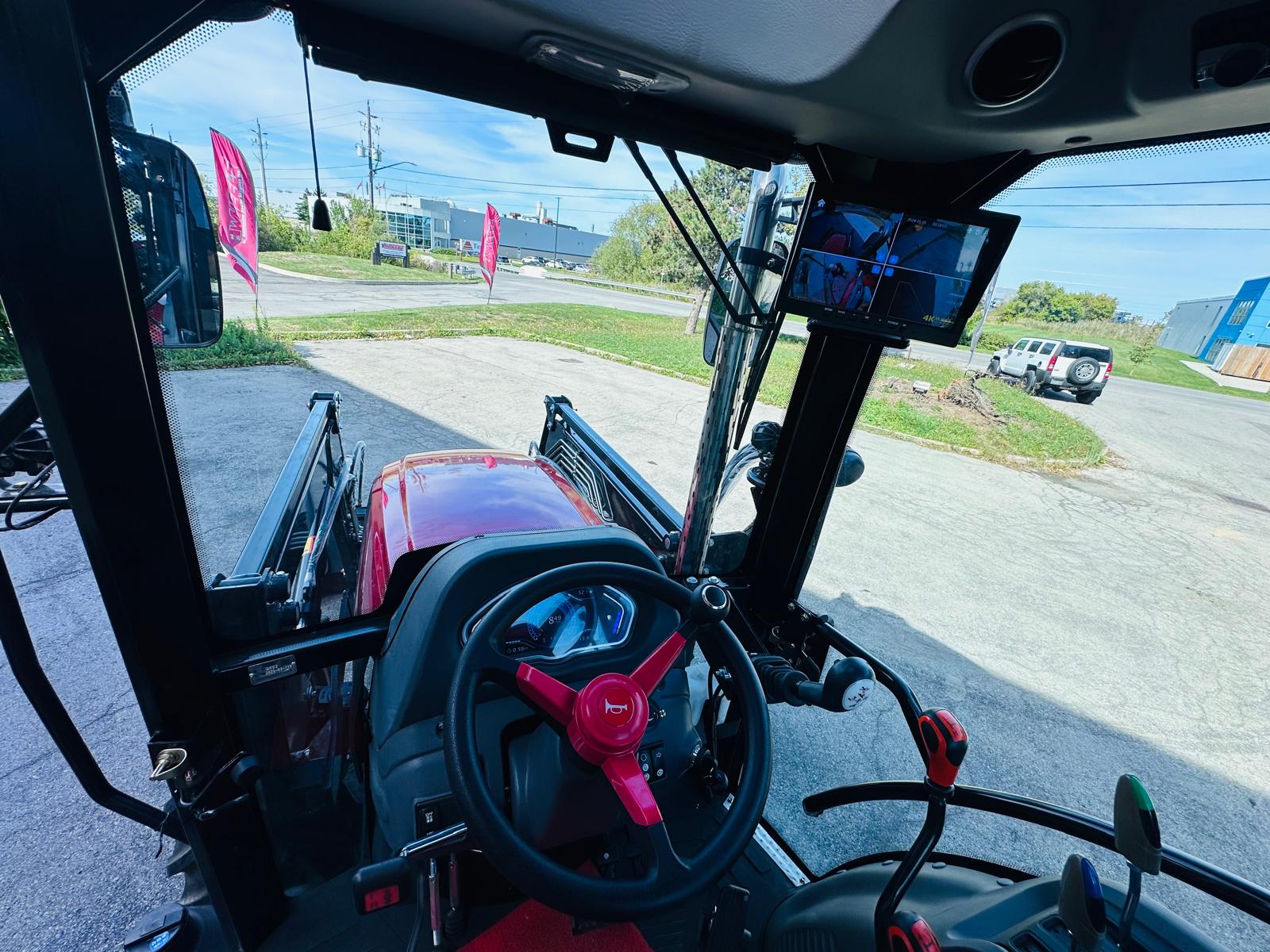

  • Cab: SHUAIKE new luxury flexible axle (Platinum Edition) air-conditioned cab. Features excellent sealing, sound insulation, high-quality shock-absorbing blocks, and Freon-filled air conditioning.

Seat:

  • Type: Armrest seat with seatbelt.

Tire:

  • Radial Tires: 280/85R20, 380/85R30 (Brand: QIANJIN).

  • Front Rim: Single bolt, adjustable (Brand: BEIHAI).

  • Rear Rim: Single bolt, adjustable.

Front Axle:

  • Type: GUHE TB704 front axle.

Air Filter:

  • Type: Built-in high-quality dry filter.

Front Bracket:

  • Configuration: Standard.

Steering Wheel / Dashboard:

  • Dashboard: LCD combination dashboard.

Reversing Camera:

  • Type: 360° Phantom.

Safety Features:

  • Fire Extinguisher + Safety Hammer + Alarm Light: YES.

PTO (Power Take-Off):

  • RPM: 540/1000 r/min, 6 keys, φ38mm.

Traction and Towing:

  • Type: Pendulum traction.

Fuel Tank:

  • Capacity: 70L.

Hydraulic Output and Electrical Quick Couplings:

  • Configuration: 2 in and 2 out with floating, hydraulic filters (out and back), seven-hole electrical quick couplings.

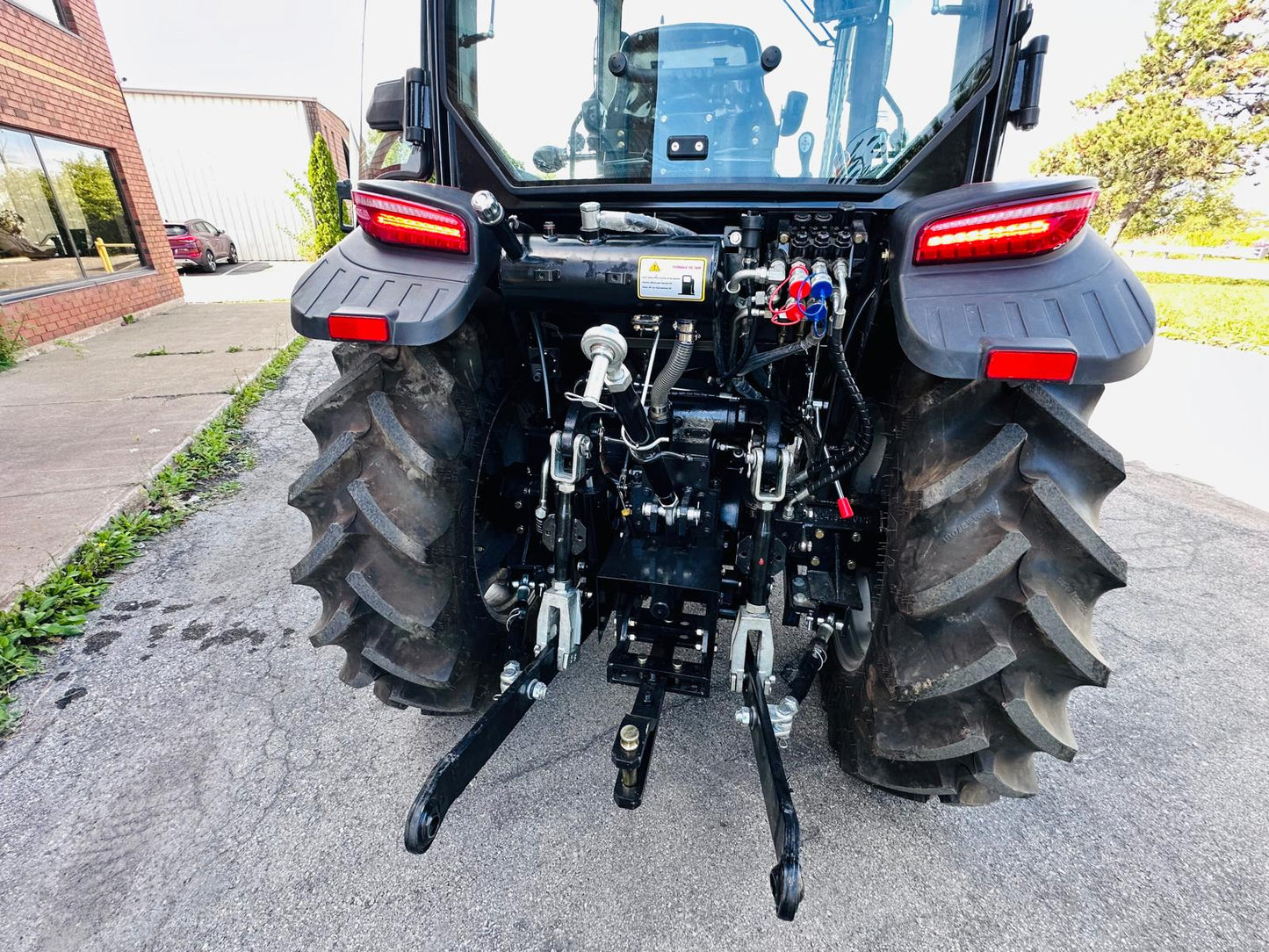

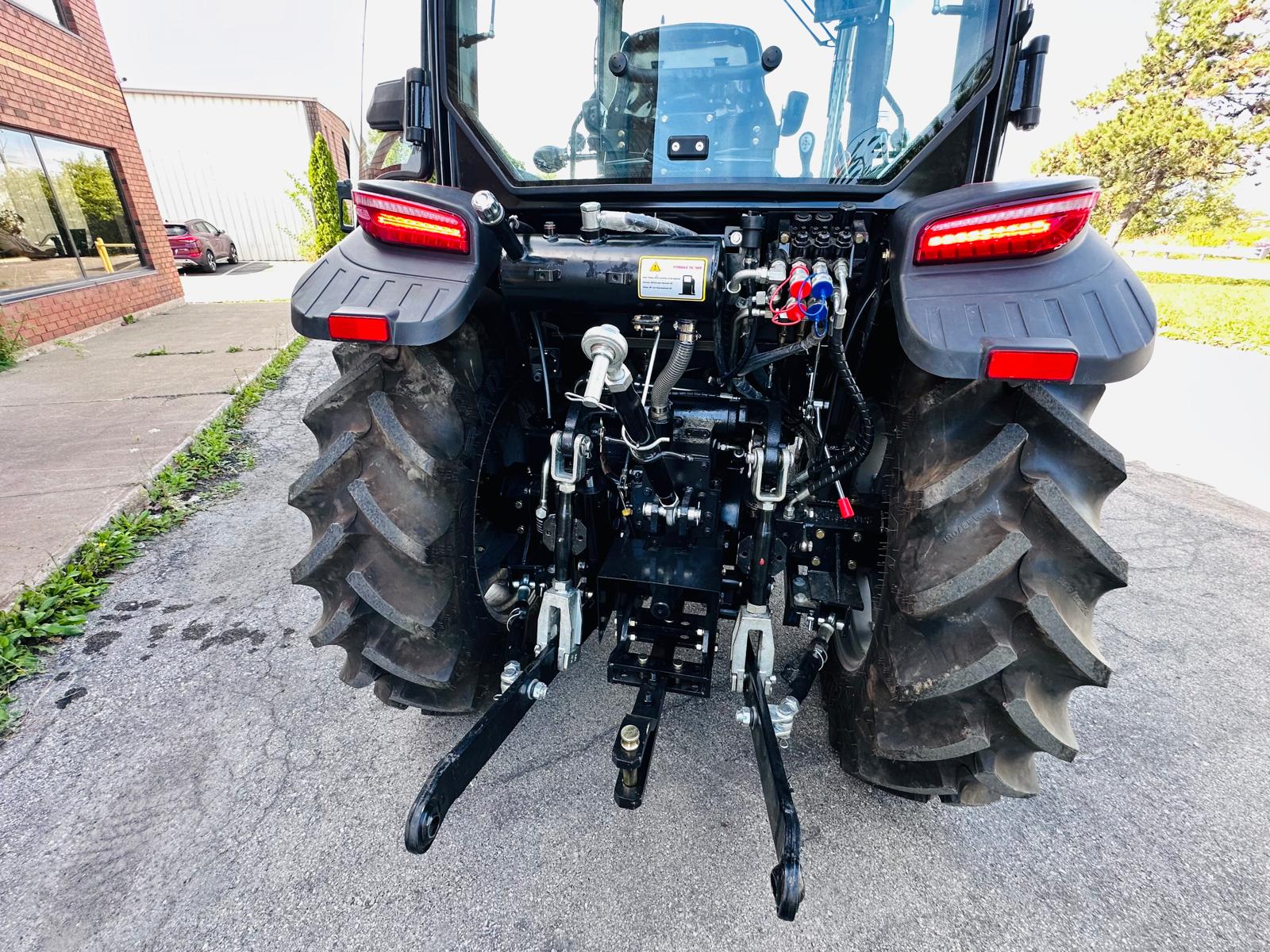

Suspension and Lifter / Auxiliary Hydraulic Oil Tank:

  • Suspension: Forged quenched and tempered with floating, rear suspension four points in a straight line.

  • Lifter: TAIHANG lifter.

Gear Pump:

  • Type: Engine.

Constant Flow Pump:

  • Type: Engine.

Battery and Wiring Harness:

  • Battery: 120A (Tianneng high starting current).

  • Wiring Harness: Waterproof with power cord over 50.

Steering Gear:

  • Type: Large flow.

Muffler:

  • Type: Stainless steel muffler tail pipe.

Hood Type:

  • Model: Shuaike latest TB hood.

Lubricating Oil and Antifreeze:

  • Diesel Engine Oil: Use CJ or higher grade.

  • Gear Oil: Use GL-5 grade 85W-90 heavy-duty oil, all of which should reach 1-2 centimeters above the upper dipstick line.

  • Steering Oil: Use 46# anti-wear hydraulic oil.

  • Hydraulic Oil: Use 46# anti-wear hydraulic oil.
