Flush-Mount Full Rise Lifting for Residential & Commercial Garages

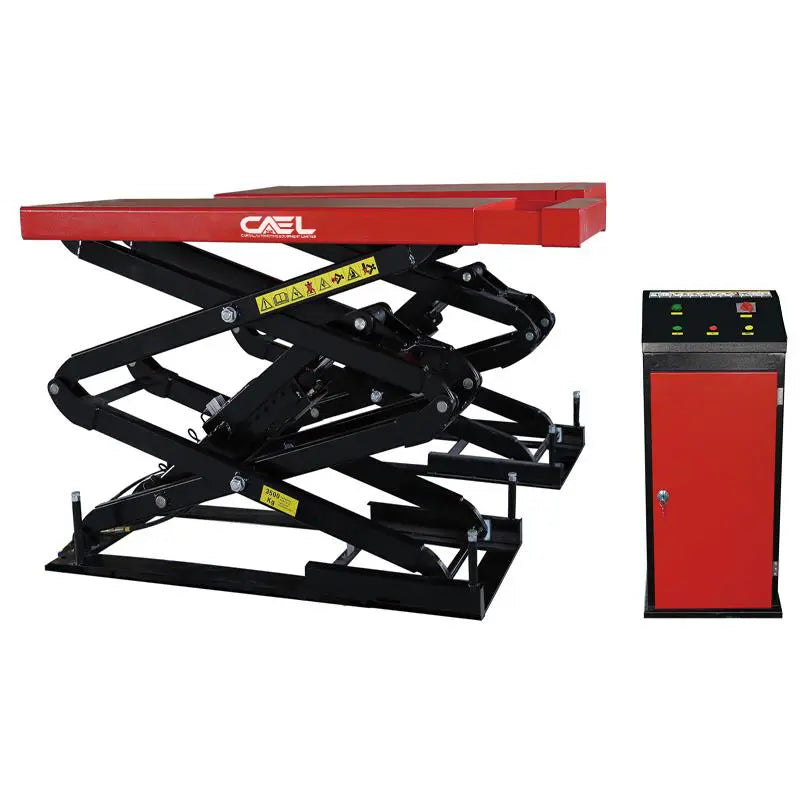

The CAEL FRS-U77 Underground Full Rise Scissor Lift is a premium in-ground lifting solution designed for home garages, detailing centers, repair shops, and light commercial service facilities that require professional lifting performance with a clean, space-saving installation.

With a powerful 7,700 lb (3,500 kg) lifting capacity, the FRS-U77 is ideal for servicing passenger vehicles, SUVs, and light-duty trucks. Its underground flush-mount design keeps the workshop floor clean and open when the lift is lowered, making it perfect for garages where appearance, accessibility, and space efficiency matter.

Certified to CSA / ETL / CE standards, this lift offers dependable safety, modern controls, and long-term reliability.

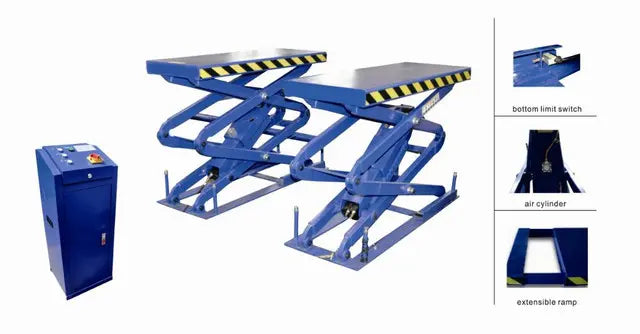

Key Features & Benefits

• 7,700 lb (3,500 kg) Capacity – Ideal for cars, SUVs, and light trucks.
• Underground / In-Ground Installation – Clean floor appearance with space-saving flush design.
• Full Rise Lifting Height – Comfortable standing workspace under the vehicle.
• CSA / ETL / CE Certified – Meets recognized international safety and quality standards.
• 24V Safe Control System – Low-voltage control system for added safety.
• Pneumatic Safety Lock Release – Smooth and secure locking operation.
• Extendable Platforms – Adjustable for longer vehicles and varying wheelbases.
• Height Limit Switch – Prevents over-travel and improves safety.
• Powder-Coated Finish – Durable corrosion-resistant coating.
• Self-Lubricated Bushings & Bearings – Reduced maintenance and smoother operation.
• Ideal for Residential & Commercial Use

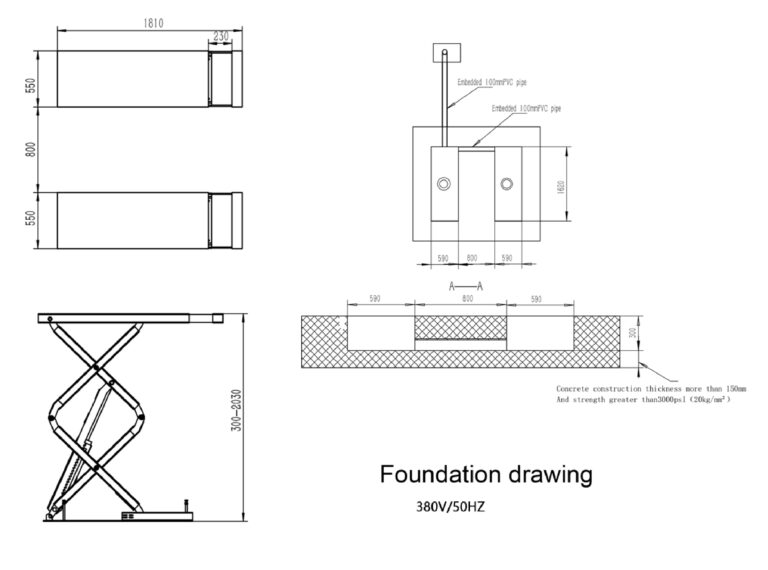

Technical Specifications

• Model: FRS-U77
• Lifting Capacity: 3,500 kg (7,700 lb)
• Maximum Lifting Height: 2030 mm (79.9 in / 6 ft 7.9 in)
• Lifting Time: Approx. 50 seconds
• Platform Length: 1580 mm – 1810 mm (62.2 in – 71.2 in)
• Ramp Length: 230 mm (9 in)
• Platform Width: 550 mm (21.6 in)
• Motor Power: 2.2 kW
• Voltage: 110V / 220V (Optional)
• Rated Oil Pressure: 20 MPa

Perfect For

✔ Residential garages
✔ Luxury home garages
✔ Auto detailing shops
✔ Tire & service centers
✔ Light commercial repair shops
✔ Space-saving premium workshop setups

Why Choose the FRS-U77?

The CAEL FRS-U77 offers the perfect combination of clean in-ground aesthetics, professional lifting power, and certified safety. It’s an excellent solution for users who want premium lifting capability without sacrificing valuable floor space.

Warranty Included

Backed by manufacturer warranty for added confidence and peace of mind.

Request a Quote

Contact us today for pricing, availability, shipping options, and installation support tailored to your garage or workshop.
