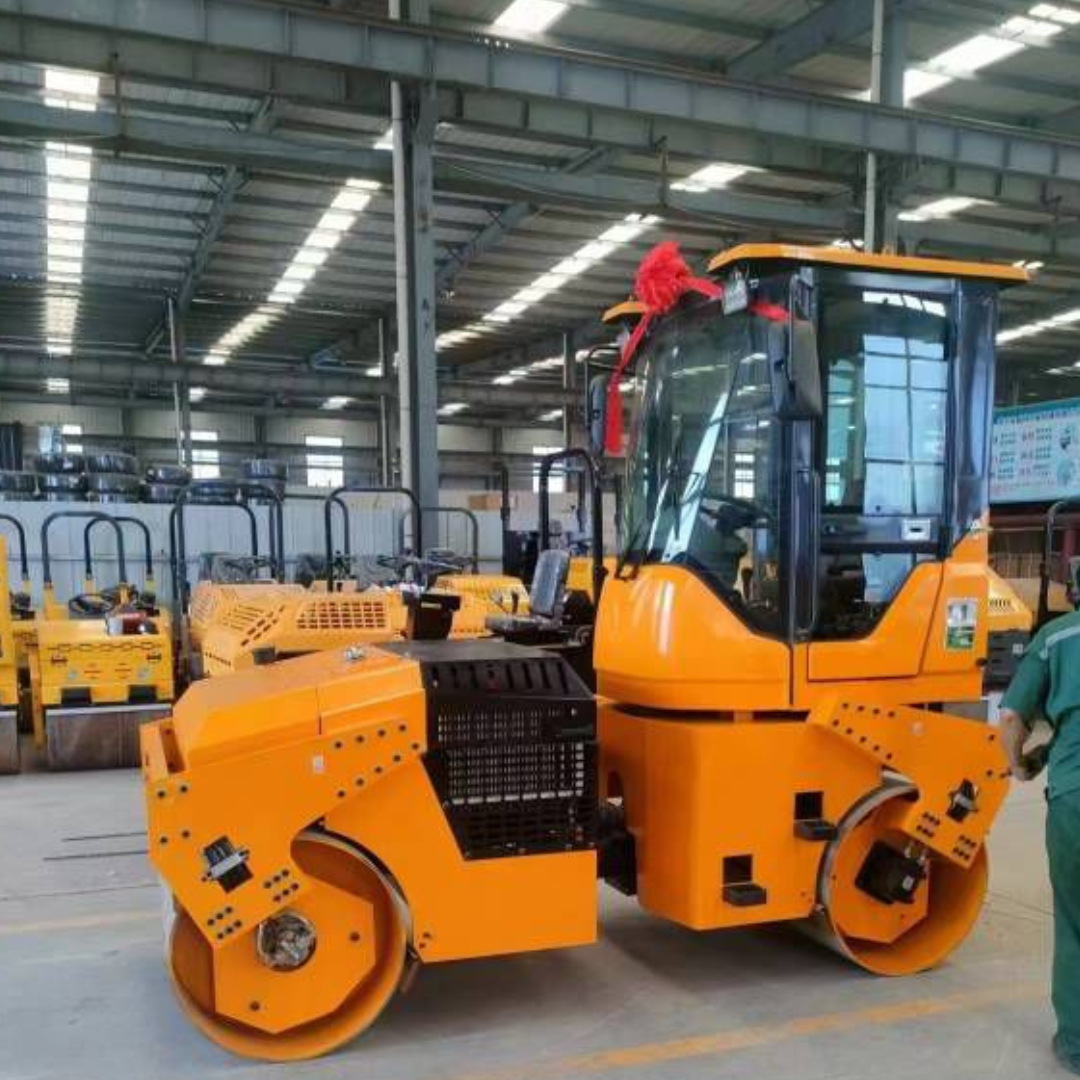

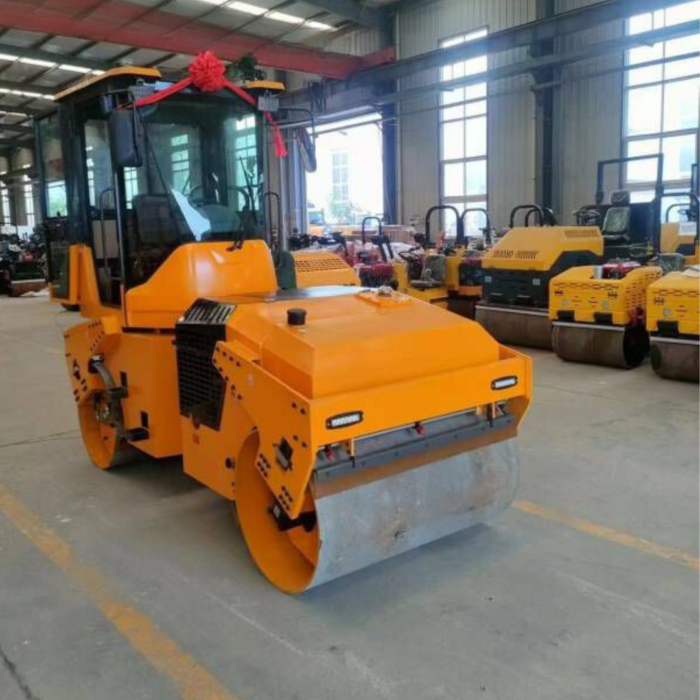

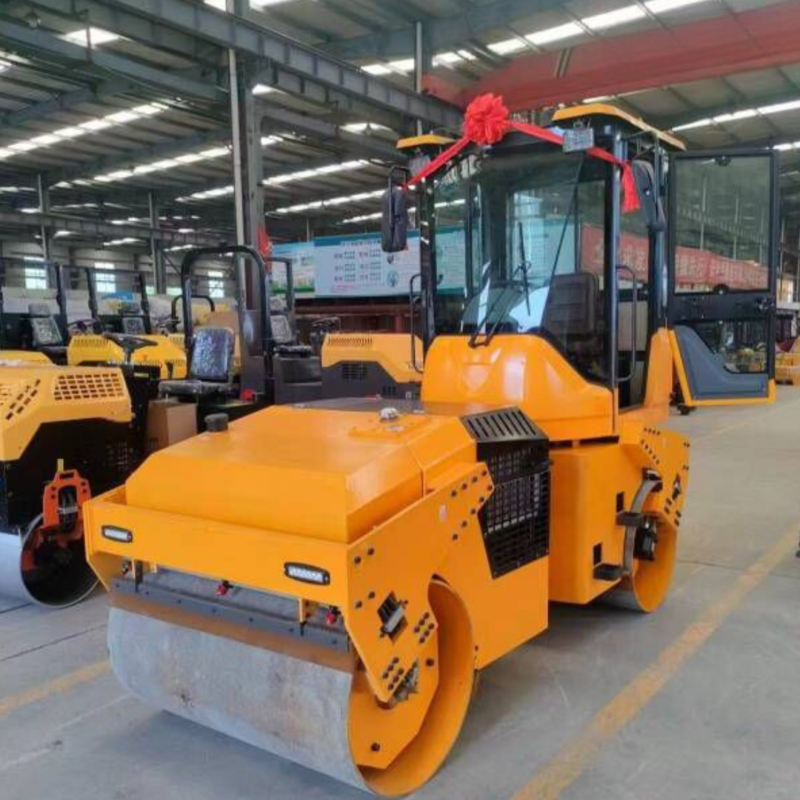

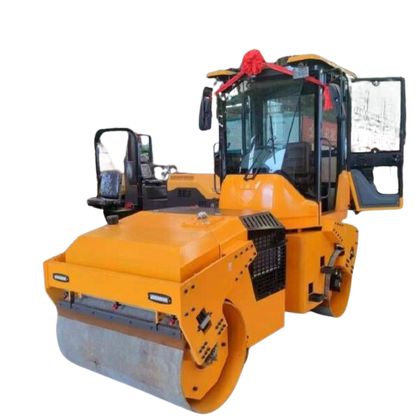

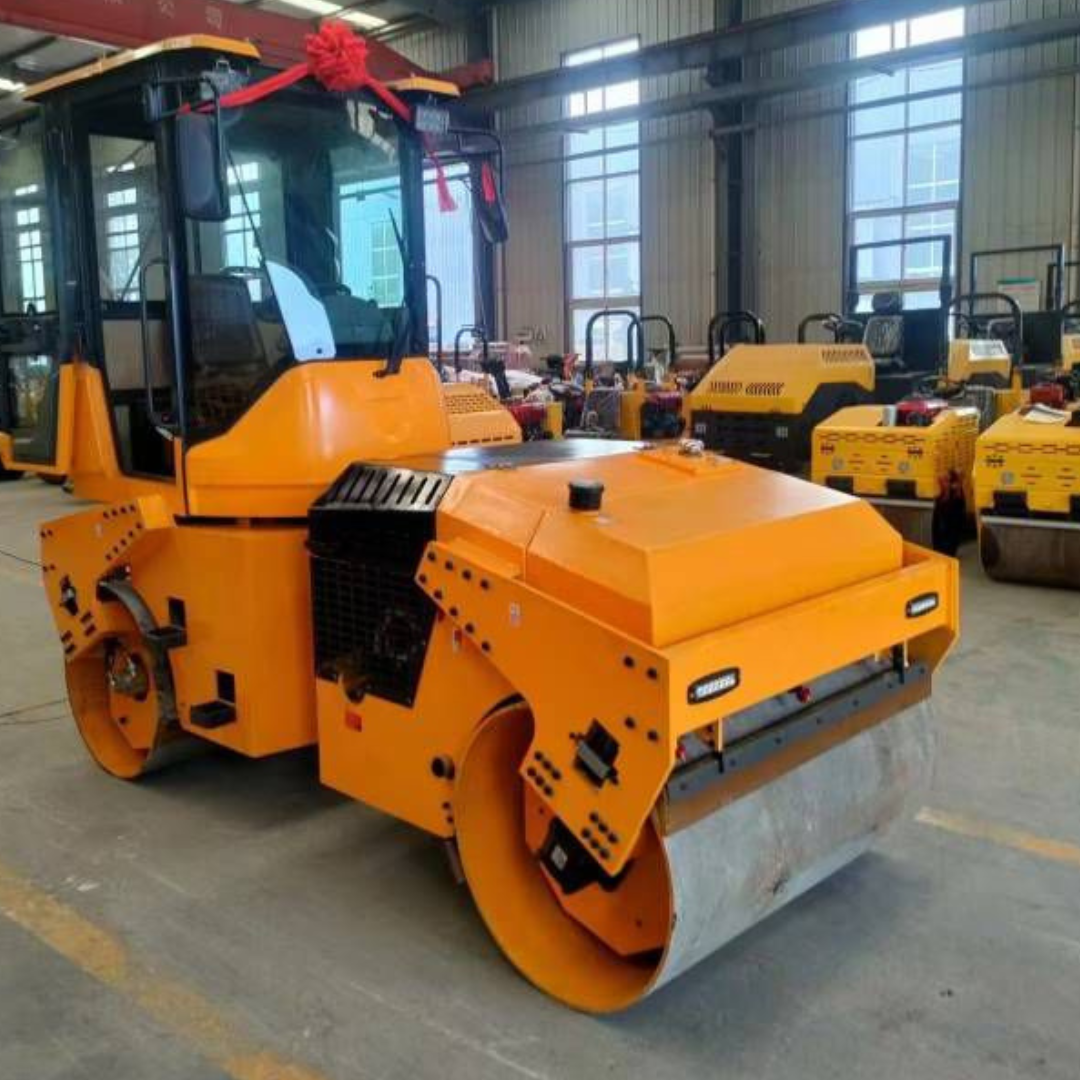

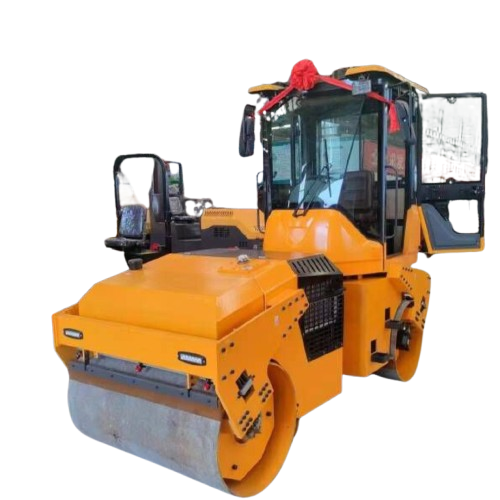

The CAEL CVR 4T Vibratory Roller is a robust and high-efficiency compaction machine designed for a wide range of applications, including asphalt, gravel, sand, soil, lawns, and playground surfaces. Built for durability and performance, it is an ideal choice for municipal road construction and infrastructure projects.

Equipped with advanced vertical vibration technology and a fully hydraulic system, this roller ensures superior compaction results, smooth operation, and precise control. Its double steel drum design enhances stability and delivers uniform compaction across various terrains.

Key Features

• Double steel drum with full hydraulic drive system
• High compaction efficiency with strong vibration force
• Smooth hydraulic steering for precise maneuverability
• Durable and reliable for continuous operation
• Suitable for roadwork, landscaping, and construction projects
• Electric start for easy and convenient operation

Specifications

Model: CVR 4T
Type: Double Steel Wheel, Fully Hydraulic

• Operating Weight: 4000 kg
• Exciting Force: 80 kN
• Amplitude: 0.02 in (0.5 mm)
• Travel Speed: 0–10 km/h
• Gradeability: 30%
• Vibration Frequency: 80 Hz
• Static Line Load: 60 N/cm

Dimensions

• Overall Dimensions (L × W × H):
  122 × 53.1 × 96.8 in
  (3099 × 1349 × 2459 mm)
• Packing Dimensions (L × W × H):
  122 × 53.1 × 74.8 in
  (3099 × 1349 × 1900 mm)

Drum Specifications

• Steel Wheel Size:
  Φ27.5 × 47.2 × 0.07 in
  (Φ700 × 1200 × 1.8 mm, T14)

Engine & Hydraulic System

• Engine Model: Kohler
• Engine Power: 35 HP
• Drive System: Hydraulic dual drive / hydraulic steering
• Vibration System: Hydraulic dual drum vibration
• Travel Mode: Two-way hydraulic drive
• Starting System: Electric start

Capacities

• Fuel Tank Capacity: 160 L
• Hydraulic Oil Tank Capacity: 60 L

The CAEL CVR 4T delivers the perfect combination of power, precision, and durability, making it a reliable solution for contractors and government bodies seeking consistent, high-quality compaction performance.
