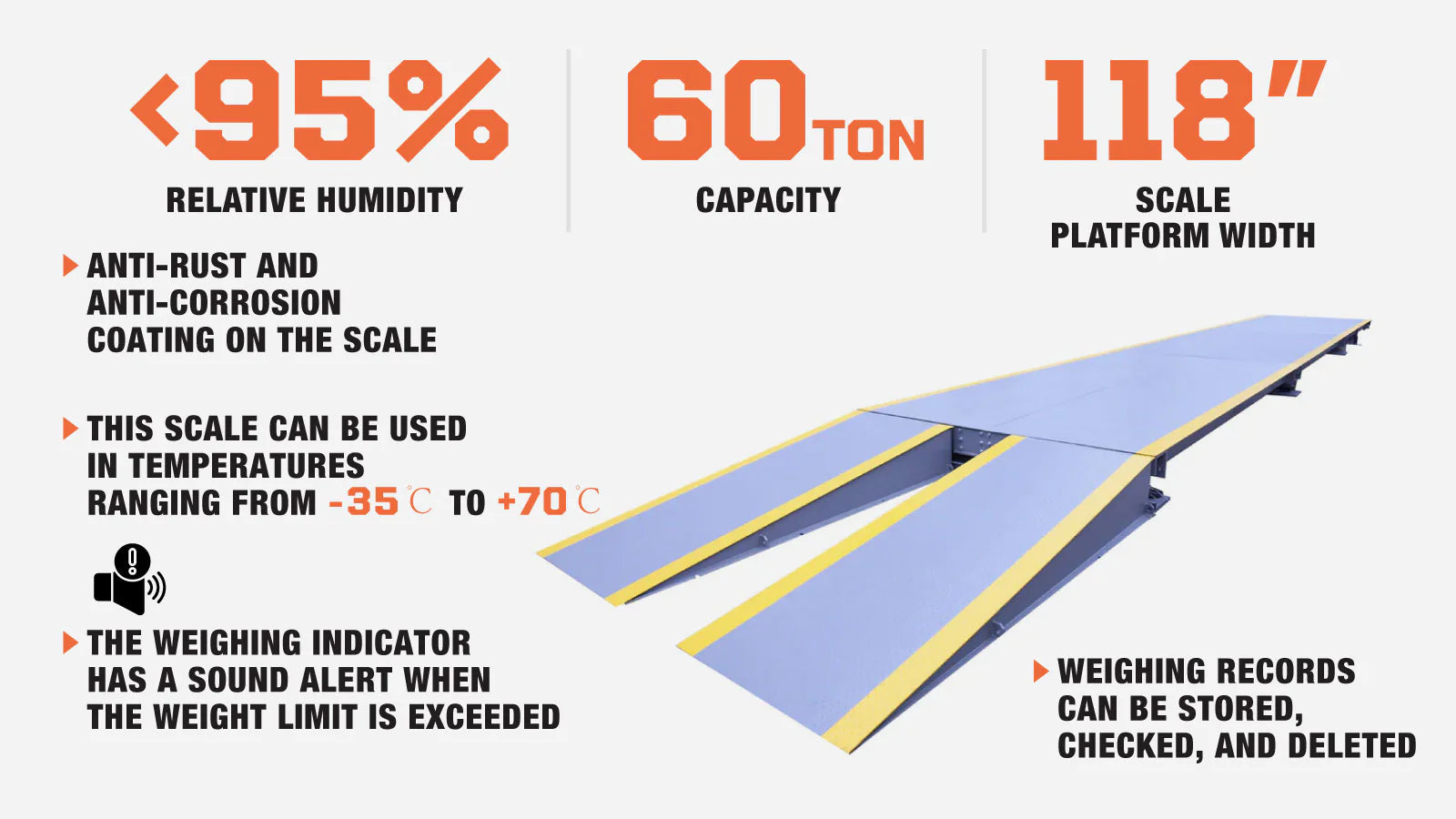

Features

• Constructed from high-quality steel with a standard U-shaped beam modular design, allowing for easy assembly and disassembly while ensuring long-term durability
• Finished with an anti-rust and anti-corrosion coating, providing excellent protection against wear, moisture, and harsh weather conditions
• Checker-plated steel top plate offers slip resistance, keeping vehicles securely positioned during weighing for enhanced safety and accuracy
• Designed to operate reliably in extreme temperatures ranging from -35°C to +70°C, making it suitable for year-round use in diverse environments
• Equipped with industrial-grade load cells for heavy-duty weighing applications, paired with a digital indicator for precise, real-time readings
• Built-in audible overload alert notifies operators when weight limits are exceeded, with a 120% safe overload capacity
• Weighing records can be stored, reviewed, and deleted, with power-off protection to prevent data loss
• Optional accessories available (sold separately), including guard rails, above-ground ramps, and an external LED display
• Optional Accessories (available via CAEL parts store):

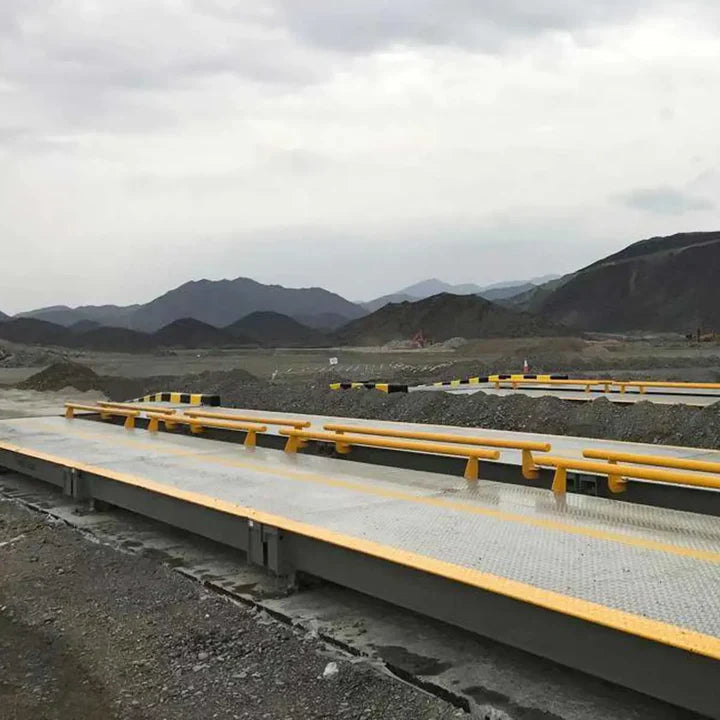

• Guard rails (3 sections per side, total length 18 m)

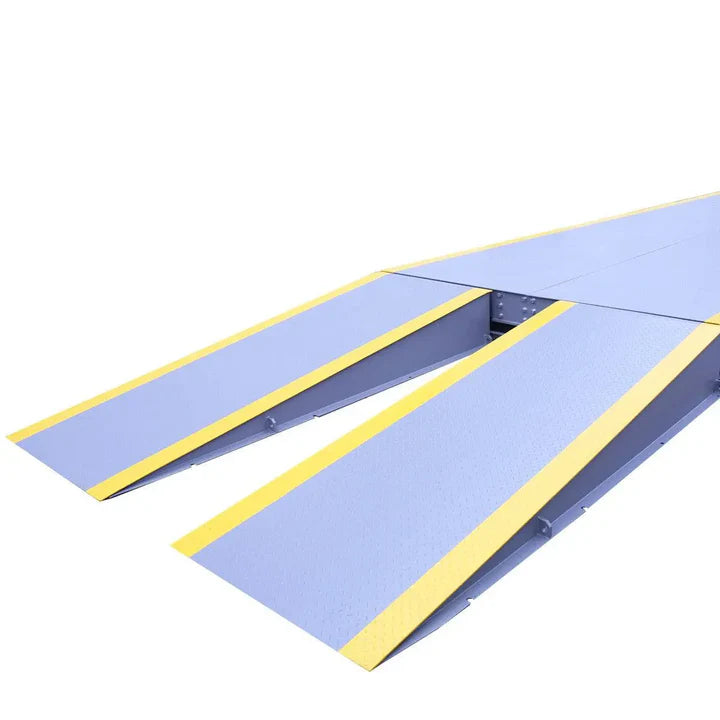

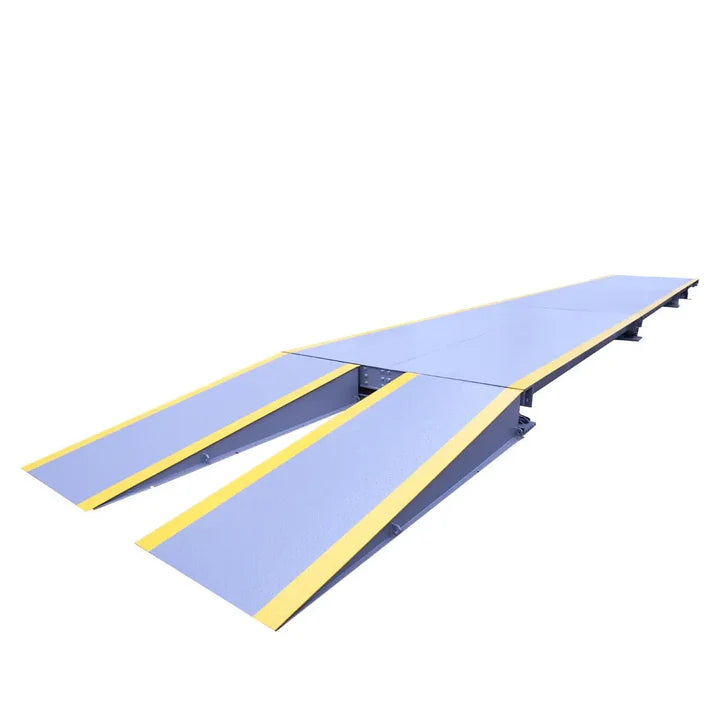

• Above-ground ramps for both ends (4 pieces, 1.2 × 2.8 m)
• External wall-mounted LED display

Specifications

• Maximum Capacity: 60 ton
• Scale Platform Width: 118” (9.84 ft)
• Scale Platform Length: 675” (56 ft)
• Structure: U-shaped beam (6 modules)
• Steel Material: High-quality steel
• Surface Finish: Anti-rust & anti-corrosion coating
• Modular Design: 6 pieces (each 59” × 225”)

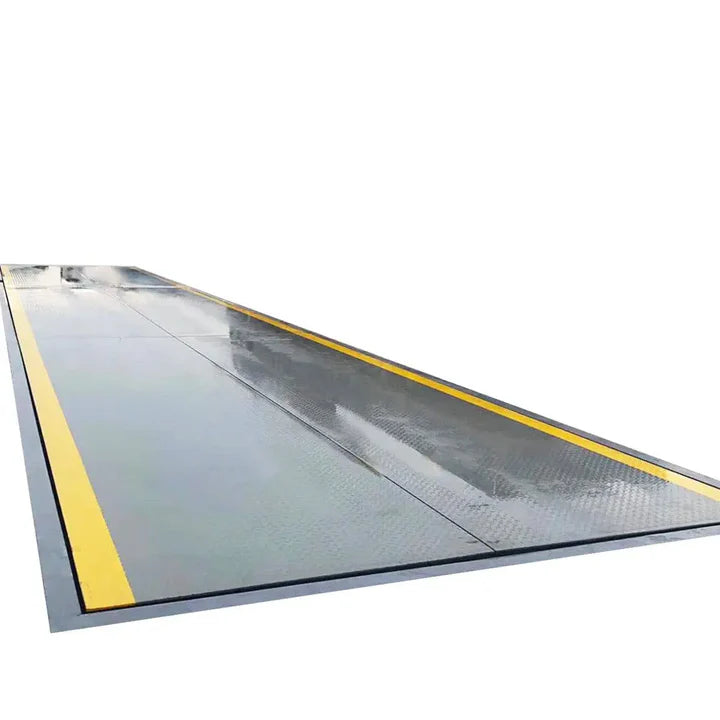

• Top Plate Thickness: 8 mm checker plate
• Accuracy Class: OIML III
• Operating Temperature: -35°C to +70°C
• Relative Humidity: <95%
• Safe Overload Capacity: 120%
• Anti-Cheating Technology: Eliminates electronic interference
• Connectivity: Supports printers, computers, and large display monitors

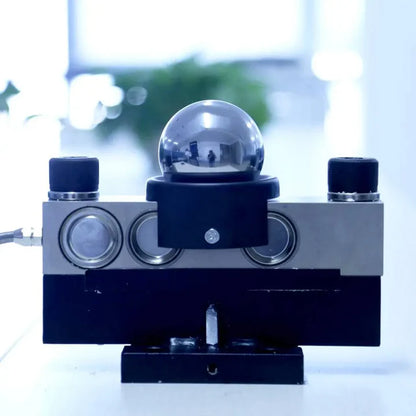

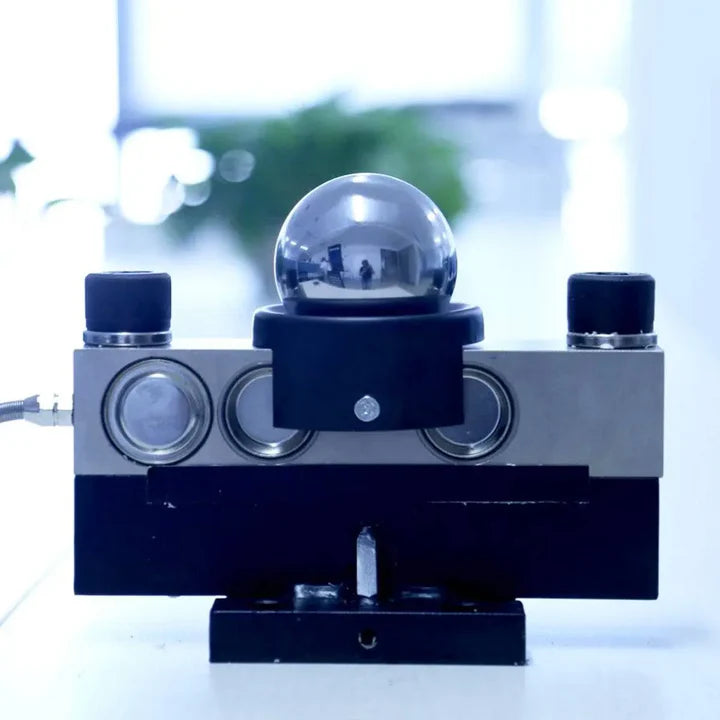

• Load Cell Specifications
• Operating Temperature: -35°C to +70°C
• Safe Overload: 150% of full scale
• Ultimate Overload: 300% of full scale
• Sealing: Hermetically sealed
• Protection Rating: IP68

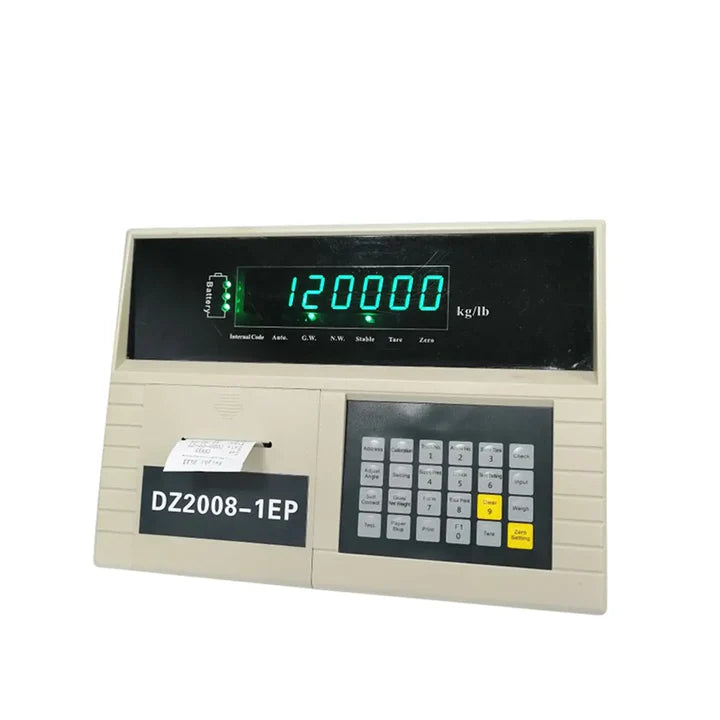

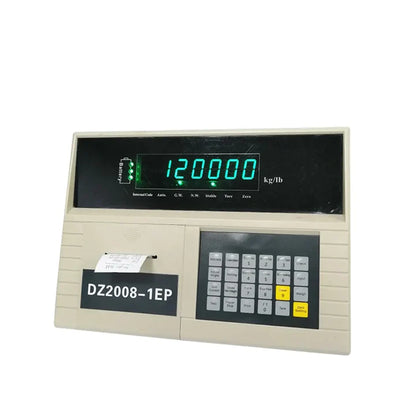

• Weight Indicator Specifications
• Operating Temperature: 0°C to 40°C
• Relative Humidity: ≤85% RH
• Power Supply: 220V / 60Hz or 110V / 60Hz
• Transmission Modes: RS232 / RS422 / RS485 (optional)
• Baud Rates: 600 / 1200 / 2400 / 4800 / 9600 (optional)
• Functions: Record storage, check, delete, and power-off protection
• Alert System: Audible warning when weight limit is exceeded
• Stainless Steel Junction Box
• Waterproof sealed joints
• Integrated resistance protection device
• Heavy-duty stainless steel enclosure

Product Description

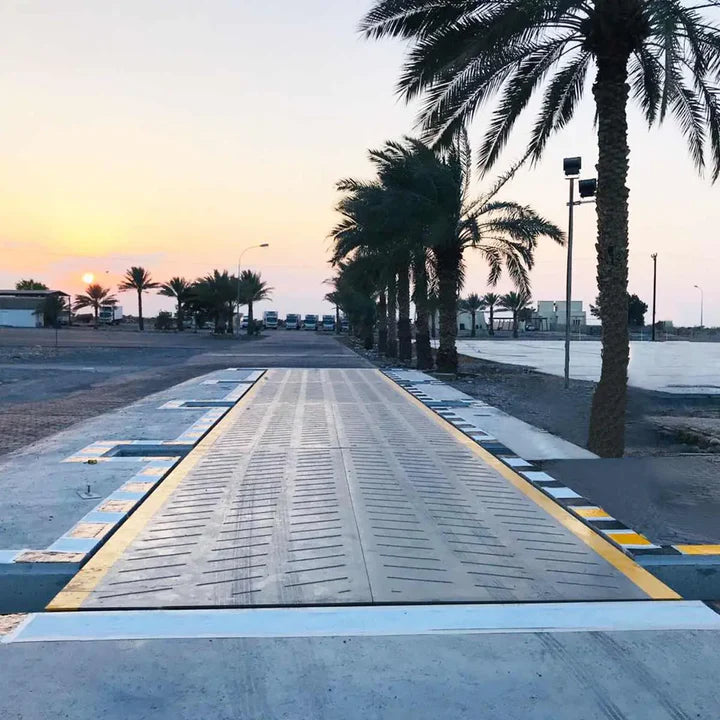

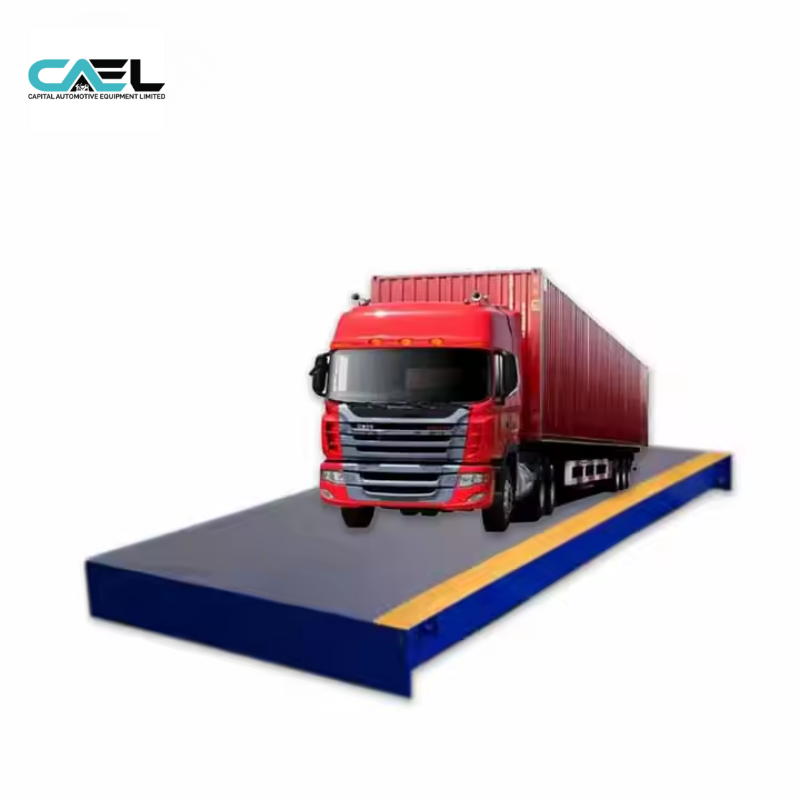

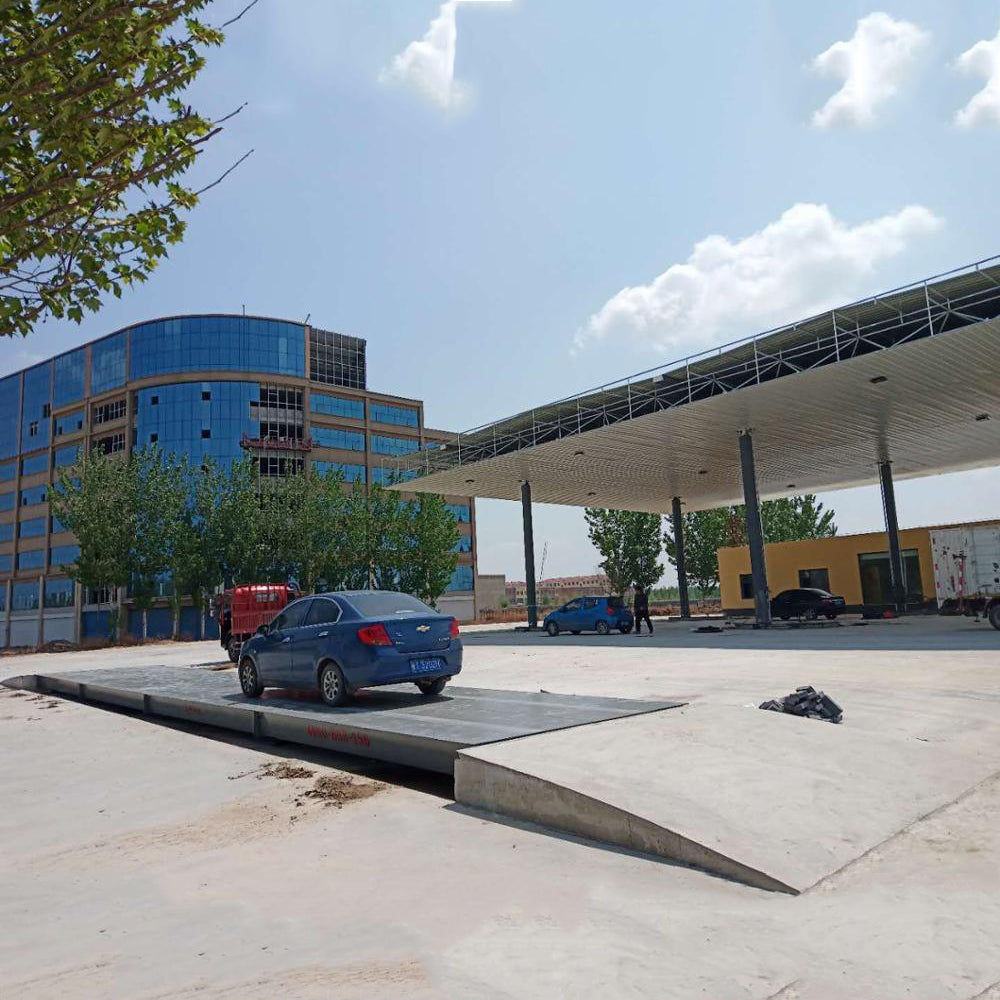

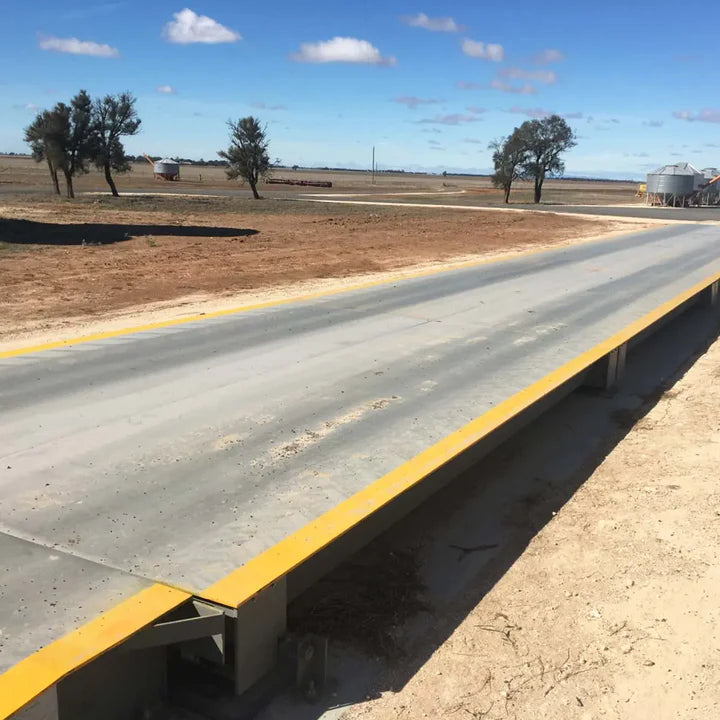

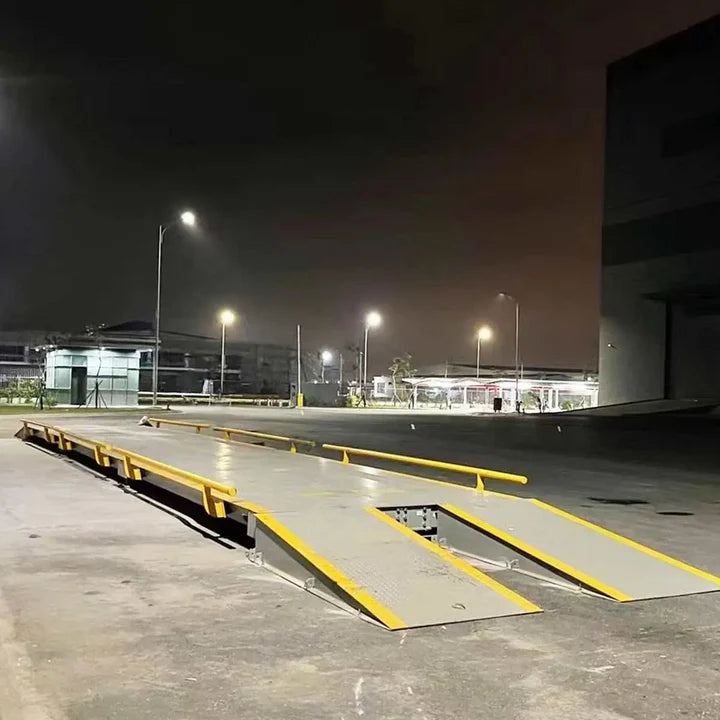

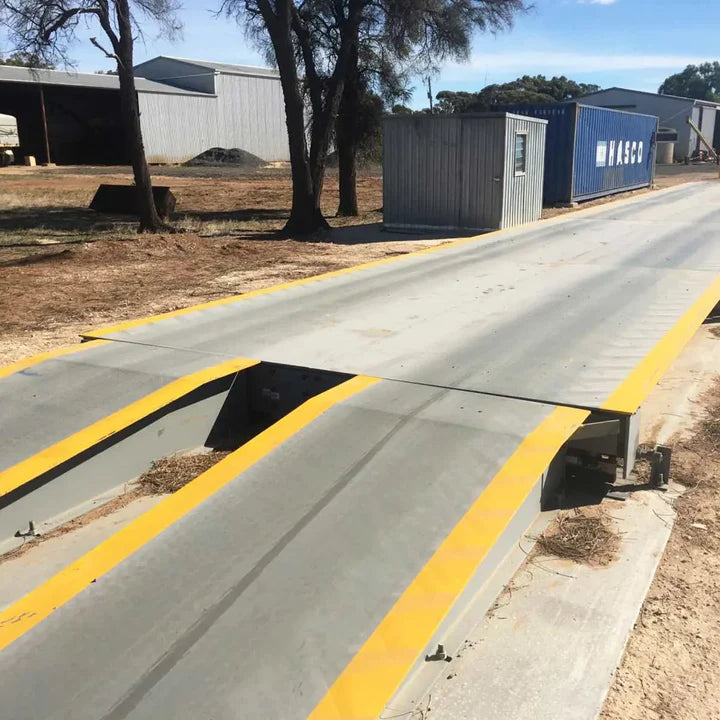

The CAEL-FST60 60-Ton Weighbridge Truck Scale is a high-precision, heavy-duty weighing solution designed for demanding industrial and commercial applications. With a maximum capacity of 60 tons, this weighbridge can be installed in-ground or above-ground using optional ramps, offering flexibility to suit different site requirements.

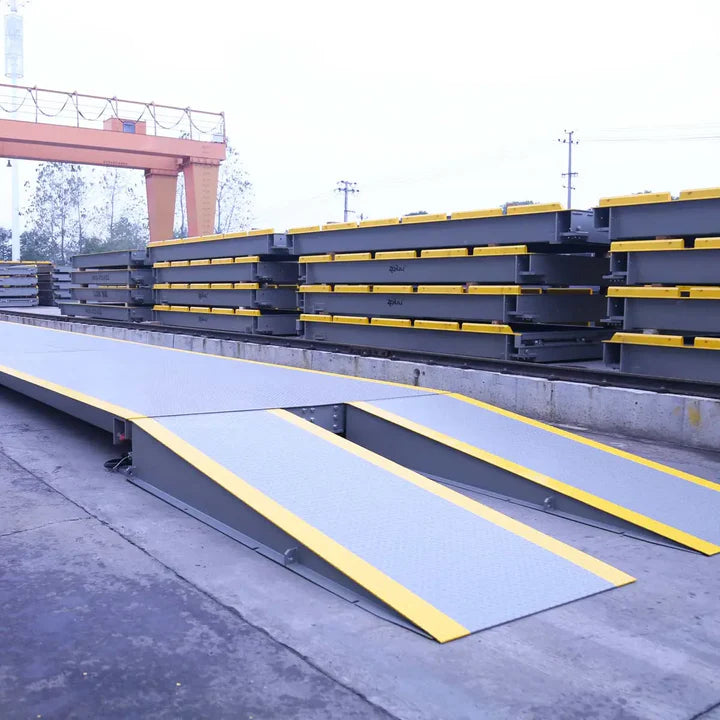

Featuring a 10 ft wide by 56 ft long industrial steel deck, the scale is built using six modular U-shaped beam sections for strength, stability, and ease of transportation. The checker-plated surface, combined with an anti-corrosion coating, ensures long-lasting performance even in harsh working environments.

Included industrial load cells and a digital weight indicator provide accurate, real-time measurements across a wide temperature range from -35°C to +70°C. The system supports data storage with power-off protection and includes an audible overload warning, ensuring safe operation with a 120% overload capacity.

A stainless steel junction box is also included, featuring waterproof seal joints and resistance protection to safeguard internal components. This weighbridge is widely used across industries such as logistics, trucking, transportation, agriculture, waste management, forestry, and government or military operations—where accuracy, durability, and reliability are critical.

Shipping Information

• Availability: Pre-sale only
• Shipping Cost: Free shipping from Canada or the United States
• Production & Processing Time: 8–12 weeks
• Estimated Delivery Time: 10–15 business days after shipment, depending on location and site accessibility
• Shipping Method: Enclosed container or flat-deck truck

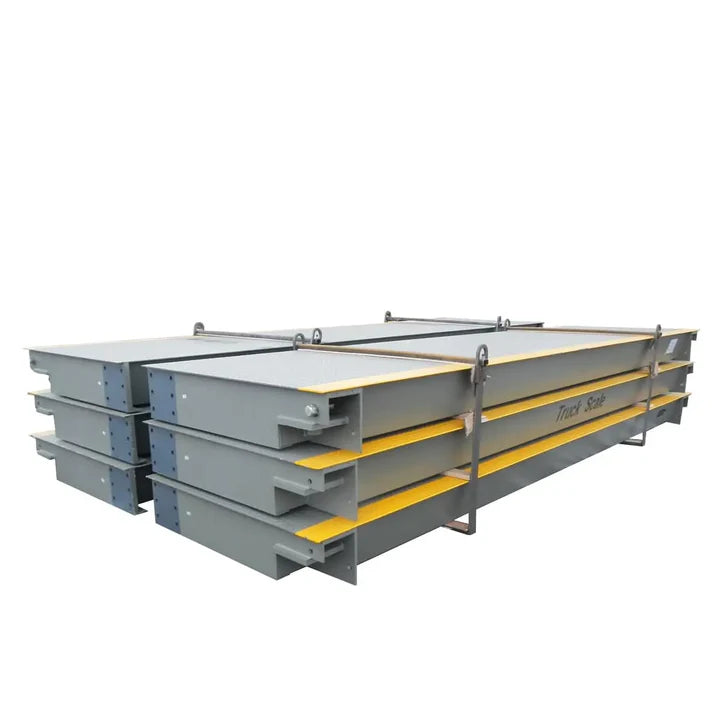

• Shipping Dimensions: 59” × 225” × 12” (per module × 6)
• Shipping Weight: 15,400 lb

Warranty

Every CAEL weighbridge includes a 1-year warranty, providing coverage against manufacturing defects in materials and workmanship.

We are committed to supporting you beyond the purchase. Our customer service team is available to assist with technical support, troubleshooting, and parts guidance—ensuring your CAEL equipment continues to perform reliably throughout its service life.
